Features
-
High-Power PoE – 24 PoE+++ ports delivering up to 90W per port with a total PoE budget of 720W.
-
Multi-Gig Connectivity – 16 × 10G and 8 × 2.5G RJ45 ports plus 2 × 25G SFP28 uplinks.
-
Massive Switching Capacity – 460 Gbps capacity, 230 Gbps non-blocking throughput, and 342 Mpps forwarding rate.
-
Layer 3 Features – DHCP server/relay, static routing, and inter-VLAN routing support.
-
Advanced Layer 2 – IGMP snooping, QoS (DSCP), LACP aggregation, STP/RSTP, VLAN voice, and Pro AV profiles.
-
Etherlighting™ Technology – Illuminated ports for quick identification in low-light environments.
-

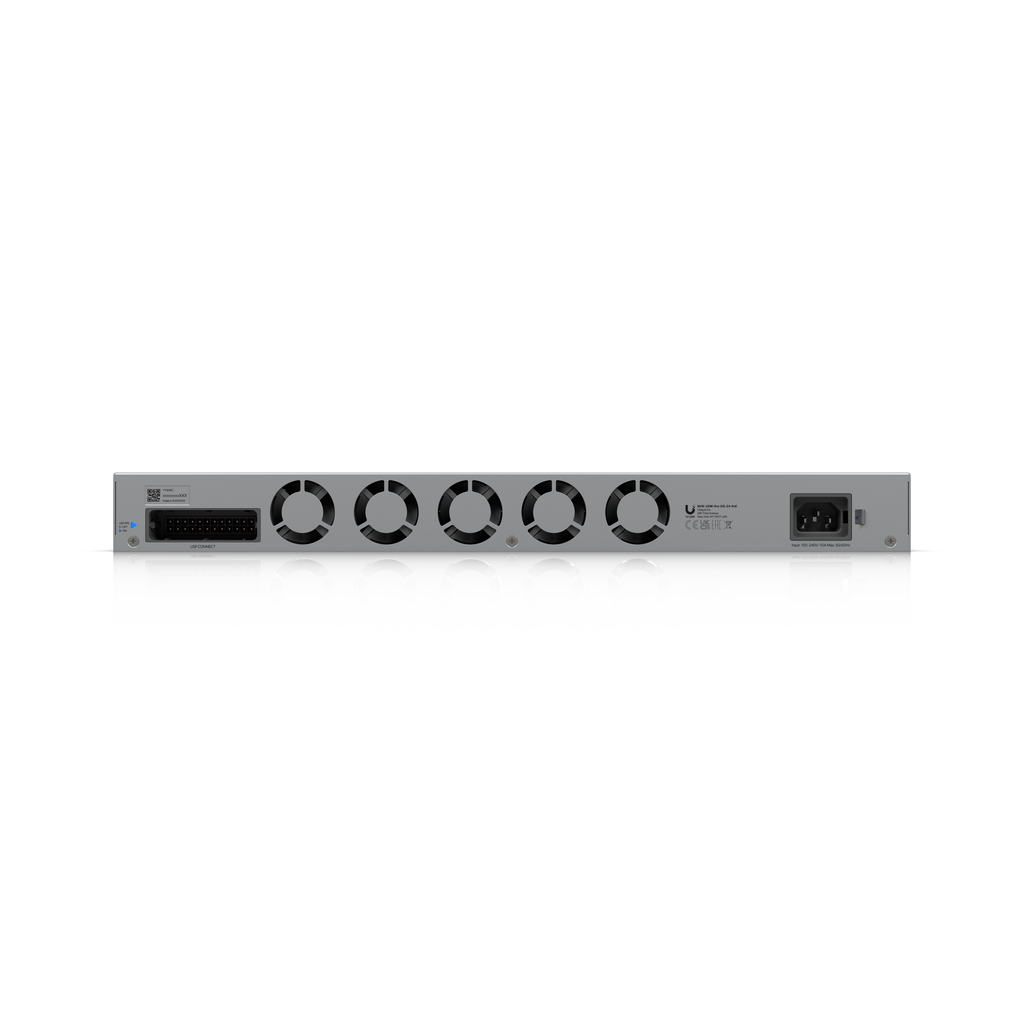

Redundant Power – DC power backup and internal 870W AC/DC power supply for reliability.
-
Durable Build – SGCC steel enclosure with cooling fans for long-lasting performance.
-
Touchscreen Management – 1.3" LCM touchscreen for monitoring and adjustments.

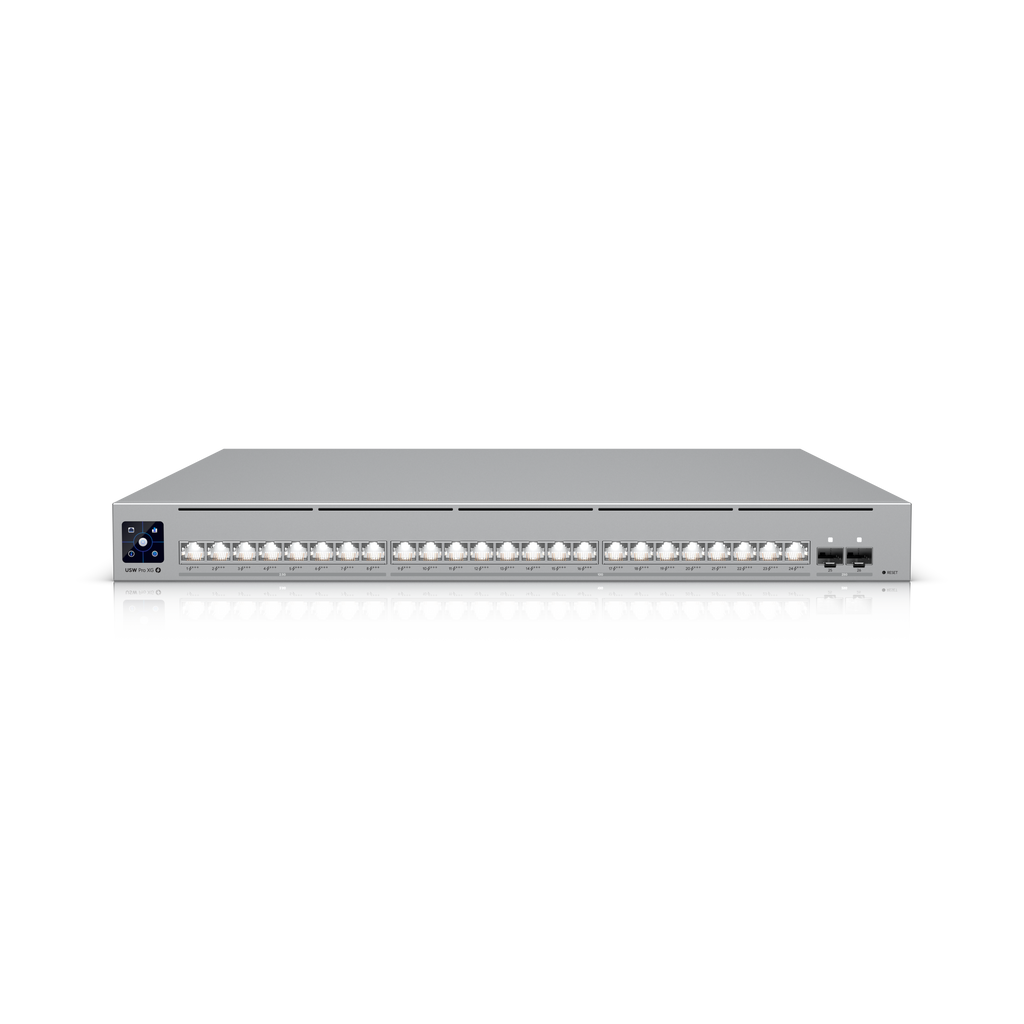

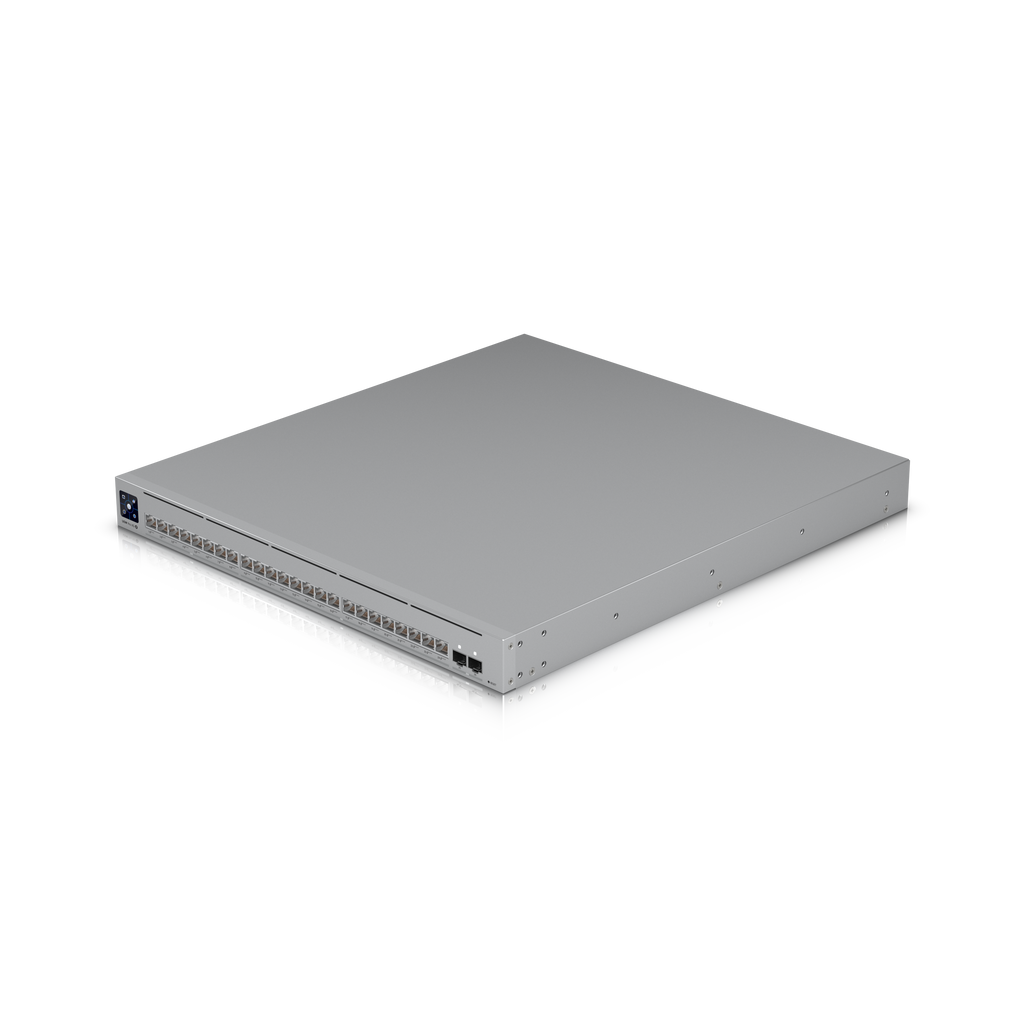

The Ubiquiti Networks Pro XG 24 is an advanced enterprise-grade managed Layer 3 switch designed to handle the most demanding network infrastructures. Featuring 24 multi-gig PoE+++ ports with 2.5G and 10G support, this switch powers devices such as access points, IP cameras, and VoIP phones with up to 90W per port and a total PoE budget of 720W. In addition, dual 25G SFP28 uplink slots provide lightning-fast fiber connectivity for maximum flexibility and scalability in modern data networks.
Engineered for performance, the Pro XG 24 delivers a 460 Gbps switching capacity, 230 Gbps non-blocking throughput, and a 342 Mpps forwarding rate to ensure smooth data handling across high-traffic environments. Layer 3 features such as DHCP server/relay, static routing, and inter-VLAN routing enhance network control, while robust Layer 2 capabilities like LACP, QoS, IGMP snooping, and Pro AV profiles make it highly versatile for business, education, and media applications. Its large MAC and ARP tables support thousands of devices without bottlenecks, making it ideal for large-scale deployments.
Beyond power and speed, the Pro XG 24 is built for reliability and ease of use. A durable SGCC steel chassis with active cooling fans maintains optimal operation, while redundant DC backup ensures failover protection. Etherlighting™ technology illuminates ports for easy identification in low-light environments, and the 1.3" touchscreen display offers quick access to performance monitoring and configuration. With full UniFi Network application support, advanced security features, and NDAA compliance, the Pro XG 24 is the ultimate solution for expanding and securing your enterprise network infrastructure.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | Pro XG 24 |
| UPC | 810177160663 |
| Port Layout | 8 × 2.5G RJ45 (PoE+++), 16 × 10G RJ45 (PoE+++), 2 × 25G SFP28 |
| Max. PoE Output | Up to PoE+++ (90W per port, 720W total) |
| Switching Capacity | 460 Gbps |
| Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| IPv4 Routes | 256,000 |
| Packet Buffer Size | 8 MB |
| Layer 3 Features | DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing |
| Layer 2 Features | LACP, STP/RSTP, QoS (DSCP), IGMP Snooping, Pro AV Profiles, 802.1X, ACLs, VLAN Voice |
| PoE Standards | PoE (15.4W), PoE+ (30W), PoE++ (60W), PoE+++ (90W) |
| Max. Power Consumption | 150W (excluding PoE), 870W (including PoE) |
| Power Input | 100–240V AC, 50/60 Hz; USP RPS DC input |
| Enclosure Material | SGCC steel |
| Dimensions | 442 × 480 × 44 mm (17.4 × 18.9 × 1.7") |
| Weight | 7.9 kg (17.4 lb) without brackets; 8 kg (17.6 lb) with brackets |

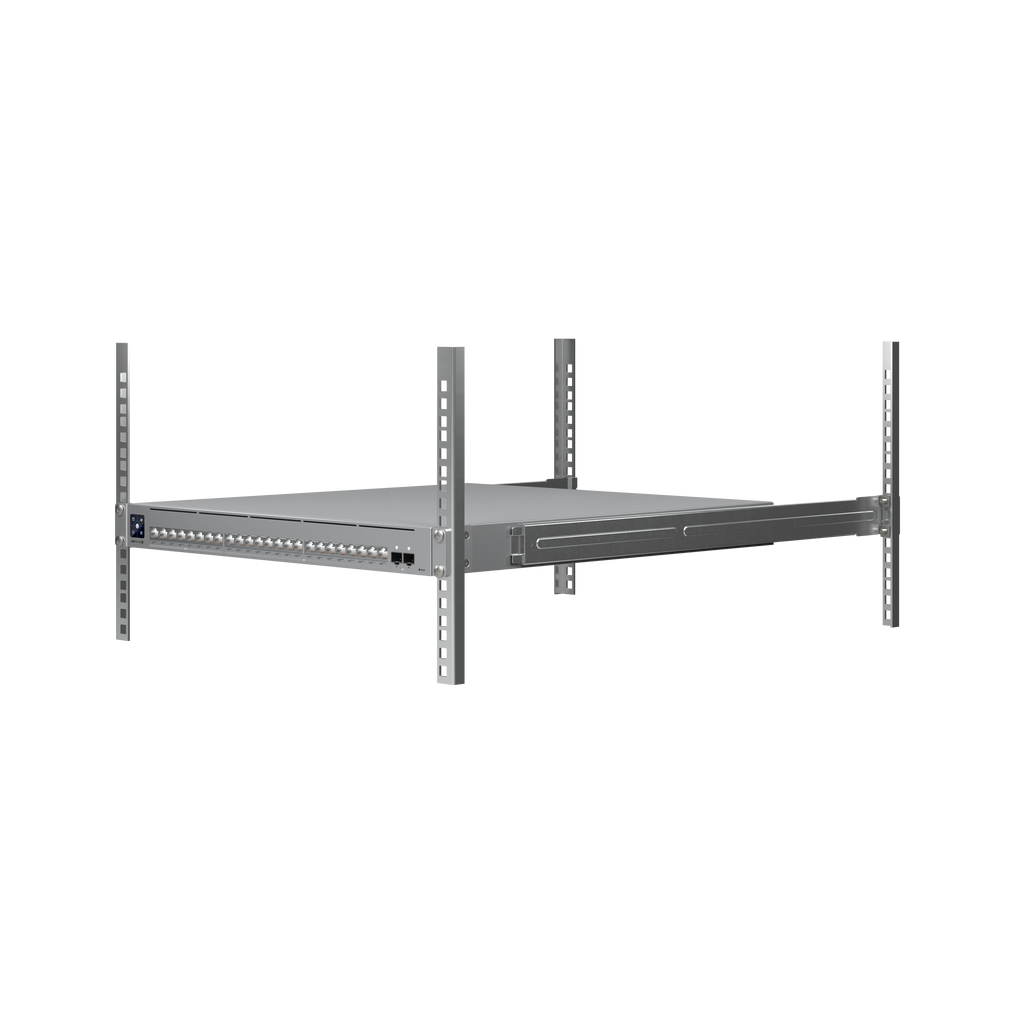

| Mounting | Rack mount (1U), 19" four-post racks, depth 600–1066 mm |
| Display | 1.3" LCM touchscreen |
| ESD Protection | Air: ±30kV; Contact: ±20kV |
| Operating Temperature | -5 to 40 °C (23 to 104 °F) |
| Operating Humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC; NDAA Compliant |
| Software Requirements | UniFi Network version 9.1.120 or later |
