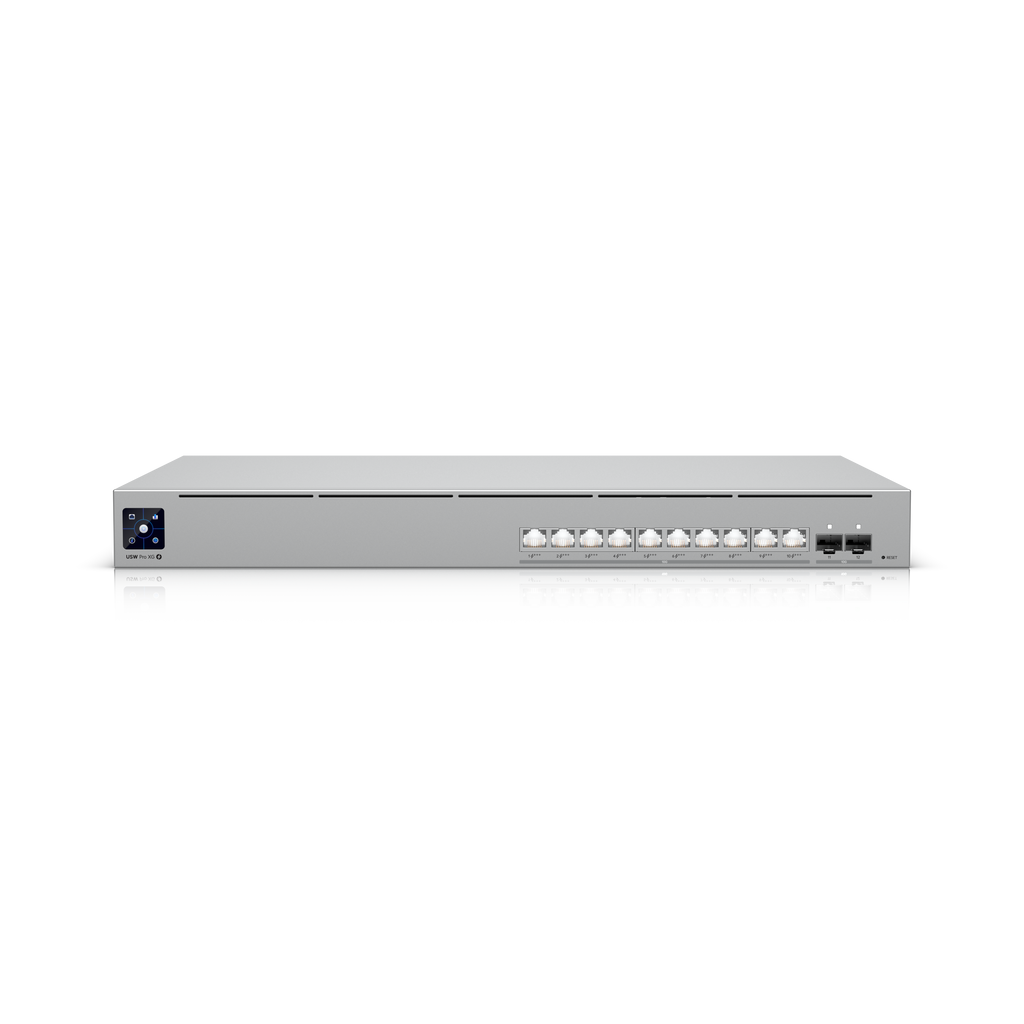

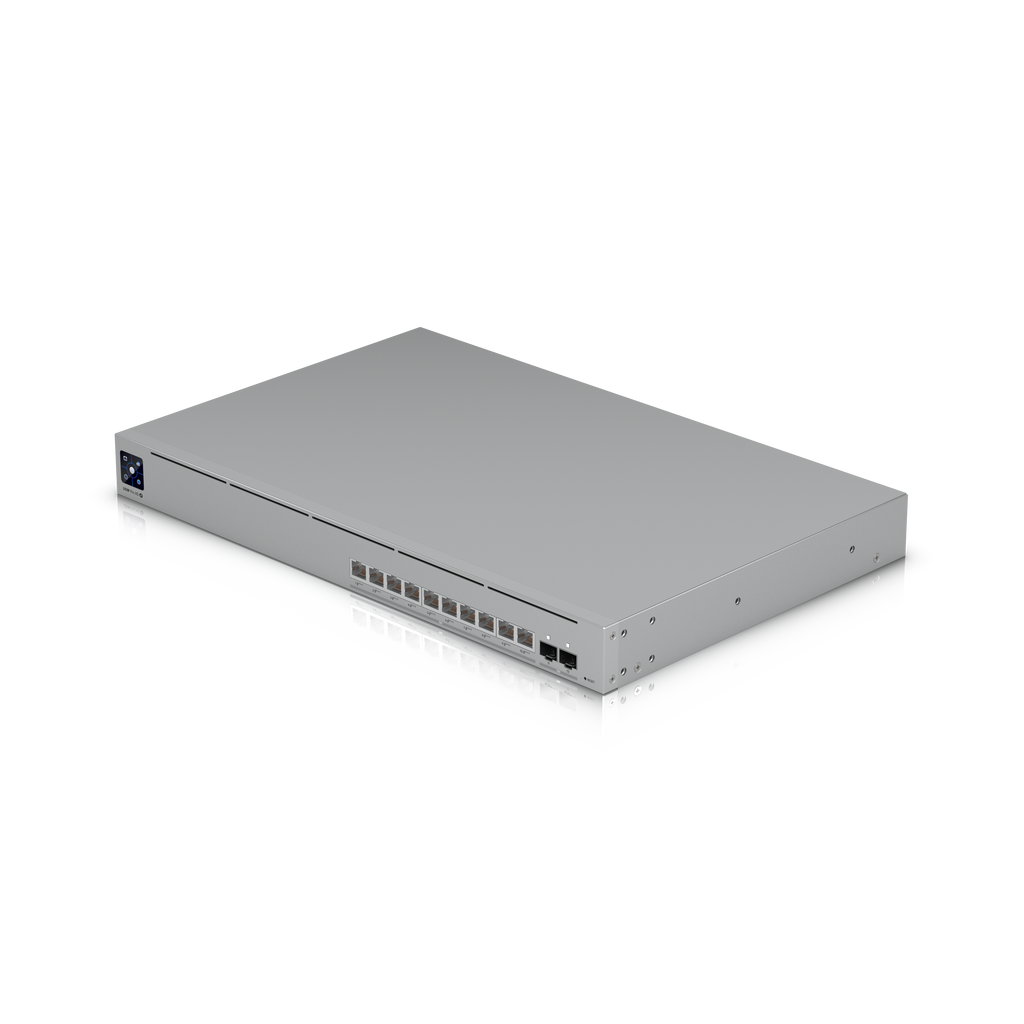

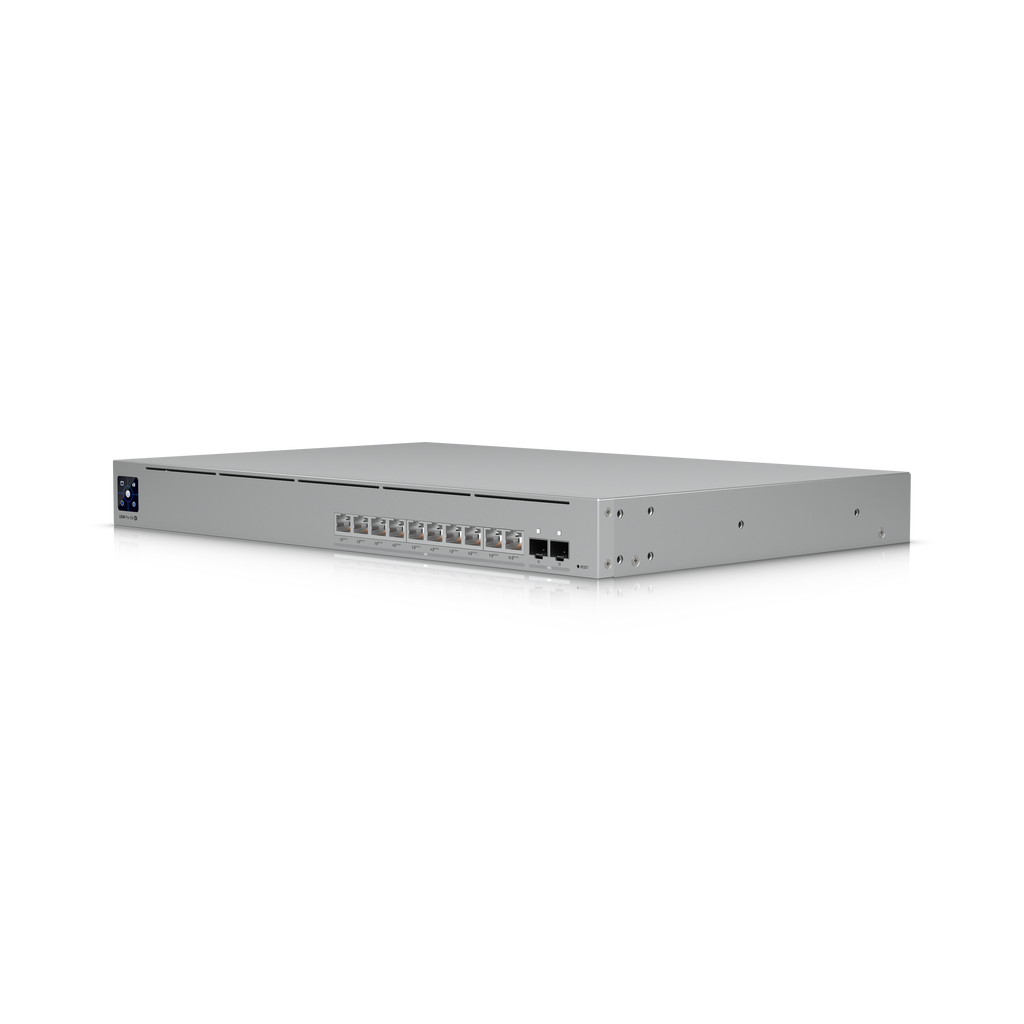

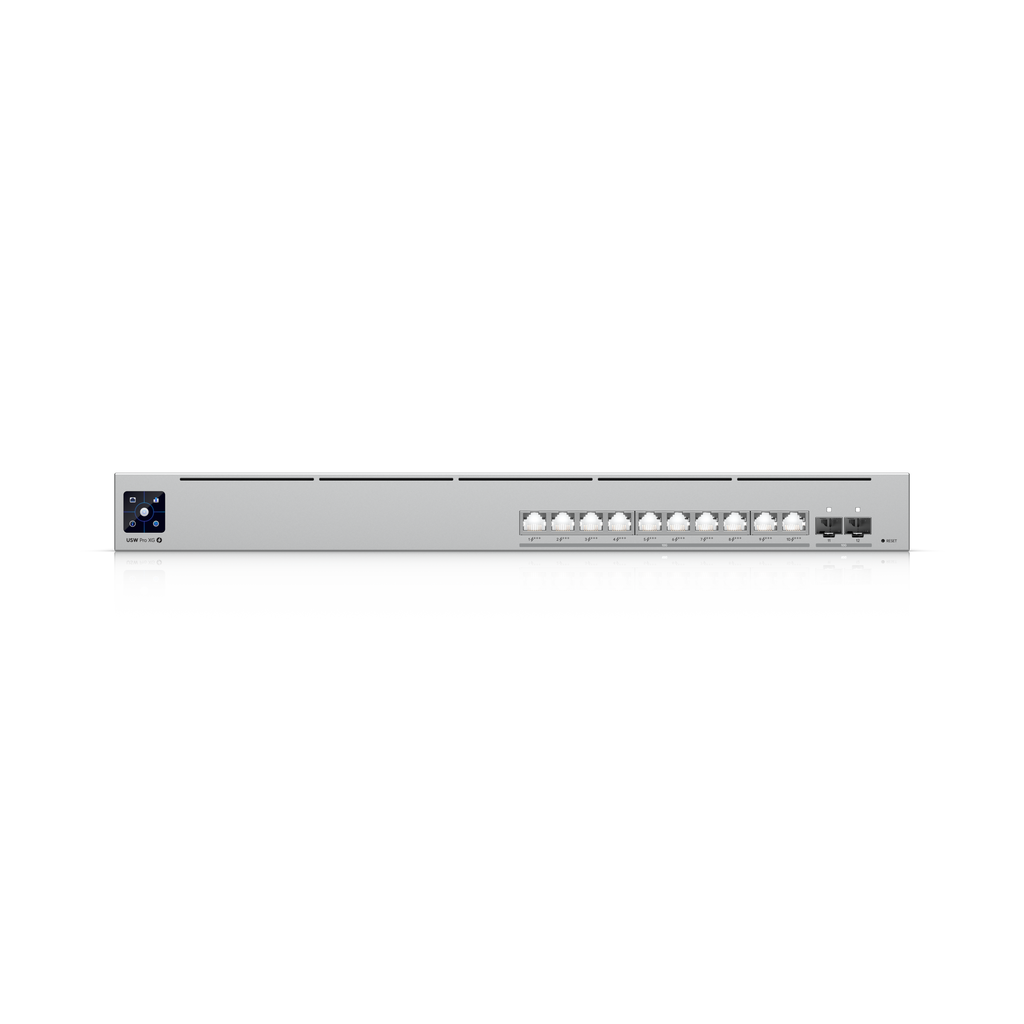

Ubiquiti USW-PRO-XG-10-POE Networks Pro XG 10 10-Port 10G PoE 4 Compliant Managed Network Switch

Features

• High-Speed Ports – Ten 10G RJ45 ports with full PoE+++ support

• Powerful PoE – Up to 90W per port, 400W total PoE budget

• Fiber Uplinks – Two 10G SFP+ slots for fast uplink connections

• Performance – 240 Gbps switching capacity and 179 Mpps forwarding rate

• Touchscreen Control – 1.3" touchscreen for monitoring and management

• Etherlighting™ – Illuminated ports for easier identification in low light

• Advanced Layer 2/3 – DHCP, VLAN routing, QoS, ACLs, IGMP, and more

• Durable Build – Steel enclosure with cooling fans for optimal performance

The Ubiquiti Networks Pro XG 10 is a powerful 10-Port 10G PoE 4 Compliant Managed Network Switch designed for enterprise networks that demand speed, scalability, and reliability. With ten 10-Gigabit RJ45 ports supporting PoE+++ and a total PoE budget of 400W, it powers advanced devices such as IP security cameras, wireless access points, and VoIP phones with ease. Two dedicated 10G SFP+ uplinks provide high-speed fiber connectivity, ensuring seamless data transfer across your network backbone.

Engineered for high performance, the Pro XG 10 delivers a 240 Gbps switching capacity, 120 Gbps non-blocking throughput, and a 179 Mpps forwarding rate, ensuring smooth and reliable traffic flow even under heavy loads. Advanced Layer 3 features such as DHCP server, DHCP relay, inter-VLAN routing, and static routing are built-in, alongside a comprehensive Layer 2 feature set including LACP aggregation, QoS, VLANs, ACLs, IGMP snooping, and multicast/broadcast control. These capabilities make it ideal for both enterprise IT networks and demanding Pro AV applications.

The switch is built with a robust SGCC steel enclosure in a 1U rackmount form factor, complemented by integrated cooling fans for long-lasting stability. A bright 1.3" touchscreen display with Etherlighting™ technology simplifies monitoring and port identification, even in dark environments. With support for UniFi Network application version 9.1.120 and later, administrators gain centralized management, advanced security policies, and simplified configuration across multiple devices. Certified to CE, FCC, and IC standards and NDAA compliant, the Ubiquiti Pro XG 10 combines power, versatility, and enterprise-class performance in a compact, rack-ready package.

Technical Specifications
