Features
-
5 × Gigabit Ethernet Ports – Five RJ45 ports deliver fast, wired connectivity for desktops, cameras, and APs.
-
PoE-In Flexibility – Power through 802.3af/at PoE-in or an optional USB Type-C power adapter.
-
10 Gb/s Switching Capacity – Handles aggregated traffic up to 10 Gb/s for smooth performance.
-
7.44 Mpps Forwarding Rate – Efficient packet handling for busy small networks.
-
Silent, Fanless Design – Compact desktop build operates quietly in offices and homes.
-
UniFi Network Controller – Configure, monitor, and update devices with remote firmware upgrades and guest controls (v5.12.5+).

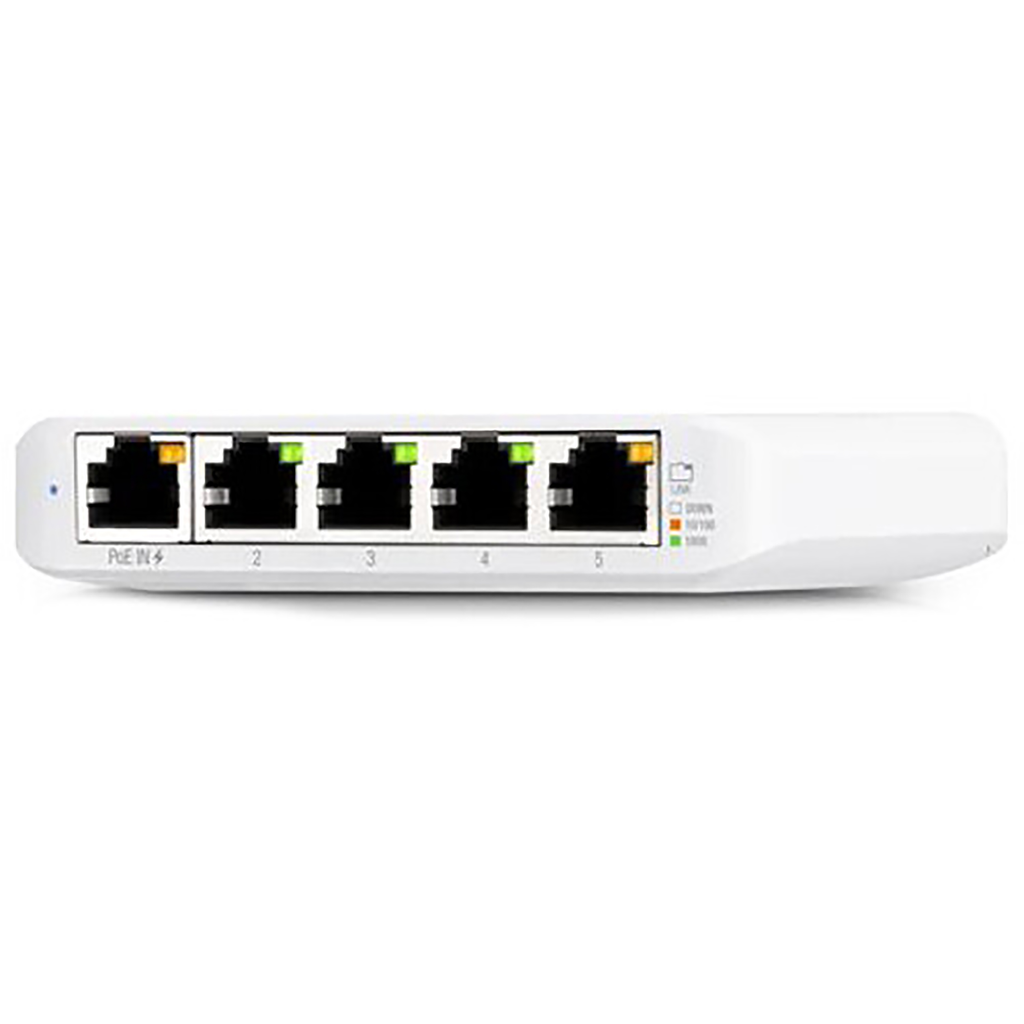

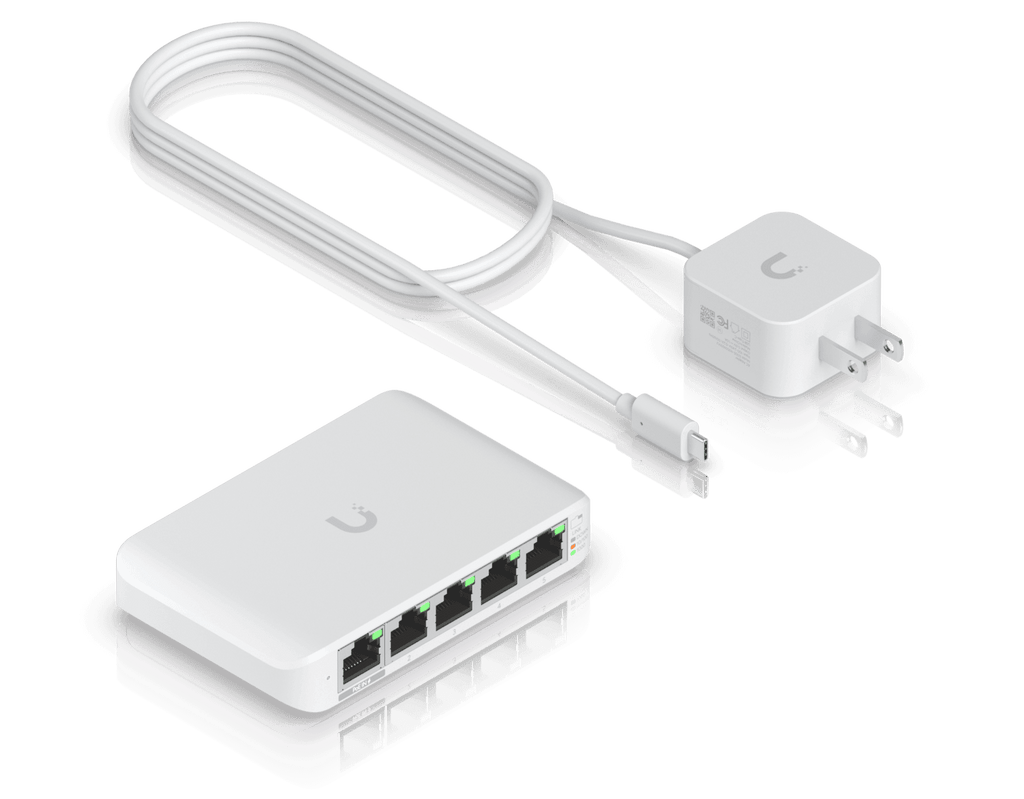

Expand your wired network with the compact, silent UniFi USW Flex Mini. This 5-port Gigabit managed switch slips onto any desk and runs fanless for whisper-quiet operation. Power it via 802.3af/at PoE-in or a USB-C adapter and manage everything from the UniFi Network Controller.
Technical Specifications
| Specification | Details |
|---|---|
| UPC | 810010071675 |
| Uplink / Interface | 5 × RJ45 Gigabit Ethernet; 1 × PoE-In |
| Power Consumption | 2.5 W |
| Operating Conditions | 23 to 113°F / -5 to 45°C at 10 to 90% humidity |
| Dimensions (Without mount) | 4.22 x 2.76 x 0.83" / 107.16 x 70.15 x 21.17 mm |
| Weight | 5.3 oz / 150 g |
| Mounting Options | Desktop (not rack-mountable) |
| Certifications | No |
| Management | UniFi Network Controller (version 5.12.5 or higher) |
| Features | 10 Gb/s switching capacity; 7.44 Mpps forwarding rate; fanless design; PoE-in or USB Type-C power |
