Ubiquiti UniFi Switch Flex (USW-FLEX) – 5-Port Managed Gigabit PoE Switch, Indoor/Outdoor

Features:

• 5 Gigabit Ethernet ports with PoE support

• Fanless design for silent operation

• Weatherproof enclosure for indoor/outdoor use

• 46W total PoE budget with flexible power options

• Managed through UniFi Network Controller

The Ubiquiti UniFi Switch Flex (USW-FLEX) is a compact and versatile Layer 2 managed switch designed for modern networking needs. Featuring five Gigabit Ethernet ports and PoE passthrough, this switch delivers both power and connectivity to your devices without additional cabling complexity. Its IP55-rated weatherproof enclosure makes it ideal for both indoor and outdoor deployments, offering reliability in challenging environments.

With 46W total PoE budget, the USW-FLEX can power access points, cameras, and other PoE devices effortlessly. It is easily managed through the UniFi Network Controller, providing advanced configuration options and real-time monitoring. Whether you need to extend your network to outdoor spaces, offices, or security installations, the USW-FLEX offers a robust and cost-effective solution.

Technical Specifications

• Model: USW-FLEX

• UPC: 817882027470

• Weight: 230 g (0.51 lb)

• Dimensions: 122.5 × 107.1 × 28 mm (4.82 × 4.22 × 1.1 in)

• Enclosure: Polycarbonate, IP55 weatherproof

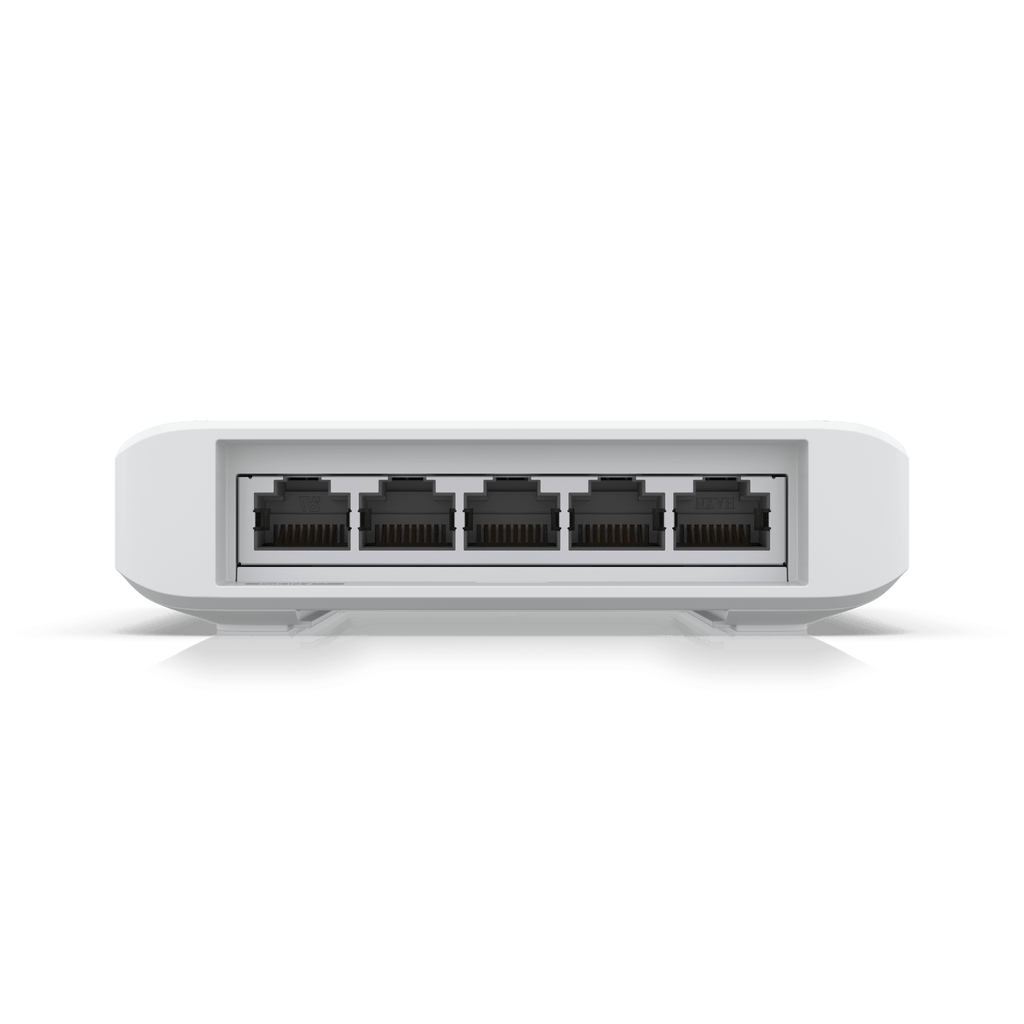

• Ports: 5 × Gigabit RJ45 (1 PoE-in, 4 PoE-out)

• Switching Capacity: 10 Gbps

• Non-Blocking Throughput: 5 Gbps

• Forwarding Rate: 7.44 Mpps

• PoE Budget: 46W (when powered with PoE++ input)

• Power Options: PoE++ (802.3bt), 48V Passive PoE

• Max Power Consumption: 5W (switch only)

• Operating Temperature: -40°C to 55°C (-40°F to 131°F)

• Certifications: CE, FCC, IC
