Features:
-
igh-Speed Performance: Achieve up to 1.5 Gbps routing with Intrusion Detection and Prevention System (IDS/IPS) enabled.
-

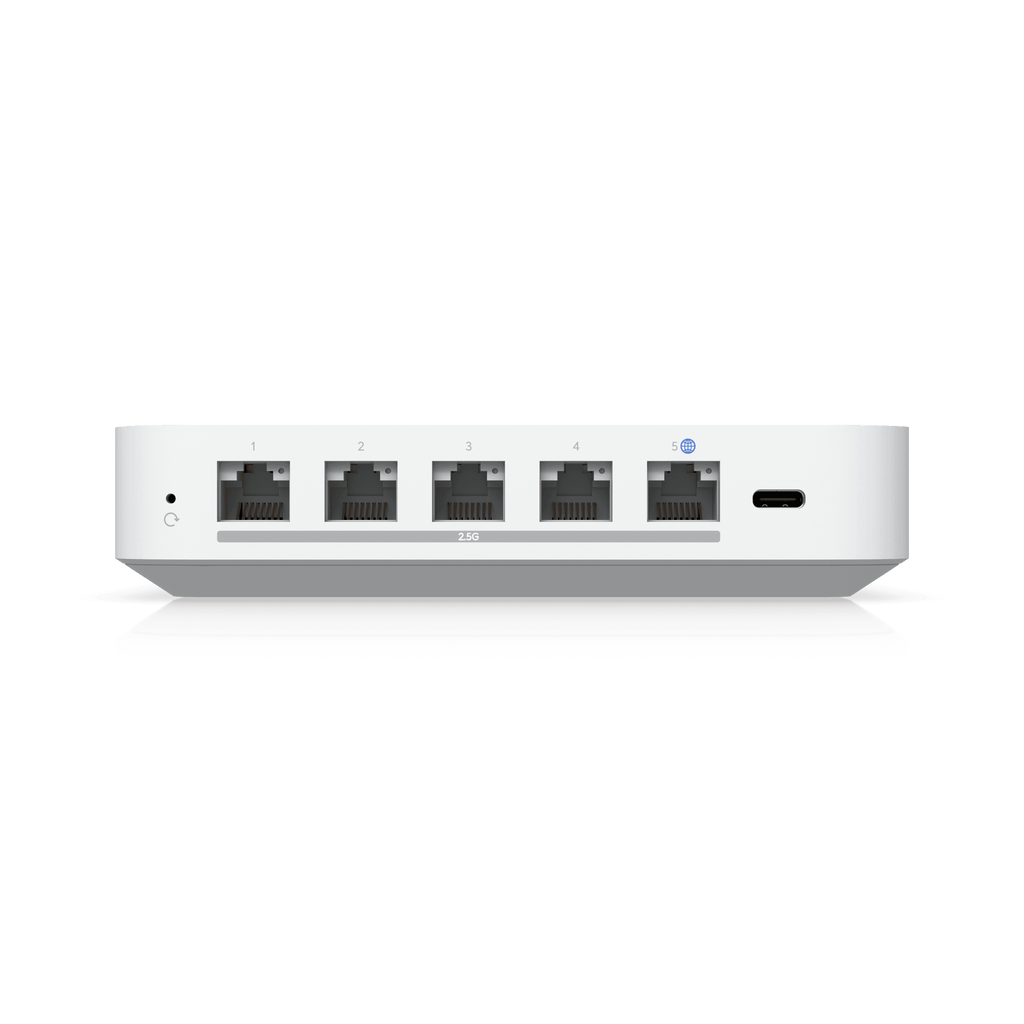

Multi-WAN Capability: Features 1 x 2.5 GbE WAN port and 4 x 2.5 GbE LAN ports, with one LAN port remappable to WAN.
-
Advanced Security Features: Includes stateful firewall, Layer 7 application-aware firewall, DPI, content filtering, and ad blocking.
-
Flexible VPN Support: Supports WireGuard, OpenVPN, L2TP, and IPsec for secure site-to-site and remote access.
-
Compact Design: Desktop form factor measuring 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 inches), ideal for small to medium-sized deployments.
-
Easy Management: Managed via UniFi Network Controller (version 8.1.113 or later), CloudKey, or UniFi Hosting.
-
Power Efficient: Powered through USB-C (5V DC/3A), with a maximum power consumption of 9.6W
The Ubiquiti UniFi Gateway Max (UXG-MAX) is a high-performance, compact multi-WAN security gateway designed for small to medium-sized networks. With its 2.5 GbE ports and robust security features, it offers an ideal solution for users seeking advanced networking capabilities without compromising on space or power efficiency.
Key Features:
High-Speed Routing: Delivers up to 1.5 Gbps routing performance with IDS/IPS enabled, ensuring secure and fast data transmission.
Multi-WAN Ports: Equipped with 1 x 2.5 GbE WAN port and 4 x 2.5 GbE LAN ports, one of which can be remapped to WAN, providing flexible network configurations.
Advanced Security: Offers a comprehensive suite of security features, including stateful firewall, Layer 7 application-aware firewall, Deep Packet Inspection (DPI), content filtering, and ad blocking, to protect your network from threats.
Flexible VPN Support: Supports multiple VPN protocols such as WireGuard, OpenVPN, L2TP, and IPsec, facilitating secure site-to-site and remote access connections.
Compact and Efficient: Its desktop form factor and USB-C power input make it suitable for deployments where space and power efficiency are priorities.
Managed through the UniFi Network Controller (version 8.1.113 or later), CloudKey, or UniFi Hosting, the UXG-MAX integrates seamlessly into the UniFi ecosystem, allowing for centralized management and monitoring of your network
Whether you're setting up a home office, small business, or remote branch, the UniFi Gateway Max provides the performance and security needed to ensure a reliable and secure network infrastructure
Technical Specifications
| Feature | Specification |
|---|---|
| Model | UniFi Gateway Max (Part # UXG-MAX) |
| UPC | 810010079435 |
| Weight | 520 g (1.1 lb) |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 inches) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| Memory | 2 GB DDR4 |
| Networking Ports | 1 x 2.5 GbE WAN port, 4 x 2.5 GbE LAN ports (1 remappable to WAN) |
| IDS/IPS Throughput | Up to 1.5 Gbps |
| Firewall Features | Stateful, Layer 7 application-aware, DPI, content filtering, ad blocking |
| VPN Support | WireGuard, OpenVPN, L2TP, IPsec, Teleport |
| Power Input | USB-C (5V DC/3A), adapter included |
| Power Consumption | 9.6W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Management | UniFi Network Controller (v8.1.113+), CloudKey, UniFi Hosting |
| Form Factor | Desktop |
| Certifications | CE, FCC, IC |
