Features
-
High-capacity ports – 48 Ethernet ports (16× 2.5G, 32× 1G) with 4× 10G SFP+ uplinks
-
Switching power – 224 Gbps switching capacity with 112 Gbps non-blocking throughput
-
Enterprise-ready – Layer 3 features including DHCP server/relay, static routing, inter-VLAN routing
-

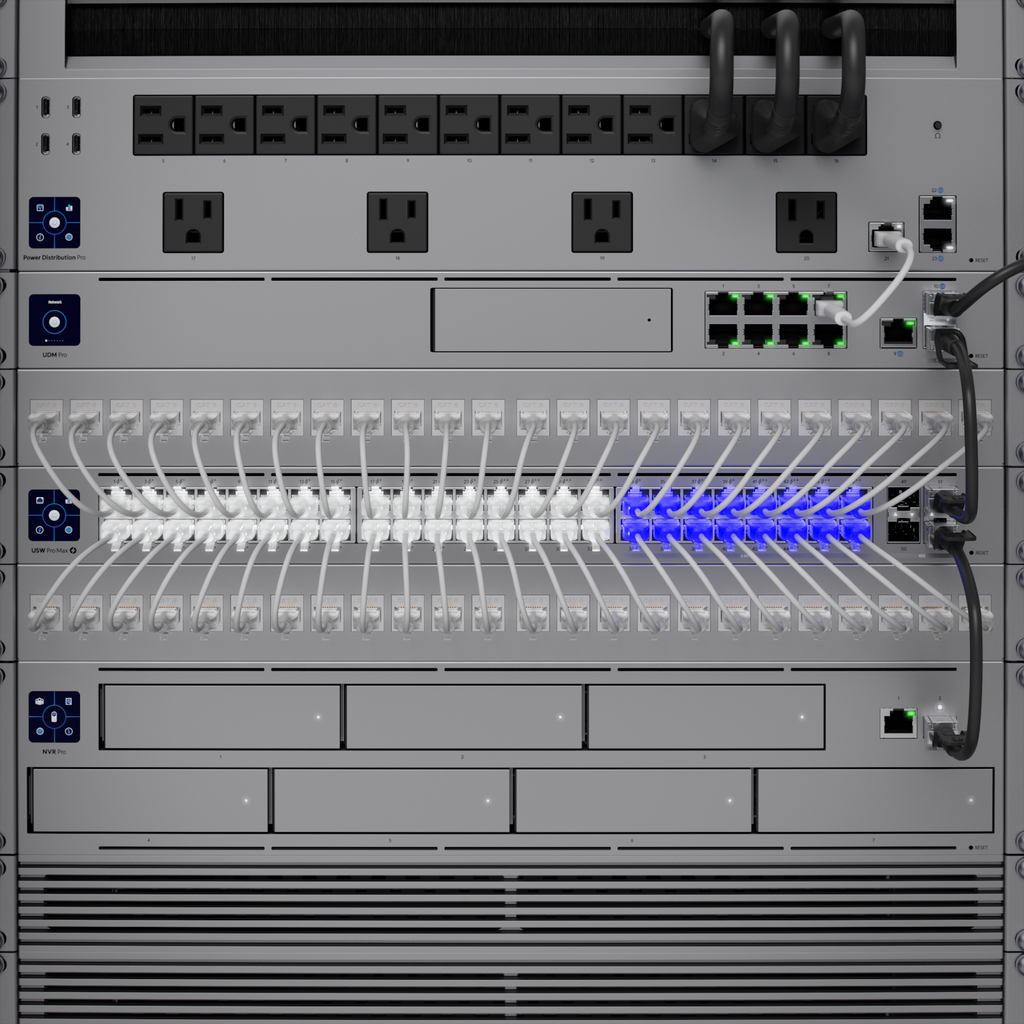

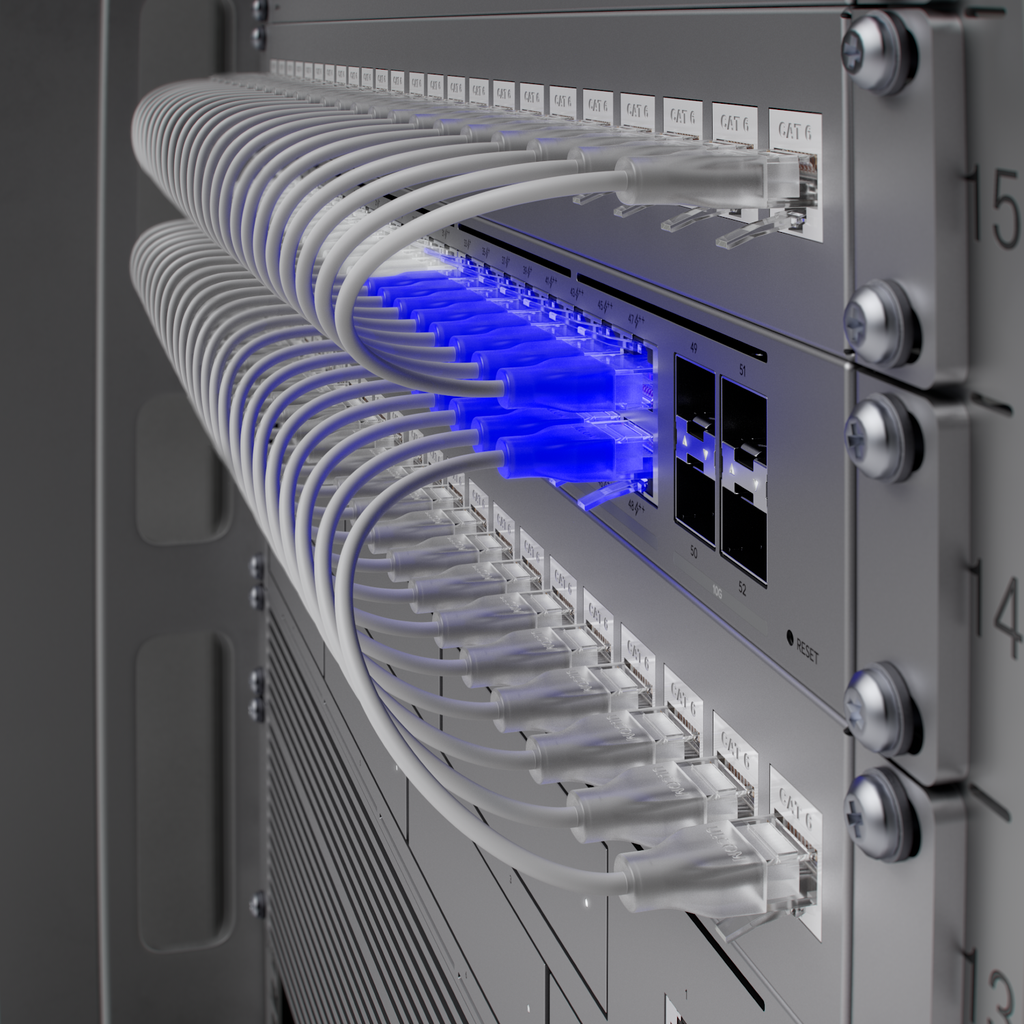

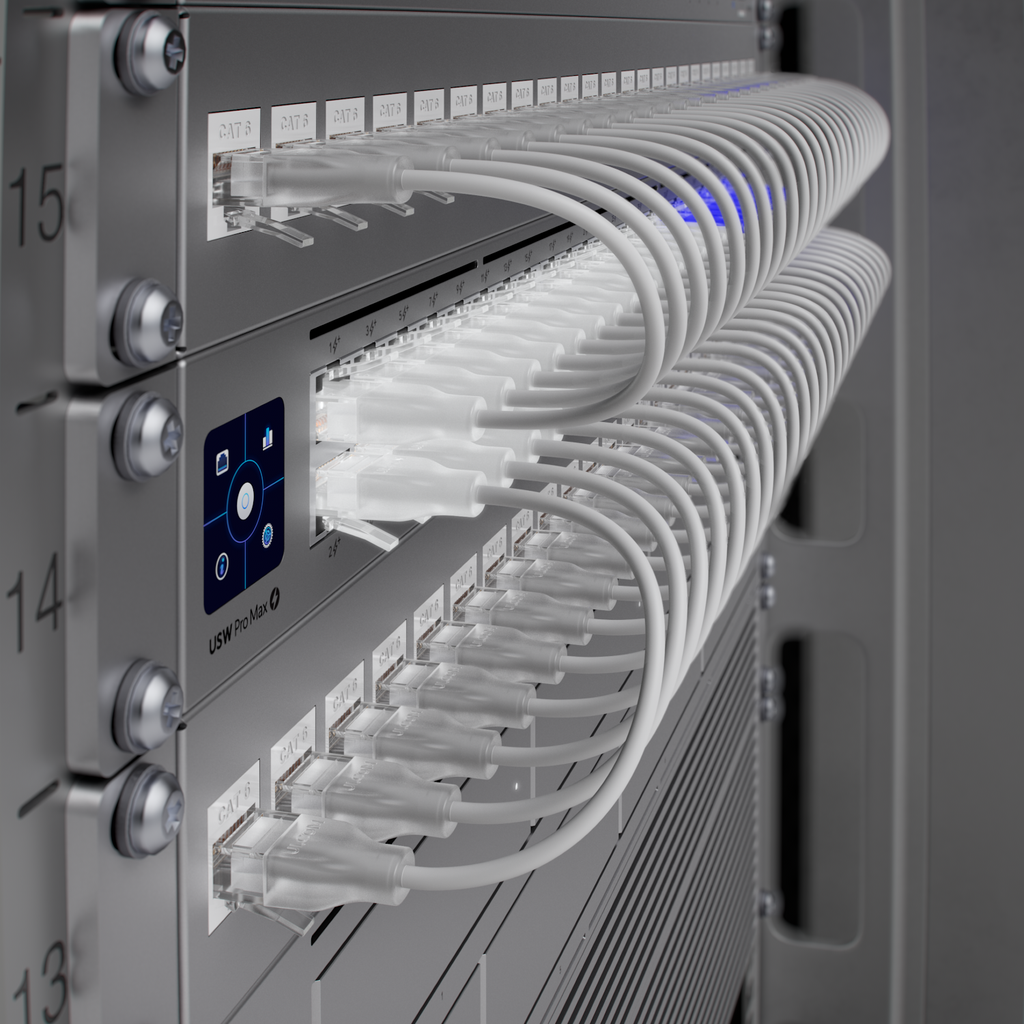

Etherlighting™ – Illuminated port indicators for location, link speed, and VLAN configuration
-
Touchscreen display – 1.3" LCD for real-time system information
-
Rackmount design – 1U form factor with durable SGCC steel build
-
Backup ready – DC input for redundant power failover
-
Efficient operation – 100W max consumption, fanless cooling
-
UniFi integration – Managed via UniFi Network (v8.0.24+)

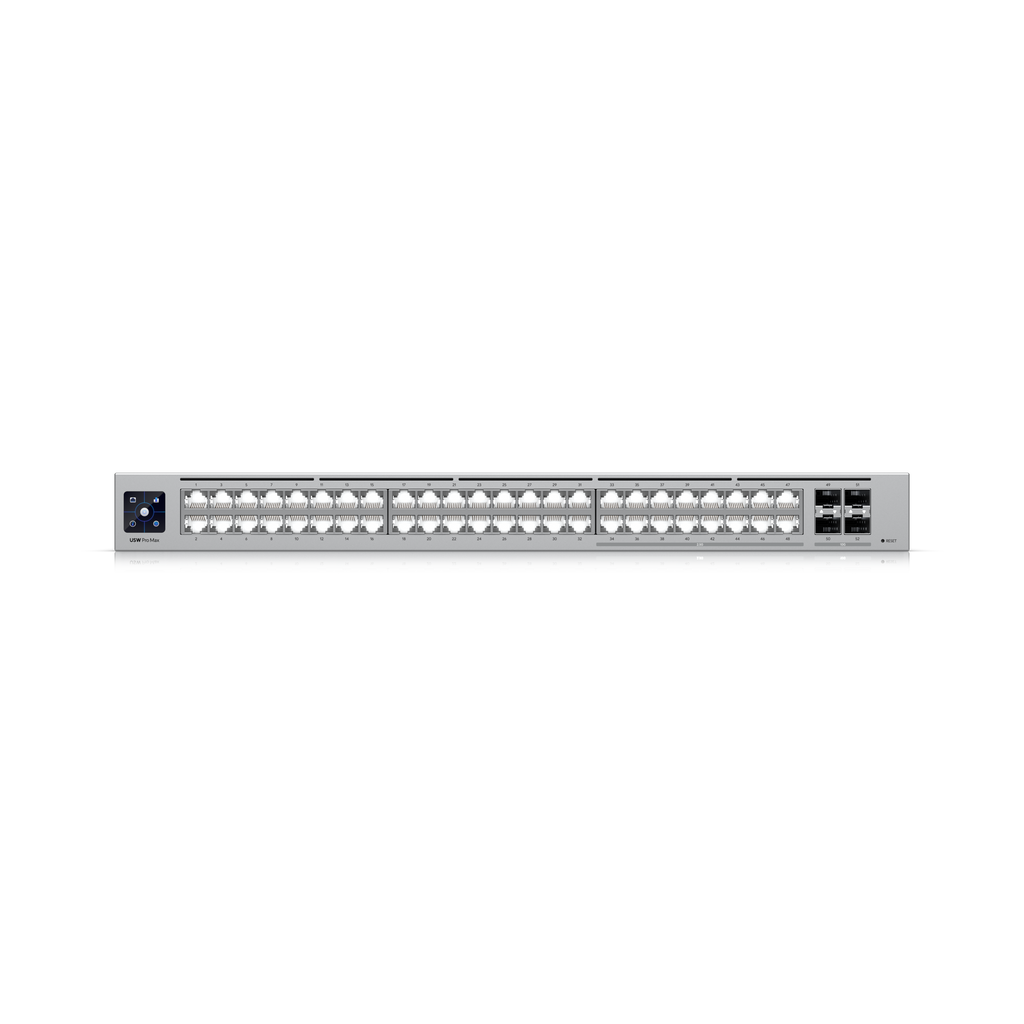

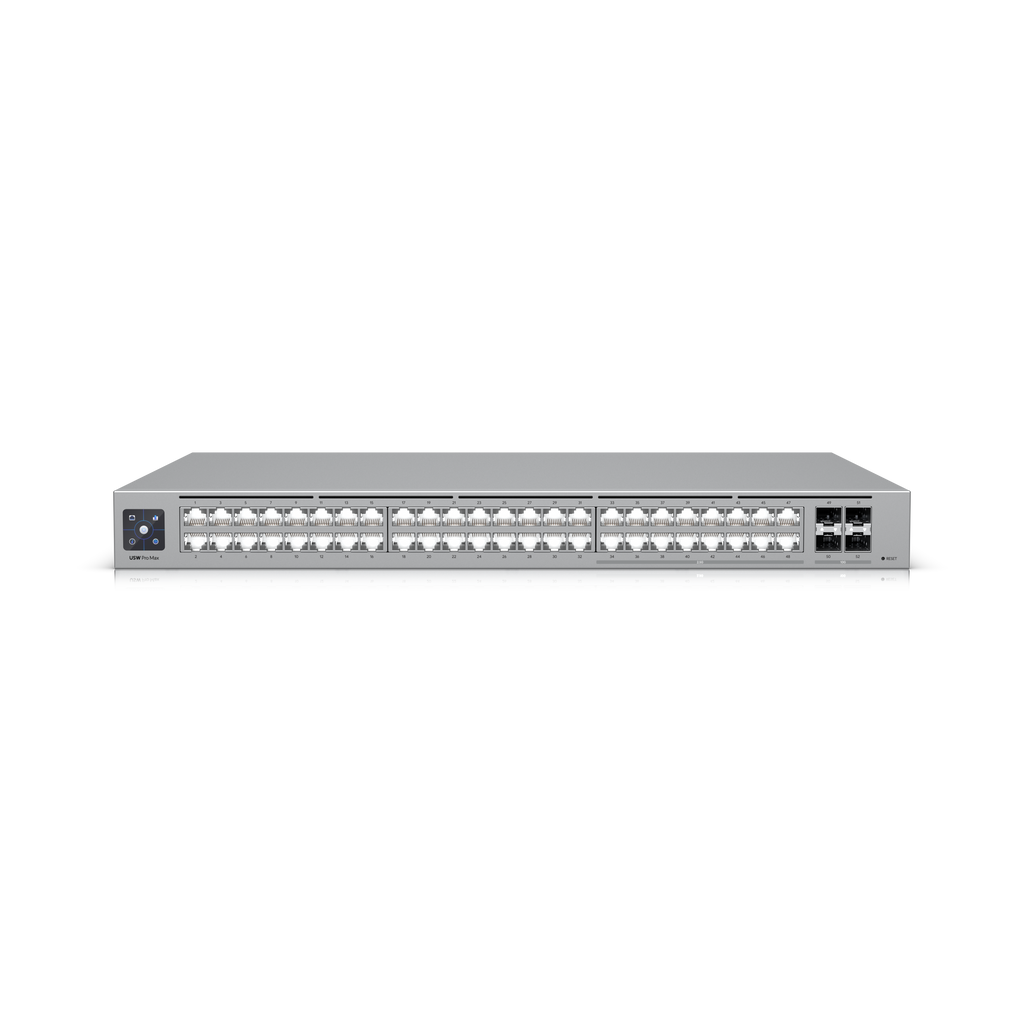

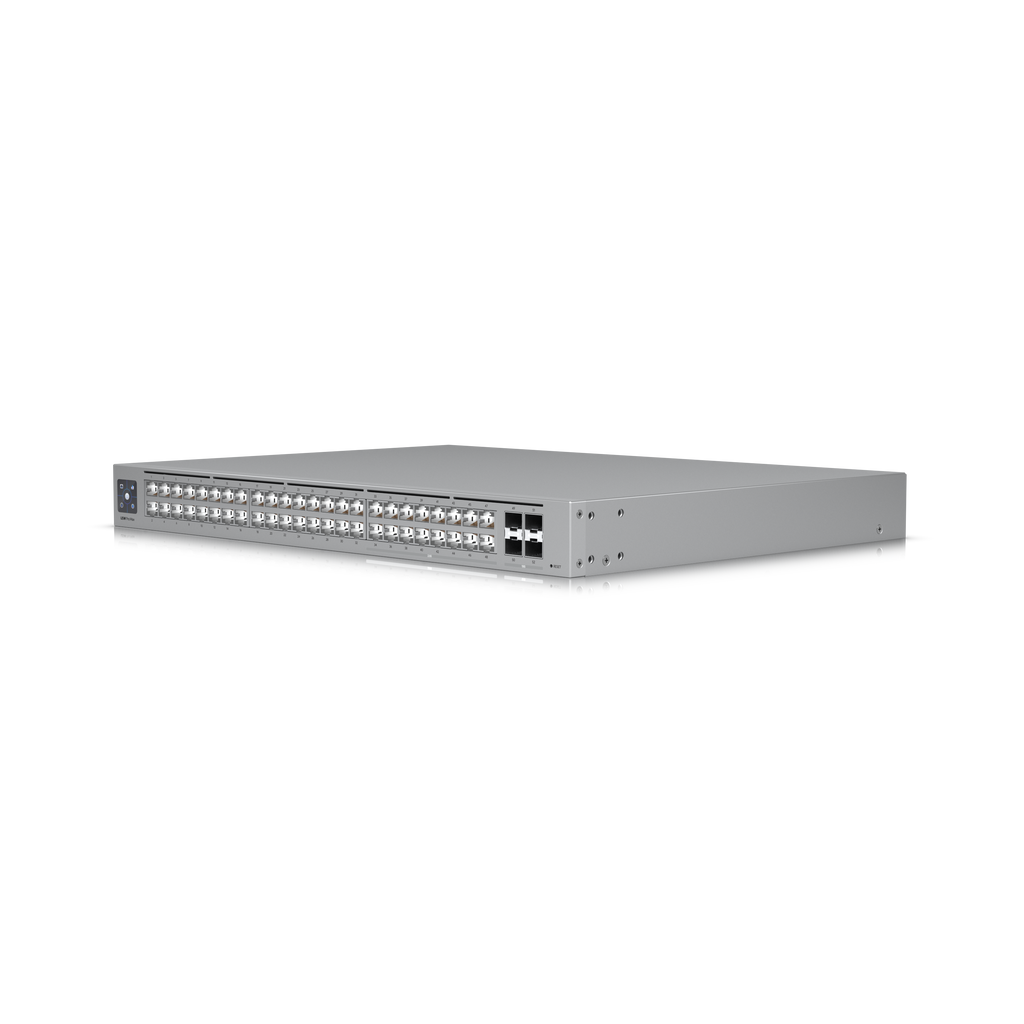

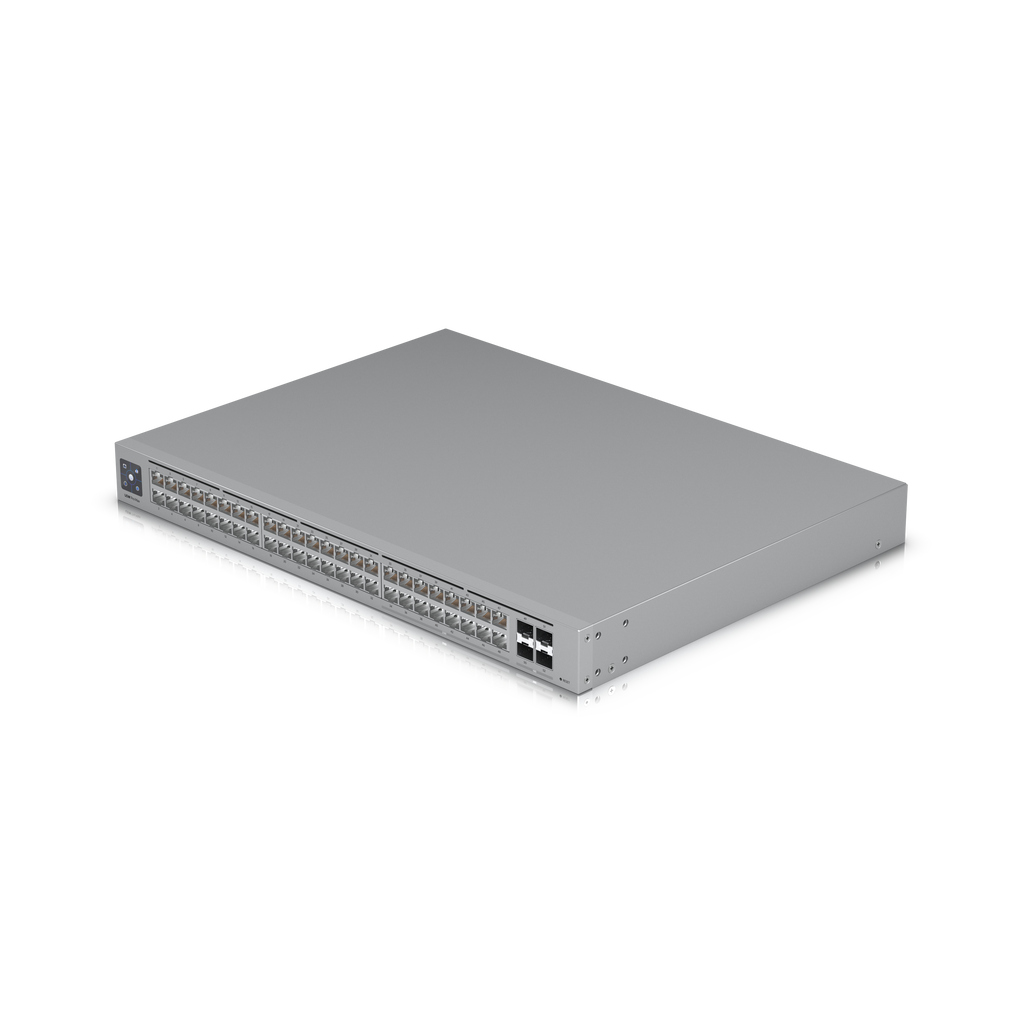

The Ubiquiti USW-Pro-Max-48 is an enterprise-grade managed Layer 3 network switch designed to deliver high-speed connectivity, advanced management, and reliable performance for growing business networks. Featuring 48 total RJ45 ports, including 16×2.5G and 32×1G Gigabit ports, along with 4×10G SFP+ uplinks, it ensures smooth data transfer and seamless integration with demanding workloads such as servers, storage, and enterprise applications.
With a 224 Gbps switching capacity and 112 Gbps non-blocking throughput, the USW-Pro-Max-48 provides uncompromising performance. Built-in Etherlighting™ technology illuminates each port for easy identification of port location, speed, and VLAN configuration, while the 1.3" touchscreen display offers real-time status and monitoring at a glance. Managed through the UniFi Network platform, administrators benefit from simple configuration, advanced visibility, and centralized control.
Engineered for reliability, this rackmount (1U) switch supports DC backup power for failover protection and ensures uninterrupted operation. Advanced Layer 2 and Layer 3 features include VLAN support, DHCP, inter-VLAN routing, QoS, multicast management, and robust security controls, making it an ideal solution for enterprises, education, hospitality, and high-density networking environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | USW-PRO-MAX-48 |
| UPC | 810084692639 |
| Dimensions | 442 × 325 × 44 mm (17.4 × 12.8 × 1.7") |
| Port Layout | 32× 1G RJ45, 16× 2.5G RJ45, 4× 10G SFP+ |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Supported on Ethernet and SFP+ ports |
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | 12,000 ARP entries; 12,000 IPv4 routes |
| Packet Buffer Size | 2 MB |
| Layer 3 Features | DHCP server/relay, inter-VLAN routing, static routing |
| Layer 2 Features | LACP, STP/RSTP, QoS (DSCP), Pro AV profiles, IGMP snooping & advanced config, 802.1X, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, storm control, DHCP snooping & guarding |
| Max. Power Consumption | 100W |

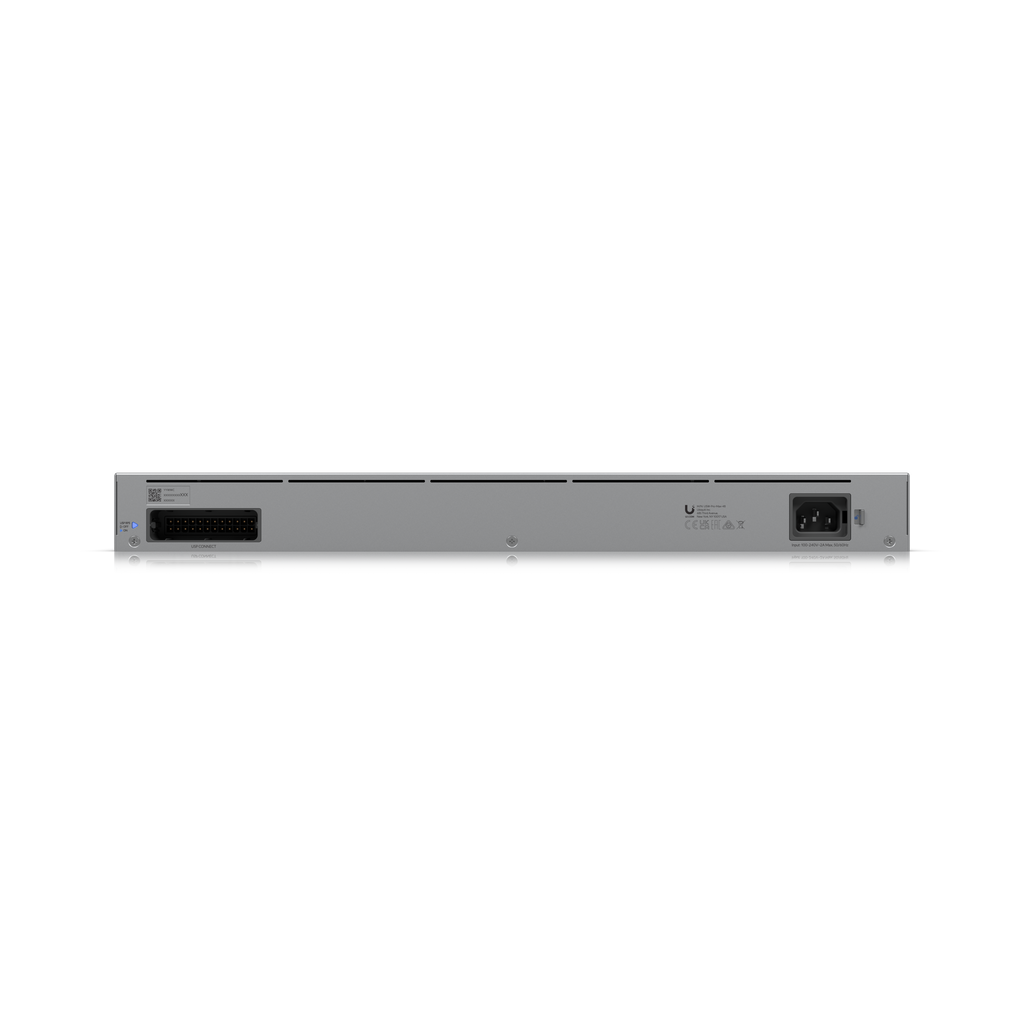

| Power Method | Universal AC input (100–240V, 50/60Hz); USP RPS DC input |
| Power Supply | Internal AC/DC, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | UniFi Network (Version 8.0.24 and later) |
| Heat Dissipation | 341.2 BTU/hr |
| Weight | 4.8 kg (10.6 lb) without brackets; 4.9 kg (10.8 lb) with brackets |
| Enclosure / Build | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Ambient Operating Humidity | 10–90% noncondensing |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |

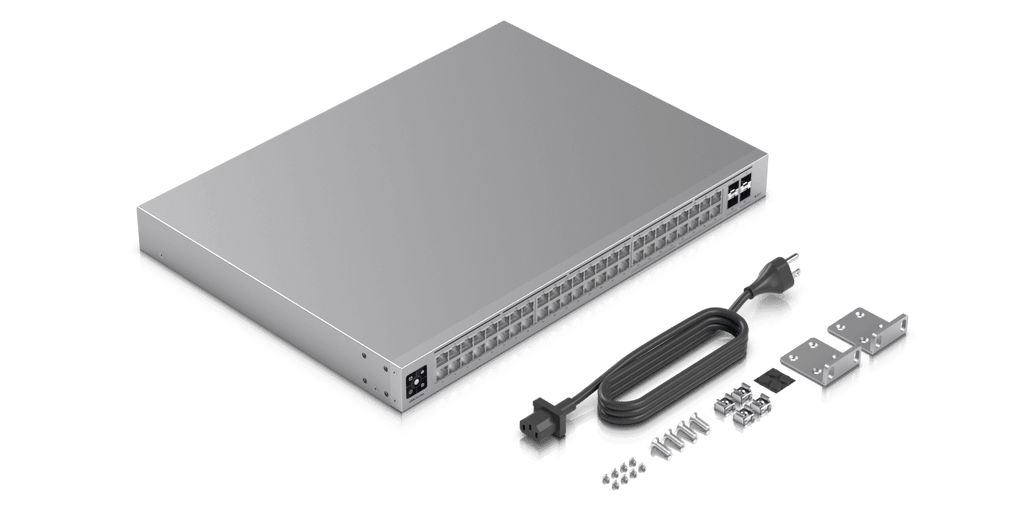

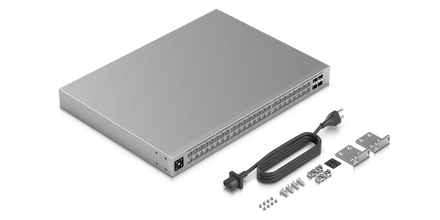

| Items Included | Switch, power cable, rackmount kit, display cover, 1-year limited warranty |
