Features
-
Port flexibility – 24 Ethernet ports (8× 2.5G, 16× 1G) with 2× 10G SFP+ uplinks
-
High performance – 112 Gbps switching capacity with 56 Gbps non-blocking throughput
-
Enterprise features – Layer 3 support including DHCP server/relay, static routing, inter-VLAN routing
-

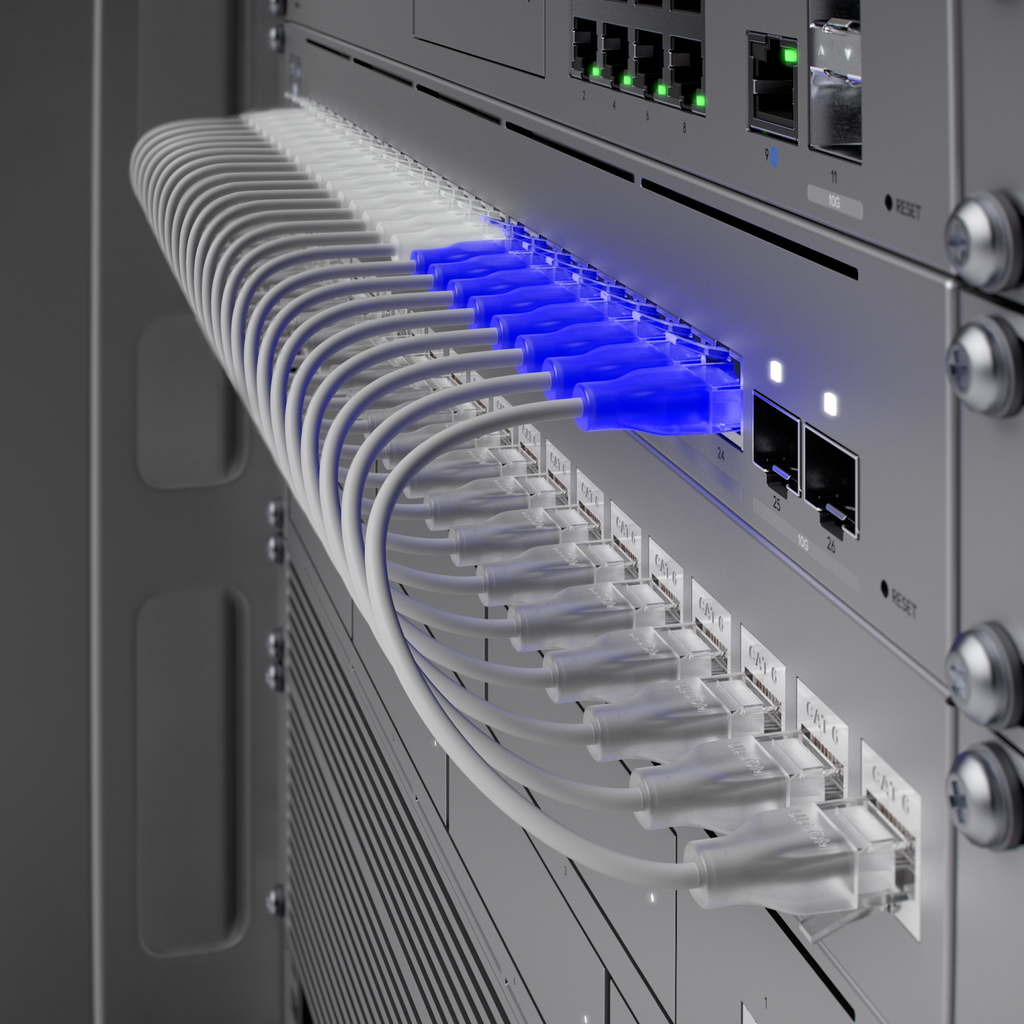

Etherlighting™ – Visual port indicators for speed, link status, and VLAN configuration
-
Touchscreen display – 1.3" LCD provides system status at a glance
-
Reliable build – 1U rackmount form factor with SGCC steel enclosure
-
Backup ready – Supports DC input for redundant power failover
-
Energy efficient – 50W max power consumption
-
UniFi integration – Managed via UniFi Network (v8.0.24+)

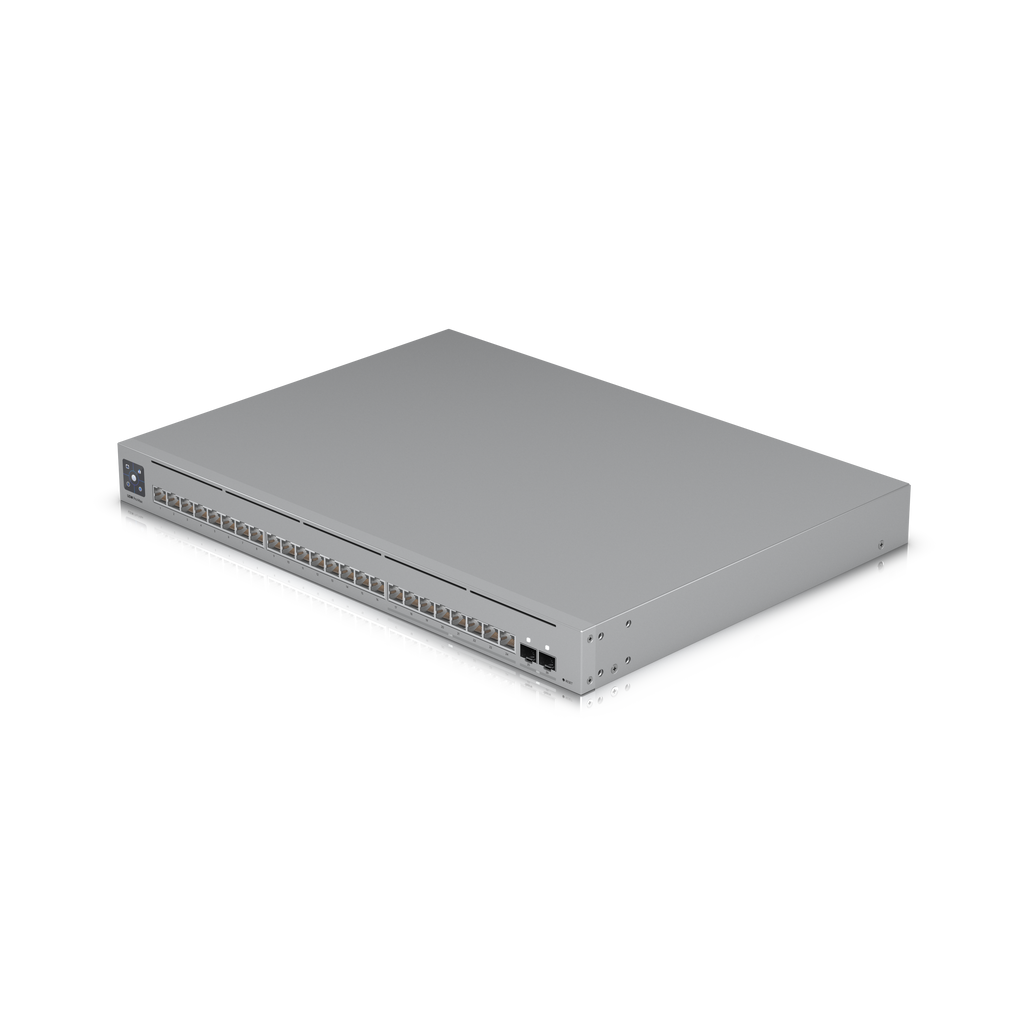

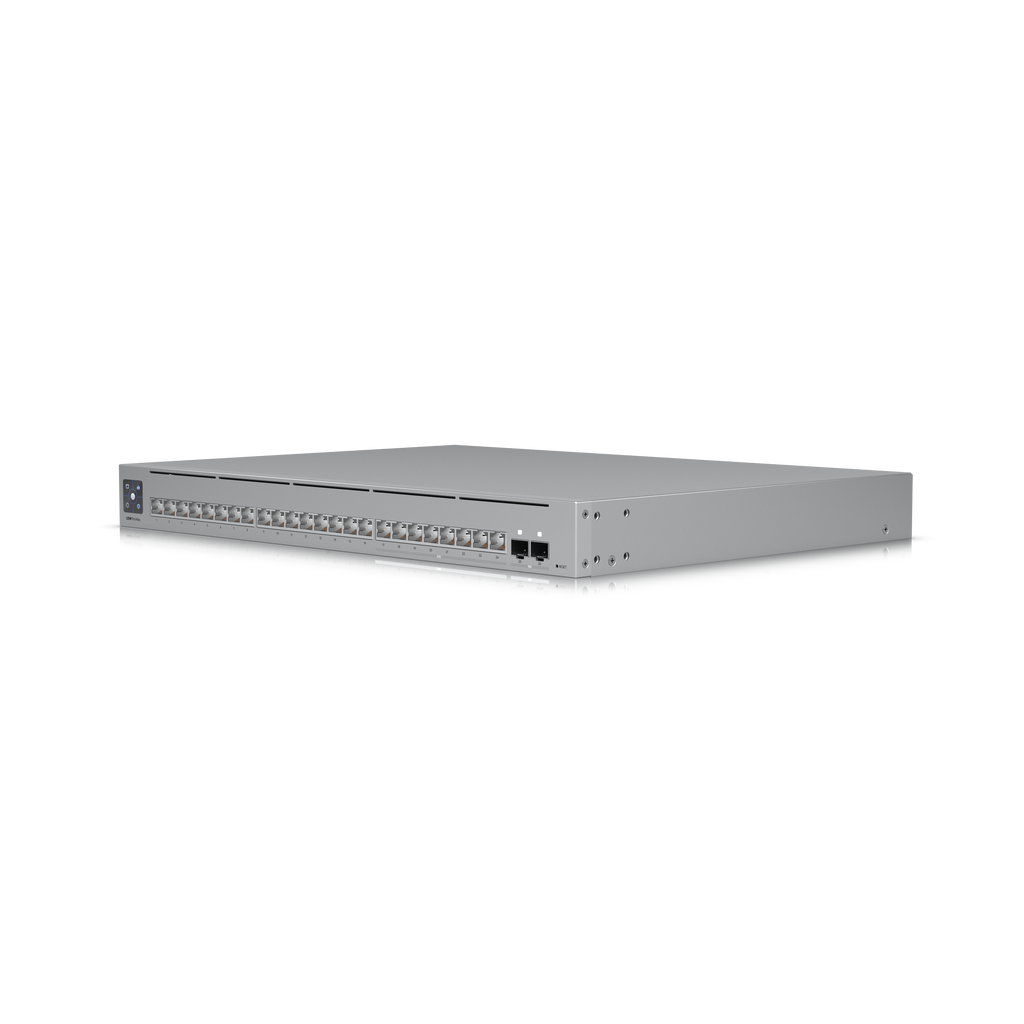

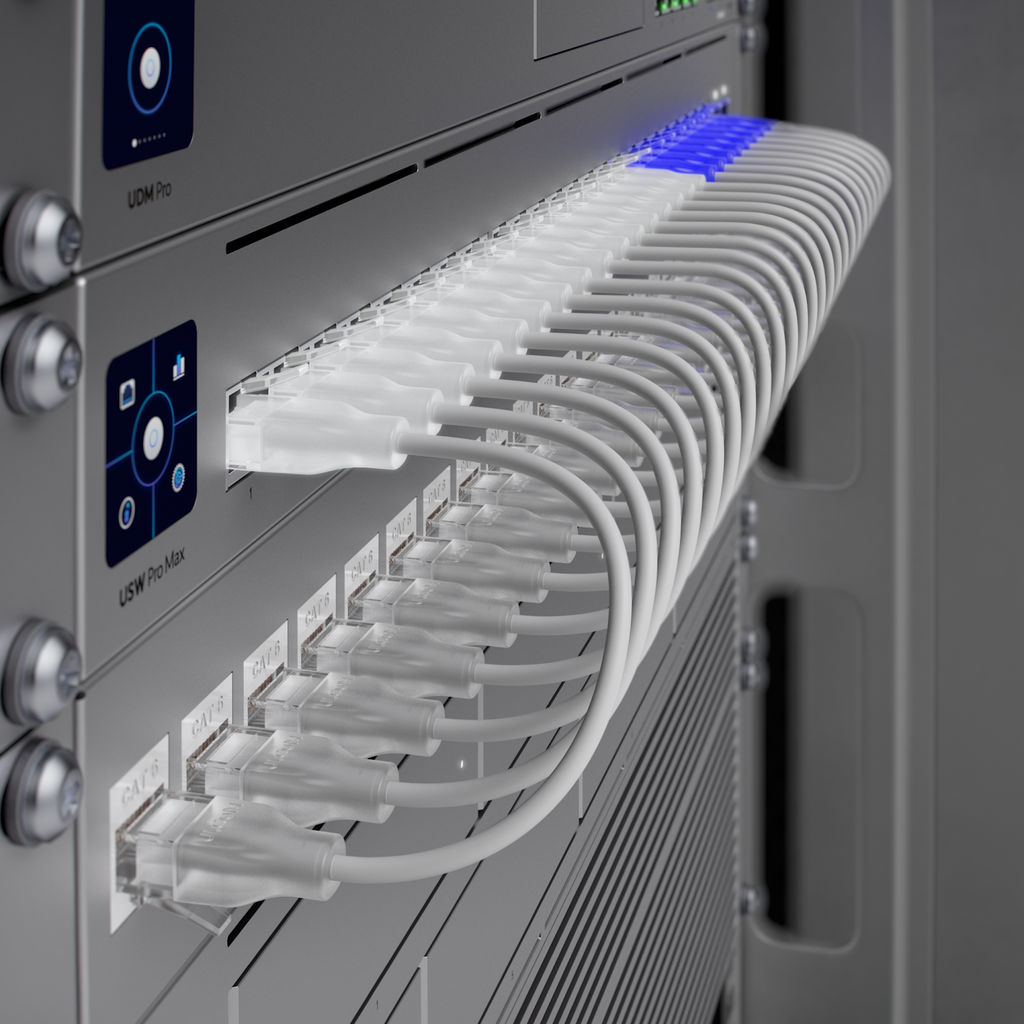

The Ubiquiti USW-Pro-Max-24 is a next-generation enterprise switch designed to deliver reliable, high-speed connectivity and advanced network management. Equipped with 8×2.5G Ethernet ports, 16×1G Gigabit ports, and 2×10G SFP+ uplinks, it provides flexible expansion and robust performance for modern IT environments, including businesses, education, and high-density networks.
With a 112 Gbps switching capacity and 56 Gbps non-blocking throughput, the USW-Pro-Max-24 ensures smooth data transfers across demanding applications. Integrated Etherlighting™ technology makes it easy to identify ports, link speeds, and VLAN configurations, while the 1.3" touchscreen offers real-time monitoring at a glance. Managed via the UniFi Network platform, it simplifies configuration, monitoring, and scaling.
Engineered for stability, this rackmount (1U) switch supports DC backup power for redundancy and provides advanced Layer 2 and Layer 3 features, including DHCP services, inter-VLAN routing, QoS, IGMP, and strong security protocols. Compact yet powerful, the USW-Pro-Max-24 is built to grow with your network demands.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | USW-PRO-MAX-24 |
| UPC | 810084692622 |
| Dimensions | 442 × 325 × 44 mm (17.4 × 12.8 × 1.7") |

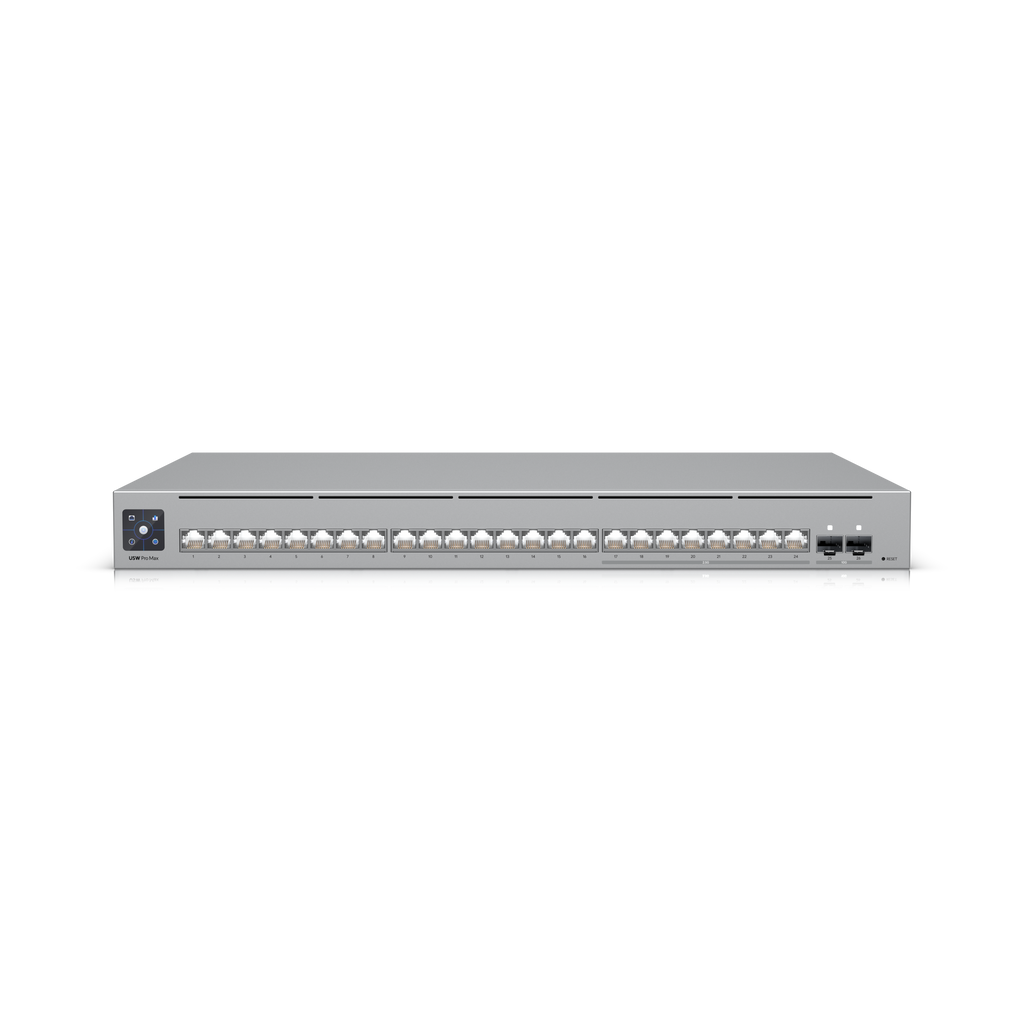

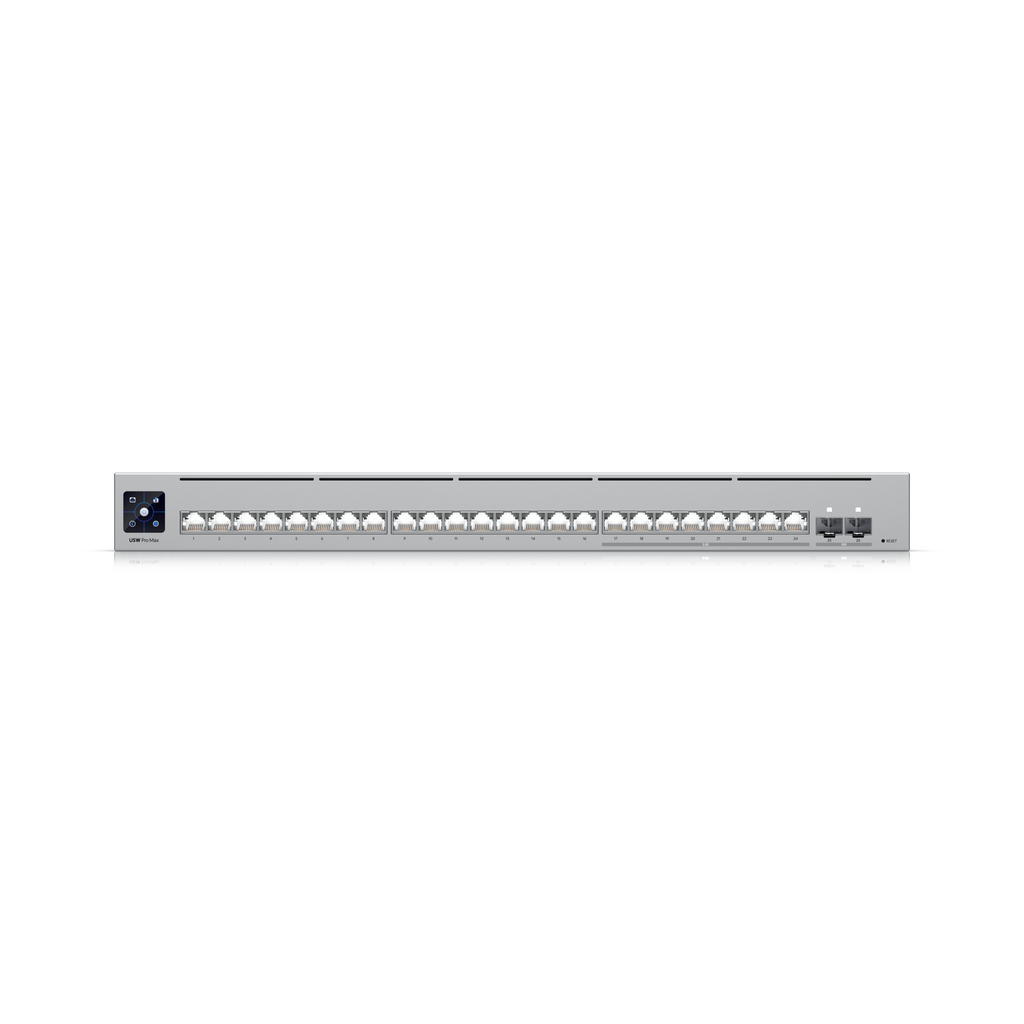

| Port Layout | 16× 1G RJ45, 8× 2.5G RJ45, 2× 10G SFP+ |
| Redundancy | DC Power Backup |

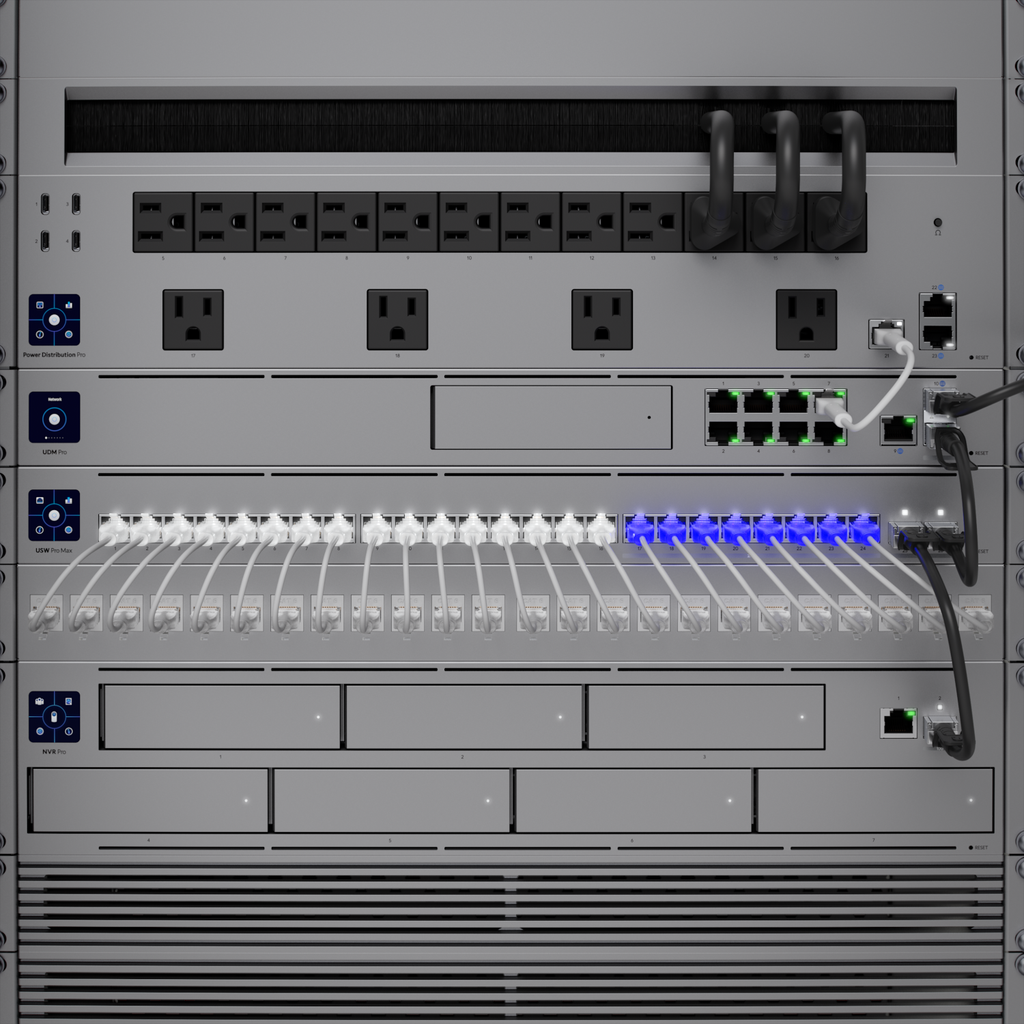

| Form Factor | Rack mount (1U) |
| Etherlighting™ | Supported on Ethernet and SFP+ ports |
| Switching Capacity | 112 Gbps |
| Total Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | 6,000 ARP entries |
| Packet Buffer Size | 2 MB |
| Layer 3 Features | DHCP server/relay, inter-VLAN routing, static routing |
| Layer 2 Features | LACP, STP/RSTP, QoS (DSCP), Pro AV profiles, IGMP snooping & advanced config, 802.1X, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, storm control, DHCP snooping & guarding |
| Max. Power Consumption | 50W |

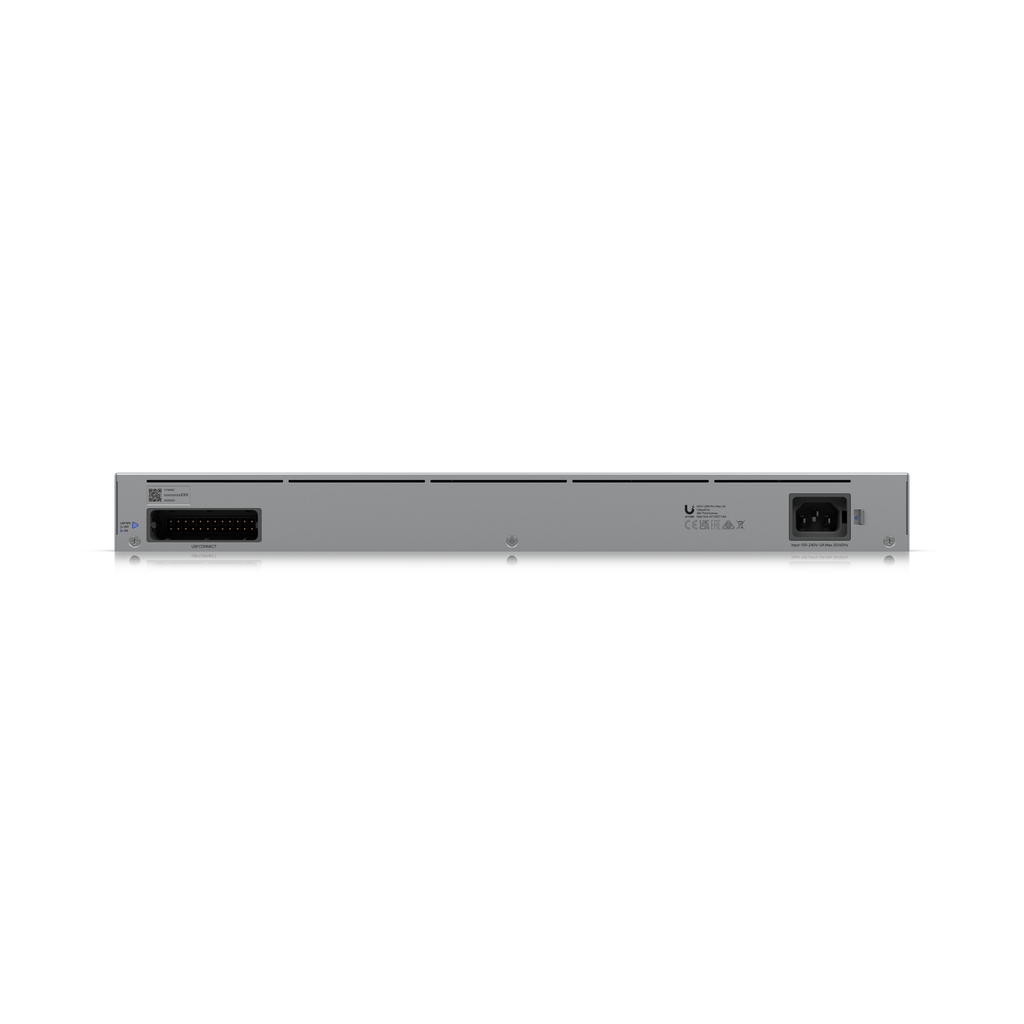

| Power Method | Universal AC input (100–240V, 50/60Hz); USP RPS DC input |
| Power Supply | Internal AC/DC, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | UniFi Network (Version 8.0.24 and later) |
| Heat Dissipation | 170.6 BTU/hr |
| Weight | 4.2 kg (9.3 lb) without brackets; 4.3 kg (9.5 lb) with brackets |
| Enclosure / Build | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air ±16kV; Contact ±12kV |
| Ambient Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Ambient Operating Humidity | 10–90% noncondensing |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |

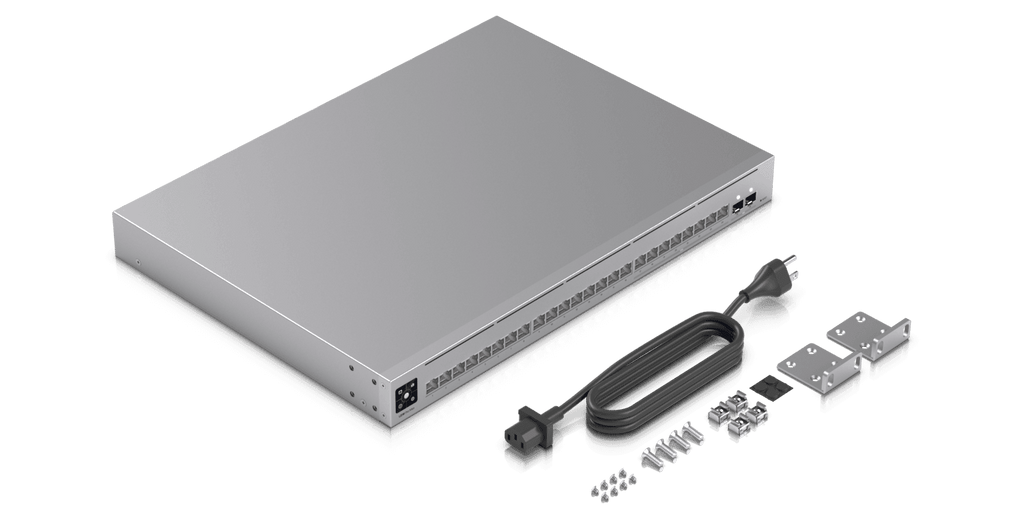

| Items Included | Switch, power cable, rackmount kit, display cover, 1-year limited warranty |
