Features
- Dual-Band Range Extension – Expands 802.11ac Wave 2 coverage with plug-and-play convenience.
- High Performance – 4x4 MU-MIMO streams deliver up to 1.7 Gbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Wide Coverage – Covers up to 90 m² (1,000 ft²) and supports 300+ connected clients.
- Eliminates Dead Spots – Strengthens Wi-Fi signals in hard-to-reach areas across homes and offices.
- Advanced Features – Fast roaming, band steering, Passpoint (Hotspot 2.0), Zero-Wait DFS.
- Guest Network & Hotspot – Custom landing pages, voucher authentication, and payment integration.
- UniFi Network Integration – Manage via UniFi Network App (iOS/Android) or UniFi Controller software.
- Easy Setup – Simply plug into a wall power socket; no cabling required.
- NDAA Compliant – Suitable for enterprise and government use.

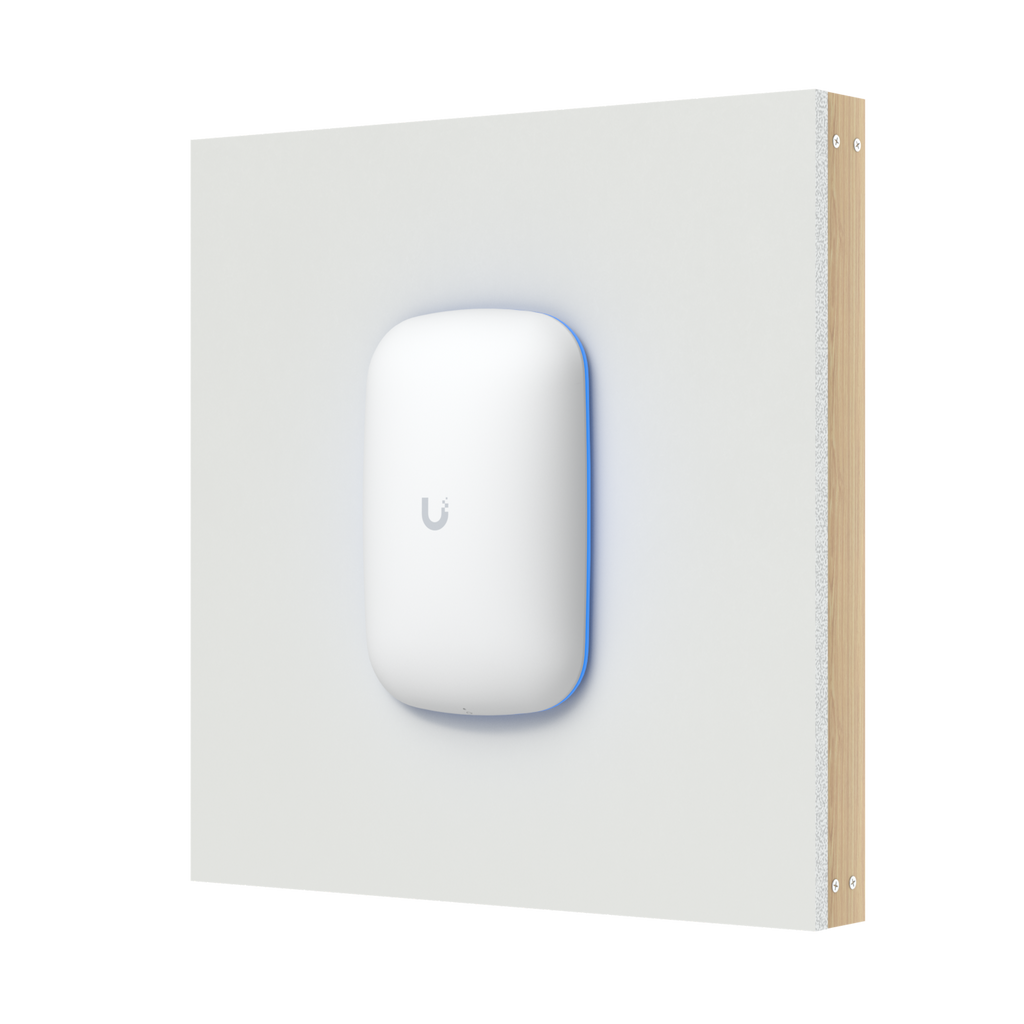

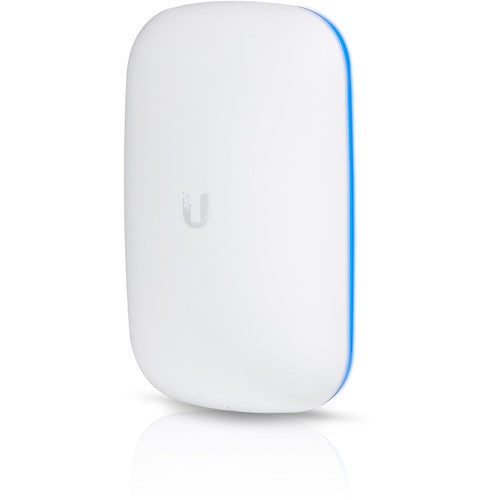

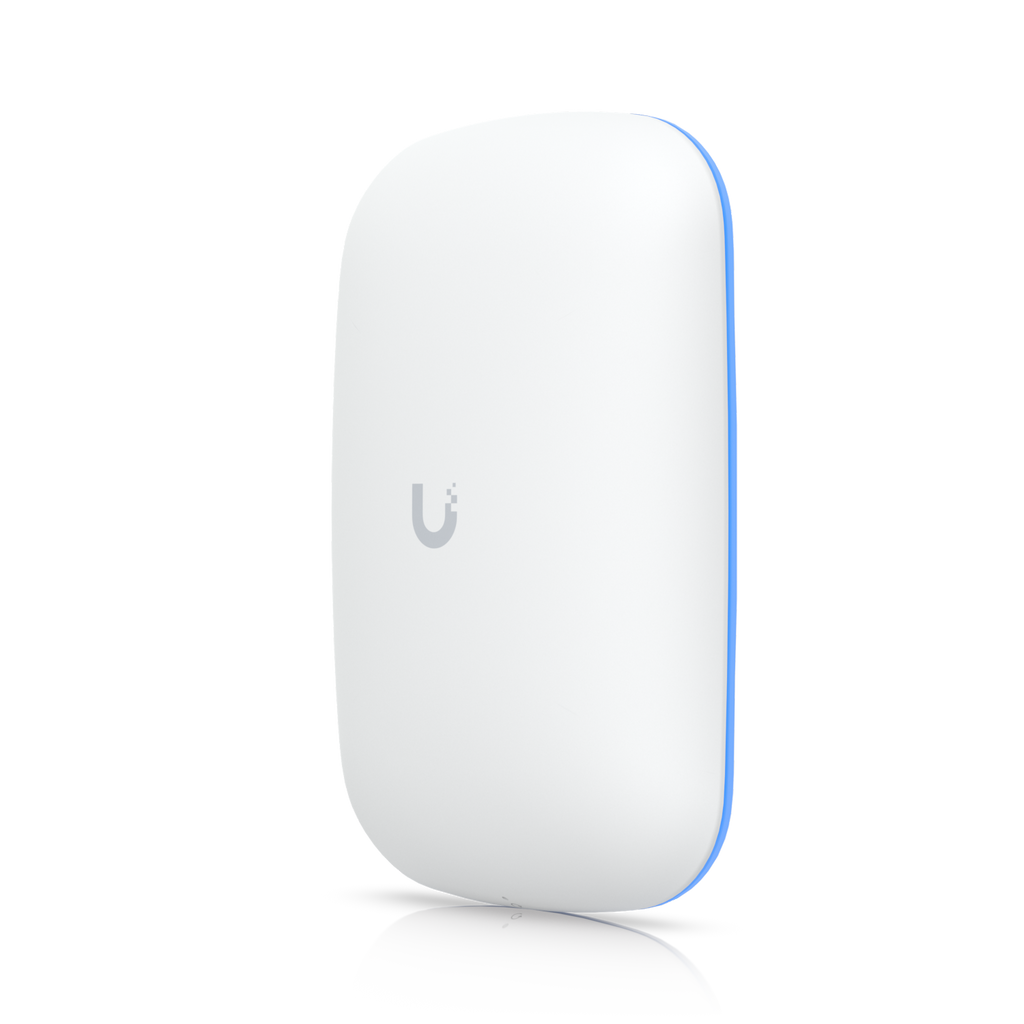

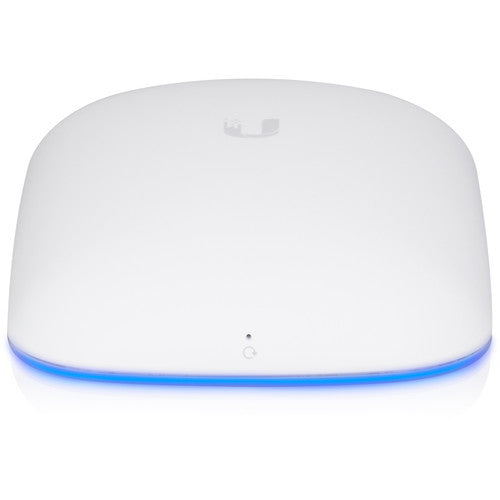

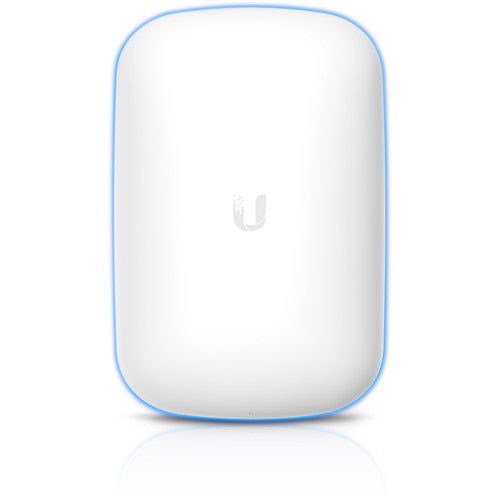

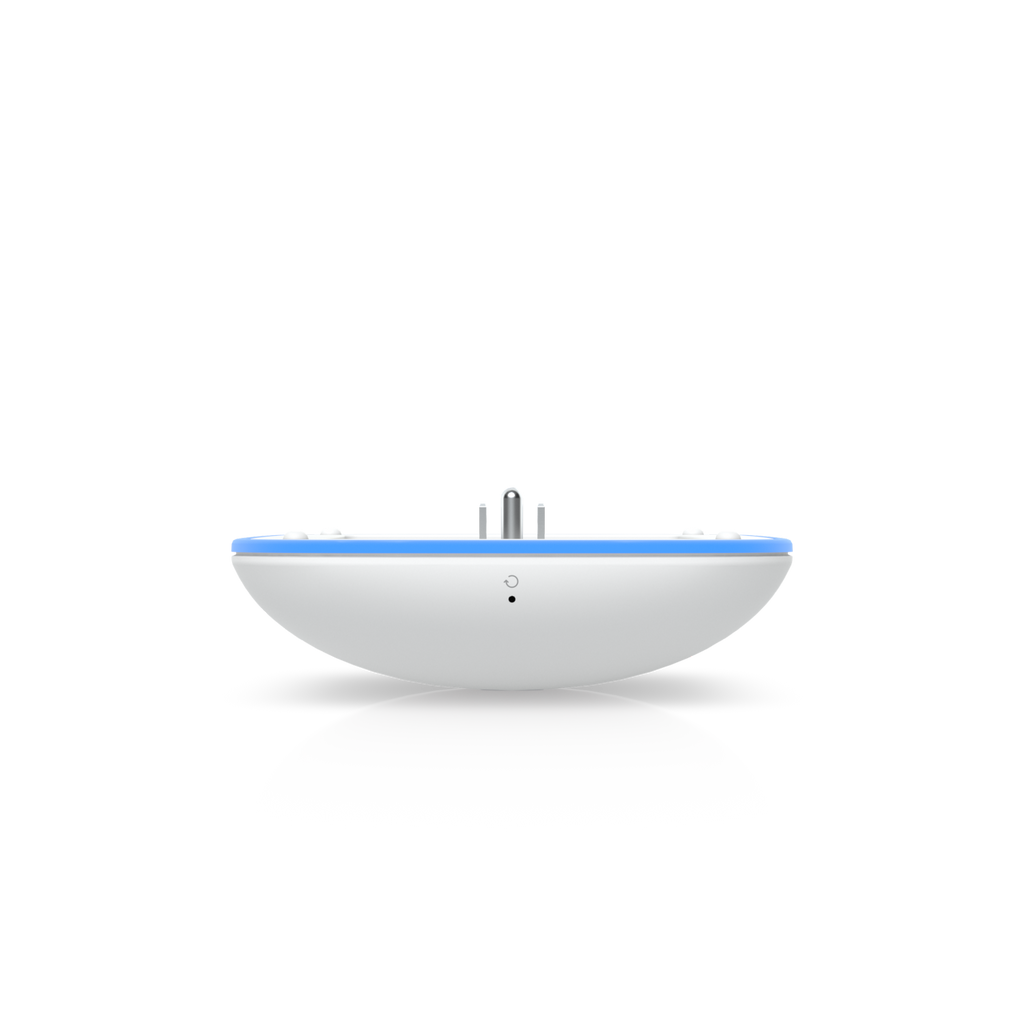

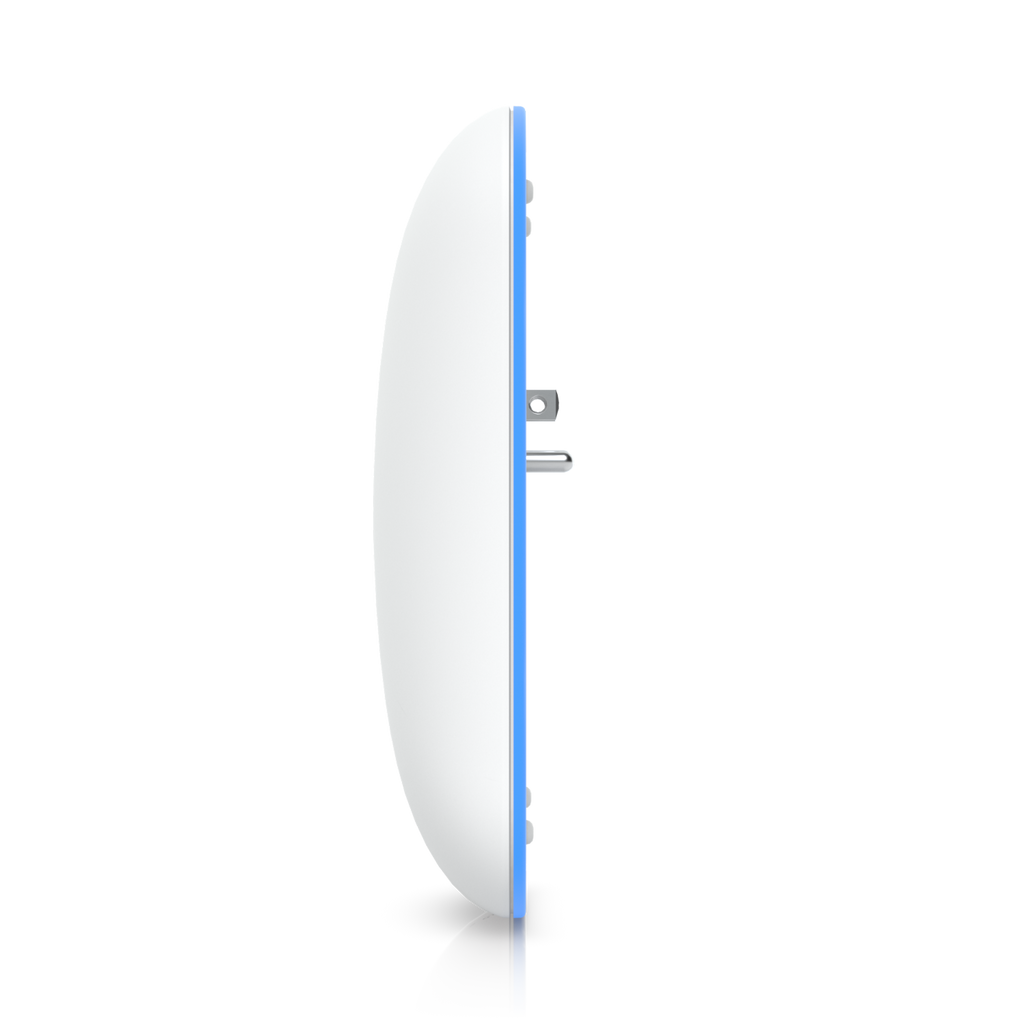

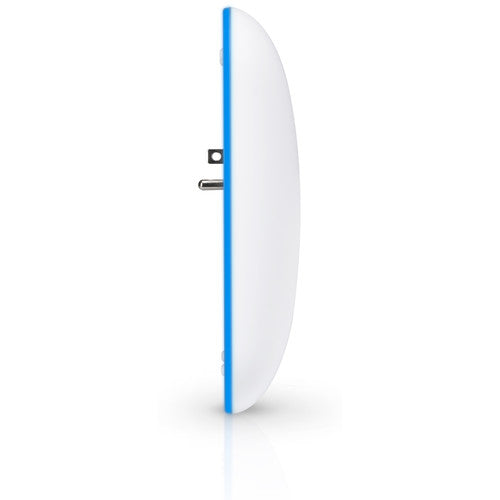

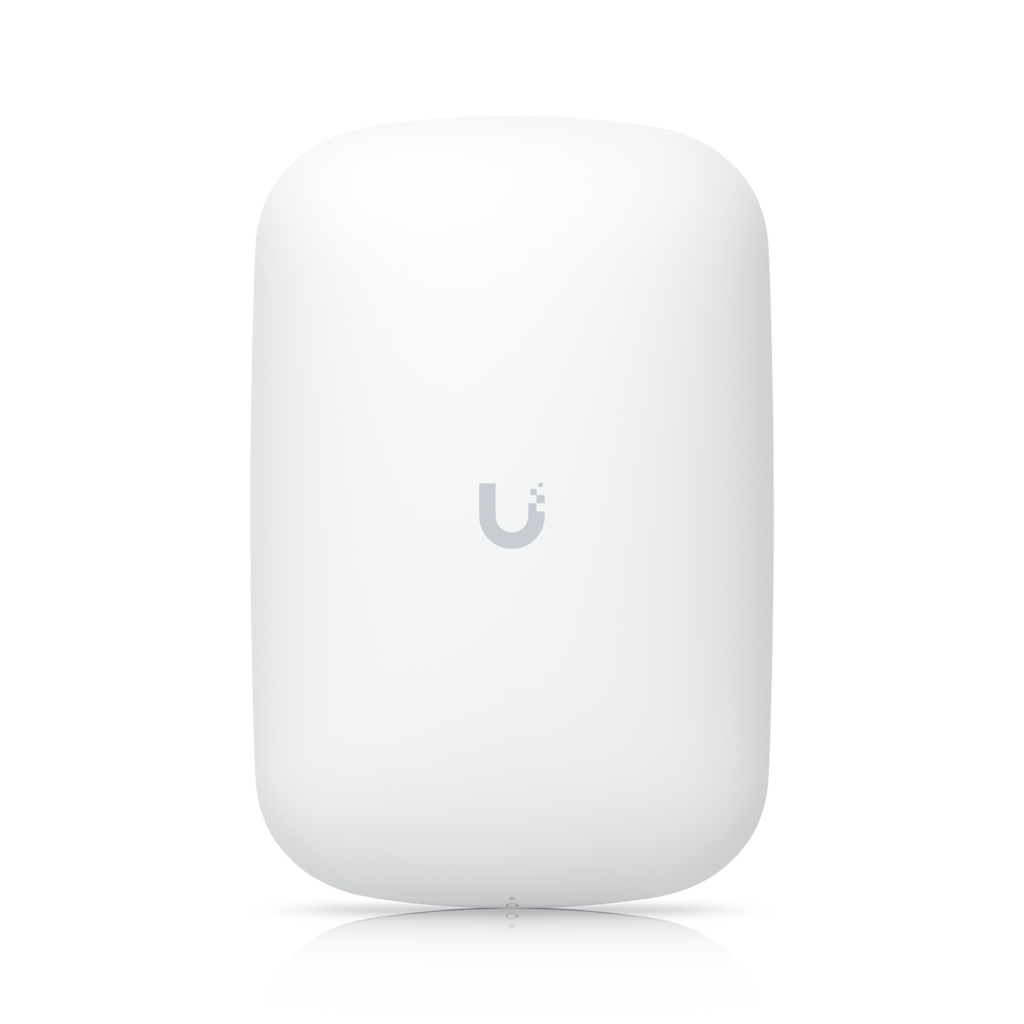

The Ubiquiti Networks UniFi UAP-Beacon HD Dual-Band Wireless Range Extender is designed to eliminate Wi-Fi dead zones by extending the coverage of your 802.11ac Wave 2 network with ease. Simply plug the Beacon HD into a wall outlet, and it seamlessly meshes with your existing UniFi Dream Machine or UniFi Access Point.
Equipped with 4x4 MU-MIMO technology, this range extender delivers up to 1.7 Gbps throughput on the 5 GHz band and 300 Mbps on the 2.4 GHz band, ensuring smooth video streaming, gaming, and data transfers.
Its advanced dual-band capabilities optimize network usage, dedicating the 5 GHz band to high-bandwidth activities and the 2.4 GHz band to everyday tasks like email and browsing. With support for over 300 clients and coverage of up to 90 m² (1,000 ft²), the Beacon HD ensures stable, fast Wi-Fi throughout your home or office. Managed through the UniFi Network App or controller software, you gain access to performance analytics, guest portals, hotspot support, and advanced radio management features.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-Beacon HD |
| UPC | 810010071682 |
| Dimensions | 169.7 × 112.2 × 32.2 mm (6.7 × 4.4 × 1.3") |
| Weight | 260 g (9.2 oz) |
| WiFi Standard | 802.11ac Wave 2 (WiFi 5) |
| MIMO Configuration | 5 GHz: 4x4 MU-MIMO · 2.4 GHz: 2x2 MIMO |
| Max Data Rates | 5 GHz: 1.7 Gbps · 2.4 GHz: 300 Mbps |
| Coverage Area | 90 m² (1,000 ft²) |
| Max Client Count | 300+ per extender |
| Antenna Gain | 5 GHz: 5 dBi · 2.4 GHz: 4.5 dBi |
| Max TX Power | 5 GHz: 30 dBm · 2.4 GHz: 24.8 dBm |
| Power Method | Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz |
| Max Power Consumption | 11.5W |

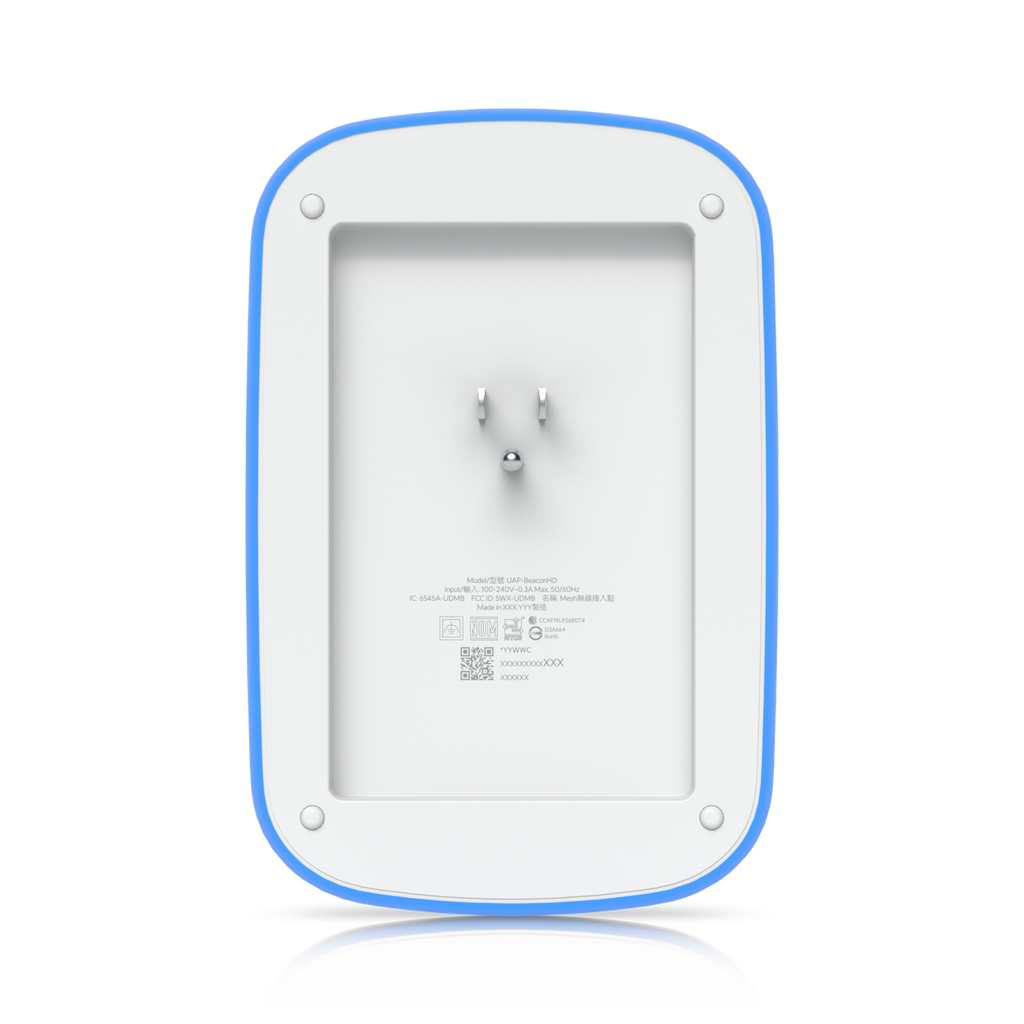

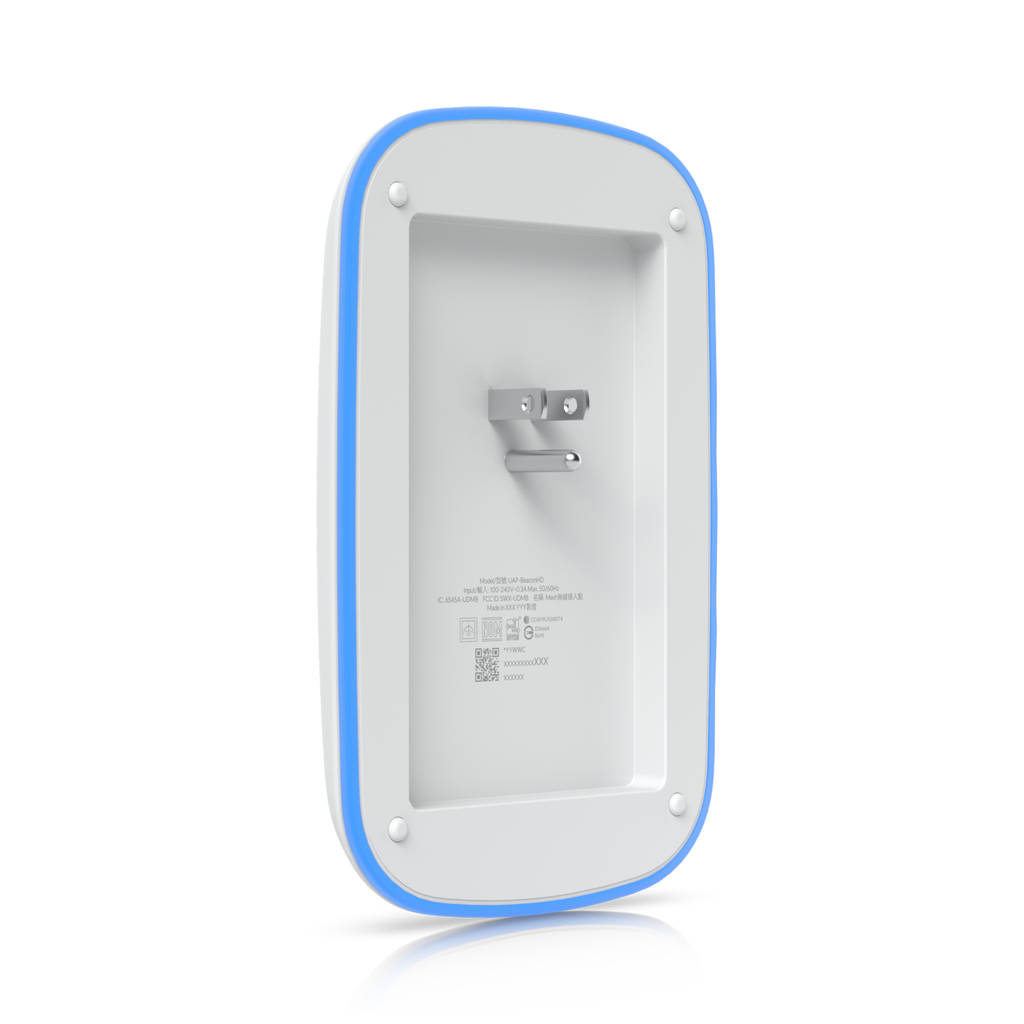

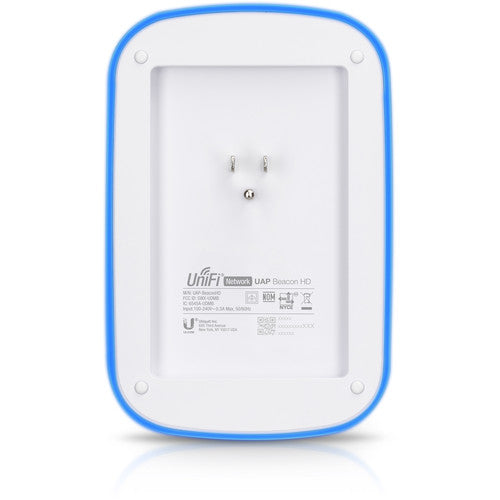

| Mounting | Wall plug-in (Power socket mount included) |
| Advanced Features | Wireless Meshing, Band Steering, Fast Roaming (802.11r), Zero-Wait DFS, Passpoint (Hotspot 2.0) |
| Guest Network | Custom captive portal, voucher-based login, external portal server support |
| Management | UniFi Network App / UniFi Network Controller |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC · NDAA Compliant |
| Software Requirement | UniFi Network Version 6.0.45 or later |
