Features
-
Powerful PoE Support – 16 × PoE+ (32W) and 8 × PoE++ (64W) ports with a 400W total PoE budget.
-
High-Speed Uplinks – 2 × 10G SFP+ ports for fiber or aggregation connections.
-
Enterprise Switching Capacity – 88 Gbps switching, 44 Gbps non-blocking throughput, 65 Mpps forwarding rate.
-
Layer 3 Capabilities – Supports inter-VLAN routing, static routing, DHCP server, and DHCP relay.
-
Advanced Network Management – Configurable via UniFi Network Controller or integrated 1.3" touchscreen.
-
Reliable Redundancy – External DC backup power option with USP-RPS support.
-
Silent Operation – Passively cooled fanless design suitable for office or rack environments.
-
Robust Security – Includes ACLs, 802.1X control, IGMP snooping, VLAN isolation, and storm control.
-
Certified & Compliant – NDAA compliant, CE, FCC, IC, and Anatel certified.

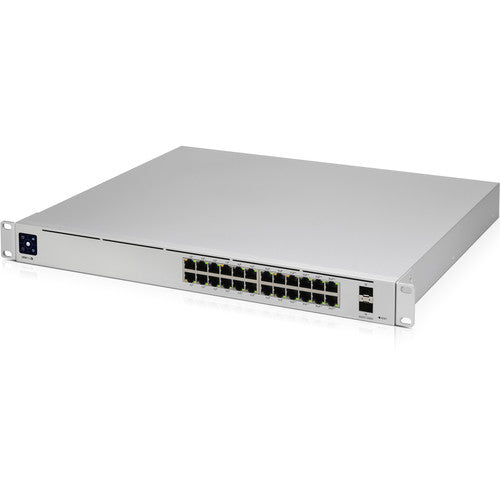

The Ubiquiti Networks UniFi Pro PoE 24-Port Managed Switch delivers enterprise-grade performance, reliability, and scalability for professional networking environments.
Equipped with 16 PoE+ ports (32W each) and 8 PoE++ ports (64W each), this Layer 3–capable switch provides a total PoE budget of 400W to power high-demand devices such as advanced IP cameras, Wi-Fi 6 access points, and VoIP phones. Two 10G SFP+ uplink ports enable high-speed connections to network storage or backbone infrastructure. With 88 Gbps switching capacity, 44 Gbps non-blocking throughput, and a 65 Mpps forwarding rate, the UniFi Pro PoE ensures smooth, lossless data transfer across all ports.
Manageable via UniFi Network Controller software and its intuitive 1.3" touchscreen display, this fanless, rackmount switch offers powerful performance in a quiet, reliable form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi Pro PoE 24-Port |
| UPC | 817882028349 |
| Dimensions | 442 × 285 × 44 mm (17.4 × 11.2 × 1.7") |
| Weight | 4.3 kg (9.5 lb) without brackets · 4.4 kg (9.7 lb) with brackets |
| Port Layout | 24 × 1G RJ45 (16 PoE+, 8 PoE++) · 2 × 10G SFP+ |
| Switching Capacity | 88 Gbps |
| Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Total PoE Availability | 400W |
| Max. PoE Wattage per Port | PoE: 15.4W · PoE+: 30W · PoE++: 64W |
| Max. Power Consumption | 50W (excluding PoE) · 450W (including PoE) |
| Power Method | Universal AC input (100–240V AC, 50/60 Hz) · USP-RPS DC input |
| Power Supply | AC/DC internal, 450W |
| Layer 3 Features | DHCP server & relay · Static routing · Inter-VLAN routing |
| Layer 2 Features | LACP · STP & RSTP · QoS (DSCP) · IGMP snooping · VLAN isolation · LLDP-MED · Jumbo frames |
| Packet Buffer Size | 2 MB |
| MAC Address Table Size | 16,000 |
| Access Lists | 128 IPv4 · 128 MAC |
| Enclosure Material | SGCC steel |
| Form Factor | Rack mount (1U) |
| LCM Display | 1.3" touchscreen |
| Operating Conditions | -5 to 40°C (23 to 104°F), 10–90% noncondensing humidity |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
