Ubiquiti RD-5G34 RocketDish...

Features

  • High Gain – 34 dBi antenna gain for long-distance PtP links

  • 5 GHz Operation – Wide 5.1–5.8 GHz frequency range

  • airMAX Technology – TDMA protocol enhances throughput and efficiency

  • Dual-Polarity Design – Supports dual-linear polarization for reliable performance

  • Built-In Rocket Mount – Plug-and-play installation with Rocket BaseStations

  • GPS Sync Compatibility – Pairs with Rocket M GPS units for AirSync synchronization

  • Rugged Outdoor Build – Withstands 125 mph winds and includes protective shroud

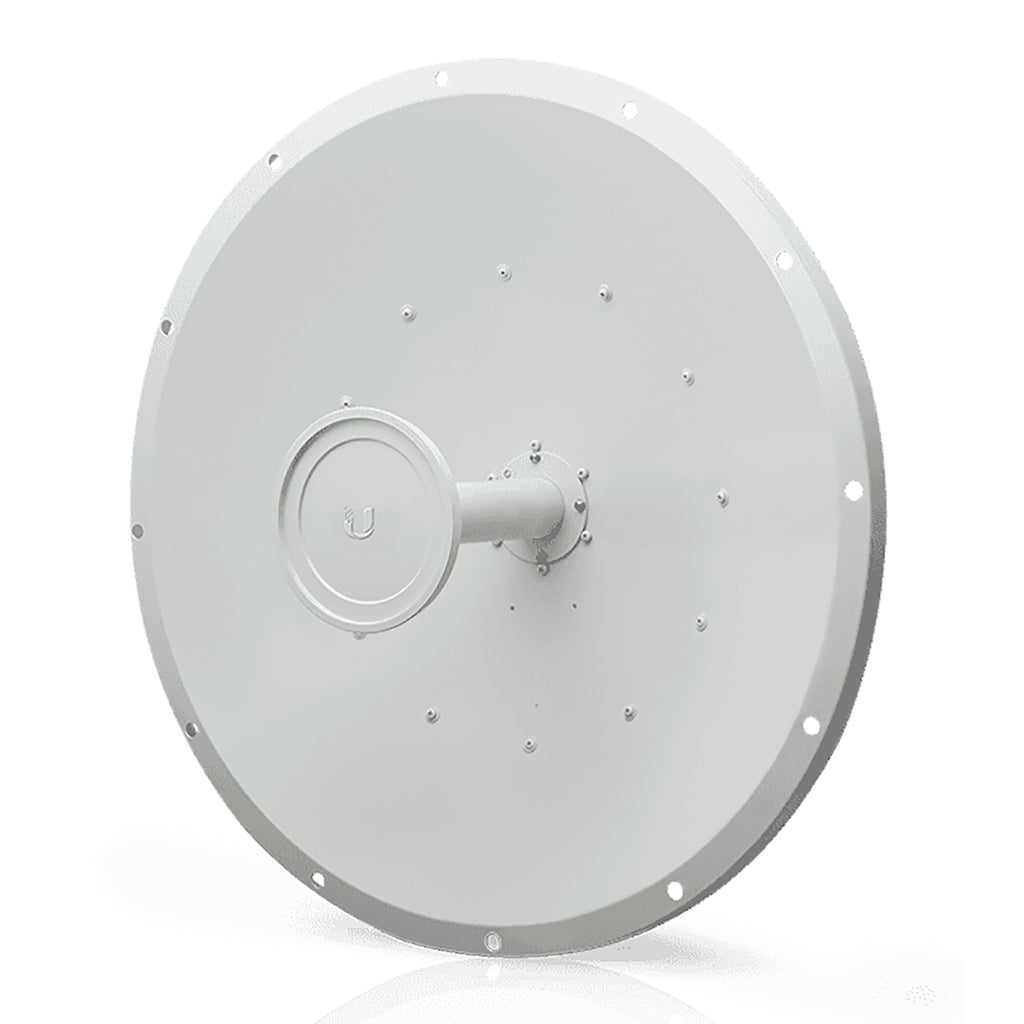

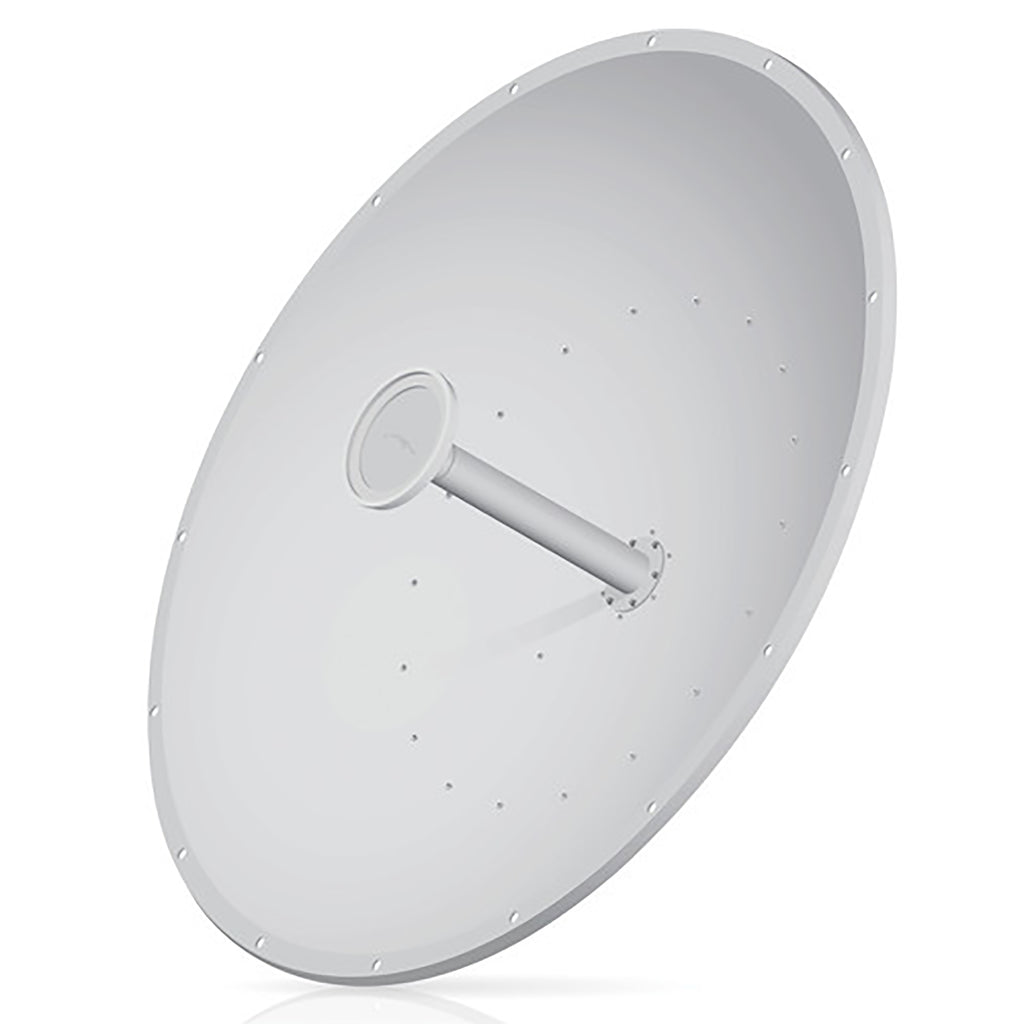

The Ubiquiti Networks RD-5G34 RocketDish airMAX 5 GHz 34 dBi PtP Bridge Dish Antenna is engineered for high-performance, long-distance point-to-point (PtP) wireless links. Operating in the 5 GHz band, this powerful 34 dBi gain dish antenna ensures exceptional signal strength and throughput over extended ranges.

Designed with a robust outdoor-ready construction, it integrates seamlessly with Rocket M BaseStations using its built-in mount and includes a protective shroud and pole-mounting hardware. With dual-linear polarization, intelligent QoS, and Ubiquiti’s airMAX TDMA protocol, the RD-5G34 maximizes airtime efficiency, scalability, and reliability for carrier-class deployments.

The Ubiquiti RD-5G34 RocketDish is a high-gain 5 GHz dish antenna engineered for long-distance Point-to-Point (PtP) links. Delivering 34 dBi gain with dual-polarity performance, it provides stable, carrier-class connectivity for demanding outdoor deployments. Featuring a built-in Rocket mount, protective shroud, and rugged design, it integrates seamlessly with Rocket M BaseStations for reliable, high-throughput airMAX networks.

Technical Specifications

Specification Details
Model / Part Number RD-5G34
UPC 810354021299
Frequency Range 5.1 – 5.8 GHz
Gain 34 dBi
Hpol Beamwidth 3° (3 dB)
Vpol Beamwidth 3° (3 dB)
Front-to-Back Ratio 42 dB
Maximum VSWR 1.4:1
Polarization Dual-linear
Cross-Polarization Isolation 35 dB minimum
Wind Survivability 125 mph
Wind Loading 400 lbf @ 125 mph
ETSI Specification EN 302 326 DN2
Diameter 41.3 x 41.3 x 16.6" (105 x 105 x 42.1 cm)
Weight 29.8 lb (13.5 kg)
