Ubiquiti AM-5G17-90 AirMAX ...

Features

  • 5 GHz Operation – Wide 4.90–5.85 GHz frequency range

  • High Gain – 16.1–17.1 dBi gain for long-distance connectivity

  • 2x2 MIMO Performance – Reliable, high-throughput data transfer

  • airMAX TDMA Technology – Improves scalability and efficiency

  • RocketM Compatibility – Seamlessly integrates with RocketM radios

  • QoS Optimization – Prioritizes voice and video for seamless streaming

  • Durable Outdoor Design – Survives winds up to 125 mph

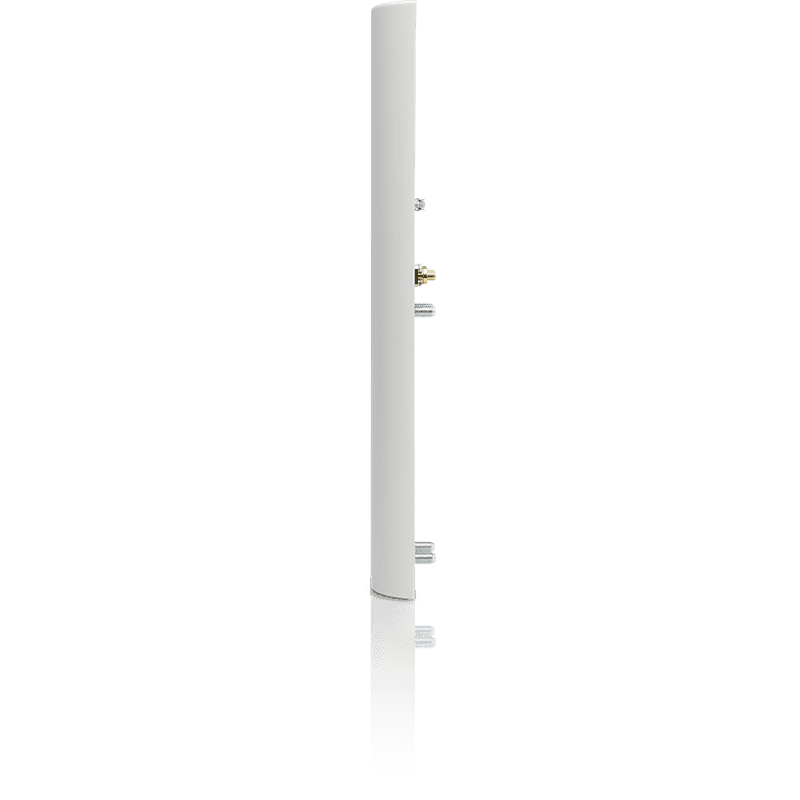

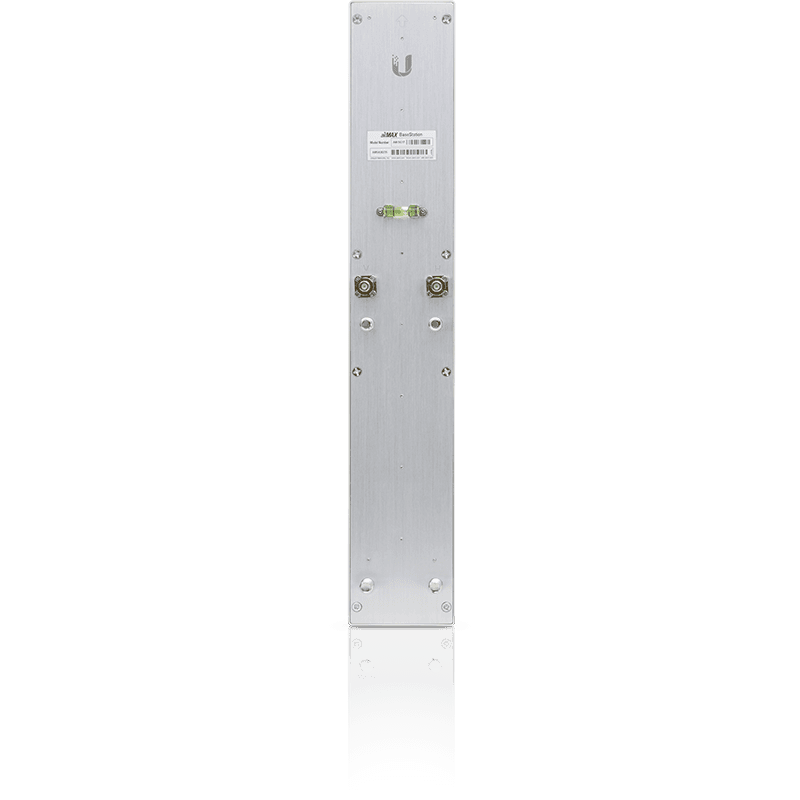

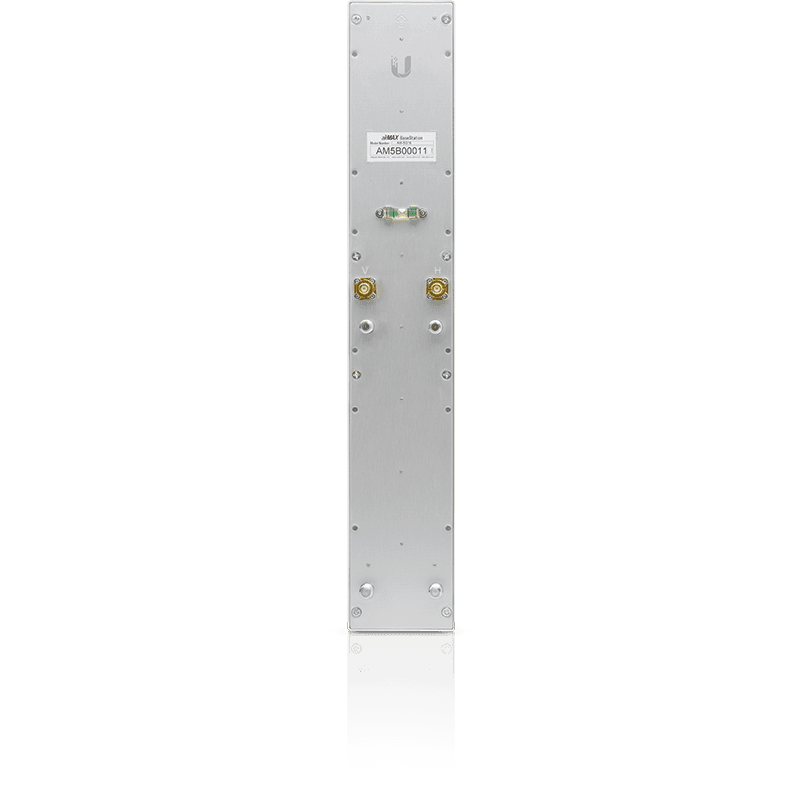

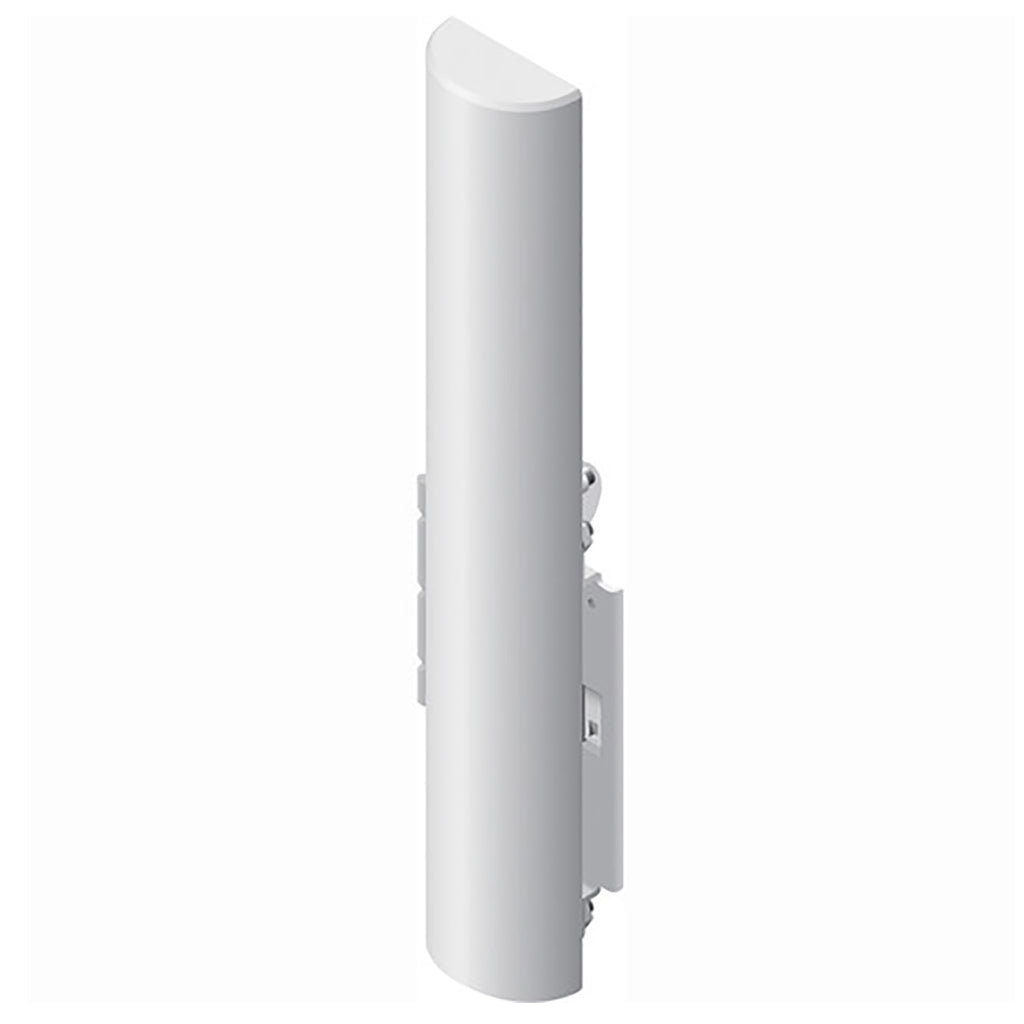

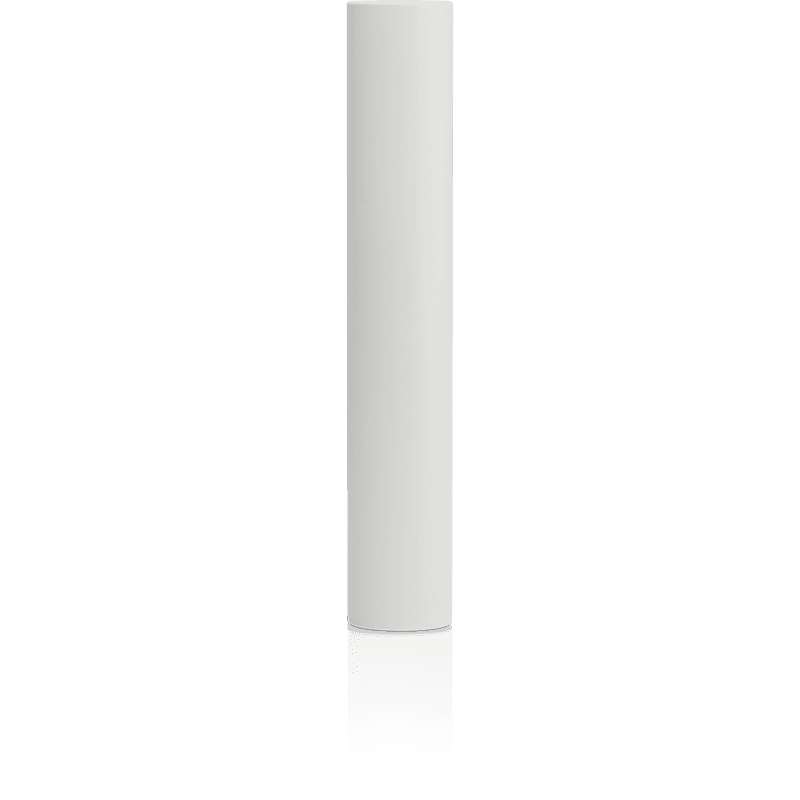

The Ubiquiti Networks AM-5G17-90 airMAX 5 GHz 2x2 MIMO Sector Antenna is designed for outdoor base station deployments, delivering high-gain coverage and reliable scalability for point-to-multipoint (PtMP) networks. Operating across the 4.90–5.85 GHz band with 17 dBi gain, this antenna supports airMAX technology, which leverages TDMA for efficient, low-latency communication across multiple clients.

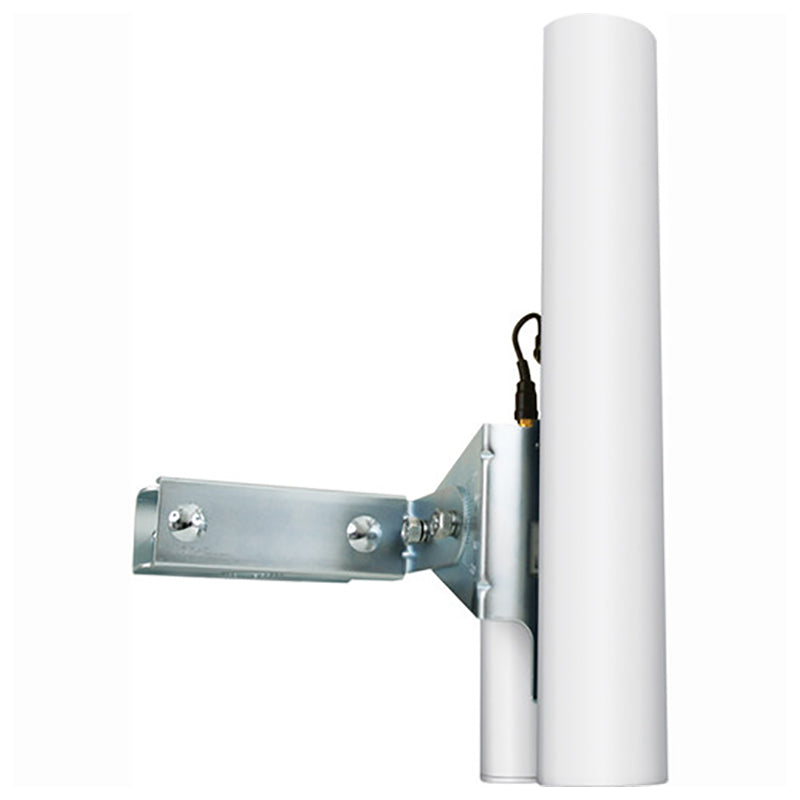

With robust cross-polarization isolation and intelligent QoS prioritization for voice and video traffic, it ensures strong performance in demanding environments. The antenna seamlessly integrates with RocketM radios and comes with mounting hardware and weatherproof RF jumpers for streamlined installation.  Ubiquiti AM-5G17-90 airMAX 5 GHz 2x2 MIMO 17 dBi sector antenna with RocketM compatibility, TDMA efficiency, and rugged outdoor design for scalable PtMP networks.

The Ubiquiti AM-5G17-90 is a 5 GHz 2x2 MIMO sector antenna engineered for outdoor base station deployments. With 17 dBi gain and a 90° coverage angle, it delivers powerful, high-speed connectivity for long-range point-to-multipoint networks. Supporting airMAX TDMA technology and seamless RocketM integration, this antenna ensures scalable, low-latency, carrier-class performance with superior noise isolation.

Technical Specifications

Specification Details
Model / Part Number AM-5G17-90
UPC 810354020902
Frequency Range 4.90 – 5.85 GHz
Gain 16.1 – 17.1 dBi
Hpol Beamwidth 72° (6 dB)
Vpol Beamwidth 93° (6 dB)
Electrical Beamwidth
Electrical Downtilt
Maximum VSWR 1.5:1
Wind Survivability 125 mph
Wind Loading 6 lbf @ 100 mph
Polarization Dual-linear
Cross-Polarization Isolation 22 dB minimum
ETSI Specification EN 302 326 DN2
Dimensions 14.44 x 2.48 x 1.61" (367 x 63 x 41 mm)
Weight 2.42 lb (1.1 kg)

Specifications

  • 4.90–5.85 GHz frequency range
  • 16.1–17.1 dBi gain sector antenna
  • 2x2 MIMO with dual-linear polarization
  • airMAX TDMA for efficient PtMP networking
  • Seamless RocketM integration
  • QoS prioritization for voice and video
  • Wind survivability: 125 mph
