Features
-
5 GHz Operation – Works across the 5.10–5.85 GHz band
-
High Gain – Provides 15–16 dBi for extended coverage
-
2x2 MIMO Performance – Ensures reliable high-throughput connectivity
-
airMAX Technology – TDMA protocol improves network efficiency and scalability
-
RocketM Compatibility – Seamlessly integrates with RocketM radios
-
QoS Optimization – Prioritizes voice and video traffic for smooth streaming
-
Durable Outdoor Design – Withstands winds up to 125 mph

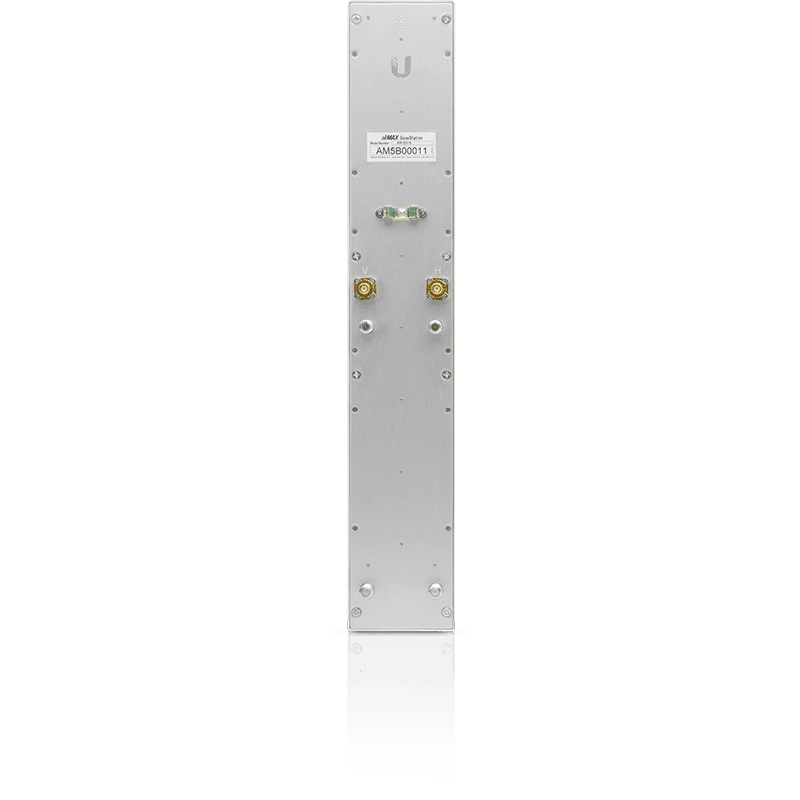

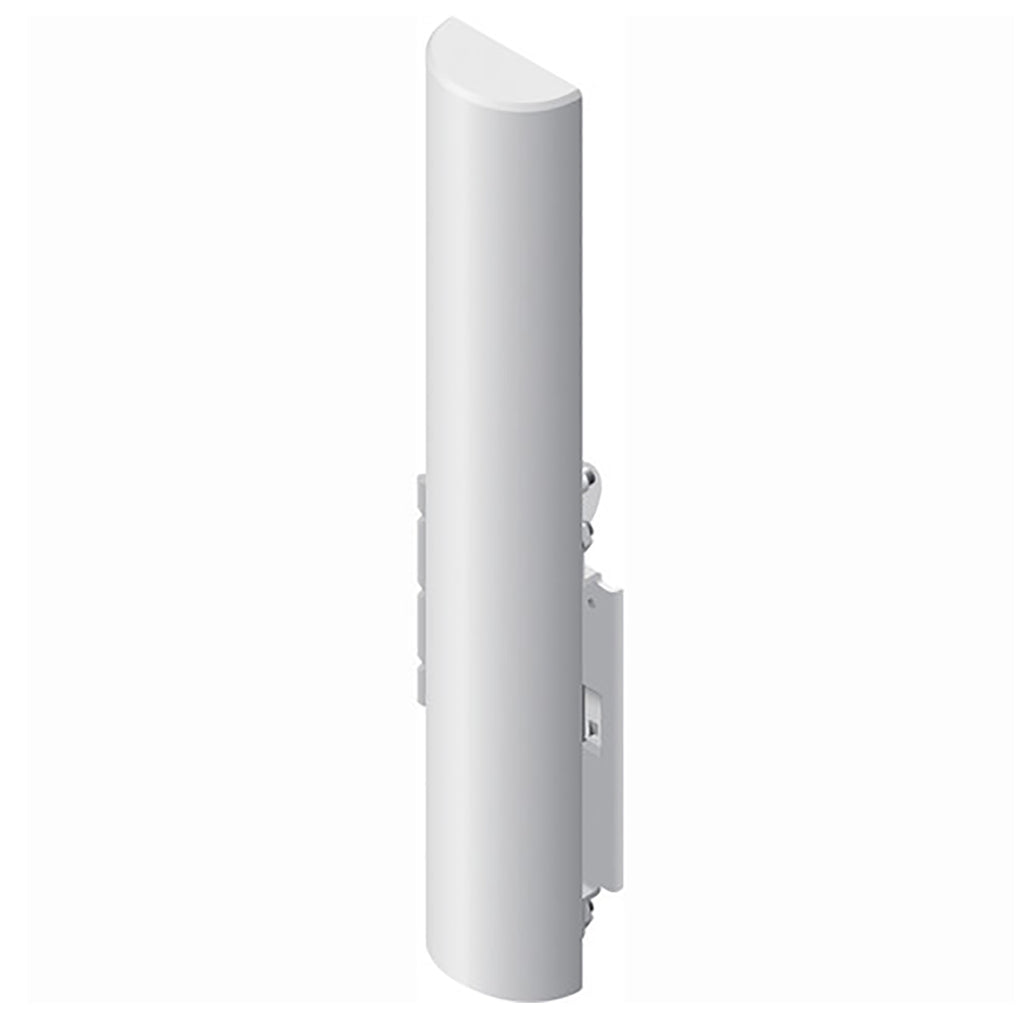

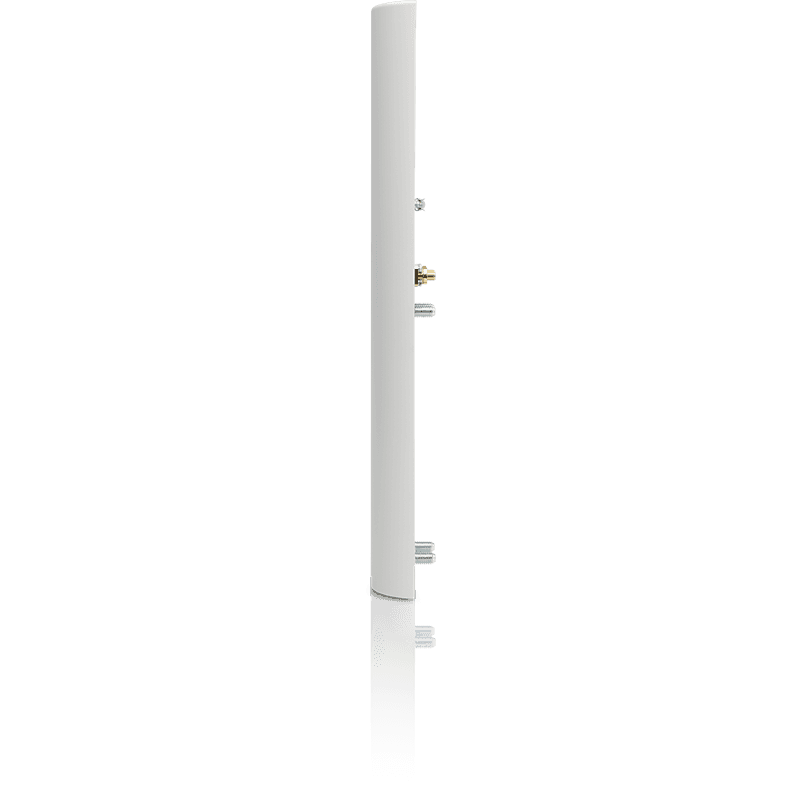

The Ubiquiti Networks AM-5G16-120 airMAX 5 GHz 2x2 MIMO Sector Antenna is a high-performance antenna designed for outdoor base station deployments. Operating in the 5 GHz frequency range, it delivers 16 dBi gain and supports airMAX technology for efficient, carrier-class links.

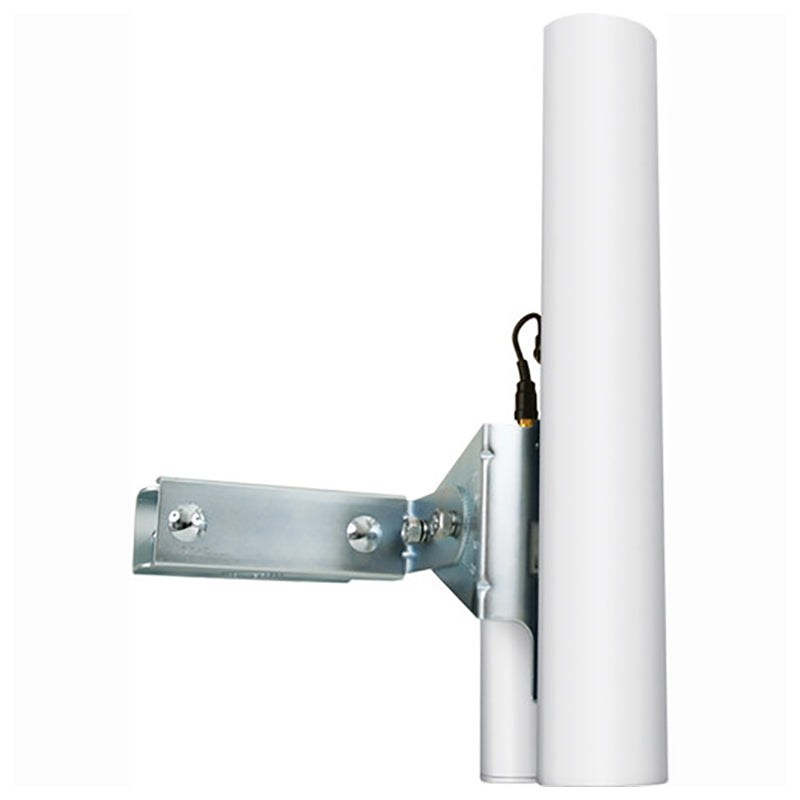

Seamlessly integrating with AM-5G16-120 RocketM radios, this antenna offers exceptional scalability, advanced QoS for prioritizing voice and video traffic, and reliable cross-polarization isolation. Built for long-distance and high-capacity PtMP networks, it includes a pole mount, RocketM bracket, and weatherproof RF jumpers for easy installation.
The Ubiquiti AM-5G16-120 is a 5 GHz 2x2 MIMO sector antenna designed for outdoor wireless base stations. With 16 dBi gain, wide 120° coverage, and support for airMAX TDMA technology, it ensures reliable, high-capacity links. Compatible with RocketM radios, this antenna includes pole mount hardware, RF jumpers, and weatherproofing for seamless, scalable deployments.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | AM-5G16-120 |
| UPC | 810354020896 |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 15 – 16 dBi |
| Hpol Beamwidth | 137° (6 dB) |
| Vpol Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Maximum VSWR | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 6 lbf @ 100 mph |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | 22 dB min |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 14.44 x 2.48 x 1.61" (367 x 63 x 41 mm) |
| Weight | 2.42 lb (1.1 kg) |
Specifications
- 5.10 – 5.85 GHz frequency range
- 15–16 dBi antenna gain
- 2x2 MIMO with dual-linear polarization
- airMAX TDMA technology for scalable performance
- Seamless RocketM radio integration
- Wind survivability: 125 mph
- Lightweight design at 2.42 lb (1.1 kg)
