Ubiquiti AM-5AC22-45 airMAX...

Features

  • High-Gain Coverage – 22 dBi sector antenna for extended wireless range

  • 5 GHz Band – Operates on 5.10 – 5.85 GHz frequency range

  • Advanced Noise Immunity – Innovative deflector design reduces interference

  • 2x2 MIMO Support – Optimized for Rocket 5ac radios, backward compatible with RocketM5

  • Durable Outdoor Design – Withstands wind speeds up to 200 km/h (125 mph)

  • Improved SNR – Enhanced signal-to-noise ratio for higher throughput

  • Compliant Build – ETSI EN 302 326 DN2 standard certified

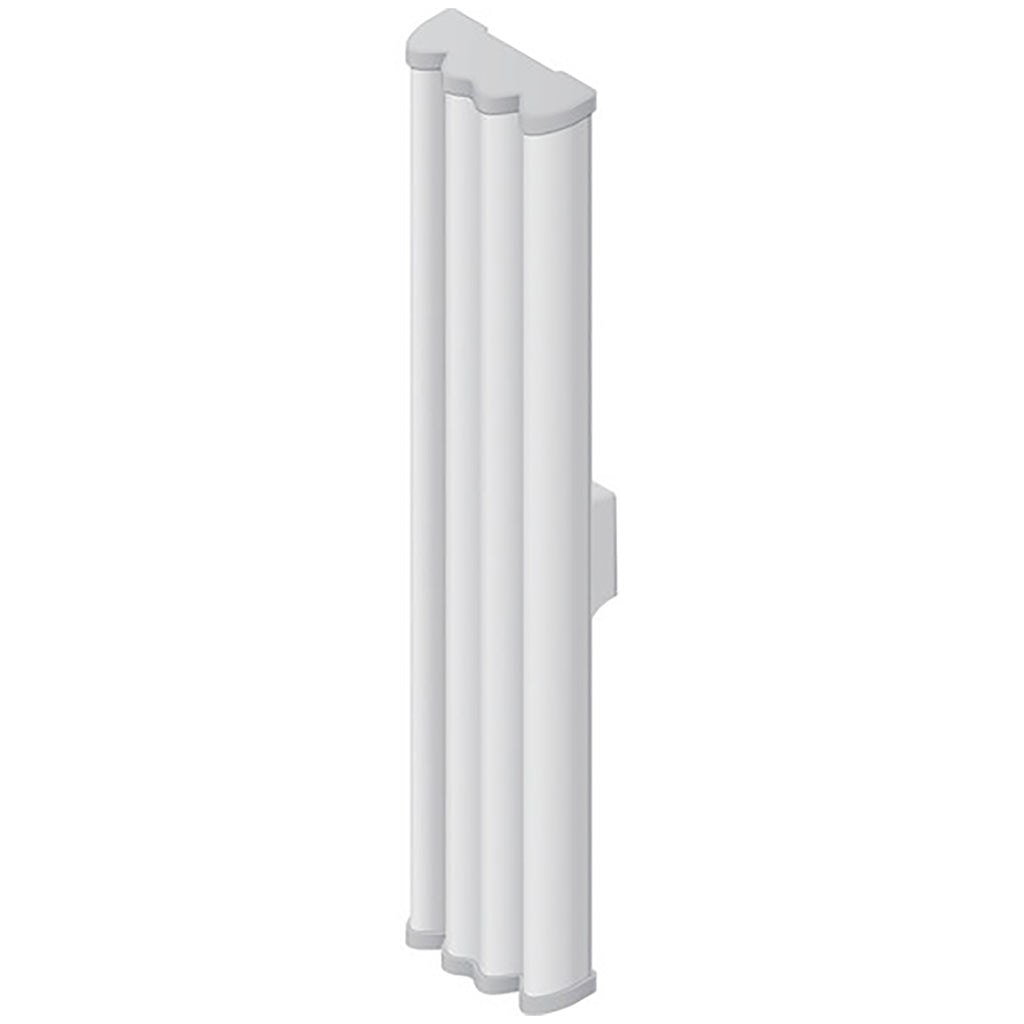

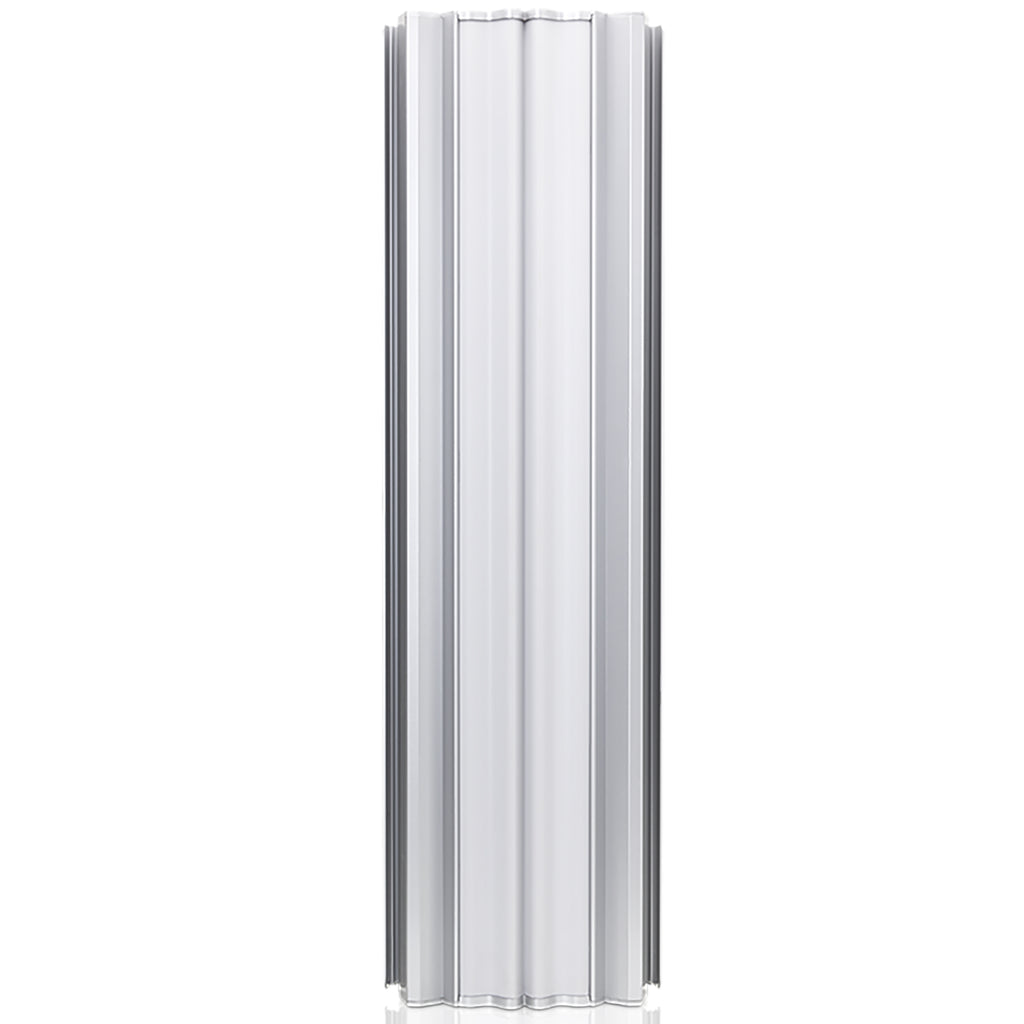

The Ubiquiti Networks airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna (AM-5AC22-45) delivers superior scalability, beam performance, and noise isolation for high-capacity point-to-multipoint (PtMP) networks. Designed to integrate seamlessly with Rocket 5ac radios (and compatible with RocketM5 models), this antenna enhances throughput and minimizes interference through advanced deflector design and optimized signal-to-noise ratio technology.

The Ubiquiti AM-5AC22-45 is a high-gain 5 GHz sector antenna designed for scalable point-to-multipoint deployments. With 22 dBi gain, 45° beamwidth, and advanced noise isolation, it delivers strong and stable wireless performance in high-interference environments.

Compatible with Rocket 5ac and RocketM5 radios, this durable antenna enhances throughput, beam performance, and overall network reliability. With a 45° beamwidth and high 22 dBi gain, it is built for long-distance, high-performance wireless deployments in challenging environments.

Technical Specifications

Specification Details
Model / Part Number AM-5AC22-45
UPC 810354021404
Frequency Band 5.10 – 5.85 GHz
Antenna Gain 22 dBi
Beamwidth HPOL: 45° (6 dBi), VPOL: 45° (6 dBi), Electrical: 4°
Electrical Downtilt
Maximum VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 347 N at 200 km/h (78 lbf at 125 mph)
Polarization Dual-linear
Cross-Polarization Isolation 25/30 dB minimum
ETSI Specification EN 302 326 DN2
Dimensions 29.53 x 8.47 x 3.70" (750 x 215 x 94 mm)
Weight 13.23 lb (6.00 kg)
