Ubiquiti airFiber AF60-XR |...

Features

  • Extreme Range – Reliable PtP links up to 9.3 miles (15 km)

  • High Throughput – Delivers up to 5.4 Gb/s (2.7 Gb/s duplex) capacity

  • Backup Radio – 5 GHz failover link with 800+ Mb/s speeds

  • Flexible Interfaces – Includes 1x GbE PoE port and 1x 10G SFP+ port

  • Integrated GPS – Ensures synchronization and link stability

  • Durable Design – UV-stabilized polycarbonate and steel housing, IPX6 weatherproofing

  • Precision Alignment – Professional-grade mounting kit included

  • Secure & Manageable – WPA2-PSK encryption, Bluetooth setup, and UISP management

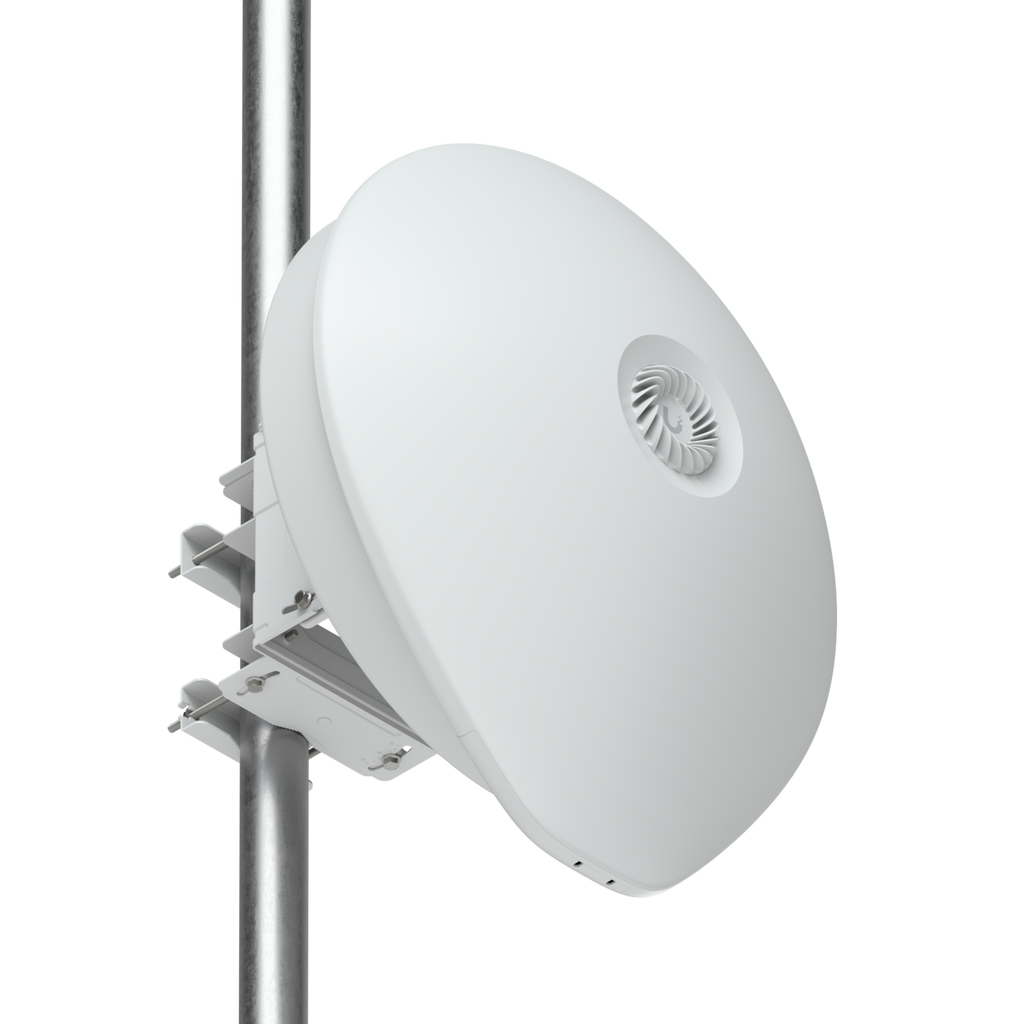

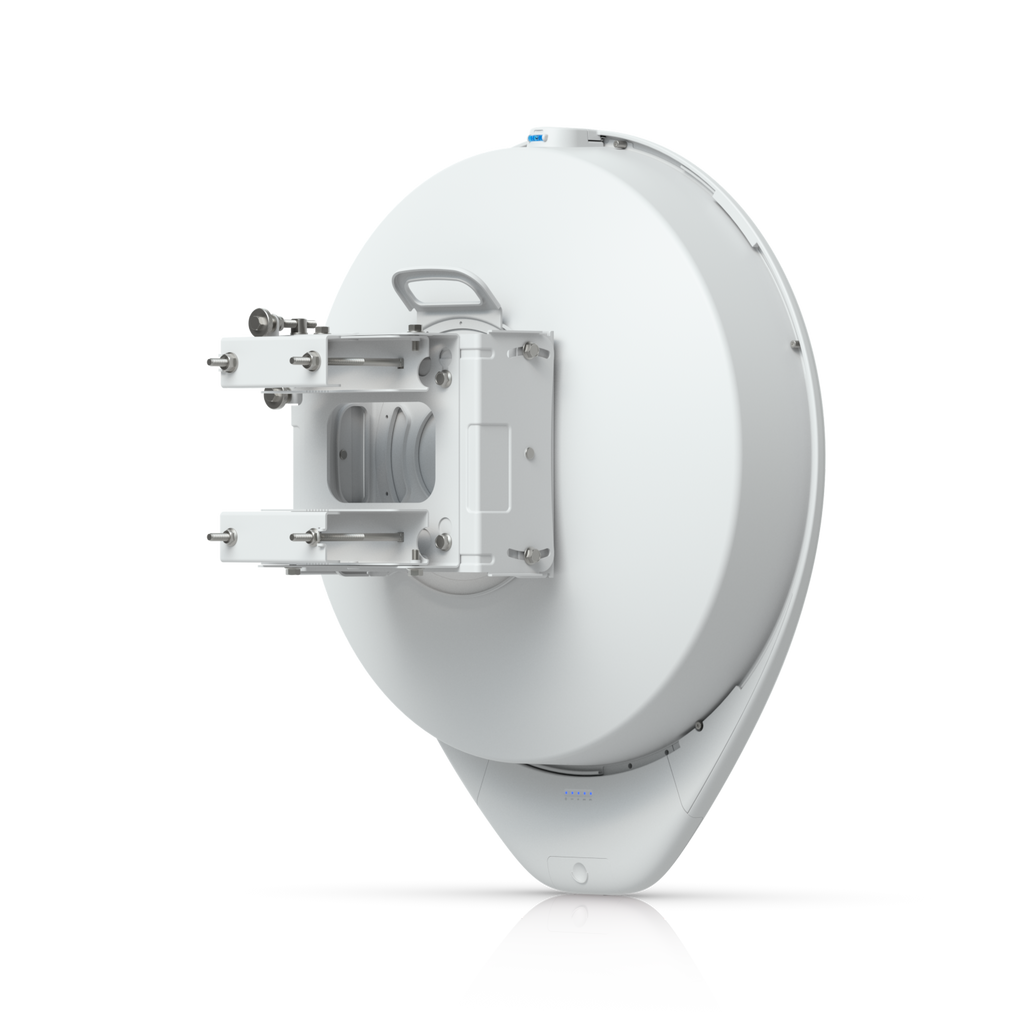

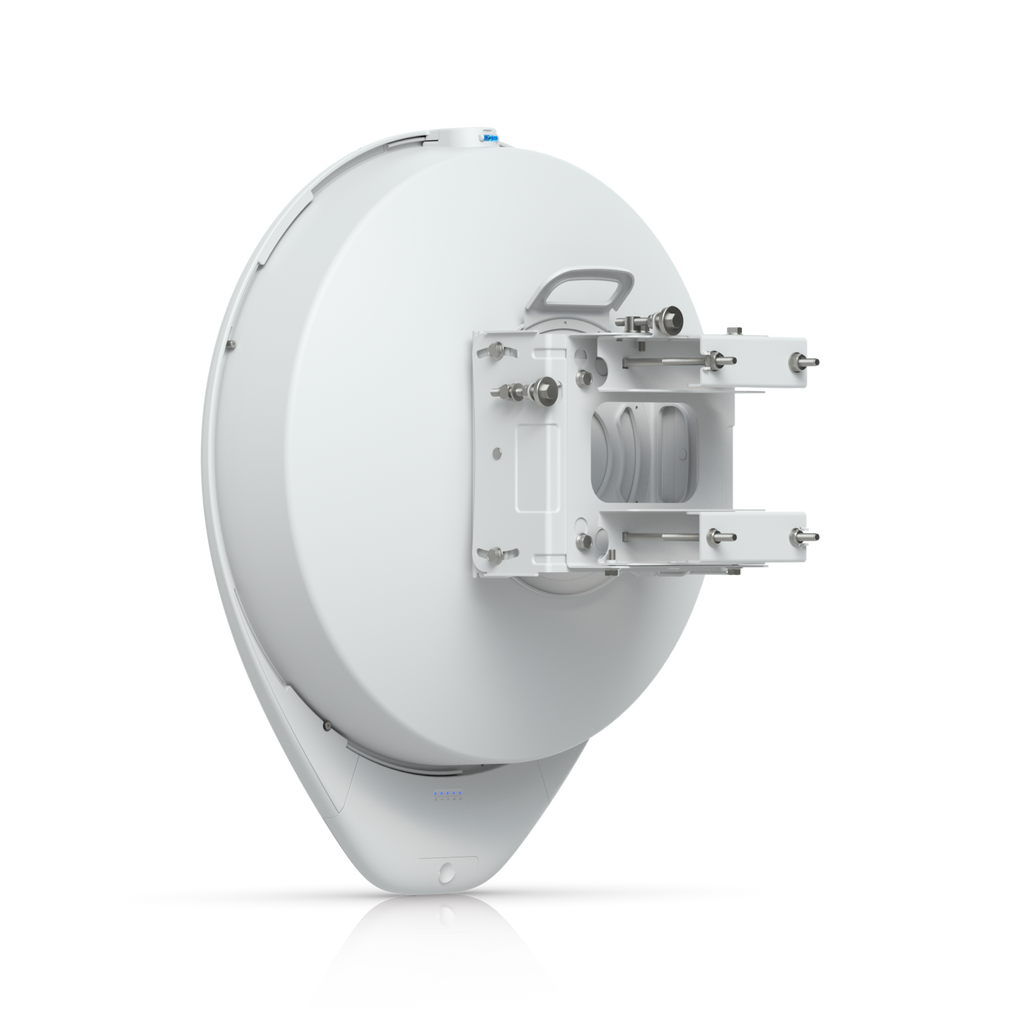

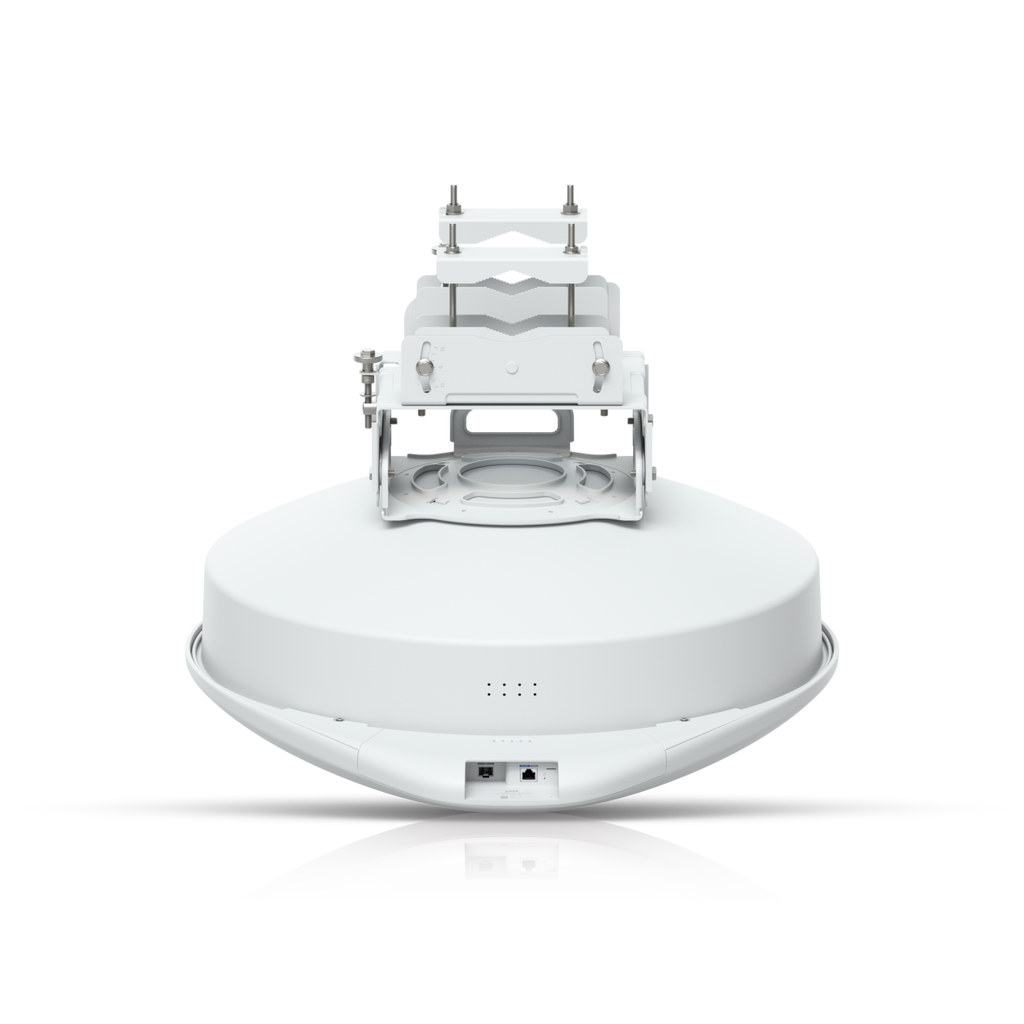

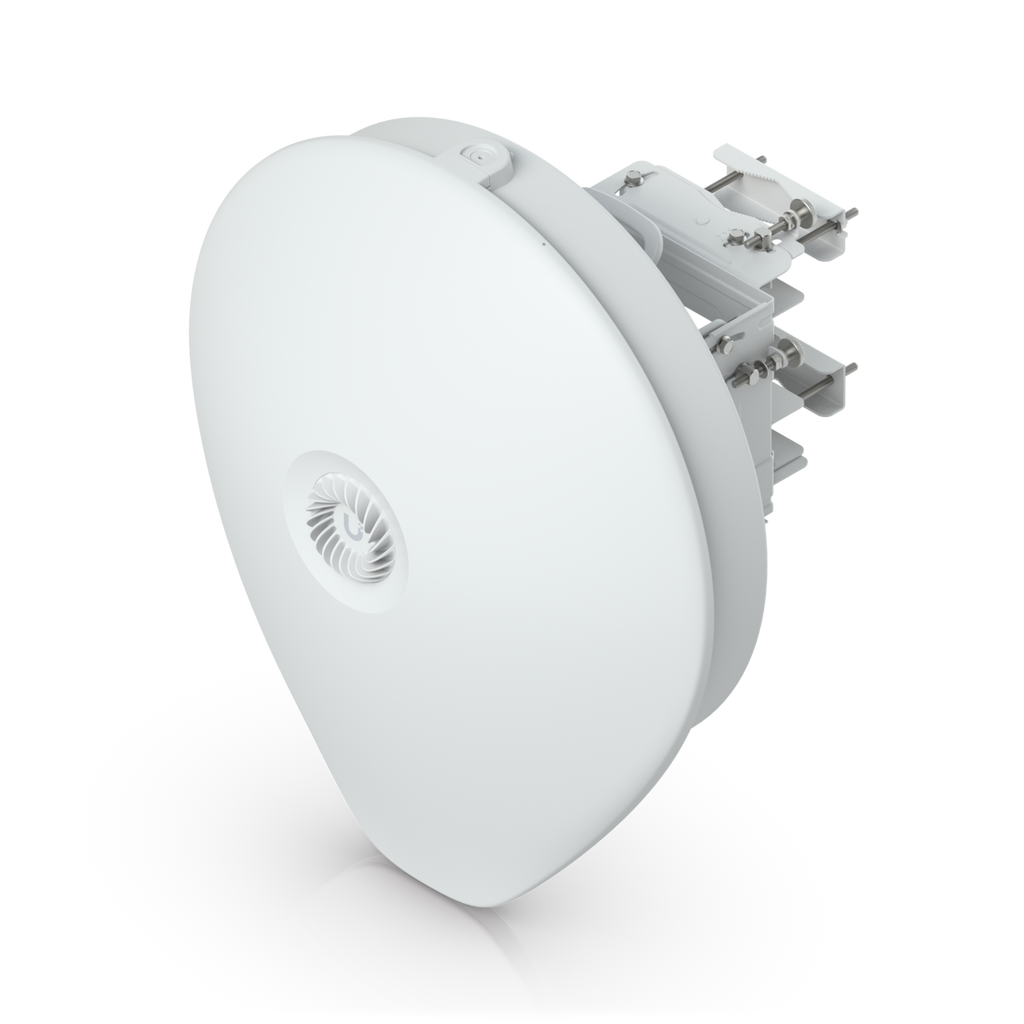

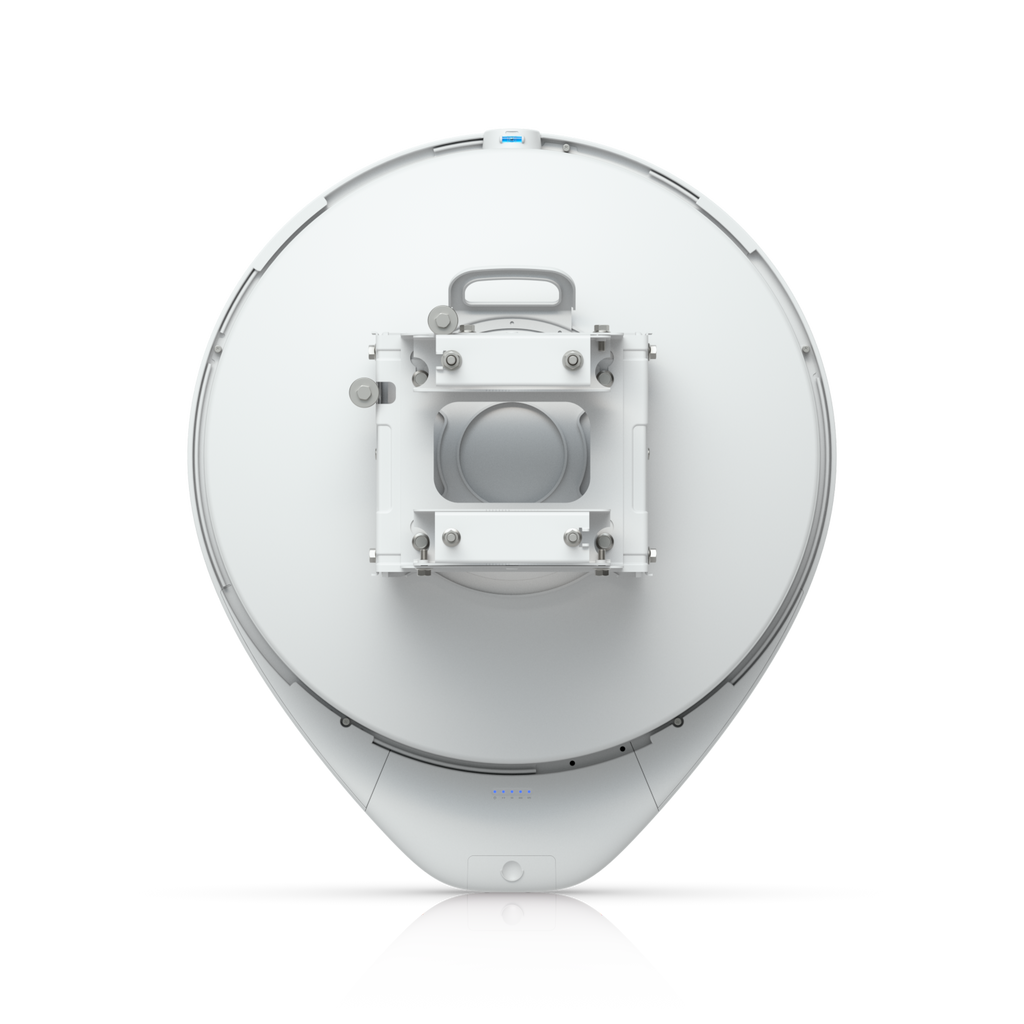

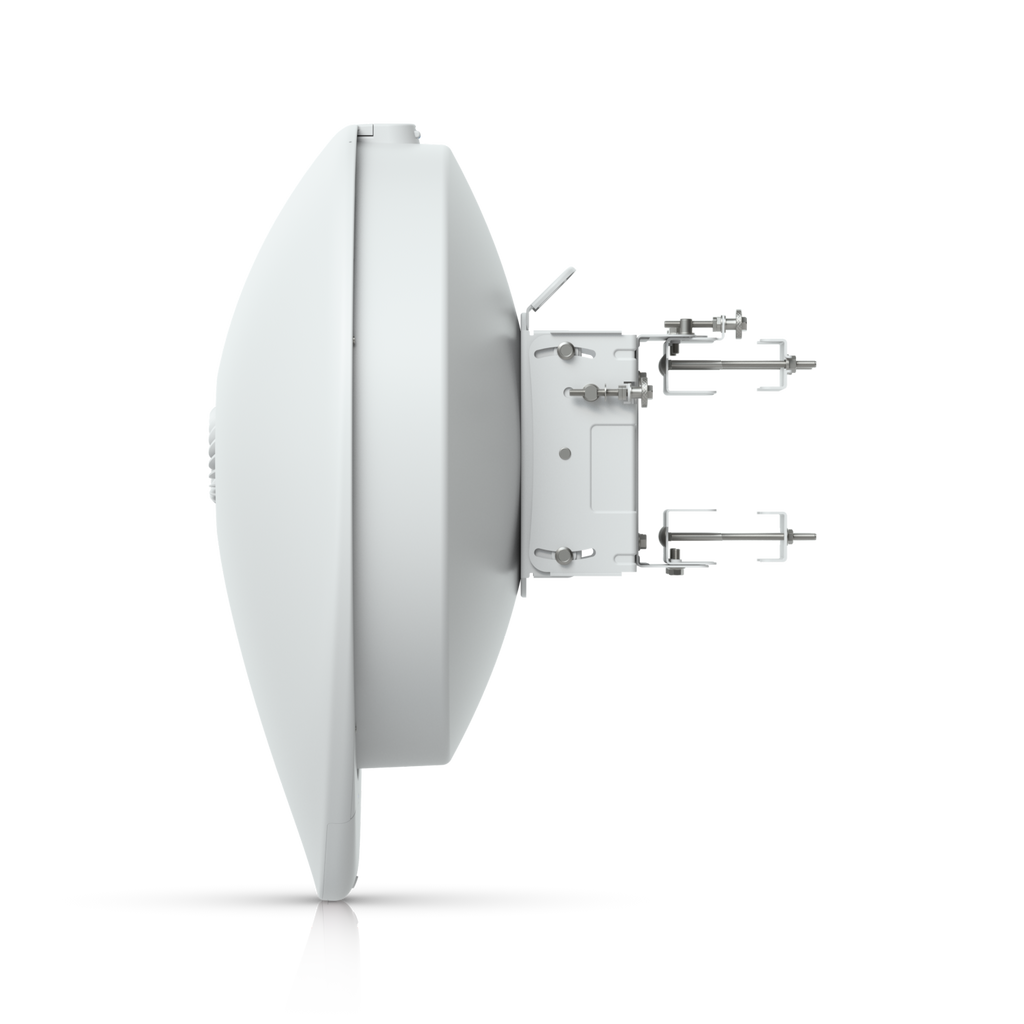

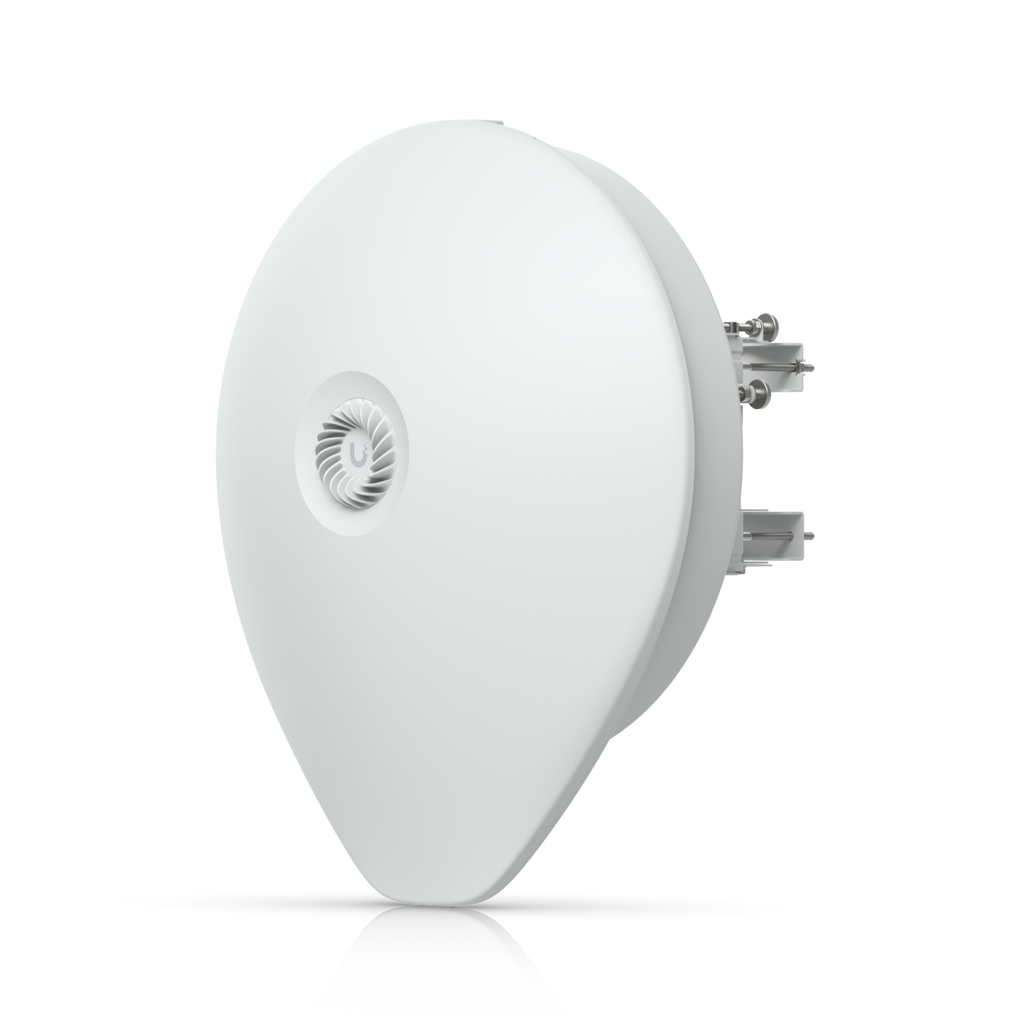

The Ubiquiti Networks airFiber 60 XR (AF60-XR) is an extreme-range, high-performance point-to-point (PtP) wireless bridge that delivers next-generation connectivity for long-distance networks. Operating on the 60 GHz band with a 5 GHz backup radio, it supports ranges up to 9.3 miles (15 km) and throughput up to 5.4 Gb/s (2.7 Gb/s duplex).

With a Gigabit Ethernet PoE uplink and a 10G SFP+ port, the AF60-XR offers deployment flexibility and high-speed fiber integration. Built with a rugged IPX6-rated enclosure of UV-stabilized polycarbonate and steel, it is engineered to perform in extreme conditions, while precision alignment tools and integrated GPS ensure reliable, secure links. Management and monitoring are simple via the Ubiquiti UISP app for web and mobile.

The Ubiquiti airFiber 60 XR (AF60-XR) is an extreme-range 60 GHz point-to-point wireless bridge with a 9.3-mile reach and up to 5.4 Gbps throughput. Featuring a 5 GHz backup radio, 10G SFP+ port, integrated GPS, and WPA2-PSK security, it ensures reliable, high-speed connectivity for enterprise and ISP networks. Built with an IPX6-rated weatherproof enclosure and precision alignment kit, it’s engineered for demanding outdoor deployments.

Technical Specifications

Specification Details
Model / Part Number AF60-XR
UPC 810010076069
Wireless Frequency 60 GHz primary (57–71 GHz); 5 GHz backup
Throughput Up to 5.4 Gb/s (2.7 Gb/s duplex)
Range 9.3 miles / 15+ km
Interfaces 1x RJ45 Gigabit Ethernet PoE, 1x 10G SFP+
Antenna Gain 26 dBi
CPU Quad-Core ARM Cortex-A53, up to 1.4 GHz
Memory 1 GB DDR3L
Wireless Security WPA2-PSK (AES)
Management UISP (Web, iOS, Android), Bluetooth, Web UI
Power Supply 48V DC, 0.65A Gigabit PoE adapter (included)
Power Method Passive PoE 4-pairs / 2-pairs, 44–54V DC
Power Consumption 24 W (max)
Operating Conditions -49 to 131°F / -45 to 55°C; 5–95% humidity
Enclosure UV-stabilized polycarbonate and steel, IPX6 rated
Mounting Options Precision alignment pole mount (Ø40–80 mm)
Wind Loading 422 N at 200 km/h (94.8 lbf at 125 mph)
Dimensions 30.7 x 26.1 x 15.1" / 779 x 664 x 383 mm
Weight 8.6 kg (19 lb) without mount; 13 kg (28.7 lb) with mount
GPS Integrated
Certifications FCC, IC, CE, NDAA Compliant

Specifications

  • 60 GHz PtP wireless bridge with 5 GHz backup radio
  • Up to 5.4 Gb/s throughput, 15+ km maximum range
  • 1x GbE PoE + 1x 10G SFP+ interface
  • Quad-core ARM Cortex-A53 processor, 1 GB RAM
  • Rugged IPX6-rated enclosure with UV-stabilized materials
  • Precision alignment mounting kit included
  • WPA2-PSK AES encryption with UISP management
