Ubiquiti airFiber AF60-LR |...

Features

  • Extended Range – Reliable PtP connectivity up to 7.5 miles (12 km)

  • High Throughput – Supports up to 1.8 Gb/s over 60 GHz band

  • Durable Build – Aluminum & UV-stabilized polycarbonate enclosure with galvanized steel mounting

  • Weather Resistance – Operates from -40 to 140°F with ±24kV ESD/EMP protection

  • Precision Alignment – Includes professional-grade pole mount for accurate setup

  • Advanced Management – UISP app with Bluetooth, antenna alignment tools, and speed testing

  • Secure Networking – WPA2-PSK encryption with PtP-only operation

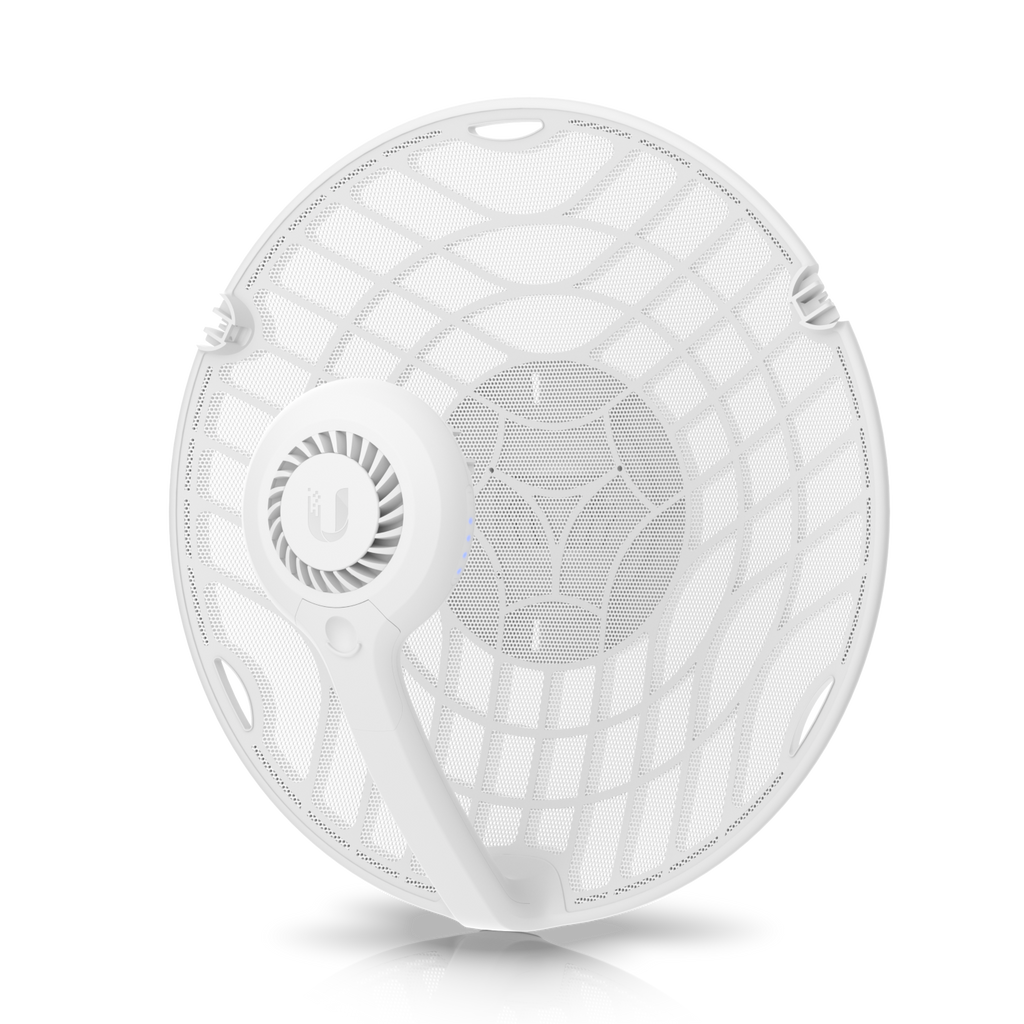

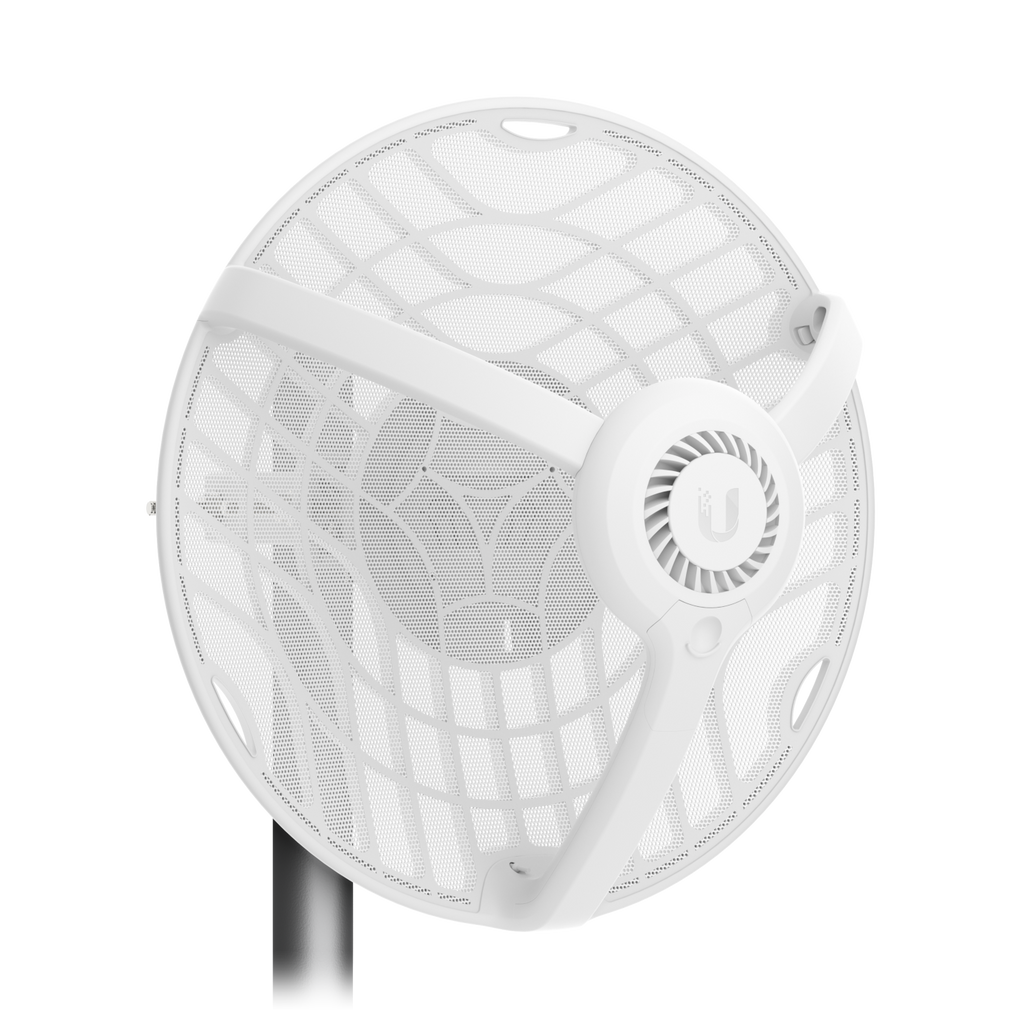

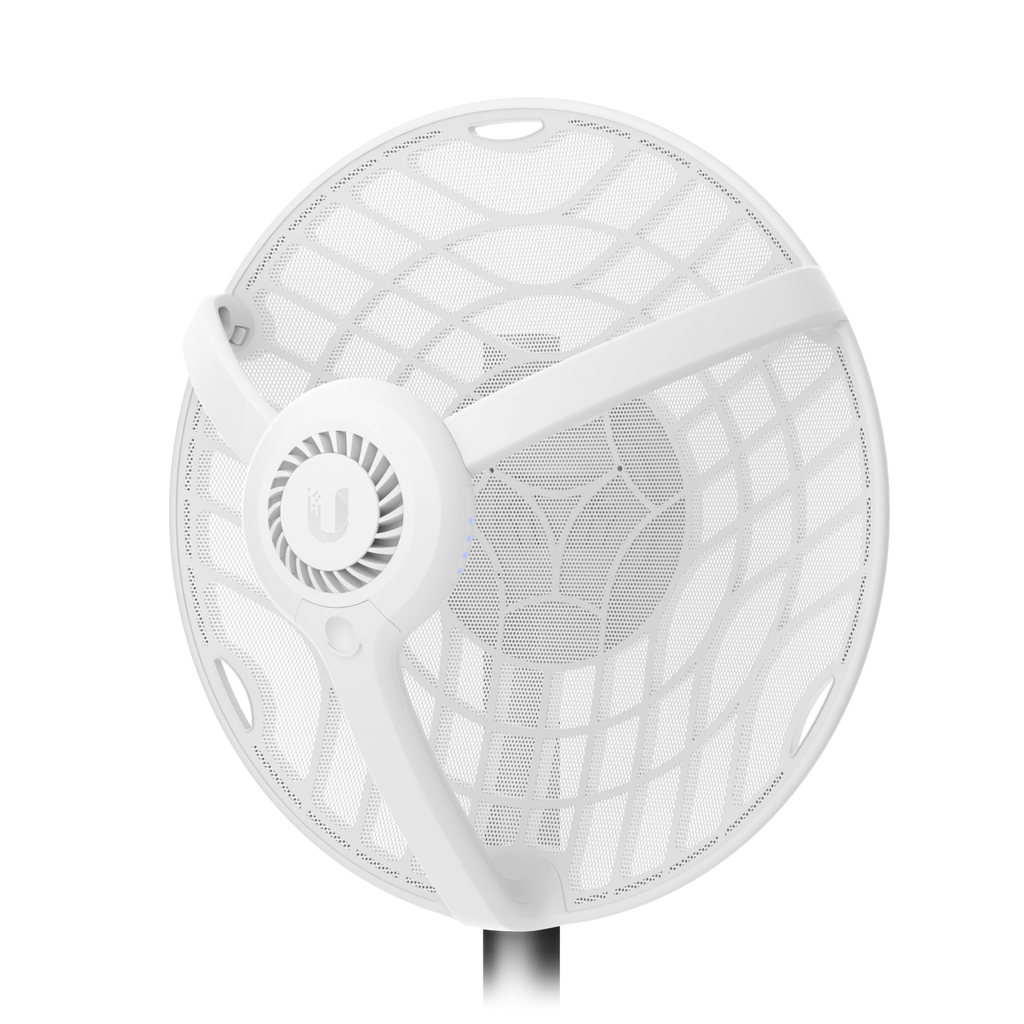

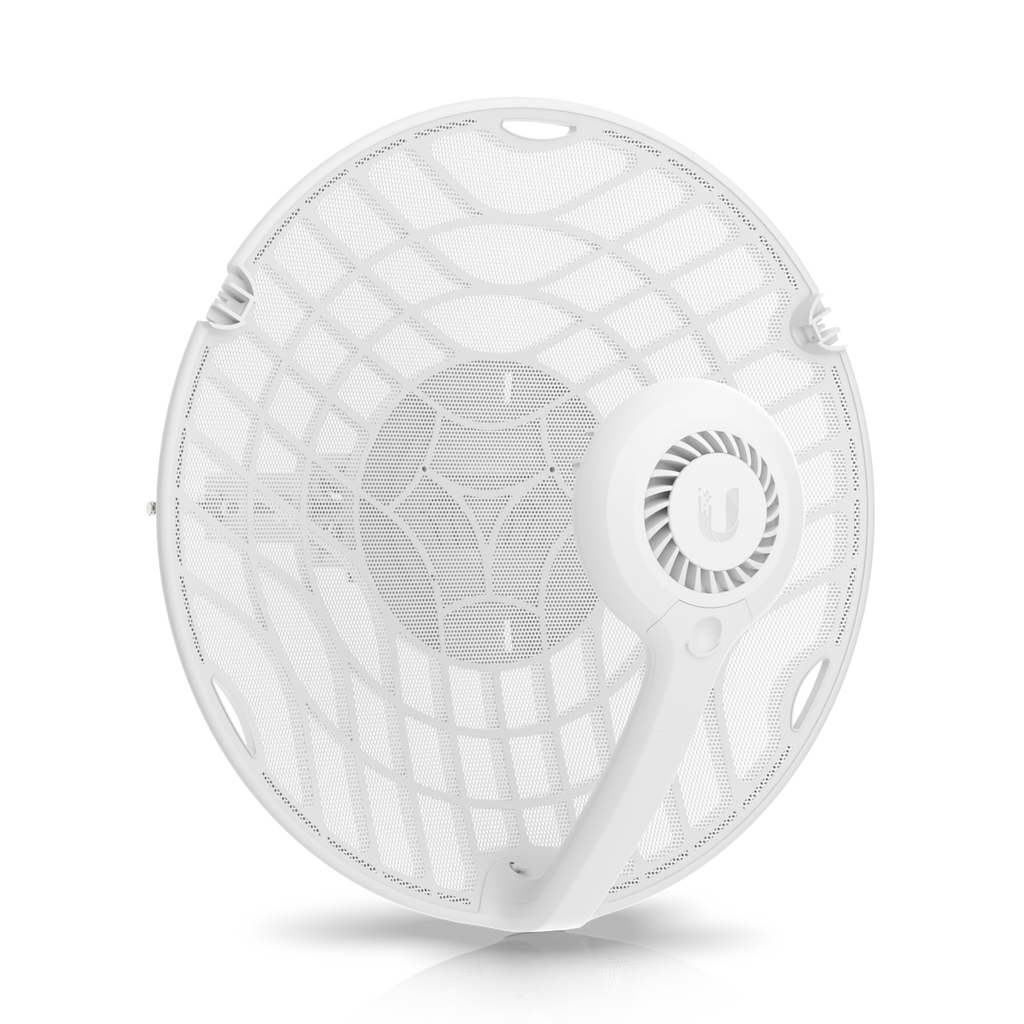

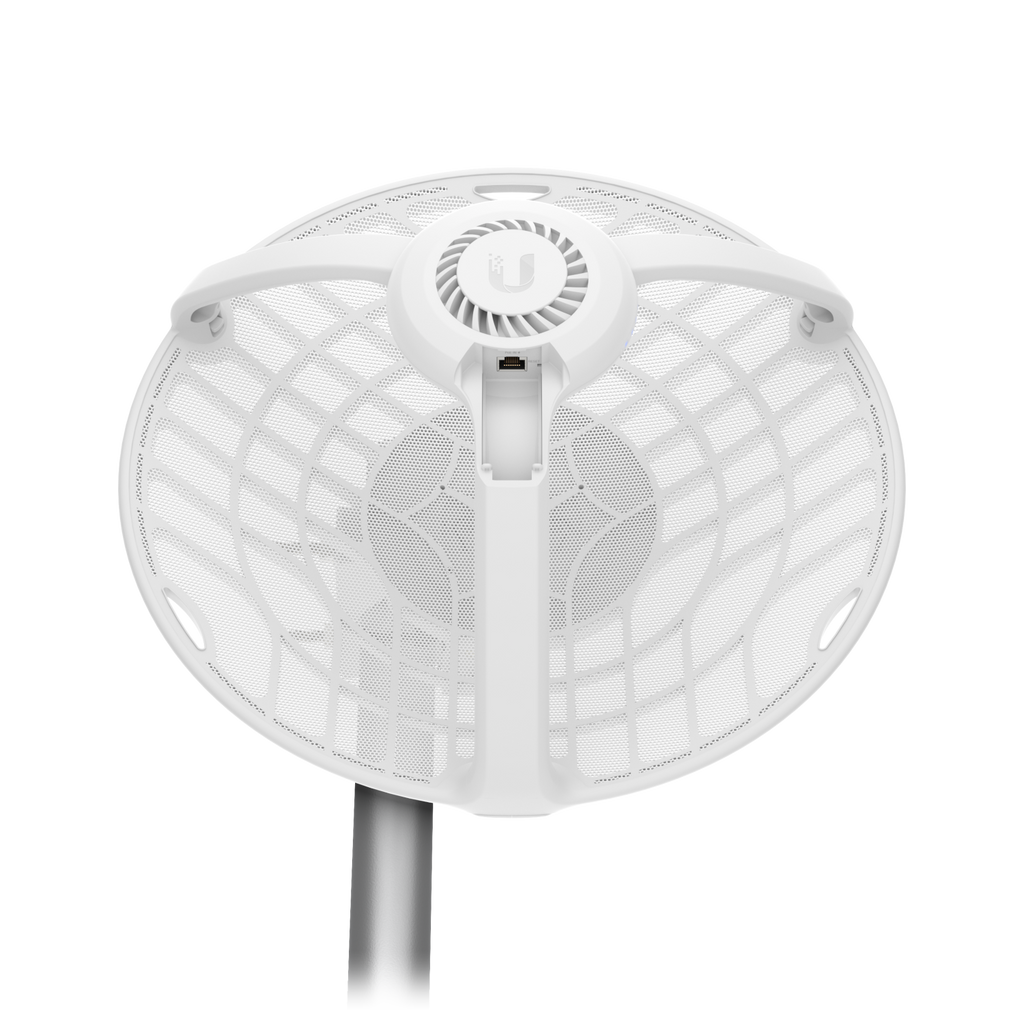

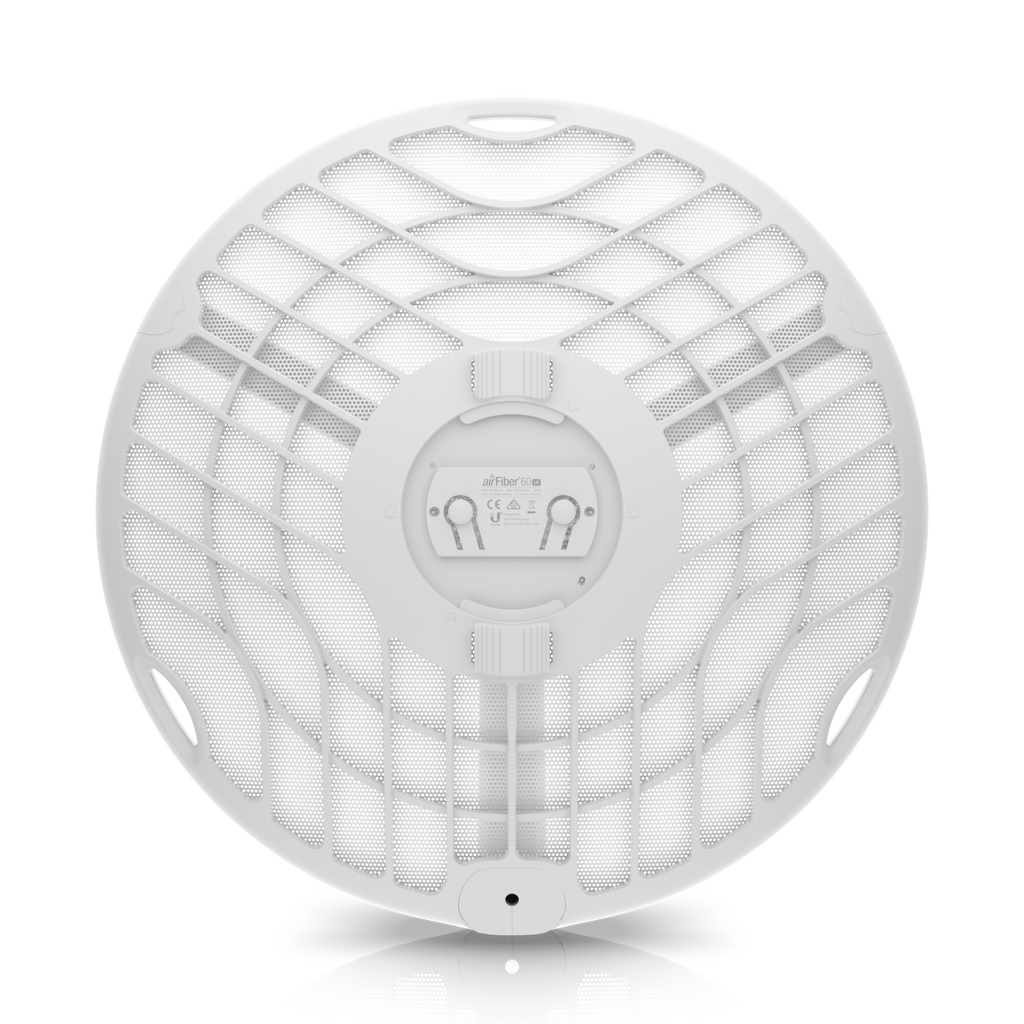

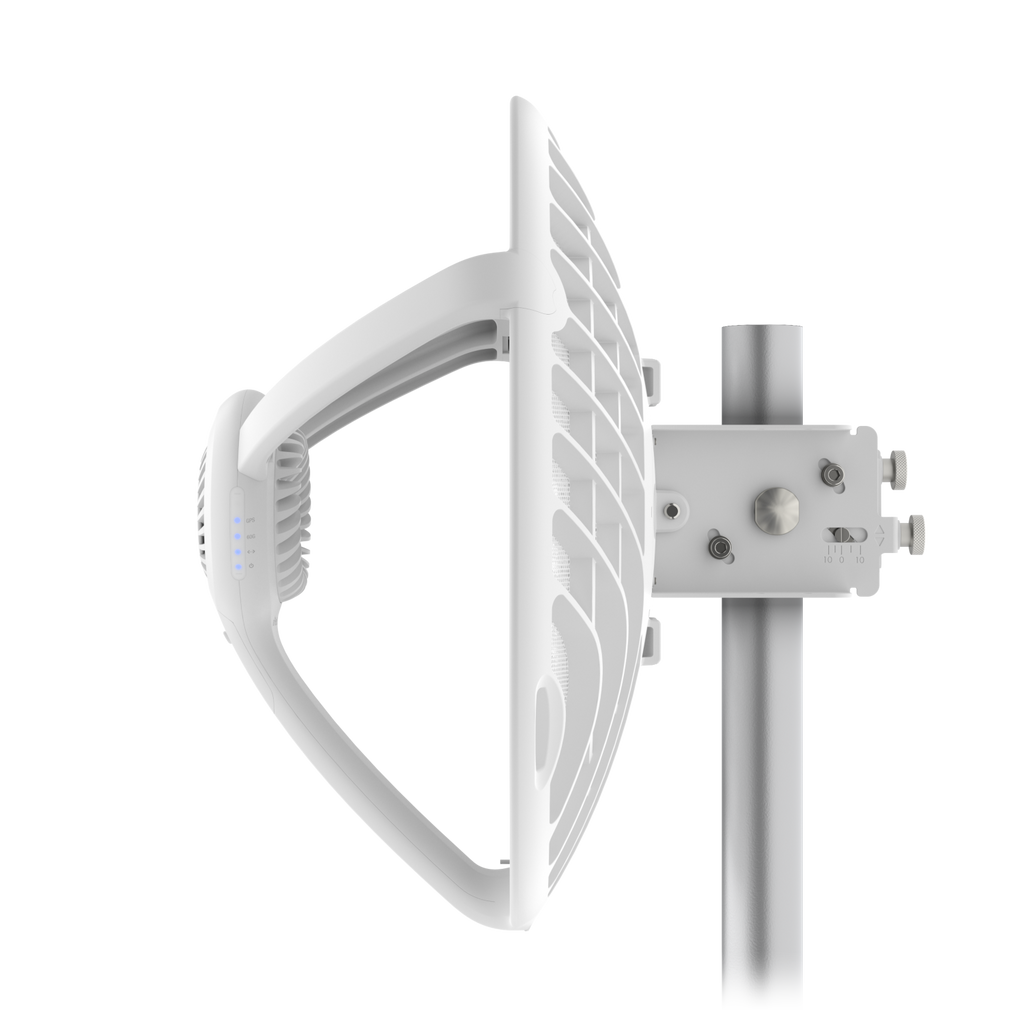

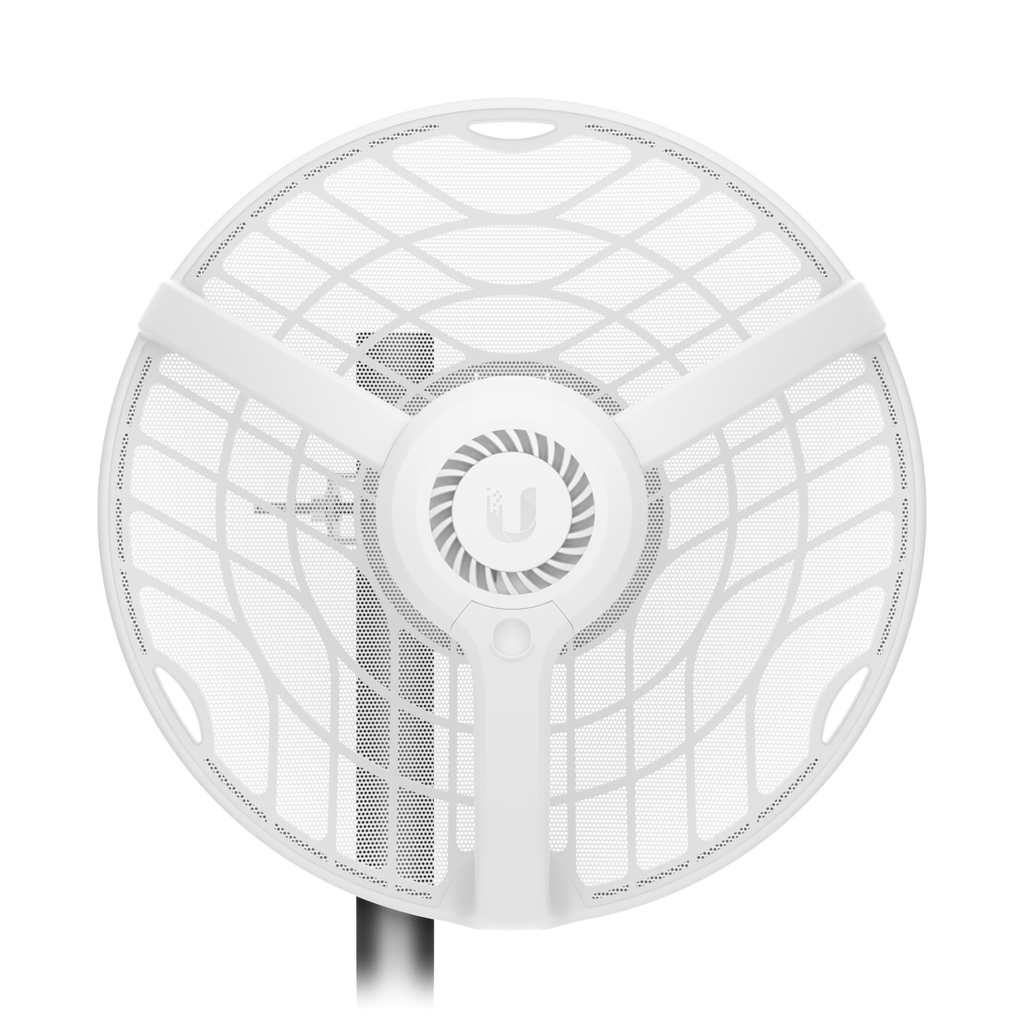

The Ubiquiti Networks airFiber 60 LR (AF60-LR) Wireless Bridge is designed for ultra-long-range point-to-point connectivity, delivering high-throughput performance across distances of up to 7.5 miles (12 km). Operating on the interference-resistant 60 GHz band, it achieves up to 1.8 Gb/s throughput, with advanced Wave technology ensuring efficient and stable links. Housed in a durable aluminum and UV-stabilized polycarbonate enclosure, this outdoor solution is built to withstand harsh conditions, with ±24kV ESD/EMP protection and wind resistance up to 125 mph.

Ubiquiti airFiber AF60-LR long-range 60 GHz wireless bridge with 1.95 Gb/s throughput, 7.5-mile range, GPS, PoE, and rugged weather-resistant design. A precision alignment pole mount and a 48V PoE adapter are included for streamlined installation.Featuring integrated GPS, ESD/EMP protection, precision pole mount, and a rugged weatherproof design, it’s ideal for enterprise and ISP deployments.

The Ubiquiti airFiber 60 LR (AF60-LR) is a long-range 60 GHz point-to-point wireless bridge designed for reliable, high-speed outdoor connectivity. With a maximum range of 7.5 miles and throughput up to 1.9 Gbps, it ensures fast, low-latency links for demanding networks.

Technical Specifications

Specification Details
Model / Part Number AF60-LR
UPC 810010073433
Wireless Frequency 60 GHz (57–71 GHz, region dependent)
Throughput Up to 1.95 Gb/s
Range 7.5 miles / 12+ km
Interfaces 1x RJ45 GbE PoE port
CPU Quad-Core ARM Cortex A7
Memory 256 MB DDR3
Power Method Passive PoE 4-pairs or 2-pairs (44–54V DC)
Power Supply 48V DC, 0.65A Gigabit PoE adapter (included)
Max Power Consumption 18–22 W
GPS Integrated
ESD/EMP Protection ±24 kV
Operating Conditions -40 to 140°F / -40 to 60°C, 5–95% humidity
Enclosure Material Aluminum, UV-stabilized polycarbonate

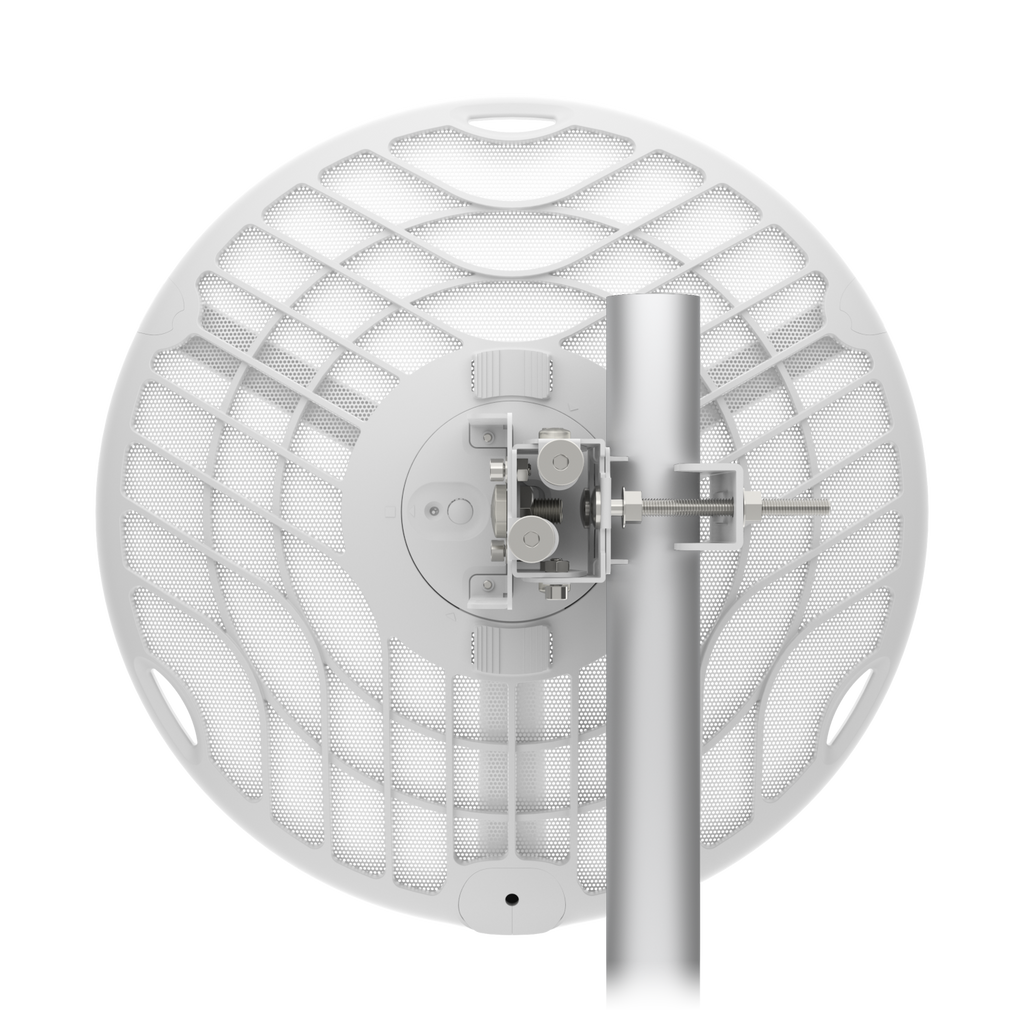

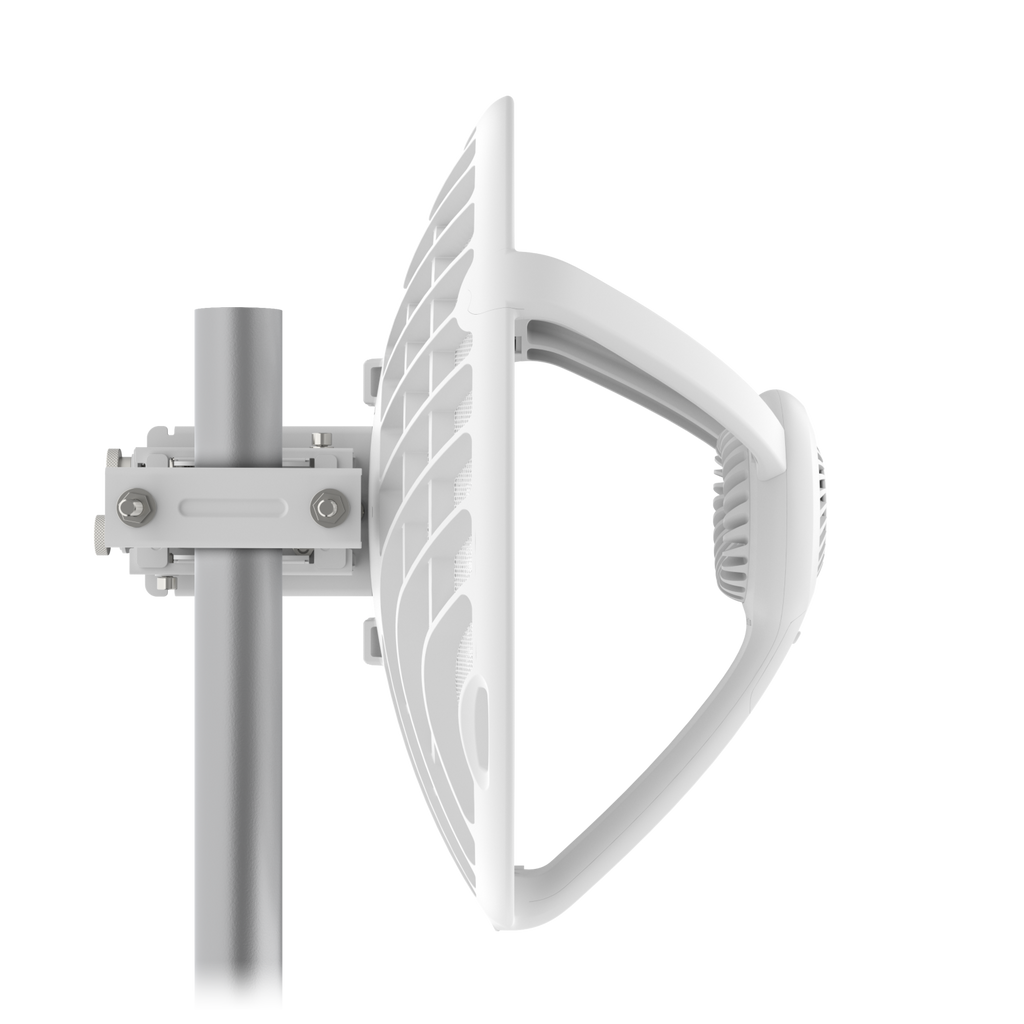

Mounting Options Precision pole alignment kit included (Ø1–3" / 25.4–76.2 mm poles)
Wind Loading 420 N at 200 km/h (94.4 lbf at 125 mph)
Dimensions Ø413 x 360 mm (Ø16.3 x 14.2")
Weight 3.3 lb (1.5 kg) device only, 6 lb (2.7 kg) with mount
Wireless Security WPA2-PSK (AES)
Management UISP App (Android & iOS), Bluetooth, Web UI
Certifications FCC, IC, CE, NDAA Compliant
