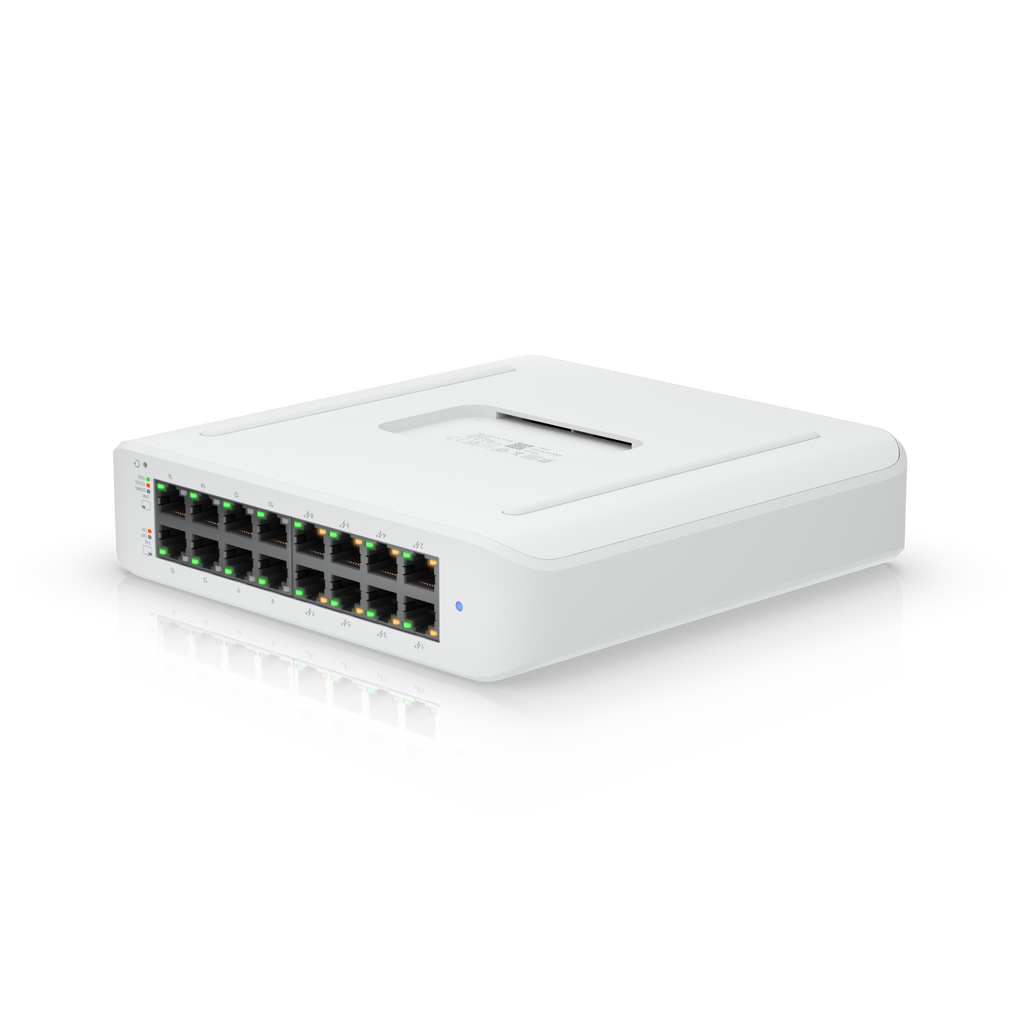

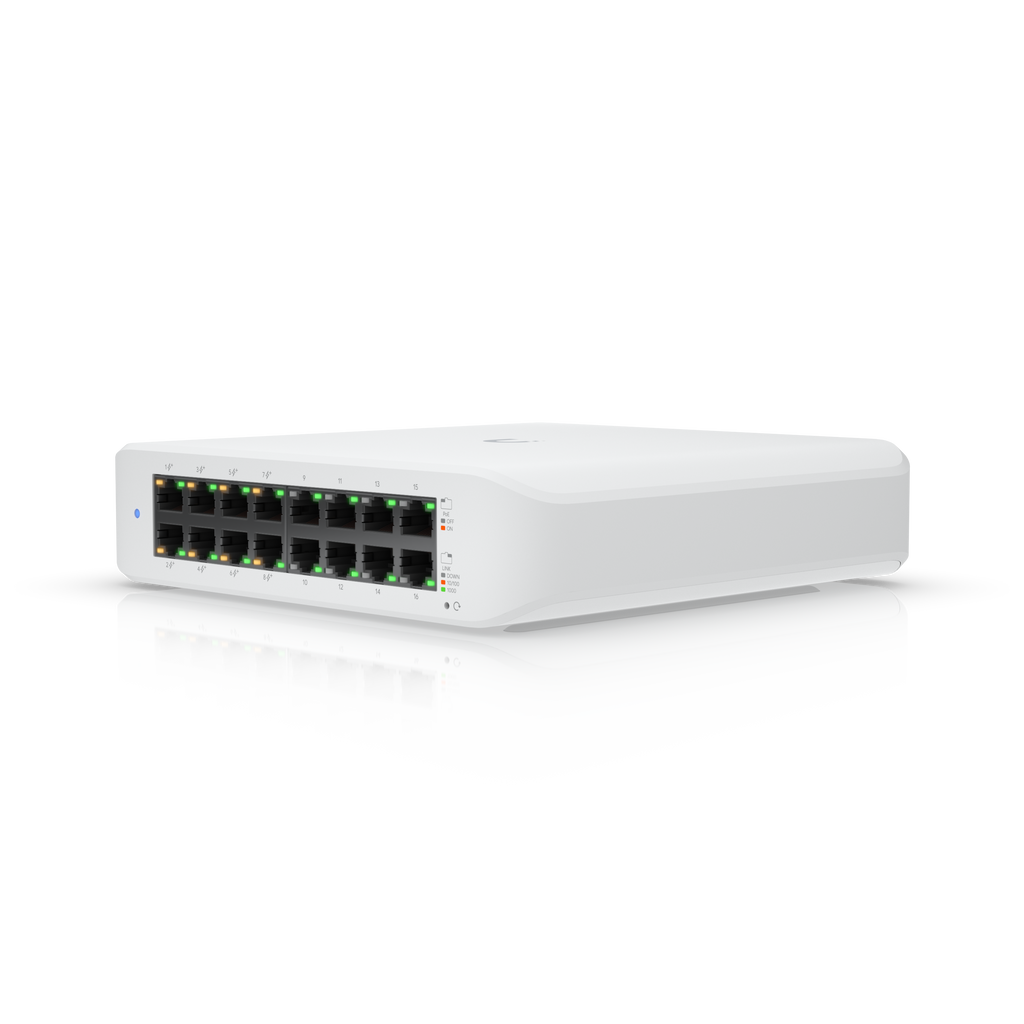

Upgrade your network with the Ubiquiti UniFi Switch Lite 16 PoE, a compact, fanless Layer 2 switch designed for high-performance and silent operation. Featuring 16 Gigabit Ethernet ports, including 8 PoE+ ports with a 45W total power budget, this switch is ideal for powering UniFi access points, VoIP phones, and other PoE devices. Its sleek, wall-mountable design and internal power supply make it perfect for home offices, small businesses, and professional installations.+
-
⚡ 16 Gigabit Ethernet ports with 8 PoE+ (802.3at)
-
🔇 Fanless design for silent operation
-
🛠️ Layer 2 management with VLAN, IGMP, ACLs
-
📦 Compact desktop or wall-mountable form factor
-
🔌 45W total PoE budget, 60W max power draw
-
🧠 Compatible with UniFi Network Controller
🔧 Key Features:
-

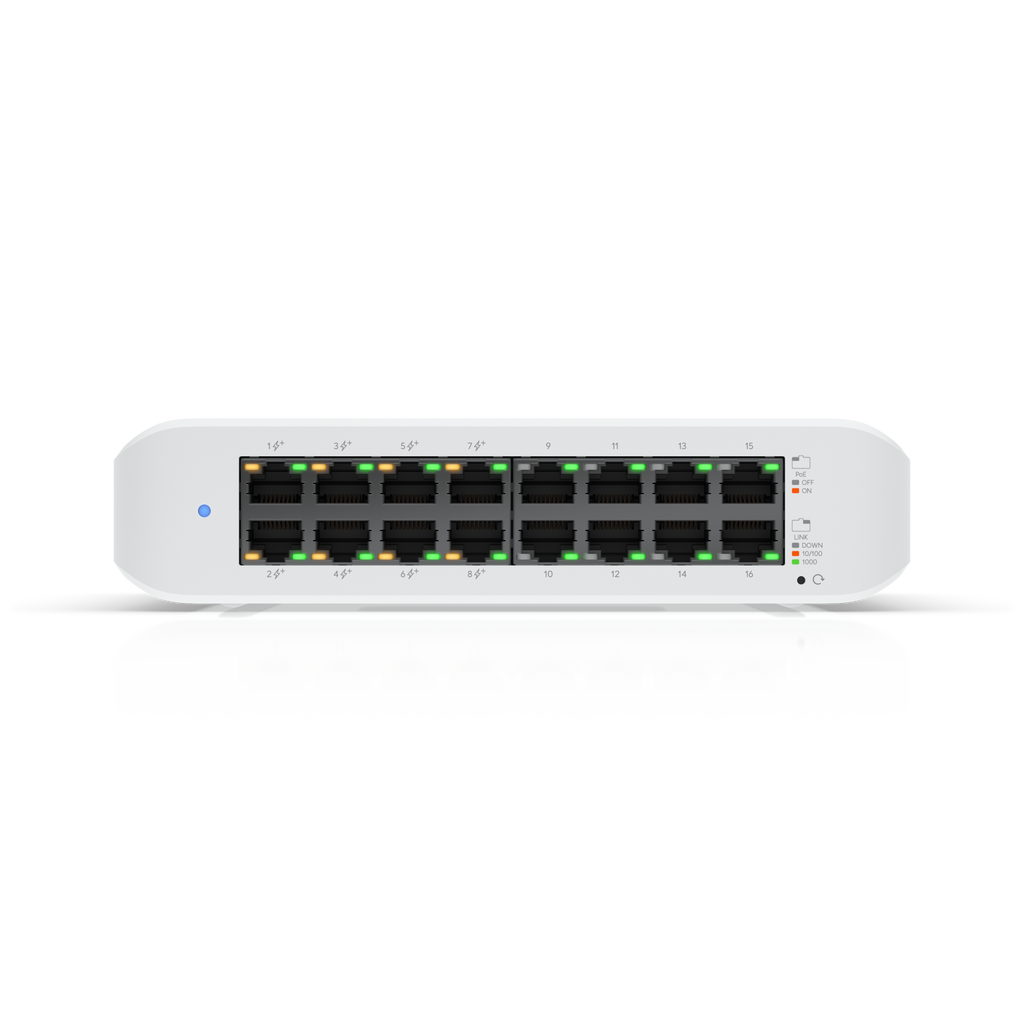

16x Gigabit RJ45 ports (8 PoE+)
-
802.3at PoE+ support, up to 32W per port
-
Total PoE budget: 45W
-
Fanless cooling for silent operation
-

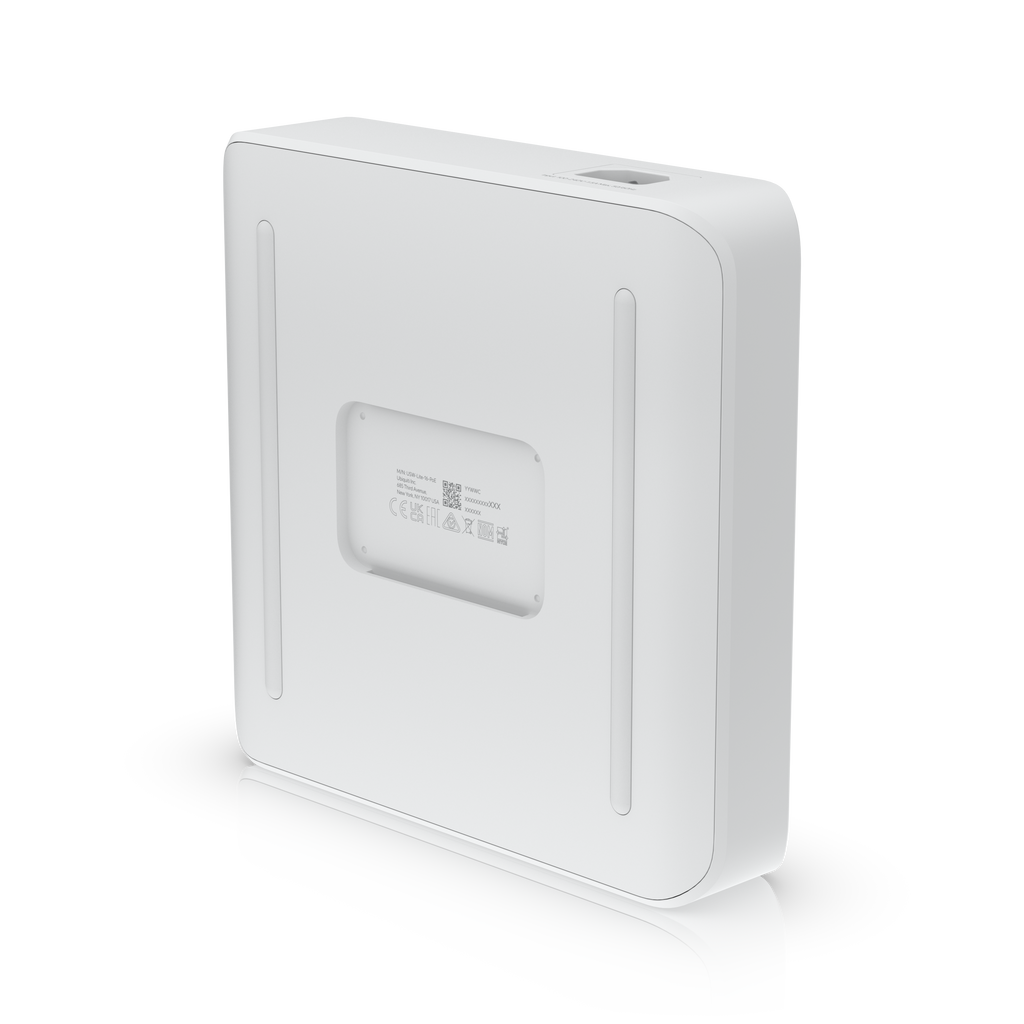

Compact desktop or wall-mountable form factor
-
Managed Layer 2 switch with UniFi Controller support
-
Switching capacity: 32 Gbps
-
Forwarding rate: 24 Mpps
-
MAC address table: 8,000 entries
-
Advanced Layer 2 features: VLANs, IGMP snooping, port mirroring, ACLs, and more
📦 Product Specifications
| Attribute | Details |
|---|---|
| Model | USW-Lite-16-POE |
| UPC | 0810010071118 |
| Weight | 1.2 kg / 2.65 lb |
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7 in) |
| Power Consumption | 15W (excluding PoE), 60W (including PoE) |
| PoE Ports | 8x PoE+ (802.3at) |
| Mounting Options | Desktop or wall-mountable |
| Operating Temp | -15°C to 40°C (5°F to 104°F) |
| Certifications | CE, FCC, IC, Anatel |
| Enclosure Material | Polycarbonate |
| Management Software | UniFi Network Controller (v7.2.94+) |
