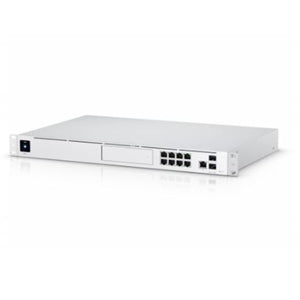

The UniFi® Dream Machine Pro is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment. Powered by a fast 1.7 GHz quad-core processor, the UDM Pro combines multiple functions into a single device:
The UDM Pro includes the UniFi Network Application so you can manage your UniFi Switches and APs. It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app. Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server.
Redundancy
The UDM Pro supports multiple redundancy options to ensure your network remains operational:
Product Type: Network Management Appliance
Width: 17.4"
Depth: 11.2"
Weight (Approximate): 8.60 lb
Additional Information:
Environmentally Friendly: Yes
Environmental Certification: WEEE
- Advanced Security Gateway with Built-in Switch
- Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45
- One 10G SFP+ LAN Port
- Embedded Enterprise Software: UniFi Network
- 3.5" HDD Bay for NVR Storage (2.5" HDD also supported)
The UDM Pro includes the UniFi Network Application so you can manage your UniFi Switches and APs. It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app. Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server.
Redundancy
The UDM Pro supports multiple redundancy options to ensure your network remains operational:
- Dual WAN with Failover Supports dual internet/ISP connections with failover: if the primary WAN connection drops, it will automatically switch to the other WAN connection.
- LTE Failover Redundancy Supports the UniFi LTE device for automatic failover to the LTE cellular network. If the wired WAN fails, it will automatically switch to the UniFi LTE, keeping your network online.
- Power Supply Redundancy and Failover The UDM Pro supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup.
Product Type: Network Management Appliance
Physical Characteristics
Height: 1.7"Width: 17.4"
Depth: 11.2"
Weight (Approximate): 8.60 lb
Miscellaneous
Package Contents:- Enterprise Security Gateway and Network Appliance with 10G SFP+
- 1U Rackmountable Hardware
Additional Information:
- Networking
- 8 x 10/100/1000 RJ45 LAN Ports
- Management
- 1 x Bluetooth BLE
- IDS/IPS Throughput: 3.5 Gbps
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- Max Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method:
- 1 x Universal AC Input, 100-240VAC, 50/60 Hz
- 1 x RPS DC Input
- Power Supply: Internal 50W/12V
- LEDs:
- HDD: Activity
- RJ45: Link/Speed/Activity
- SFP+: Link/Speed/Activity
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Operating Temperature: -10 to 40° C (14 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
Environmentally Friendly: Yes
Environmental Certification: WEEE
