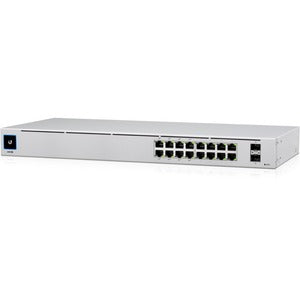

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9" , the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details: 8 x Gigabit Ethernet Network
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported: Optical FiberMedia Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2Management & Protocols
Manageable: YesPower Description
Power Source: Power SupplyPhysical Characteristics
Compatible Rack Unit: 1UForm Factor: Desktop
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 7.9"
Weight (Approximate): 6.17 lb
Miscellaneous
Package Contents:- UniFi 16-Port PoE Switch
- Rackmount Hardware
Environmentally Friendly: Yes
Environmental Certification: WEEE
Warranty
