Features
-

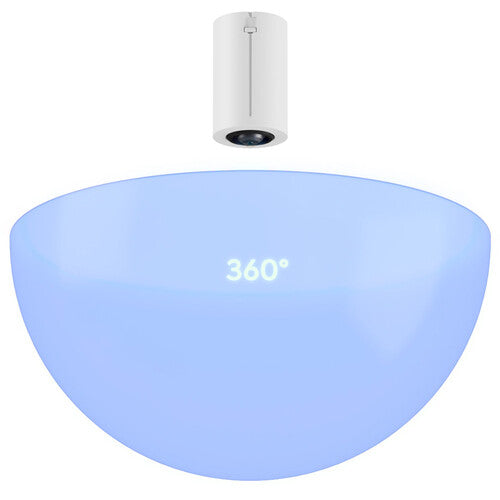

Full 360° Coverage – Captures panoramic views with a 180° horizontal, vertical, and diagonal field of view.
-
High-Resolution Imaging – 12MP CMOS sensor delivers 4MP (2560 × 2560) video at up to 20 fps.
-
Low-Light Performance – Enhanced dynamic range and advanced noise reduction for clear imaging in challenging conditions.
-
Customizable Settings – Control color, brightness, contrast, exposure, sharpness, and apply masking or text overlay.
-
Flexible Installation – Includes mounting hardware for ceiling or wall placement, with optional angled mount support.
-
Lightweight & Durable – Aluminum alloy and polycarbonate construction weighs just 15 g.
-
Energy Efficient – Consumes only 2.5W via Theta proprietary power method.
-
Certified & Compliant – FCC, IC, and CE certified for professional deployments.

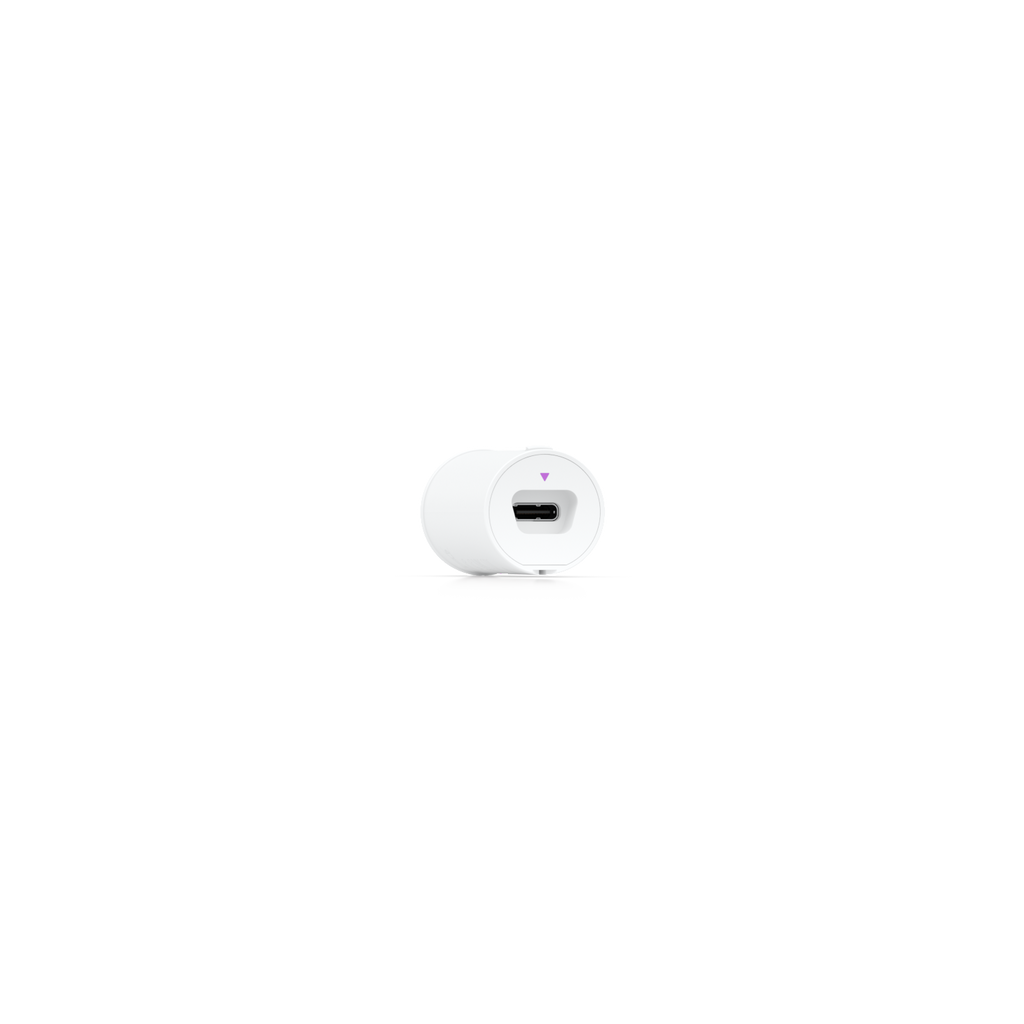

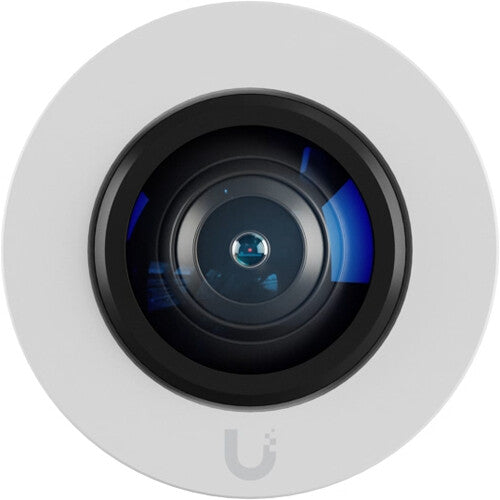

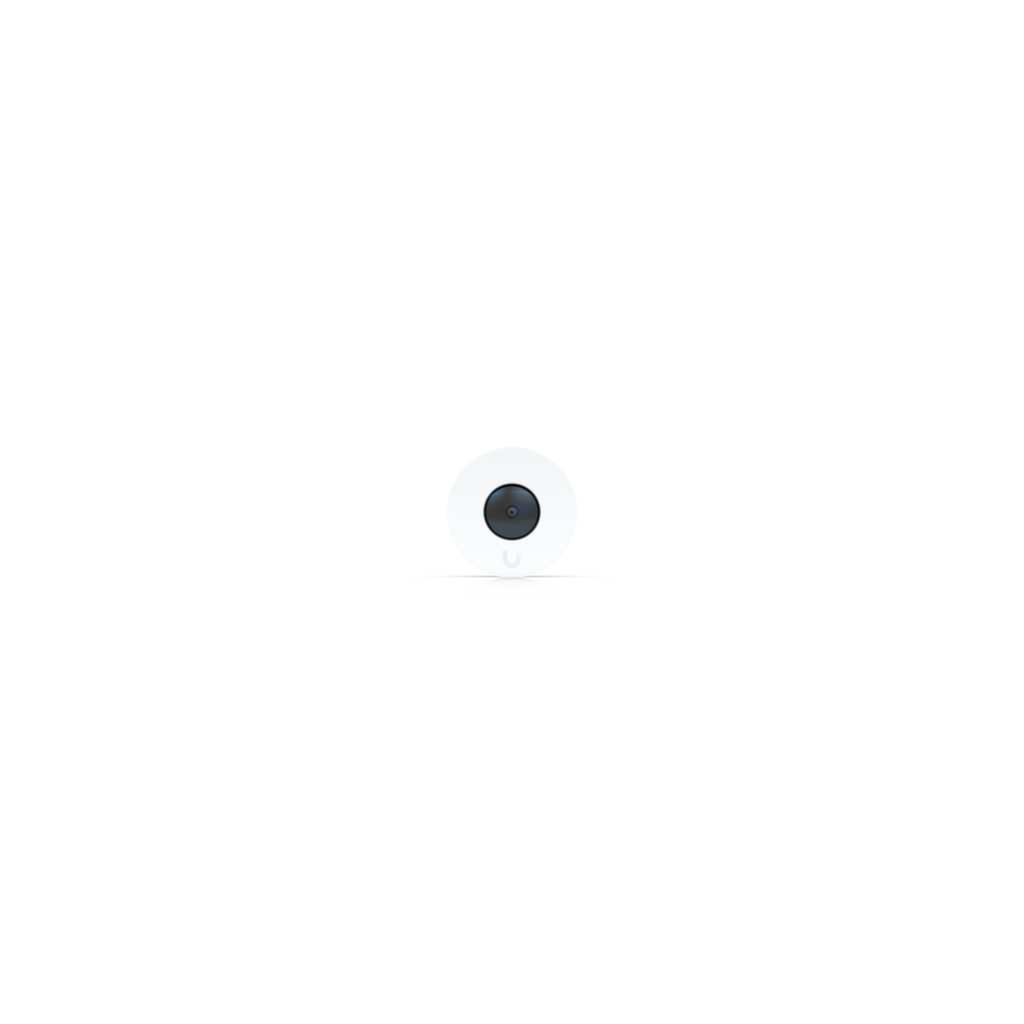

The Ubiquiti Networks AI Theta Pro 360° Ceiling Lens is an advanced optical module designed for use with the AI Theta Hub (sold separately), delivering immersive 360-degree surveillance for indoor environments.
Featuring a 12MP CMOS sensor that outputs 4MP resolution video at up to 20 fps, this lens is ideal for monitoring entrances, lobbies, and busy spaces where complete coverage is essential. With enhanced dynamic range and low-light optimization, it captures clear footage in varying conditions.

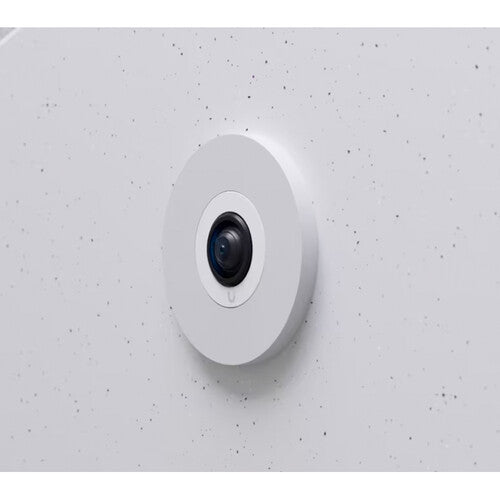

The compact, lightweight design installs easily on walls or ceilings using the included hardware, making it a versatile and reliable choice for professional surveillance systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | AI Theta Pro 360° Ceiling Lens |
| UPC | 810084692424 |
| Dimensions | Ø22.8 × 43.5 mm (Ø0.9 × 1.7") |
| Weight | 15 g (0.5 oz) |
| Field of View | H: 180° / V: 180° / D: 180° |
| Resolution | 4MP (2560 × 2560, 1:1) |
| Max. Frame Rate | 20 fps |
| Sensor | 12MP CMOS |
| Lens | Fixed focal length |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure, 2DNR/3DNR, motion-based noise reduction, masking, text overlay |
| Mounting Options | Wall or ceiling mount (hardware included); optional angled mount |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Polycarbonate |
| Power Method | Theta proprietary |
| Power Supply | 5V DC, 0.5A |
| Max. Power Consumption | 2.5W |
| Operating Conditions | -20 to 40°C (-4 to 104°F), 10–90% noncondensing humidity |
| Operating Environment | Indoor only |
| Certifications | FCC, IC, CE |
