Features
-
Long-Range Connectivity – Links up to 3.1 miles (5 km) with reliable Wi-Fi 5 performance.
-
High-Speed Data – Up to 867 Mb/s throughput on the 5 GHz band with 2x2 MIMO.
-

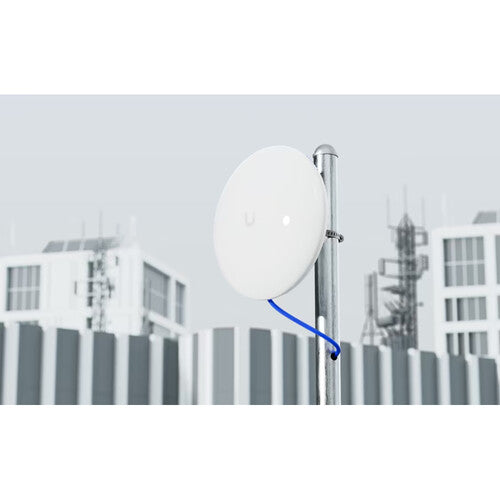

Weatherproof Design – IPX6-rated casing built for outdoor pole or wall mounting.
-
PoE+ Powered – Includes wall-mountable 48V PoE+ adapter for simplified installation.
-

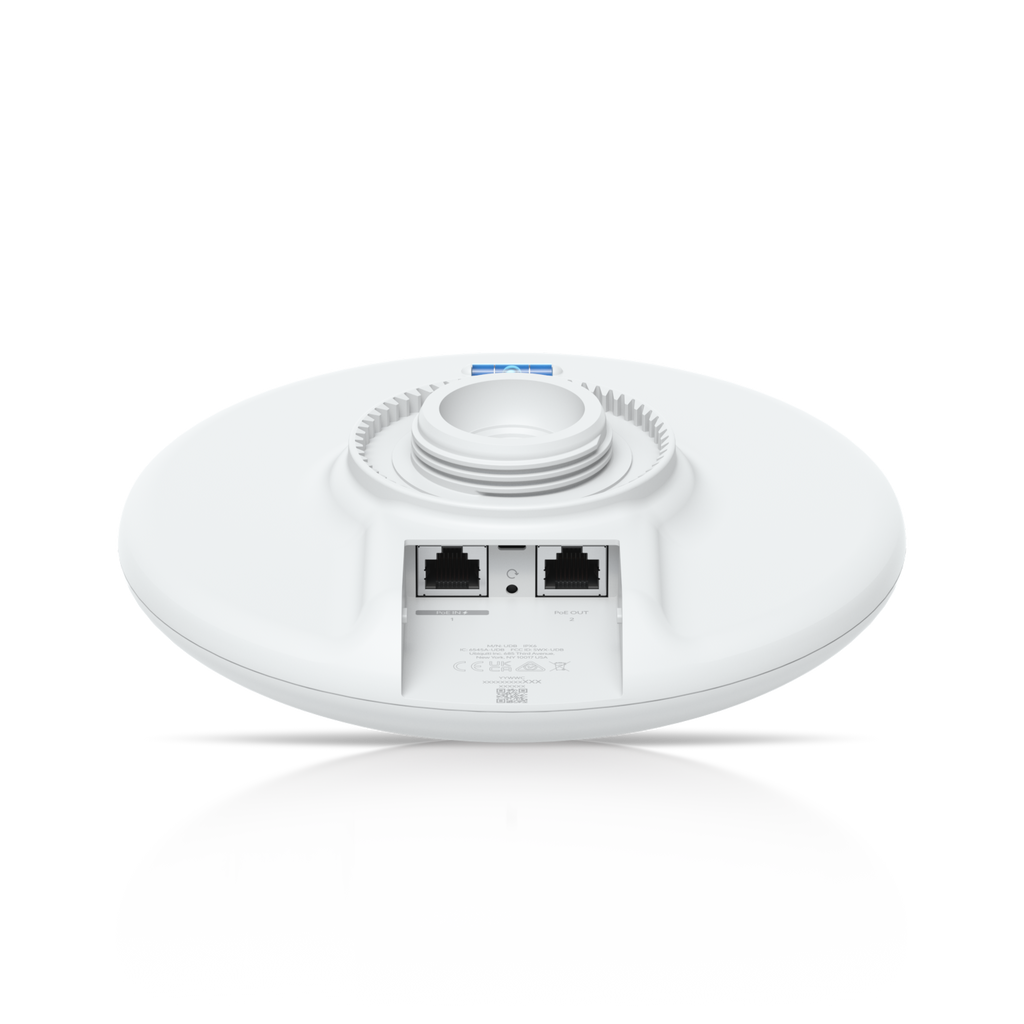

Versatile Ports – Features (2) Gigabit Ethernet RJ45 ports with PoE in and passive PoE out.
-
Advanced Security – WPA2 AES encryption ensures secure wireless links.
-
Durable Construction – UV-resistant polycarbonate housing with stainless steel mounting hardware.
-
Certified & Compliant – CE, FCC, IC certified and NDAA compliant.

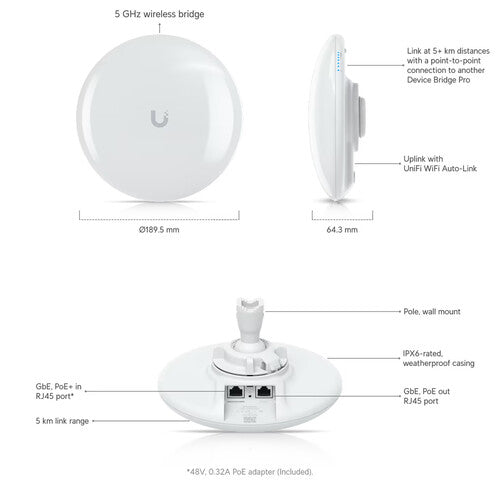

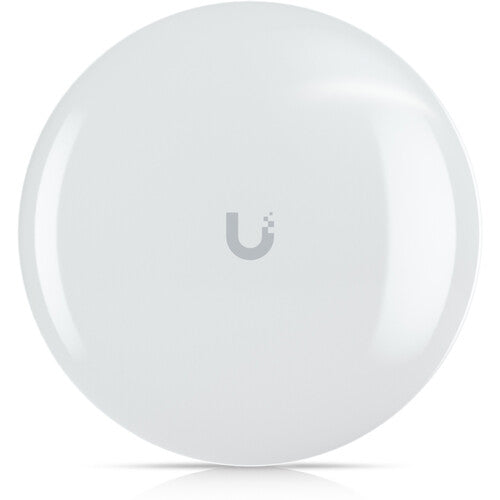

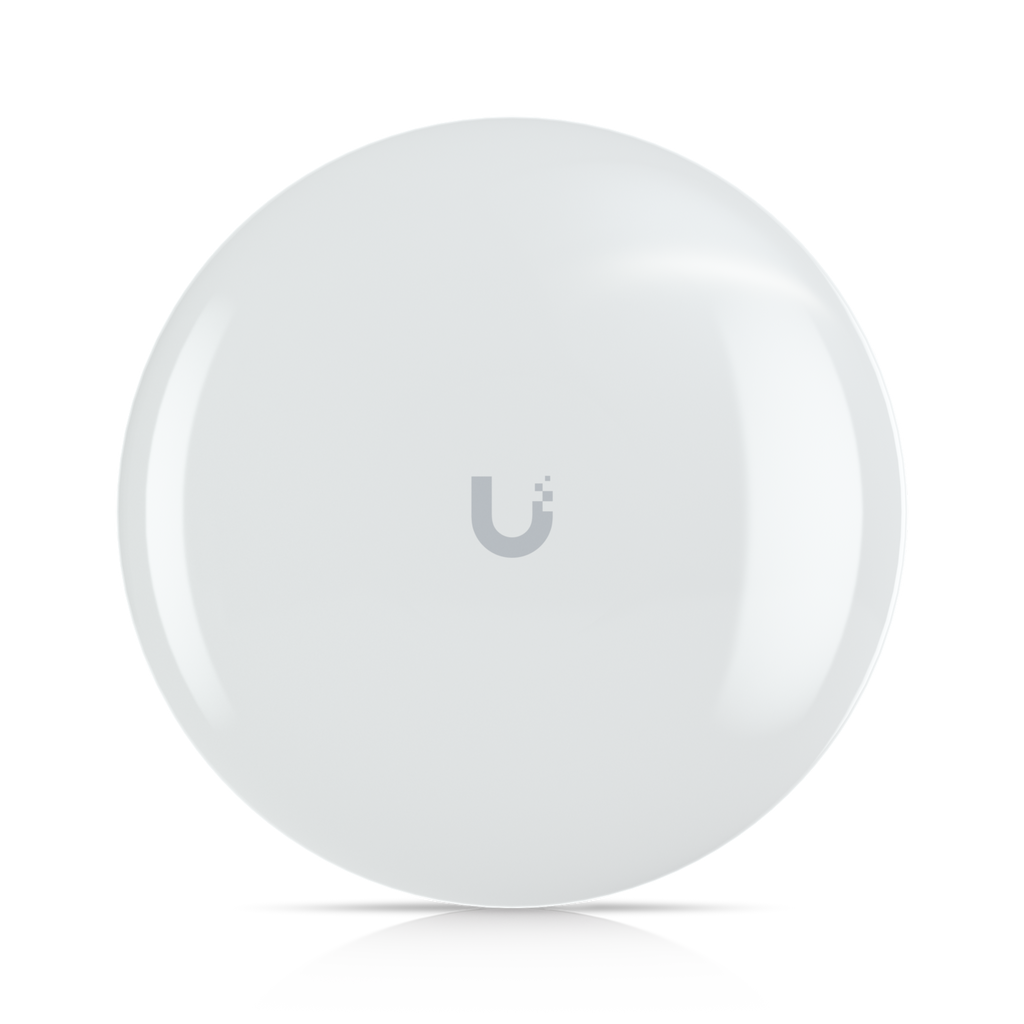

The Ubiquiti Networks Device Bridge Pro is a high-performance point-to-point solution designed to extend connectivity across long distances.

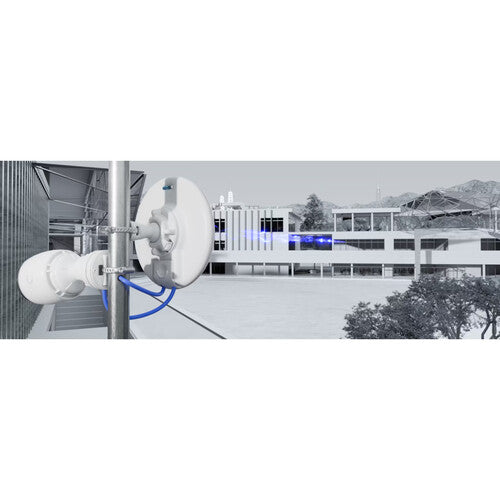

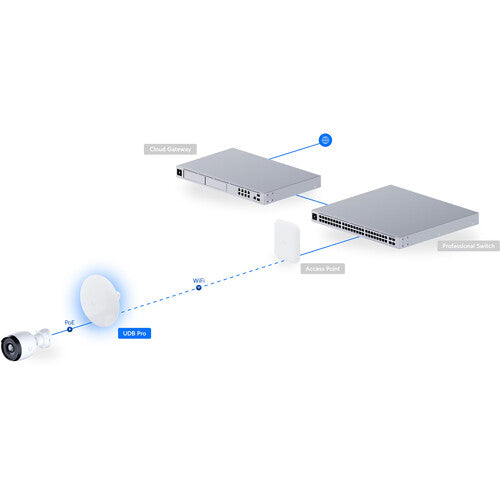

Delivering up to 867 Mb/s over Wi-Fi 5 (802.11ac) on the 5 GHz band, it supports reliable links up to 3.1 miles (5 km), making it ideal for connecting remote UniFi Protect cameras or extending network infrastructure outdoors. Built with an IPX6-rated weatherproof enclosure and UV-resistant materials, it withstands harsh conditions while maintaining strong wireless performance.

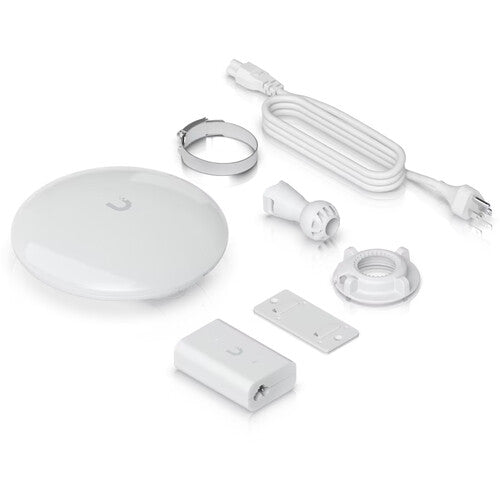

With included pole mounting hardware, Gigabit PoE+ support, and advanced security, the Device Bridge Pro ensures fast, stable, and secure connectivity for professional deployments.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | Device Bridge Pro |
| UPC | 810084698082 |
| Dimensions | Ø189.5 × 64.3 mm (Ø7.4 × 2.5") |
| Weight | 431 g (0.95 lb) device; 515 g (1.1 lb) with mount |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Spatial Streams | 2 × 2 MIMO |
| Max Data Rate | 867 Mb/s (5 GHz, 80 MHz) |
| Coverage Area | 5 km (3.1 mi) |
| Antenna Gain | 19 dBi (5 GHz) |
| Max TX Power | 25 dBm (5 GHz) |
| Supported Data Rates | 802.11ac: 6.5–866.7 Mb/s 802.11n: 6.5–300 Mb/s 802.11a: 6–54 Mb/s |
| Wireless Security | WPA2 AES |

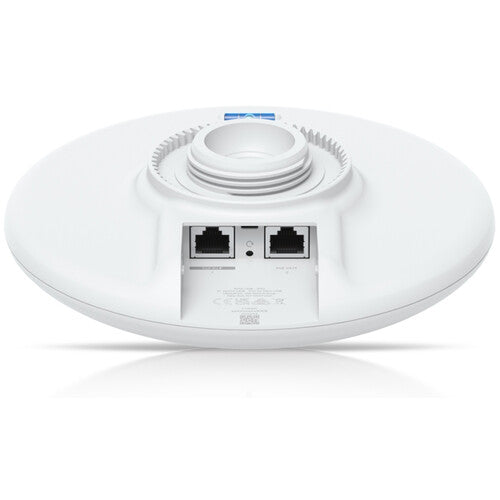

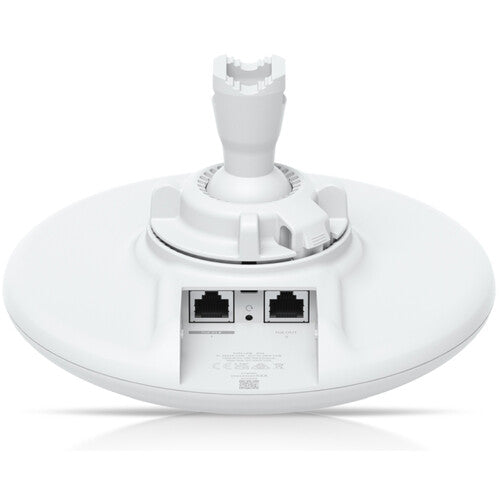

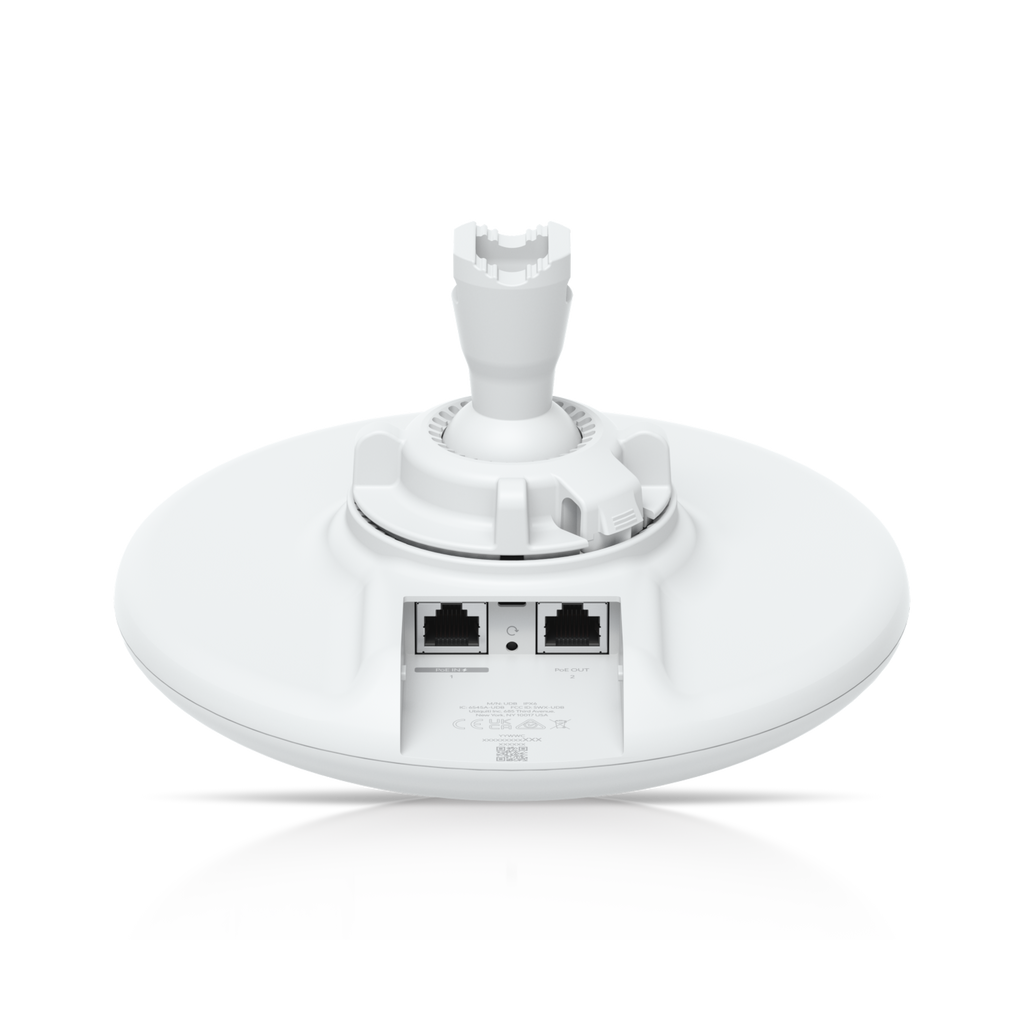

| Networking Interface | (2) Gigabit RJ45 Ethernet ports (PoE in, Passive PoE out) |
| Power Method | PoE / PoE+ (required for PoE output) |
| Power Supply | 48V, 0.32A PoE adapter (Included) |
| Max Power Consumption | 9W |
| Supported Voltage Range | 42.5–57V DC |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |

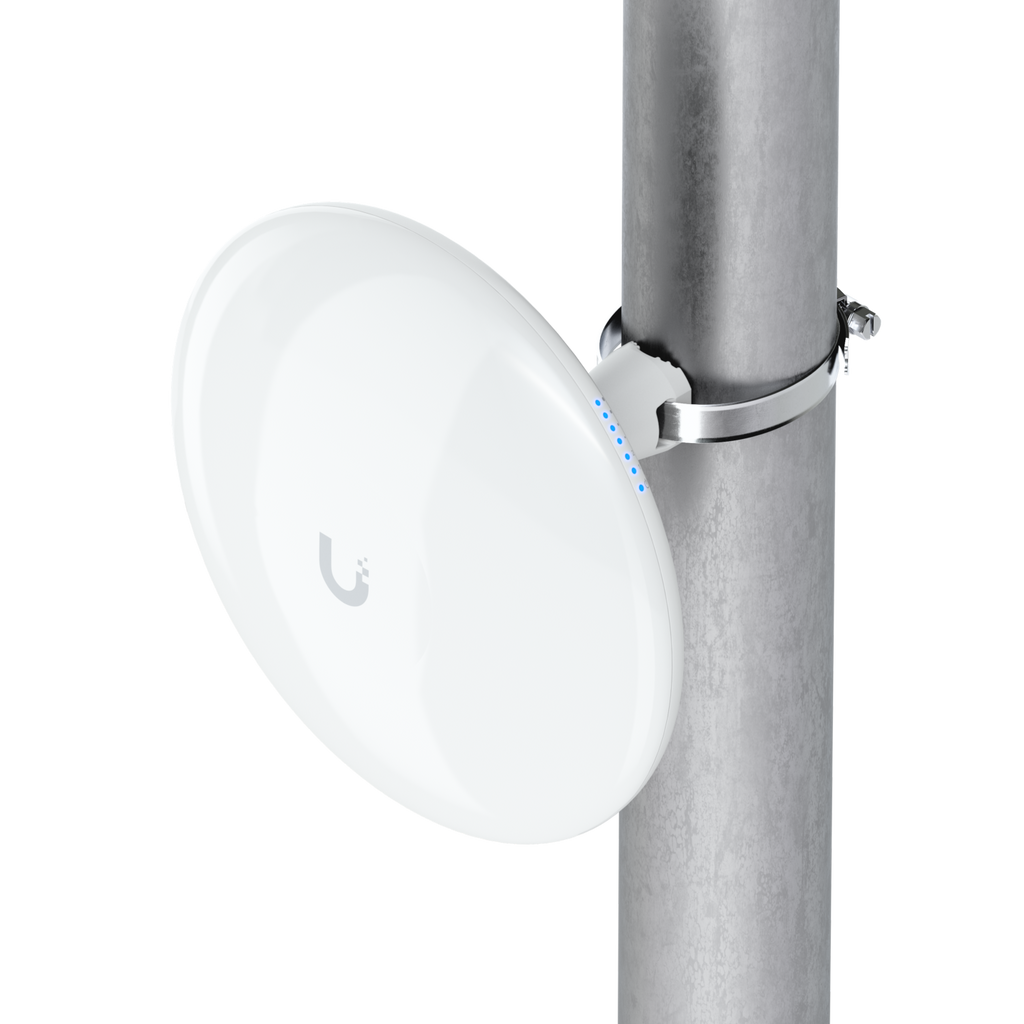

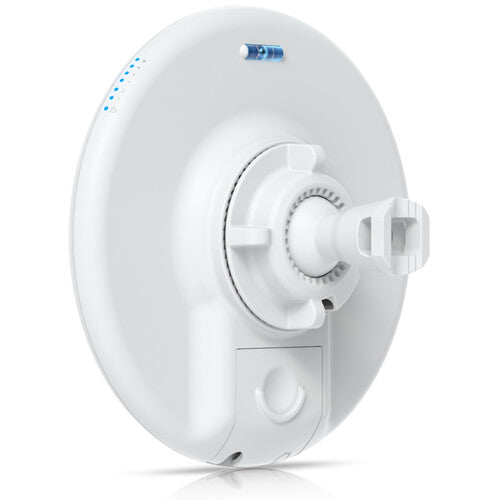

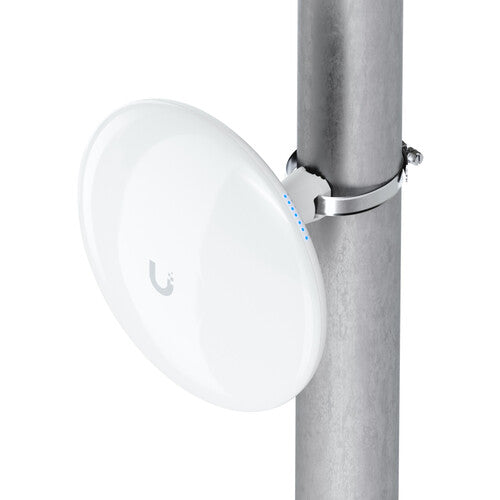

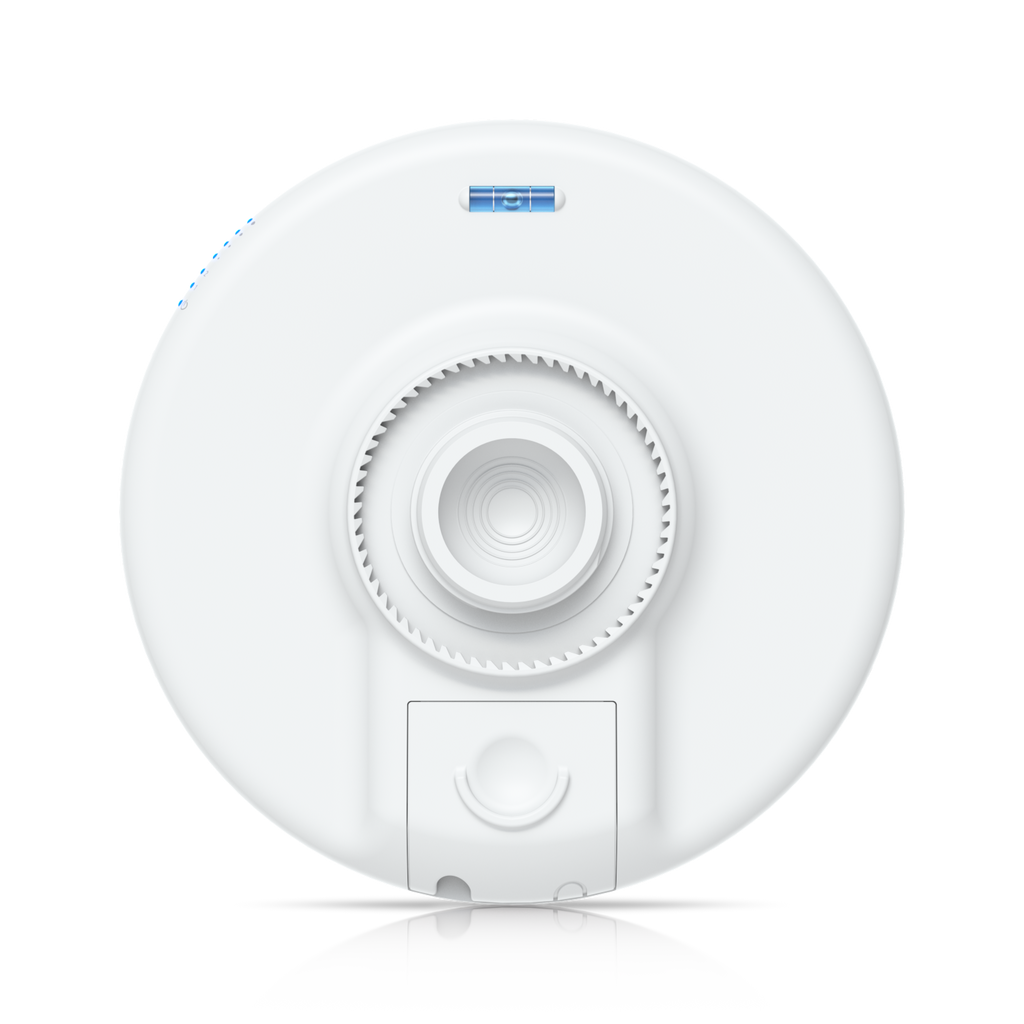

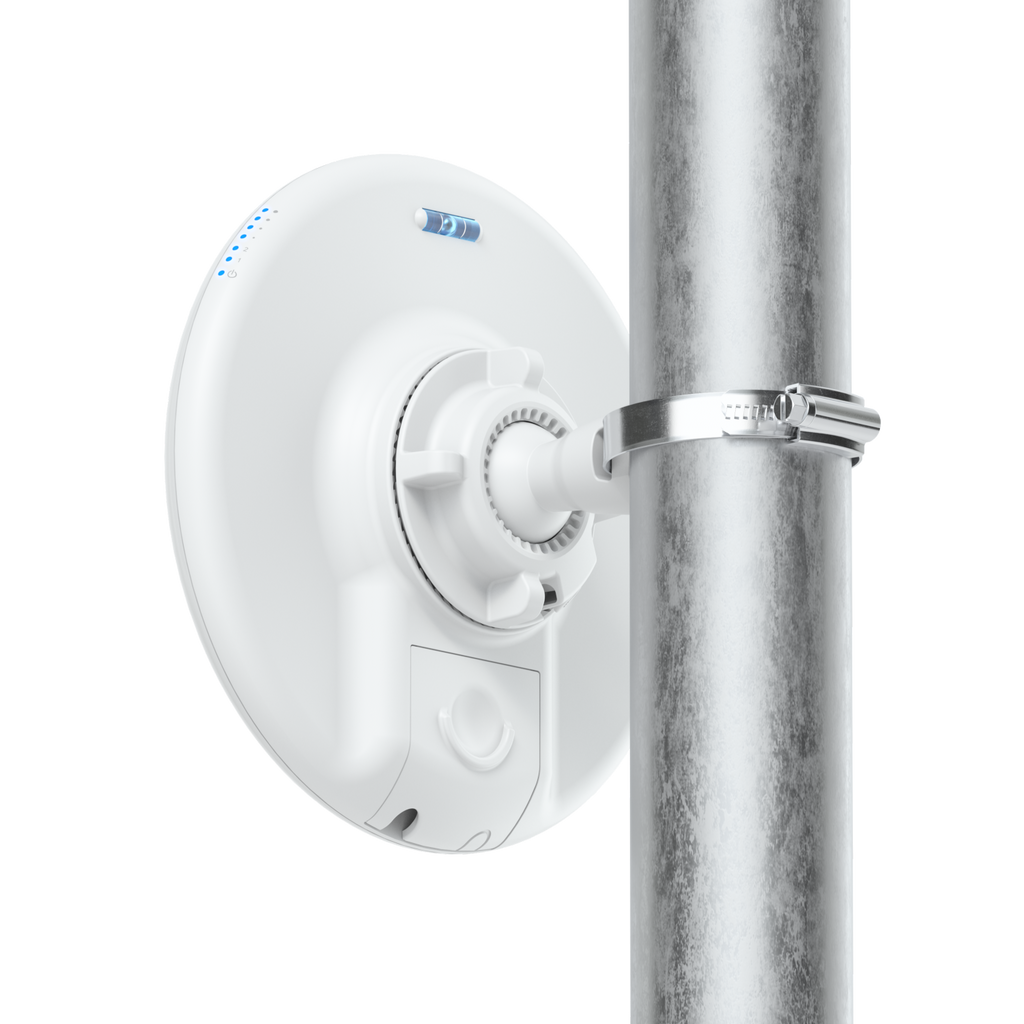

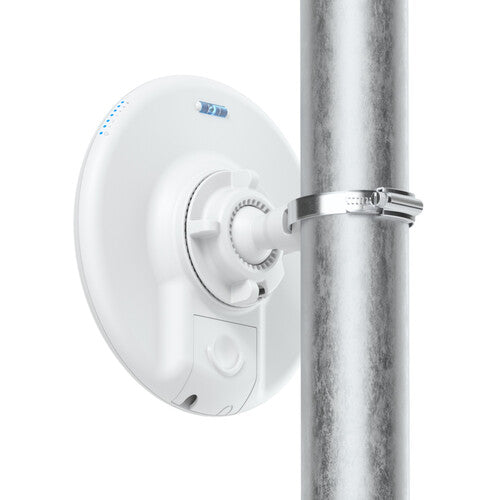

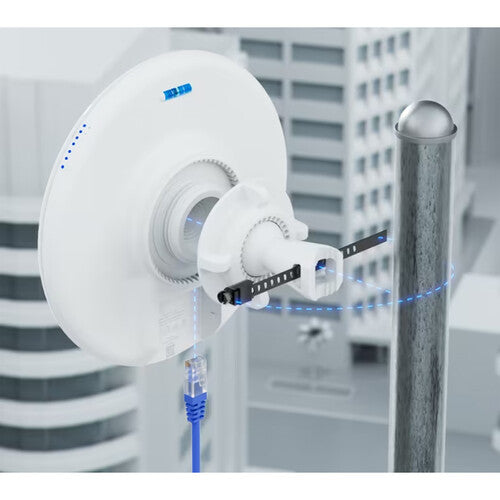

| Mounting Options | Pole mount (included), Wall mount compatible |
| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Weatherproofing | IPX6 |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |

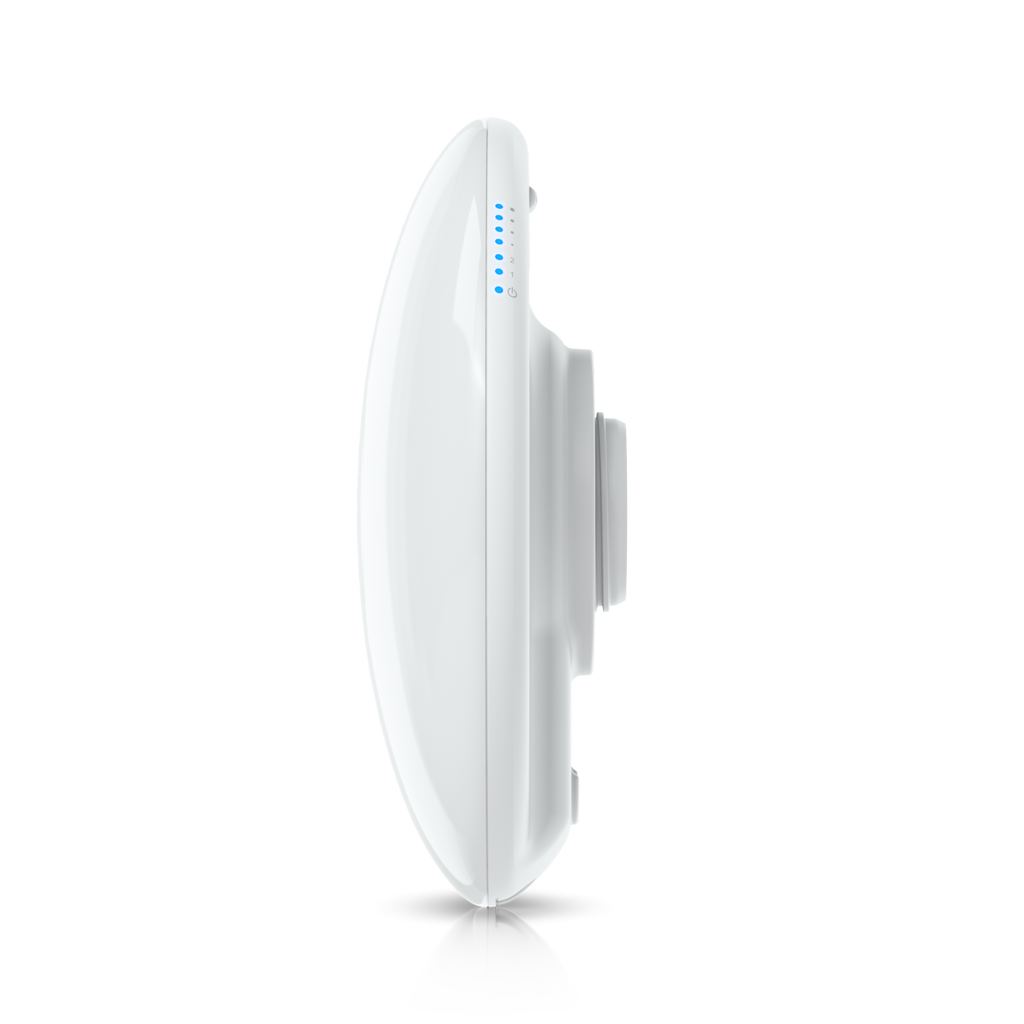

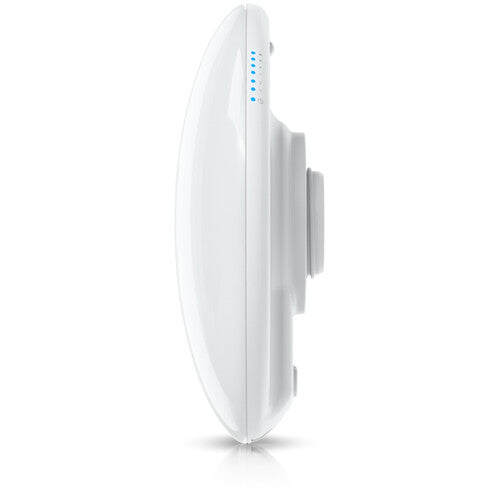

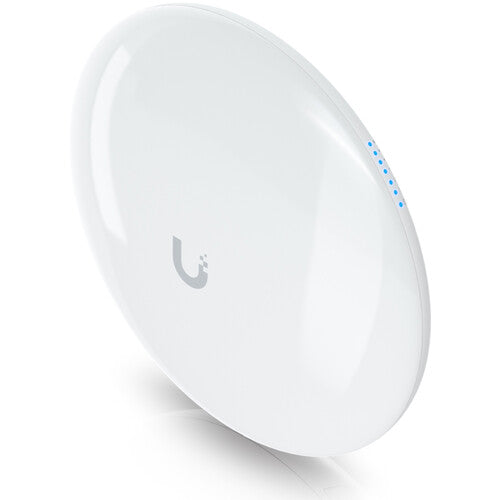

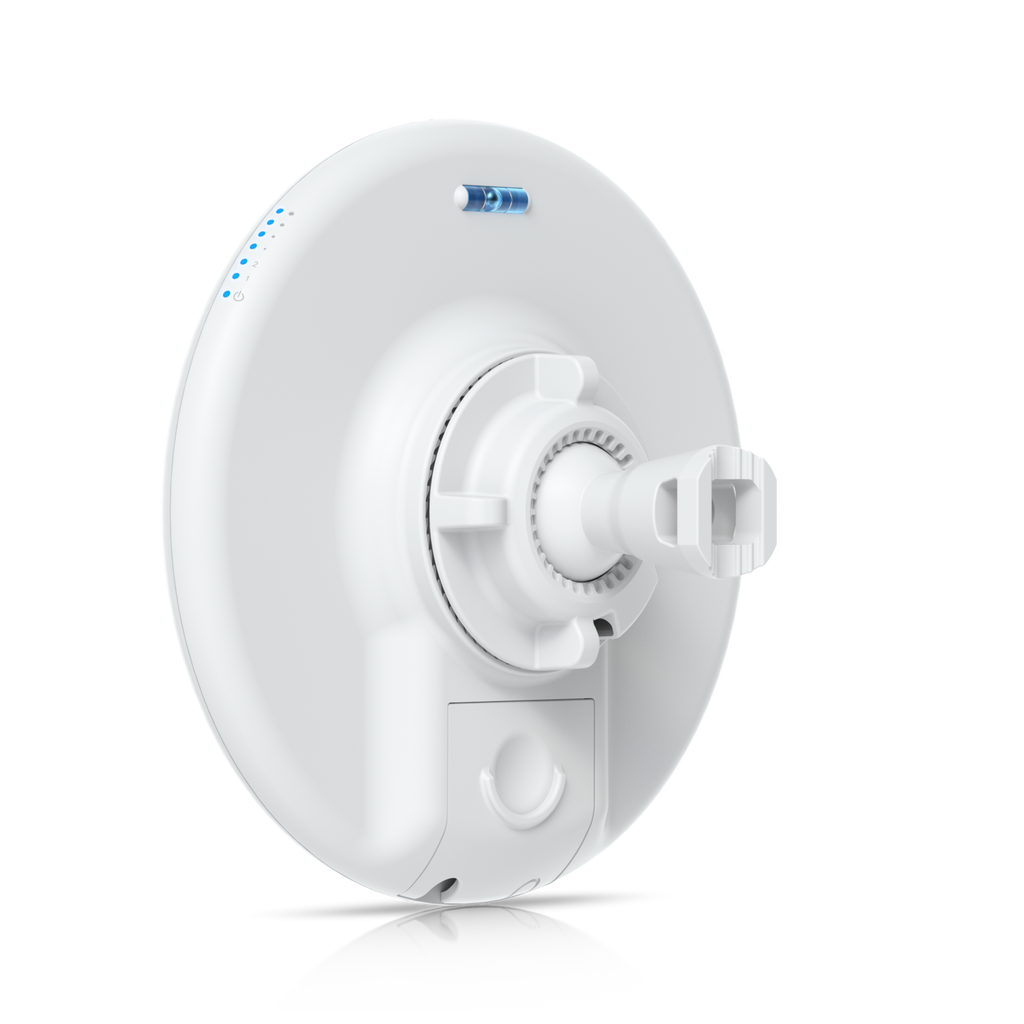

| LED Indicators | System power, Ethernet status (main/PoE out), Signal strength (4 LEDs) |
| Operating Frequency | 5150–5875 MHz (varies by region) |
| Operating Conditions | -40 to 60°C (-40 to 140°F), 5–95% noncondensing humidity |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
