Features
-

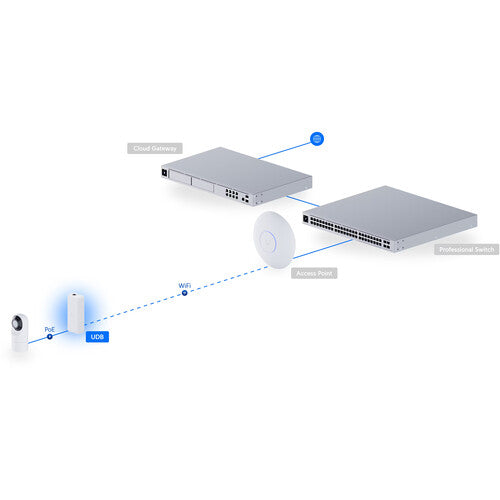

Wireless Bridge – Connects wired UniFi cameras, phones, and devices to Wi-Fi networks.
-
Fast Connectivity – Supports Wi-Fi 5 with speeds up to 866.7 Mbps (5 GHz band).
-
Dual Antenna Options – Internal 5 dBi antenna or external 4 dBi omni antenna for enhanced coverage.
-
PoE Output – Provides up to 15W passive PoE via Gigabit Ethernet port.
-
Simple Setup – UniFi WiFi Auto-Link for plug-and-play configuration.
-
Compact & Durable – Lightweight polycarbonate housing with wall-mount kit included.
-
Reliable Operation – Operates from -10 to 40°C, with wide humidity tolerance.
-
Certified & Compliant – CE, FCC, IC certified and NDAA compliant.

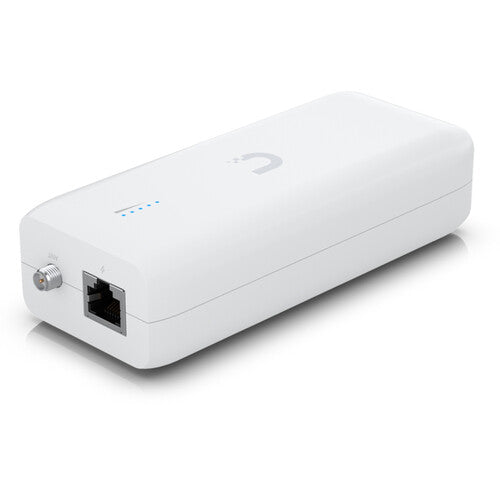

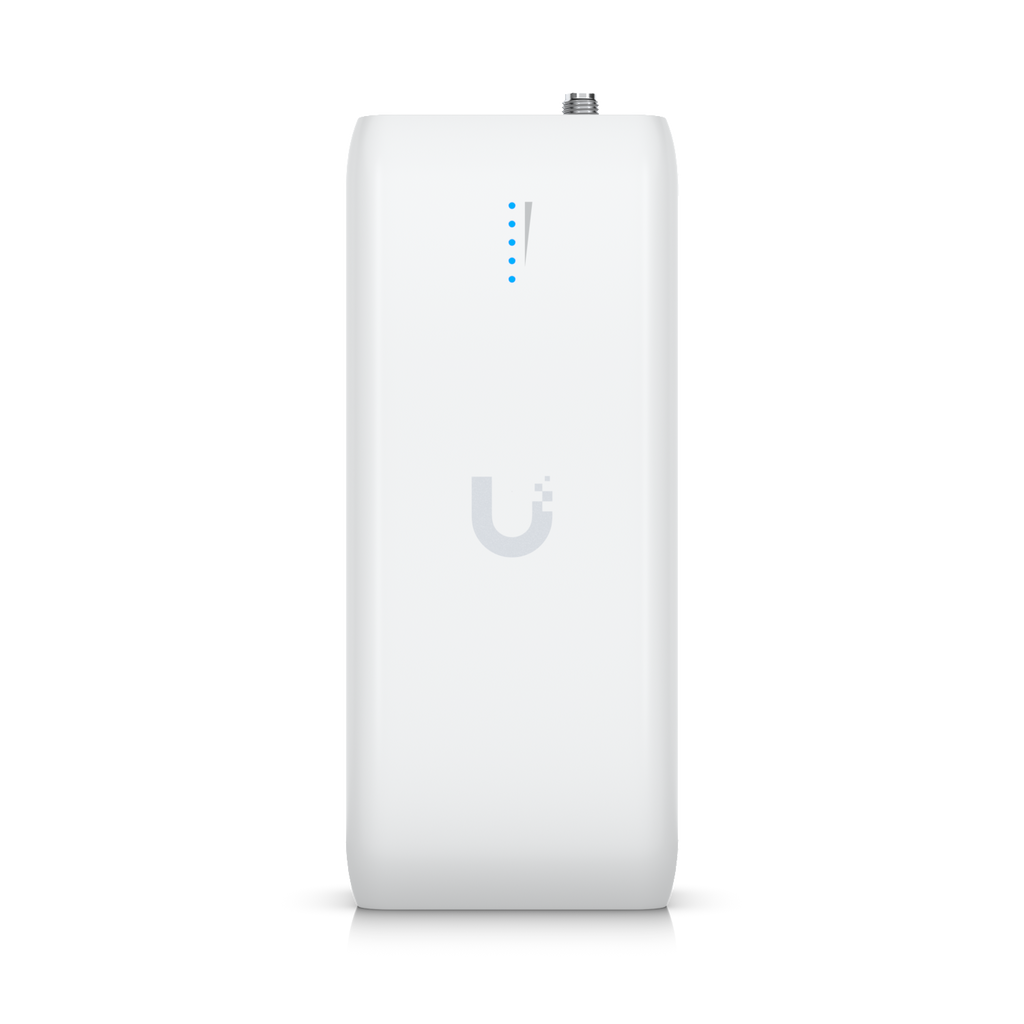

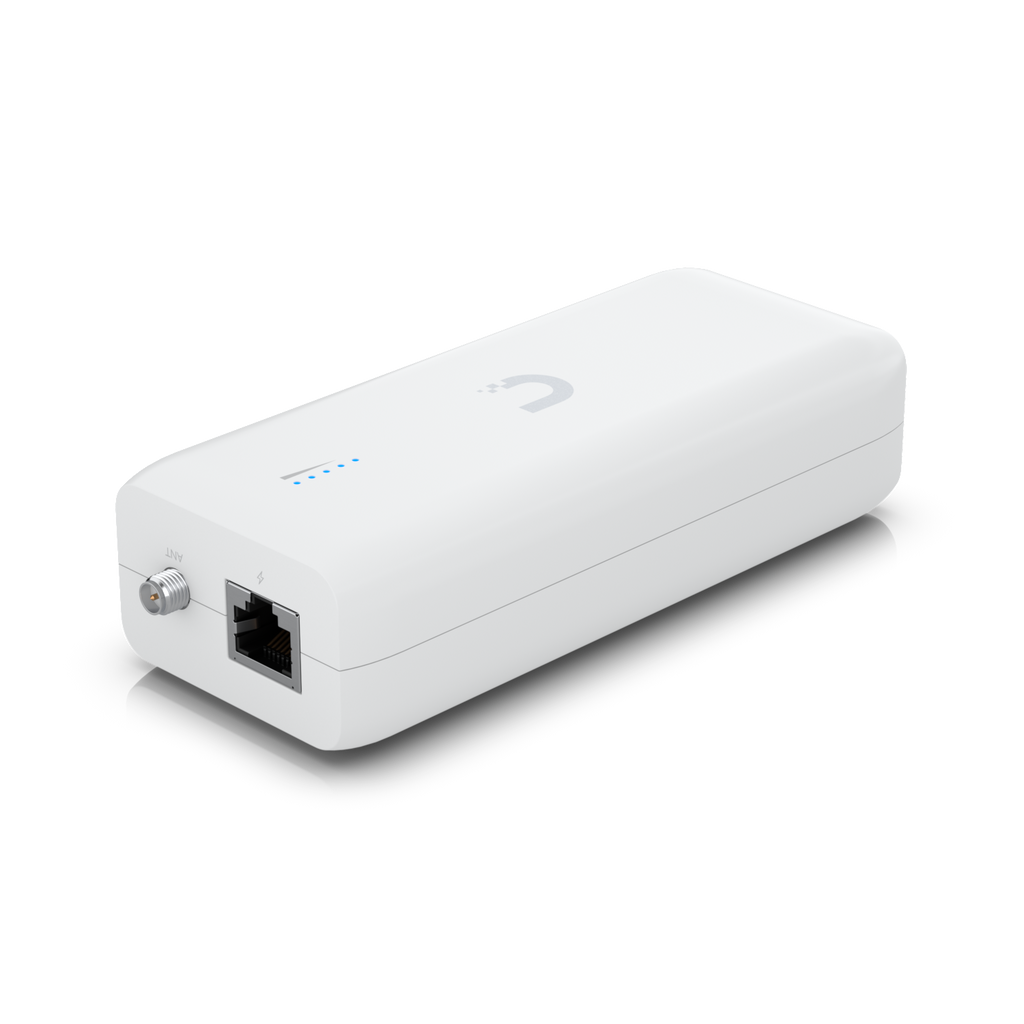

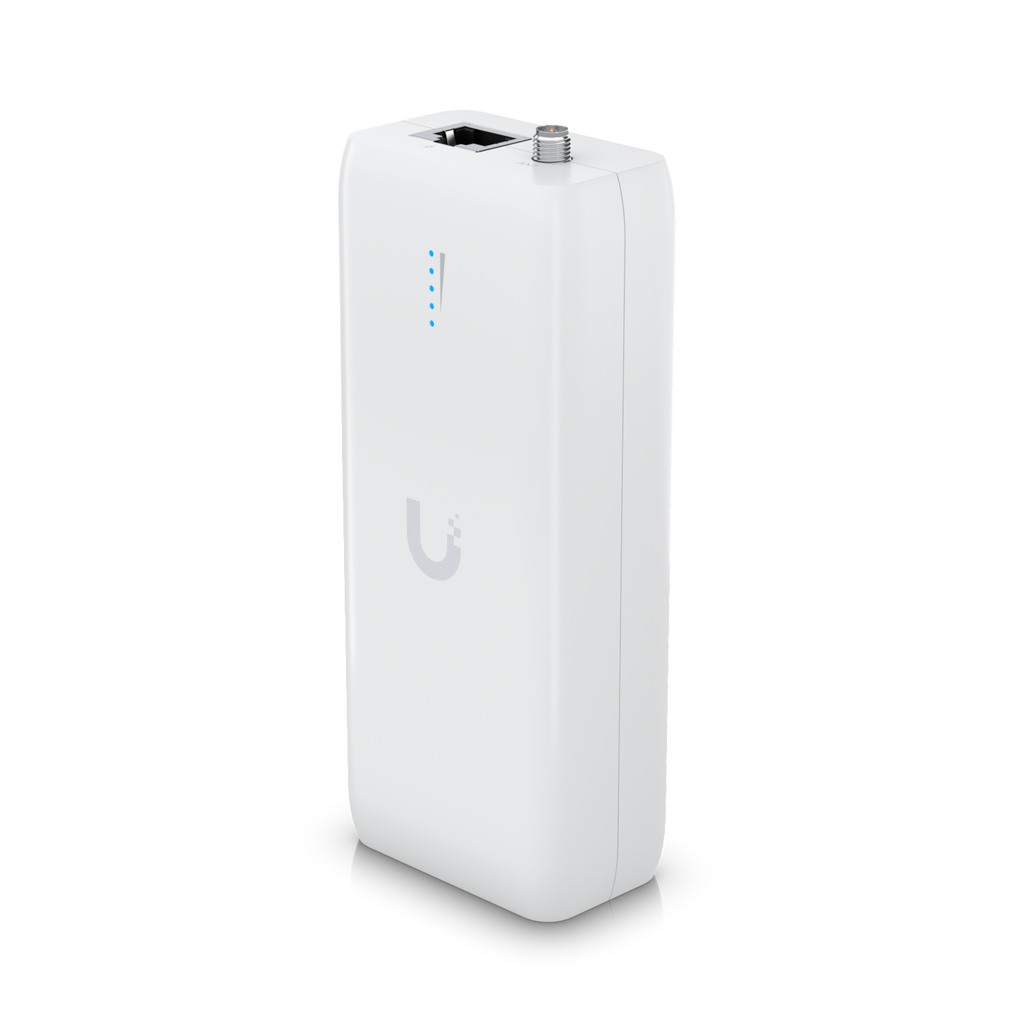

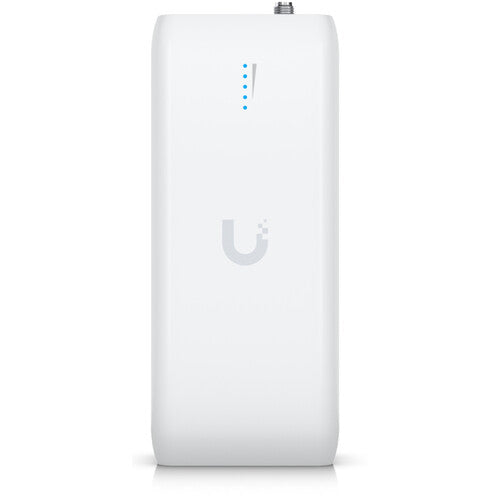

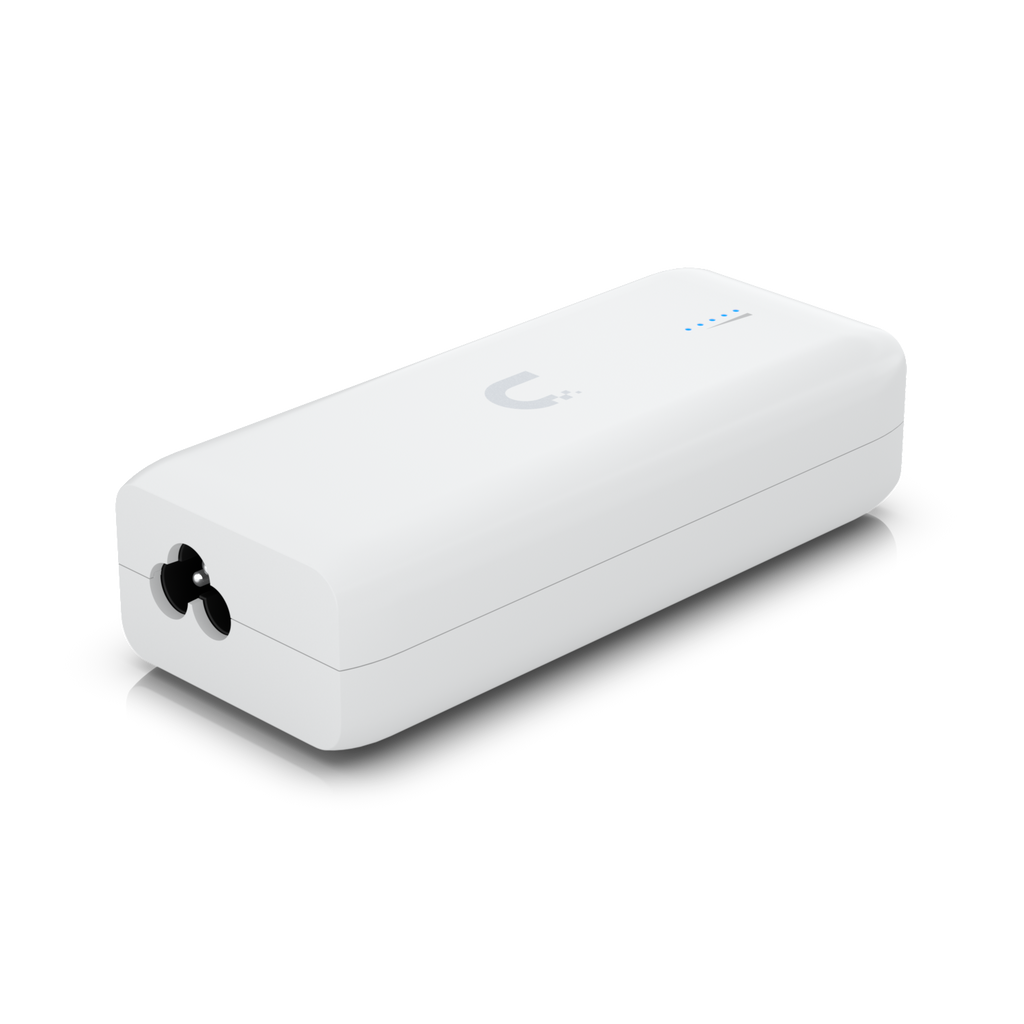

The Ubiquiti Networks Device Bridge (UDB-US) makes it easy to wirelessly connect UniFi cameras, VoIP phones, and other wired devices to your network. Supporting Wi-Fi 5 (802.11ac) with 2x2 MIMO, it delivers transfer speeds of up to 866.7 Mbps over the 5 GHz band.

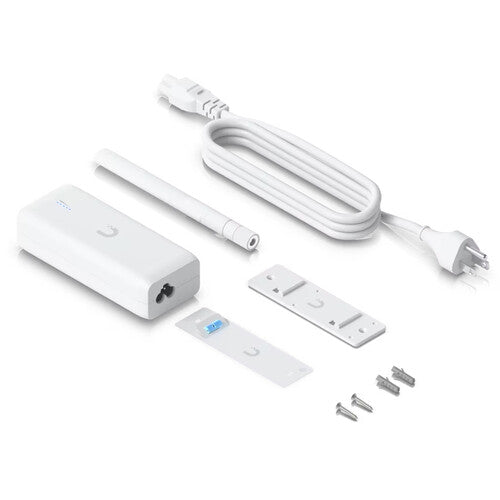

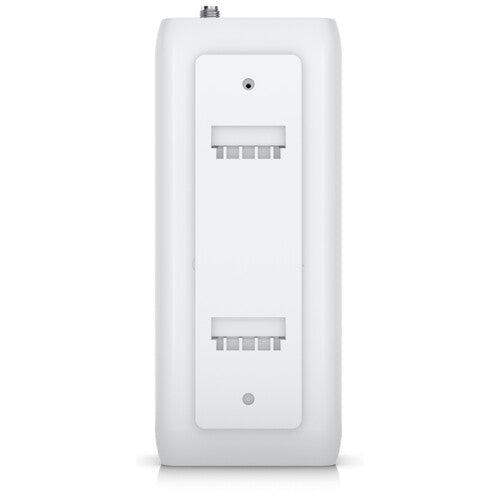

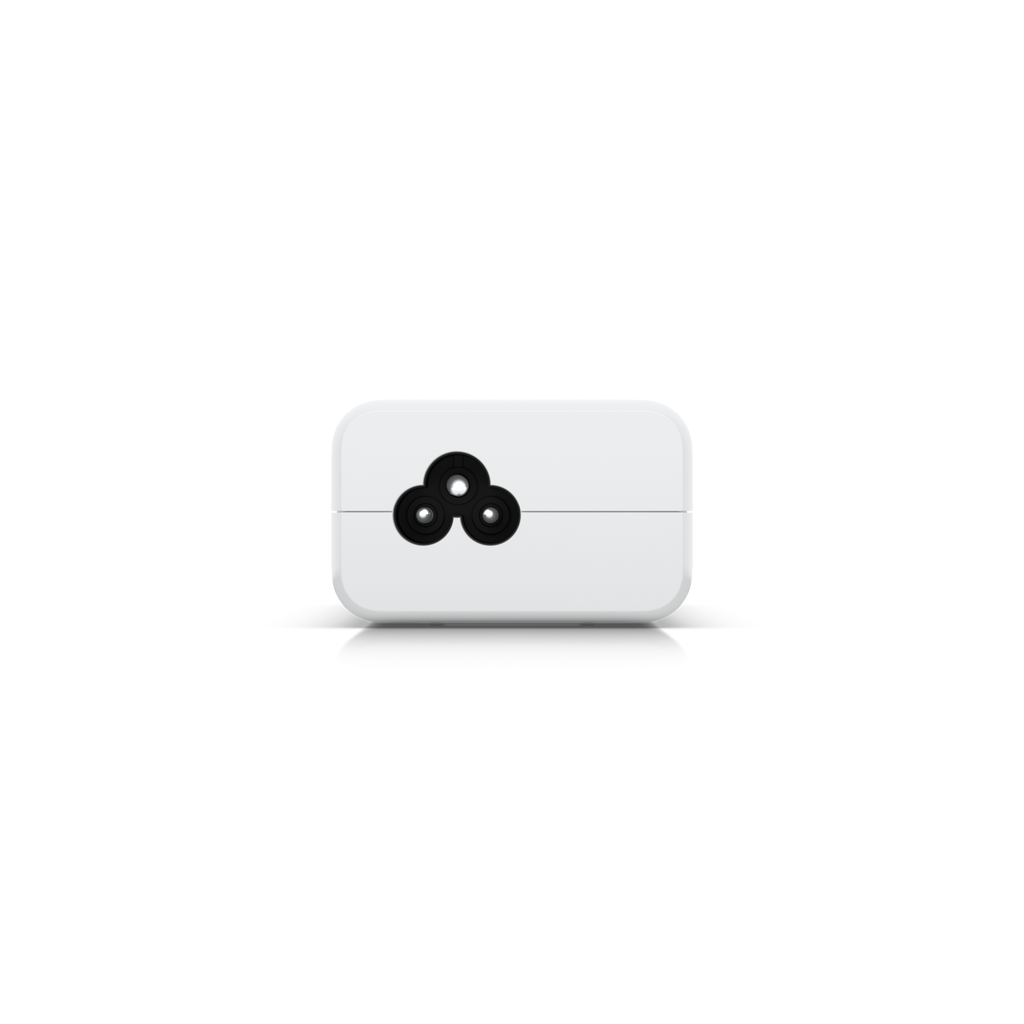

The compact device can be mounted on a wall using the included kit and plugs directly into an outlet, providing up to 15W of passive PoE to compatible devices via its Gigabit Ethernet port. With UniFi WiFi Auto-Link, setup is quick and seamless—no advanced configuration required.
Use the internal antenna for standard performance or the included external SMA antenna for extended reach and signal stability.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UDB-US |
| UPC | 810084695890 |

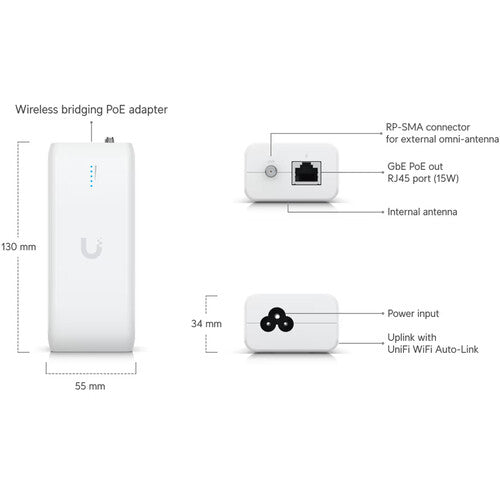

| Dimensions | 130 × 55 × 34 mm (5.1 × 2.2 × 1.3") |
| Weight | 200 g (7.1 oz) |
| WiFi Standard | Wi-Fi 5 (802.11ac) |
| Spatial Streams | 2 × 2 MIMO |
| Max Data Rate | 866.7 Mbps (5 GHz) |
| Supported Data Rates | 802.11ac: 6.5–866.7 Mbps 802.11n: 6.5–300 Mbps 802.11a: 6–54 Mbps |
| Antenna Gain | Internal: 5 dBi External omni: 4 dBi (360° × 30°) |
| Max TX Power | 21 dBm |

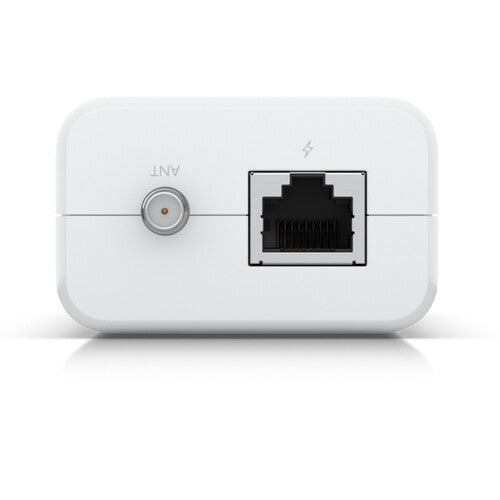

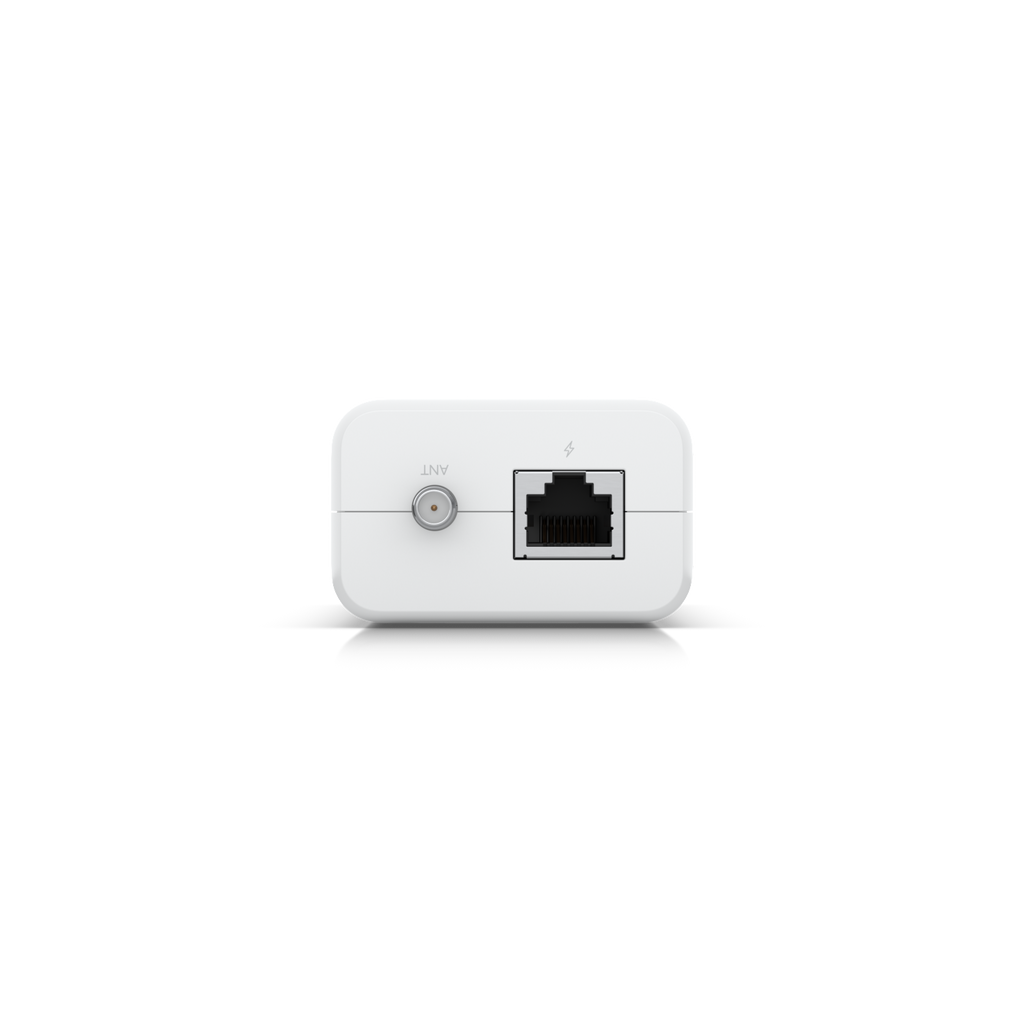

| Networking Interface | 1 × GbE RJ45 (PoE output supported) |
| PoE Output | Up to 15W passive PoE |
| Power Method | 100–240V AC, 0.45A Max., 50/60 Hz |
| Max Power Consumption | 25W (AC input), 10W excluding PoE output |
| Antennas | 1 × Internal, 1 × RP-SMA connector for external omni |

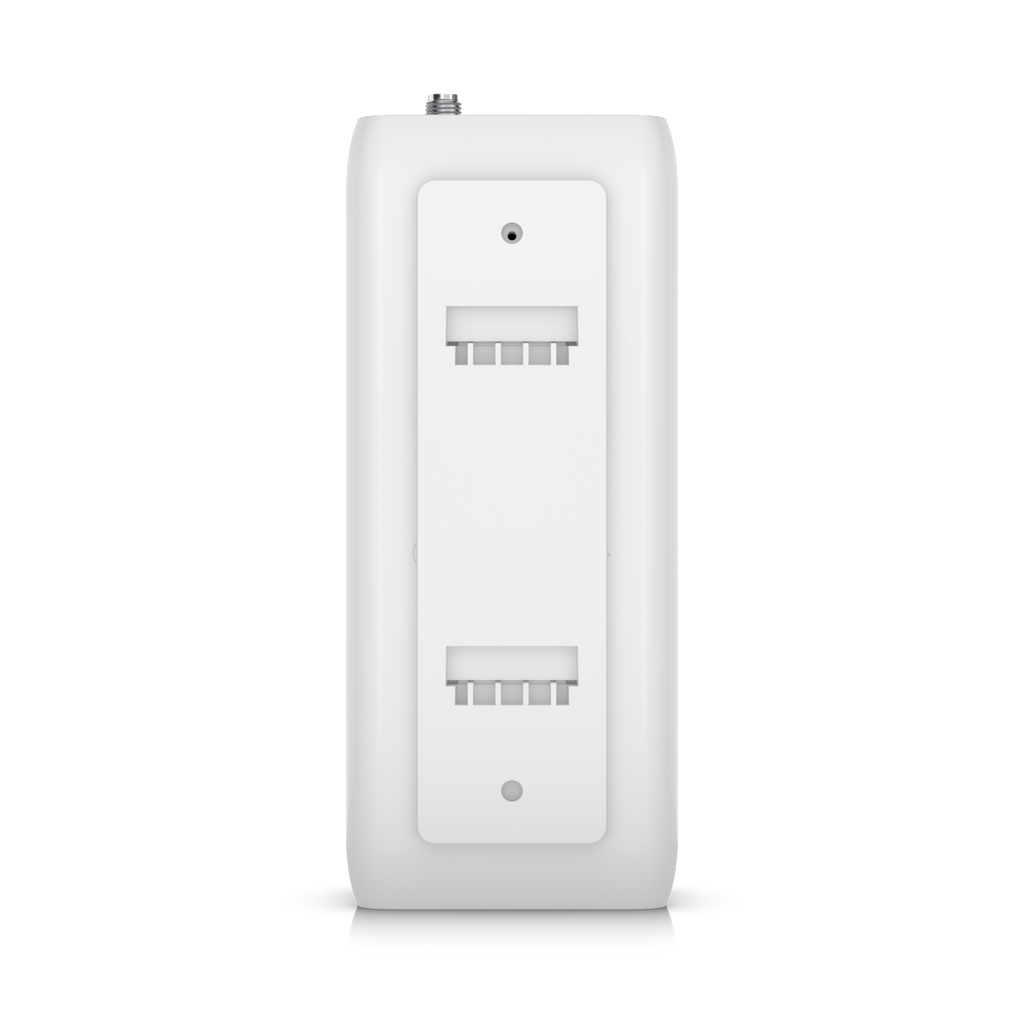

| Mounting Options | Wall (included), table placement |
| Enclosure Material | Polycarbonate |
| Operating Frequency | 5150–5875 MHz (US/CA & worldwide bands) |
| Operating Conditions | -10 to 40°C (14 to 104°F), 5–95% noncondensing humidity |
| Wireless Security | WPA2 AES |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
