Features
-
Powerful Performance – Manages 30+ UniFi devices, 300+ clients, with 1 Gb/s IDS/IPS throughput
-
High-Speed Connectivity – 1 × 2.5G WAN port and 4 × 1G LAN ports
-
Advanced Security – Stateful firewall, 55,000+ IDS/IPS signatures, ad and content filtering
-
VPN & SD-WAN – WireGuard, OpenVPN, L2TP, IPsec, Teleport, Identity VPN
-
Networking Functions – Multi-WAN load balancing, OSPF dynamic routing, DHCP relay, IPv6 support
-
Compact Design – Desktop form factor with 0.96" LCM status display
-
Reliable Hardware – 1.5 GHz Cortex-A53 quad-core CPU, 3GB DDR4 RAM, 16GB eMMC storage
-
Energy Efficient – Low 6.2W max power draw with USB-C power input

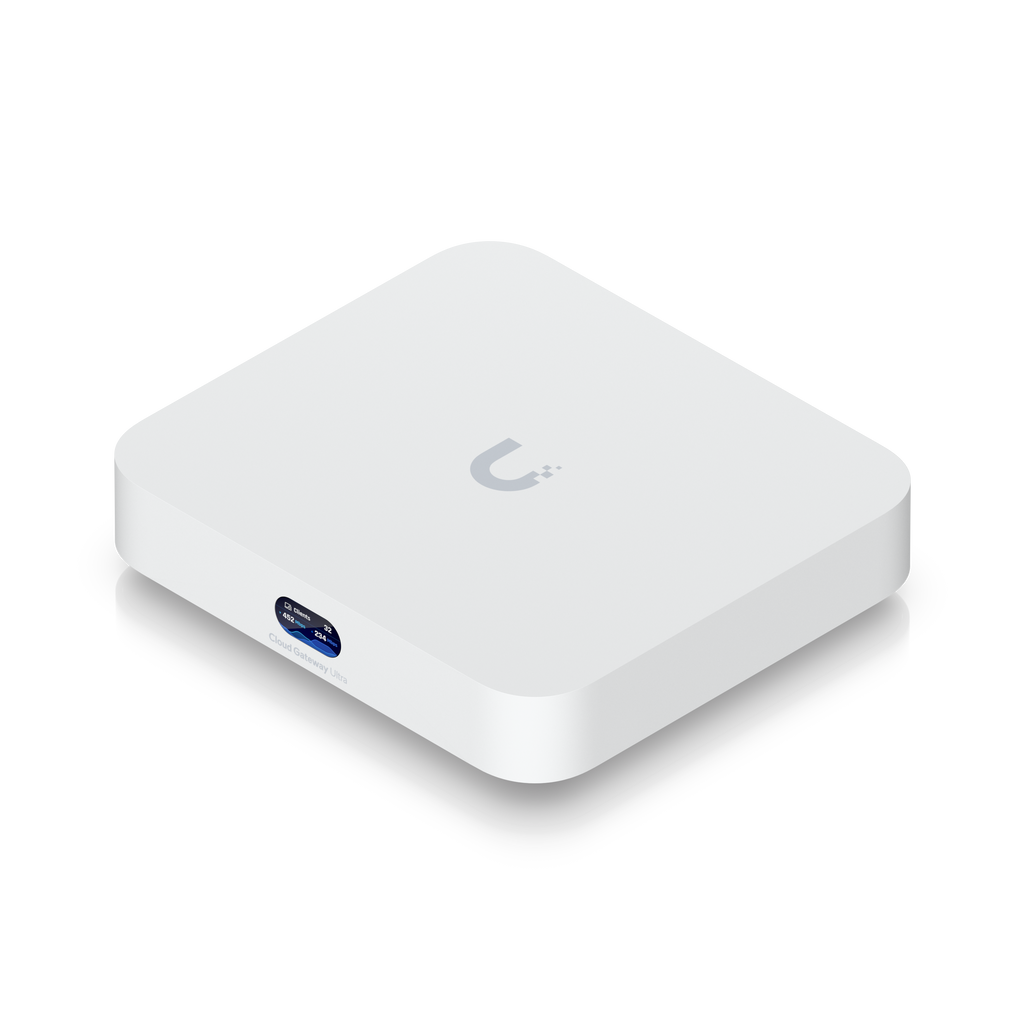

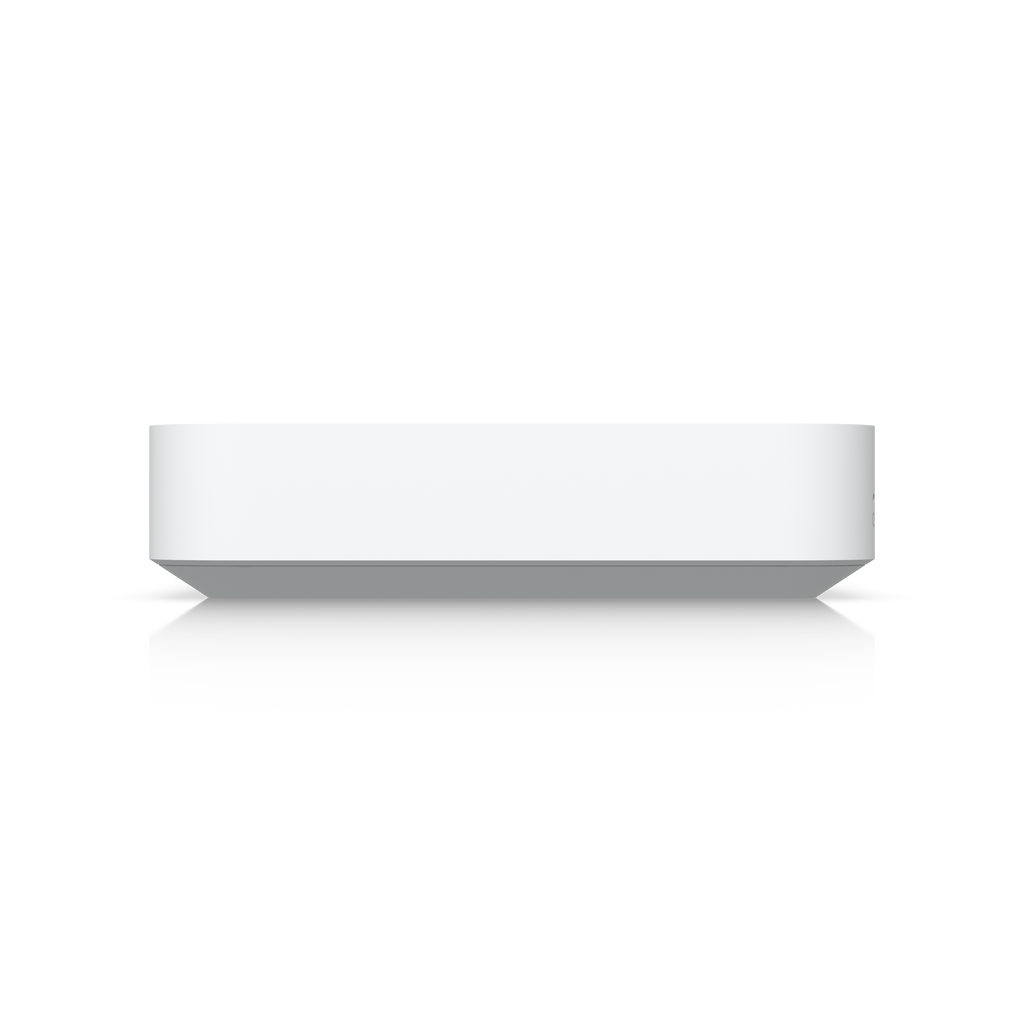

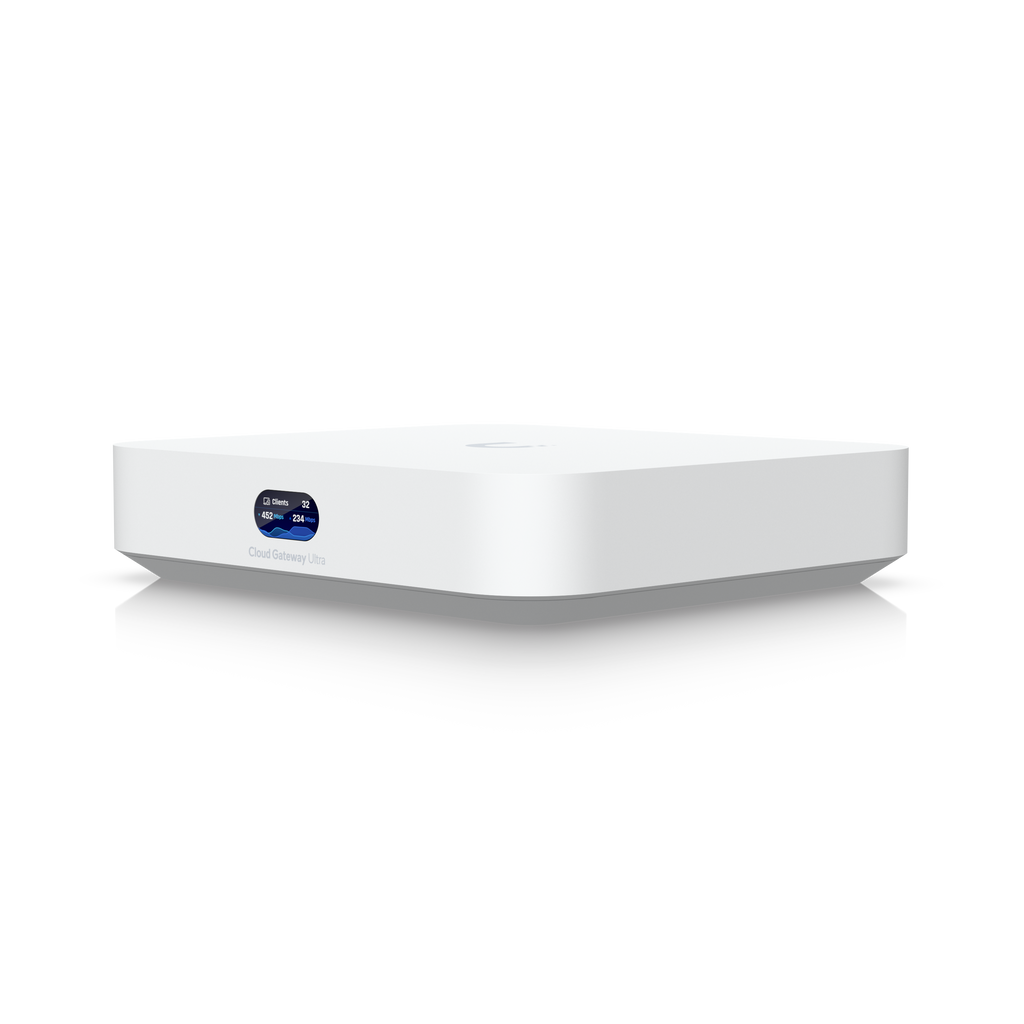

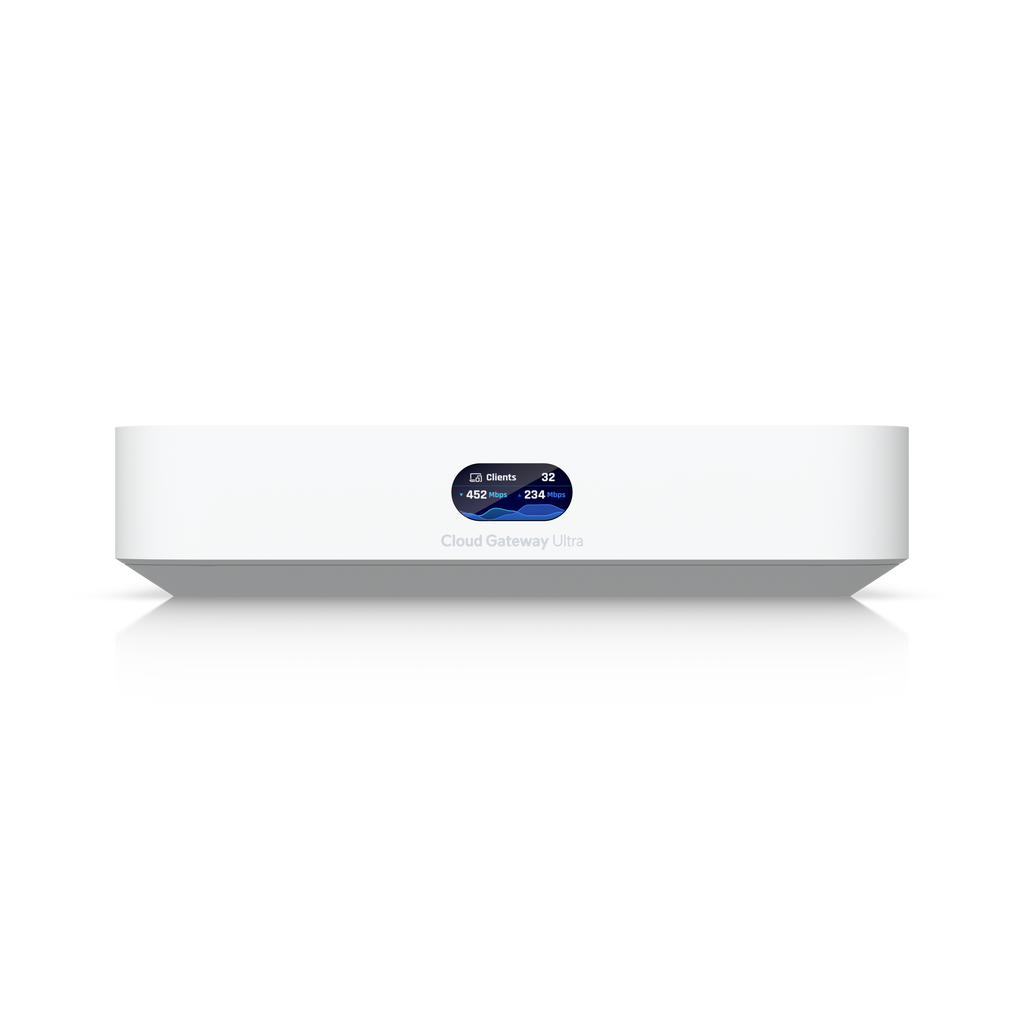

The Ubiquiti Networks Cloud Gateway Ultra (UCG-ULTRA) is a compact, high-performance gateway designed to secure, manage, and scale UniFi networks with ease. Capable of supporting over 30 UniFi devices and more than 300 clients, it delivers up to 1 Gb/s IDS/IPS throughput with enterprise-grade routing and security.
Powered by a 1.5 GHz Cortex-A53 quad-core processor, 3GB DDR4 memory, and 16GB onboard storage, this device ensures smooth operation and fast response. It features a 2.5G WAN port for high-speed connectivity, four Gigabit Ethernet LAN ports, and advanced networking capabilities including license-free SD-WAN, multi-WAN load balancing, VPN support, and dynamic routing.
With its full UniFi application suite, integrated 0.96" LCM display, and compatibility with the UniFi mobile app, the Cloud Gateway Ultra provides real-time monitoring, next-generation firewall protection, and simplified management for modern network infrastructures.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UCG-ULTRA |
| UPC | 810084695135 |
| Processor | 1.5 GHz Cortex-A53 quad-core |
| System Memory | 3GB DDR4 |
| On-board Storage | 16GB eMMC |

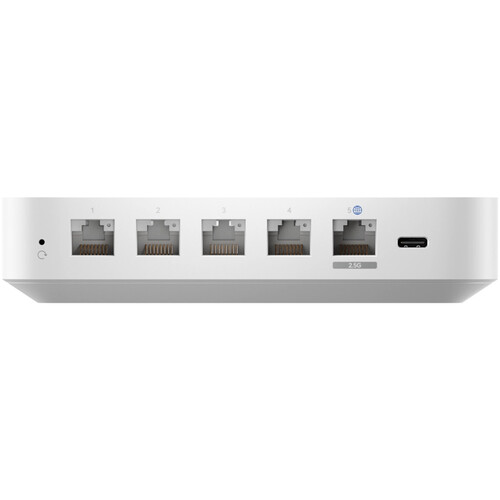

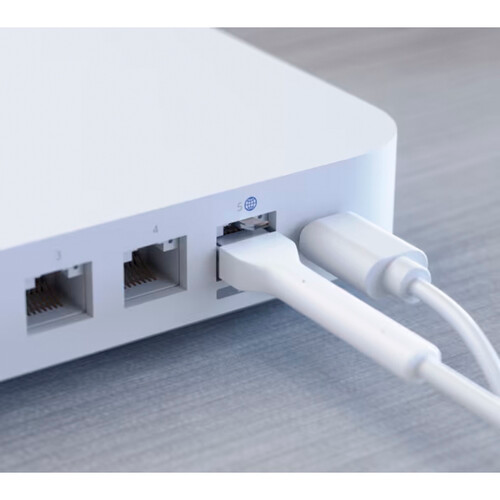

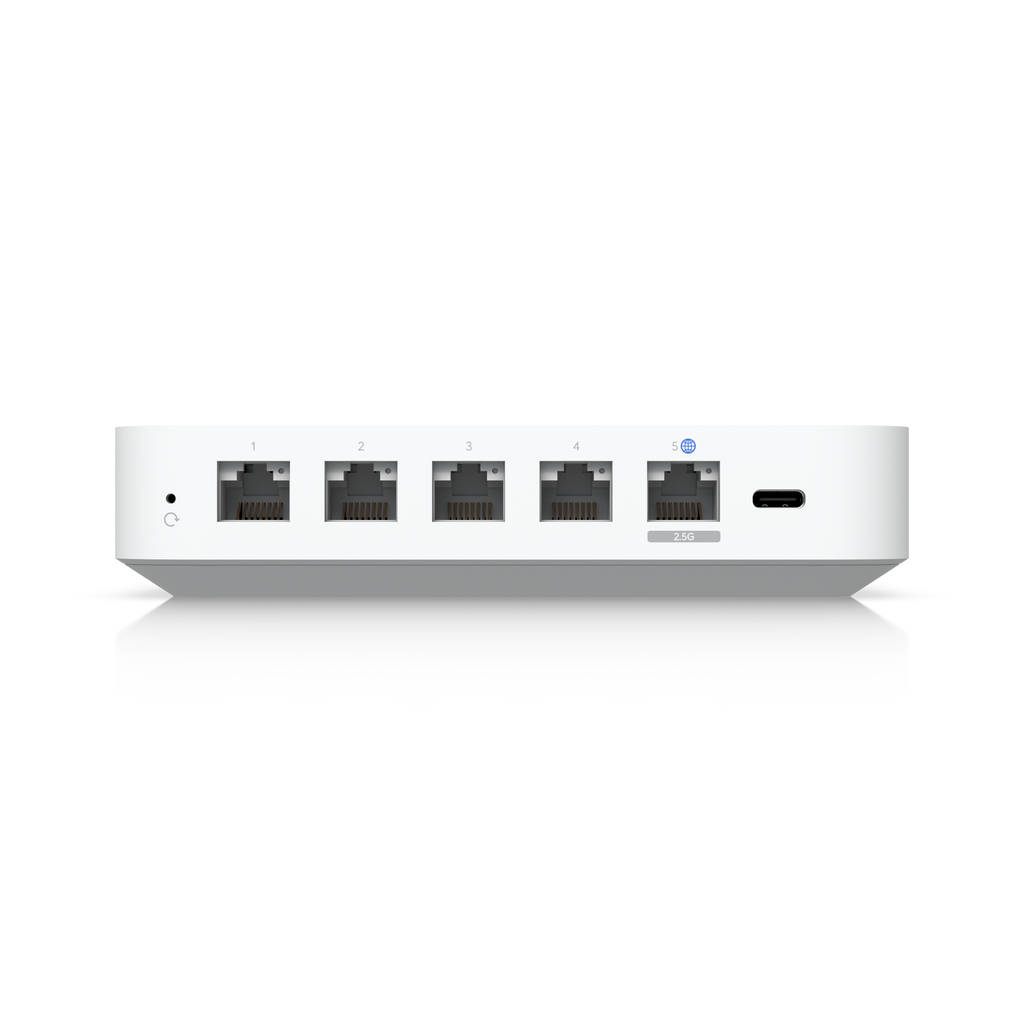

| Ethernet Ports | 1 × 2.5 GbE WAN, 4 × 1 GbE LAN |
| Throughput | 1 Gb/s IDS/IPS routing |
| Security | Stateful firewall, Layer 7 firewall, IDS/IPS (55,000+ signatures), ad/content filtering |
| VPN & SD-WAN | WireGuard, OpenVPN, L2TP, IPsec, Teleport, Identity VPN, Site Magic SD-WAN |
| Networking Features | Multi-WAN, OSPF dynamic routing, IGMP proxy, advanced NAT, RADIUS server |
| QoS | Application, domain, country-based QoS with UniFi APs |

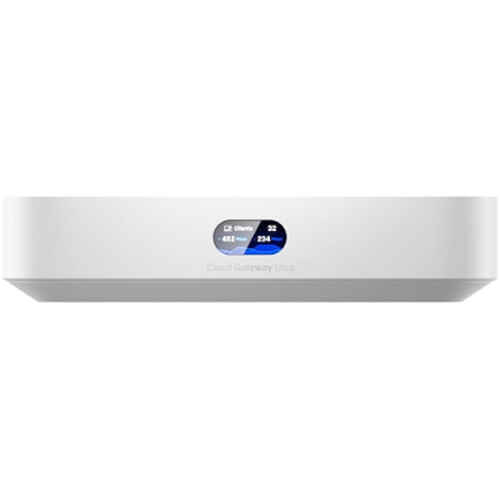

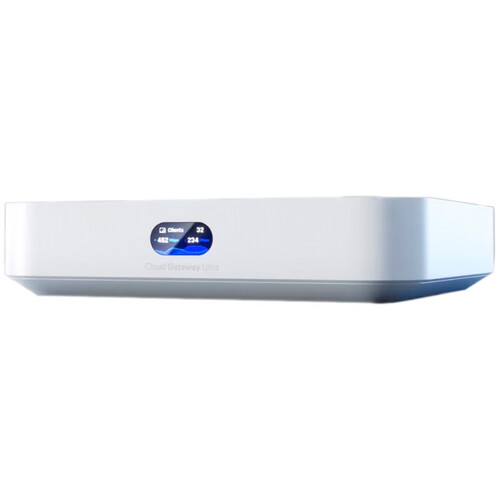

| Display | 0.96" LCM status display |
| Power Method | USB-C 5V DC, 3A (adapter included) |
| Max. Power Consumption | 6.2W |
| Enclosure Material | Polycarbonate |
| Dimensions | 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2") |
| Weight | 520 g (1.1 lb) |
| Operating Temperature | -10 to 40 °C (14 to 104 °F) |
| Operating Humidity | 5–95% noncondensing |
| Certifications | CE, FCC, IC, Anatel, SRRC; NDAA compliant |
