Features
-
High Performance – Supports over 30 UniFi devices, 300+ clients, and up to 2.3 Gb/s IDS/IPS throughput
-
Integrated Storage – Built-in 512GB NVMe SSD for UniFi NVR recordings
-
Advanced Networking – Multi-WAN with load balancing, redundant WAN failover, DHCP relay, IPv6 support
-
Security Suite – Stateful firewall, IPS/IDS, ad, content, and domain filtering
-
VPN Ready – WireGuard, L2TP, OpenVPN server/client, IPsec, Teleport, and Identity VPN
-
Quality of Service – Application, domain, and country-based QoS with UniFi AP integration
-

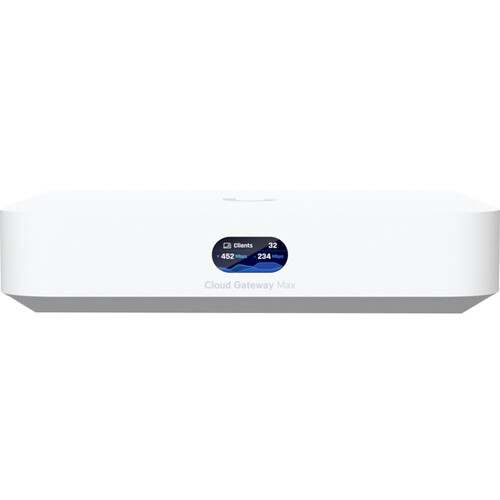

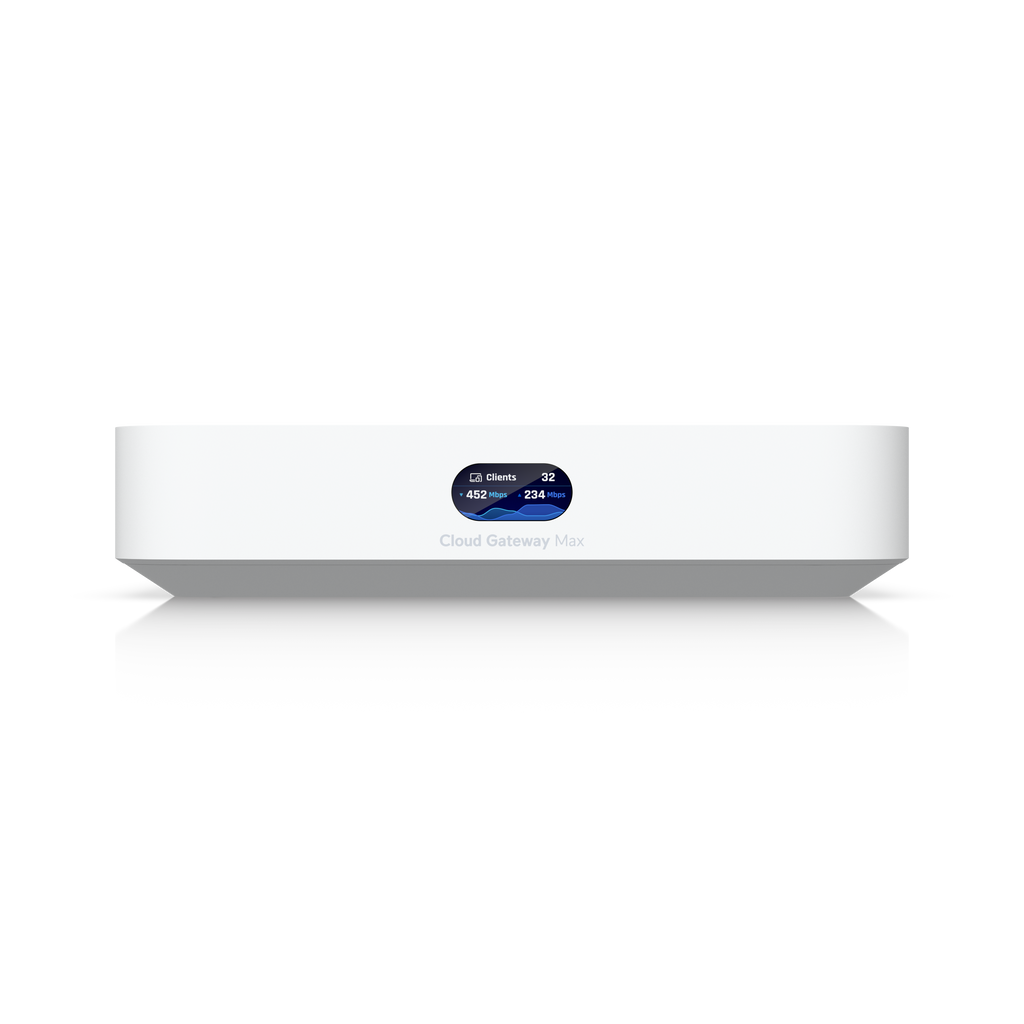

Convenient Monitoring – 0.96" LCM display for quick device status updates
-
Processor & Memory – 1 GHz Cortex A53 dual-core CPU with 3GB RAM for smooth operations

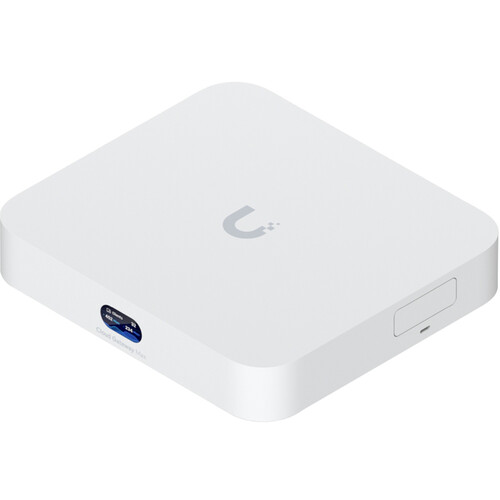

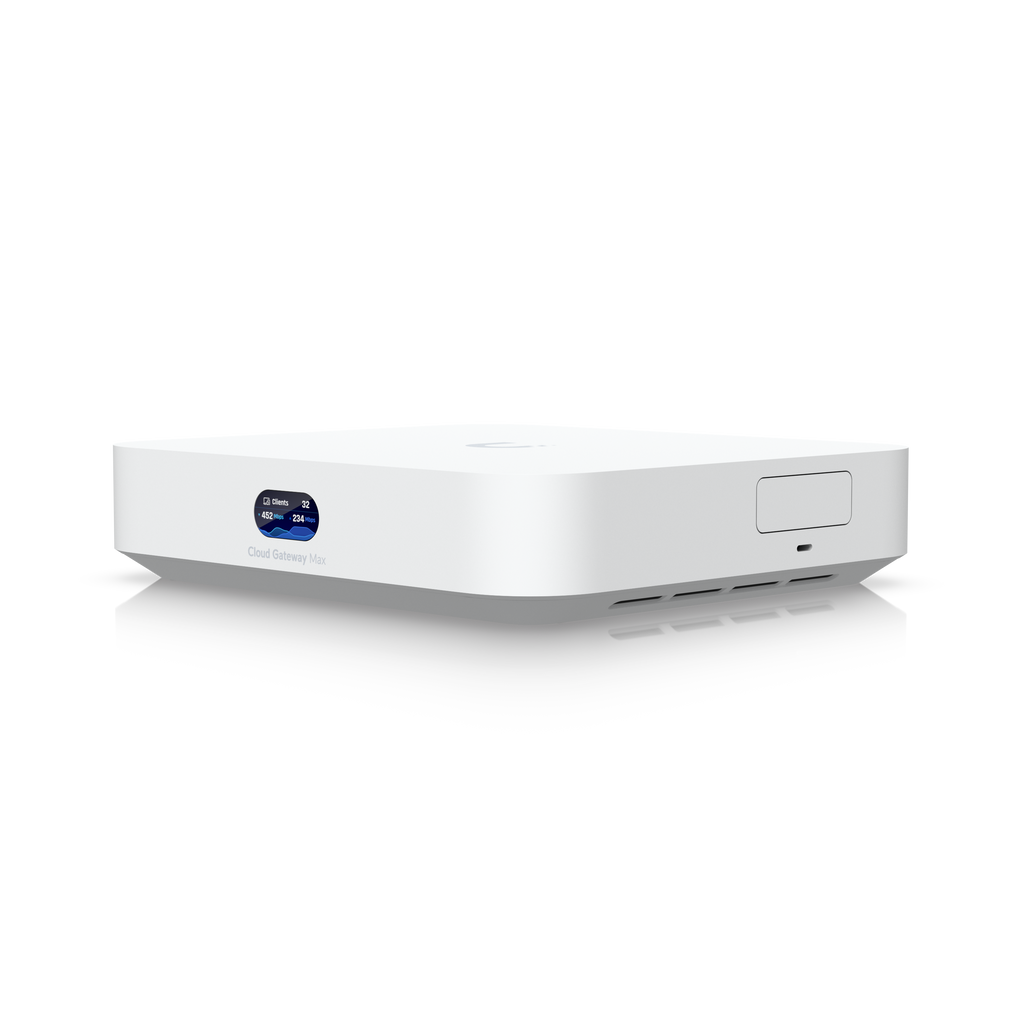

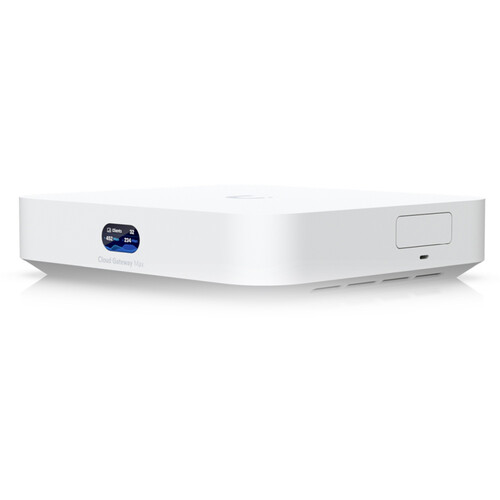

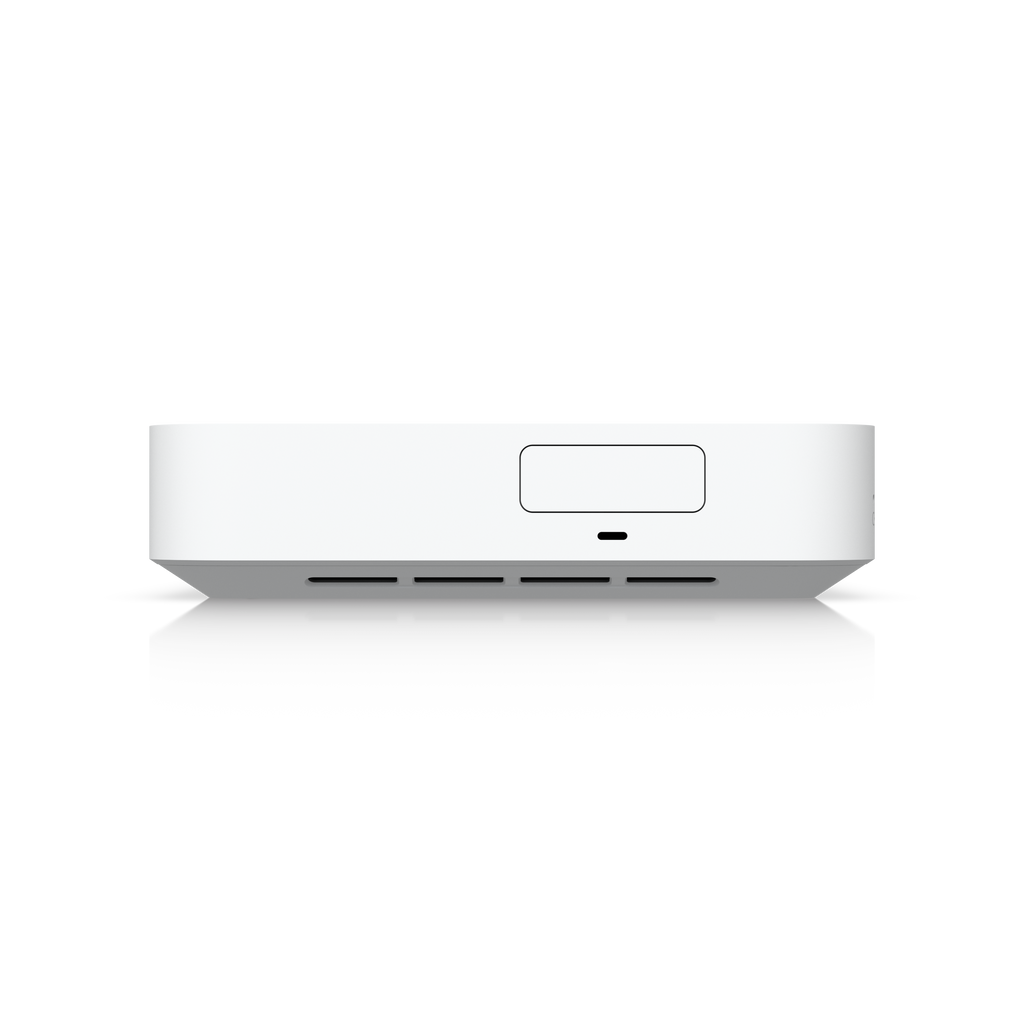

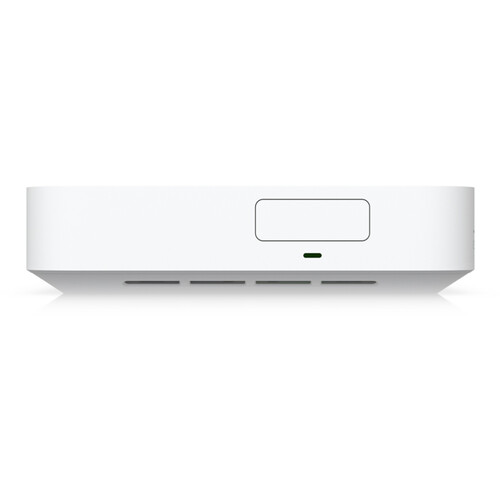

The Ubiquiti Networks Cloud Gateway Max (UCG-MAX) is a powerful, all-in-one gateway designed to secure, manage, and monitor over 30 UniFi devices and more than 300 clients. Preloaded with the full UniFi application suite, it provides seamless device management while delivering advanced network security and reliability.
Featuring a built-in 512GB NVMe SSD for NVR storage, this compact yet robust gateway combines performance and convenience for enterprise and multi-site deployments. With up to 2.3 Gb/s IDS/IPS routing, multiple 2.5 Gb/s Ethernet ports, VPN support, and intelligent firewall features, the Cloud Gateway Max ensures your network remains fast, protected, and highly available.
Its license-free SD-WAN and multi-WAN load balancing optimize connectivity, while the 0.96" LCM display provides real-time device status at a glance.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UCG-MAX |
| UPC | 810084697153 |
| Processor | 1 GHz Cortex A53 dual-core |
| Memory | 3GB |
| Storage | 512GB NVMe SSD |

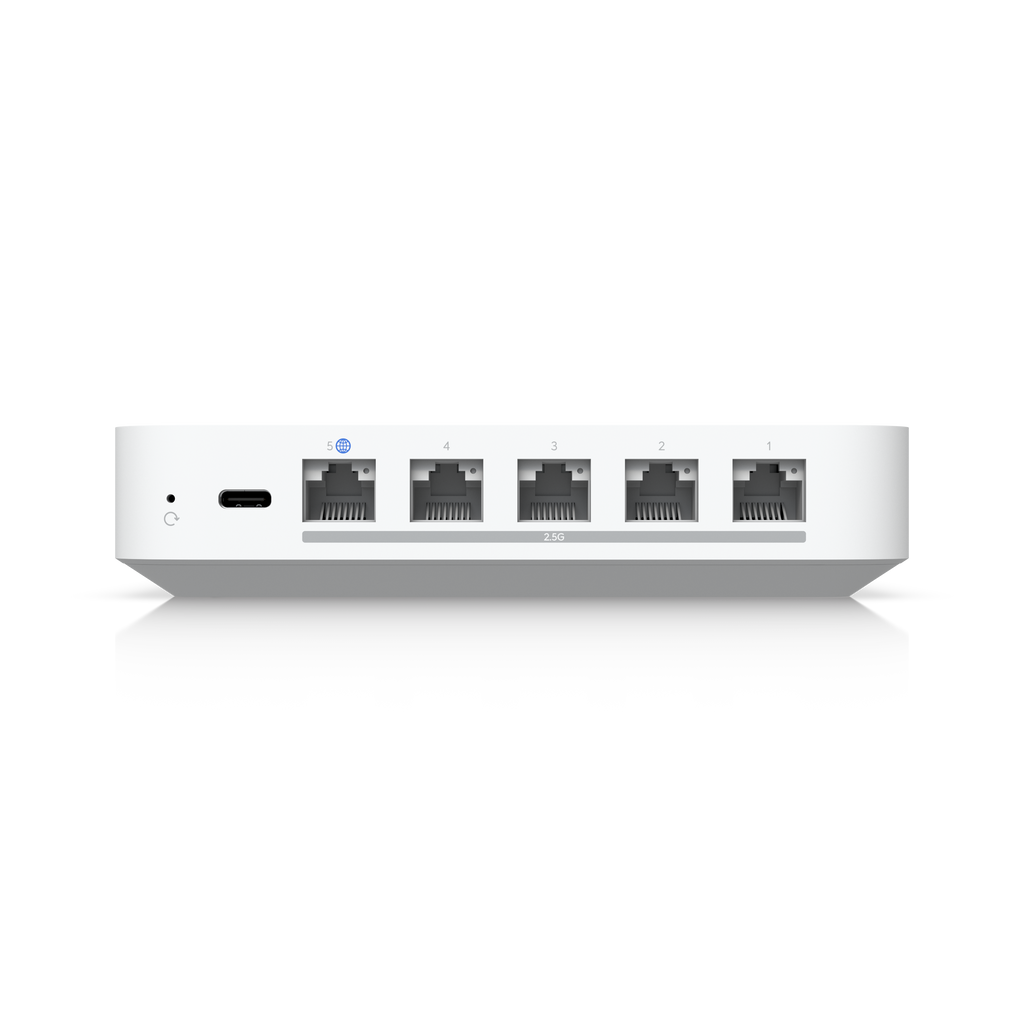

| Ethernet Ports | 5 × 2.5 Gb/s (1 dedicated WAN, 1 configurable WAN/LAN, 3 LAN) |
| Throughput | Up to 2.3 Gb/s IDS/IPS routing |
| VPN Support | WireGuard, L2TP, OpenVPN, IPsec, Teleport, Identity VPN |
| Firewall | Full stateful firewall with application-aware rules |
| Networking | License-free SD-WAN, VLAN/subnet segmentation, IGMP proxy, IPv6 support |
| QoS | Application, domain, and country-based; Wi-Fi QoS with UniFi APs |
| Additional Features | WAN failover, multi-WAN load balancing, LTE backup (optional) |
| Display | 0.96" LCM for status monitoring |
| Management | UniFi Network application (license-free) |
