Features
-
Wi-Fi 7 Technology – Dual-band 802.11be with support for 2.4 GHz and 5 GHz bands
-
High-Speed Throughput – Up to 4.3 Gb/s on 5 GHz and 688 Mb/s on 2.4 GHz
-
Compact Coverage – Covers up to 1250 ft² with internal 5 dBi antennas
-
Flexible Connectivity – 2.5GbE RJ45 uplink port with PoE support
-
Scalable Capacity – Supports 200+ concurrent clients with four spatial streams
-
UniFi Integration – Managed via UniFi Network application for setup, control, and monitoring

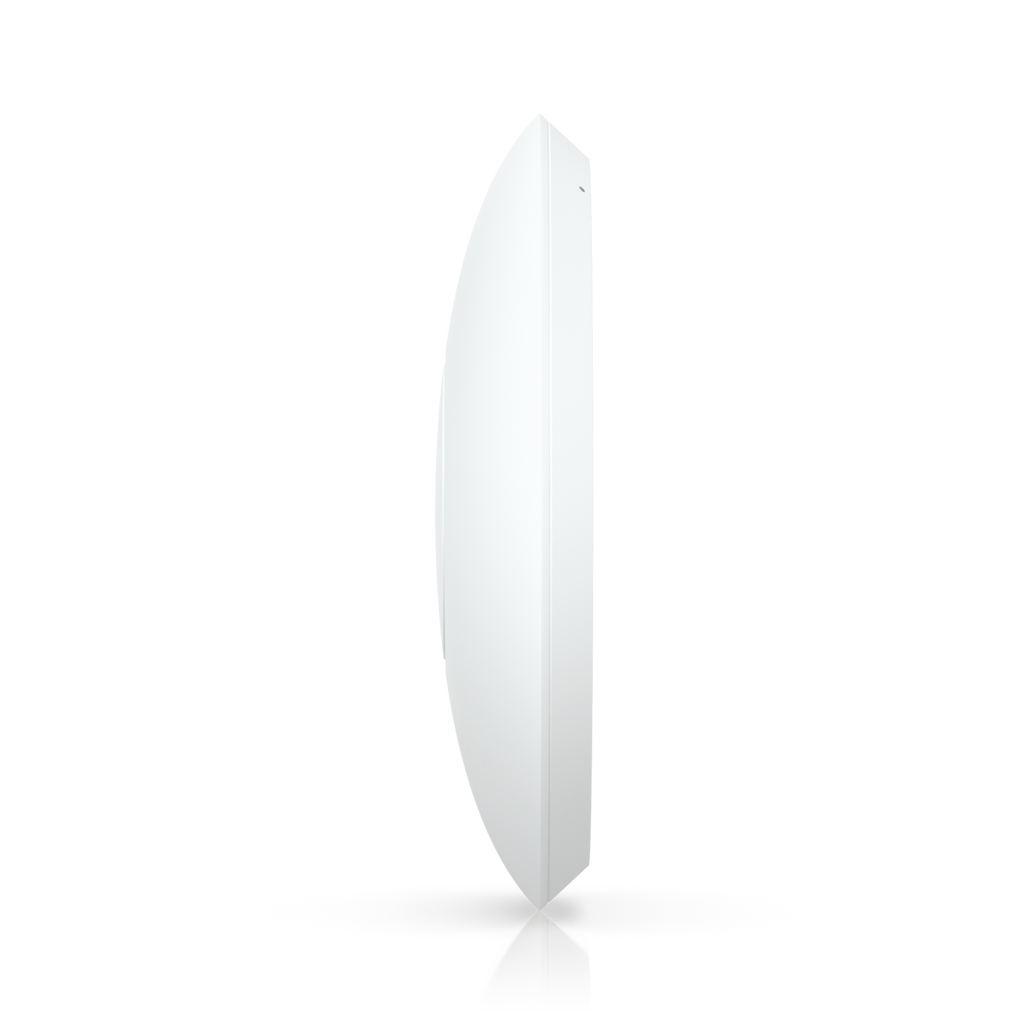

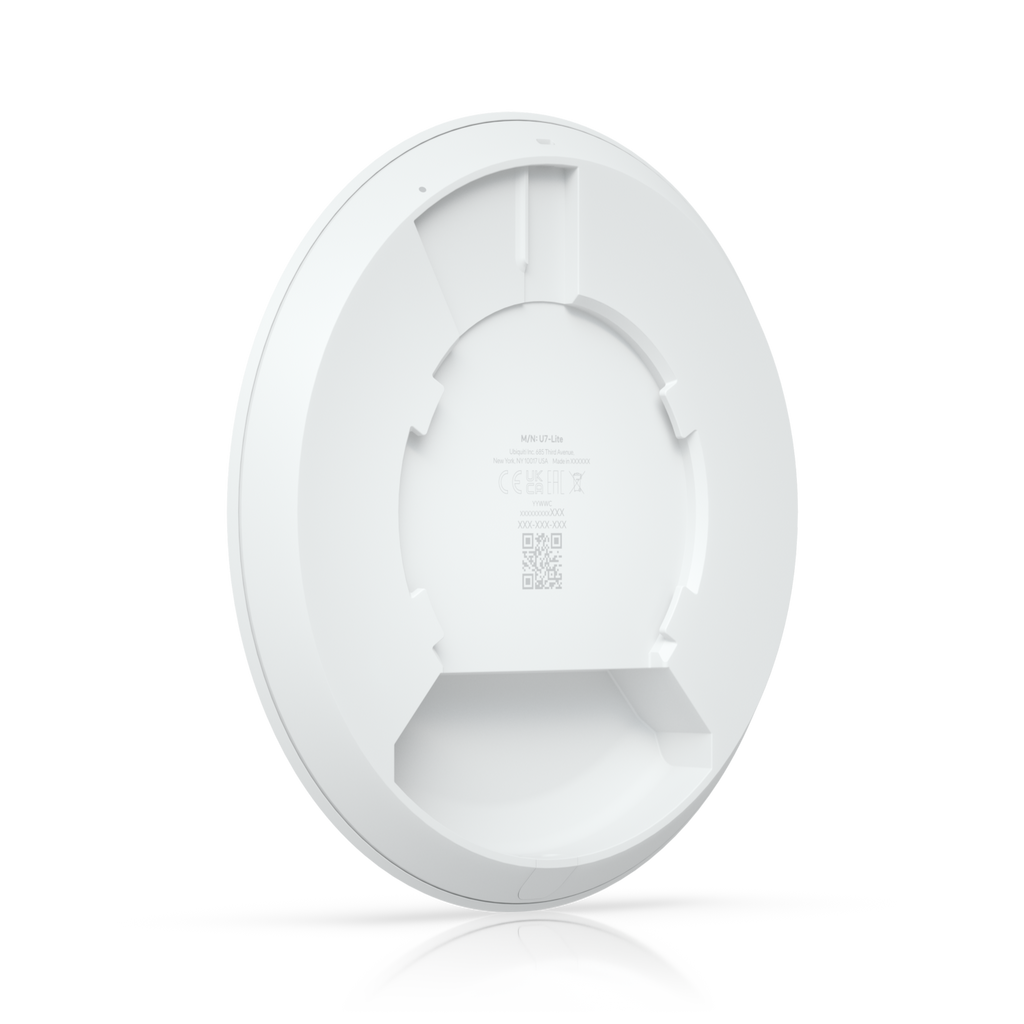

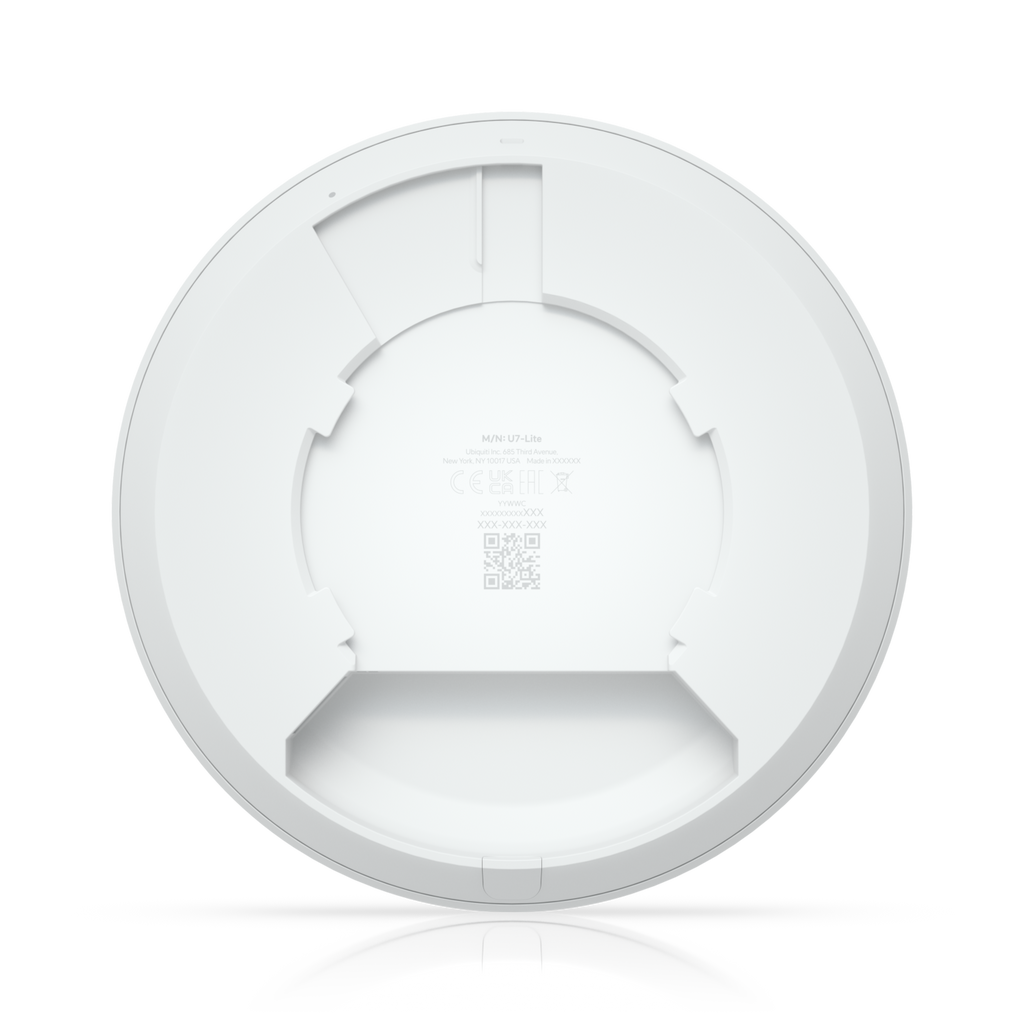

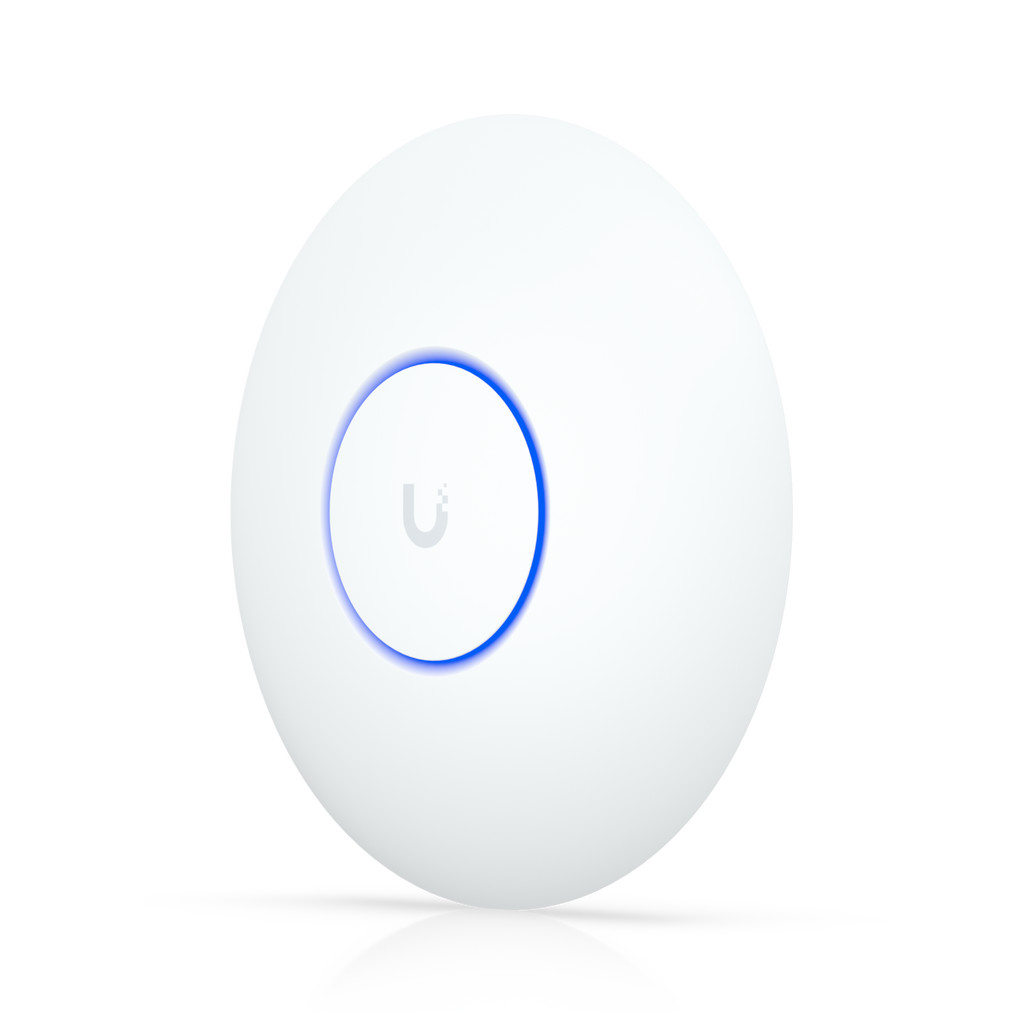

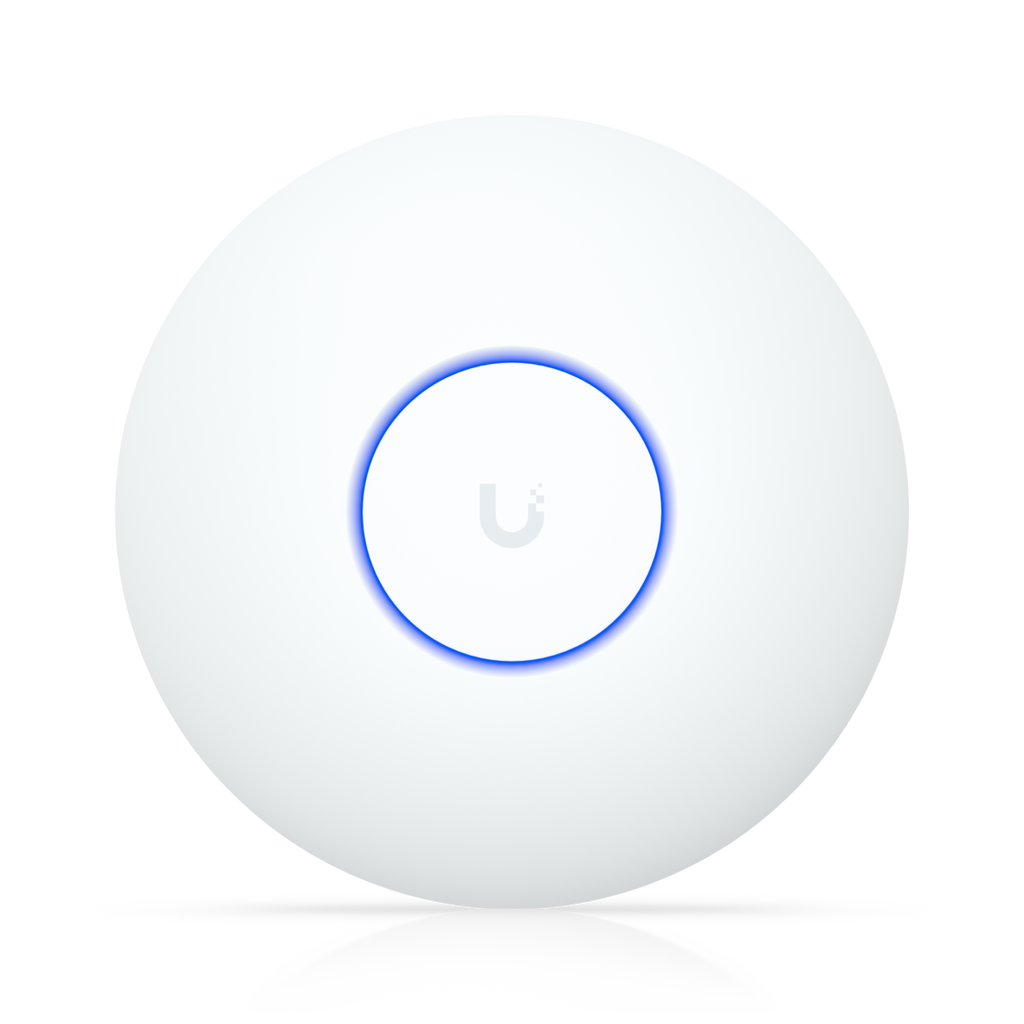

The Ubiquiti U7-LITE-US brings next-generation Wi-Fi 7 performance in a compact dual-band ceiling-mounted access point. Designed for homes and small businesses, it supports up to 200+ clients with four spatial streams, delivering strong coverage and seamless connectivity with UniFi Network management.
Upgrade to next-gen wireless with the Ubiquiti U7-LITE-US, a compact dual-band Wi-Fi 7 access point delivering speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. With support for 200+ clients, four spatial streams, and 1250 ft² coverage, it’s ideal for homes and small businesses. Includes Lite mount and PoE support for easy installation.
Compact dual-band U7-LITE-US Wi-Fi 7 AP with 5 Gb/s speeds, 200+ client support, 1250 ft² coverage, 2.5GbE PoE uplink, and UniFi Network integration.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | U7-LITE-US |
| UPC | 810084698778 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), Dual-Band (2.4 & 5 GHz), MU-MIMO 2x2 |
| Throughput | 5 Gb/s total (5 GHz: 4.3 Gb/s, 2.4 GHz: 688 Mb/s) |
| Coverage Area | 1250 ft² |
| Max. Client Count | 200+ |
| Spatial Streams | 4 |
| Antenna Gain | 5 dBi (internal) |
| Max TX Power | 24 dBm |

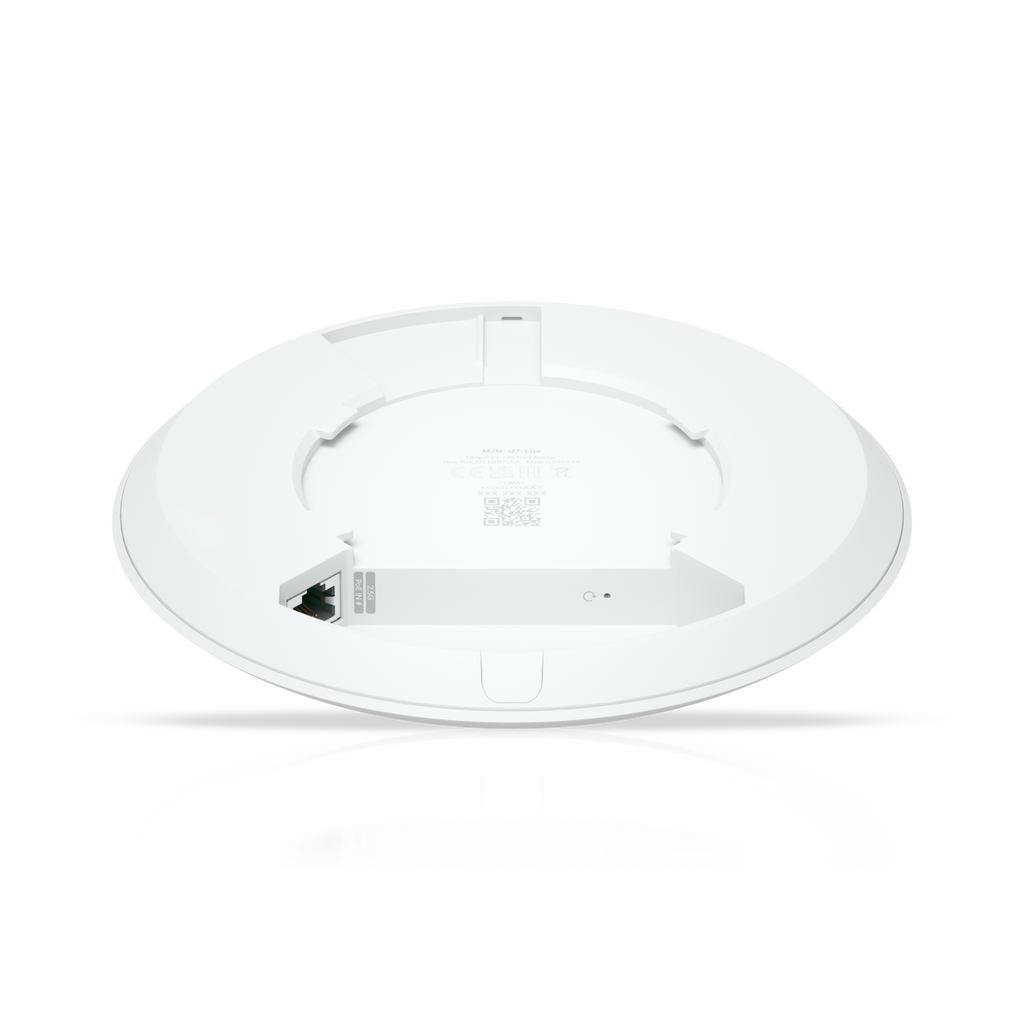

| Interfaces | 1x RJ45 2.5 GbE PoE |
| Power Method | PoE, 42.5–57 VDC |
| Max Power Consumption | 13 W |
| Operating Conditions | -22 to 104°F / -30 to 40°C at 5–95% humidity |

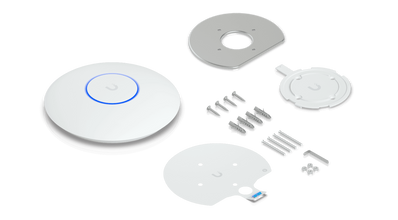

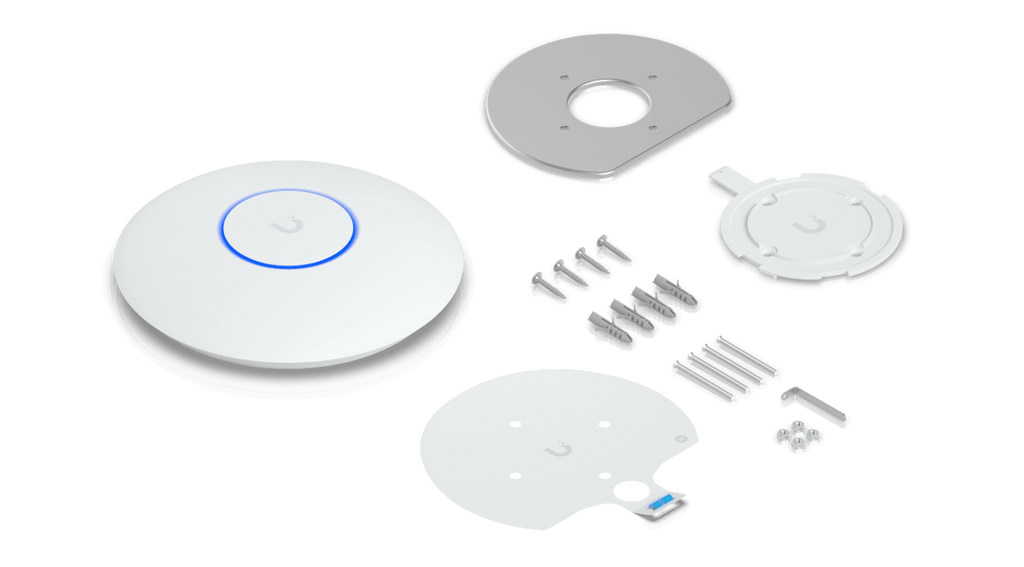

| Mounting Options | Wall, Ceiling (Lite mount & hardware included) |
| Dimensions | 6.8 × 1.3" / 172.7 × 33 mm |
| Certifications | CE, FCC, IC |
