Features
-
Wave 2 Wi-Fi 5 – Dual-band 802.11ac with MU-MIMO technology for fast, efficient multi-user performance.
-
Dedicated Security Radio – Enables spectrum monitoring and threat detection without impacting throughput.
-
High Throughput – Up to 2.15 Gbps total speeds (1.7 Gbps at 5 GHz, 450 Mbps at 2.4 GHz).
-
PoE+ Powered – Dual Gigabit Ethernet ports with 802.3at PoE+ support; adapter included.
-
Scalable Capacity – Supports 1000+ clients with seamless roaming, VLANs, and meshing features.
-
Flexible Mounting – Includes pro-grade ceiling and wall mounting hardware.
-
UniFi Integration – Centralized configuration, analytics, and monitoring via UniFi Network software.
Boost enterprise Wi-Fi performance with the UniFi UAP-AC-SHD (5-Pack), a Wave 2 access point featuring a dedicated security radio for real-time monitoring and interference protection. With dual-band MU-MIMO, advanced UniFi Network management, and support for over 1000 clients, it delivers powerful, secure, and reliable connectivity for demanding environments.
The Ubiquiti UniFi UAP-AC-SHD 5-Pack delivers enterprise-grade Wi-Fi 5 with dual-band 4x4 MU-MIMO and up to 2.1 Gbps throughput. Featuring a dedicated security radio for real-time monitoring, these APs are ideal for high-density deployments with support for 1,000+ clients.
With PoE+ power, UniFi Controller management, and flexible wall or ceiling mounting, this bundle ensures fast, secure, and scalable wireless networking. Ubiquiti UniFi UAP-AC-SHD 802.11ac Wave 2 access points (5-pack) with MU-MIMO, dedicated security radio, dual Gigabit PoE+, and enterprise capacity.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-AC-SHD-5-US |
| UPC | 810354026492 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave 2) |
| Spatial Streams | 4x4 MU-MIMO (5 GHz), 4x4 MU-MIMO (2.4 GHz) |
| Max Data Rate | 5 GHz: 1.7 Gbps; 2.4 GHz: 450 Mbps; Total: 2.15 Gbps |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Clients | 1000+ |

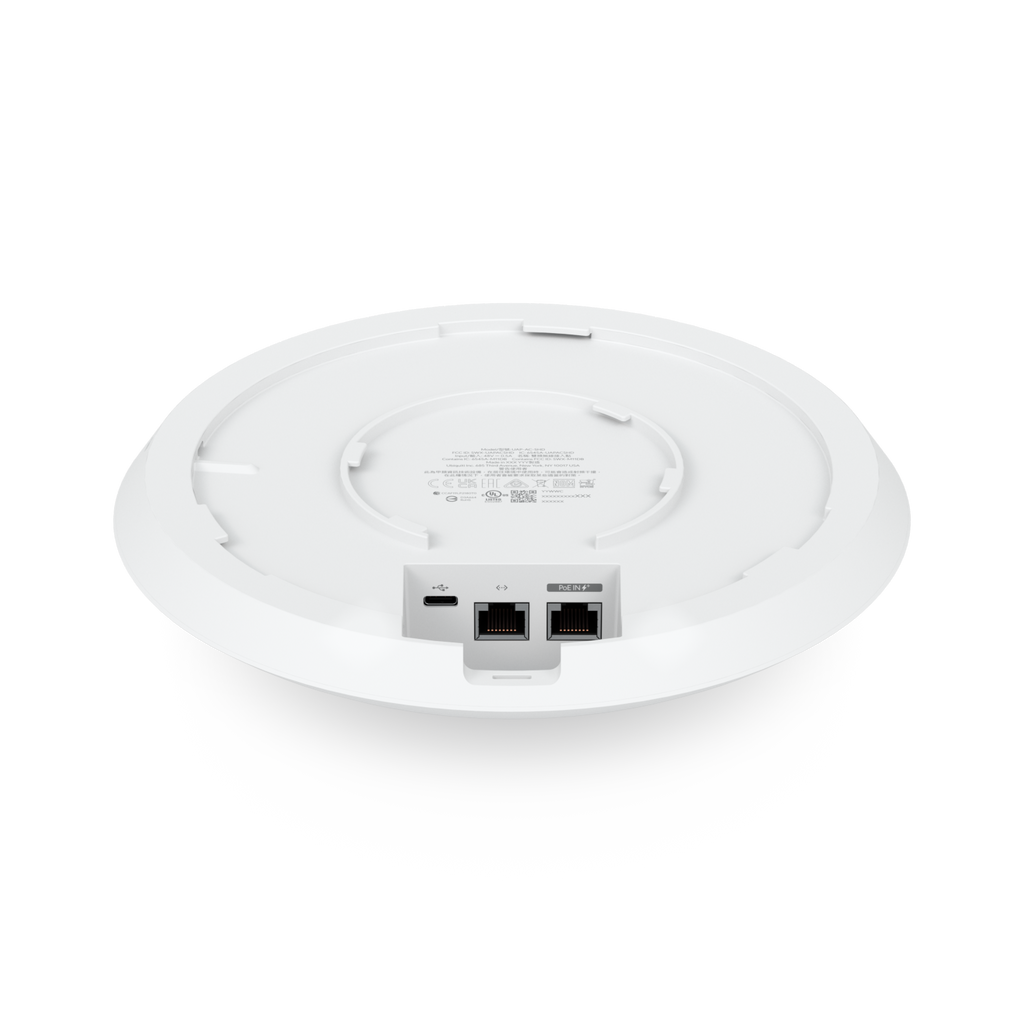

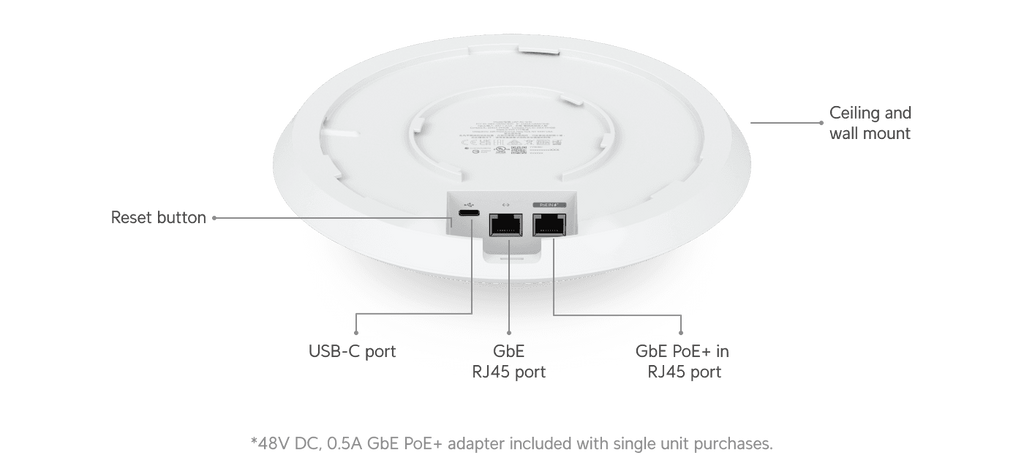

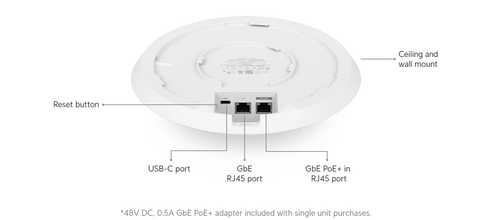

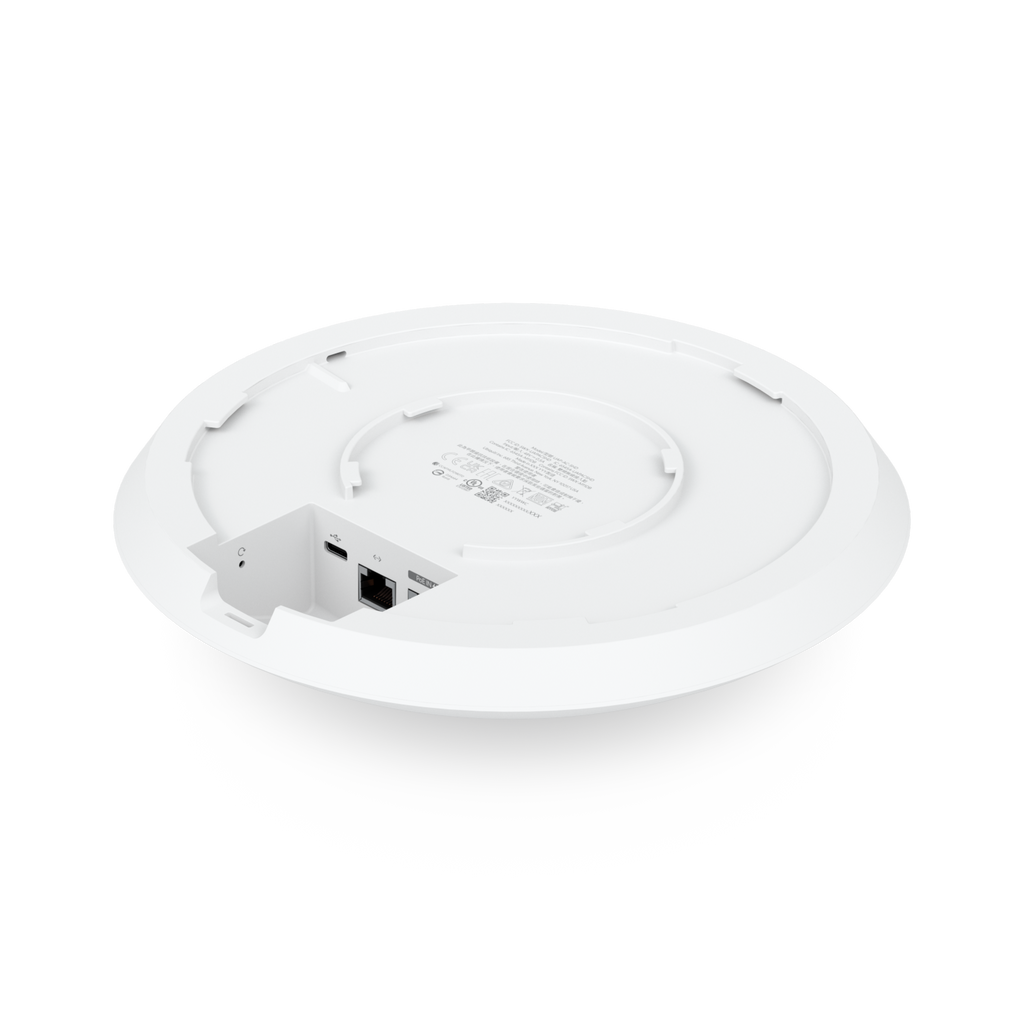

| Networking Interface | (2) RJ45 Gigabit Ethernet PoE+ ports; (1) USB-C |
| Power Method | 802.3at PoE+; adapter included |
| Power Consumption | 20 W max |
| Antenna Gain | 5 GHz: 6 dBi; 2.4 GHz: 6 dBi |
| Max TX Power | 25 dBm (2.4/5 GHz) |
| Mounting Options | Ceiling, wall (mount included) |

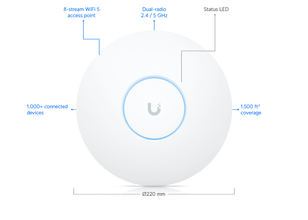

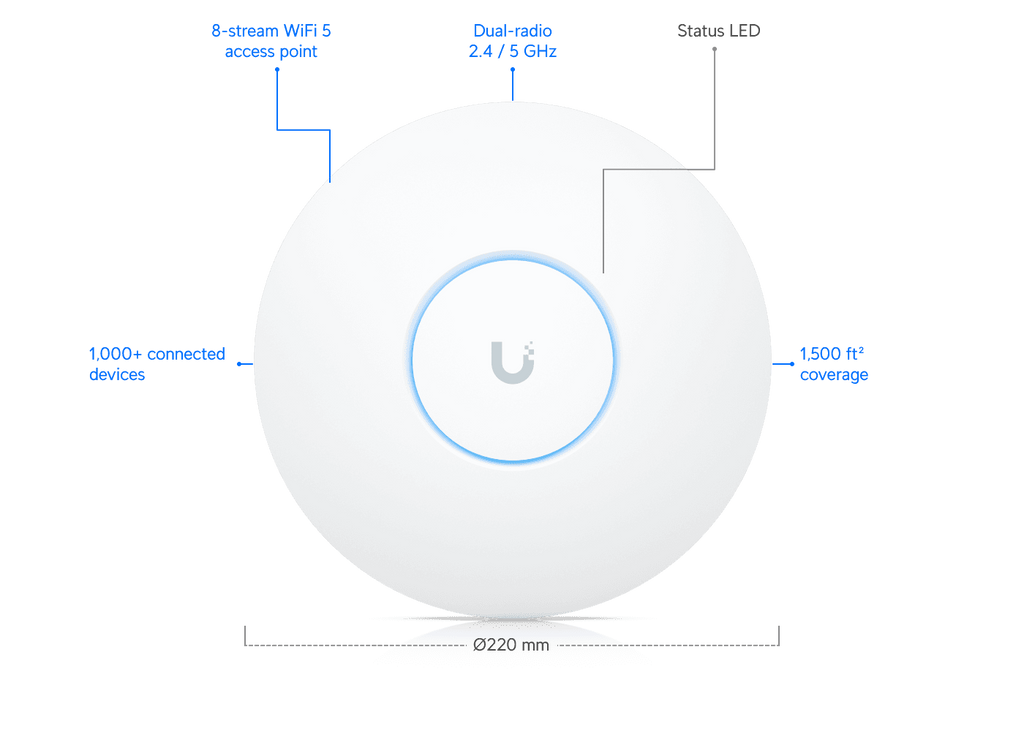

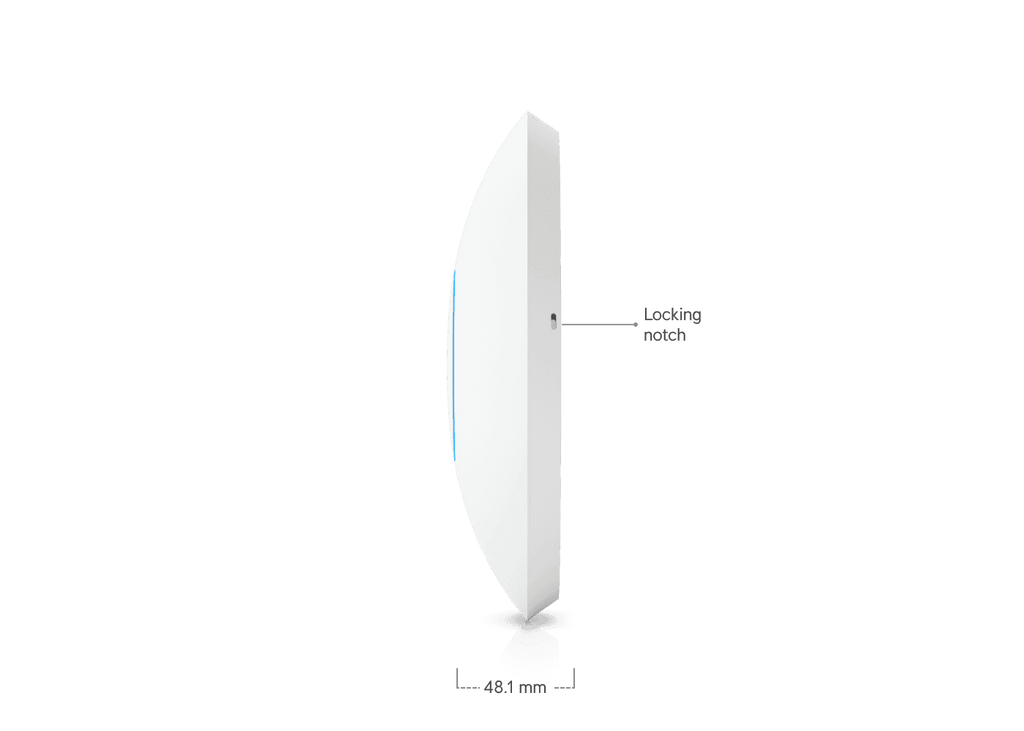

| Dimensions | Ø220 × 48.1 mm (Ø8.7 × 1.9") |
| Weight | 700 g (1.5 lb); with mount: 830 g (1.8 lb) |
| Operating Conditions | -10 to 70 °C (14 to 158 °F); 5–95% noncondensing humidity |
| Management | UniFi Network Controller (v6.0.45+) |
| Processor | Qualcomm dual-core, up to 1.4 GHz |
| Storage | 4 GB onboard |
| Certifications | CE, FCC, IC; NDAA compliant |
