Features
-
Wide Coverage – Provides wireless range up to 600 feet with omni-directional antennas.
-
Dual-Band Wi-Fi – 802.11ac Wave 1 technology with 2x2 MU-MIMO supports up to 1167 Mb/s throughput..
-

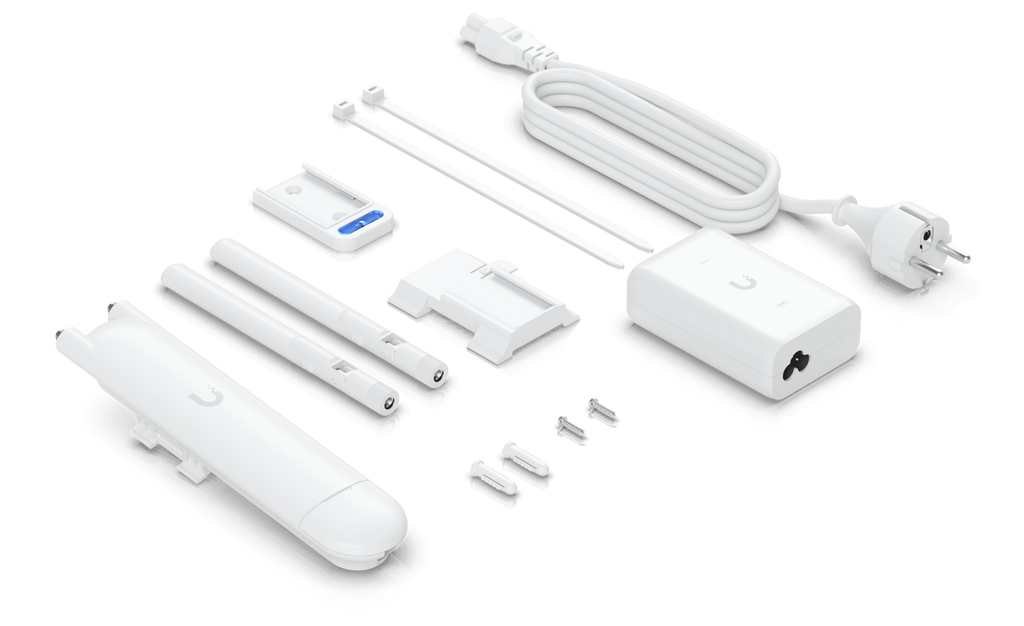

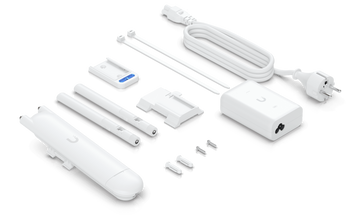

Flexible Deployment – Weather-resistant housing for indoor/outdoor use; includes wall, pole, and fast-mount hardware.
-
Scalable Management – UniFi Network Controller enables centralized management, RF mapping, analytics, and hotspot customization.
-
Guest Access & Hotspot – Supports voucher authentication, payment integration, guest isolation, and custom branding portals.
-
Mesh Capable – Wireless uplink and Plug & Play Mesh for extended coverage without running additional cables.
-
PoE Powered – Supports 802.3af PoE (Alternative A) or 24V passive PoE; Gigabit PoE adapter included.
Extend reliable Wi-Fi coverage indoors and outdoors with the Ubiquiti UniFi UAP-AC-M-US AC Mesh Access Point. Featuring a compact, weather-resistant design, dual-band 802.11ac Wi-Fi, and flexible mounting options, this access point is built to deliver high-performance connectivity across wide areas.
The Ubiquiti UniFi AC Mesh delivers powerful dual-band Wi-Fi 5 with speeds up to 1167 Mb/s and a coverage range of 600 ft. Designed for both indoor and outdoor use, it supports 200+ clients with MU-MIMO, mesh networking, and flexible pole or wall mounting. With UniFi Controller software, you gain centralized management, hotspot support, analytics, and scalability for enterprise-grade wireless deployments.
With speeds up to 1167 Mb/s and support for UniFi’s powerful Controller software, the UAP-AC-M-US is ideal for enterprise, hospitality, and campus deployments that require scalability and robust management.Outdoor campuses, hotels, event venues, enterprise buildings, or any environment requiring flexible, high-performance wireless coverage.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-AC-M-US |
| UPC | 810354025594 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac), Dual-Band |
| Spatial Streams | 2x2 MU-MIMO |
| Max Data Rate | 2.4 GHz: 300 Mb/s; 5 GHz: 867 Mb/s; Total: 1167 Mb/s |
| Coverage Range | Up to 600 ft |
| Max Clients | 200+ |

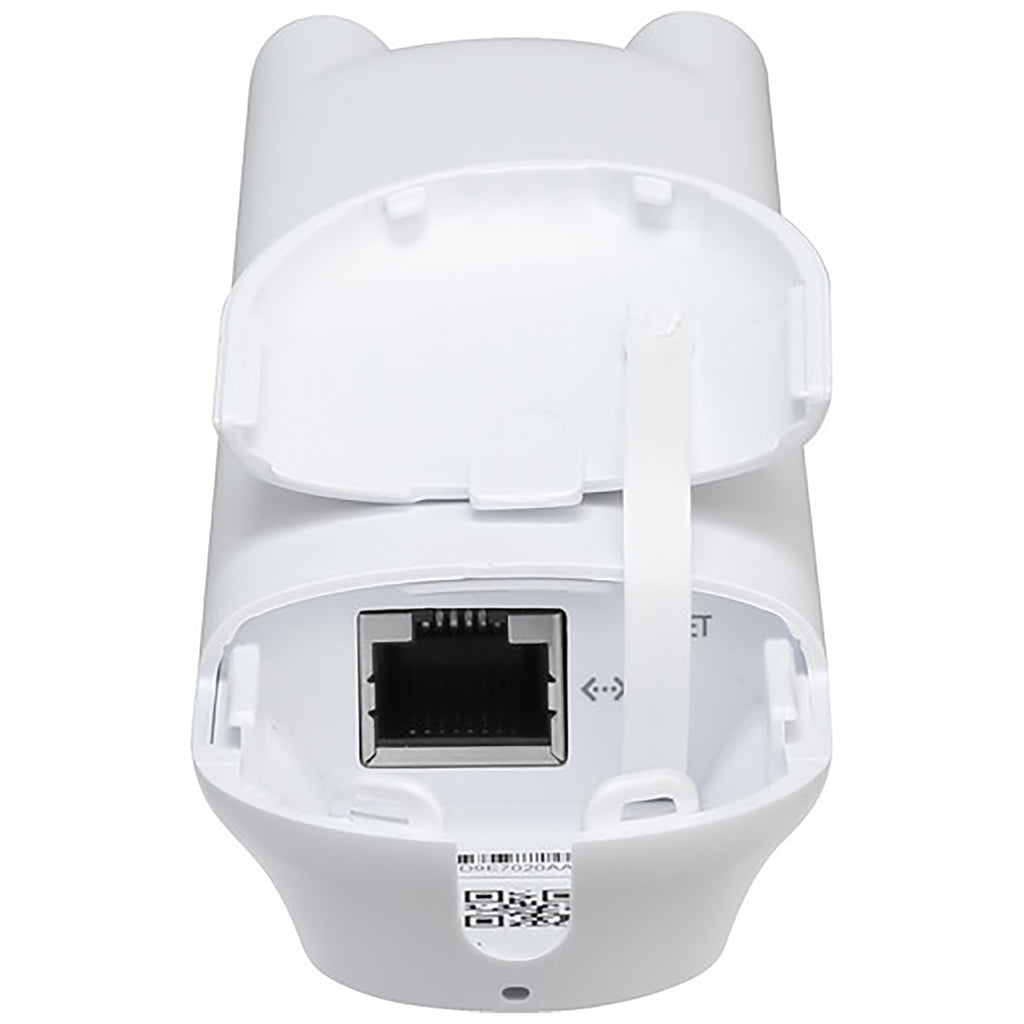

| Networking Interface | 1x RJ45 Gigabit Ethernet |
| Power Method | 802.3af PoE or 24V passive PoE |
| Power Consumption | 8.5 W |
| Antenna Gain | 3–4 dBi (external omni antennas included) |
| Transmit Power | Up to 20 dBm |
| Mounting Options | Wall, pole, fast-mount (hardware included) |
| Dimensions | 353 x 46 x 34 mm (13.9 x 1.8 x 1.4") |
| Weight | 0.1 kg (0.3 lb) |
| Operating Conditions | -30 to 70 °C (-22 to 158 °F); 5–95% humidity |
| Management | UniFi Network Controller (cloud or on-premises) |
| Certifications | CE, FCC, IC, UKCA |
