Features
- Next-Gen Wi-Fi 6 – Dual-band AX AP with combined speeds up to 5373 Mb/s.
- High-Density Support – Connect 350+ devices simultaneously with MU-MIMO & OFDMA.
- 4x4 5 GHz MU-MIMO – 4.8 Gbps max data rate with 160 MHz bandwidth for high-speed performance.
- Rugged & Weather-Resistant – IP54-rated enclosure withstands dust and light water exposure.
- Enterprise Security – WPA3, VLAN isolation, PPSK, guest portals, and RadSec support.
- Smart Roaming – Supports 802.11r/v/k for seamless transitions across APs.

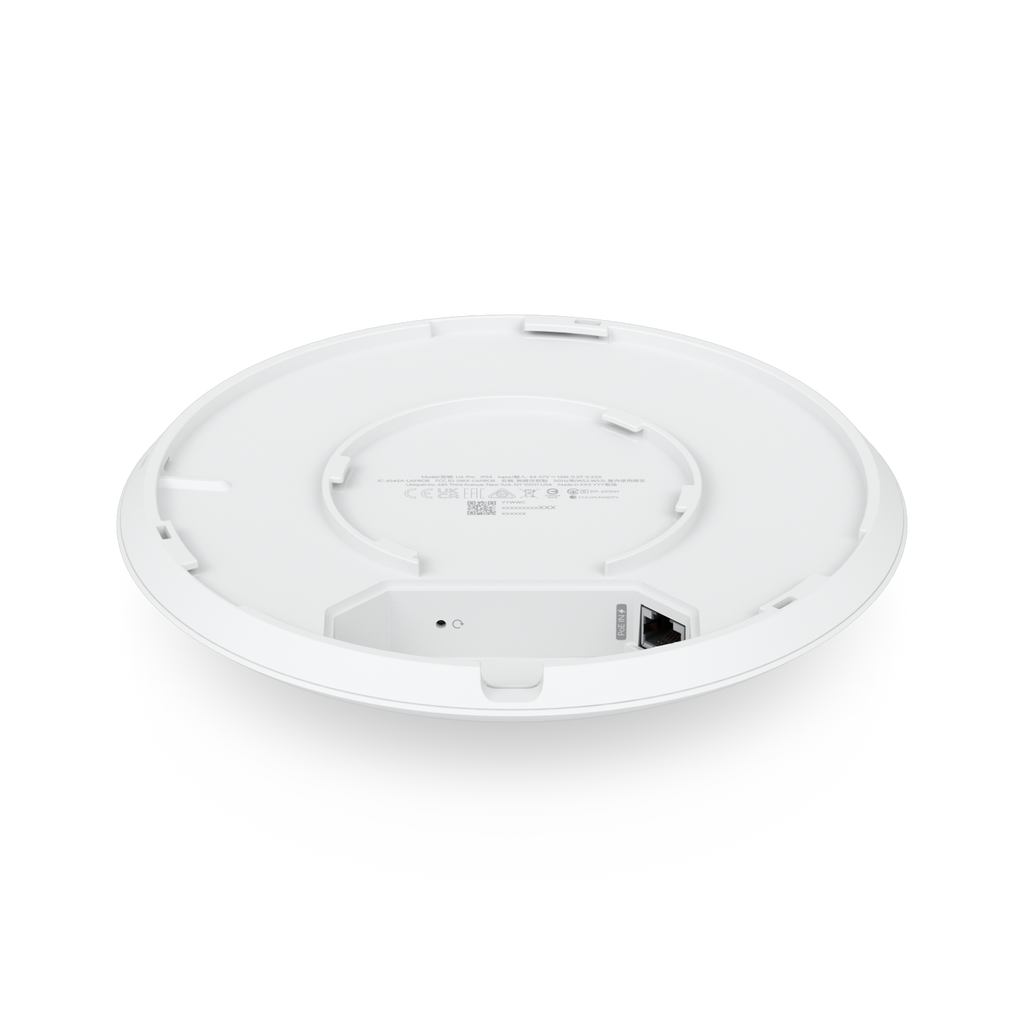

- PoE Powered – Single Gigabit Ethernet (GbE) PoE uplink port for power and data.
- Centralized Management – Fully integrated with UniFi Network Controller and mobile app.

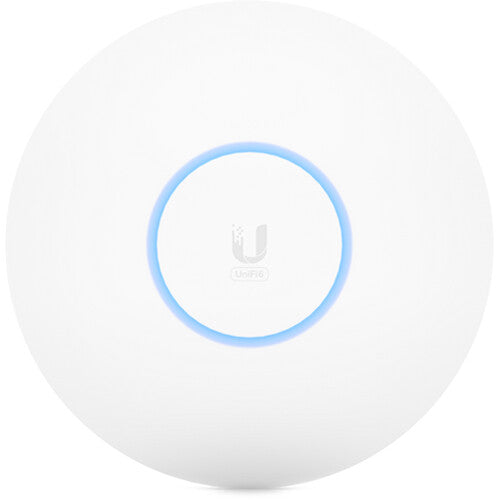

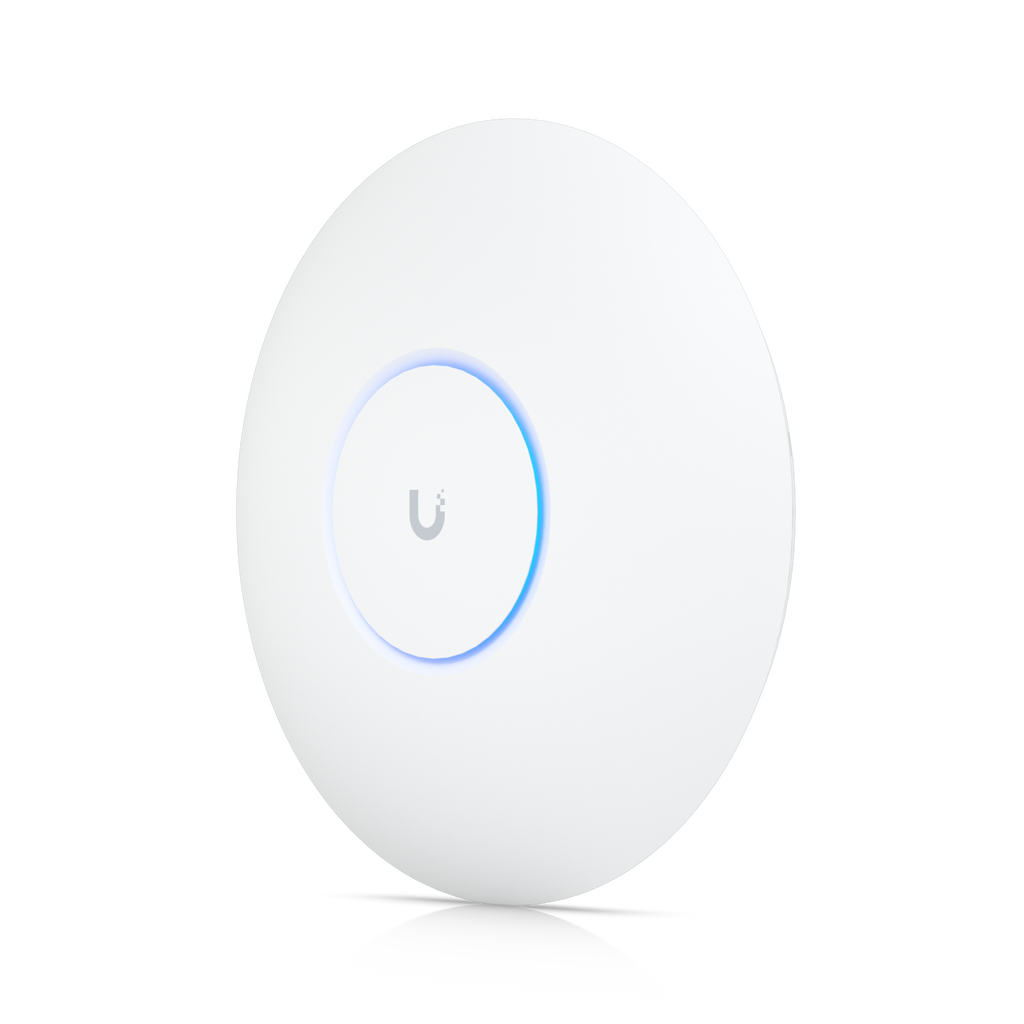

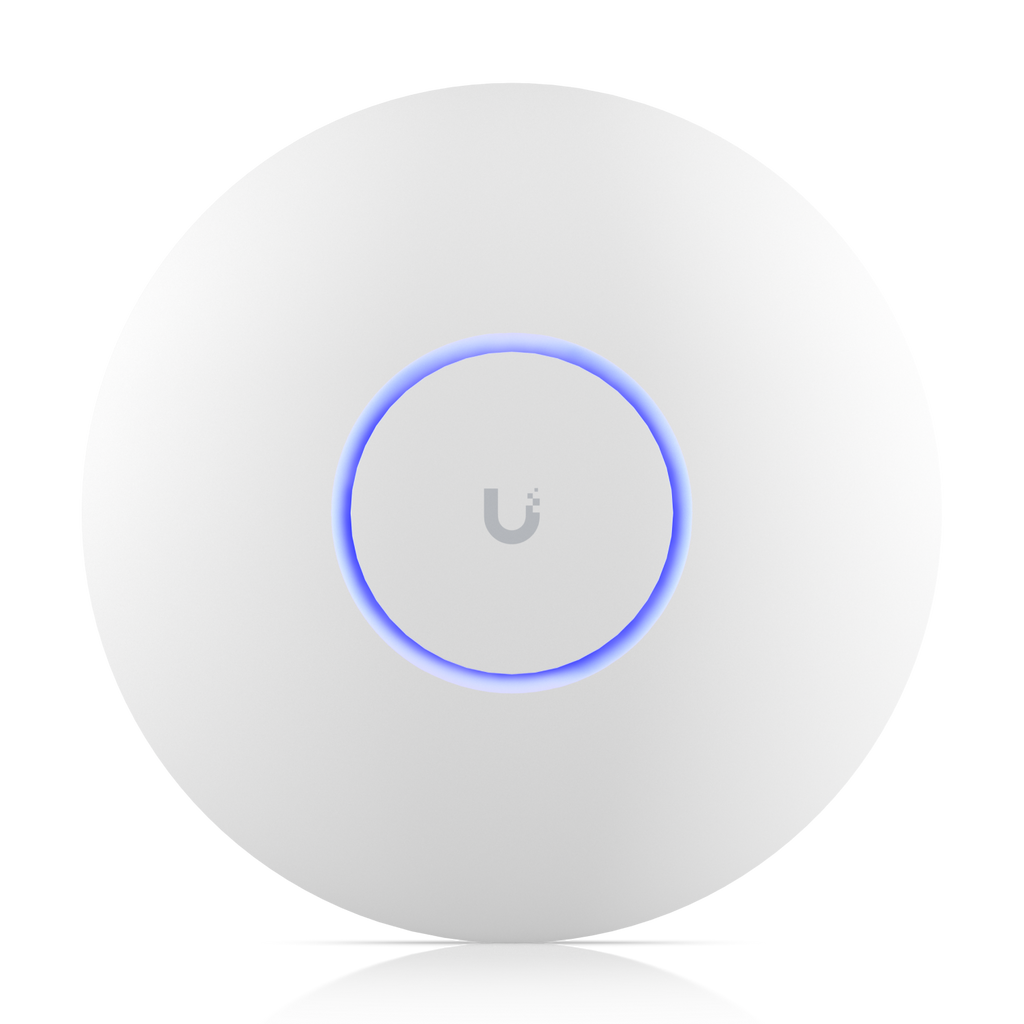

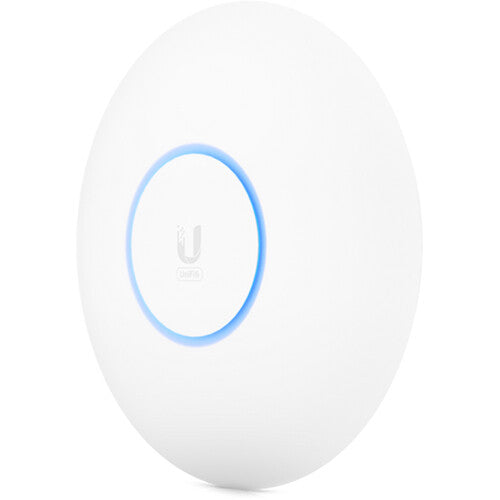

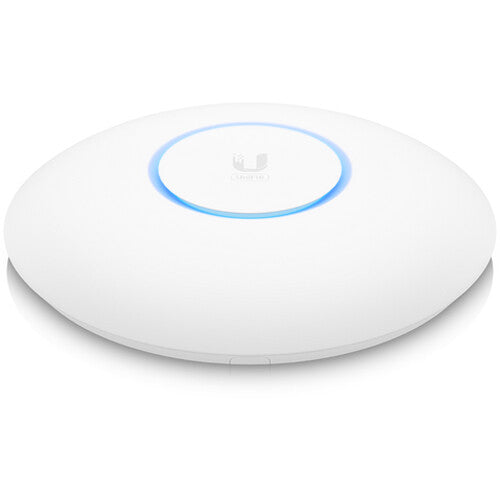

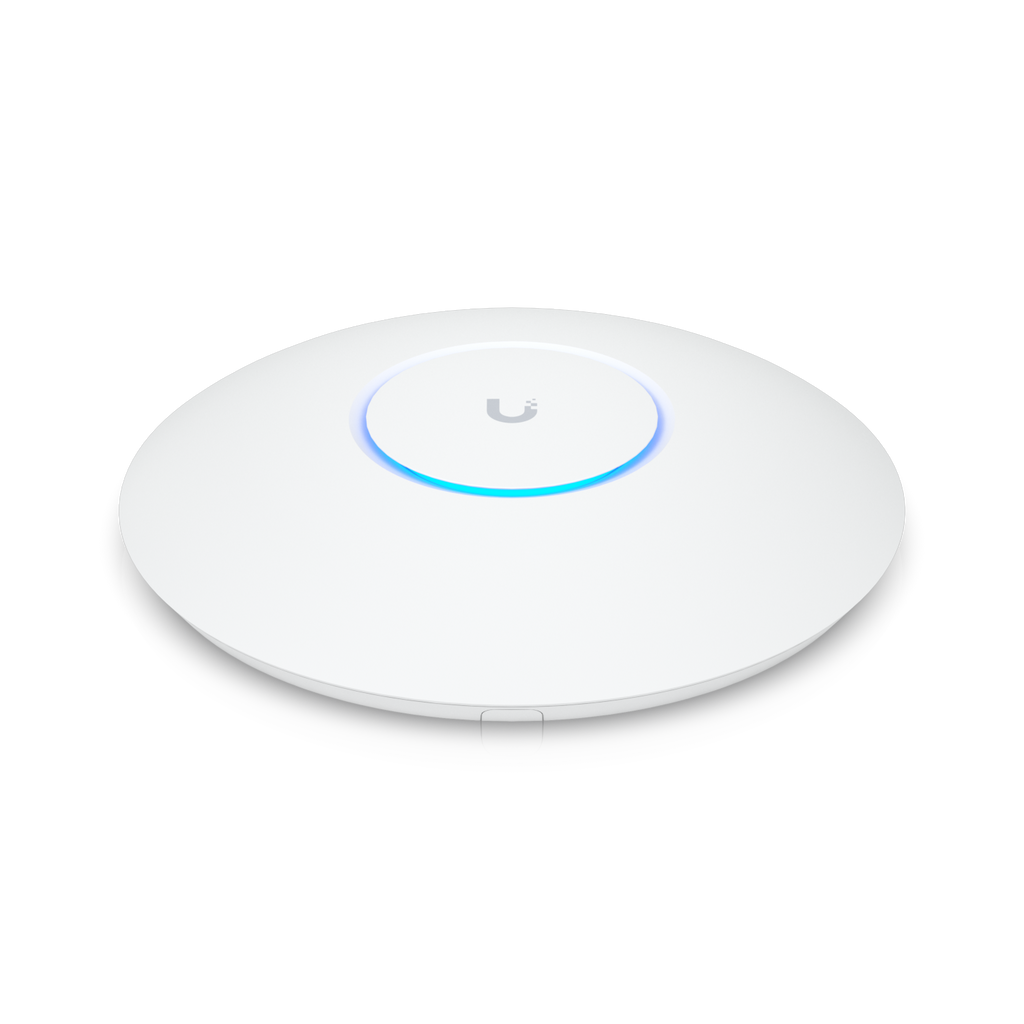

The Ubiquiti UniFi WiFi 6 Pro is a high-performance Wi-Fi 6 (802.11ax) dual-band access point engineered for fast, reliable, and secure wireless coverage. Designed for enterprise, campus, and high-density environments, it supports 350+ concurrent devices with 4x4 MU-MIMO on 5 GHz and 2x2 MU-MIMO on 2.4 GHz, delivering a combined throughput of up to 5373 Mb/s. With 160 MHz channel support, the WiFi 6 Pro ensures smooth 8K video streaming, real-time collaboration, VoIP, and low-latency gaming.

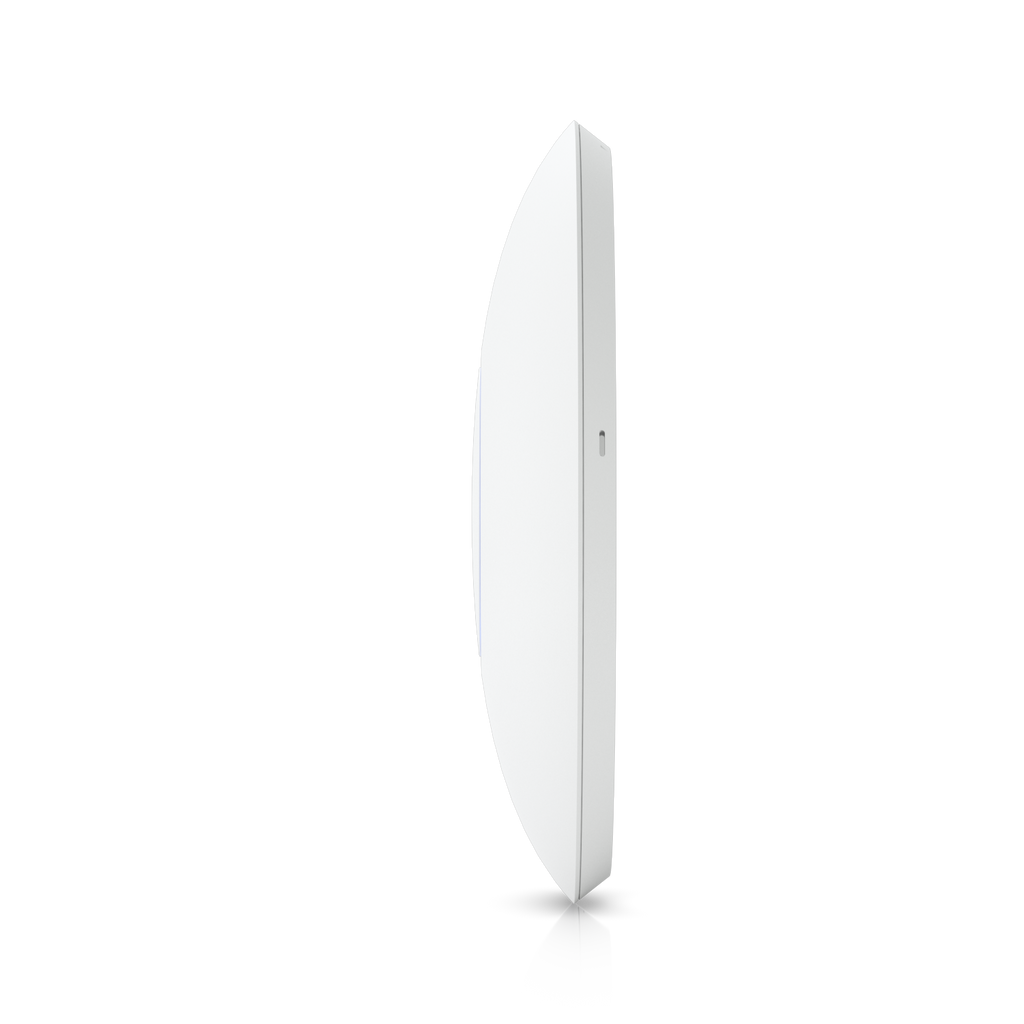

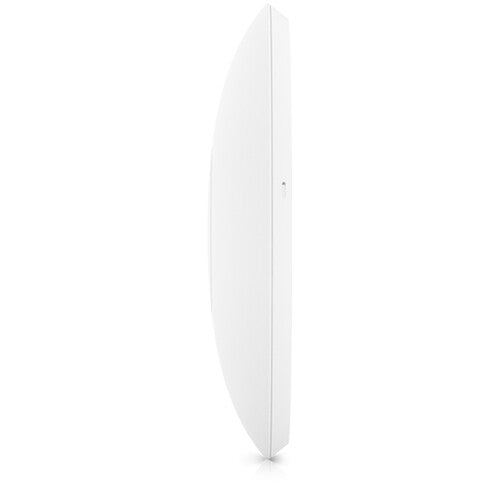

Built to perform in professional environments, this access point is IP54 weather-resistant, making it suitable for indoor and semi-outdoor installations. It features a sleek low-profile design and can be mounted on walls or ceilings using the included hardware. Powered via Gigabit PoE, the UniFi WiFi 6 Pro integrates seamlessly with the UniFi Network Controller, offering centralized management, advanced analytics, roaming support, and secure guest access.
With support for WPA3 encryption, VLAN segmentation, and dynamic RADIUS-assigned VLANs, this AP delivers enterprise-grade security and performance in one compact unit.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi WiFi 6 Pro |
| UPC | 810010074256 |
| Dimensions | Ø197 x 35 mm (Ø7.8 x 1.4") |
| Weight | Device: 580 g (1.3 lb) · With mount: 720 g (1.6 lb) |
| WiFi Standard | Wi-Fi 6 (802.11ax) |
| Spatial Streams | 6 (4x4 on 5 GHz, 2x2 on 2.4 GHz) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 350+ |

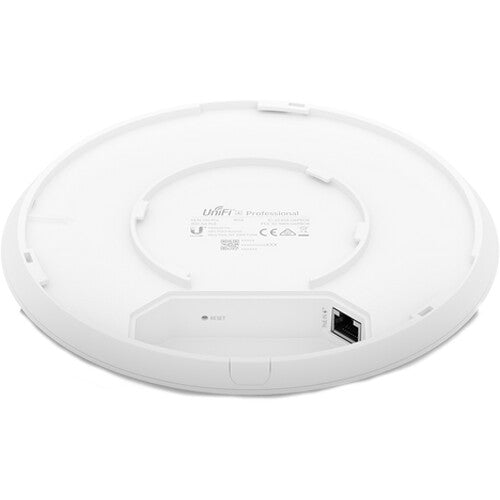

| Uplink | (1) Gigabit Ethernet (PoE) |

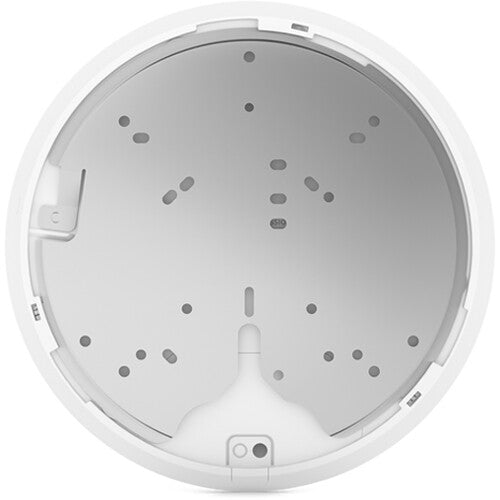

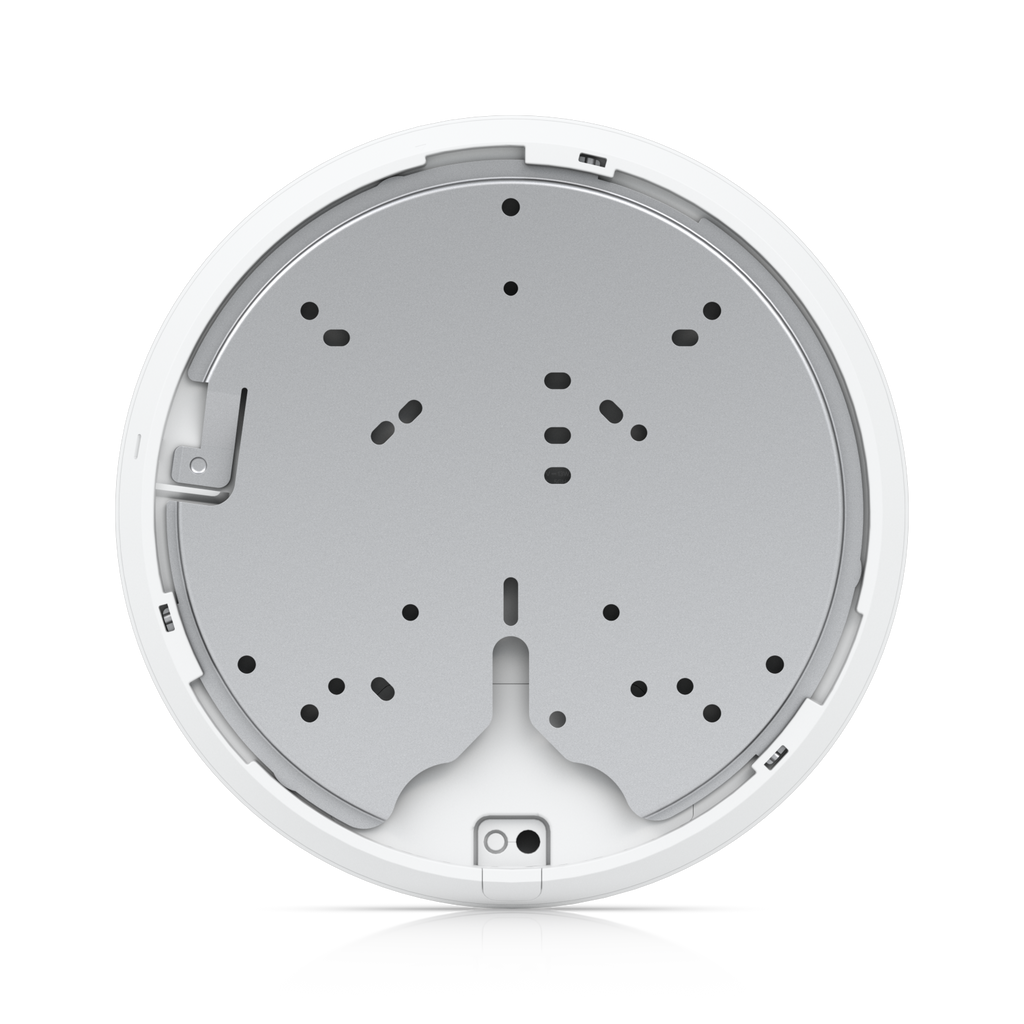

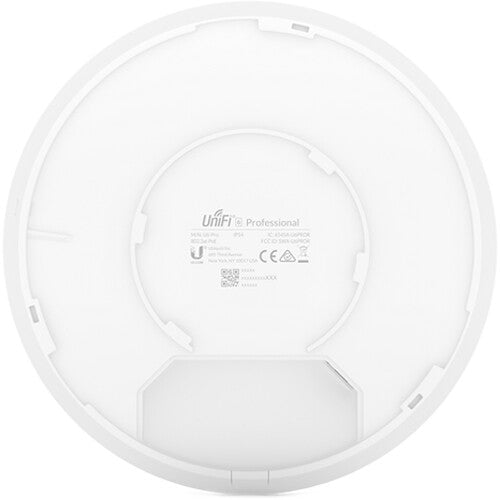

| Mounting | Wall, Ceiling (Pro Mount included) |
| Weatherproofing | IP54 |
| Max Data Rates | 5 GHz: 4.8 Gbps (BW160) · 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi · 2.4 GHz: 4 dBi |
| Max TX Power | 5 GHz: 26 dBm · 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per radio |
| Security | WPA3, VLANs, Guest Isolation, PPSK, RadSec |
| Features | Wireless meshing, band steering, hotspot portal, roaming (802.11r/v/k) |
| Power Method | PoE (802.3at) |
| Max Power Consumption | 13W |
| Enclosure Material | Polycarbonate |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz · 5 GHz: 5150–5850 MHz |
| Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel, SRRC · NDAA Compliant |
| Management | Ethernet · Bluetooth · UniFi Network Controller |
