Features
- Wi-Fi 7 Tri-Band Technology – Delivers up to 10,688 Mb/s total throughput across 2.4 GHz, 5 GHz, and 6 GHz.

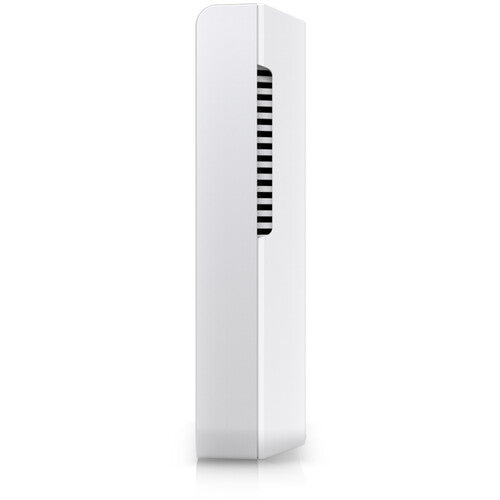

- Wall-Mount Design – Slim, discreet form factor blends seamlessly with any environment.
- Enterprise-Grade Capacity – Supports 300+ concurrent users with 140 m² (1,500 ft²) coverage.
- Multi-Gig Connectivity – 2.5 GbE uplink with PoE+ support for simplified installation.
- Advanced Security – WPA, WPA2, WPA3, guest network isolation, and PPSK for secure access control.
- Seamless Roaming – Supports 802.11r fast roaming, 802.11v BSS transition, and 802.11k RRM.
- Hotspot & Portal Support – Captive portal with custom branding, voucher authentication, and RadSec.
- Cloud & App Management – Full configuration and monitoring via UniFi Network app or Controller software.

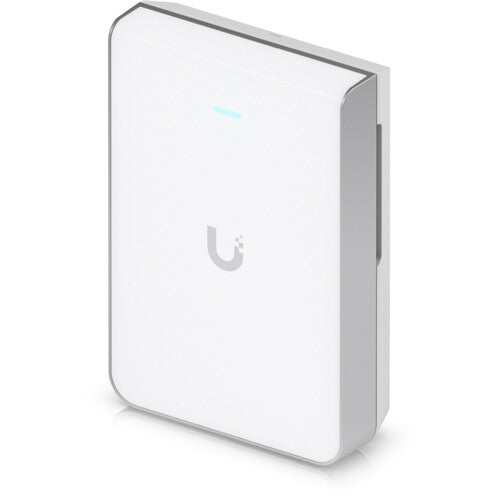

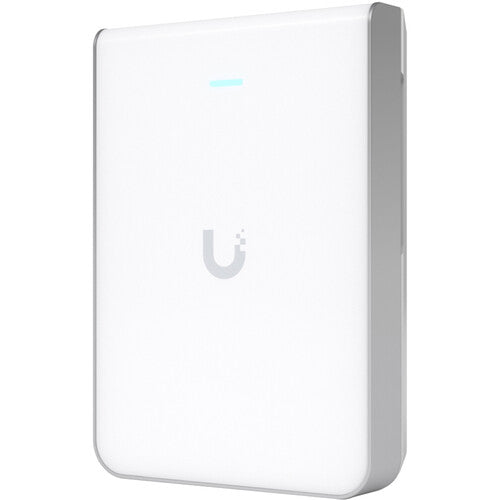

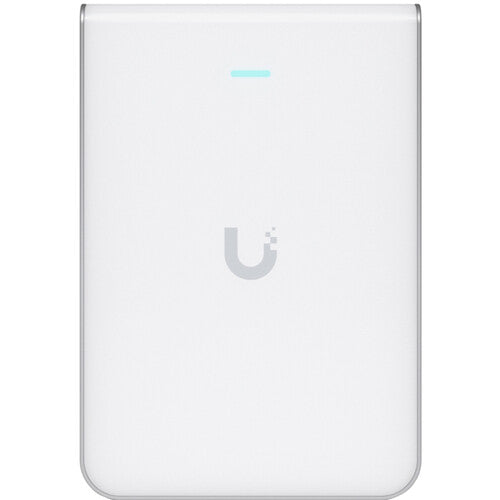

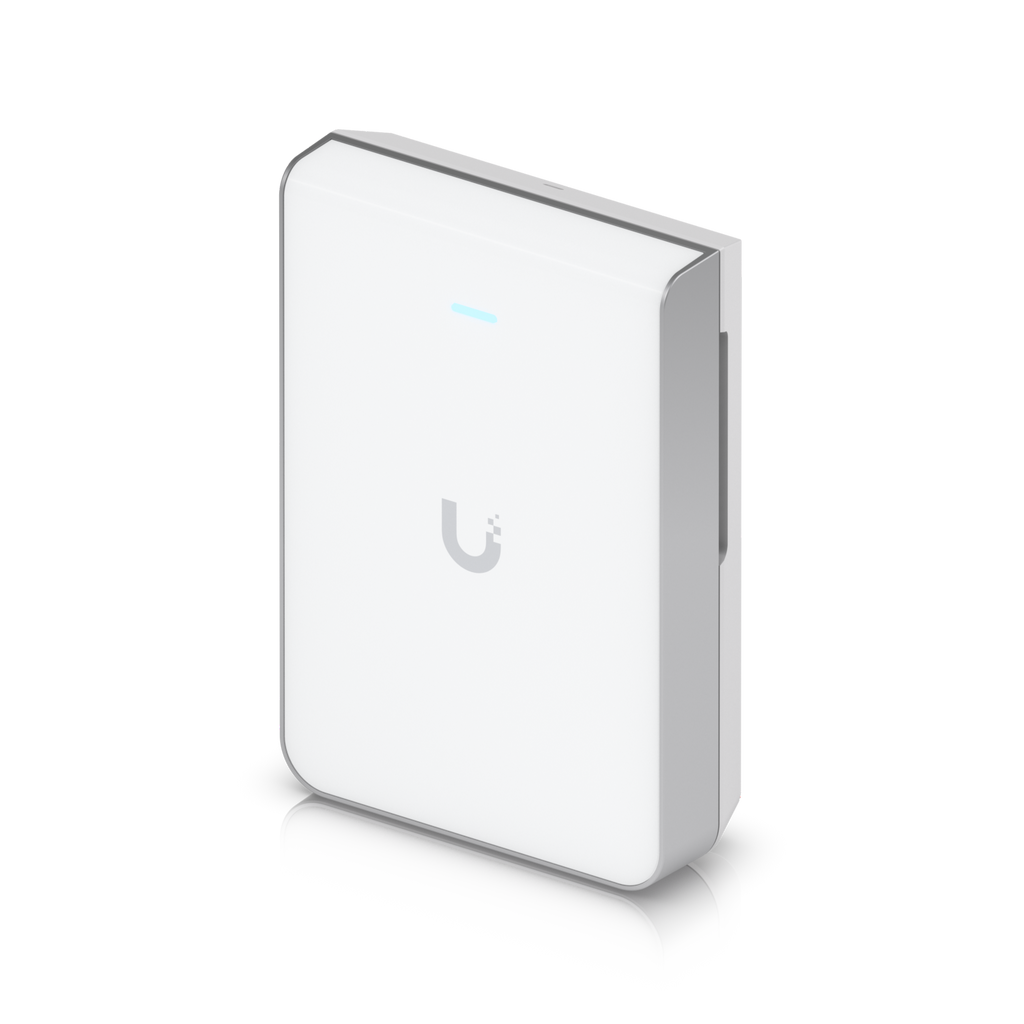

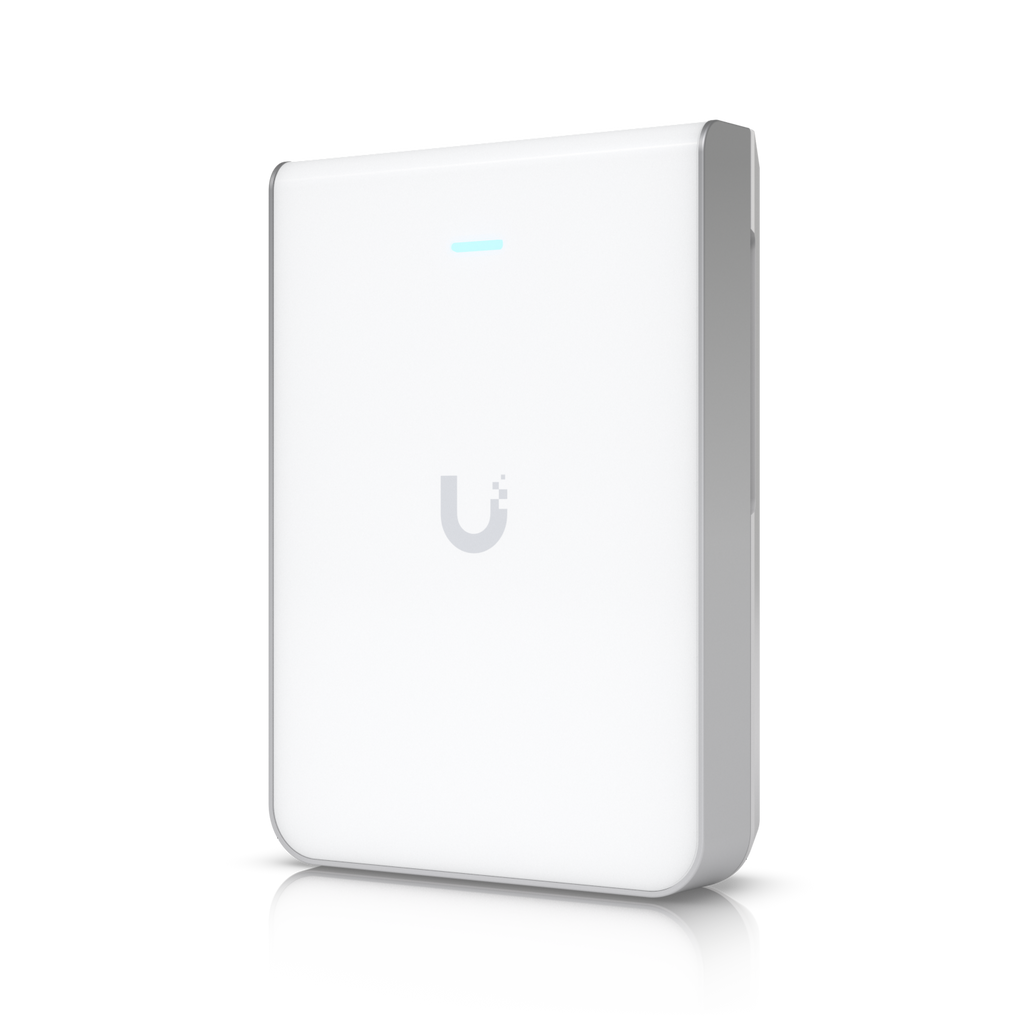

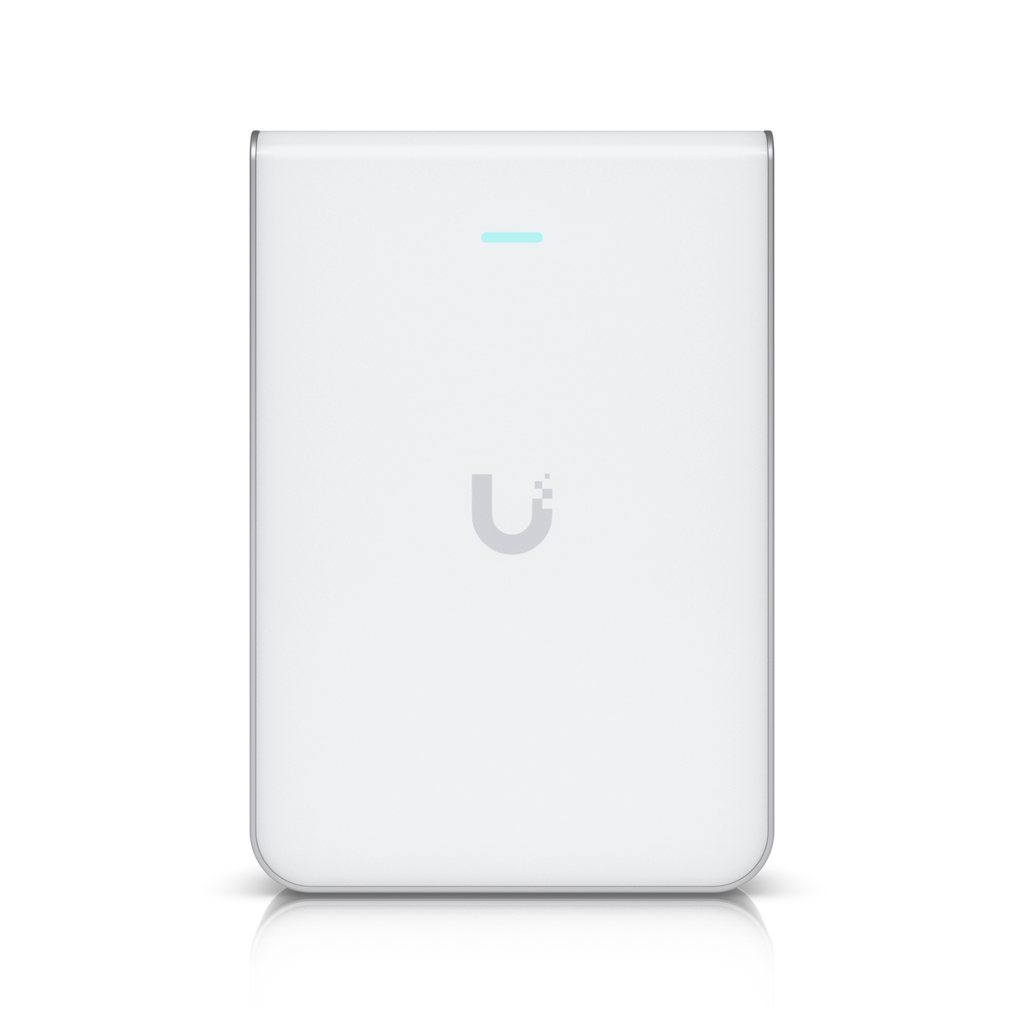

The Ubiquiti UniFi U7 Pro Wall is a next-generation Wi-Fi 7 tri-band access point engineered to deliver ultra-fast wireless connectivity in modern homes, offices, and business environments. Designed with a slim, wall-mounted profile, it provides up to 1,500 ft² of coverage for 300+ simultaneous client devices while blending discreetly into any interior. With Wi-Fi 7 speeds up to 10.7 Gb/s across the 2.4 GHz, 5 GHz, and 6 GHz bands, the U7 Pro Wall ensures smooth 8K streaming, gaming, and enterprise-level productivity.
Equipped with a 2.5 GbE PoE+ uplink port, the device combines power and data transfer in one cable for simplified installation. Advanced features such as band steering, seamless roaming, WPA/WPA2/WPA3 security, and dynamic VLAN management deliver a highly secure and reliable network.
Managed through the UniFi Network platform, administrators can configure, monitor, and optimize performance with ease—making it an ideal solution for both small businesses and high-demand smart homes.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi U7 Pro Wall |
| UPC | 810084695579 |
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| Weight | 580 g (1.3 lb) |
| WiFi Standard | Wi-Fi 7 (802.11be) |
| Spatial Streams | 6 total (2x2 per band) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |

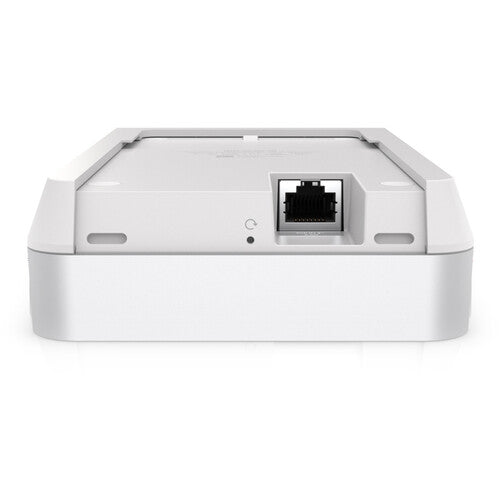

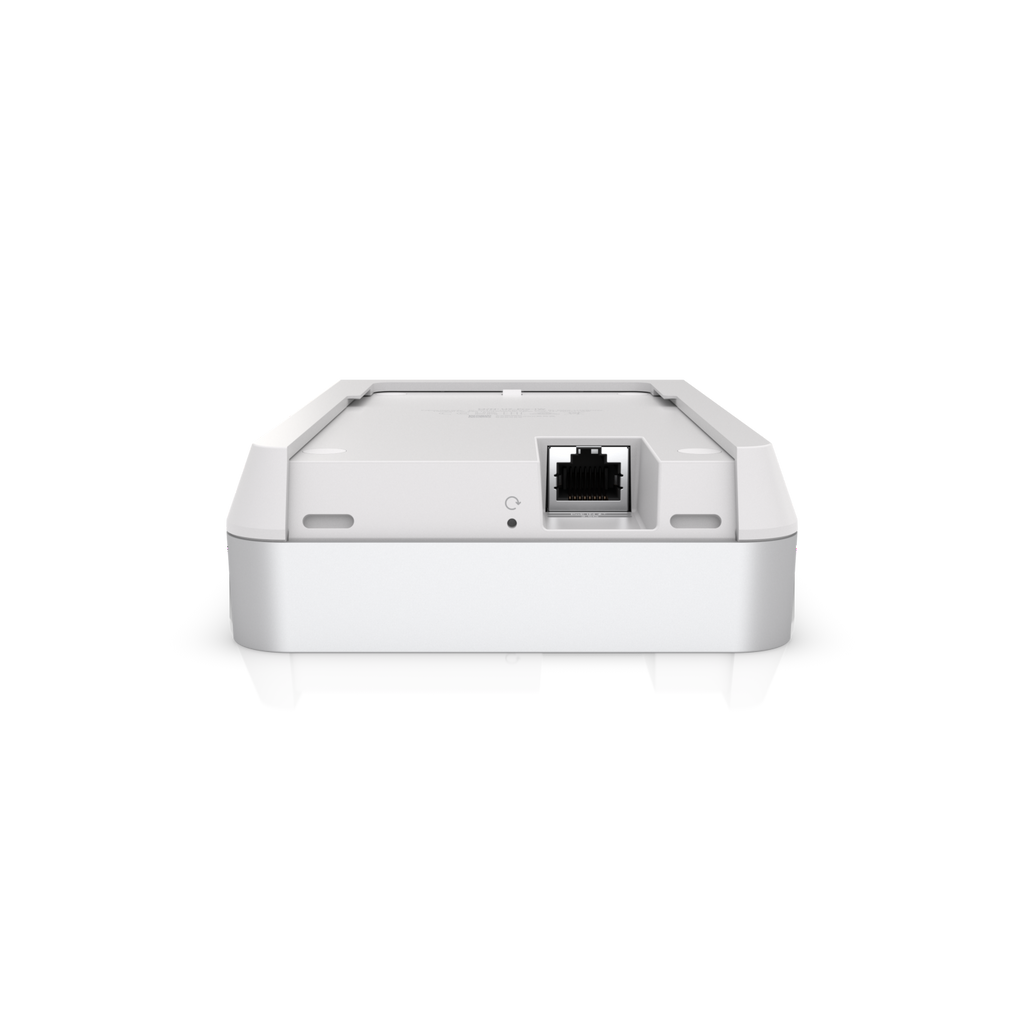

| Uplink | (1) 2.5 GbE RJ45 (PoE+) |

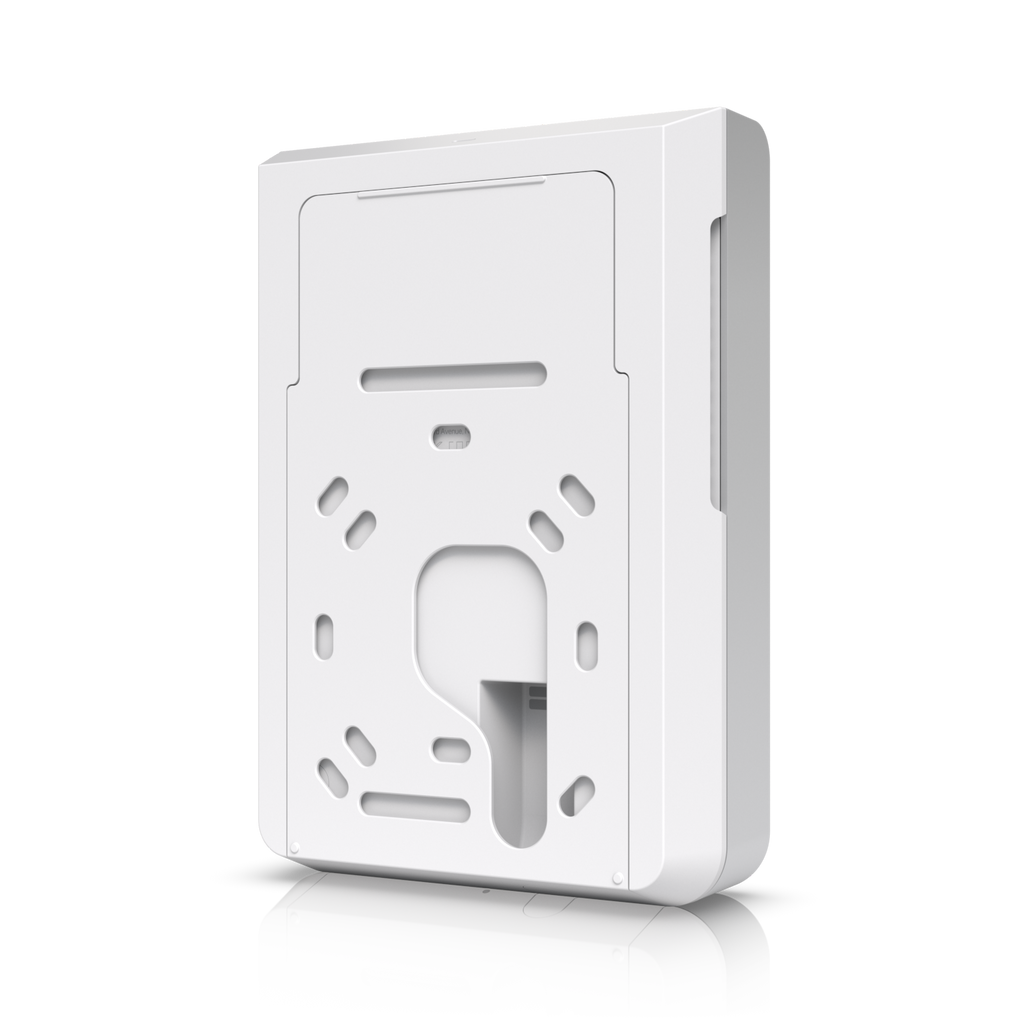

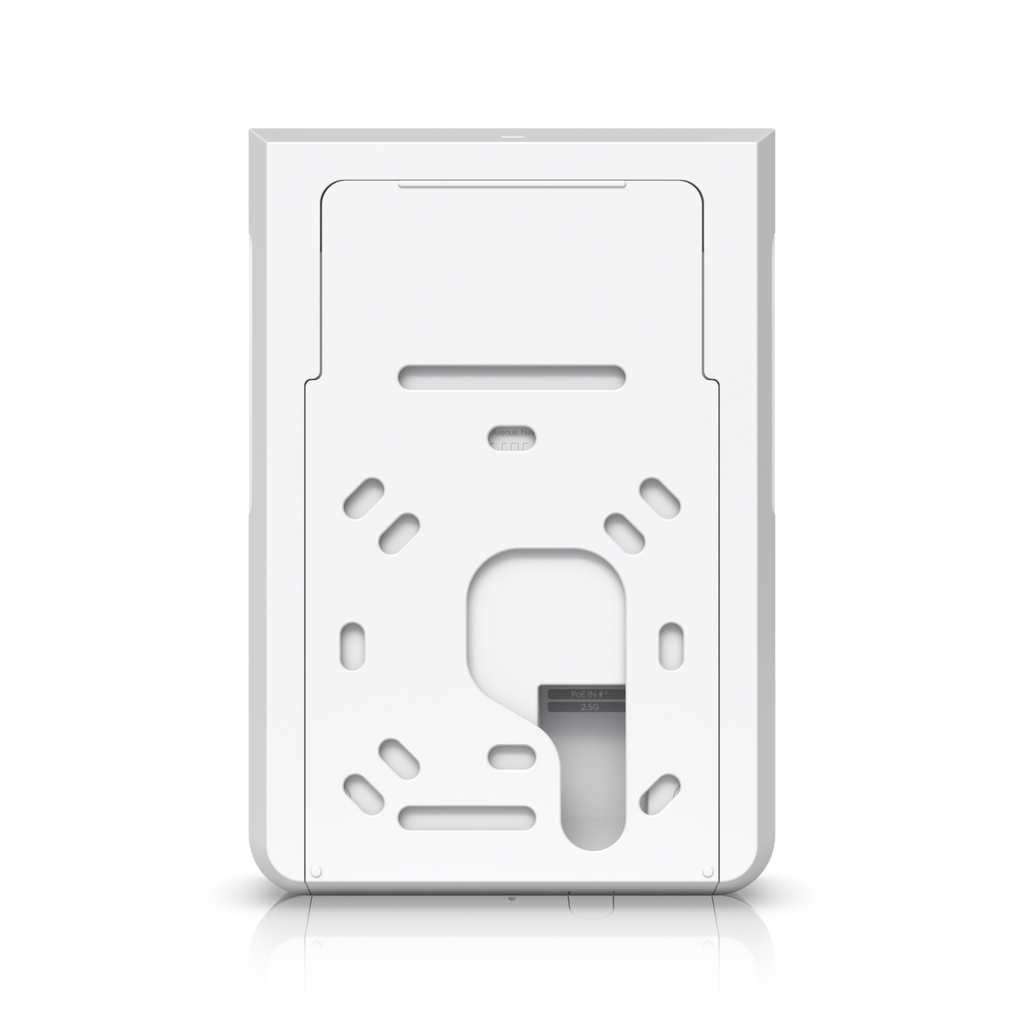

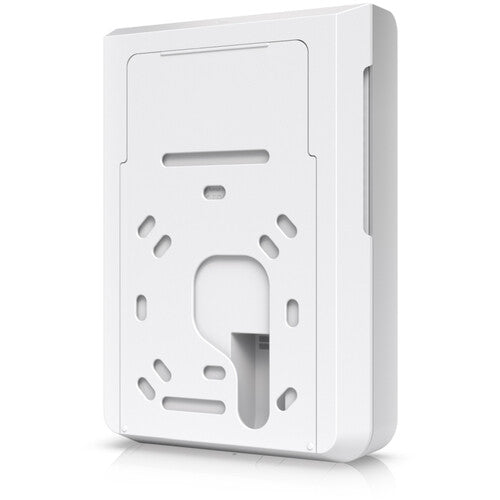

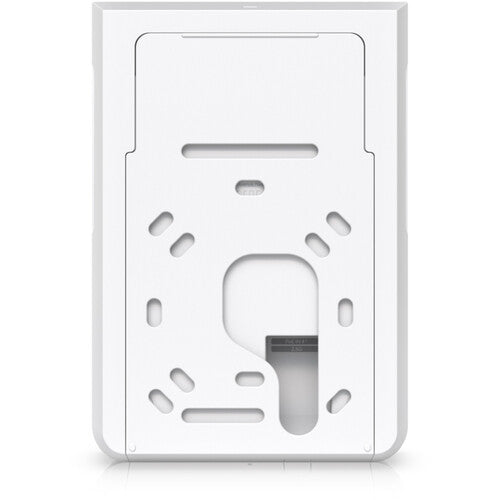

| Mounting | Wall (mount included) |
| Max Data Rates | 6 GHz: 5.8 Gbps · 5 GHz: 4.3 Gbps · 2.4 GHz: 688 Mbps |
| Antenna Gain | 6 GHz: 6 dBi · 5 GHz: 5 dBi · 2.4 GHz: 4 dBi |
| Max TX Power | 6 GHz: 23 dBm · 5 GHz: 26 dBm · 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per radio |
| Security | WPA, WPA2, WPA3, Guest isolation, PPSK |
| Features | Band steering, Wireless meshing, Hotspot 2.0, Captive portal, RadSec, VLAN support |
| Power Method | PoE+ (802.3at) |
| Max Power Consumption | 22W |
| Enclosure Material | Polycarbonate, Aluminum |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz · 5 GHz: 5150–5850 MHz · 6 GHz: 5925–7125 MHz |
| Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel · NDAA Compliant |
| Management | UniFi Network Controller · UniFi App |
