Features
- Wi-Fi 6 Dual-Band Performance – Up to 2973 Mb/s combined throughput (2.4 Gbps on 5 GHz, 573.5 Mbps on 2.4 GHz).
- Wide Coverage – Provides reliable connectivity across 185 m² (2,000 ft²).
- High-Density Support – Supports 250+ clients simultaneously with OFDMA and MU-MIMO.
- Rugged & Weatherproof – IPX6-rated enclosure for harsh indoor/outdoor environments.

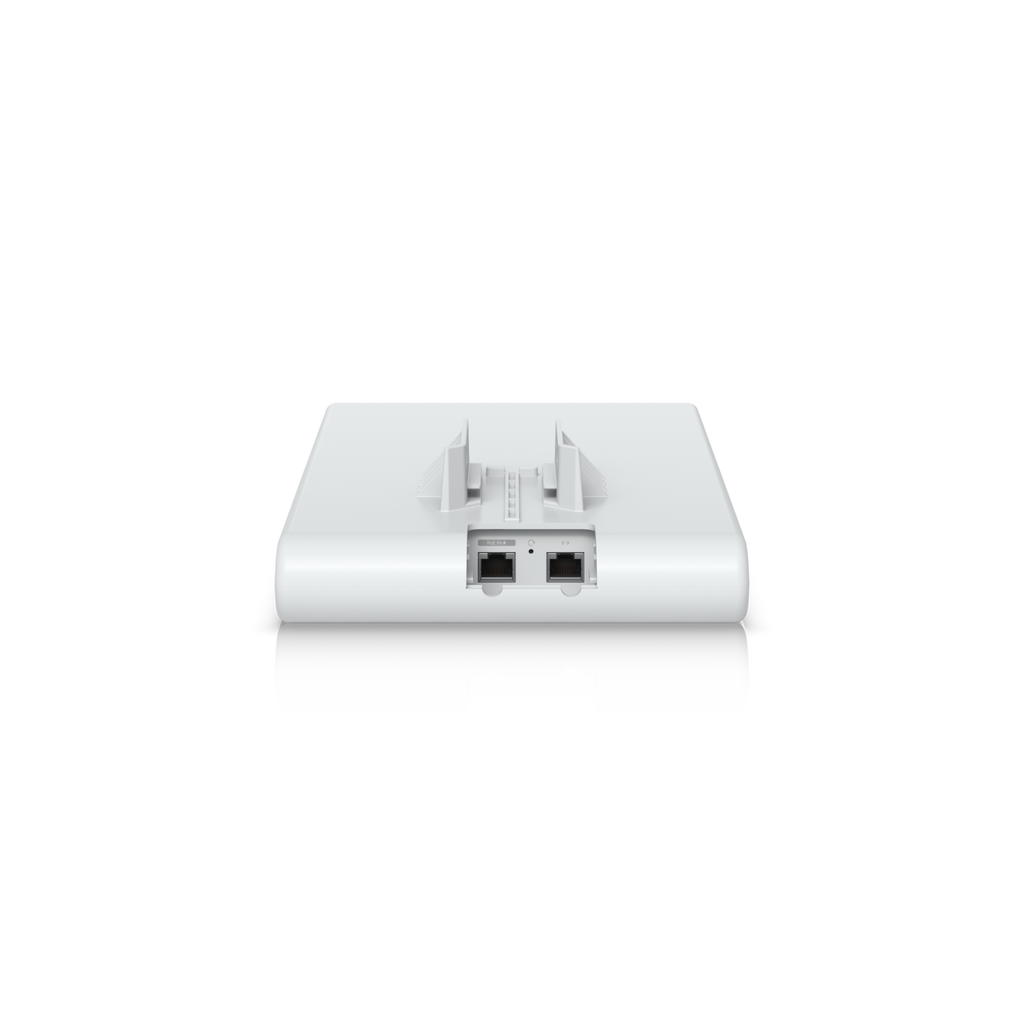

- Dual GbE Ports – Includes PoE input and passthrough port for downstream devices.
- Smart Wi-Fi Management – Wireless meshing, band steering, 802.11r/v/k roaming, hotspot support.
- Enterprise-Grade Security – WPA3, VLAN isolation, PPSK, RadSec, and guest network features.

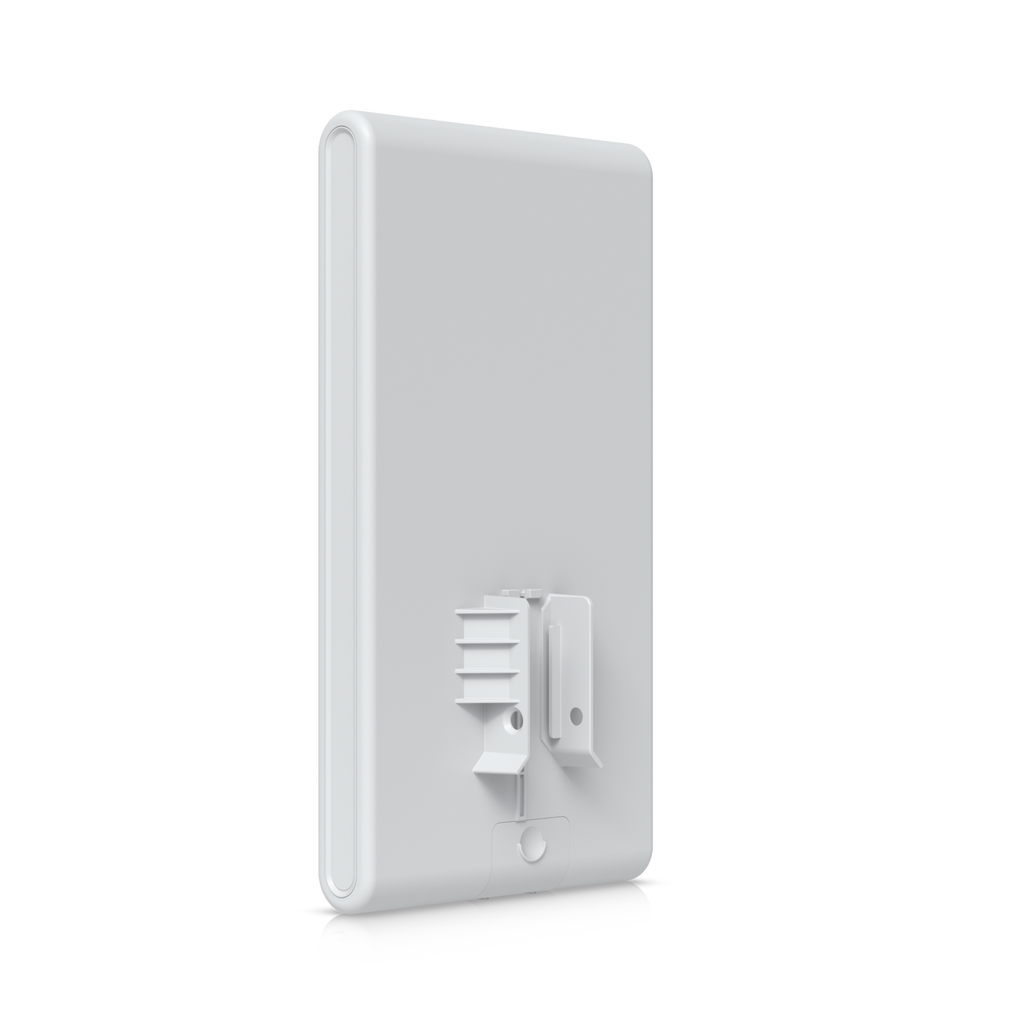

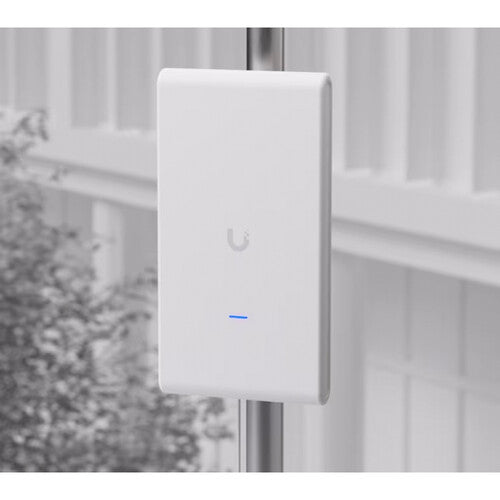

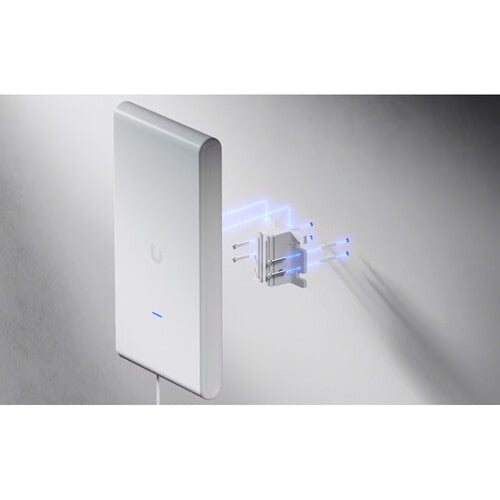

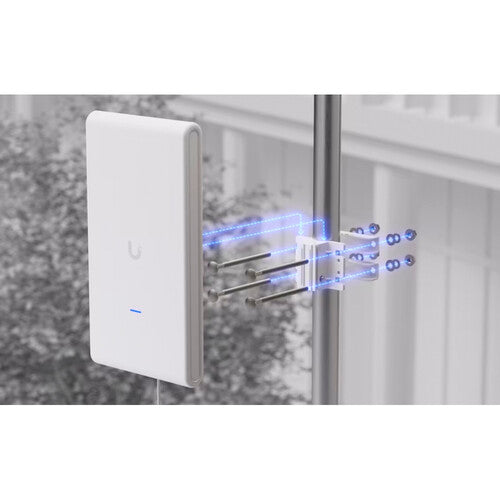

- Flexible Mounting – Includes wall and pole mounting kits (1–2.5" diameter support).
- PoE Powered – Includes a PoE injector for easy installation.

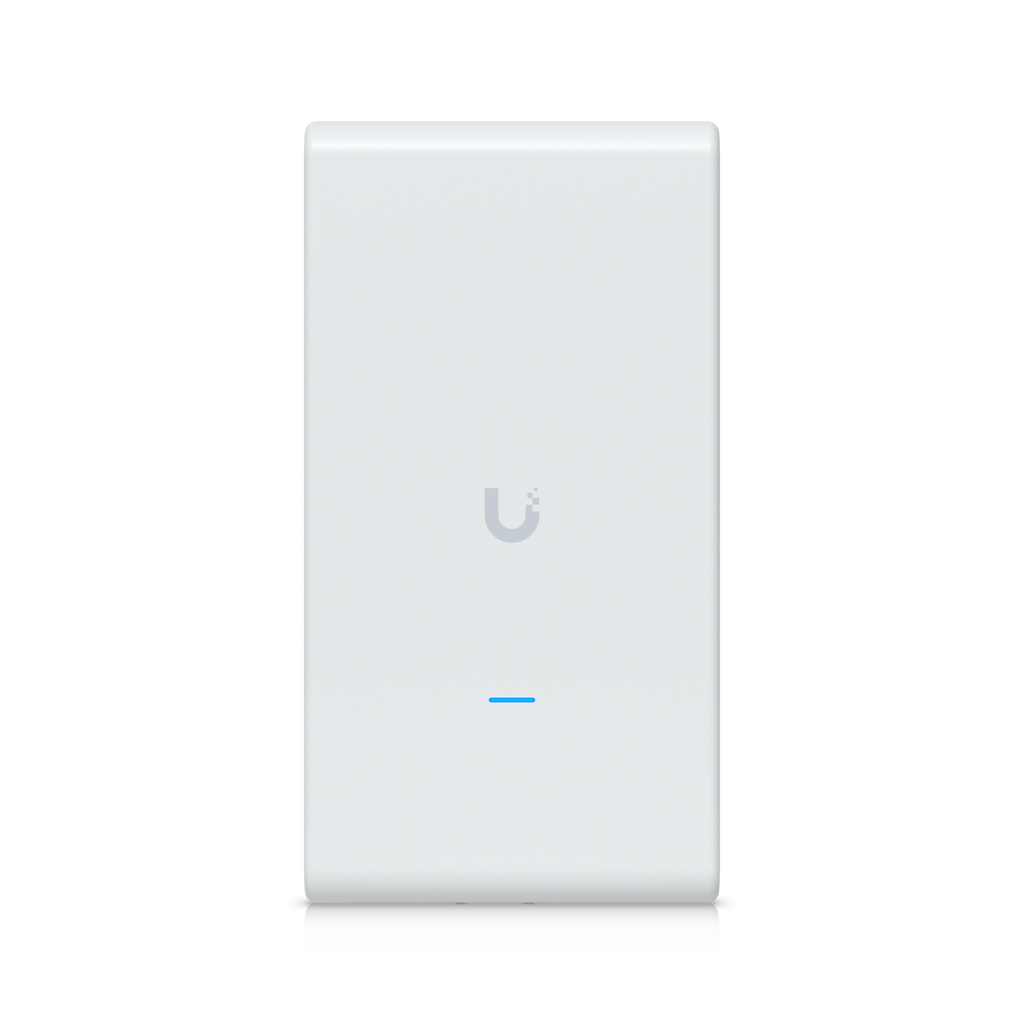

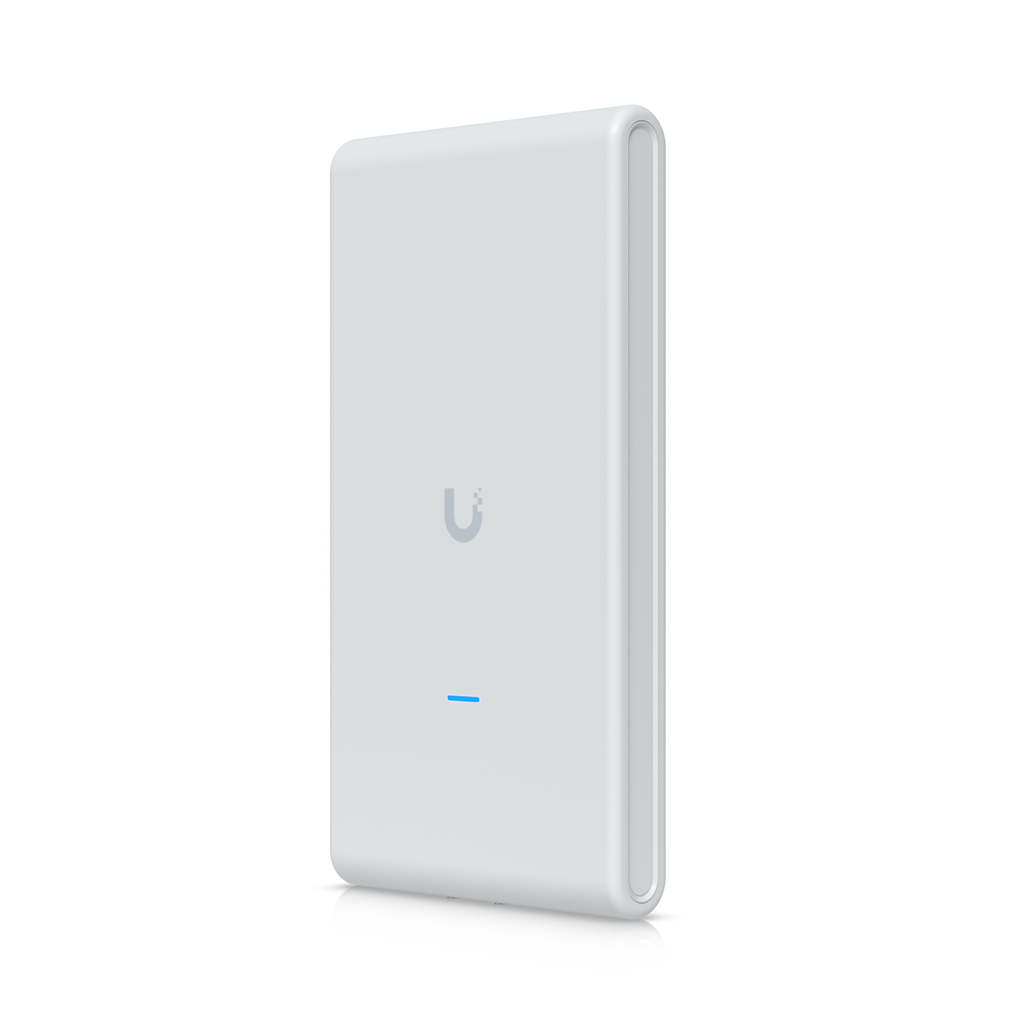

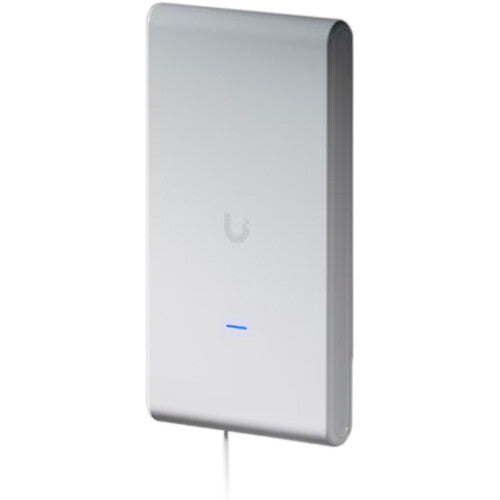

The Ubiquiti UniFi U6 Mesh Pro is a rugged, high-performance dual-band Wi-Fi 6 (802.11ax) access point engineered for indoor and outdoor deployments. Designed for reliability and scalability, it supports 250+ concurrent client connections with a combined wireless throughput of up to 2973 Mb/s (2.4 Gbps on 5 GHz + 573.5 Mbps on 2.4 GHz). With an IPX6-rated weatherproof design, it delivers 2,000 sq. ft. of coverage, making it ideal for large homes, office spaces, campuses, retail environments, and outdoor areas.
Equipped with two Gigabit Ethernet ports, one for PoE input and one for passthrough connectivity, the U6 Mesh Pro offers versatile deployment options. It comes with a PoE adapter included for seamless installation. Integrated with the UniFi Network application, administrators can configure, monitor, and optimize performance across single or multi-site deployments.
Featuring WPA3 encryption, advanced VLAN segmentation, fast roaming, and hotspot portal customization, it delivers enterprise-level wireless performance with enhanced security.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi U6 Mesh Pro |
| UPC | 810084695258 |
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 819 g (1.8 lb) |
| WiFi Standard | Wi-Fi 6 (802.11ax) |
| Spatial Streams | 4 (2x2 on each band) |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | (2) Gigabit Ethernet RJ45 ports (1 PoE In, 1 Passthrough) |
| Mounting | Wall, Pole (mounts included) |
| Weatherproofing | IPX6-rated enclosure |
| Max Data Rates | 5 GHz: 2.4 Gbps (BW160) · 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 5 GHz: 8 dBi · 2.4 GHz: 8 dBi |
| Max TX Power | 5 GHz: 27 dBm · 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per radio |
| Security | WPA3, VLANs, PPSK, RadSec, Guest Isolation |
| Features | Wireless meshing, band steering, hotspot portal, 802.11r/v/k roaming |
| Power Method | PoE (injector included) |
| Max Power Consumption | 9W |
| Supported Voltage Range | 42.5—57V DC |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Aluminum alloy, steel |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz · 5 GHz: 5150–5850 MHz |
| Operating Temperature | -30 to 60 °C (-22 to 140 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel · NDAA Compliant |
| Management | Ethernet · WiFi · UniFi Network Application |
