Features
- Ultra-Fast Wi-Fi 5 – Dual-band 802.11ac Wave-2 MU-MIMO with up to 1.7 Gbps throughput on 5 GHz.
- High Density Ready – Supports 200+ simultaneous clients per AP, ideal for theaters, schools, and offices.

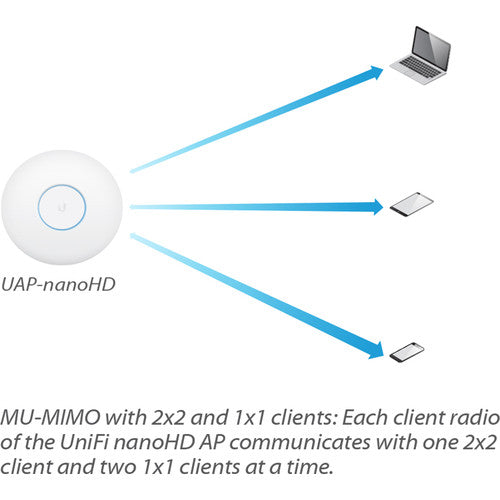

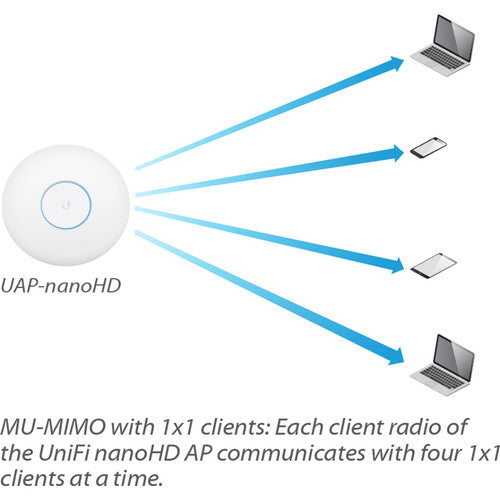

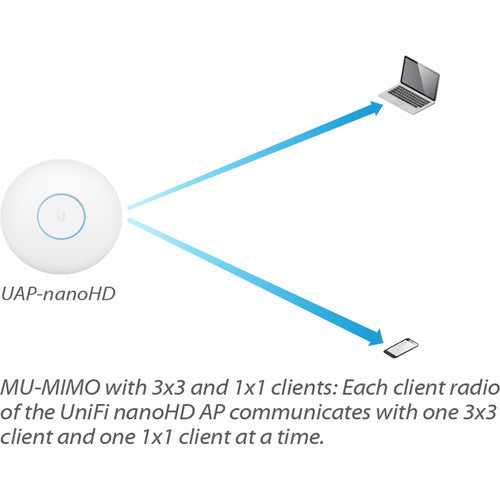

- Wave-2 MU-MIMO Technology – Communicates with multiple clients simultaneously for better efficiency.
- Seamless Roaming – Fast roaming and band steering for uninterrupted user experience.
- Optional Skins – Custom skins available to blend with any interior design.
- Centralized UniFi Controller – Manage, monitor, and analyze your entire wireless network from one platform.
- Guest Portal & Hotspot Management – Voucher-based access, payment integration, and branded landing pages.

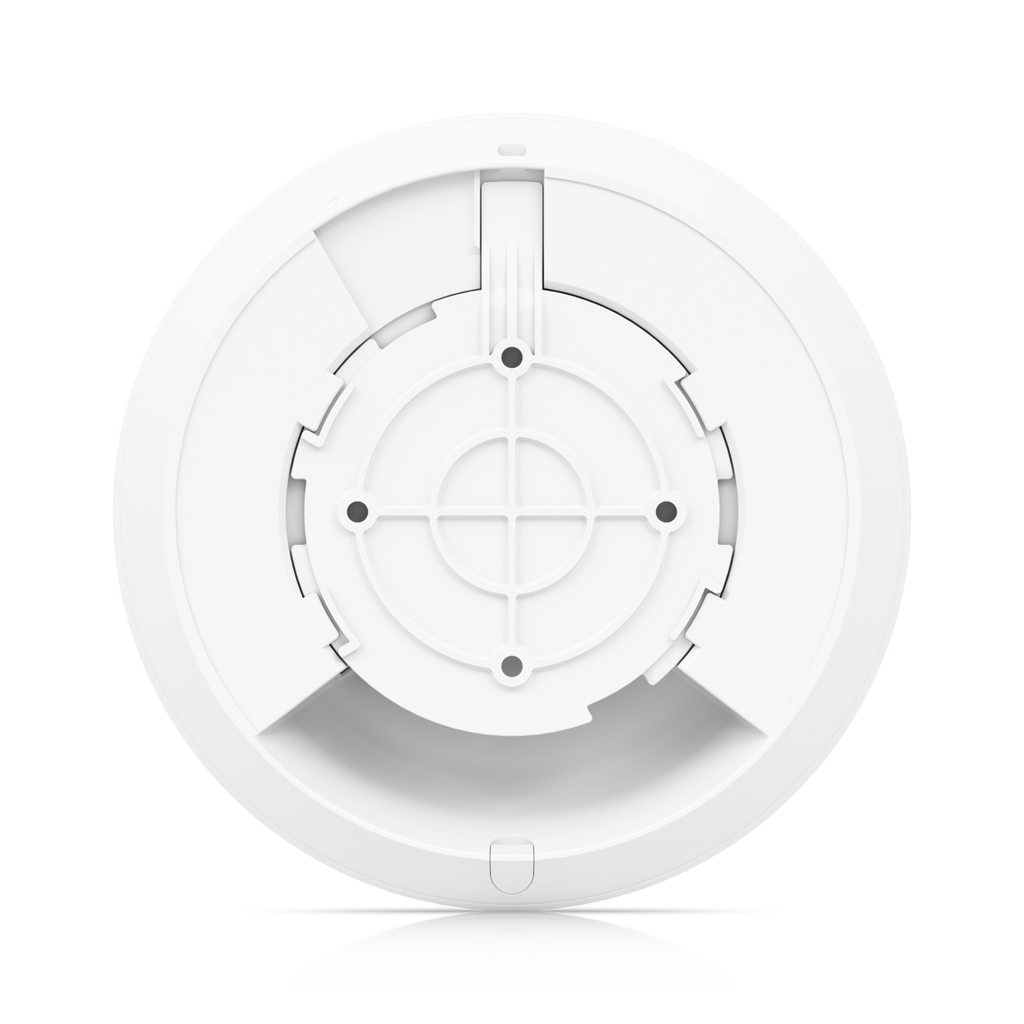

- Flexible Mounting – Wall or ceiling installation with included kit; sleek, low-profile design.
- PoE Powered – 802.3af PoE support for streamlined deployment.
- NDAA Compliant – Certified for enterprise and government use.

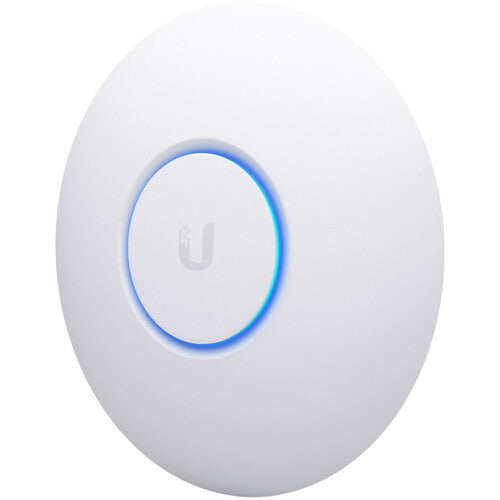

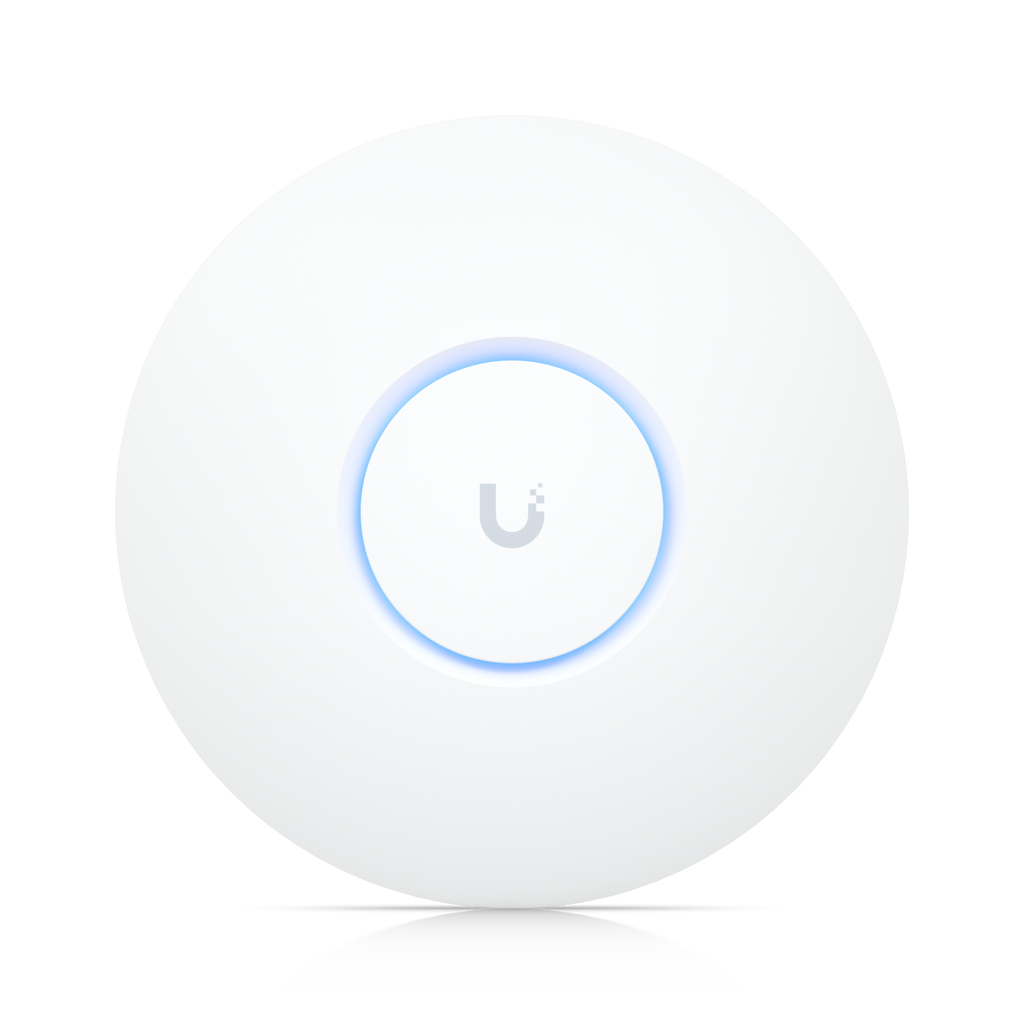

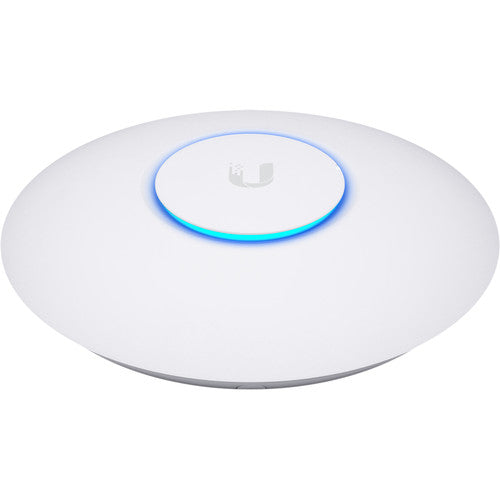

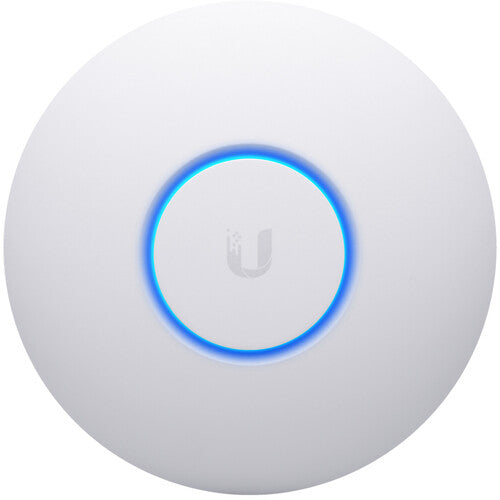

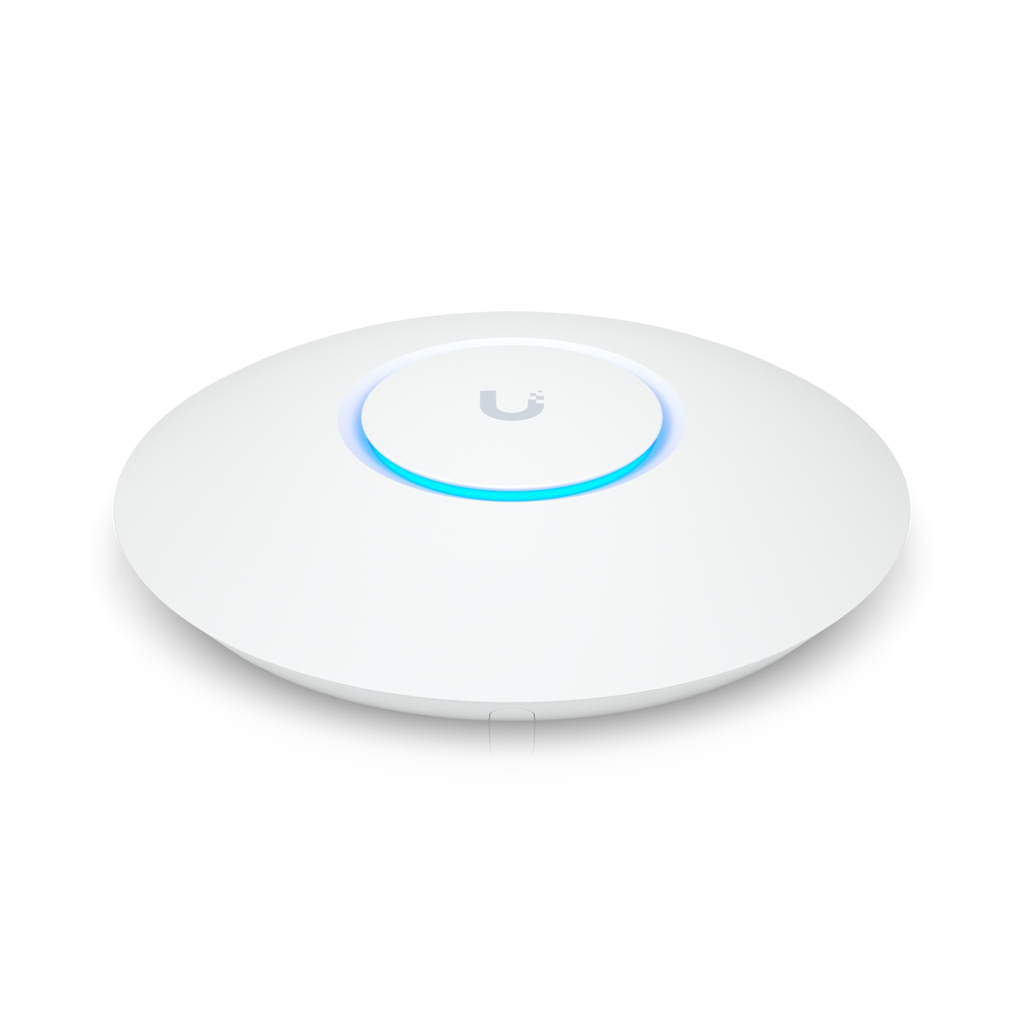

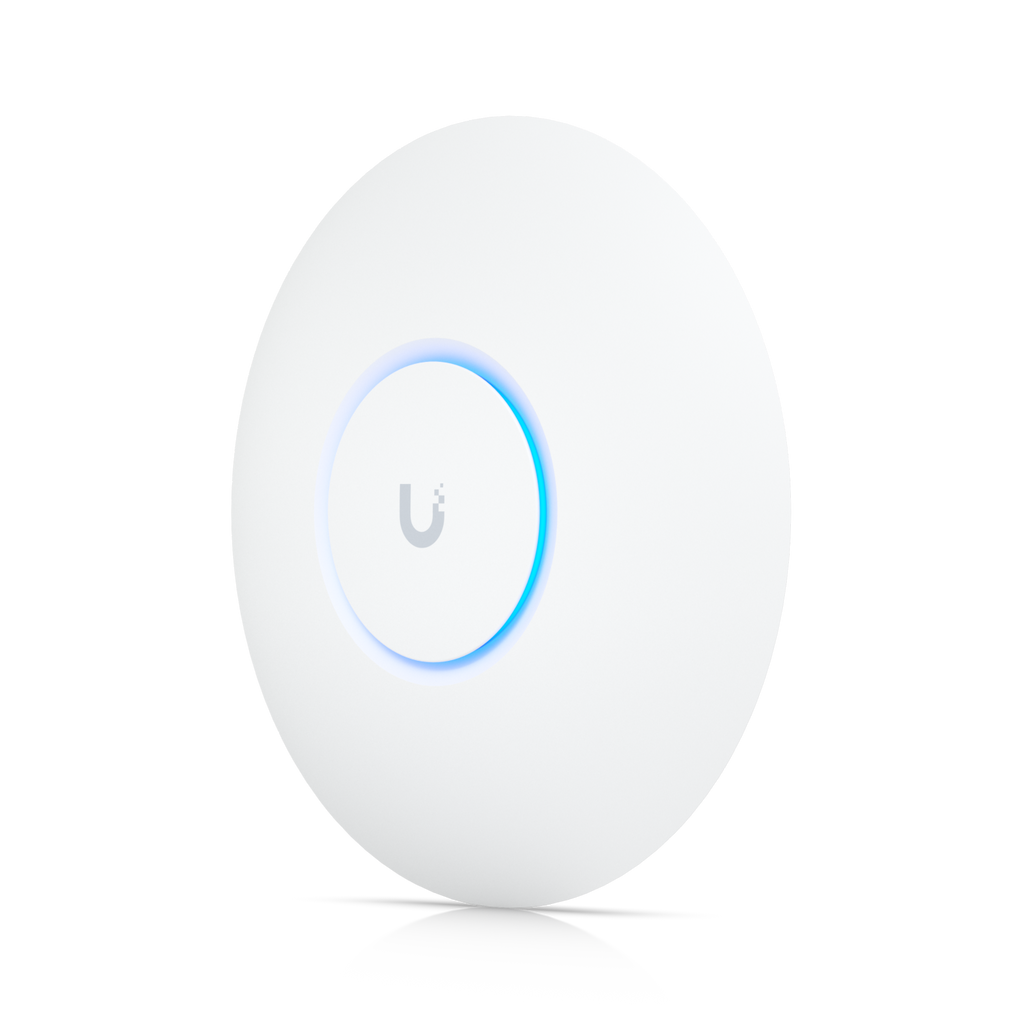

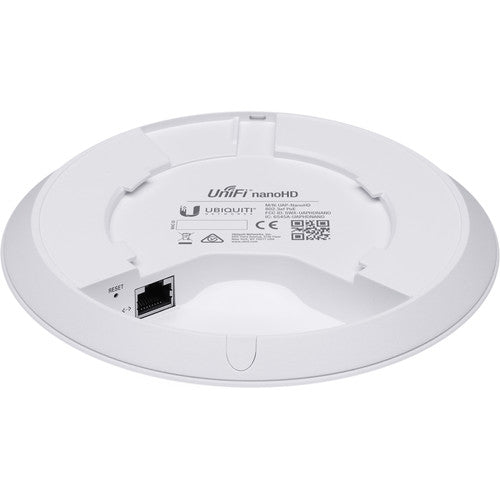

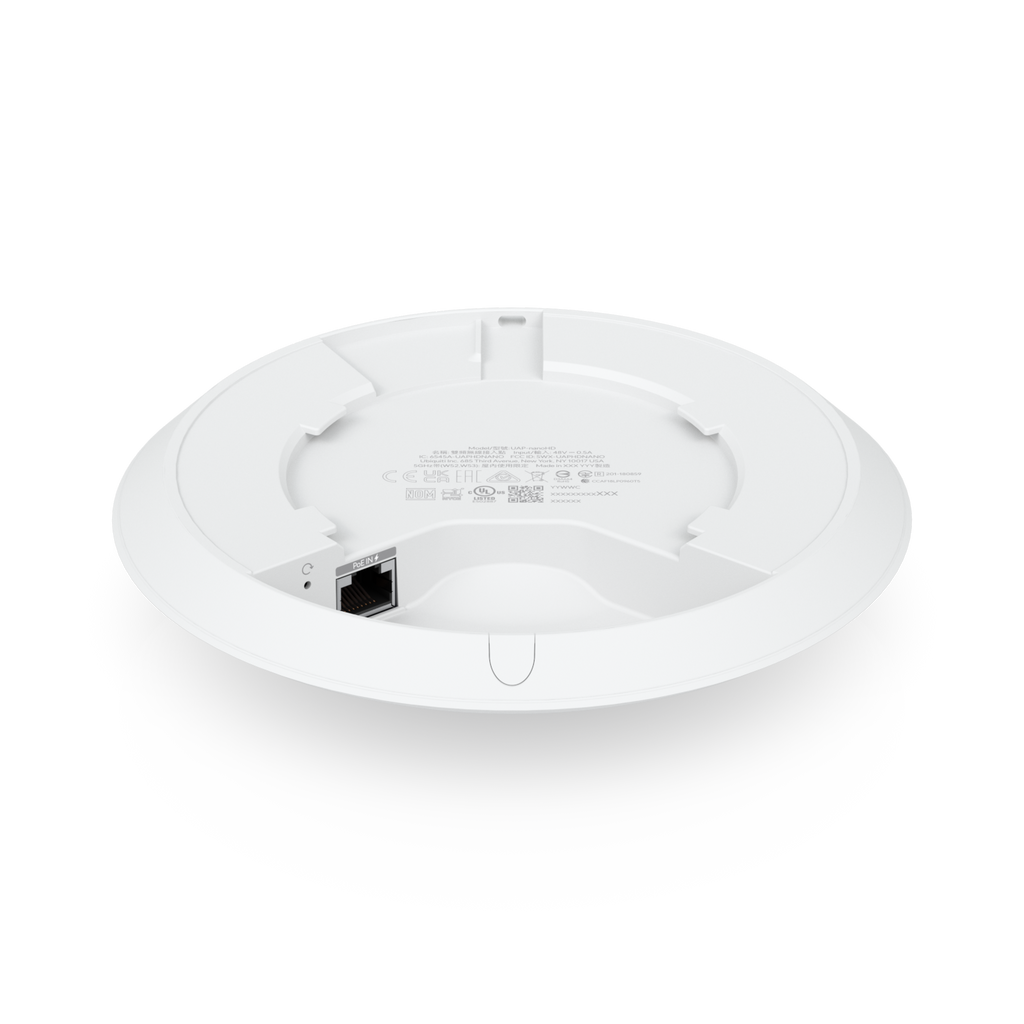

The Ubiquiti Networks UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point (5-Pack) delivers enterprise-grade Wi-Fi performance in a compact, stylish, and customizable form factor. Featuring dual-band 802.11ac Wave-2 MU-MIMO technology, this AP supports speeds up to 1.7 Gbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, making it ideal for high-density environments such as offices, schools, theaters, and commercial venues. With support for more than 200+ concurrent clients per access point and seamless roaming, the nanoHD ensures reliable, low-latency connectivity for demanding multi-user scenarios.

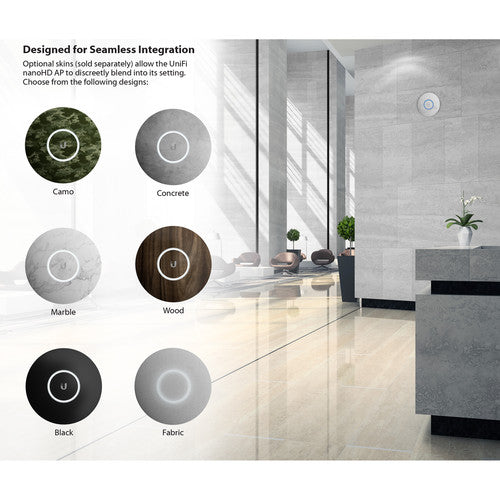

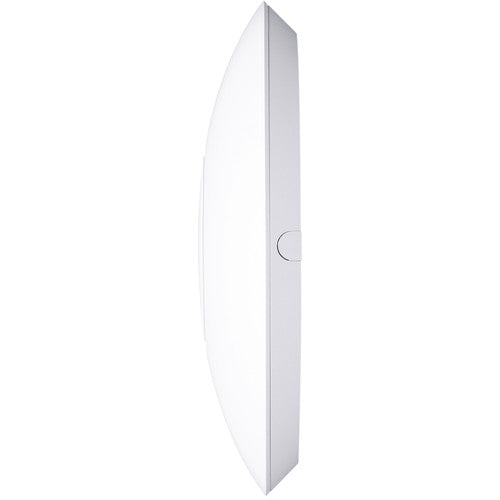

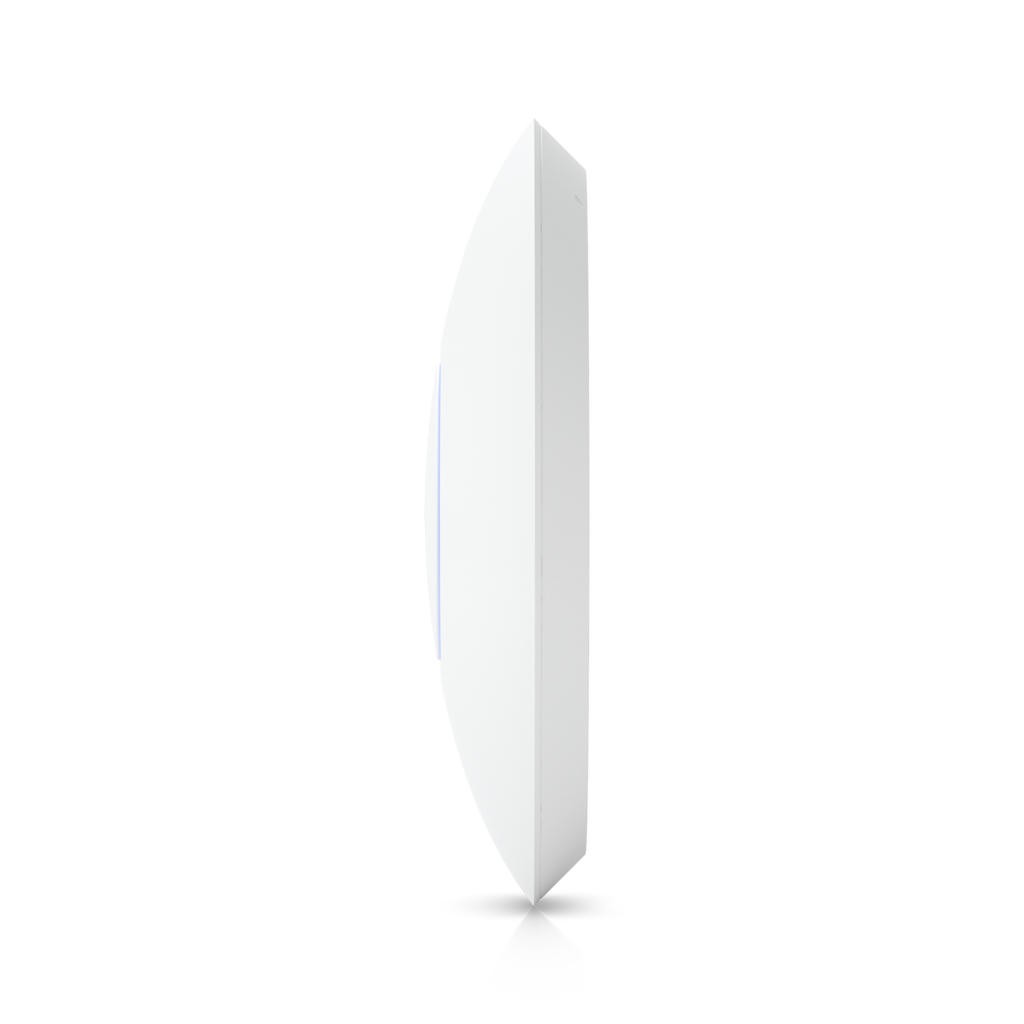

The nanoHD features a low-profile, ceiling or wall-mount design and is compatible with optional skins to blend with different environments such as wood, concrete, marble, and fabric finishes.

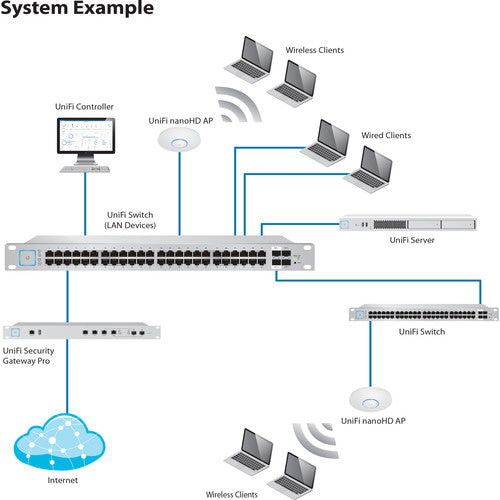

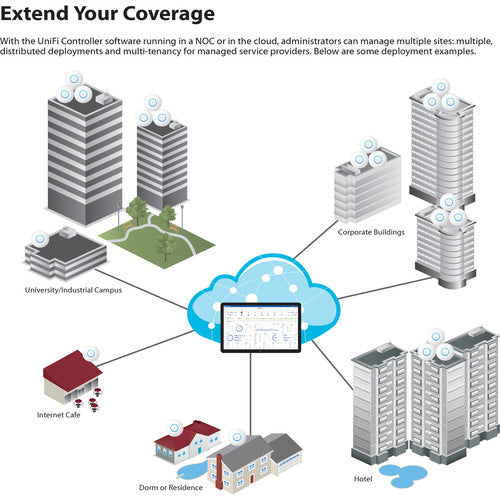

It integrates with the UniFi Network Controller, enabling administrators to provision thousands of APs, monitor real-time performance, configure guest networks, manage hotspots with billing, and analyze wireless traffic through a centralized dashboard. This 5-pack is perfect for multi-site or large deployments where consistency, scalability, and aesthetics matter.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi nanoHD (UAP-nanoHD-5) |
| UPC | 817882024235 |
| Dimensions | Ø160 × 32.7 mm (Ø6.3 × 1.3") |
| Weight | 300 g (10.6 oz); with mount: 315 g (11.1 oz) |
| WiFi Standard | 802.11ac Wave-2 (WiFi 5) |
| Spatial Streams | 4×4 MU-MIMO (5 GHz) · 2×2 MU-MIMO (2.4 GHz) |
| Max Data Rates | 5 GHz: 1.7 Gbps · 2.4 GHz: 300 Mbps |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Count | 200+ per AP |
| Uplink | 1 × GbE RJ45 (PoE) |
| PoE Standard | 802.3af PoE (adapter included) |
| Max Power Consumption | 10.5W |
| Antennas | 5 GHz: 3 dBi · 2.4 GHz: 2.8 dBi |
| Max TX Power | 5 GHz: 26 dBm · 2.4 GHz: 23 dBm |
| Mounting Options | Ceiling / Wall (Lite Mount Included) |
| Features | Band Steering, Fast Roaming, Wireless Uplink, Guest Portal, Voucher Auth, Hotspot 2.0, RADIUS VLAN |
| Enclosure Material | Polycarbonate |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus, Anatel |
| NDAA Compliant | Yes |
| Software Requirement | UniFi Network Controller v6.0.45 or later |
