Features
- High-Speed Connectivity – Five 2.5 GbE RJ45 ports with WAN/LAN flexibility.
- Enterprise Security – Stateful firewall, IPS/IDS, application filtering, and content filtering.
- Advanced VPN – Supports WireGuard, L2TP, IPsec, OpenVPN, and Teleport VPN.
- Performance – Up to 2.3 Gbps IDS/IPS throughput powered by a quad-core ARM® Cortex®-A53 CPU.
- SD-WAN Ready – License-free SD-WAN, site-to-site VPN, and WAN load balancing.
- Cloud-Enabled Management – Requires UniFi CloudKey or official UniFi hosting for management.
- Compact & Efficient – Desktop design with 9.6W max consumption and USB-C power input.
- NDAA Compliant – CE, FCC, IC certified for enterprise-grade compliance.

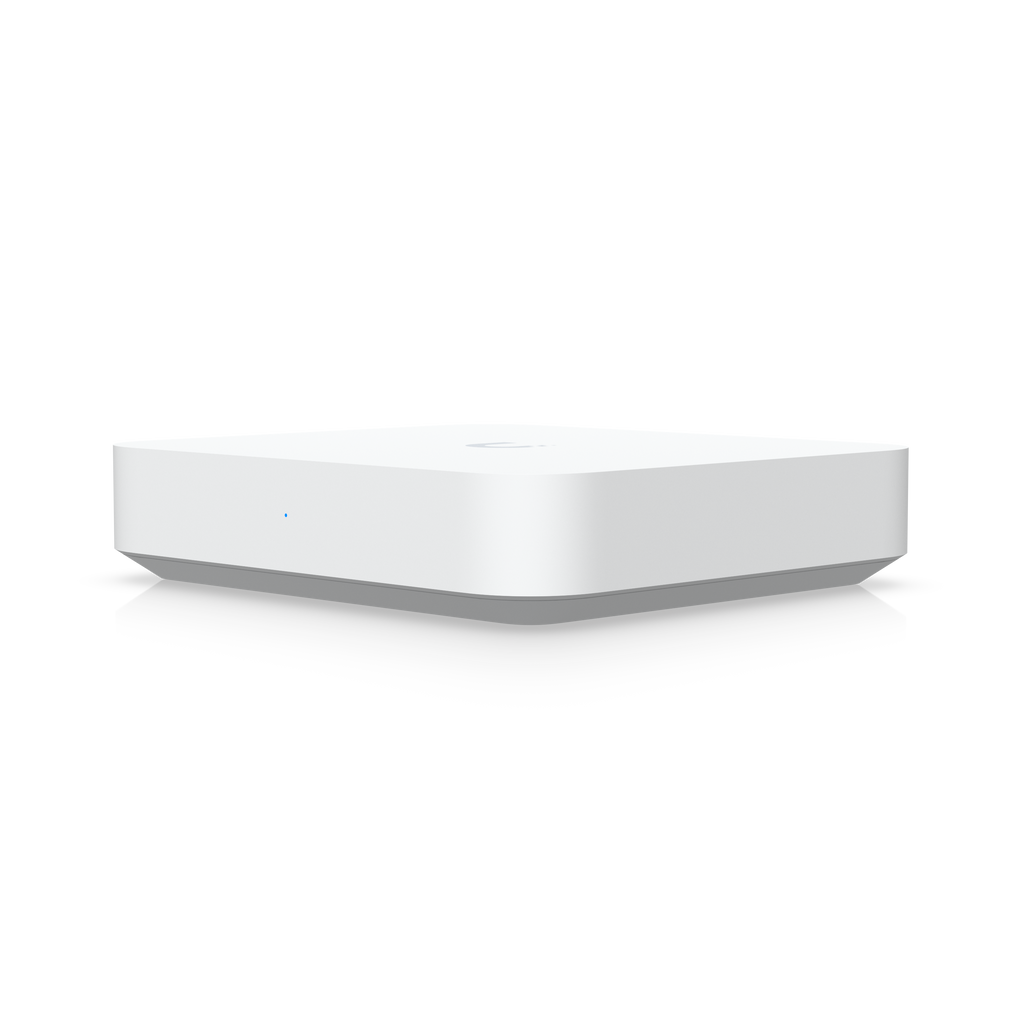

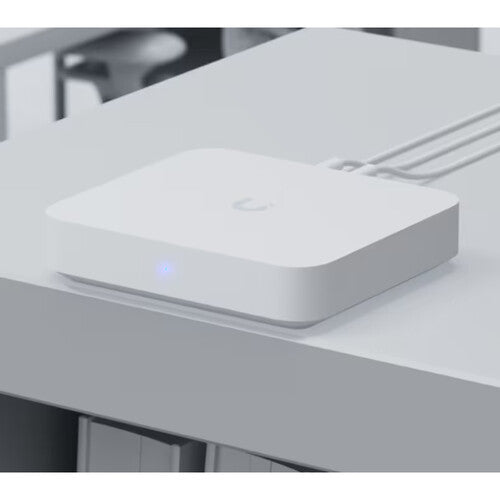

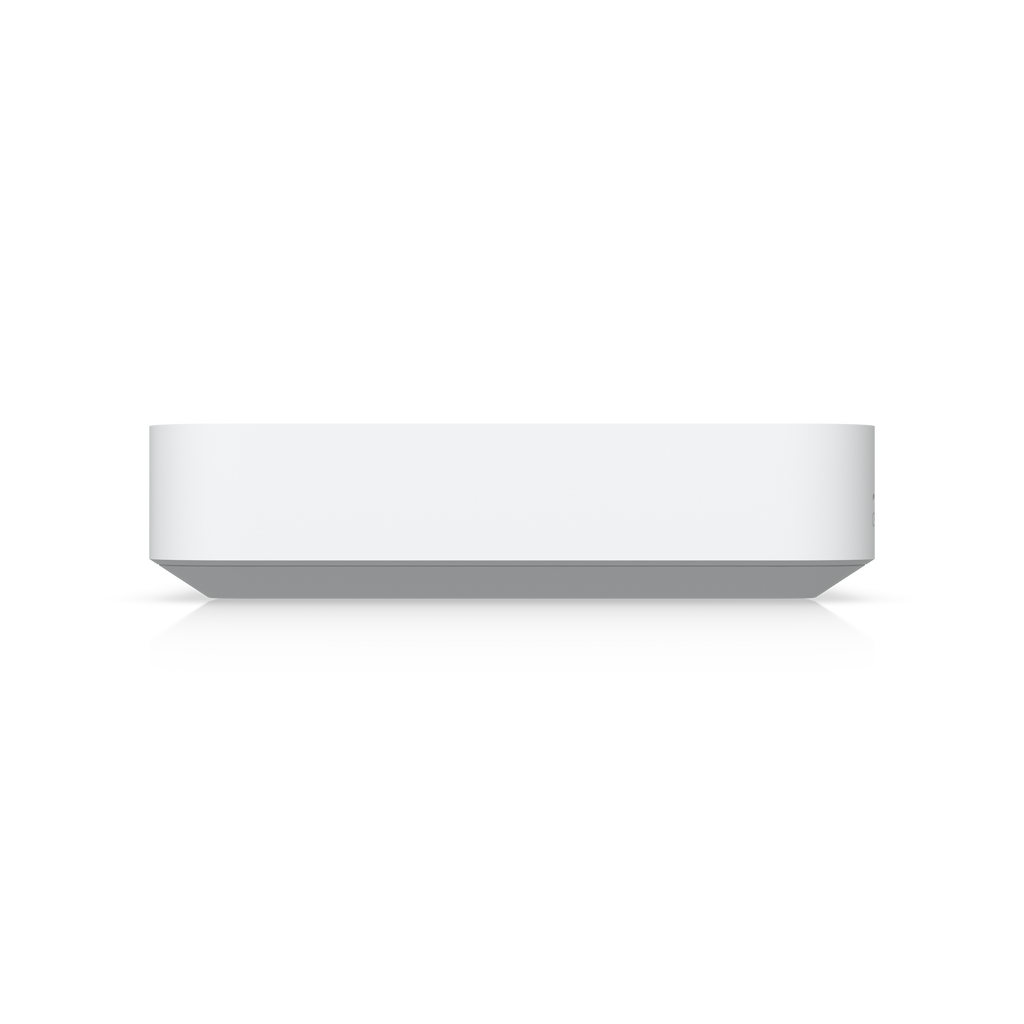

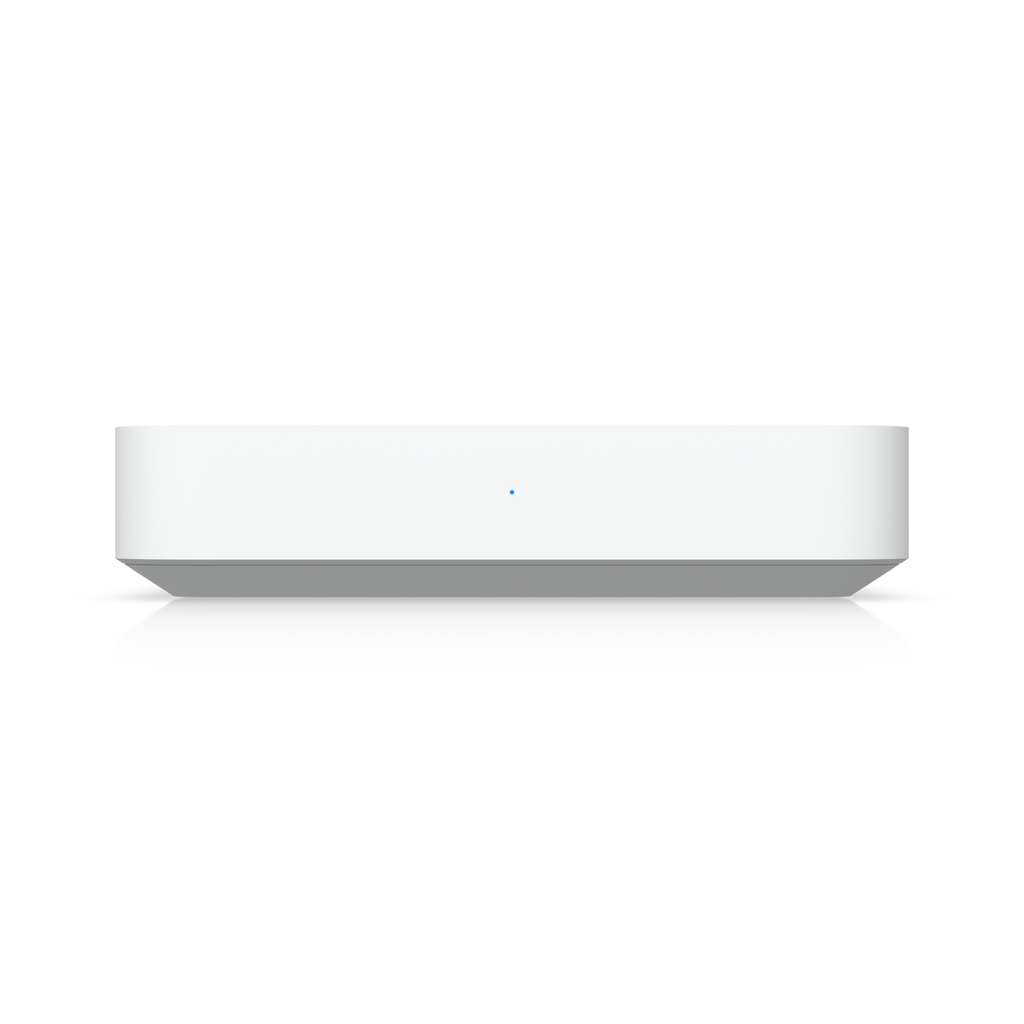

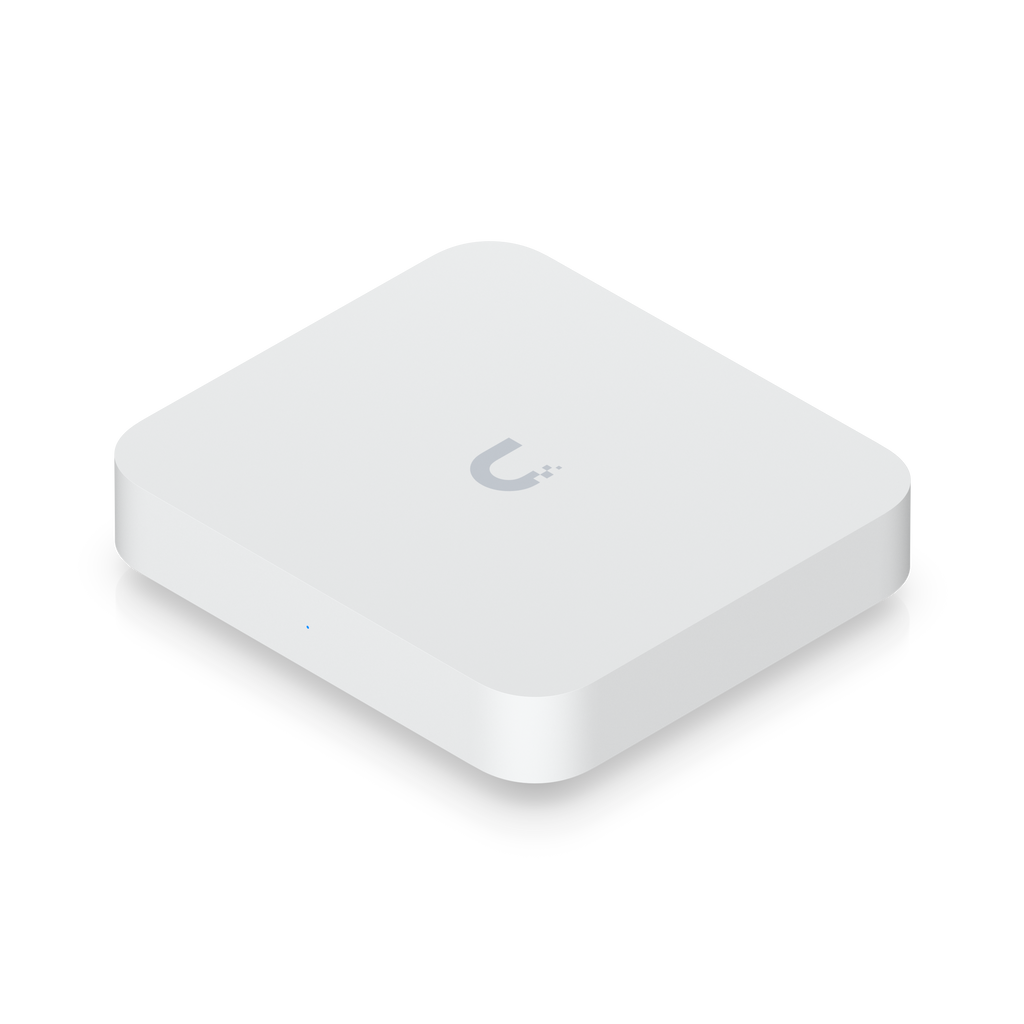

The Ubiquiti Networks UniFi Gateway Max is a powerful, compact network security and routing solution designed for small-to-medium sites. Featuring five 2.5 GbE RJ45 ports, including one dedicated WAN and one configurable WAN/LAN, the Gateway Max optimizes traffic flow while delivering enterprise-grade security.
Powered by a quad-core ARM® Cortex®-A53 processor with 2GB of system memory, this gateway provides fast and efficient VPN performance and up to 2.3 Gbps IDS/IPS throughput. With advanced features such as stateful firewalls, IPS/IDS threat detection, ad filtering, and application-aware rules, the Gateway Max ensures your network is secure and resilient against evolving threats.
Managed through the UniFi Network platform, the Gateway Max integrates seamlessly with UniFi APs, switches, and controllers, enabling centralized management and analytics. With SD-WAN support, VPN flexibility, and advanced QoS controls, it is an ideal solution for enterprises requiring performance, scalability, and security in a compact desktop form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi Gateway Max |
| UPC | 810084695142 |
| Dimensions | 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2") |
| Weight | 520 g (1.1 lb) |

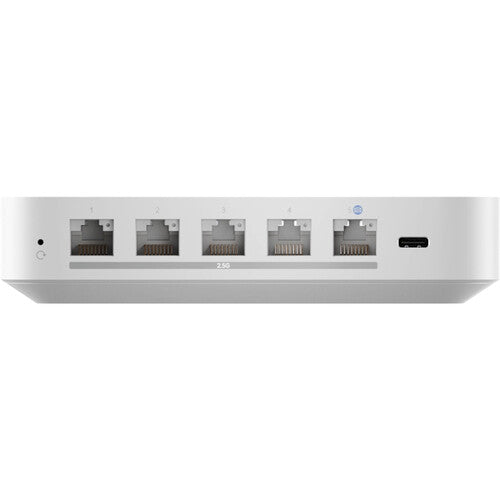

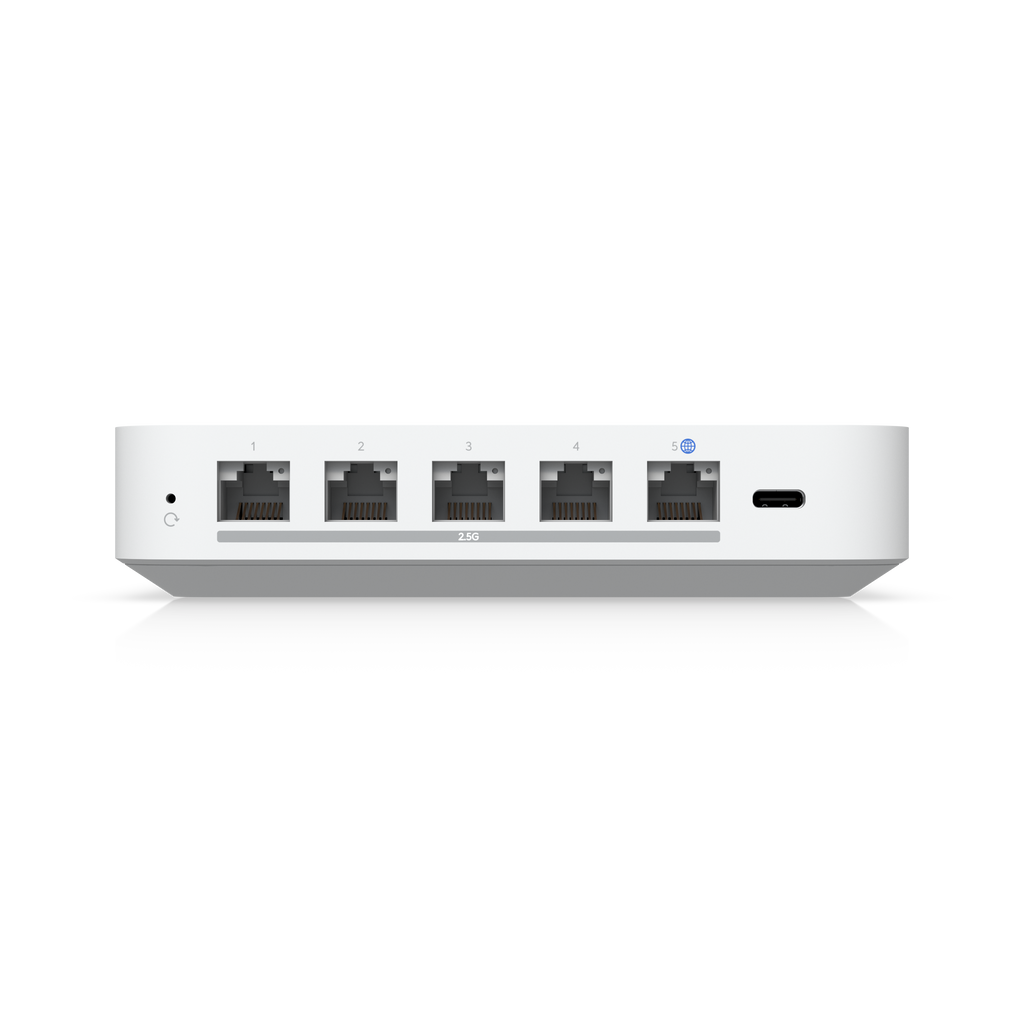

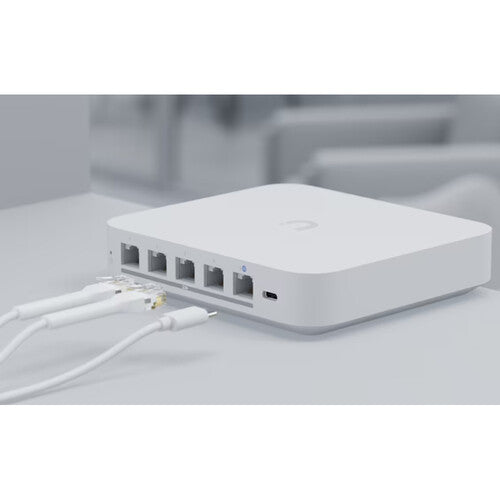

| Port Layout | 5 × 2.5 GbE RJ45 (1 WAN, 1 configurable WAN/LAN, 3 LAN) |
| Max. WAN Ports | 4 |
| IDS/IPS Throughput | 2.3 Gbps |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Power Method | USB-C 5V DC, 3A (adapter included) |
| Max. Power Consumption | 9.6W |
| Networking Features | Multi-WAN load balancing, OSPF, NAT (SNAT/DNAT), RADIUS server, DHCP relay/server, IPv6 ISP support |
| Security Features | Stateful firewall, L7 firewall, DPI, intrusion prevention, ad filtering, IPS/IDS signatures (55,000+ with CyberSecure) |
| VPN & SD-WAN | WireGuard, L2TP, IPsec, OpenVPN, Teleport VPN, Site-to-Site VPN |
| Enclosure Material | Polycarbonate |
| Management | Ethernet, Bluetooth (via UniFi Network Controller) |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software Requirement | UniFi Network version 8.1.113 or later (CloudKey or UniFi hosting required) |
