Features
- High-Performance Wi-Fi 5 – Up to 1.3 Gbps (5 GHz) + 450 Mbps (2.4 GHz) with 3x3 MIMO.
- Enterprise Scalability – Supports 250+ concurrent clients and 140 m² (1,500 ft²) coverage.
- Dual Gigabit Ethernet Ports – Flexible wired connectivity options for high-speed backhaul.
- PoE Powered – Compatible with 802.3af PoE and 802.3at PoE+ injectors/switches.

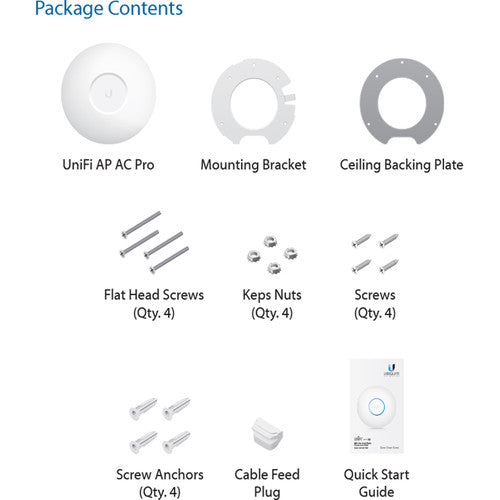

- Easy Deployment – Mounts to walls or ceilings with included hardware.
- Guest Portal & Hotspot – Supports vouchers, custom branding, external servers, and payment-based authentication.
- Advanced Radio Management – Band steering, fast roaming, BSS transition management, and hotspot 2.0 support.
- Centralized Management – Configure, monitor, and scale networks with the UniFi Controller or mobile app.
- Expandable System – Start with one AP and scale to thousands while maintaining unified management.
- NDAA Compliant – Suitable for government and enterprise networks.

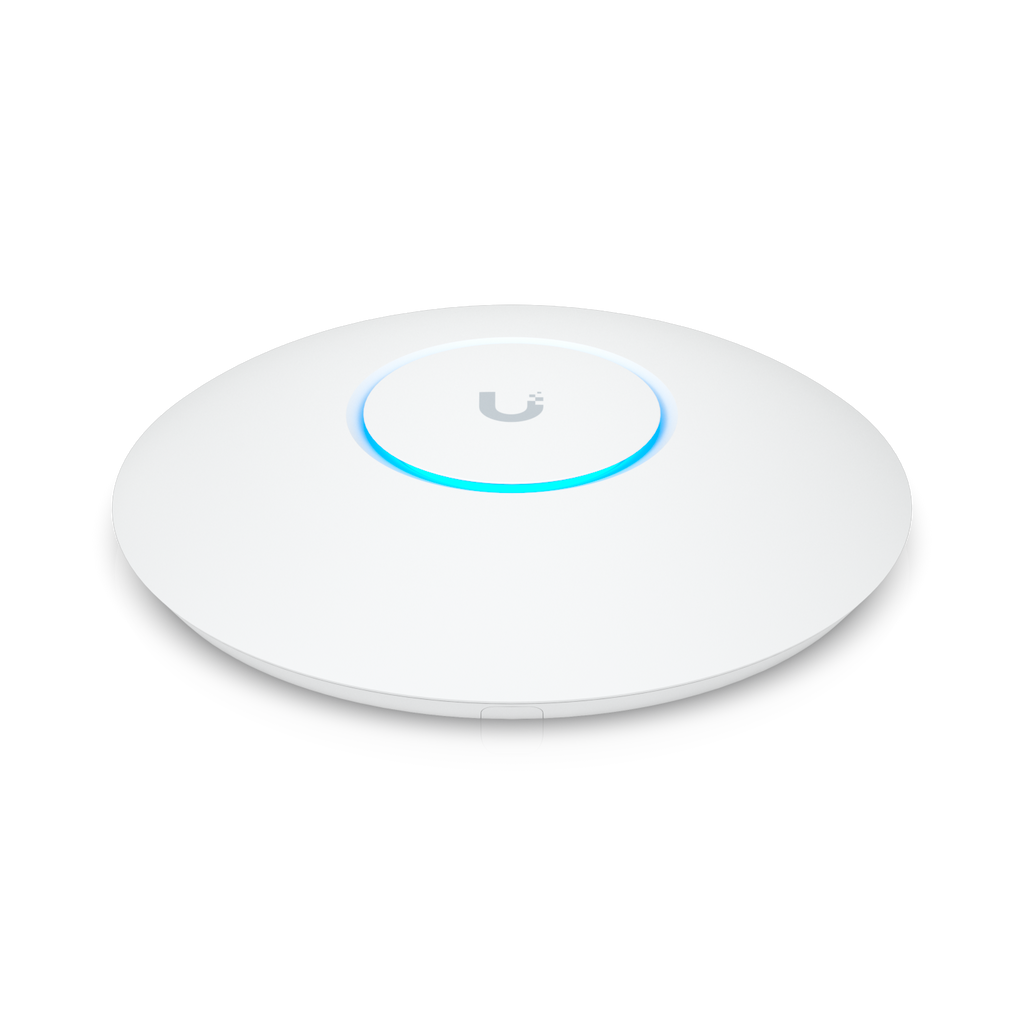

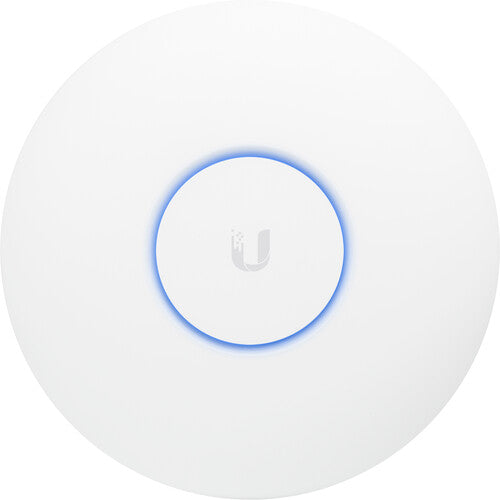

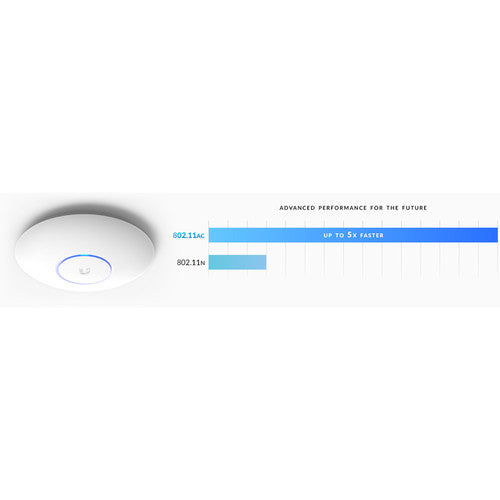

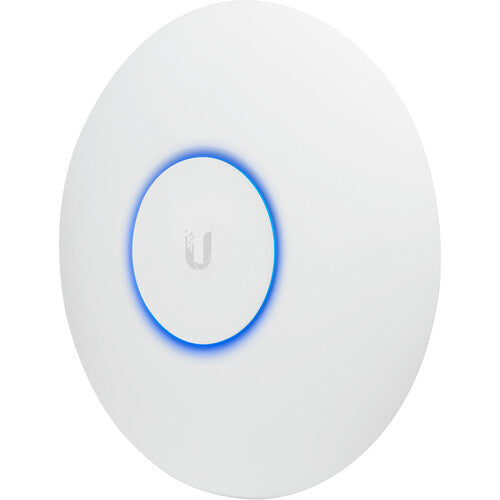

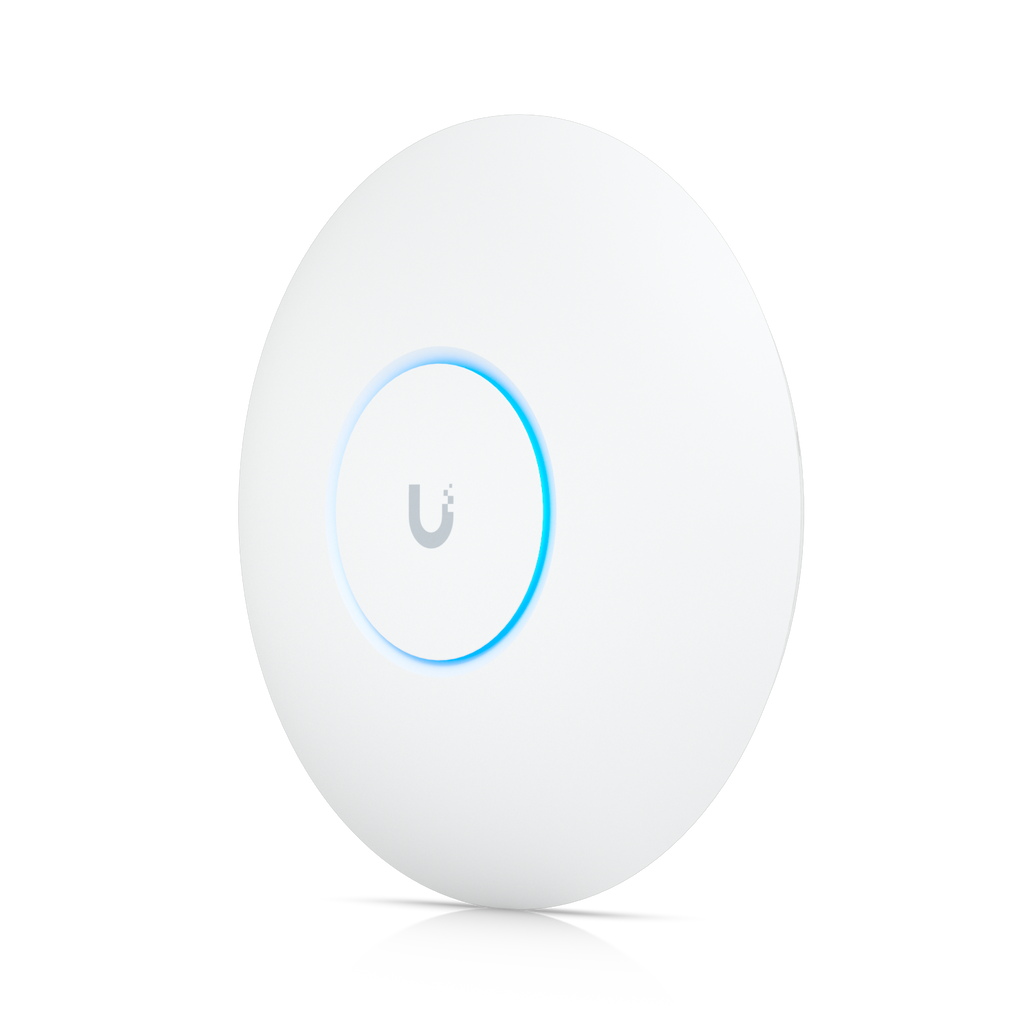

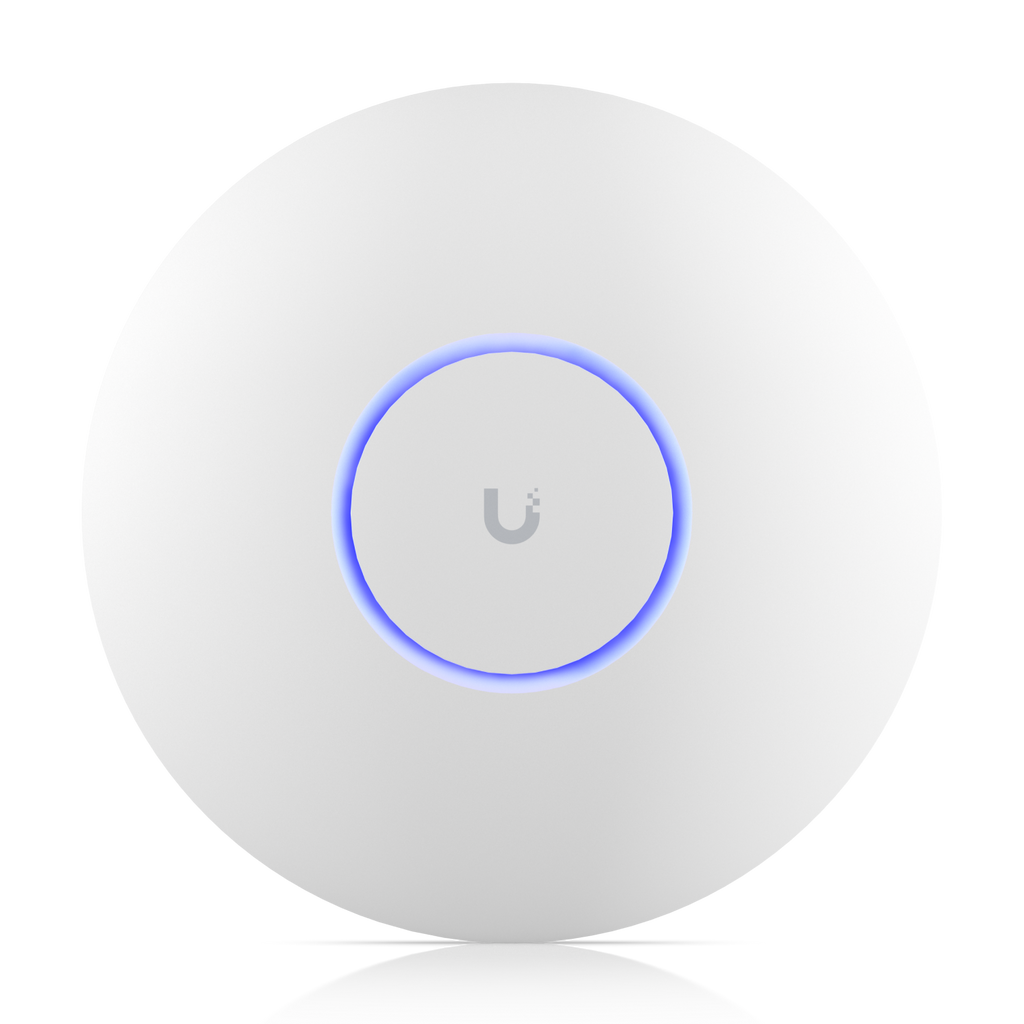

The Ubiquiti Networks UAP-AC-PRO UniFi Access Point is a powerful, scalable enterprise-grade Wi-Fi solution designed for seamless deployment and management. Supporting the 802.11ac Wi-Fi 5 standard, this dual-band access point delivers up to 1300 Mb/s on 5 GHz and 450 Mb/s on 2.4 GHz with 3x3 MIMO technology on each band, ensuring high-performance wireless connectivity for demanding business and enterprise environments. With coverage up to 140 m² (1,500 ft²) and support for 250+ clients, it is built to handle dense environments with ease.

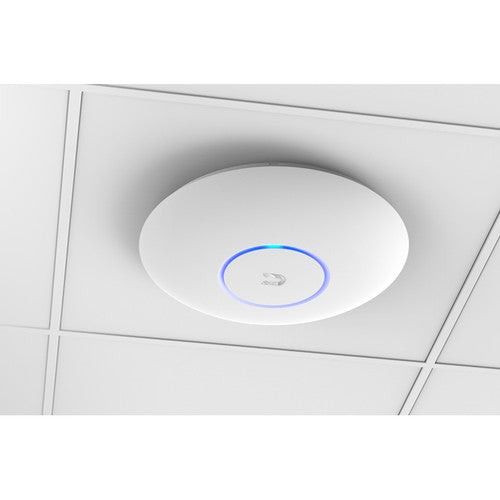

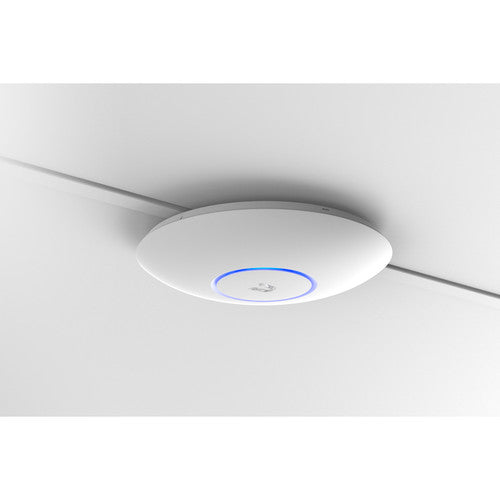

Its sleek design allows for easy wall or ceiling mounting, and it is powered via 802.3af/at PoE for flexible installation. Equipped with two Gigabit Ethernet ports and a range of enterprise features such as band steering, wireless meshing, advanced roaming (802.11r/v/k), and hotspot functionality with customizable portals, the UAP-AC-PRO integrates perfectly into UniFi’s centralized management platform.

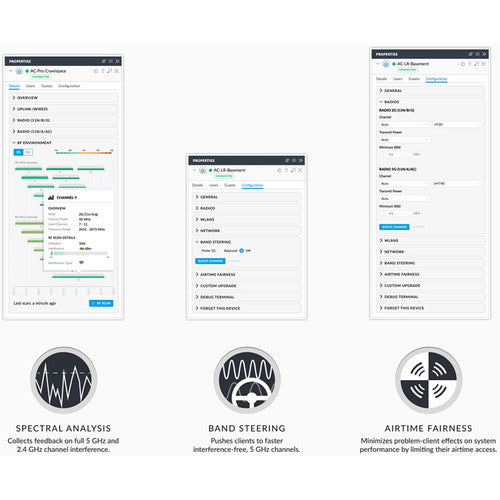

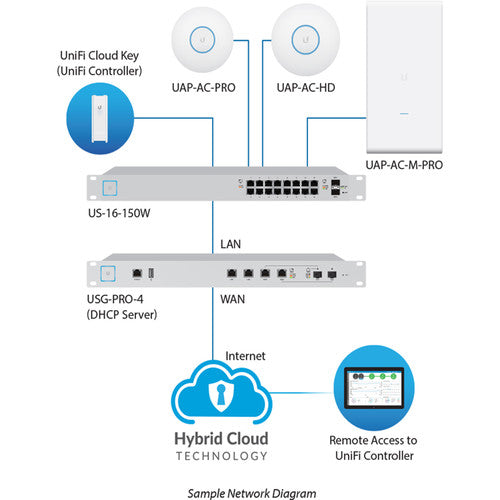

Managed through the intuitive UniFi Controller software or mobile app, administrators can easily configure, monitor, and optimize networks from a single dashboard, whether on-premises or in the cloud.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-AC-PRO |
| UPC | 810354023439 |

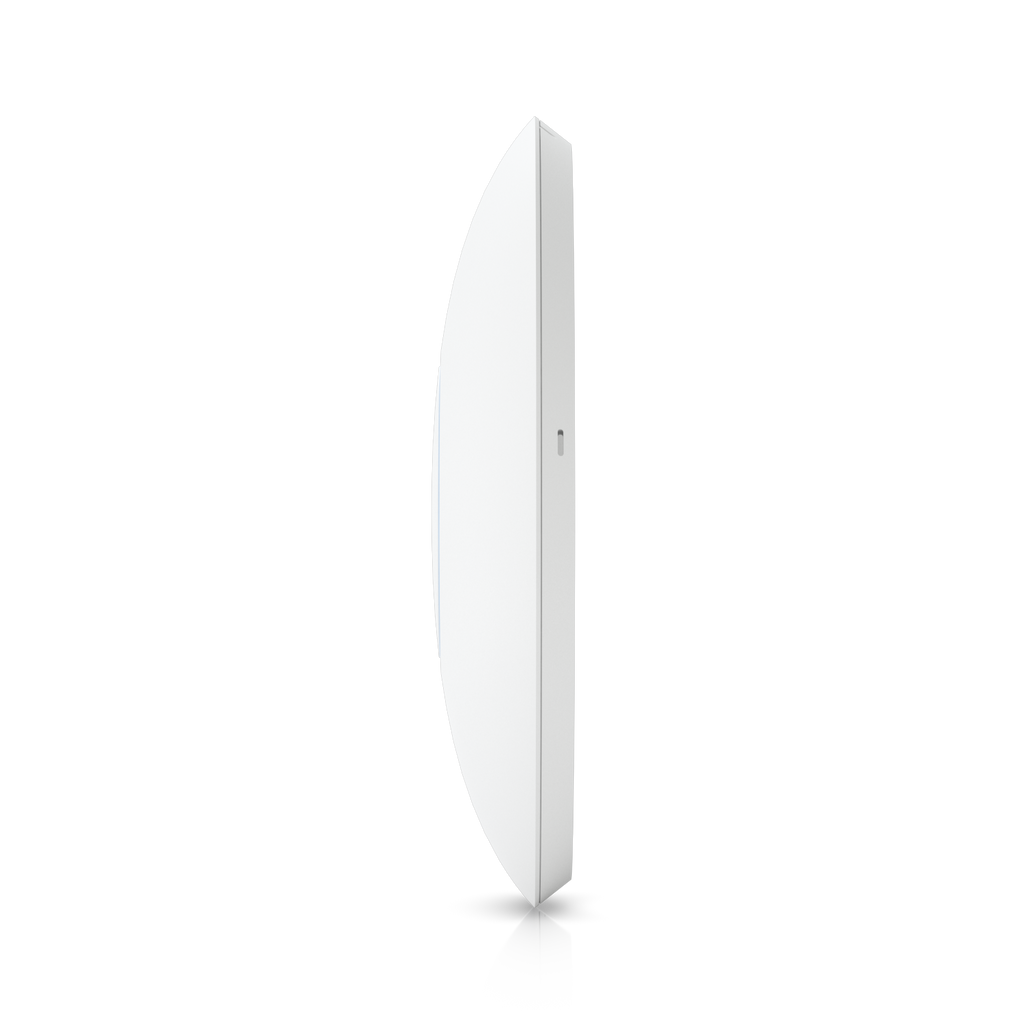

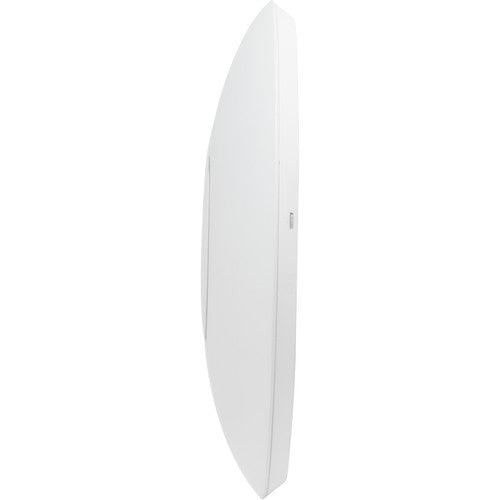

| Dimensions | Ø196.7 x 35 mm (Ø7.7 x 1.4") |
| Weight | 350 g (12.4 oz) · 450 g (15.9 oz) with mount |
| WiFi Standard | WiFi 5 (802.11ac) |
| MIMO Configuration | 5 GHz: 3x3 MU-MIMO · 2.4 GHz: 3x3 MIMO |
| Max Data Rates | 5 GHz: 1.3 Gbps (BW80) · 2.4 GHz: 450 Mbps (BW40) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Count | 250+ |
| Antenna Gain | 5 GHz: 3 dBi · 2.4 GHz: 3 dBi |
| Max TX Power | 5 GHz: 22 dBm · 2.4 GHz: 22 dBm |
| Power Method | 802.3af/at PoE |
| Max Power Consumption | 9W |

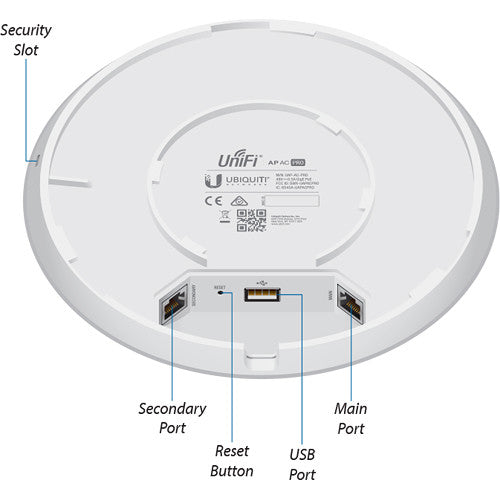

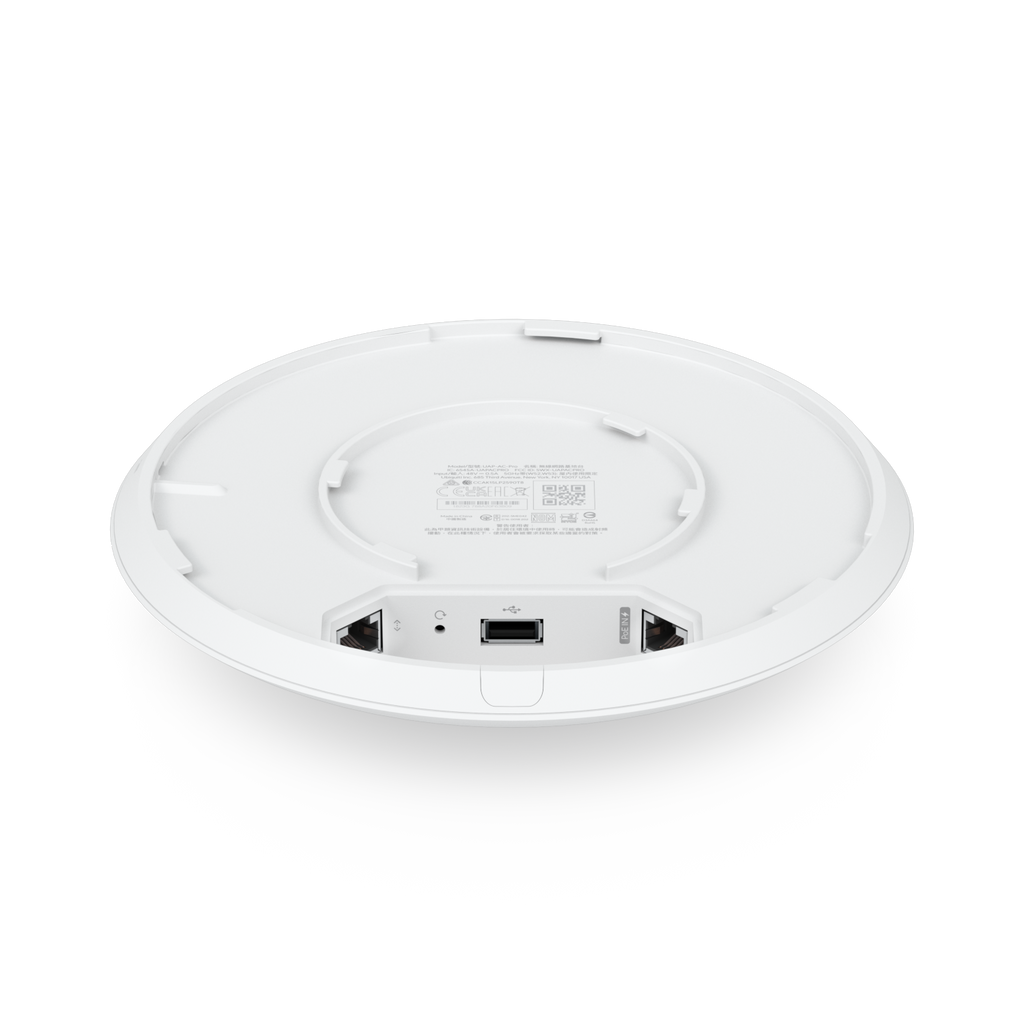

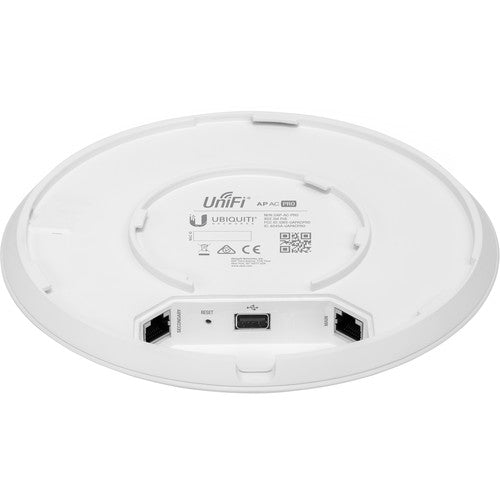

| Networking Interface | (2) GbE RJ45 ports |

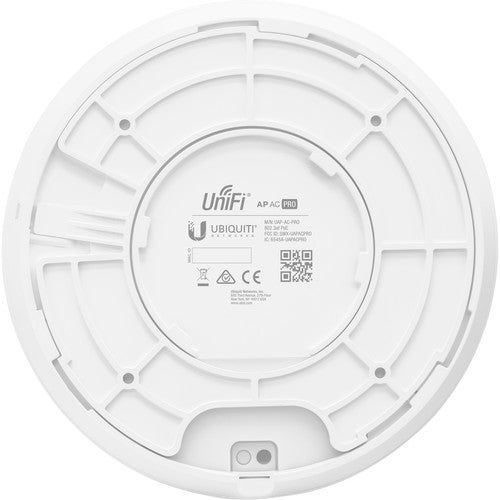

| Mounting | Wall, Ceiling (Pro mount supported) |
| Advanced Features | Band steering, Wireless Meshing, Fast Roaming (802.11r), BSS Transition (802.11v), Radio Resource Management (802.11k) |
| Guest Access | Captive portal, Hotspot 2.0, Voucher & Payment authentication, Guest isolation |
| Management | UniFi Controller (Windows, Mac, Linux) · UniFi App |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz · 5 GHz: 5150–5850 MHz (varies by region) |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel · NDAA Compliant |
