Features
-
Enterprise Wi-Fi – High-performance access points supporting up to 250+ clients each.
-
Dual-Band Performance – Up to 1300 Mbps (5 GHz) + 450 Mbps (2.4 GHz) with 3x3 MIMO.
-
Wide Coverage – Provides up to 1,500 ft² (140 m²) per access point.
-

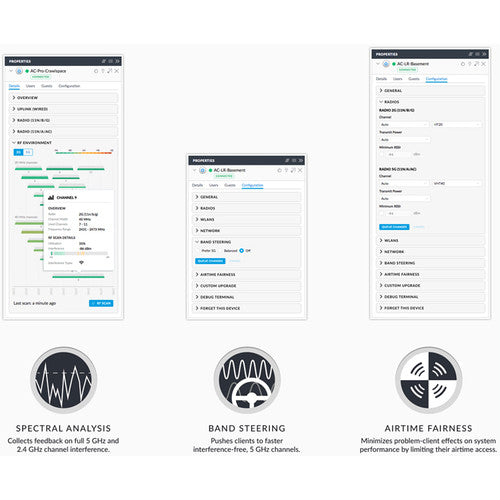

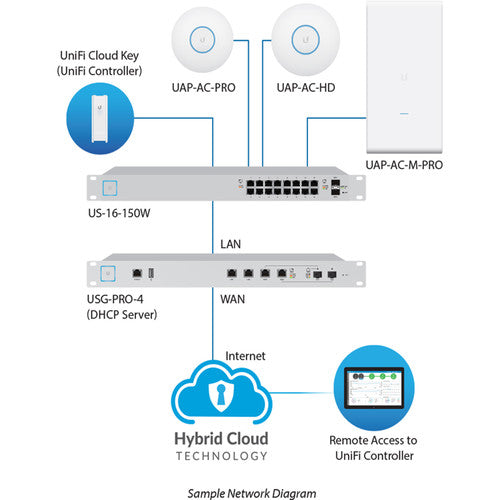

UniFi Controller – Centralized management for configuration, monitoring, and analytics.
-

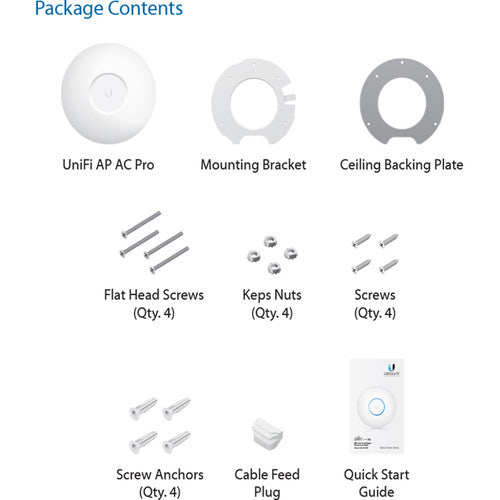

Flexible Mounting – Sleek design for ceiling or wall installations with included hardware.
-
Advanced Features – Wireless meshing, fast roaming (802.11r), band steering, guest portals, VLAN support.
-
Secure & Compliant – WPA2 enterprise security, CE/FCC/IC certified, and NDAA compliant.

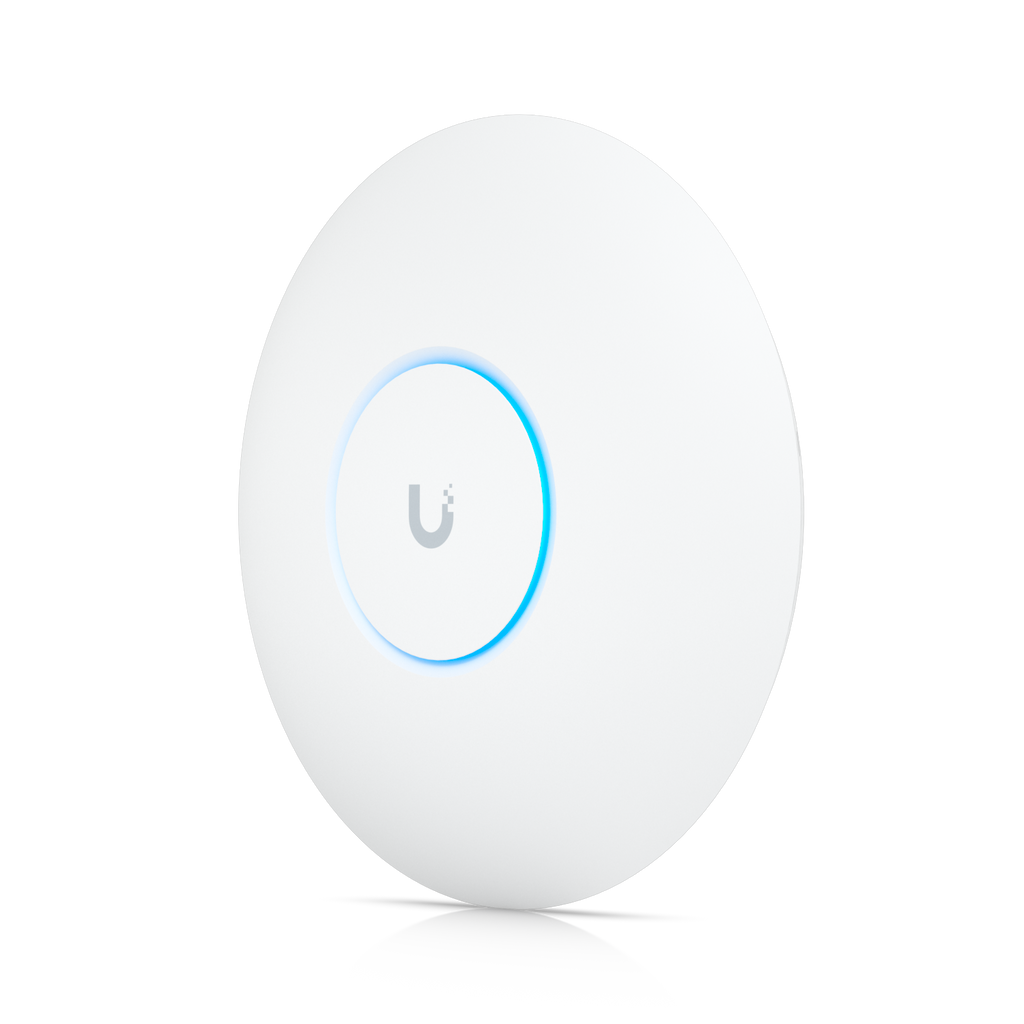

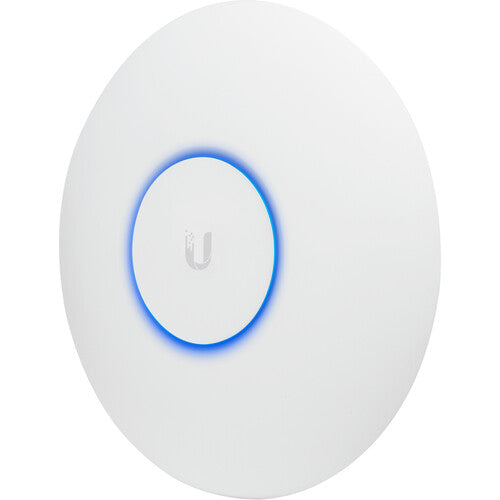

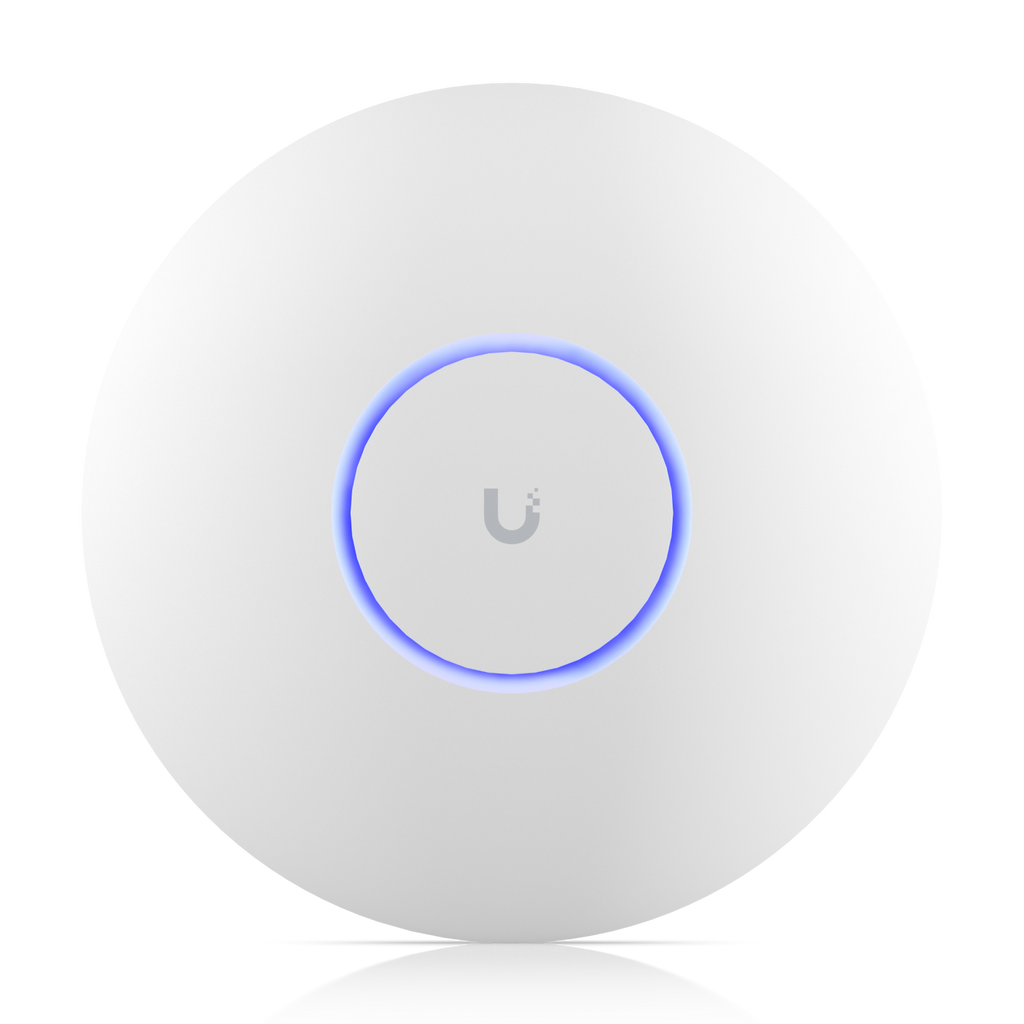

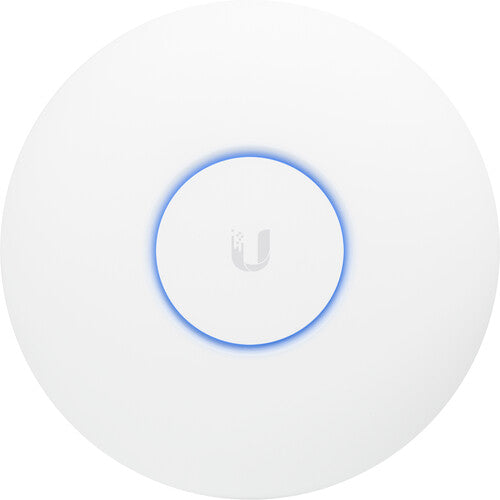

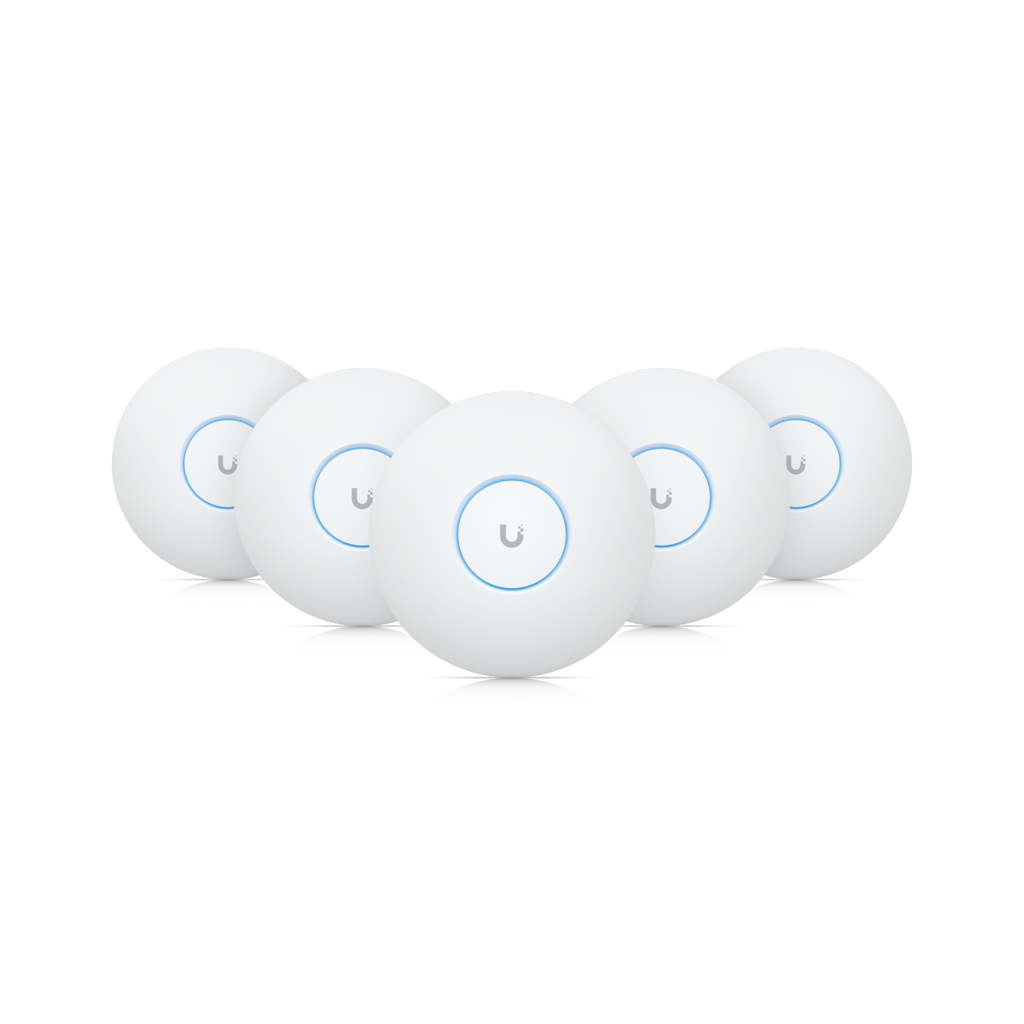

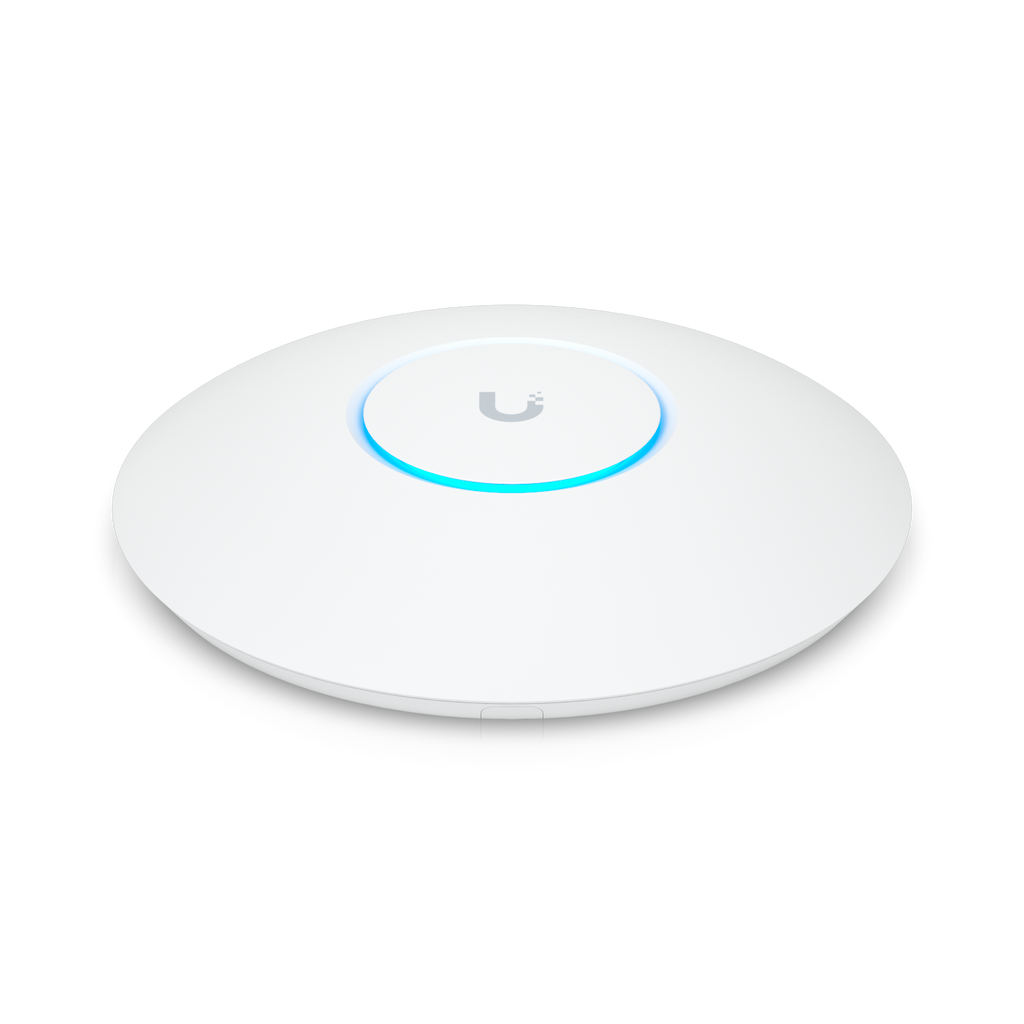

The Ubiquiti Networks UAP-AC-PRO-5 is a scalable enterprise-grade Wi-Fi solution that combines high performance, easy deployment, and centralized management.

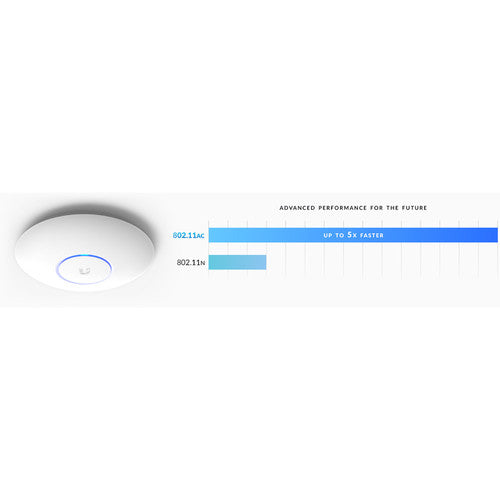

Supporting the 802.11ac Wi-Fi 5 standard, it delivers speeds up to 1300 Mbps on the 5 GHz band and 450 Mbps on the 2.4 GHz band, with 3x3 MIMO technology for each. Designed for indoor or semi-outdoor use, these sleek access points cover up to 1,500 ft² and support 250+ concurrent clients each.
With dual Gigabit Ethernet ports, seamless UniFi Controller management, and advanced features like wireless meshing, guest portals, and fast roaming, the UAP-AC-PRO-5 is ideal for building reliable large-scale networks.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-AC-PRO-5 |
| UPC | 810354024054 |

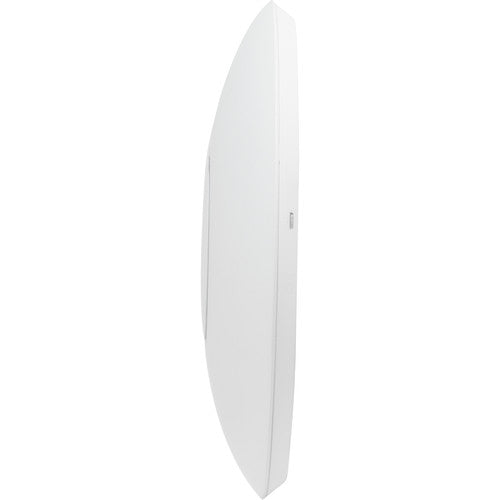

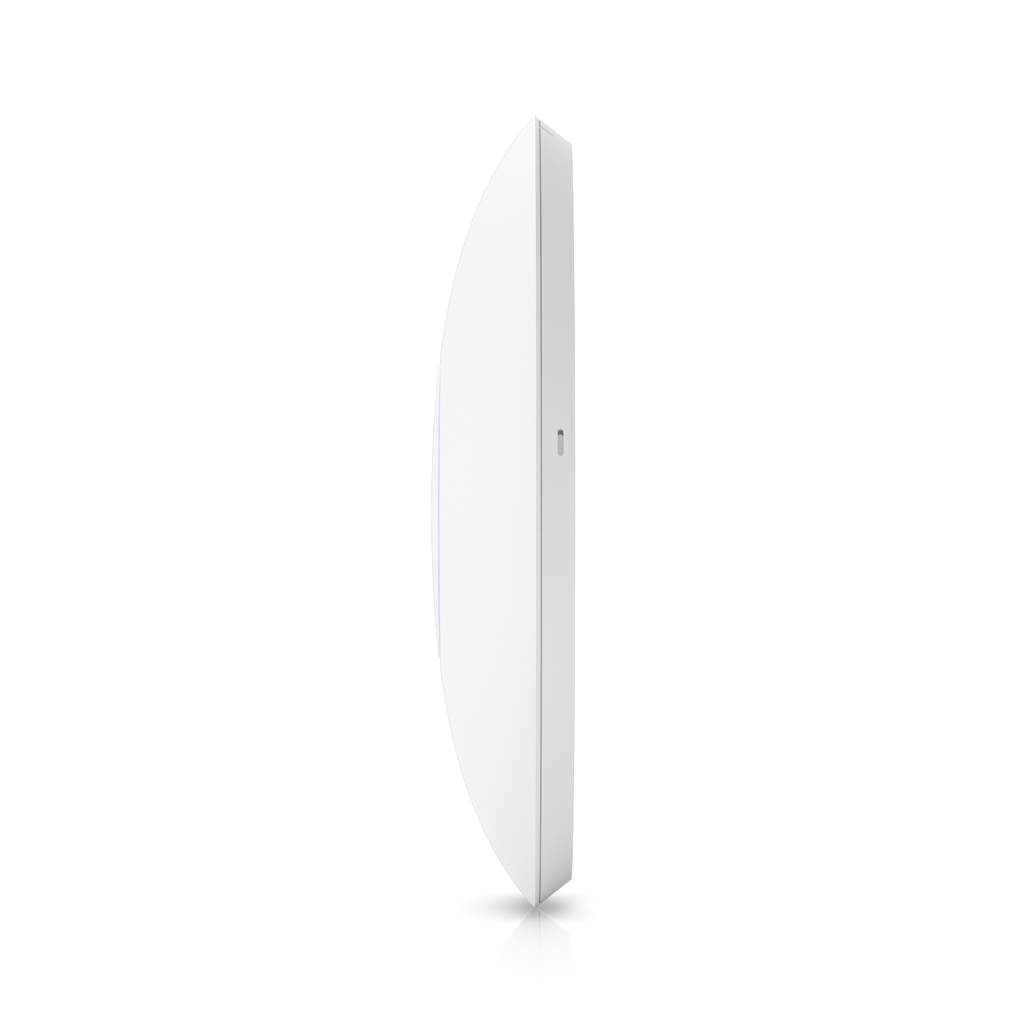

| Dimensions | Ø196.7 × 35 mm (Ø7.7 × 1.4") |
| Weight | Device: 350 g (12.4 oz) With mount: 450 g (15.9 oz) |
| WiFi Standard | Wi-Fi 5 (802.11ac) |
| Spatial Streams | 6 (3x3 per band) |
| Coverage Area | 140 m² (1,500 ft²) per AP |
| Max. Client Count | 250+ per AP |

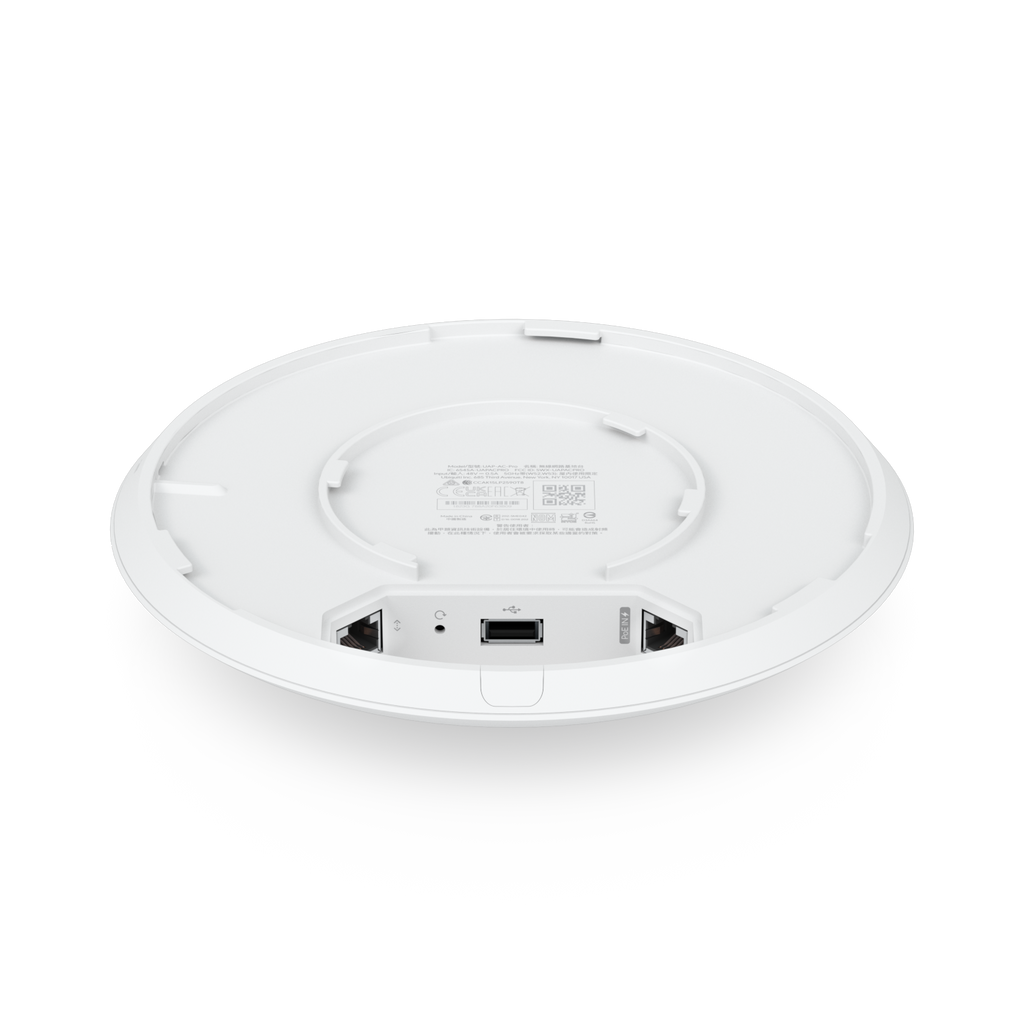

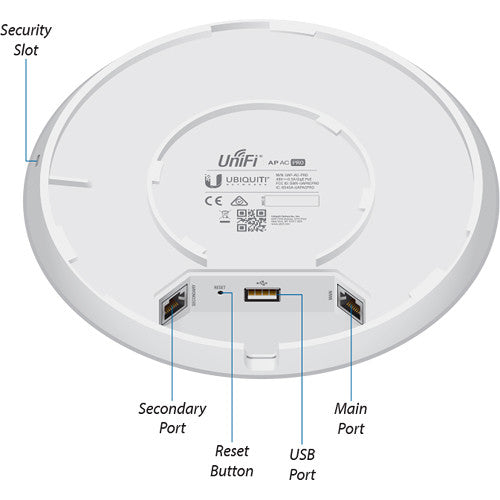

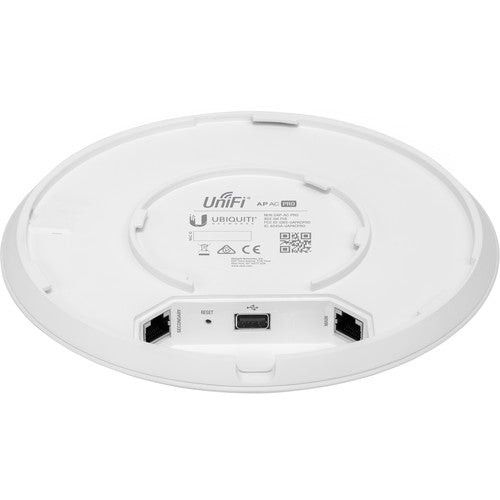

| Uplink / Networking Interface | 2 × GbE RJ45 ports |
| Max. Data Rate | 5 GHz: 1.3 Gbps 2.4 GHz: 450 Mbps |
| MIMO | 5 GHz: 3x3 MU-MIMO 2.4 GHz: 3x3 MU-MIMO |
| Antenna Gain | 5 GHz: 3 dBi 2.4 GHz: 3 dBi |
| Max. TX Power | 22 dBm (5 GHz & 2.4 GHz) |

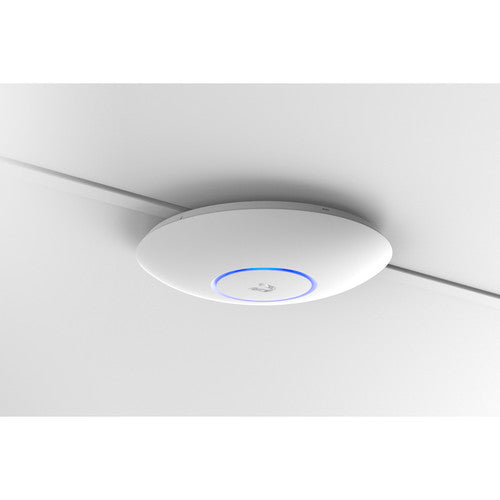

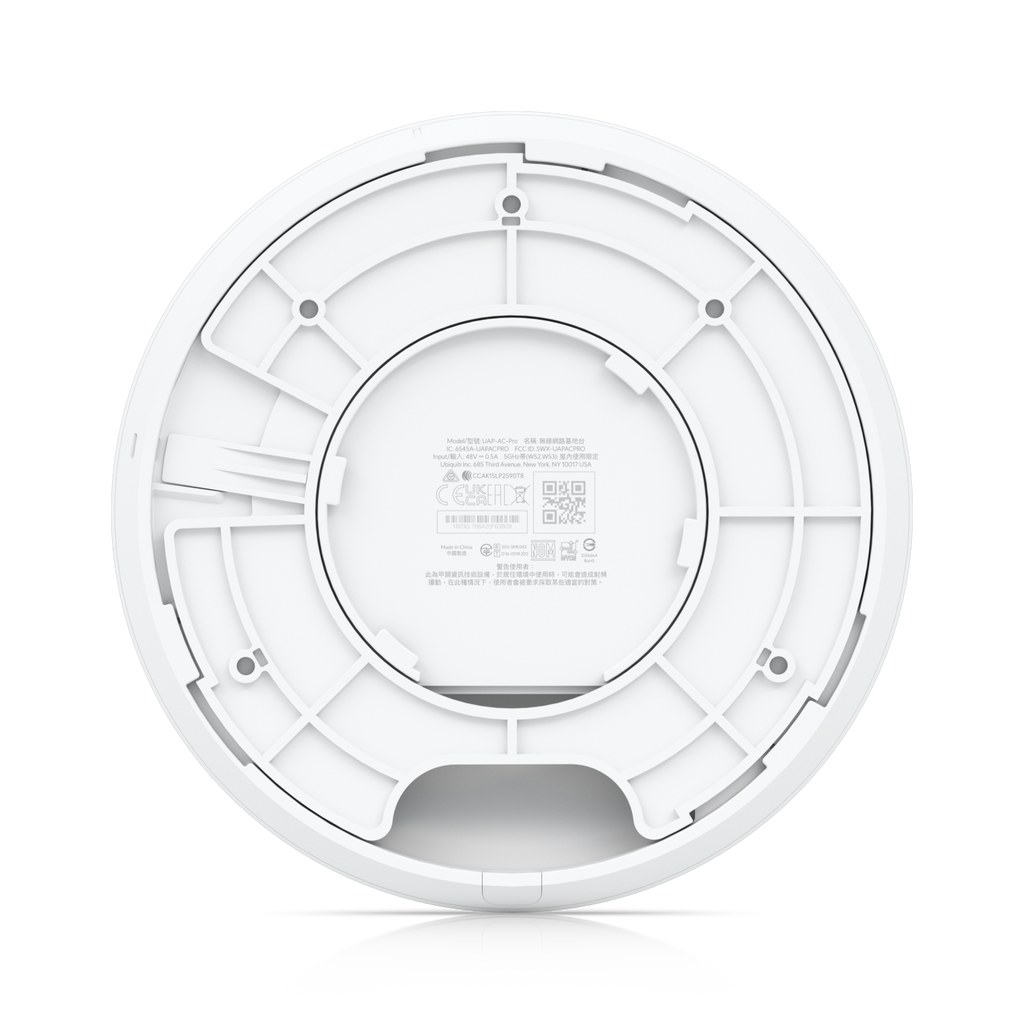

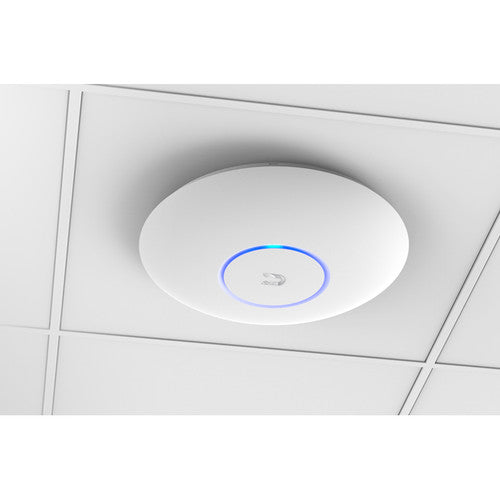

| Mounting Options | Ceiling, Wall (Pro Mount Supported) |
| Power Method | PoE (Adapter Included) |
| Max. Power Consumption | 9W |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 MHz |
| Features | Wireless meshing, band steering, fast roaming (802.11r), captive portals, VLAN, hotspot 2.0, PPSK, WiFi scheduling |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz 5 GHz: 5150–5850 MHz (region dependent) |
| Enclosure Material | Polycarbonate |
| Operating Conditions | -10 to 70°C (14 to 158°F), 5–95% noncondensing humidity |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
