Features

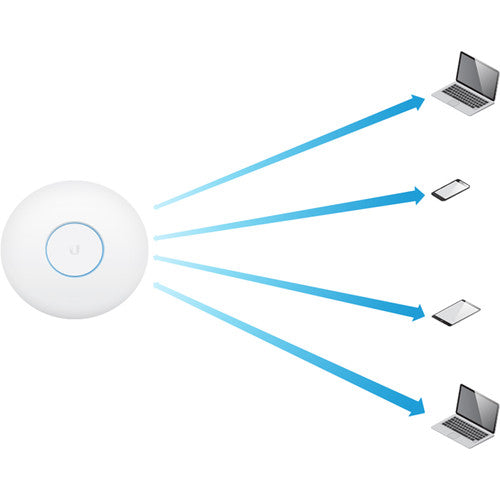

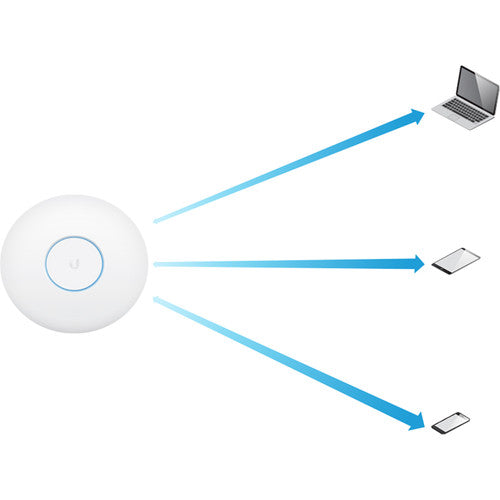

- Wave 2 Wi-Fi 5 MU-MIMO – Simultaneous 4x4 MU-MIMO on both 2.4 GHz & 5 GHz bands.
- High Performance – Speeds up to 1.7 Gbps (5 GHz) and 800 Mbps (2.4 GHz).
- Enterprise Scalability – Handles 500+ concurrent clients with 140 m² (1,500 ft²) coverage per AP.

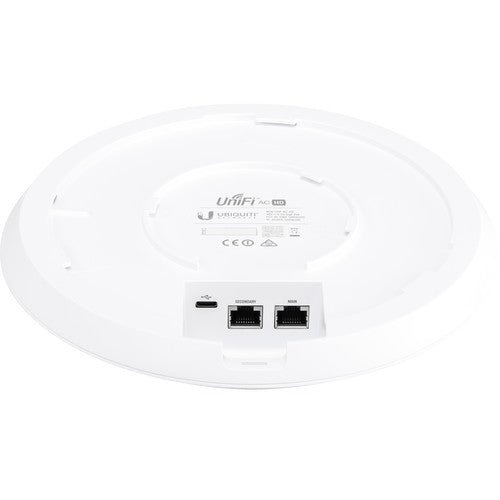

- Dual GbE Ports – Includes (2) Gigabit RJ45 Ethernet ports for flexible uplink and bridging.
- Flexible Deployment – Indoor and covered outdoor installation with wall/ceiling mounting.
- UniFi Controller Software – Centralized management, analytics, hotspot support, and custom guest portals.
- Advanced RF Management – Spectral analysis, airtime fairness, and band steering.
- Hotspot Functionality – Built-in support for credit card billing, voucher authentication, and guest isolation.
- Seamless Roaming – Supports 802.11r fast roaming, 802.11v transition, and 802.11k RRM.
- PoE+ Powered – Supports 802.3at PoE+ (PoE adapter included).

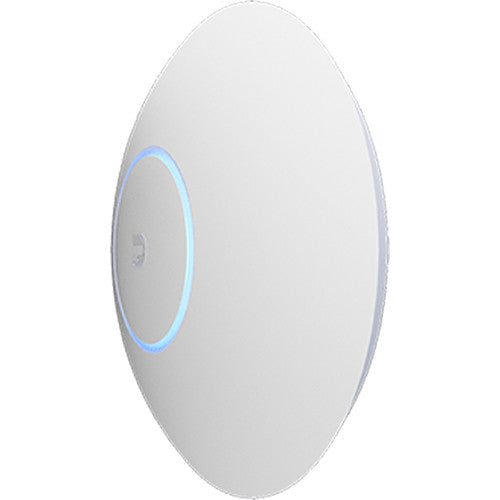

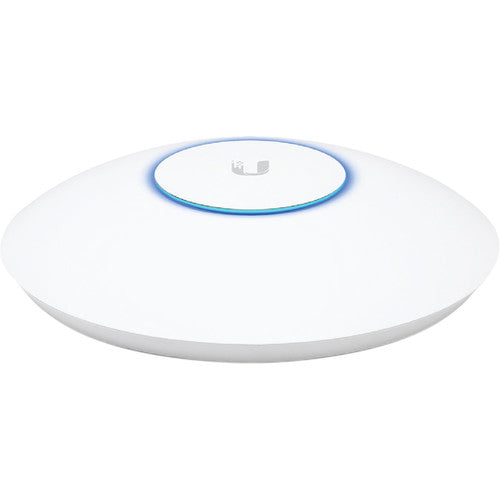

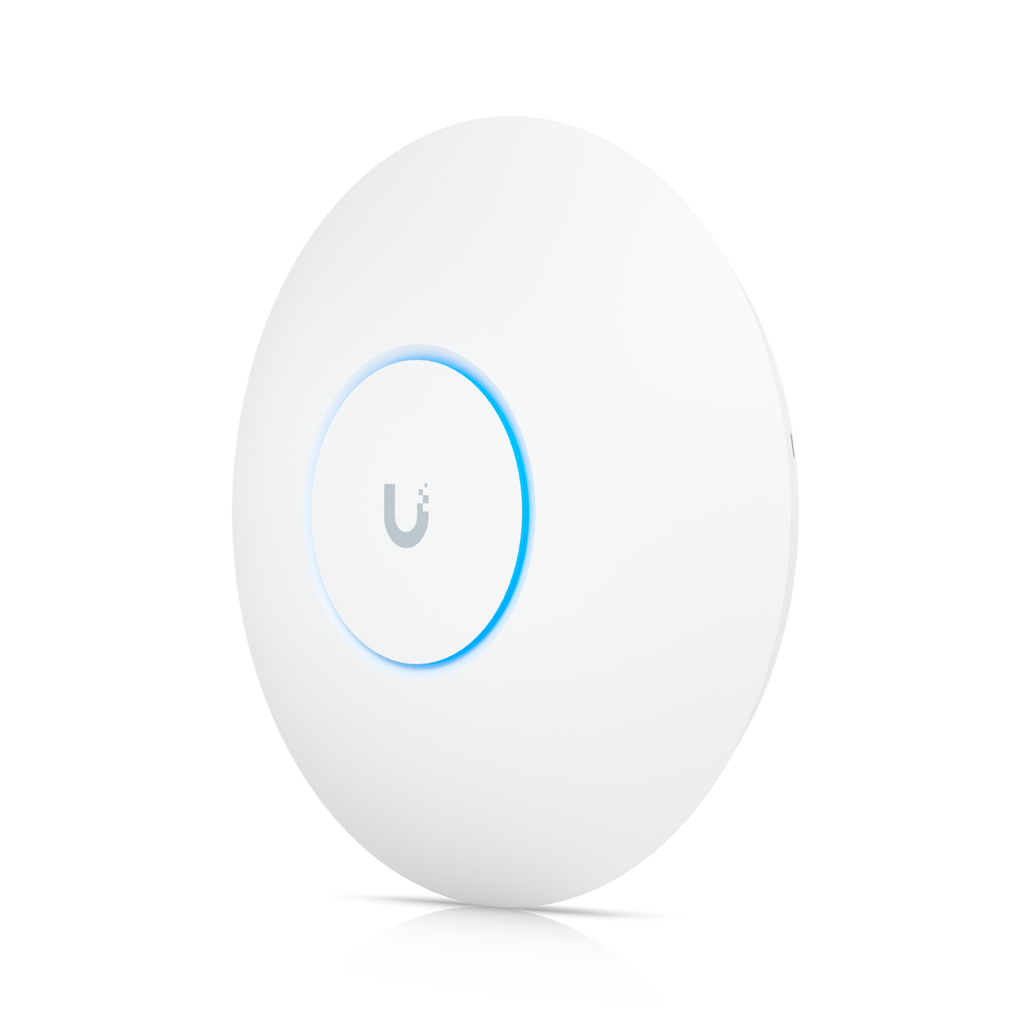

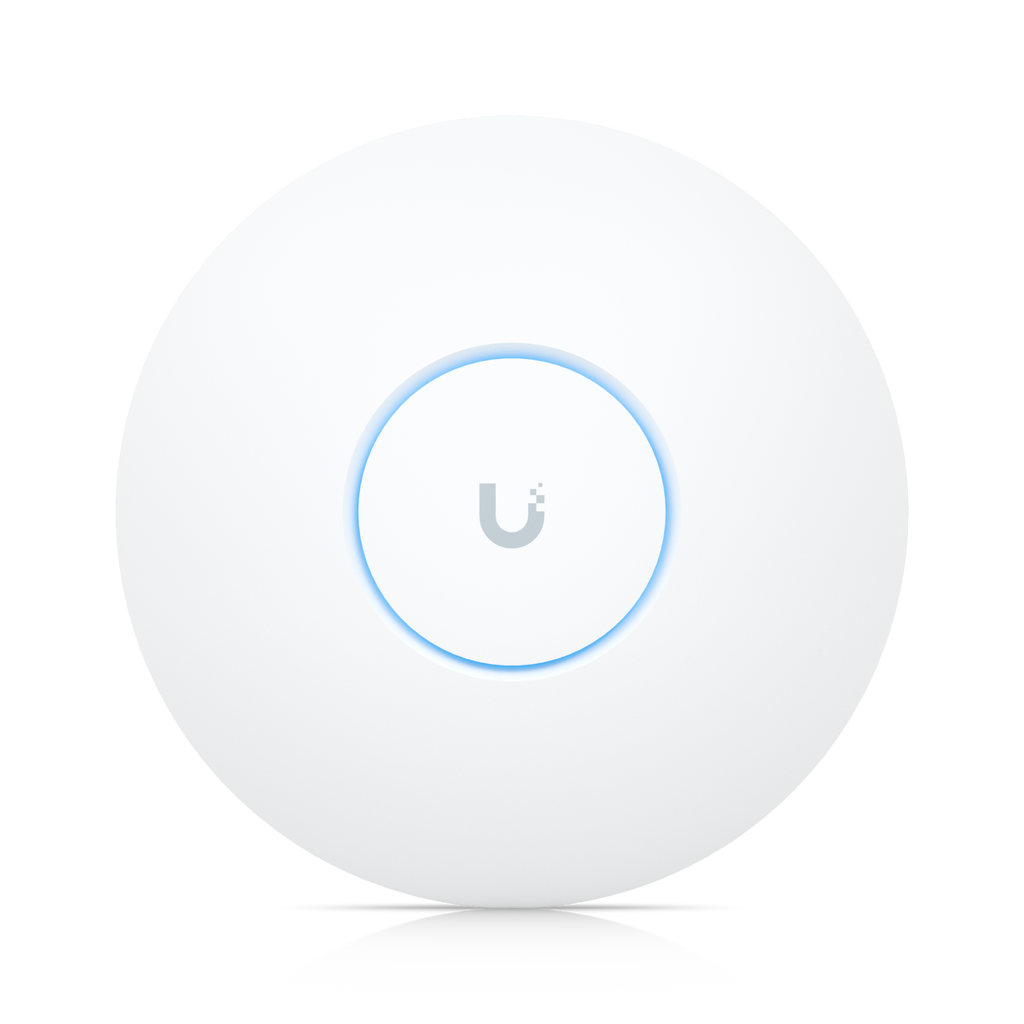

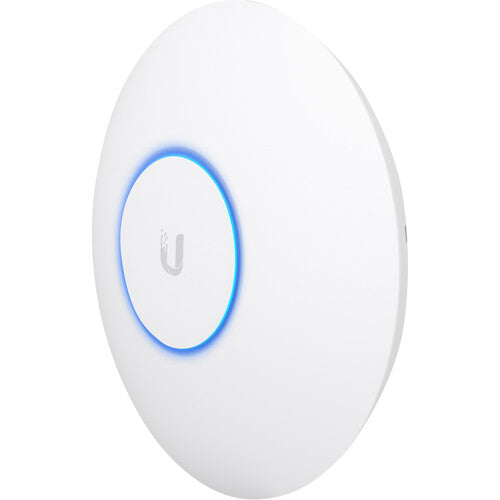

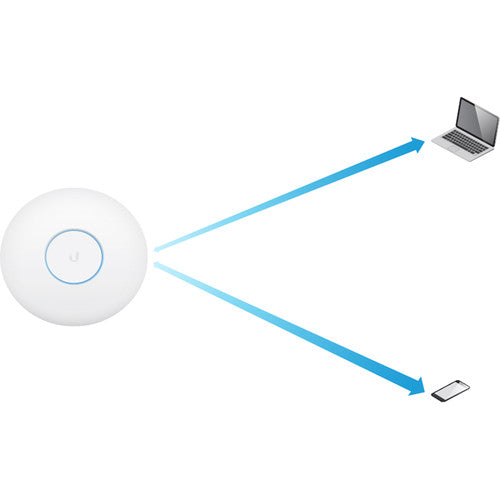

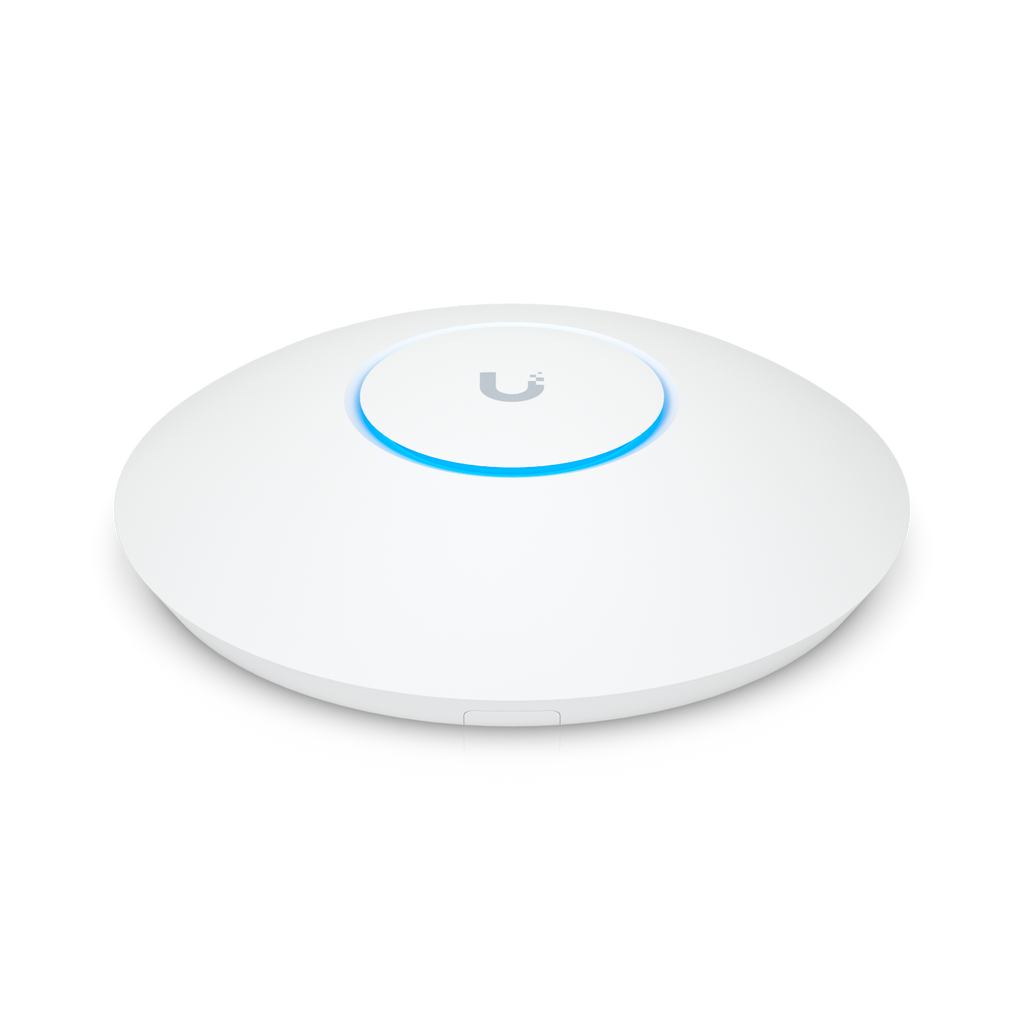

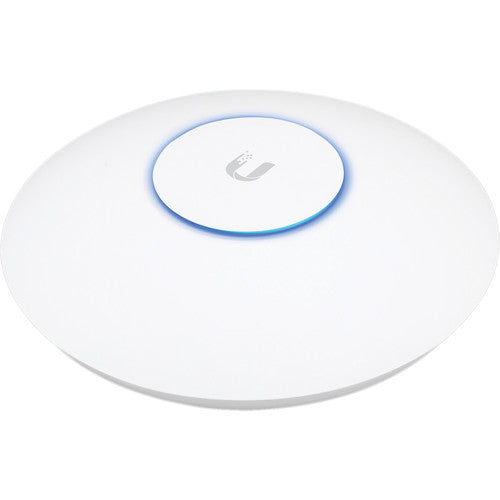

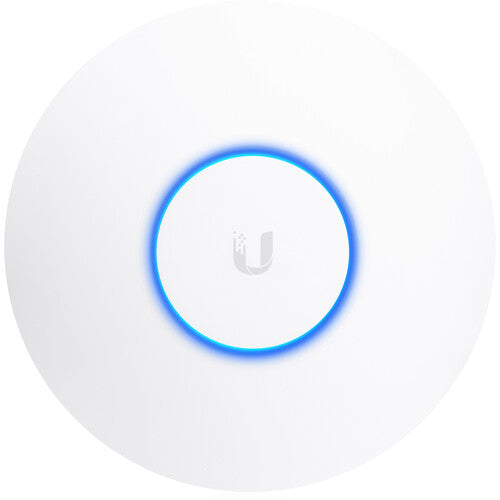

The Ubiquiti UniFi UAP-AC-HD-US is a powerful 802.11ac Wave 2 enterprise-grade Wi-Fi access point built to deliver superior performance in high-density environments. Featuring dual-band 4x4 MU-MIMO technology, it delivers up to 1.7 Gbps on the 5 GHz band and 800 Mbps on the 2.4 GHz band, ensuring blazing-fast and reliable connectivity for 500+ simultaneous clients. Designed for both indoor and covered outdoor deployments, it integrates seamlessly into the UniFi ecosystem for centralized, scalable management.

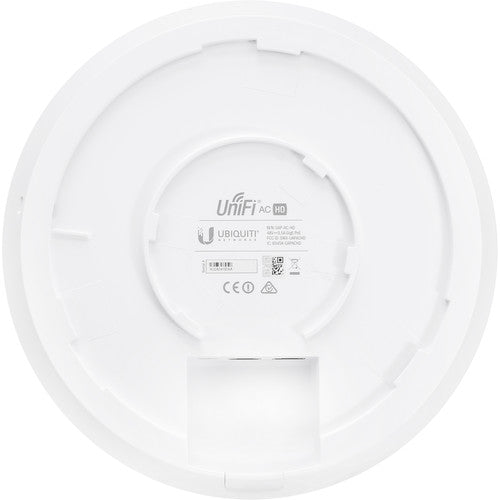

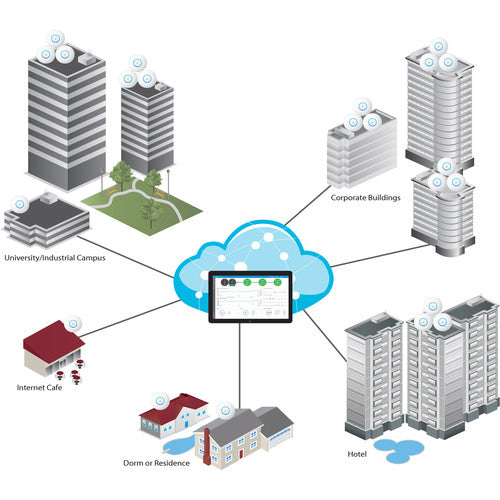

Equipped with two Gigabit Ethernet ports and powered via 802.3at PoE+, the UAP-AC-HD-US provides flexible installation options with included wall and ceiling mount kits. Advanced RF management, wireless meshing, band steering, and fast roaming capabilities make it ideal for mission-critical enterprise networks, campuses, auditoriums, and other high-user-density scenarios.

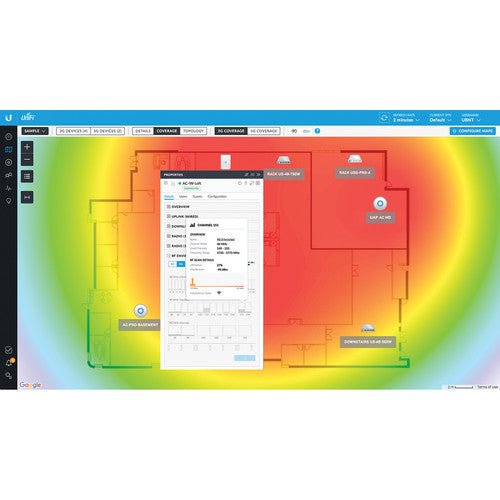

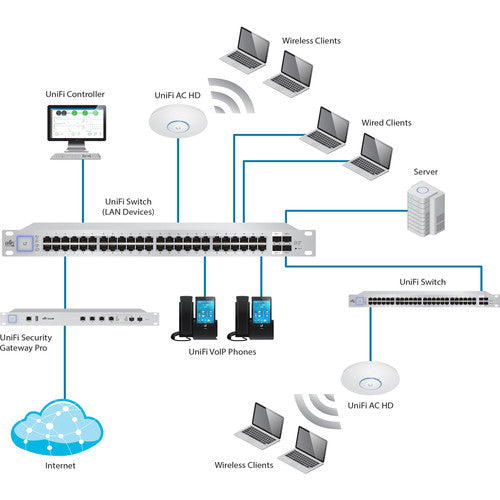

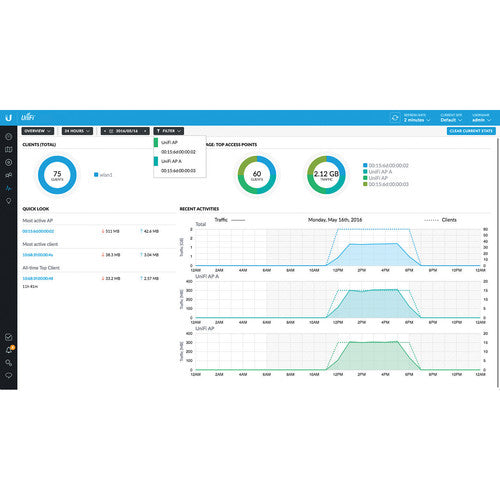

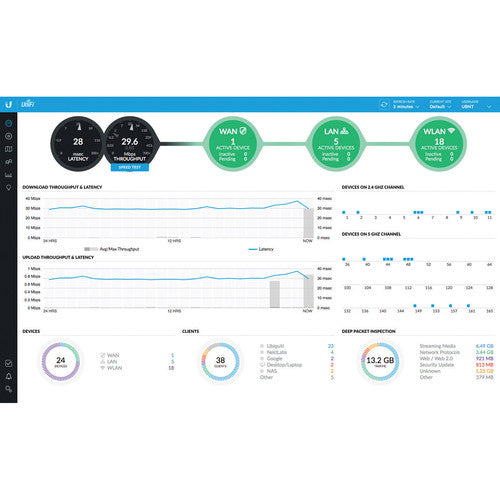

Administrators can configure and monitor devices through the UniFi Controller software or mobile app, enabling detailed analytics, guest portals, custom branding, and advanced network troubleshooting.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UAP-AC-HD-US |
| UPC | 810354025860 |

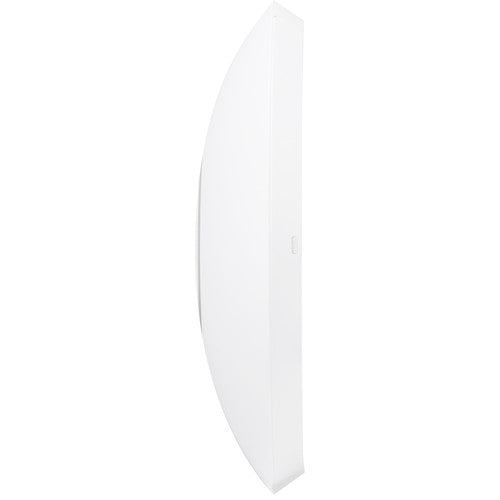

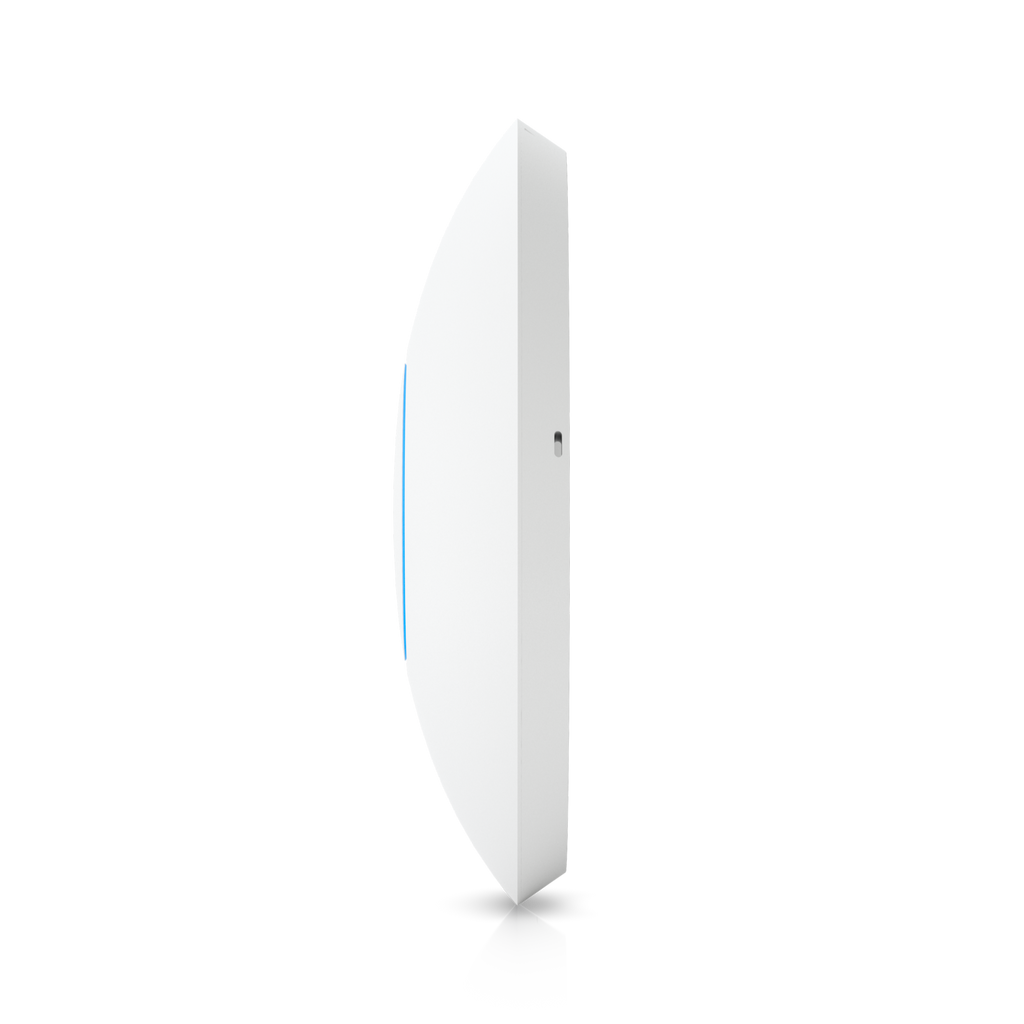

| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Device: 700 g (1.5 lb) · With mount: 830 g (1.8 lb) |
| WiFi Standard | WiFi 5 (802.11ac Wave 2) |
| MIMO Configuration | 5 GHz: 4x4 MU-MIMO · 2.4 GHz: 4x4 MIMO |
| Max Data Rates | 5 GHz: 1.7 Gbps (BW80) · 2.4 GHz: 800 Mbps (BW40) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Count | 500+ |
| Antenna Gain | 5 GHz: 4 dBi · 2.4 GHz: 3 dBi |
| Max TX Power | 5 GHz: 25 dBm · 2.4 GHz: 25 dBm |

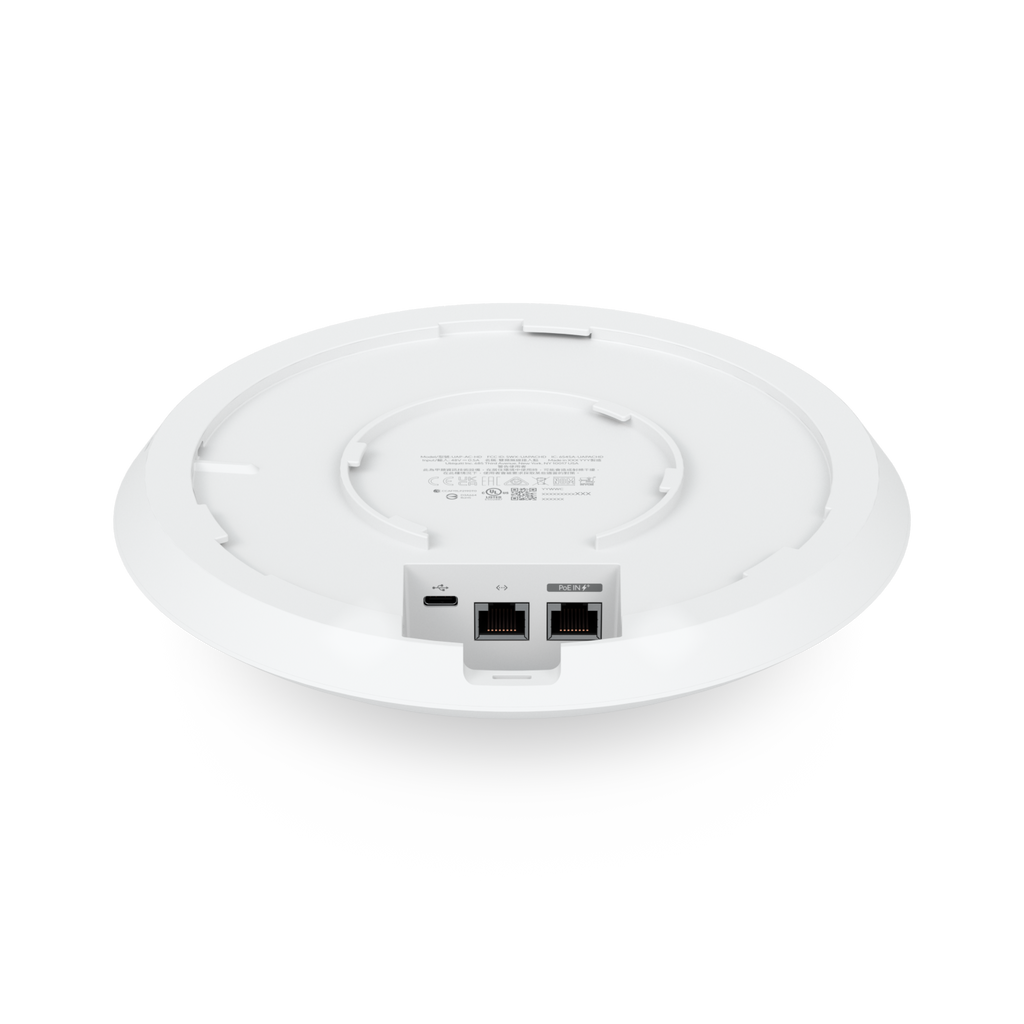

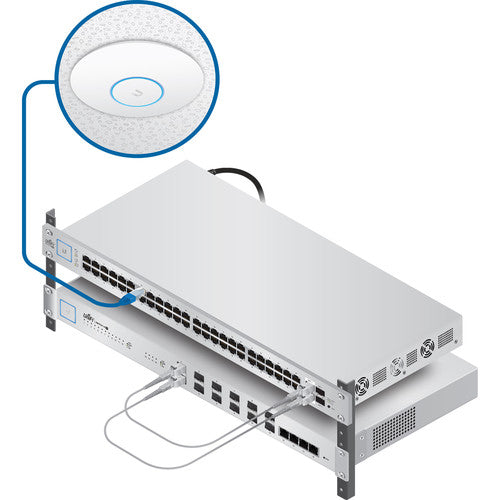

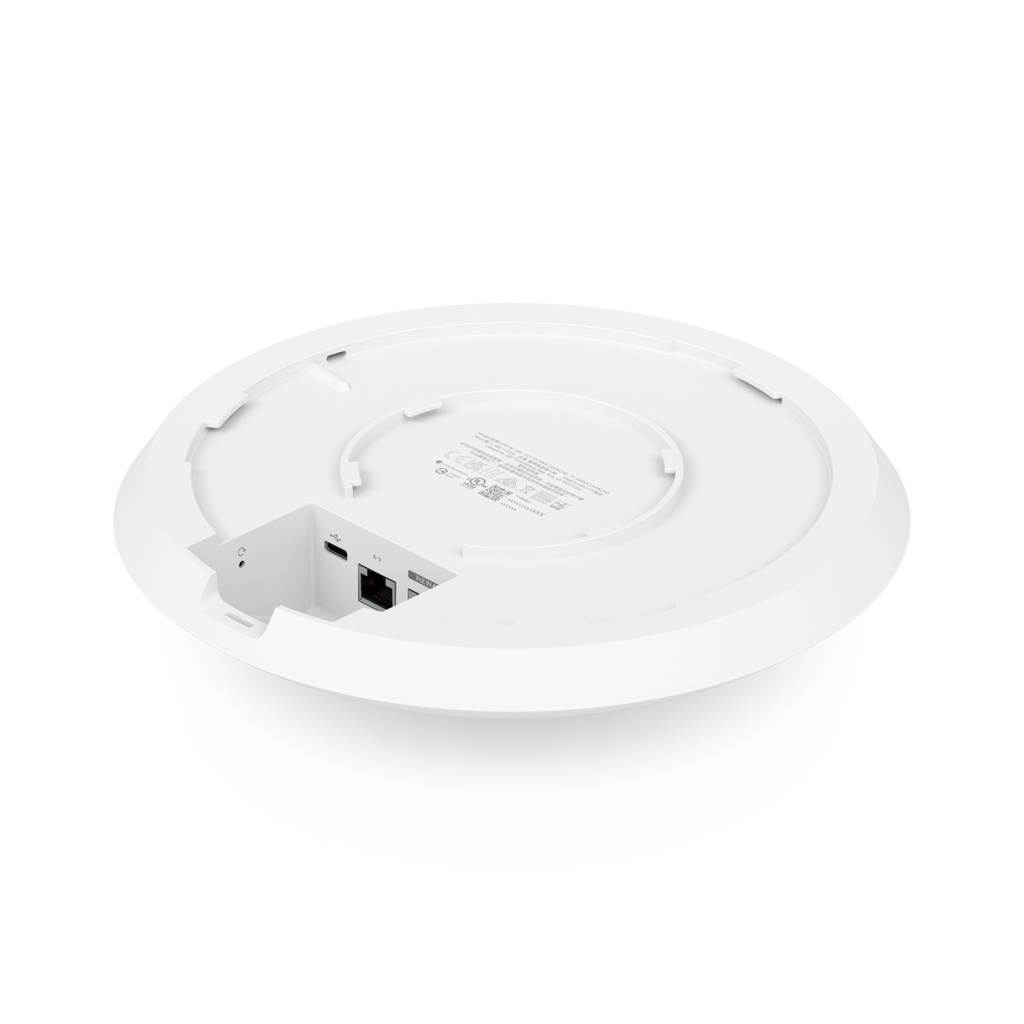

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | 802.3at PoE+ (PoE adapter included) |
| Max Power Consumption | 17W |

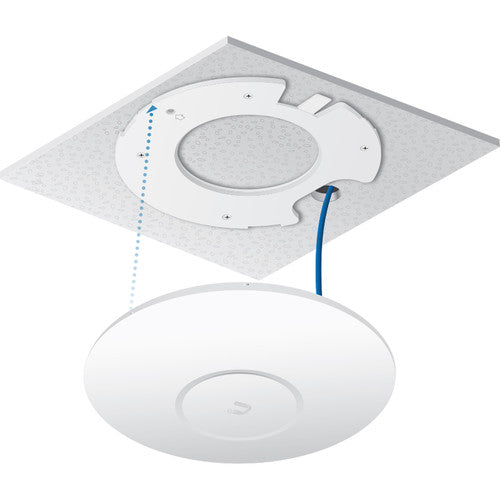

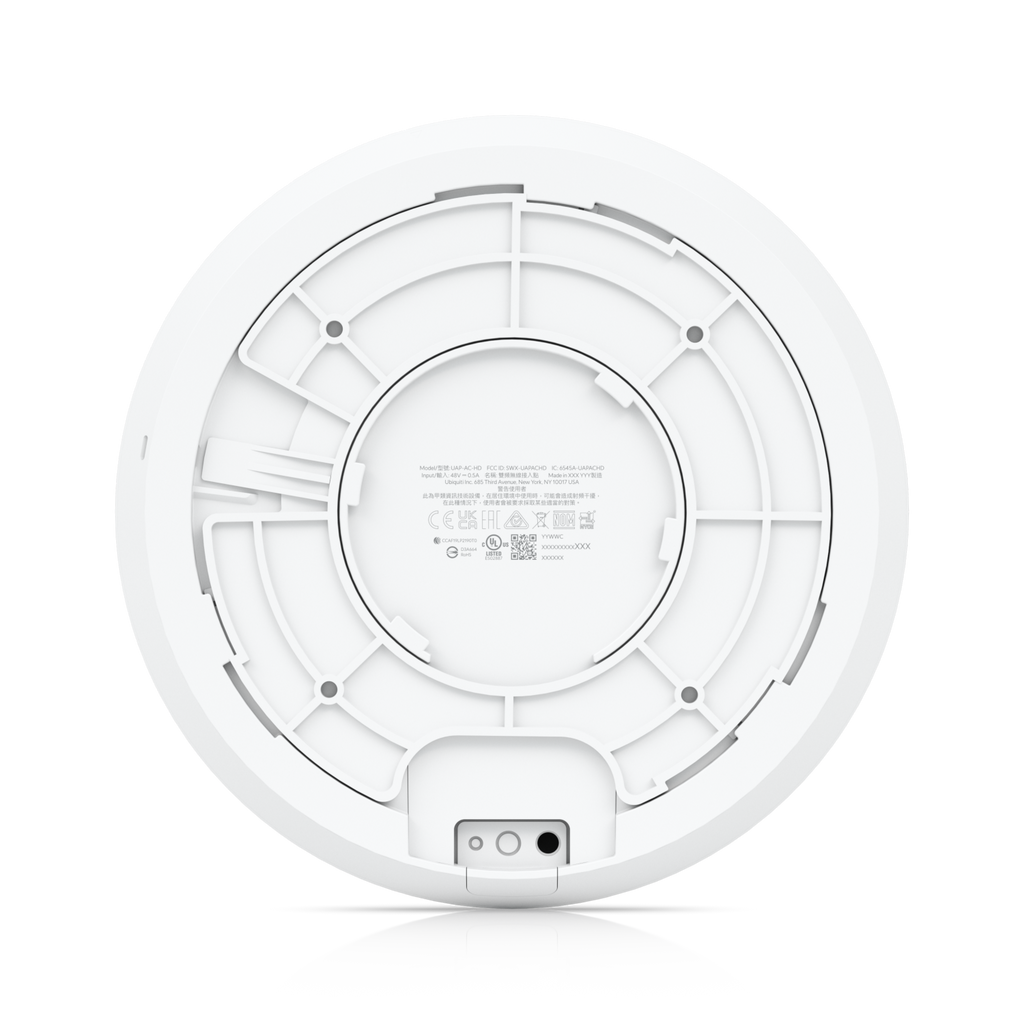

| Mounting Options | Ceiling, Wall (Pro mount included) |
| Management | UniFi Controller (Windows, Mac, Linux) · UniFi App |
| Security & Features | Band steering, Wireless meshing, Fast roaming (802.11r), Guest portal, Hotspot 2.0, VLAN support |
| Operating Frequency | 2.4 GHz: 2400–2472 MHz · 5 GHz: 5150–5850 MHz (varies by region) |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel · NDAA Compliant |
