Features:
-
WAN Aggregation: Optimized for high-speed internet uplinks and traffic distribution.
-
Managed Switch: Full Layer 2/3 functionality for enterprise networks.
-
PoE Support: Provides Power-over-Ethernet for connected devices.
-
High Throughput: Handles multiple WAN links with low latency.
-
UniFi Network Integration: Centralized management via UniFi Controller.
-
Advanced Security Features: Supports ACLs, VLANs, and port isolation.
-
Fan-Cooled Design: Efficient thermal management for continuous operation.
-
Rack-Mountable 1U: Compact, professional-grade installation.
-
Enterprise Networking: Ideal for offices, data centers, and campus networks.
-
Seamless Plug-and-Play: Works with existing UniFi infrastructure without disruption.

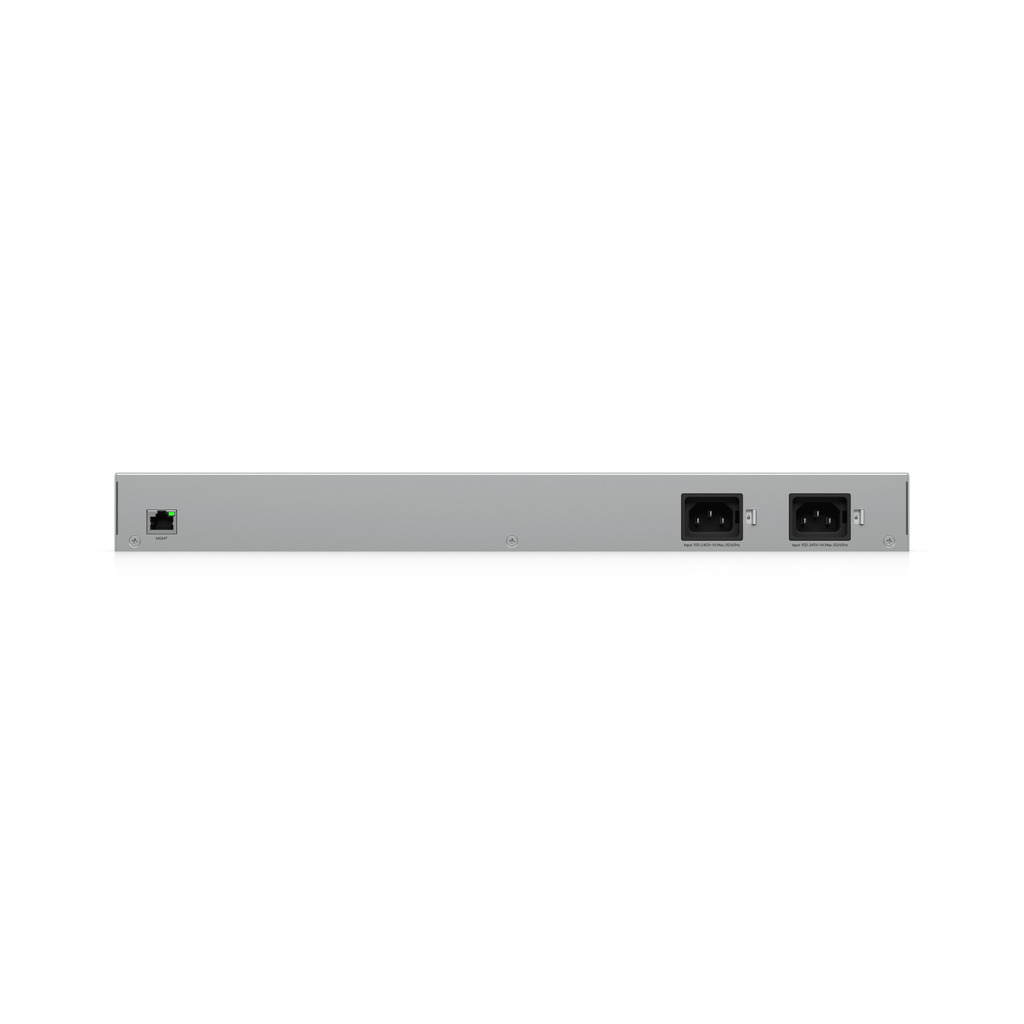

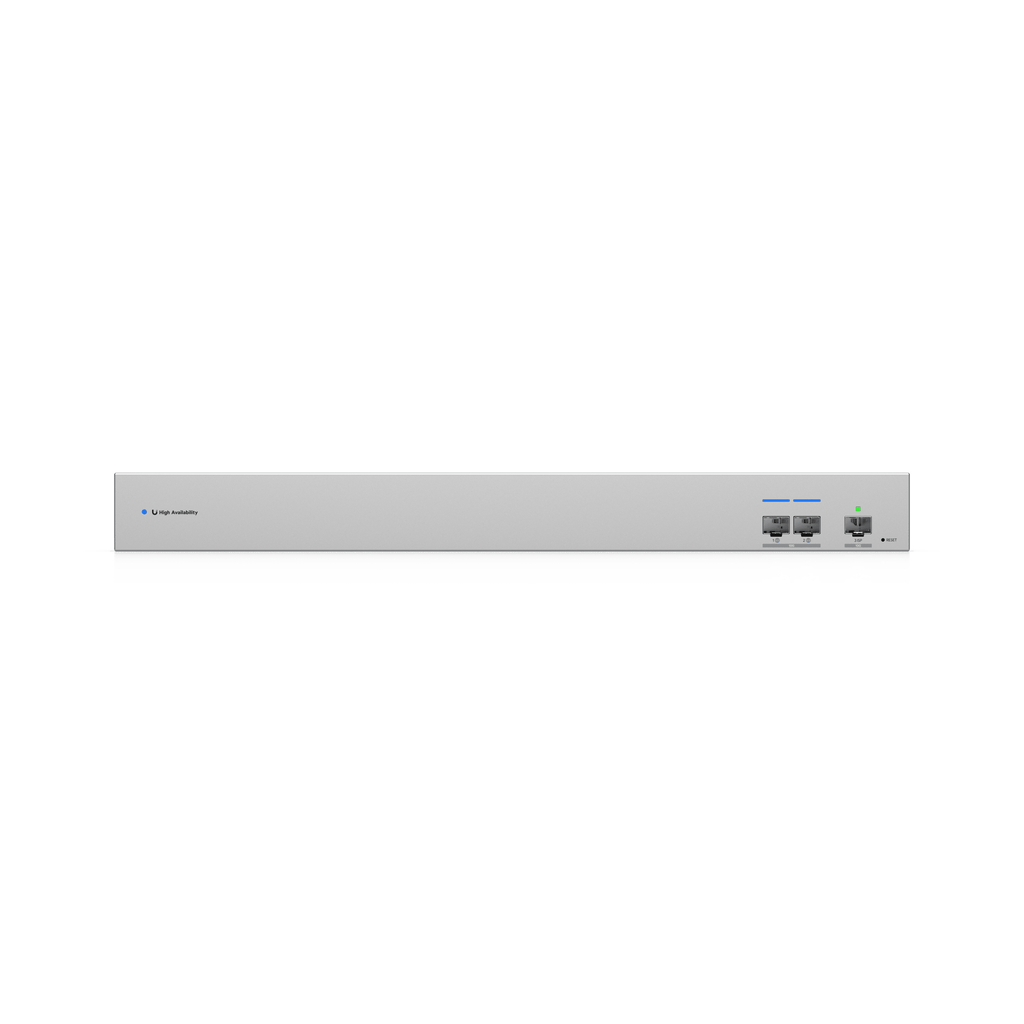

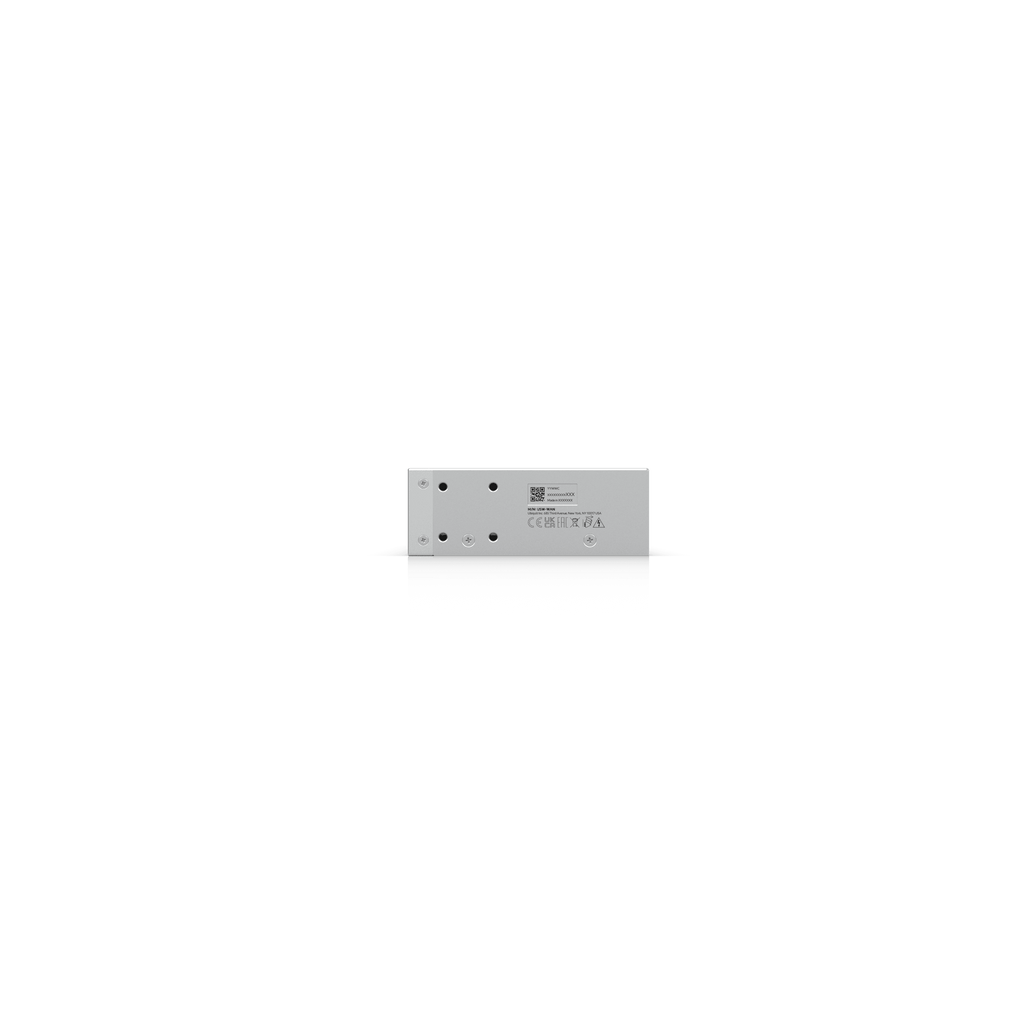

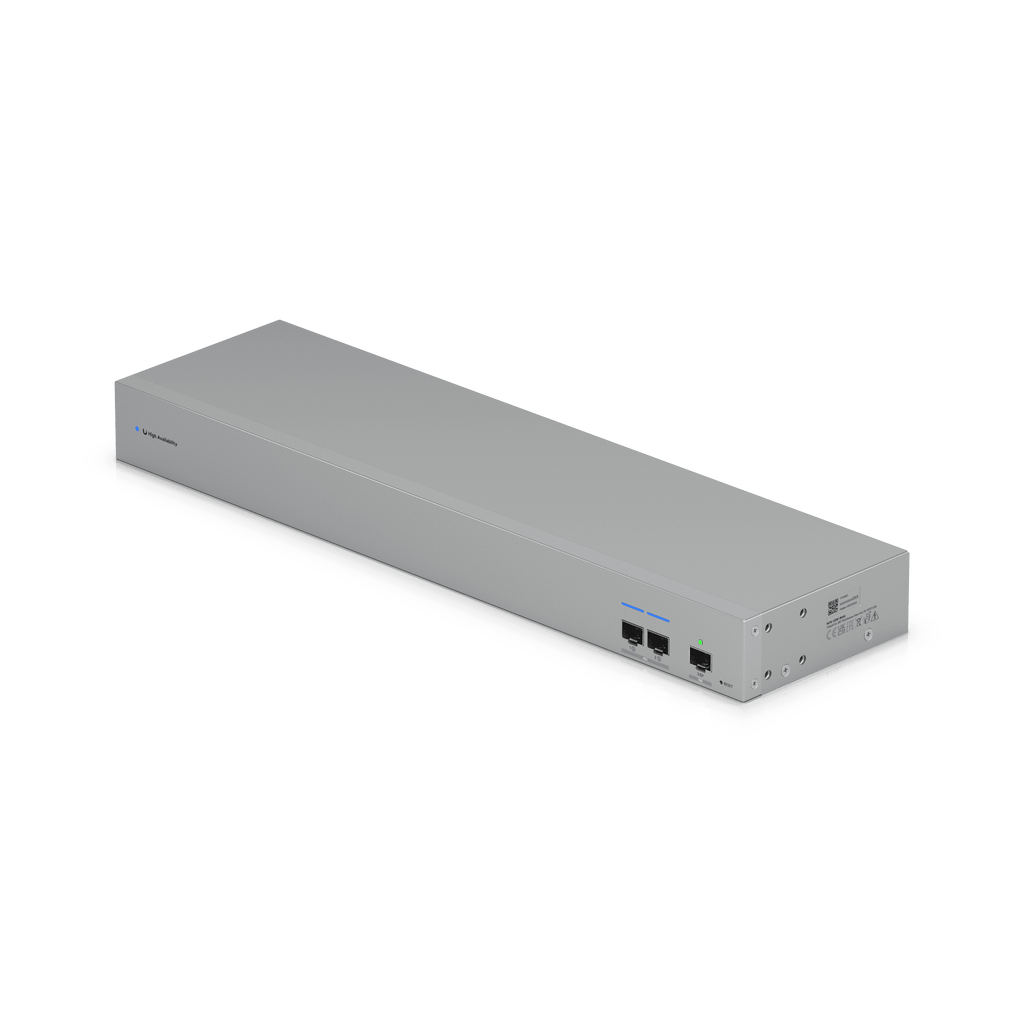

The Ubiquiti USW-WAN is a high-performance managed WAN aggregation switch, designed for enterprise and high-demand environments. It provides reliable, high-speed connectivity for multiple internet uplinks, ensuring seamless traffic distribution and minimal latency.
Integrated PoE support powers connected devices such as access points, VoIP phones, and cameras. With full Layer 2/3 management, ACLs, VLANs, and port isolation, the USW-WAN offers enterprise-grade security and control. Rack-mountable and fan-cooled, it provides reliable performance for offices, campuses, and data centers, while UniFi Network integration simplifies monitoring and configuration.
Technical Specifications
-
Part Number: USW-WAN
-
UPC: 810010076002
-
Weight: 4.1 kg (9.04 lb)
-
Dimensions: 442 × 197 × 44 mm (17.4 × 7.8 × 1.73")
-
Ports: WAN aggregation ports, PoE support on select ports
-
Switching Capacity: 160 Gbps
-
Forwarding Rate: 119 Mpps
-
Management: UniFi Network Controller, Web UI, CLI
-
VLAN Support: 802.1Q VLANs, voice VLAN, management VLAN
-
Security Features: ACLs, port isolation, storm control
-
Cooling: Built-in fans, temperature-controlled
-
Mounting: 1U Rack-mountable
-
Power: 100–240V AC, 50/60Hz
-
Certifications: CE, FCC, IC
