Features
-
Port flexibility – 16 Ethernet ports (12× 1G, 4× 2.5G) with 2× 10G SFP+ uplinks
-
Switching performance – 84 Gbps switching capacity, 42 Gbps non-blocking, 62 Mpps forwarding rate
-
Enterprise-ready – Layer 3 support including DHCP server/relay, inter-VLAN routing, static routing
-

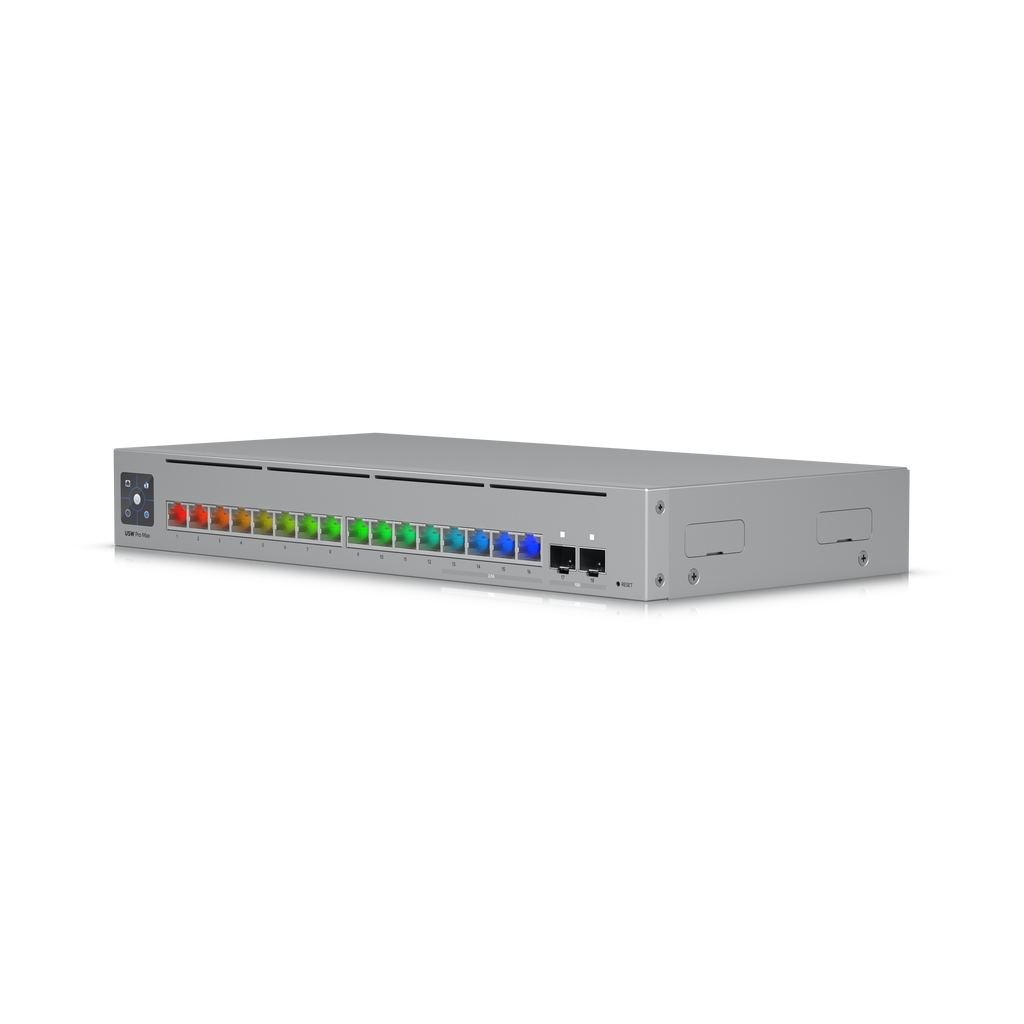

Etherlighting™ – Visual port indicators for location, link speed, and VLAN configuration
-
Touchscreen display – 1.3" LCD for real-time status monitoring
-
Compact design – Rackmount (1U), wall, or desktop installation options
-
Efficient operation – 25W max power consumption with passive cooling
-
Robust build – SGCC steel enclosure and mounting hardware
-
UniFi integration – Managed via UniFi Network (v8.1.127+)
The Ubiquiti USW-Pro-Max-16 is a powerful and compact managed Layer 3 switch designed to deliver reliable connectivity and intuitive control for small to mid-size networks. Featuring 12×Gigabit Ethernet ports, 4×2.5G high-speed ports, and 2×10G SFP+ uplinks, it provides flexibility for connecting workstations, storage, and backbone infrastructure.
With an 84 Gbps switching capacity, 42 Gbps non-blocking throughput, and 62 Mpps forwarding rate, the USW-Pro-Max-16 ensures smooth data transfers for demanding business applications. Its built-in Etherlighting™ technology visually identifies port activity, speeds, and VLANs, while the 1.3" color touchscreen displays real-time status at a glance. Managed through the UniFi Network platform, it offers simple configuration, monitoring, and remote management.
Designed with versatility in mind, the USW-Pro-Max-16 can be deployed on a desk, wall, or rack, making it suitable for a variety of environments. With advanced Layer 2 and Layer 3 features like DHCP, inter-VLAN routing, QoS, IGMP, and strong security protocols, it delivers enterprise-grade networking in a compact, efficient form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | USW-PRO-MAX-16 |
| UPC | 810084694541 |
| Dimensions | 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7") |

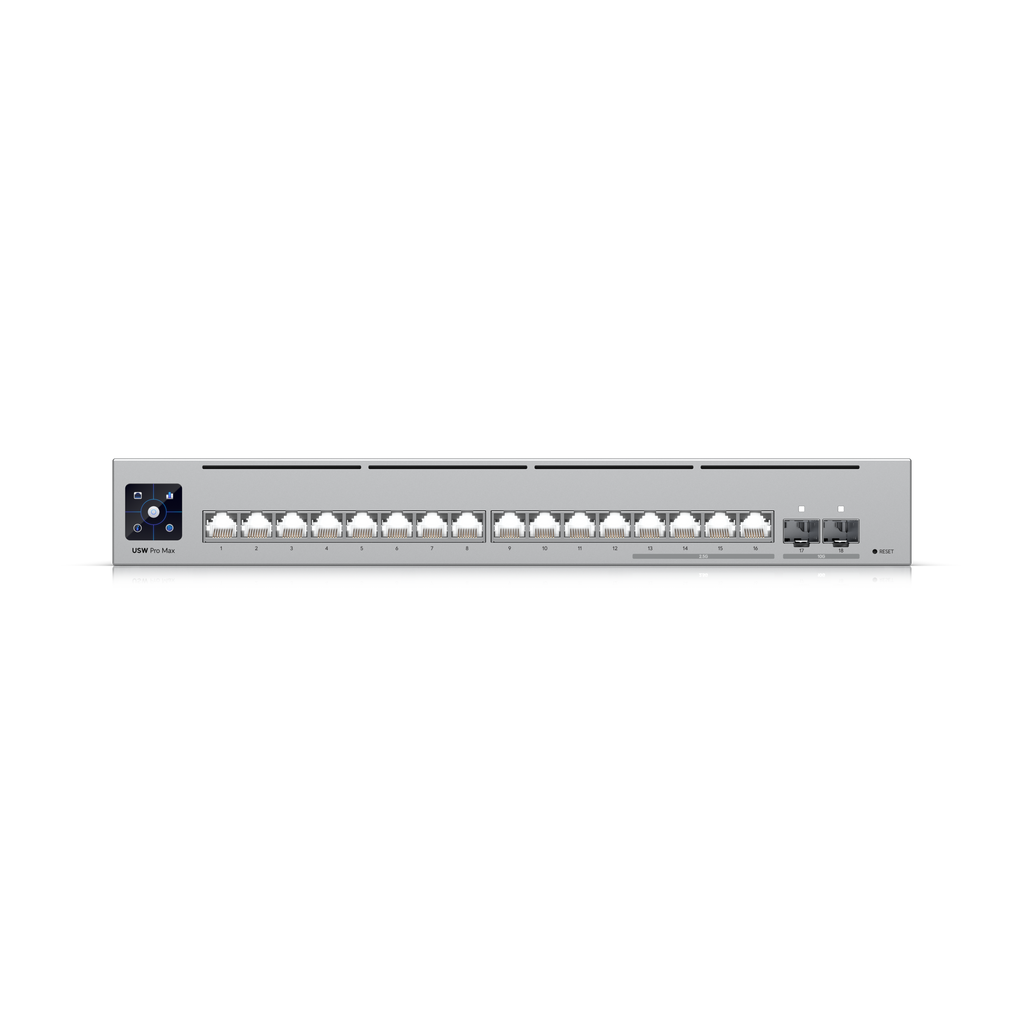

| Port Layout | 12× 1G RJ45, 4× 2.5G RJ45, 2× 10G SFP+ |
| Form Factor | Rackmount (1U), desktop, wall |
| Etherlighting™ | Supported on Ethernet and SFP+ ports |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | 6,000 ARP entries; 512 IPv4 routes |
| Packet Buffer Size | 1.5 MB |
| Layer 3 Features | DHCP server/relay, inter-VLAN routing, static routing |
| Layer 2 Features | LACP, STP/RSTP, QoS (DSCP), Pro AV profiles, IGMP snooping & advanced config, 802.1X, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, storm control, DHCP snooping & guarding |
| Max. Power Consumption | 25W |
| Power Method | AC/DC adapter (USB-C included) |
| Power Supply | External AC/DC, 25W |
| Supported Voltage Range | 4.8–5.2V DC (USB-C) |
| Management | UniFi Network (Version 8.1.127 and later) |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure / Build | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | −5 to 40 °C (23 to 104 °F) |
| Ambient Operating Humidity | 10–90% noncondensing |
| Certifications | CE, FCC, IC, Anatel; NDAA compliant |

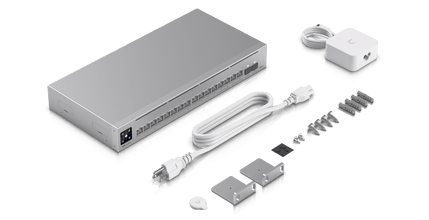

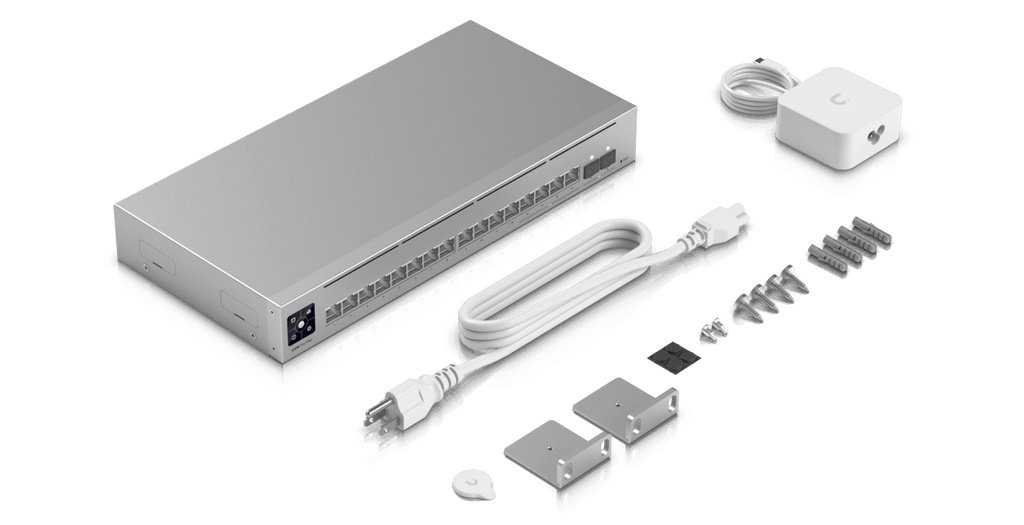

| Items Included | Switch, USB-C power adapter, wall mounting kit, rubber feet, pry tool, 1-year limited warranty |
