Features:
-
5-Port Multi-Gigabit Switch – Features 4× 10 GbE RJ-45 ports plus 1× PoE-in uplink, perfect for ultra-fast network expansion.
-
82 Gbps Switching Capacity – Supports up to 41 Gbps non-blocking throughput for high-speed traffic.
-
PoE Input or USB-C Power – Flexible powering options via 802.3at PoE or included USB-C adapter.
-
Compact Desktop or Wall Mountable – Slim polycarbonate enclosure (135 × 185 × 32 mm); ideal for flexible deployment.
-
Industry-Grade Network Features – MPLS VLANs, LACP, STP/RSTP, 802.1X, DHCP snooping, ACLs, storm control, multicast handling, jumbo frames, and more.
-
Efficient & Lightweight – Only 1.2 kg (2.65 lb) and 25 W max power consumption; great for performance without bulk.
-
UniFi Managed – Seamless integration with the UniFi Network Controller for centralized configuration and monitoring.
-
NDAA-Compliant Security – Meets rigorous security standards for modern enterprise deployments.
The Ubiquiti USW-FLEX-XG is a sleek, high-speed Layer 2 managed switch tailored for high-throughput networking needs. Equipped with four 10 GbE RJ-45 ports and a PoE-in uplink, this switch delivers blazing-fast connectivity while enabling flexible power options, either via PoE or USB-C. The compact design allows for versatile placement—desktop or wall—without compromising performance.
With a robust 82 Gbps switching capacity and a comprehensive suite of Layer 2 features—including VLAN handling, LACP, and advanced security settings—the USW-FLEX-XG is built for high-demand environments.
It integrates effortlessly into UniFi networks via the UniFi Controller, offering seamless management and scalability. Lightweight and efficient, with NDAA-compliance, it’s the perfect high-performance addition for modern enterprise setups, media servers, or high-speed data pipelines.
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | USW-FLEX-XG |
| UPC | 810010075857 |
| Weight | 1.2 kg (2.65 lb) |
| Dimensions | 135 × 185 × 32 mm (5.3 × 7.3 × 1.3") |

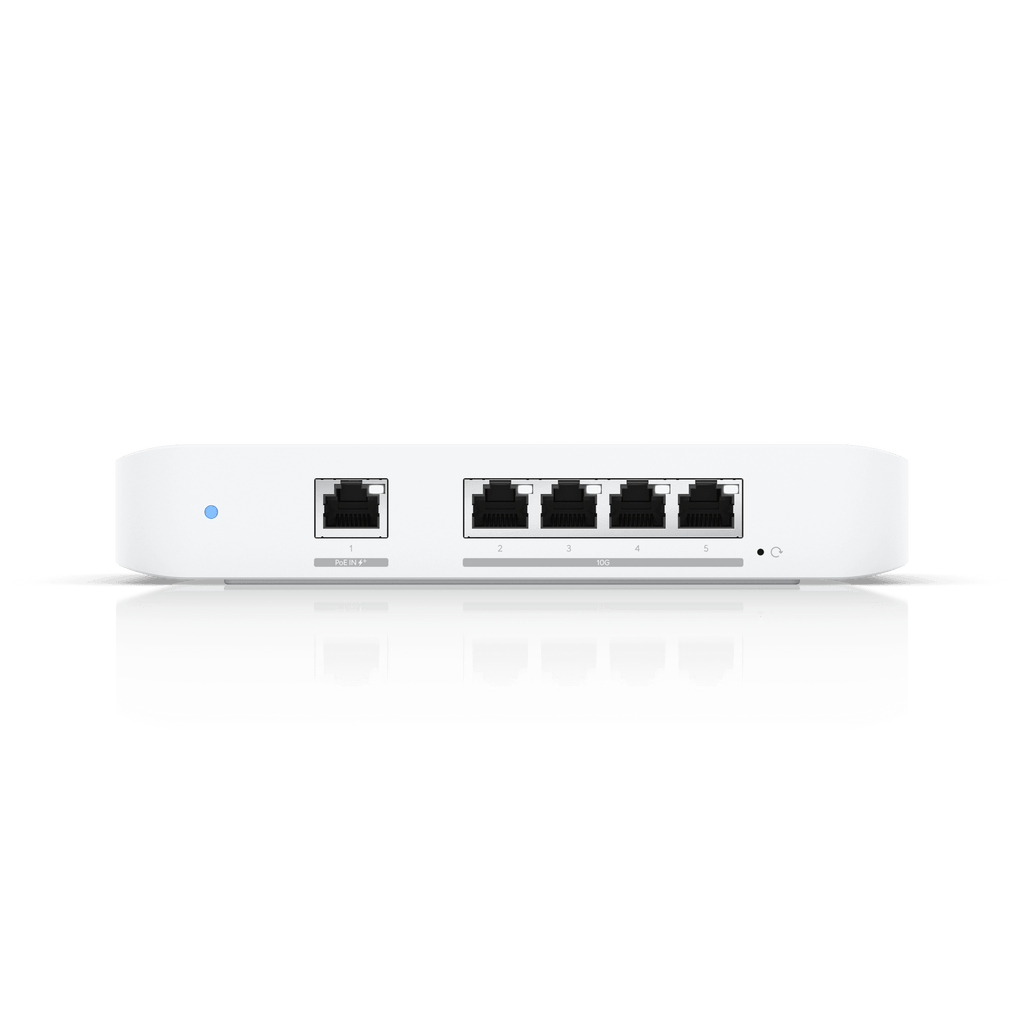

| Ports | 4× 1/2.5/5/10 GbE RJ-45; 1× 1 GbE RJ-45 PoE-in |
| Switching Capacity | 82 Gbps (41 Gbps non-blocking) |
| Forwarding Rate | 61 Mpps |
| Power Input | PoE (802.3at) or USB-C 5 V DC, 5 A |
| Max Power Consumption | 25 W |
| Layer 2 Features | LACP, STP/RSTP, VLANs, ACLs, 802.1X, DHCP snooping, multicast control, jumbo frames, etc. |
| Material | Polycarbonate |
| Operational Temp/Humidity | –5 °C to 45 °C; 10–90% non-condensing |
| Certifications | CE, FCC, IC, NDAA-compliant |
