Features
-

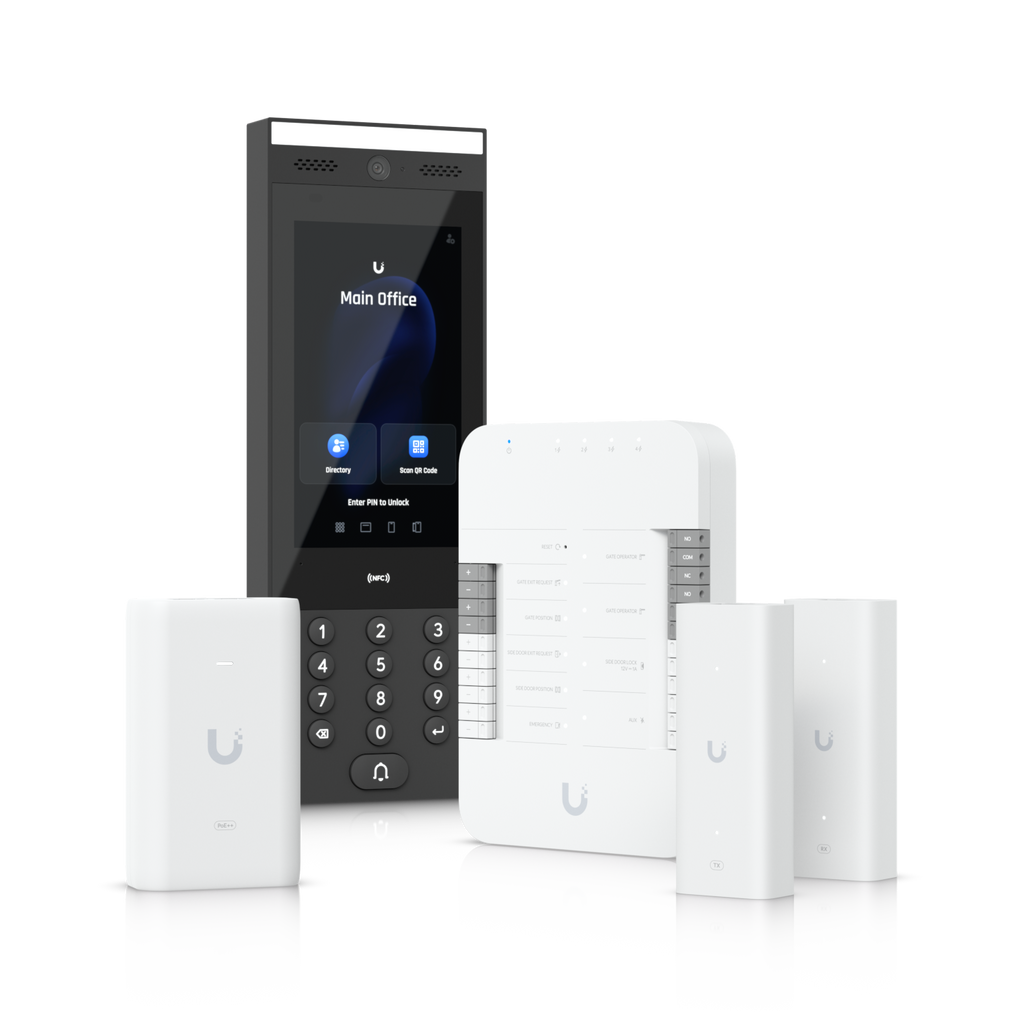

Complete Kit – Includes Gate Hub, Intercom, PoE++ adapter, and 2 PoE extenders
-

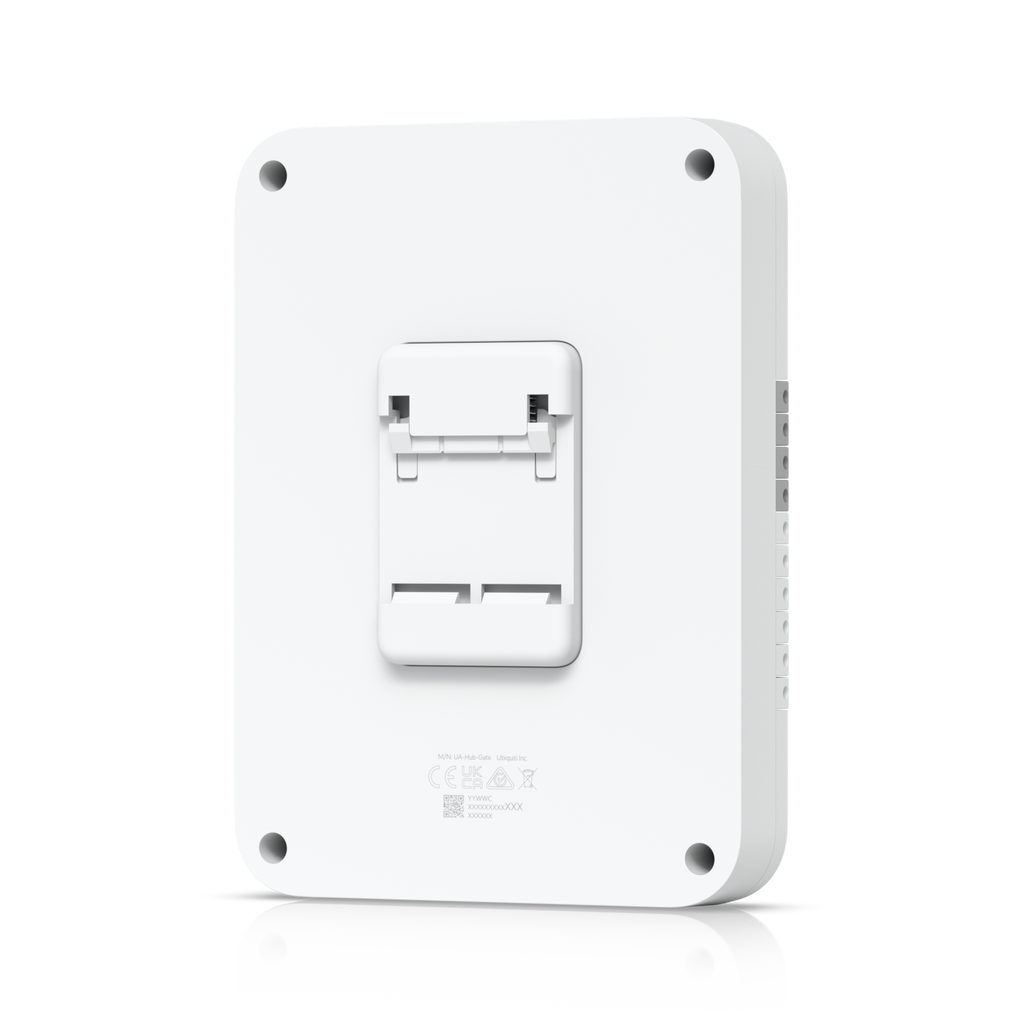

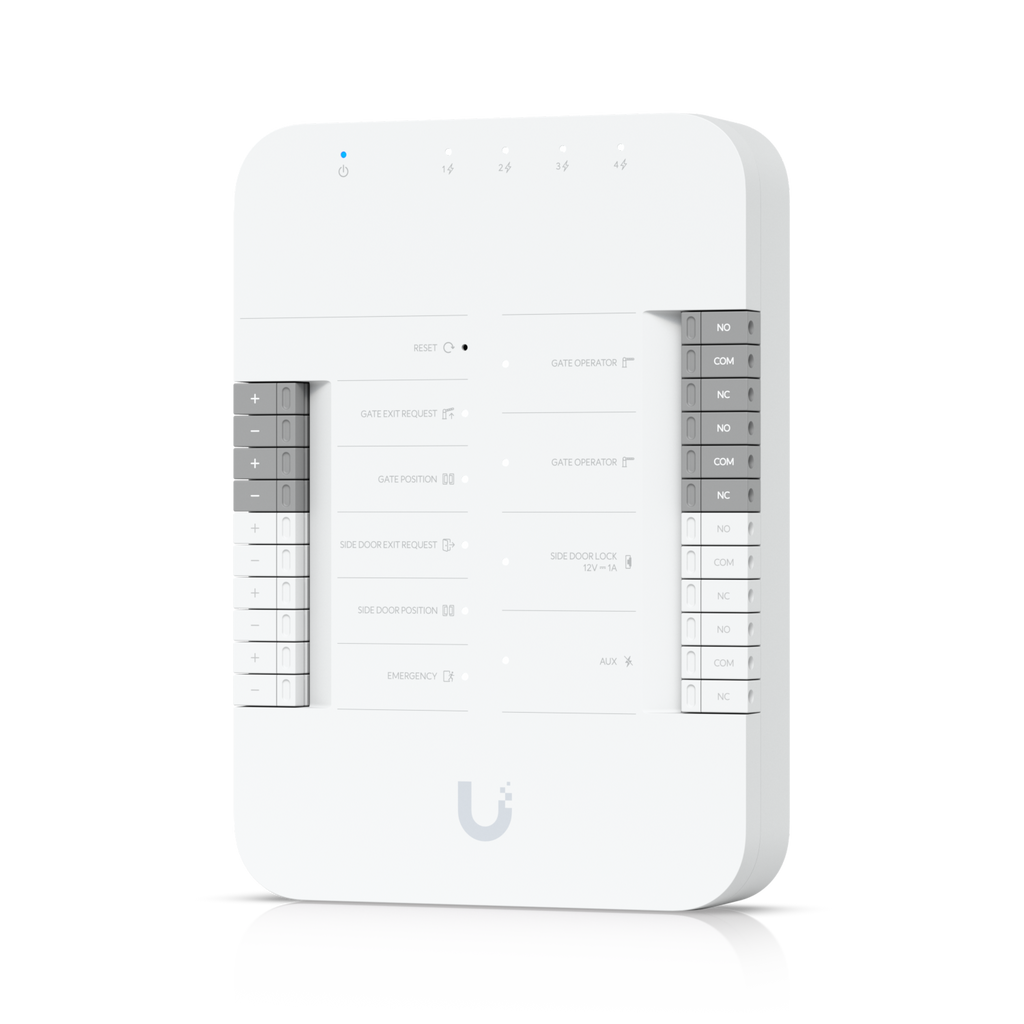

Gate Hub – 1 PoE++ input, 4 PoE outputs, DIN-rail mount, lock relays, AUX relay
-

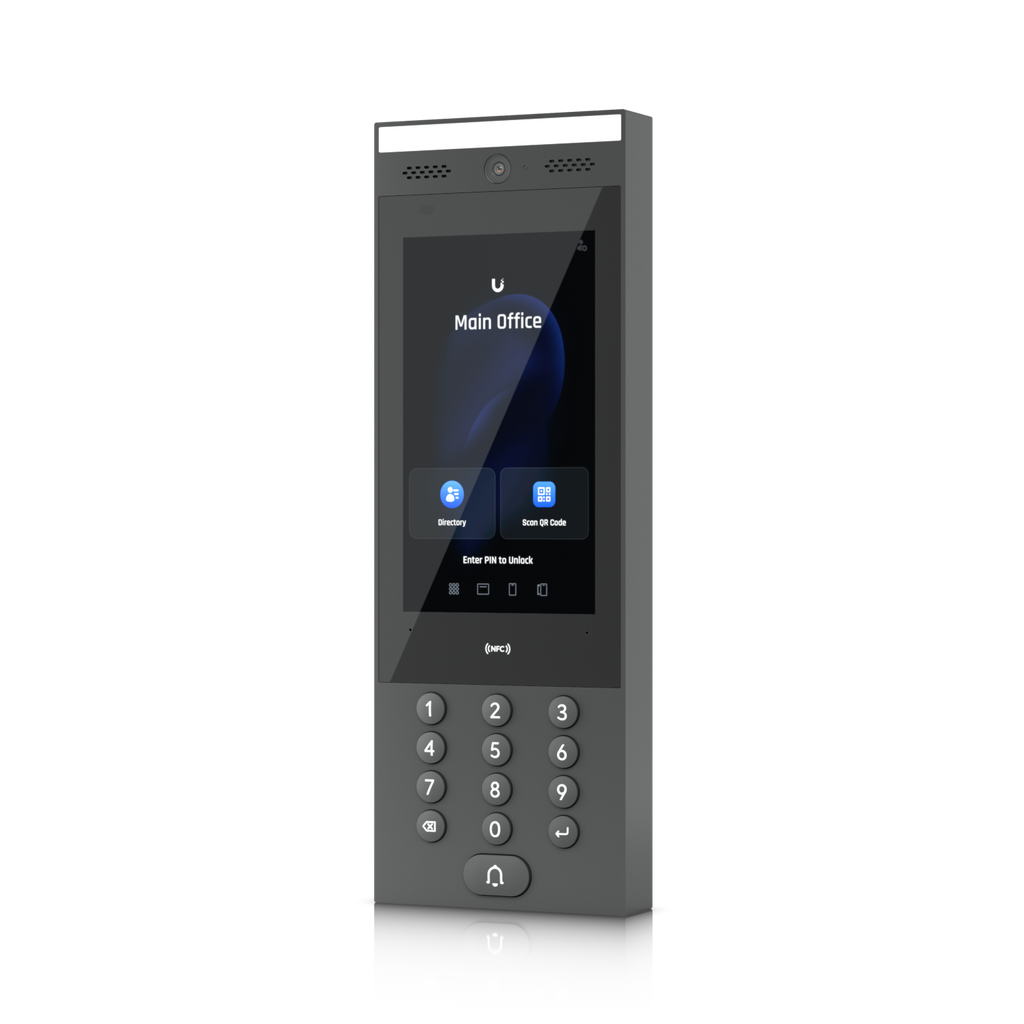

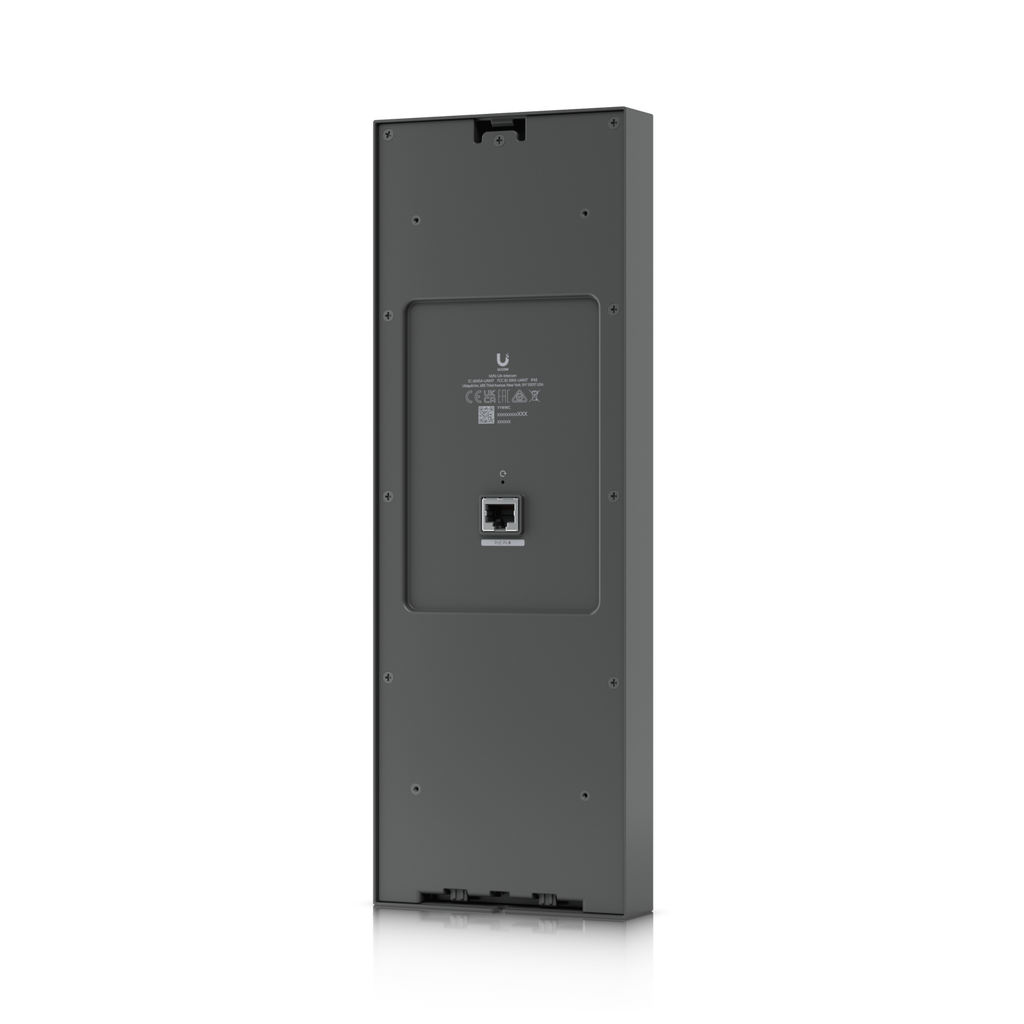

Intercom – 7" touchscreen, camera, NFC & PIN access, BLE, IP65-rated
-

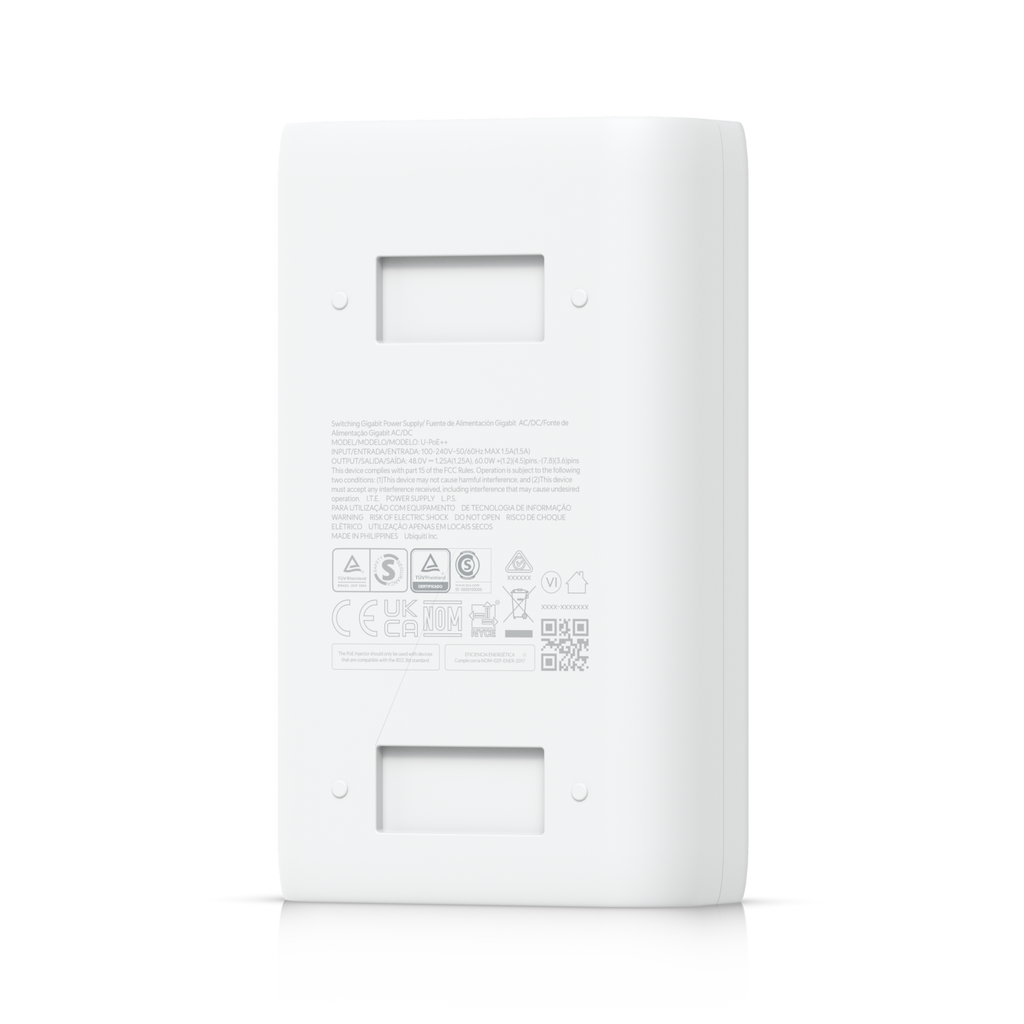

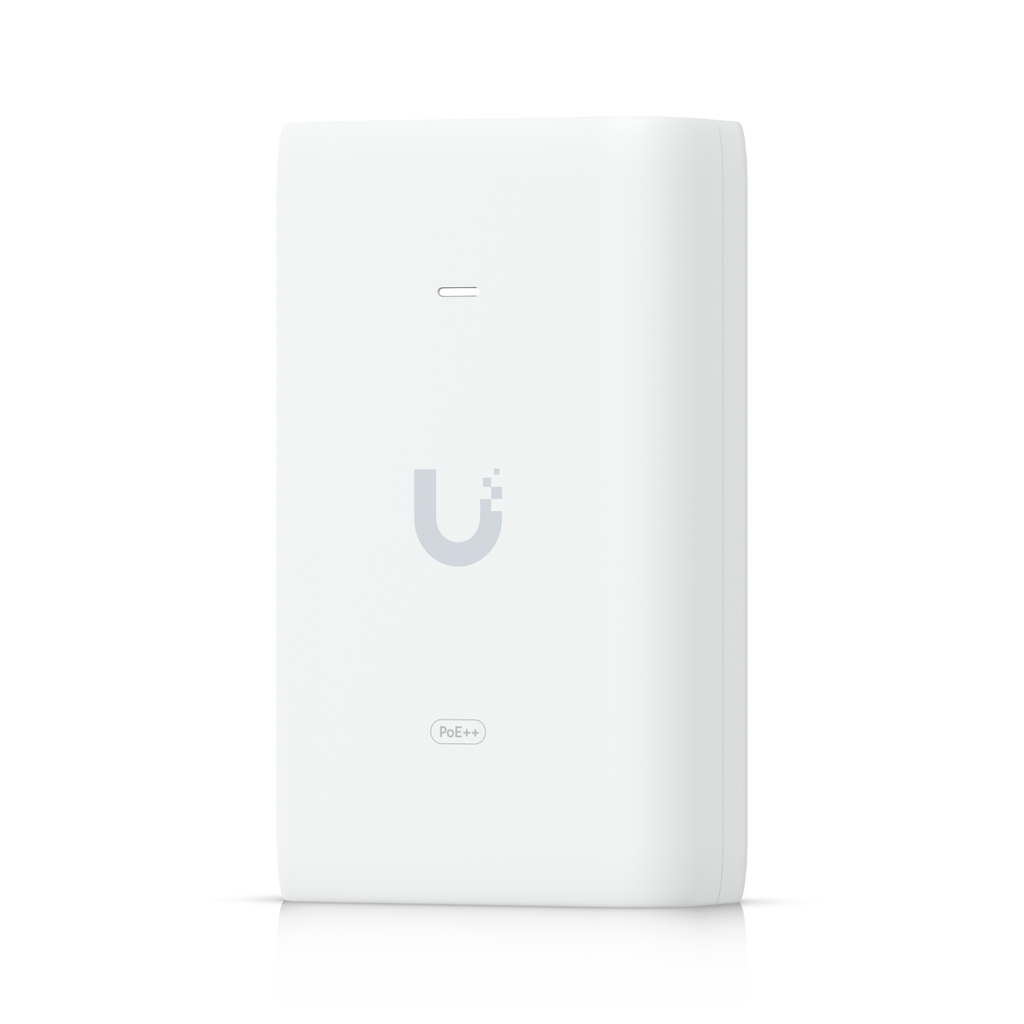

PoE++ Adapter – Delivers up to 60W PoE power with surge and overcurrent protection
-

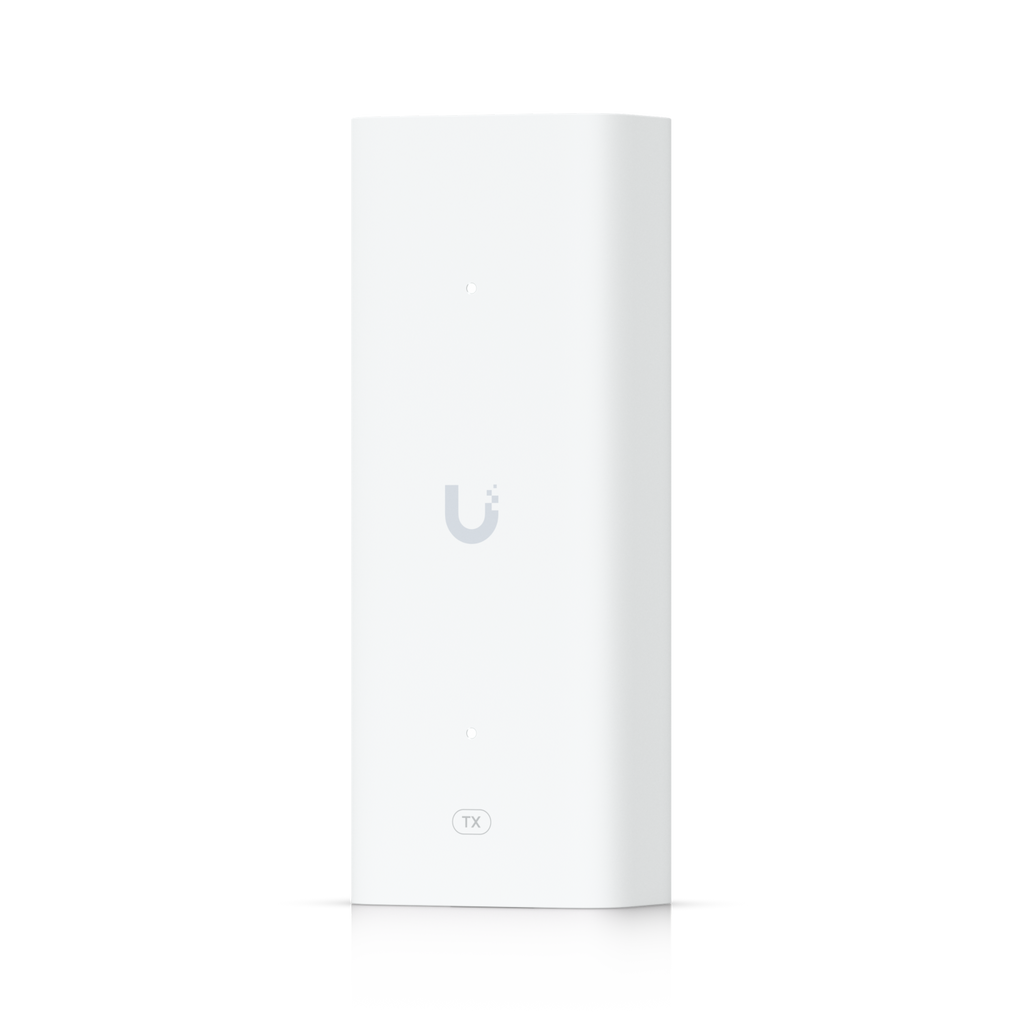

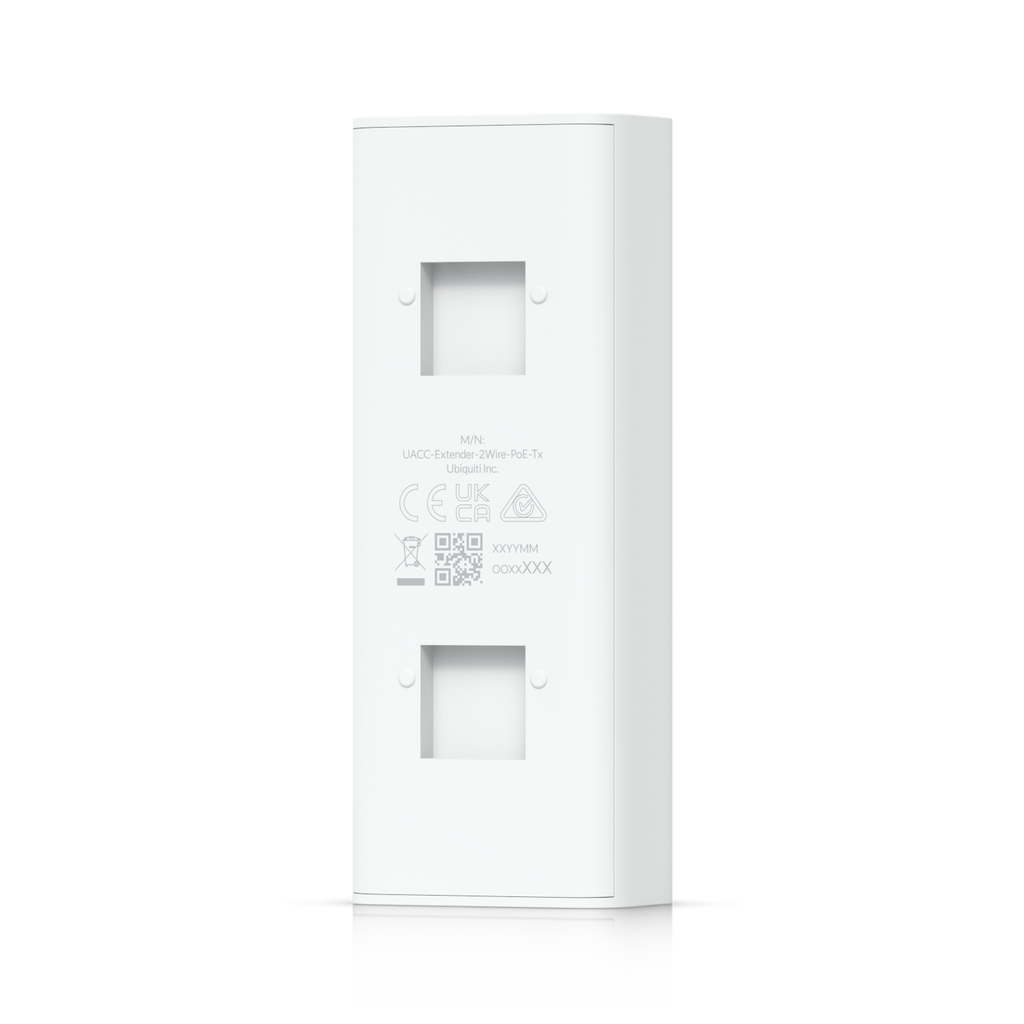

2-Wire PoE Extenders – Extend power and data over legacy 2-wire cabling
-
Advanced Unlock Options – NFC cards, PIN codes, mobile app, and QR code support
-
Secure & Compliant – NDAA compliant, UL 294 Level I certified

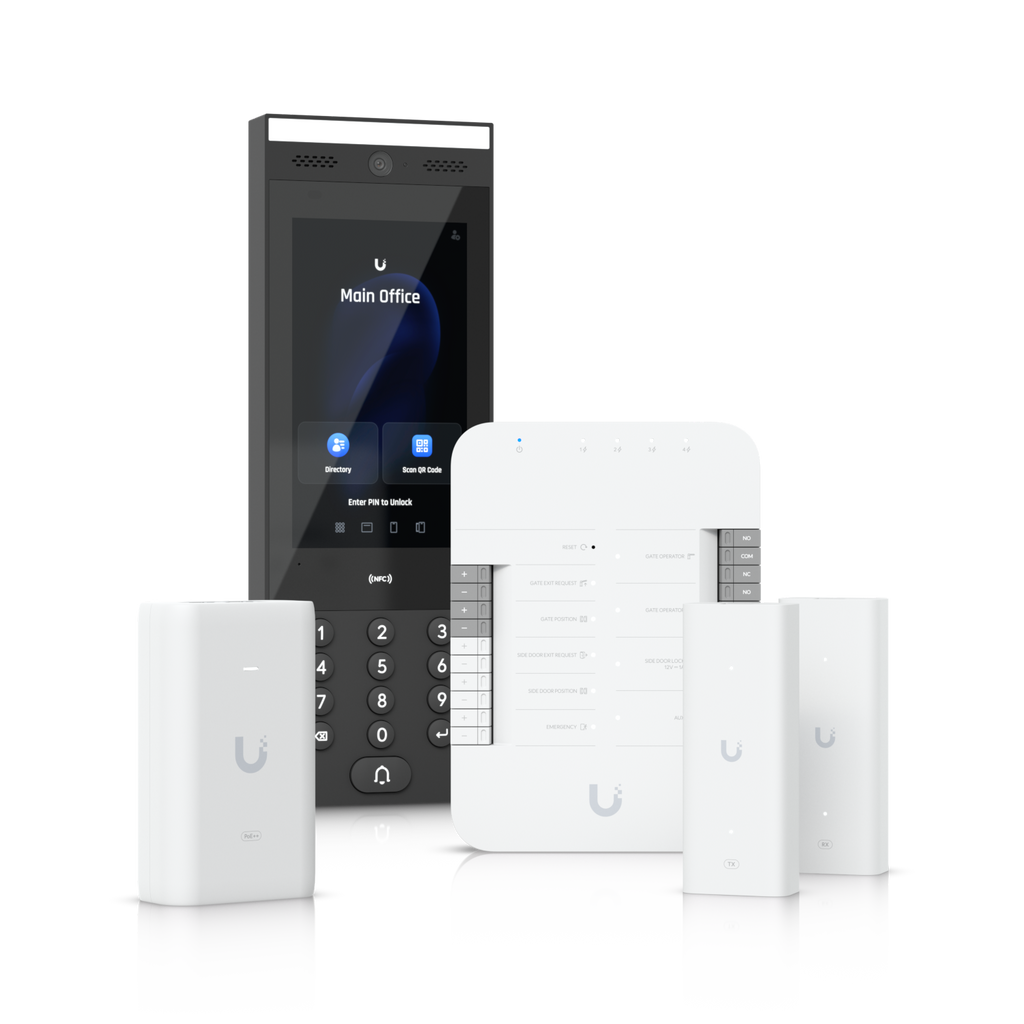

The Ubiquiti Networks UniFi Gate Starter Kit is a complete entry control and intercom solution designed for gates, side doors, and secured access points. This all-in-one kit includes the UniFi Access Gate Hub, UniFi Intercom, PoE++ Adapter, and two 2-Wire PoE Extenders to deliver both power and data with ease.
The Gate Hub manages door locks and access relays while providing multiple PoE outputs for connected devices. The Intercom features a 7" touchscreen, integrated camera, two-way audio, and supports NFC cards, PIN codes, QR codes, and mobile unlocking through the UniFi Identity app.
Built for durability and compliance, the system is NDAA-compliant, UL 294 certified, and IP65-rated for outdoor environments. With license plate recognition support when paired with UniFi cameras, surge-protected PoE delivery, and retrofit-friendly extenders, the UniFi Gate Starter Kit ensures secure, scalable, and reliable access management for modern facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UA-Hub-Gate, UA-Intercom, U-PoE++, UACC-Extender-2Wire-PoE-Tx/Rx |
| UPC | 810084699997 (Gate Hub), 810084693841 (Intercom), 810084691755 (PoE++ Adapter) |
| Gate Hub Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Gate Hub Weight | 460 g (1 lb) |
| Intercom Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Intercom Weight | Device: 965 g (2.1 lb); Bracket: 445 g (1 lb) |
| Intercom Display | 7" capacitive touchscreen, 1024 x 600 px, 1000 nits brightness |
| Networking Interfaces | Gate Hub: (5) GbE; Intercom: (1) GbE RJ45; Extenders: 10/100 MbE + Homeplug AV |
| PoE Interfaces | Gate Hub: (1) PoE++ input, (4) PoE outputs; Intercom: PoE input; Adapter: up to 60W |
| Max Power Consumption | Gate Hub: 22W (w/o PoE), 60W (with PoE); Intercom: 13W; Adapter: 60W output |
| Weatherproofing | Gate Hub: Indoor (outdoor with junction box); Intercom: IP65 |
| Operating Temperature | Gate Hub: -30 to 60 °C; Intercom: -30 to 60 °C; Extender: -10 to 40 °C |
| Operating Humidity | Gate Hub: 5–90% noncondensing; Intercom: 5–90% noncondensing |
| Enclosure Materials | Gate Hub: Polycarbonate; Intercom: Aluminum alloy, glass, UV-stabilized polycarbonate |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1, NDAA compliant |
| Unlock Methods | NFC cards, PIN code, mobile app, QR code, intercom directory |
