Features:
-
6× 10G SFP+ & PoE Ports: High-speed connectivity with Power-over-Ethernet support.
-
Full Layer 2/3 Switching: Enterprise-grade routing, VLANs, and traffic management.
-
PoE+ & PoE++ Support: Delivers up to 60W per port for high-power devices.
-
Managed Switch: Centralized configuration via UniFi Network Controller.
-
Compact & Rack-Mountable: Fits standard 1U rack or desktop placement.
-
High Throughput: Total switching capacity up to 120 Gbps.
-
Advanced Security Features: ACLs, port isolation, and storm control.
-
Fan-Cooled Design: Efficient thermal management for continuous operation.
-
Plug-and-Play Integration: Seamless with existing UniFi networks.
-
Enterprise Networking: Ideal for offices, data centers, and high-performance networks.

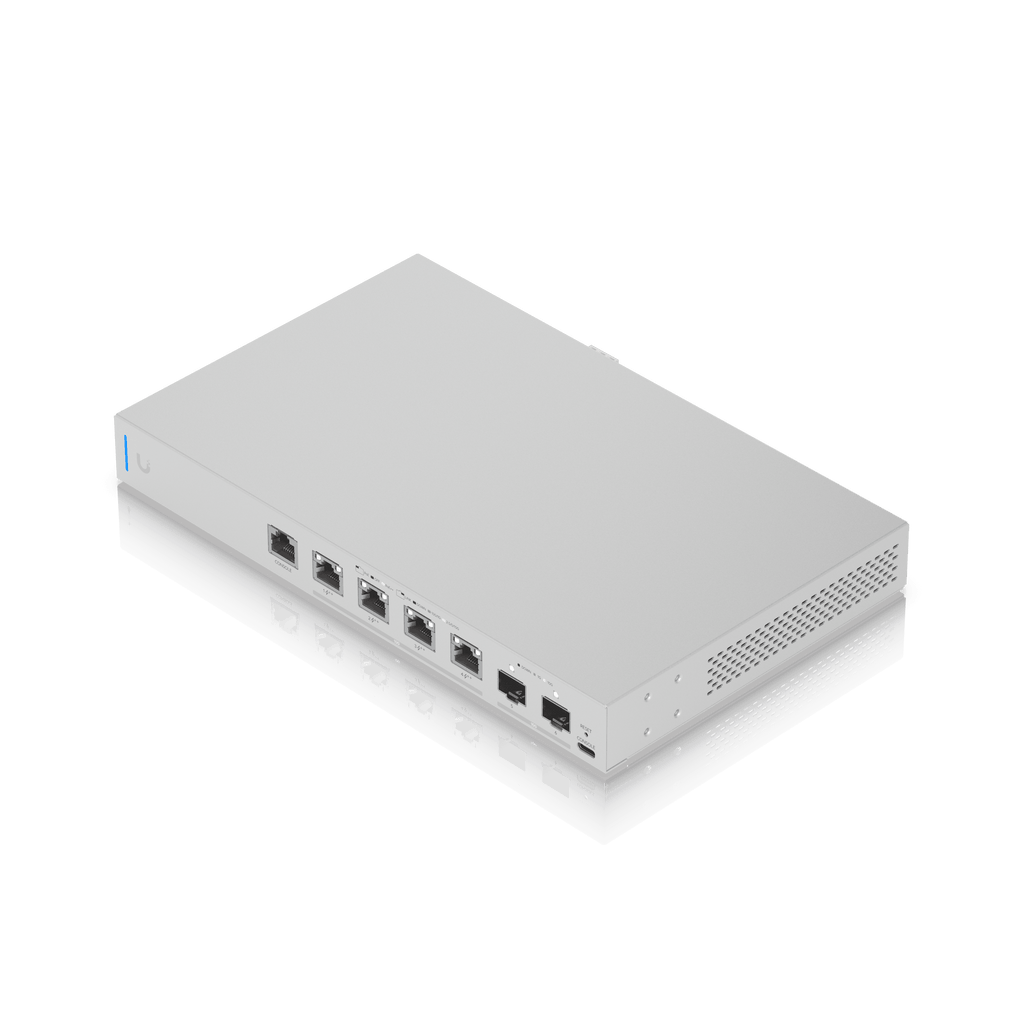

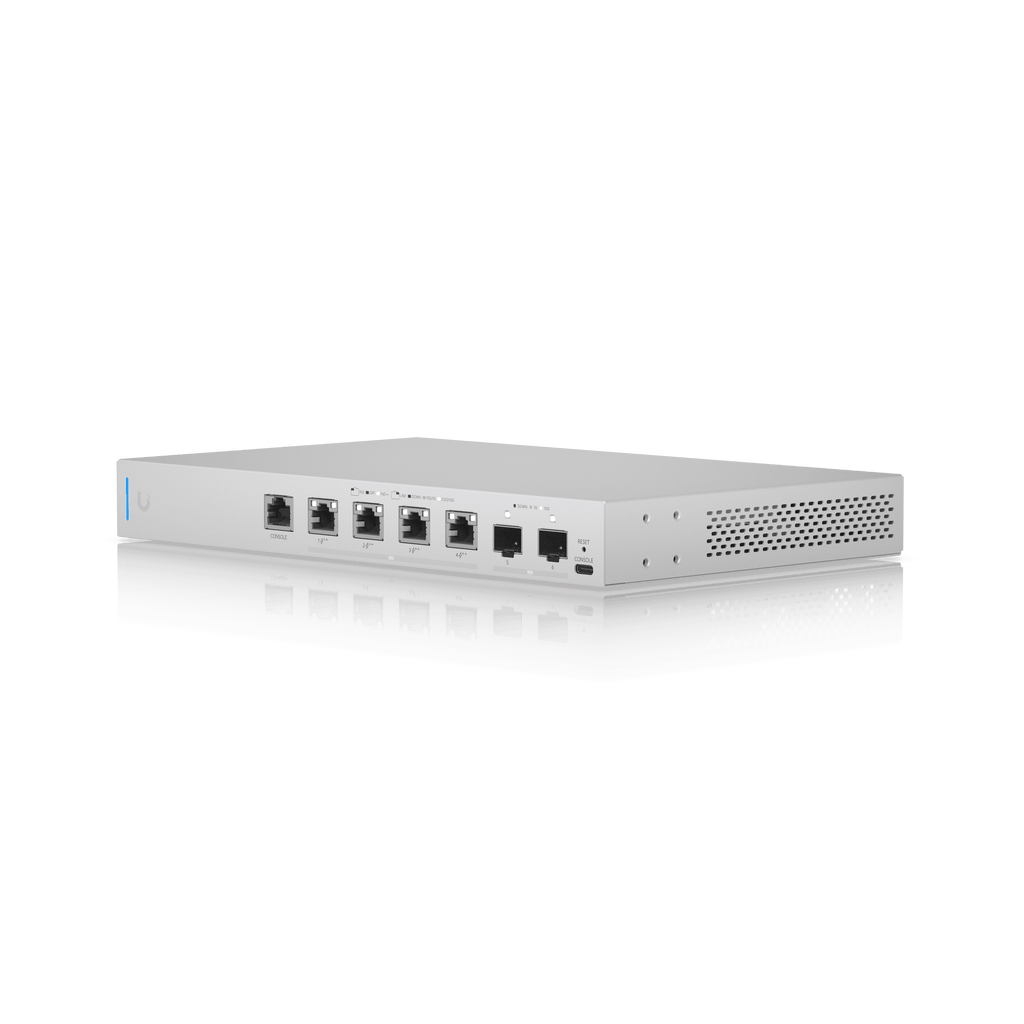

The Ubiquiti US-XG-6POE is a high-performance 10G managed network switch designed for enterprise and high-demand environments. Equipped with six 10G SFP+ ports and full PoE/PoE+ capabilities, it powers connected devices such as access points, VoIP phones, cameras, and more.
Its full Layer 2/3 switching capabilities, combined with centralized management via the UniFi Network Controller, allow for advanced traffic handling, VLANs, and security. Compact, rack-mountable, and fan-cooled, the US-XG-6POE provides reliable, high-speed connectivity with enterprise-grade security, making it an ideal backbone for modern business networks.
Technical Specifications
-
Part Number: US-XG-6POE
-
UPC: 810010075945
-
Weight: 3.8 kg (8.38 lb)
-
Dimensions: 442 × 197 × 44 mm (17.4 × 7.8 × 1.73")
-
Ports: 6× 10G SFP+ with PoE/PoE+ support
-
Switching Capacity: 120 Gbps
-
Forwarding Rate: 89.28 Mpps
-
PoE Budget: Up to 60W per port
-
Management: UniFi Network Controller, Web UI, CLI
-
VLAN Support: 802.1Q VLANs, voice VLAN, management VLAN
-
Security Features: ACLs, port isolation, storm control
-
Cooling: Built-in fans, temperature-controlled
-
Mounting: Rack-mountable 1U or desktop
-
Power: 100–240V AC, 50/60Hz
-
Certifications: CE, FCC, IC
