Features
-
8 Gigabit Ports – 8 × 1 GbE RJ45 ports, including 4 with PoE support.
-
PoE Power – 802.3af compliant with up to 15.4W per PoE port, 48W total.
-
Enterprise Performance – 16 Gbps switching capacity and 12 Mpps forwarding rate.
-
Compact & Flexible – Desktop or wall-mountable design with included power adapter.
-
Advanced Layer 2 Features – VLANs, STP/RSTP, IGMP Snooping, ACLs, port isolation, jumbo frames, and more.
-
UniFi Network Integration – Centralized management, multi-site support, traffic stats, and configuration.
-
Durable Build – SGCC steel enclosure for long-lasting reliability.
-
Certified & Compliant – CE, FCC, IC, Anatel certified and NDAA compliant.

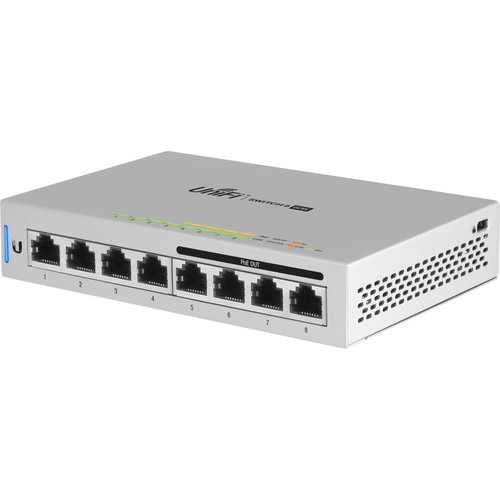

The Ubiquiti Networks US-8-60W UniFi Managed Switch delivers enterprise-class performance in a compact form factor. Featuring 8 Gigabit RJ45 ports, including 4 auto-sensing PoE ports with a total budget of 48W, this switch is designed to power and connect devices such as UniFi APs, cameras, and VoIP phones.
It offers a non-blocking throughput of 8 Gbps, a 16 Gbps switching capacity, and a 12 Mpps forwarding rate for seamless traffic management. With full Layer 2 features, advanced VLAN support, and integration into the UniFi Network platform, administrators can centrally manage networks across multiple sites with ease.
Built with a durable SGCC steel enclosure and designed for desktop or wall installation, the US-8-60W is a versatile and reliable choice for growing UniFi environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | US-8-60W |
| UPC | 810354026164 |
| Dimensions | 148 × 100 × 31 mm (5.8 × 3.9 × 1.2") |
| Weight | 432 g (15.2 oz) |
| Port Layout | 8 × 1 GbE RJ45 (4 PoE) |
| PoE Ports | 4 × 802.3af PoE |
| Max PoE Output | 15.4W per port, 48W total |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Layer 2 Features | LACP, STP & RSTP, IGMP Snooping, IGMP Configuration, 802.1X, ACLs, DHCP Snooping, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, and more |
| Max. Power Consumption | 12W (excluding PoE output) |
| Power Method | AC/DC adapter (Included) |
| Supported Voltage Range | 44–57V DC (PoE) |
| Enclosure / Mount Material | SGCC steel |
| Operating Conditions | -5 to 45°C (23 to 113°F), 5–95% noncondensing humidity |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
| Application Requirements | UniFi Network v6.3.51 and later |
