Features
-
16 Gigabit Ports – Connects multiple devices with reliable Gigabit performance.
-
PoE+ Support – 8 × 802.3af/at PoE+ ports deliver up to 30W per port, 45W total budget.
-
High Performance – 32 Gbps switching capacity and 16 Gbps non-blocking throughput.
-
Layer 2 Managed Features – VLANs, QoS, ACLs, jumbo frames, IGMP snooping, and more.
-
Silent Operation – Fanless design keeps operation quiet in offices and homes.
-
Centralized Management – Easily configure and monitor via UniFi Network Controller.
-
Compact & Flexible – Desktop or wall-mountable design with included kit.
-
Certified & Secure – NDAA compliant, CE, FCC, IC, and Anatel certified.

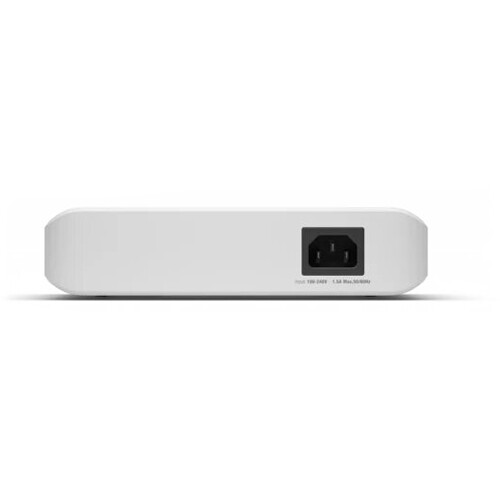

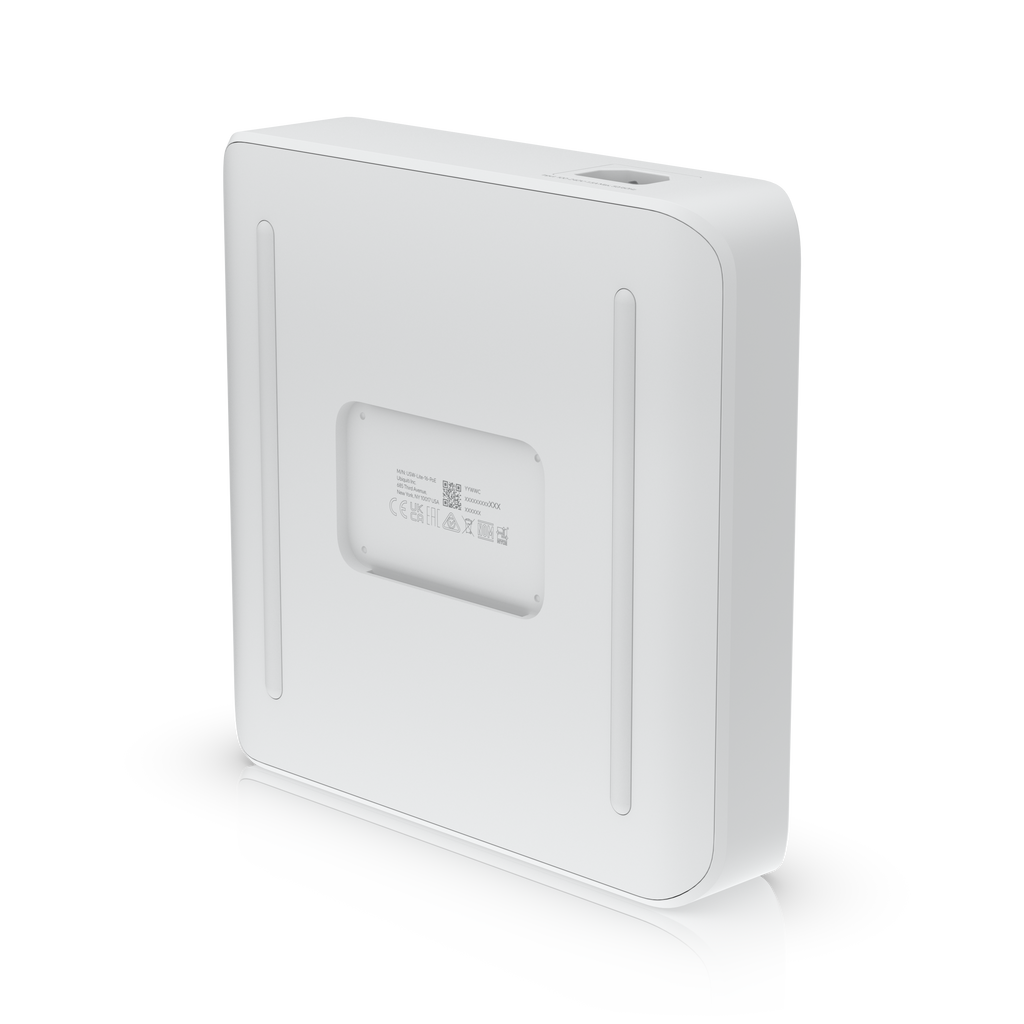

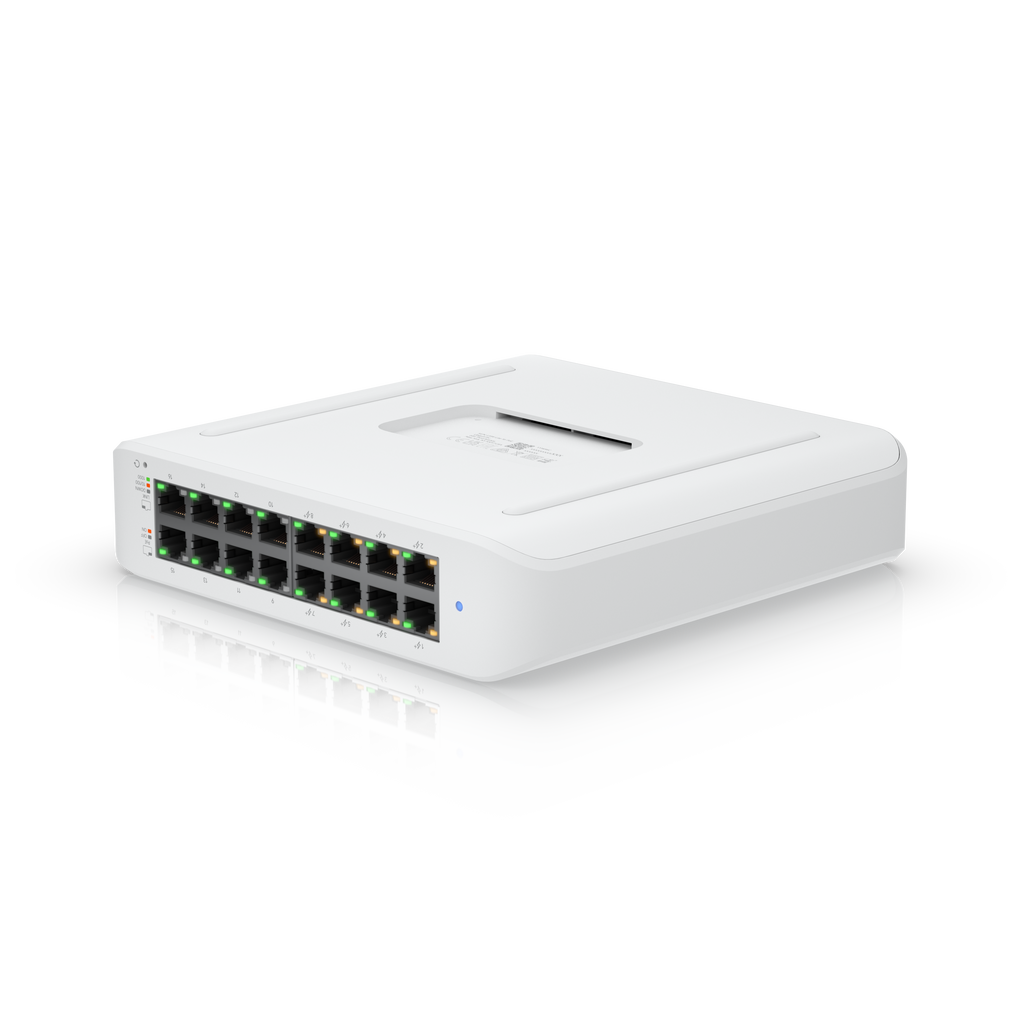

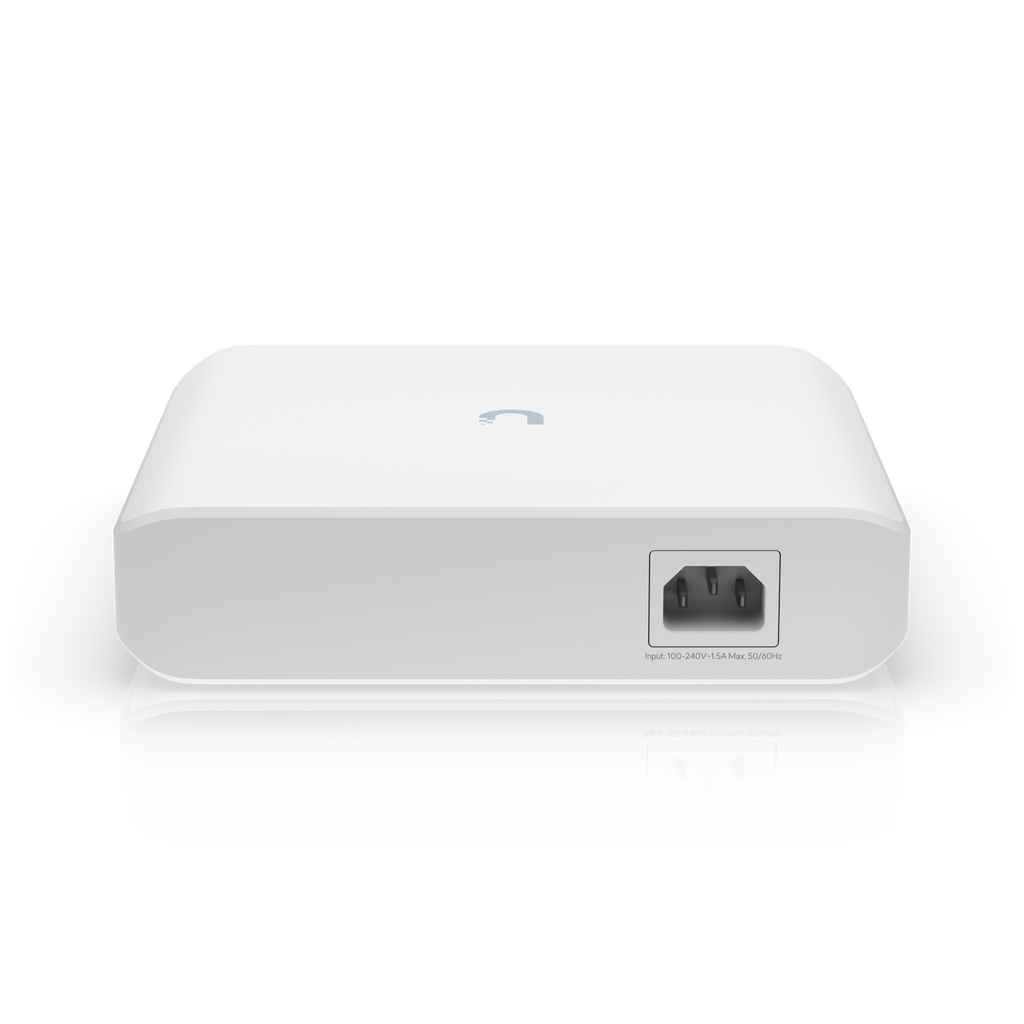

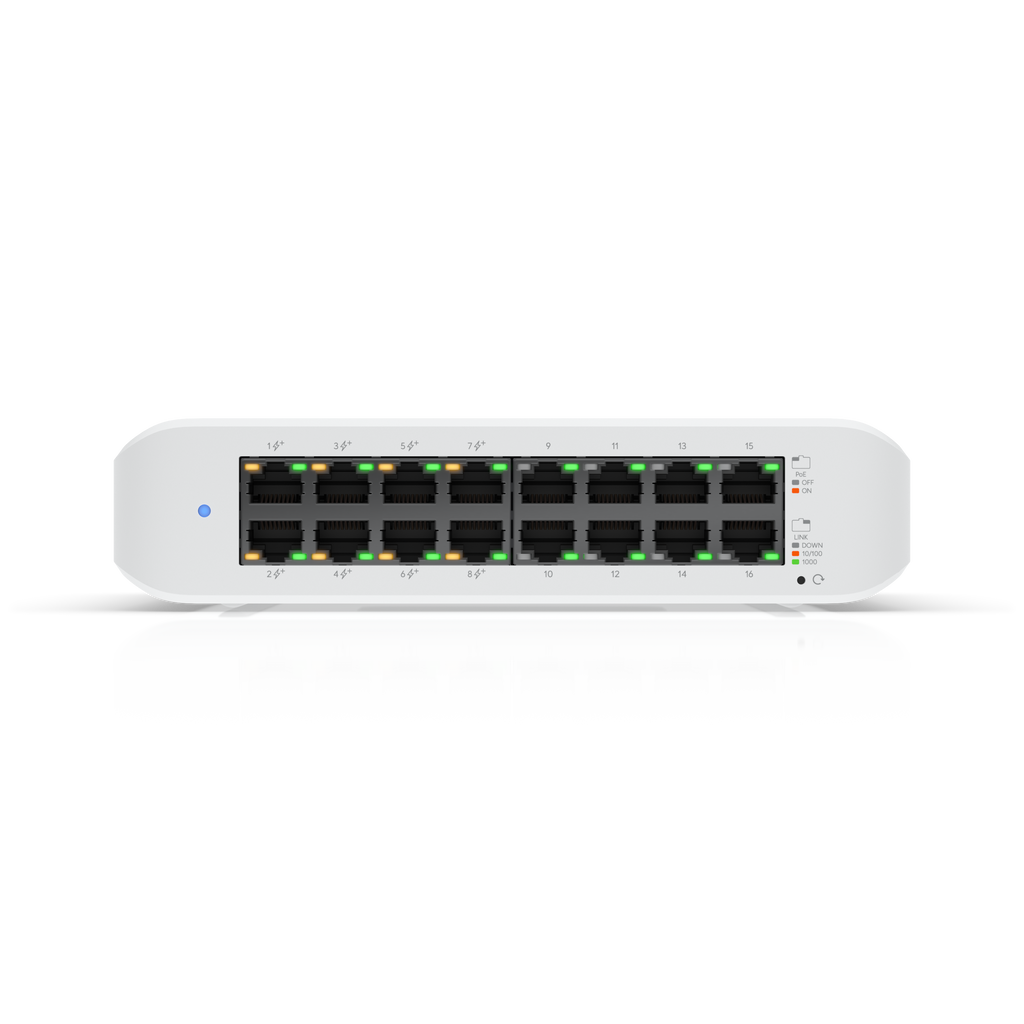

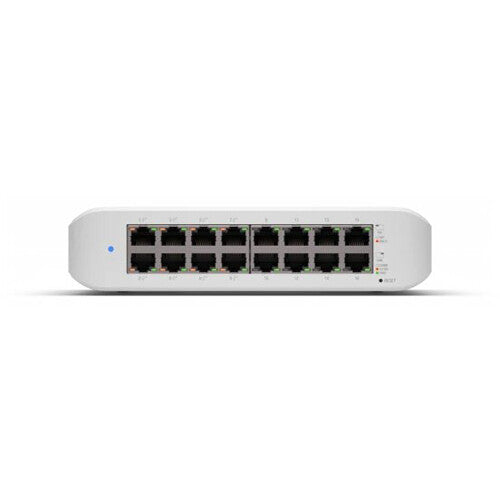

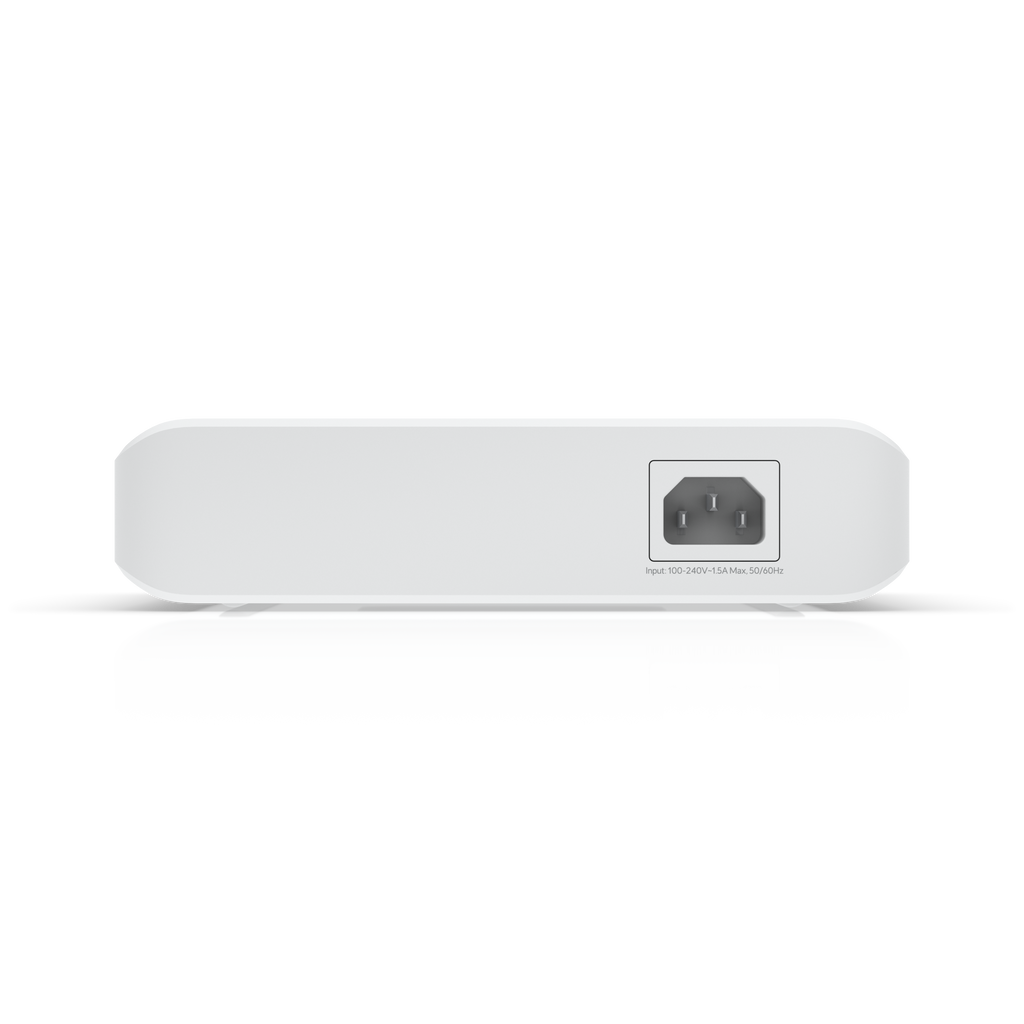

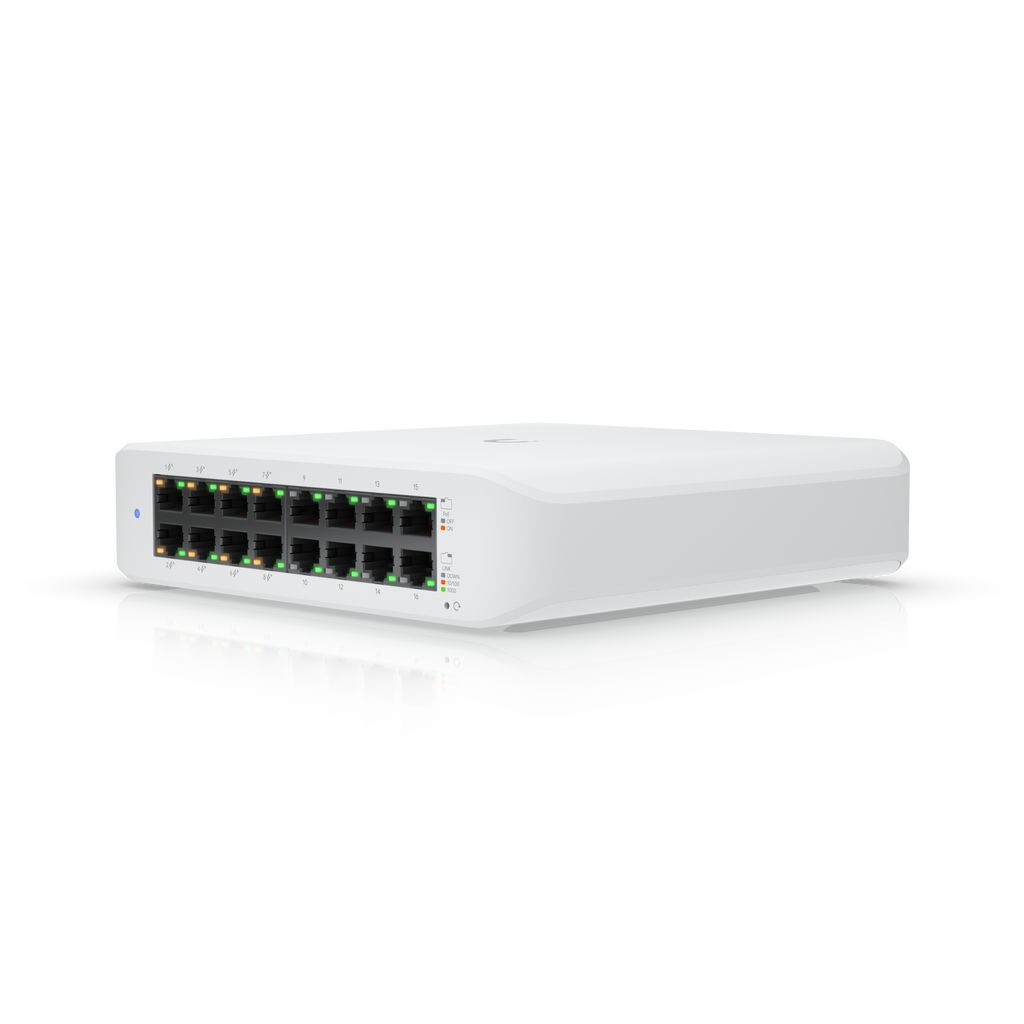

The Ubiquiti Networks UniFi Lite 16-Port Gigabit Managed Switch is a cost-effective solution to expand and manage your growing network with ease.
Featuring sixteen Gigabit Ethernet ports, including eight 802.3af/at PoE+ ports, it provides up to 30W per port with a total PoE budget of 45W—perfect for powering security cameras, VoIP phones, UniFi access points, and more. Delivering a 32 Gbps switching capacity with 16 Gbps non-blocking throughput, the UniFi Lite 16 ensures smooth, efficient traffic handling.
Integrated with the UniFi Network Controller, administrators can configure, monitor, and optimize the network centrally. With a fanless design for silent operation and flexible mounting options, this switch is ideal for both small businesses and home offices.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UniFi Lite 16-Port PoE+ |
| UPC | 810010071118 |
| Dimensions | 192 × 185 × 44 mm (7.6 × 7.3 × 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Port Layout | 16 × 1G RJ45 (8 PoE+) |
| PoE Budget | 45W total (30W max per PoE+ port) |
| Switching Capacity | 32 Gbps |
| Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Layer 2 Features | LACP, STP & RSTP, IGMP Snooping, ACLs, DHCP Snooping, VLAN isolation, jumbo frames, LLDP-MED, Voice VLAN |
| Max. Power Consumption | 15W (excluding PoE) · 60W (including PoE) |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC, internal, 60W |
| Enclosure Material | Polycarbonate |
| Form Factor | Compact desktop, wall mount |
| Operating Conditions | -15 to 40°C (5 to 104°F), 10–90% noncondensing humidity |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
