Features
-
48 Gigabit Ethernet Ports – High-density connectivity with 32 PoE+ enabled ports for powered devices.
-
PoE+ Power – Supports up to 32W per port with a 195W total budget.
-
Fiber Uplinks – Four 1G SFP ports for stable and scalable fiber connections.
-
High Performance – 104 Gbps switching capacity and 77 Mpps forwarding rate.
-
Advanced Layer 2 Features – VLANs, QoS, ACLs, IGMP Snooping, DHCP Guarding, Jumbo Frames, and more.
-
Integrated LCD Touchscreen – 1.3" display for real-time system information and diagnostics.
-
Silent Operation – Fanless design ensures noise-free performance in any environment.
-
UniFi Network Controller – Centralized network monitoring, analytics, and management.
-
Certified & Compliant – NDAA compliant, CE, FCC, IC, and Anatel certified.

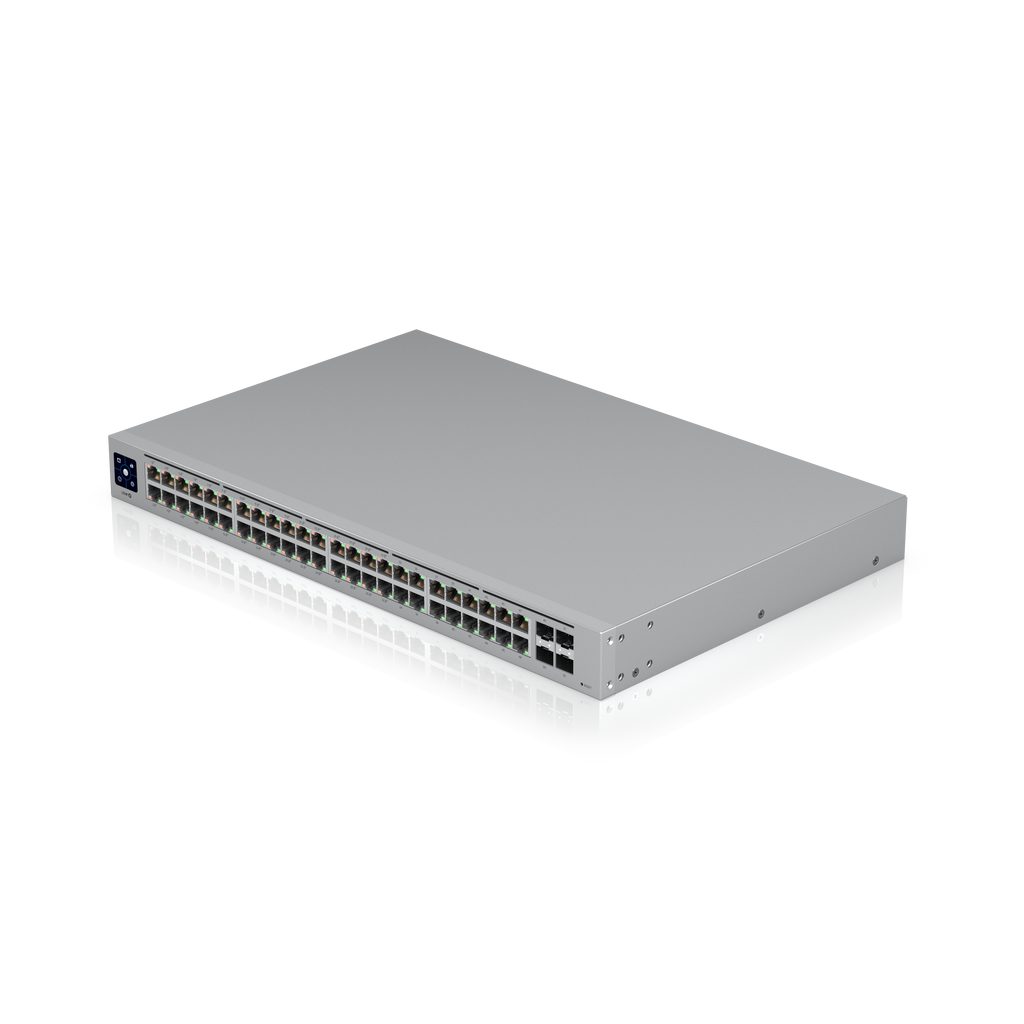

The Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Managed Switch delivers enterprise-grade performance with scalability and silent efficiency.
Featuring 48 Gigabit Ethernet ports, 32 of which support 802.3af/at PoE+ with up to 32W per port and a total budget of 195W, this switch is ideal for powering IP phones, UniFi cameras, and access points. Four Gigabit SFP ports are included for reliable fiber uplinks, making it suitable for high-bandwidth business environments.
The 1.3" touchscreen provides at-a-glance system status and quick troubleshooting, while UniFi Network Controller integration ensures robust centralized management. Its fanless design allows for silent operation, making it perfect for both office and rack-mounted setups.
Technical Specifications
Specification | Details |
---|---|
Model / Part Number | UniFi 48-Port Gigabit PoE+ Managed Switch |
UPC | 810010072139 |
Dimensions | 442 × 285 × 44 mm (17.4 × 11.2 × 1.7") |
Weight | 4.5 kg (10 lb) without brackets · 4.6 kg (10.2 lb) with brackets |
Port Layout | 48 × 1G RJ45 (32 PoE+), 4 × 1G SFP |
PoE Budget | 195W total (up to 32W per PoE+ port) |
Switching Capacity | 104 Gbps |
Non-Blocking Throughput | 52 Gbps |
Forwarding Rate | 77 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 16,000 |
Packet Buffer Size | 1.5 MB |
Layer 2 Features | LACP, STP & RSTP, IGMP Snooping, ACLs, DHCP Snooping, QoS, Jumbo Frames, LLDP-MED, Voice VLAN |
Max. Power Consumption | 45W (excluding PoE) · 240W (including PoE) |
Power Method | Universal input, 100–240V AC, 50/60 Hz |
Power Supply | AC/DC, internal, 240W |
Form Factor | Rack mount (1U) |
LCM Display | 1.3" touchscreen |
Operating Conditions | -5 to 40°C (23 to 104°F), 10–90% noncondensing humidity |
Enclosure Material | SGCC steel |
Certifications | CE, FCC, IC, Anatel |
NDAA Compliant | Yes |
