Features
-
24 Gigabit Ethernet Ports – Includes 16 PoE+ ports for powering cameras, APs, and IP phones.
-
PoE+ Support – Up to 32W per port, with a total budget of 95W.
-
Fiber Uplinks – Two 1G SFP ports for reliable long-distance connections.
-
Enterprise Performance – 52 Gbps switching capacity and 39 Mpps forwarding rate.
-
Advanced Layer 2 Features – VLANs, QoS, ACLs, IGMP Snooping, Jumbo Frames, and more.
-
Silent Operation – Fanless cooling ensures noise-free performance.
-
Integrated LCD Touchscreen – 1.3" display for status, alerts, and quick troubleshooting.
-
UniFi Network Controller – Centralized management, deep packet inspection, analytics, and multi-site configuration.
-
Certified & Compliant – NDAA compliant, CE, FCC, IC, and Anatel certified.

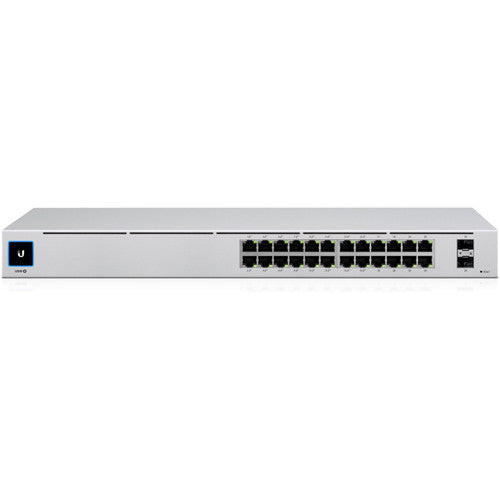

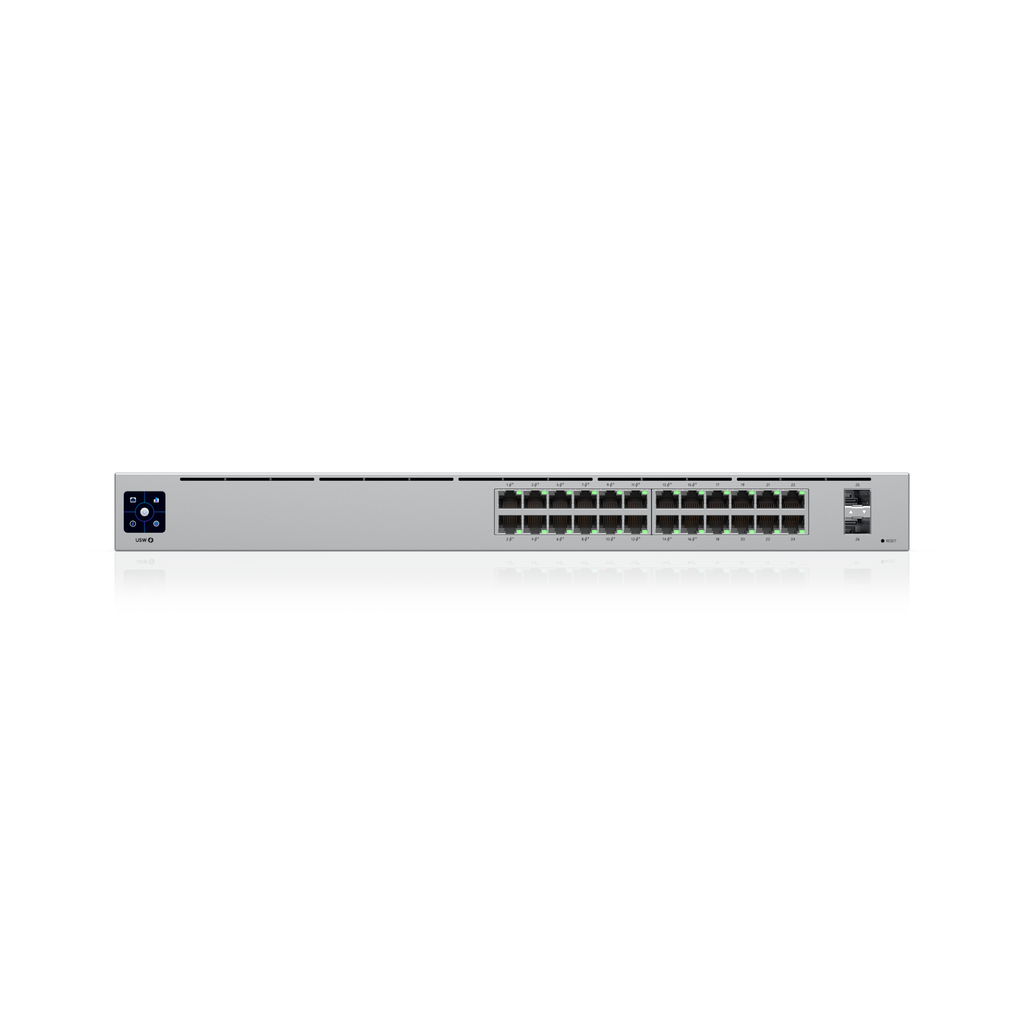

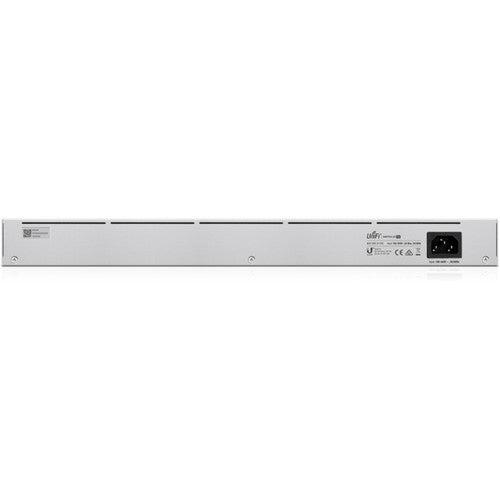

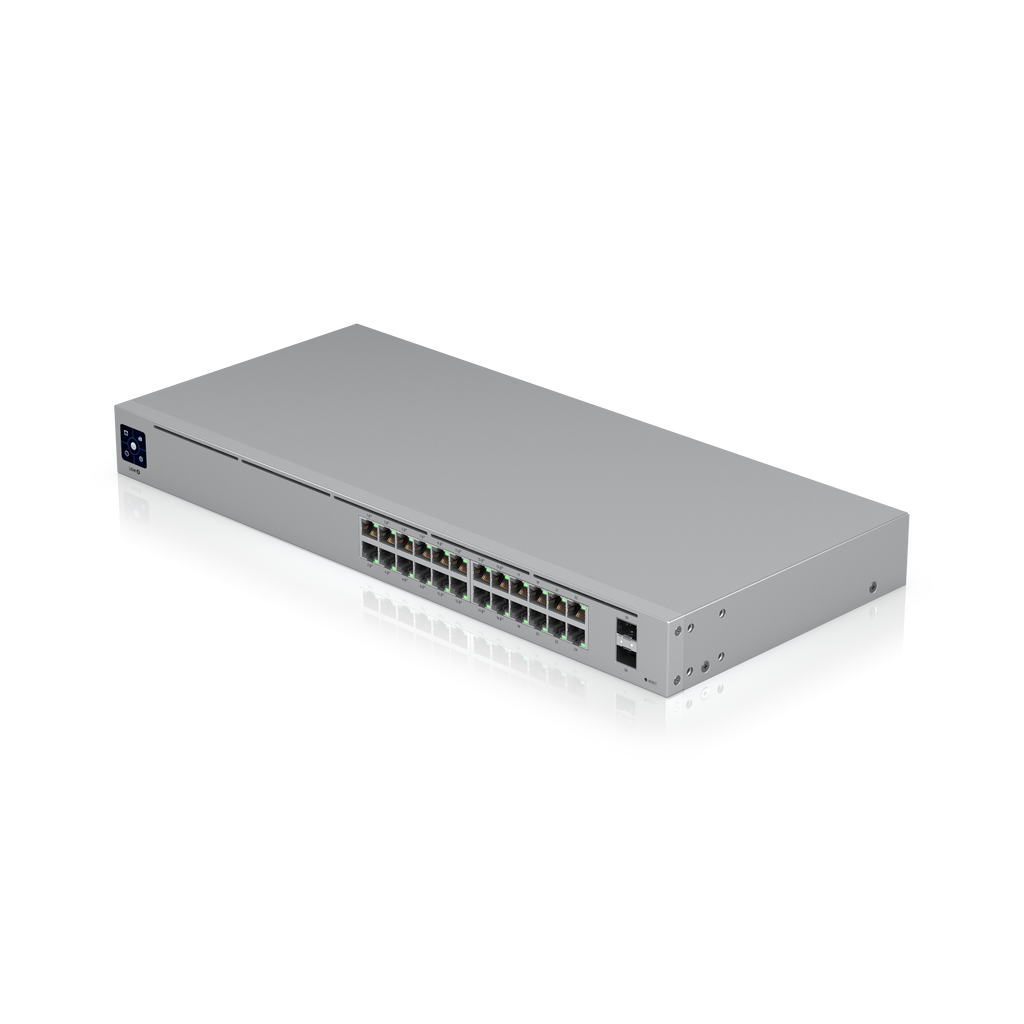

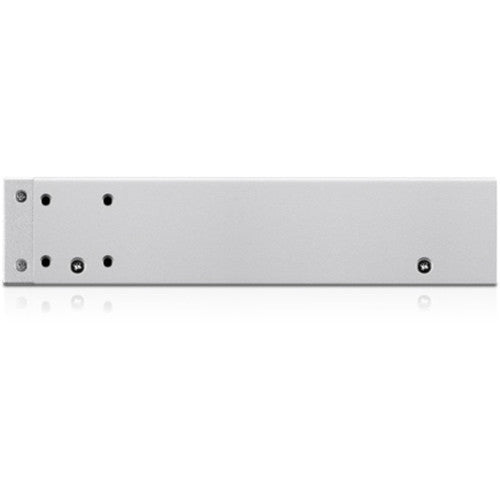

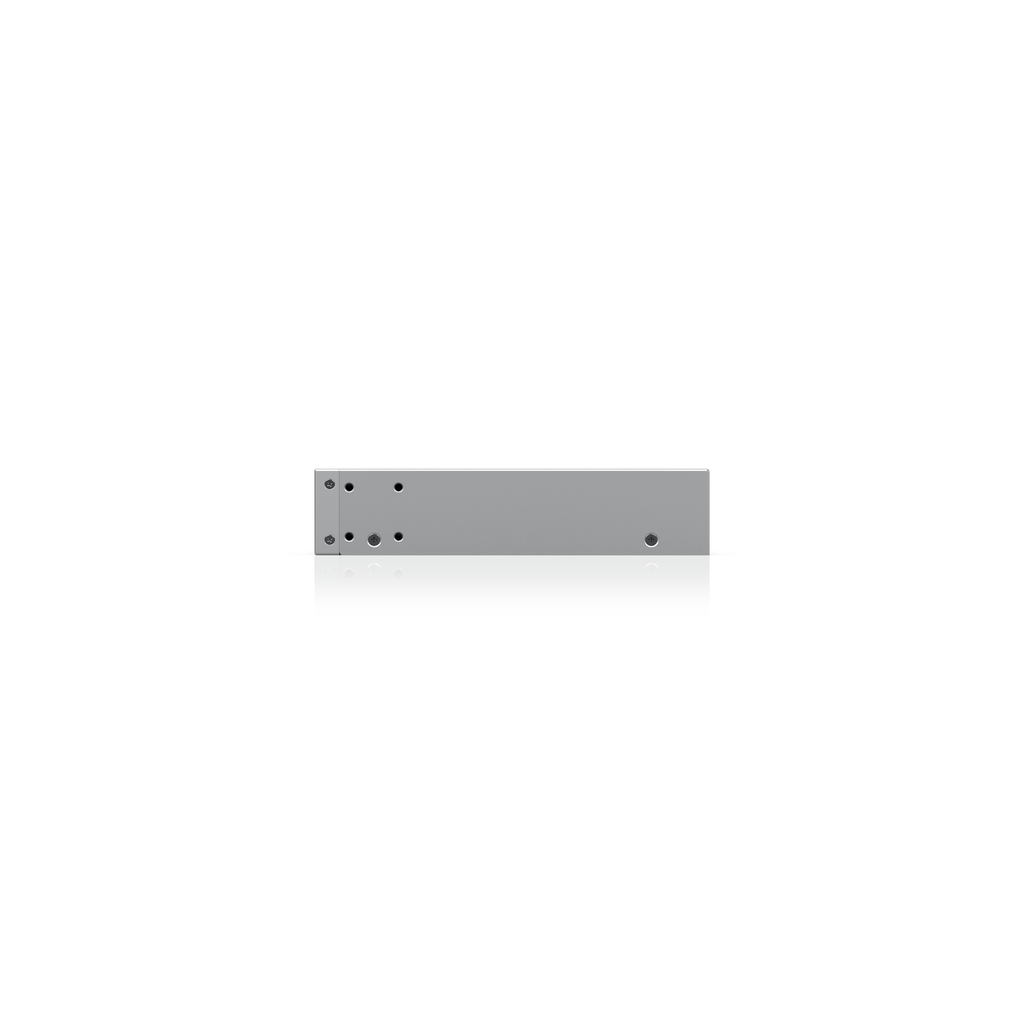

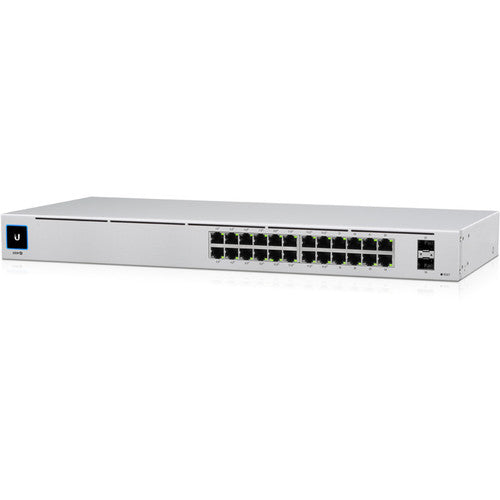

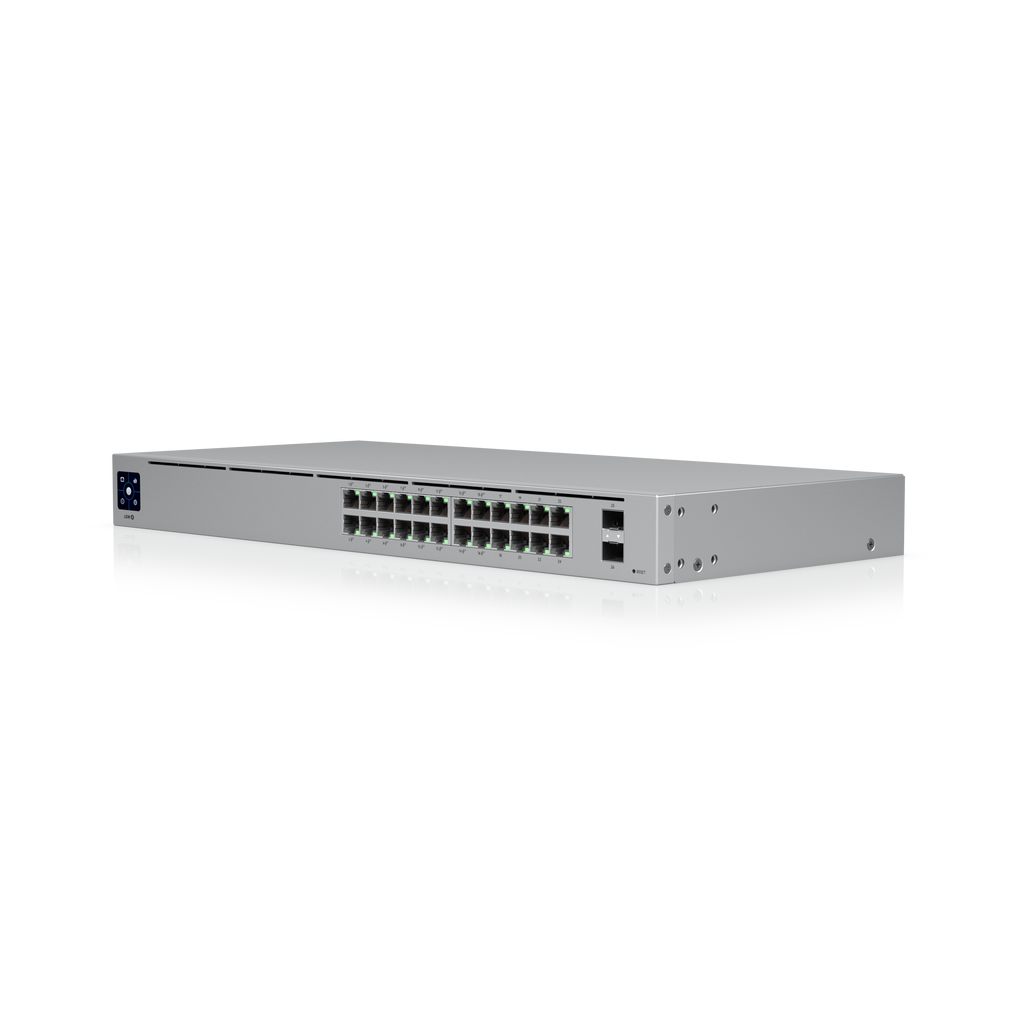

The Ubiquiti Networks UniFi 24-Port Gigabit PoE+ Managed Switch provides high-performance switching with enterprise-grade features in a compact 1U rackmount or desktop design.
With 24 Gigabit Ethernet ports—16 of which support 802.3af/at PoE+ up to 32W per port—the switch delivers a total PoE budget of 95W, making it ideal for powering UniFi cameras, access points, VoIP phones, and more. Two Gigabit SFP uplink ports allow for seamless fiber expansion, while the fanless design ensures silent operation in office or data center environments.
A 1.3" touchscreen display provides real-time system monitoring and quick diagnostics. The switch integrates with the UniFi Network Controller for centralized management, analytics, and multi-site deployments.
Technical Specifications
Specification | Details |
---|---|
Model / Part Number | UniFi 24-Port Gigabit PoE+ Managed Switch |
UPC | 817882028523 |
Dimensions | 442 × 200 × 44 mm (17.4 × 7.9 × 1.7") |
Weight | 3 kg (6.6 lb) without brackets · 3.1 kg (6.8 lb) with brackets |
Port Layout | 24 × 1G RJ45 (16 PoE+), 2 × 1G SFP |
PoE Budget | 95W total (32W max per PoE+ port) |
Switching Capacity | 52 Gbps |
Non-Blocking Throughput | 26 Gbps |
Forwarding Rate | 39 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 8,000 |
Packet Buffer Size | 0.5 MB |
Layer 2 Features | LACP, STP & RSTP, IGMP Snooping, ACLs, DHCP Snooping, QoS, Jumbo Frames, LLDP-MED, Voice VLAN |
Max. Power Consumption | 25W (excluding PoE) · 120W (including PoE) |
Power Method | Universal input, 100–240V AC, 50/60 Hz |
Power Supply | AC/DC, internal, 120W |
Form Factor | Rack mount (1U) |
LCM Display | 1.3" touchscreen |
Operating Conditions | -5 to 40°C (23 to 104°F), 10–90% noncondensing humidity |
Enclosure Material | SGCC steel |
Certifications | CE, FCC, IC, Anatel |
NDAA Compliant | Yes |
