Ubiquiti UniFi USW-16-POE 1...

Features

  • 16 Gigabit Ethernet Ports – Includes 8 PoE+ ports to power UniFi devices.
  • PoE+ Support – Up to 32W per port with a 42W total power budget.
  • Fiber Uplinks – Two 1G SFP ports for high-speed expansion and uplinks.
  • Enterprise Performance – 36 Gbps switching capacity, 18 Gbps throughput, and 27 Mpps forwarding rate.
  • Advanced Layer 2 Features – VLANs, QoS, ACLs, DHCP snooping, IGMP snooping, Jumbo Frames, and more.
  • Fanless Silent Operation – Designed for noise-free performance in professional environments.
  • Integrated LCD Touchscreen – 1.3" display for system status and quick diagnostics.
  • Centralized Management – Seamlessly integrates with UniFi Network Controller for multi-site management, analytics, and DPI.
  • Certified & Compliant – NDAA compliant, CE, FCC, IC, and Anatel certified.

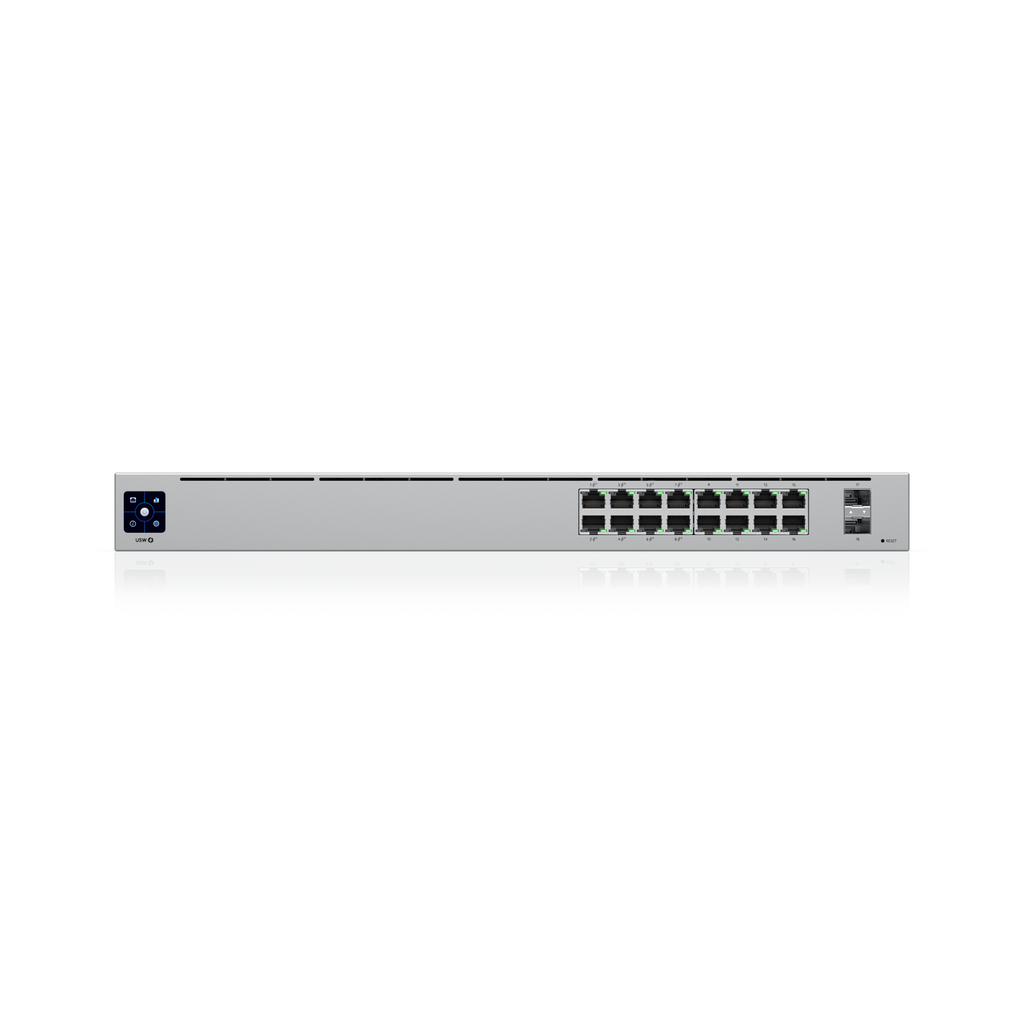

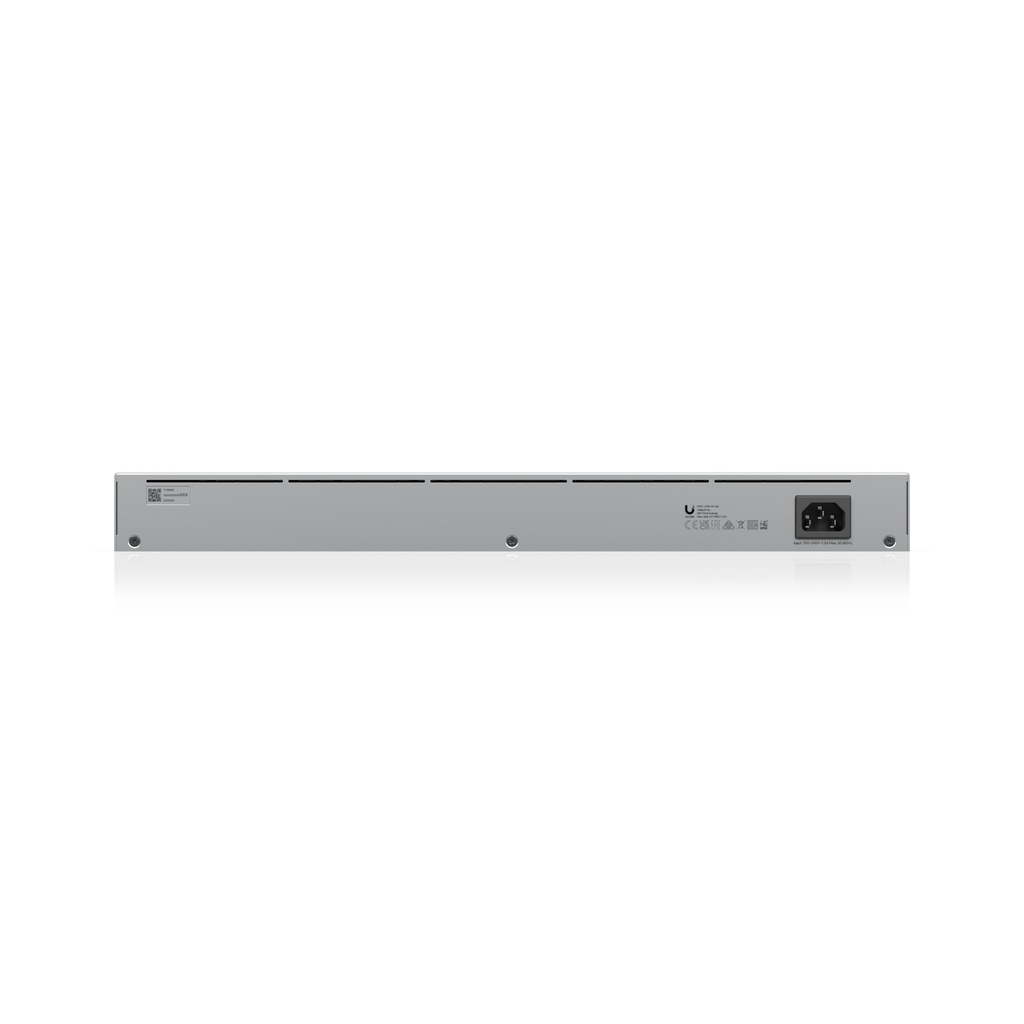

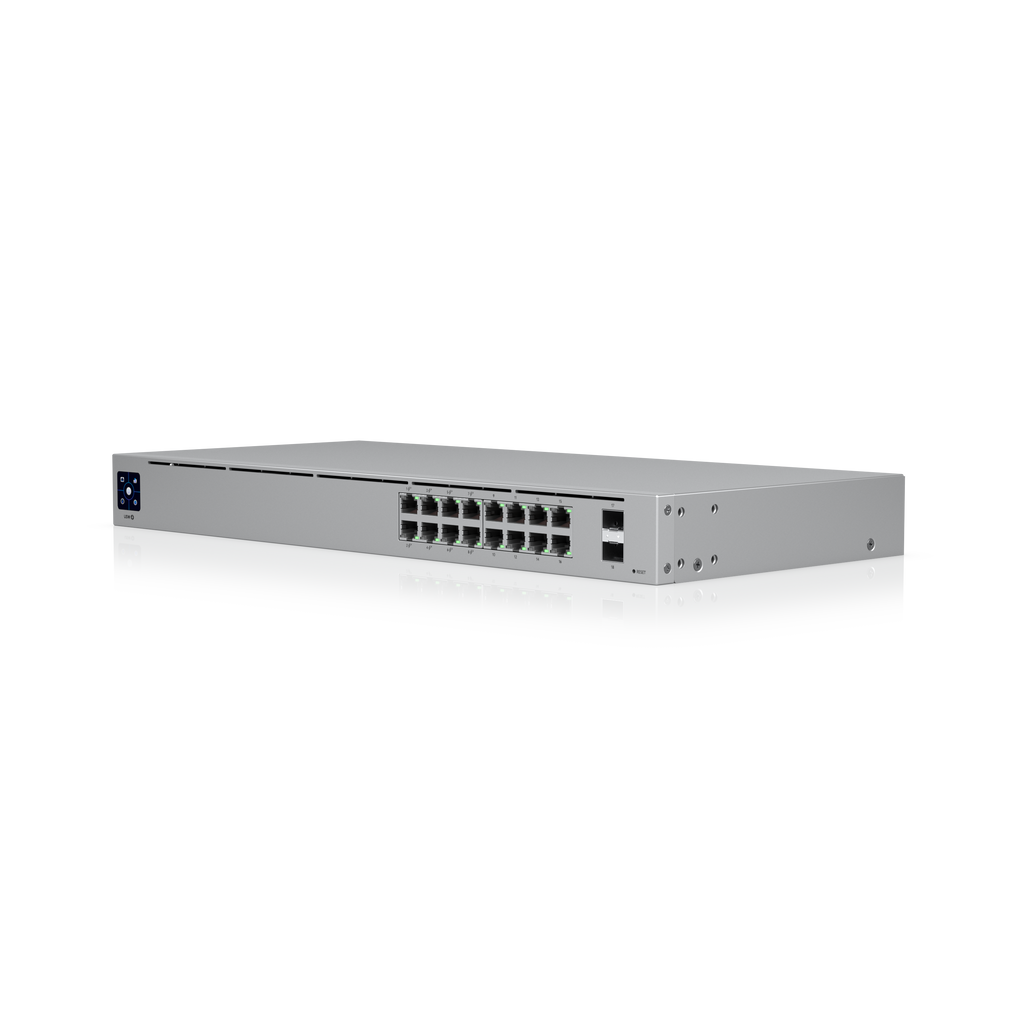

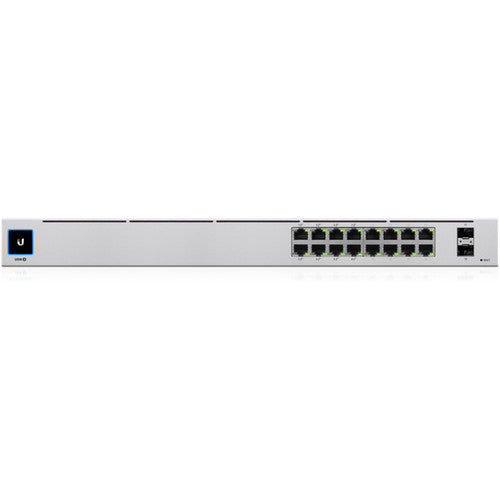

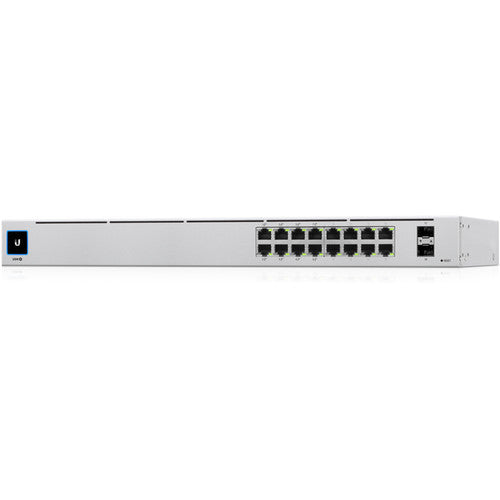

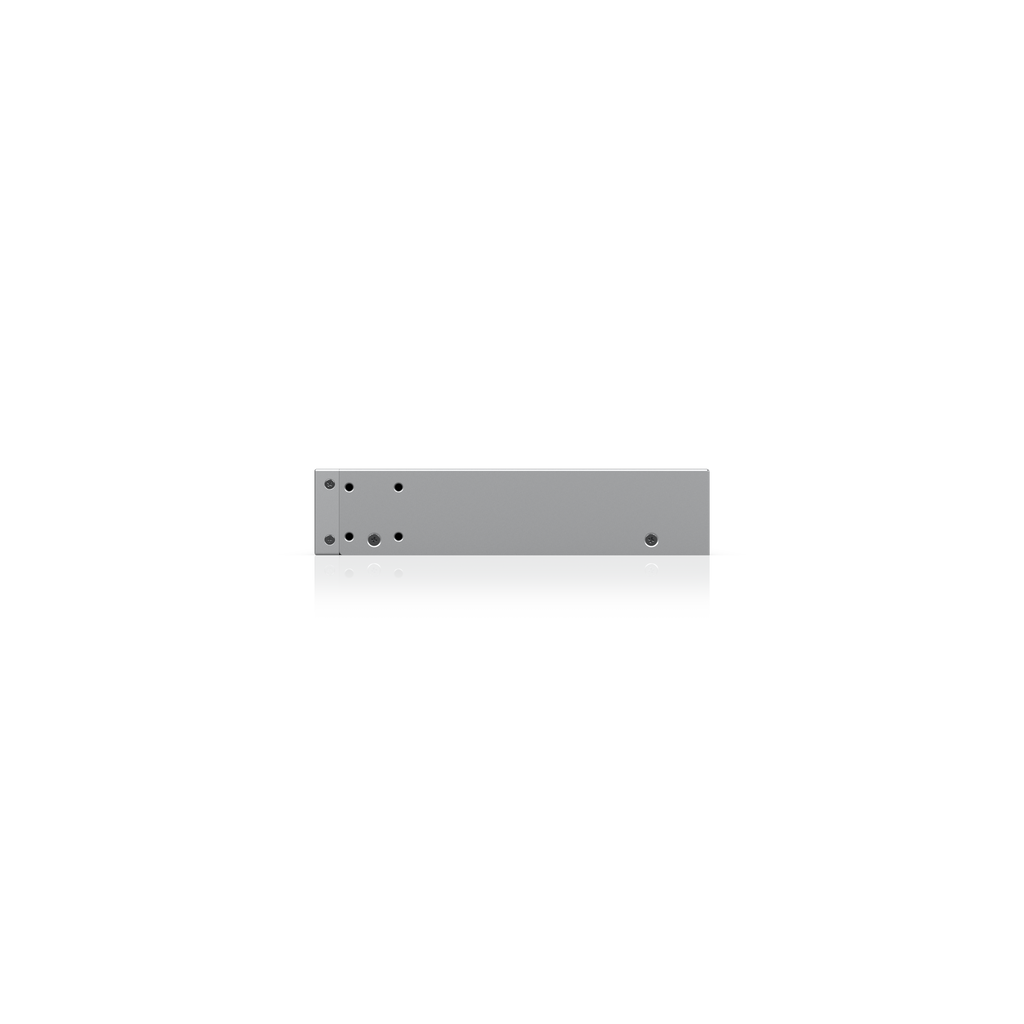

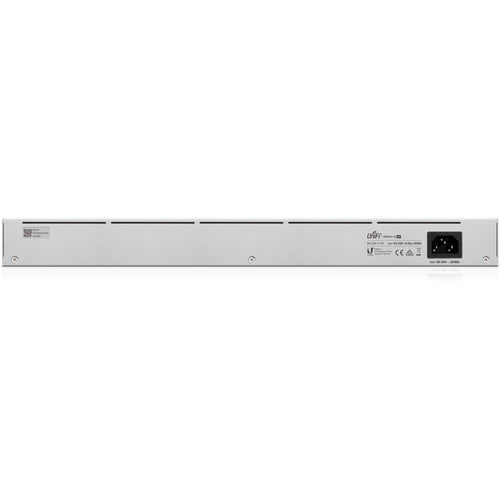

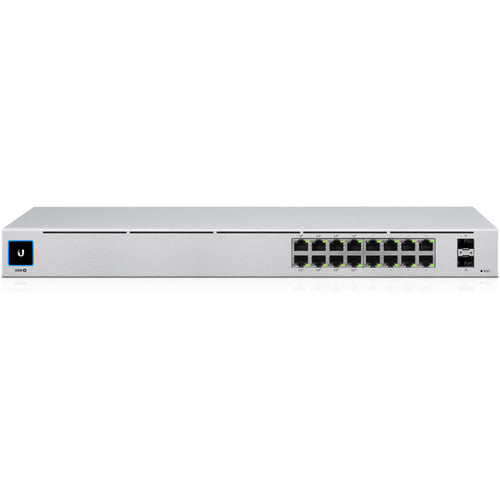

The Ubiquiti Networks UniFi 16-Port Gigabit PoE+ Managed Switch delivers reliable enterprise-grade switching performance in a compact 1U rackmount or desktop form factor.

Featuring 16 Gigabit Ethernet ports, including 8 PoE+ connectors with a 42W total budget, this switch is ideal for powering UniFi cameras, VoIP phones, and access points. Administrators can expand their infrastructure with two 1G SFP uplink ports for fiber connectivity. With a switching capacity of 36 Gbps, non-blocking throughput of 18 Gbps, and forwarding rate of 27 Mpps, this fanless switch provides smooth and silent operation in office or data center environments.

A 1.3" LCD touchscreen offers at-a-glance status and quick troubleshooting, while advanced configuration and analytics are available through the UniFi Network Controller.

Technical Specifications

Specification Details
Model / Part Number UniFi 16-Port Gigabit PoE+ Managed Switch with SFP
UPC 817882028516
Dimensions 442 × 200 × 44 mm (17.4 × 7.9 × 1.7")
Weight 2.8 kg (6.2 lb) without brackets · 2.9 kg (6.4 lb) with brackets
Port Layout 16 × 1G RJ45 (8 PoE+), 2 × 1G SFP
PoE Budget 42W total (32W max per PoE+ port)
Switching Capacity 36 Gbps
Non-Blocking Throughput 18 Gbps
Forwarding Rate 27 Mpps
Supported VLANs 1,000
MAC Address Table Size 8,000
Packet Buffer Size 0.5 MB
Layer 2 Features LACP, STP & RSTP, IGMP Snooping, ACLs, DHCP Snooping, QoS, Jumbo Frames, LLDP-MED, Voice VLAN
Max. Power Consumption 18W (excluding PoE) · 60W (including PoE)
Power Method Universal input, 100–240V AC, 50/60 Hz
Power Supply AC/DC, internal, 60W
Form Factor Rack mount (1U)
LCM Display 1.3" touchscreen
Operating Conditions -5 to 40°C (23 to 104°F), 10–90% noncondensing humidity
Enclosure Material SGCC steel
Certifications CE, FCC, IC, Anatel
NDAA Compliant Yes
