Features
-
High-Power Output – Provides up to 60W of PoE++ power at 48V DC, 1.25A.
-
10G Data Speeds – Supports fast 10 Gb/s passthrough for modern networks.
-
Advanced Protection – Surge, peak pulse, and overcurrent protection built-in.
-
Flexible Deployment – Powers cameras, access points, and other PoE devices independently of switches.
-

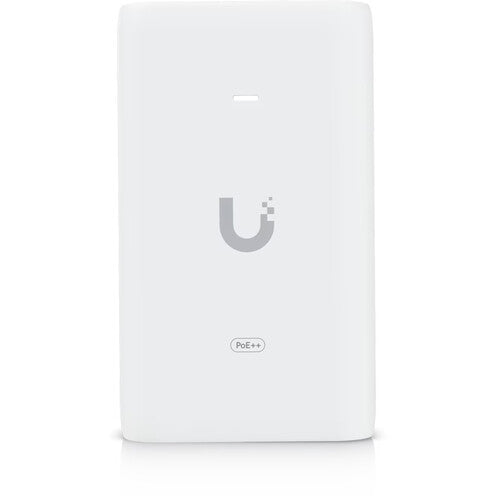

LED Indicators – Provides at-a-glance monitoring of power and connectivity.
-

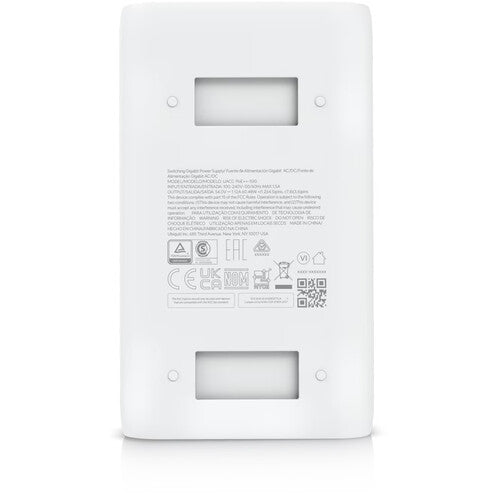

Complete Installation Kit – Includes wall mount, screws, anchors, and grounded AC power cable.
-
Certified & Compliant – CE, FCC, IC, UL, UKCA, KC, CCC, RoHS certified and NDAA compliant.

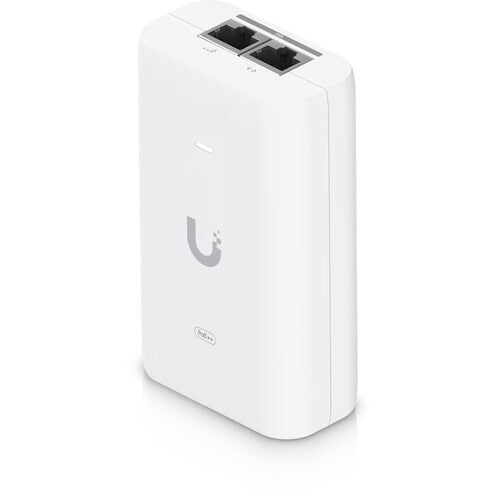

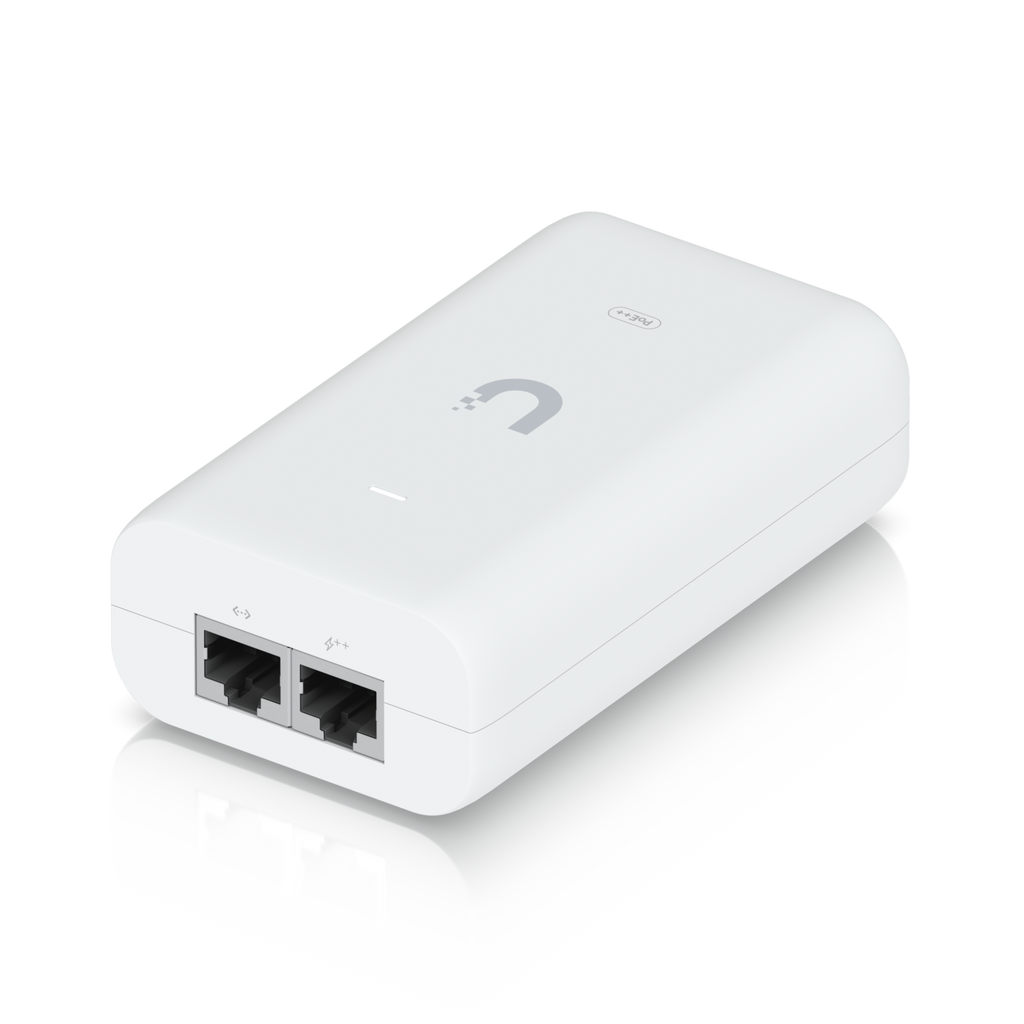

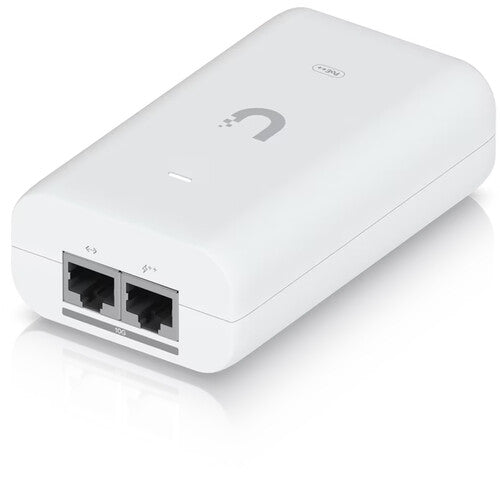

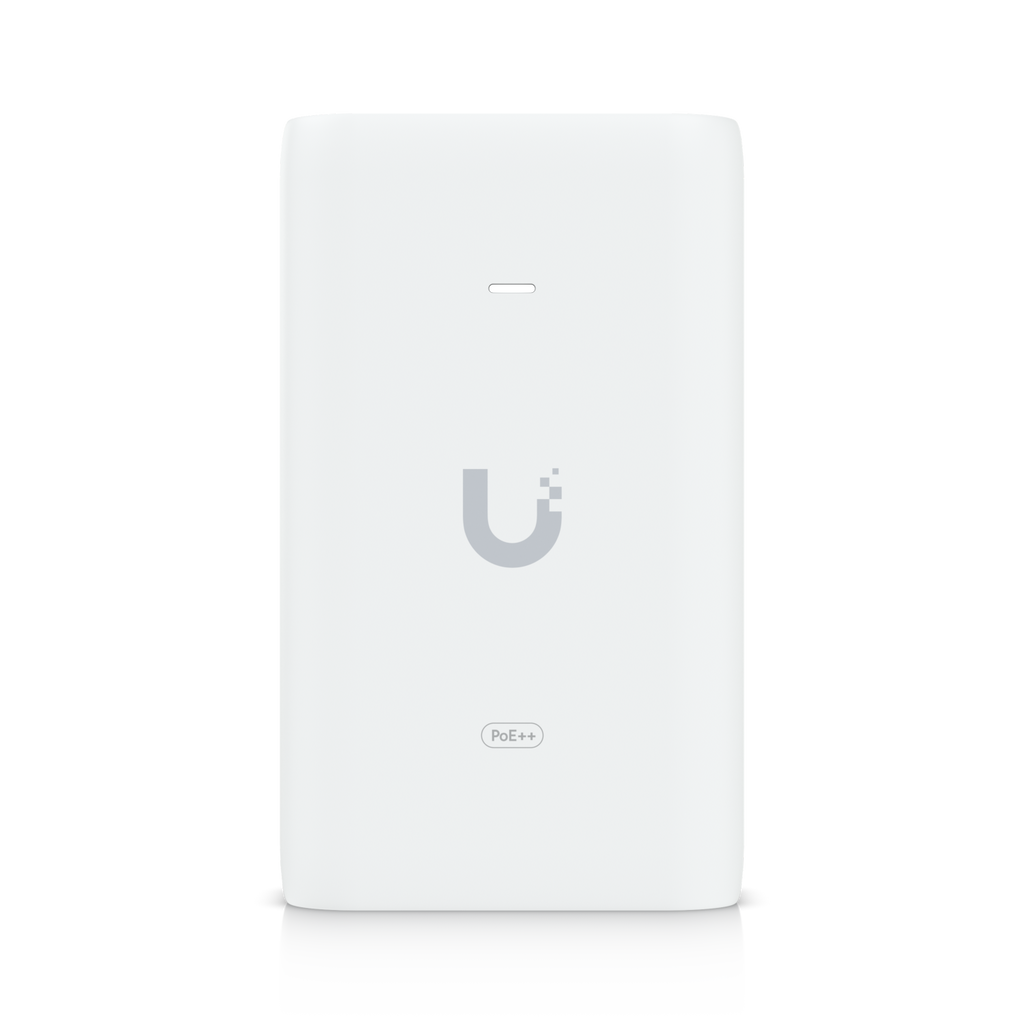

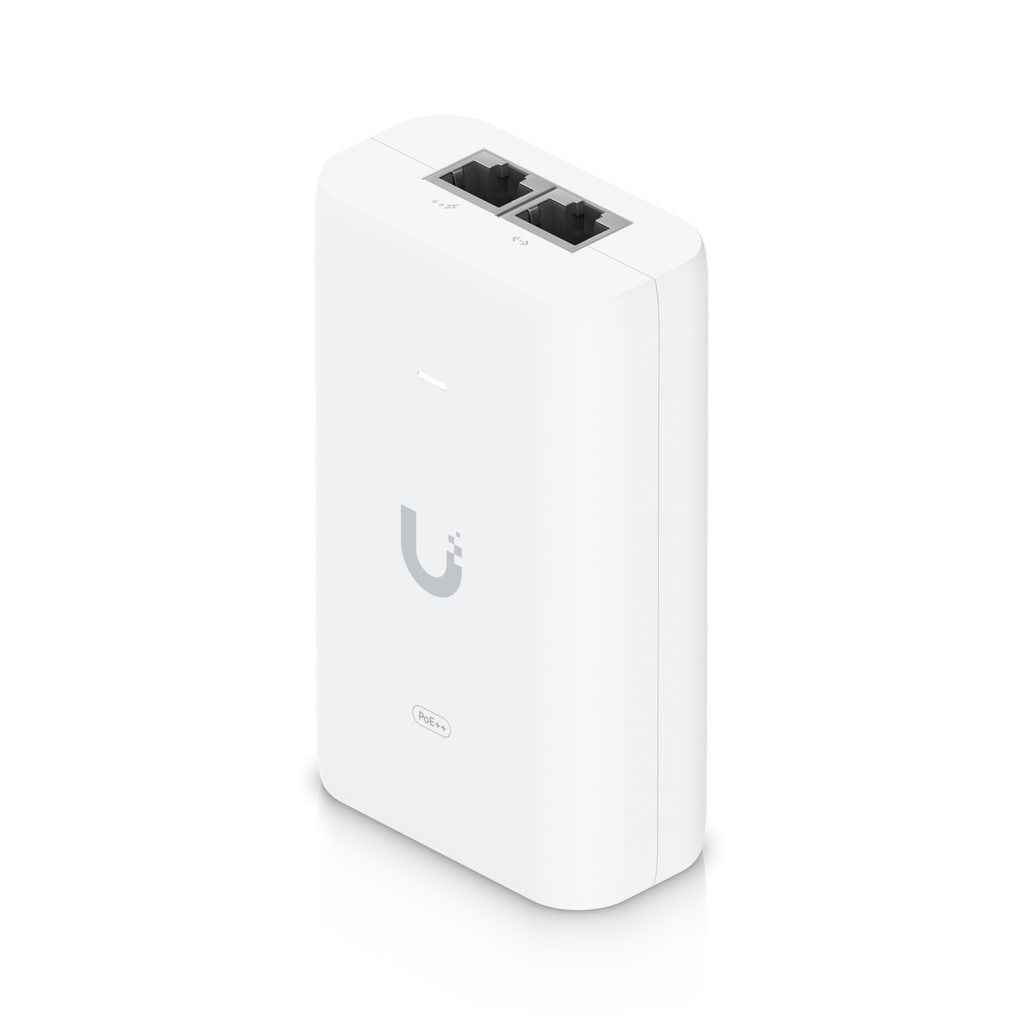

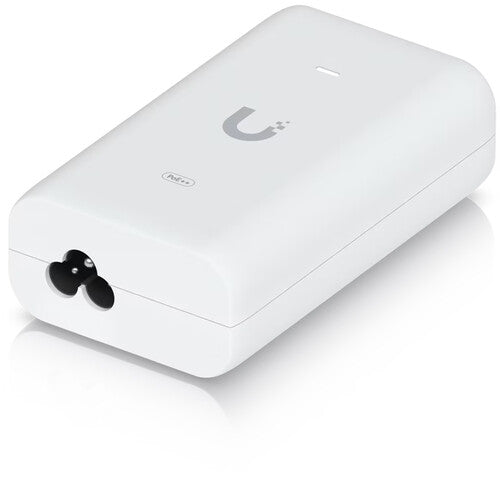

The Ubiquiti Networks 10G PoE++ Adapter (UACC-POE++-10G) adds flexibility and power to your PoE++ installations.
Supporting up to 60W output with 10 Gb/s data speeds, this compact adapter is ideal for powering IP cameras, UniFi access points, and other PoE-compatible devices without overloading your main switch. Designed with advanced protections against surges, peak pulses, and overcurrent, it ensures safe and reliable operation.

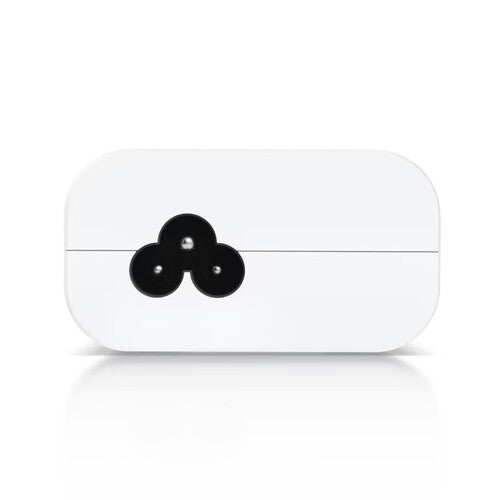

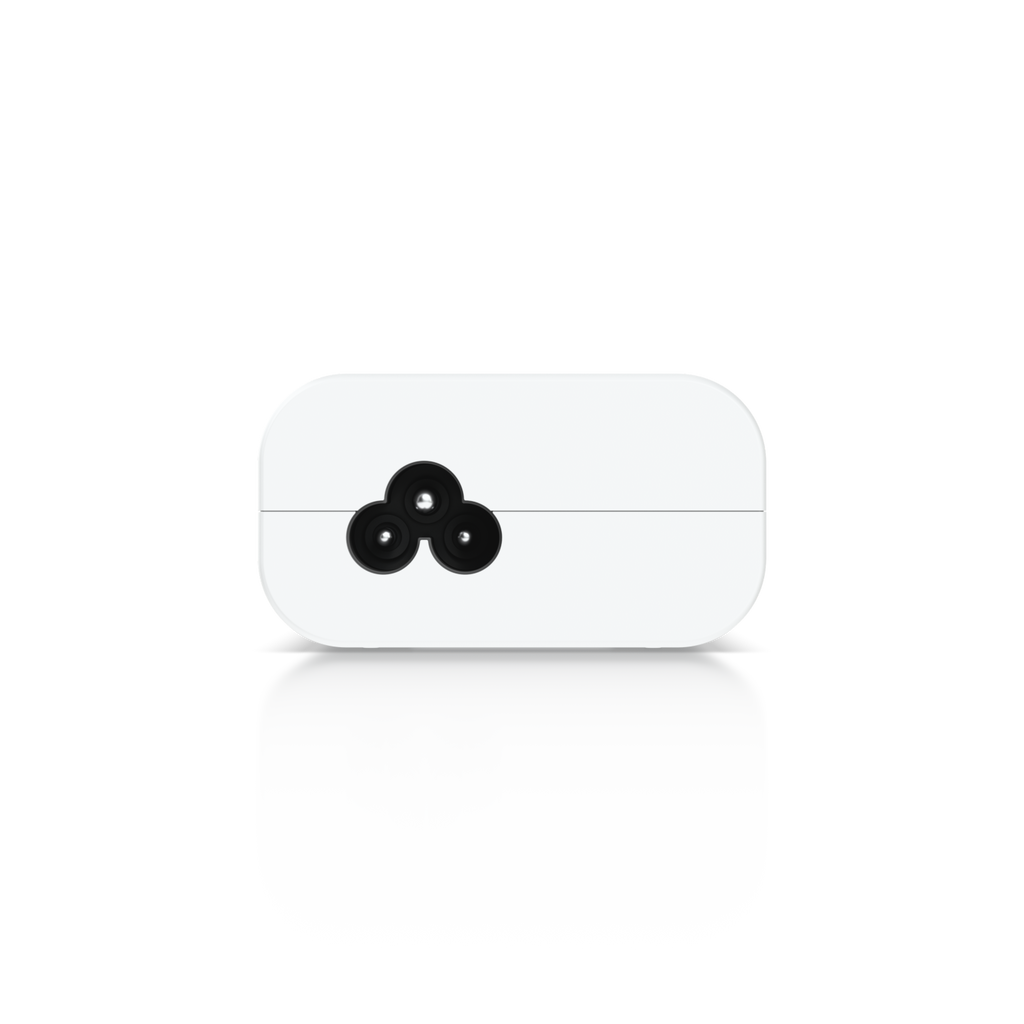

The adapter includes shielded RJ45 data and PoE ports, LED status indicators, a wall mount kit, and an AC power cable with earth grounding for added safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UACC-POE++-10G |
| UPC | 810084699508 |
| Dimensions | 106 × 63 × 34 mm (4.2 × 2.5 × 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC at 1.25A |
| Rated Voltage | 100–240V AC at 50/60 Hz |
| Max PoE Wattage | 60W |

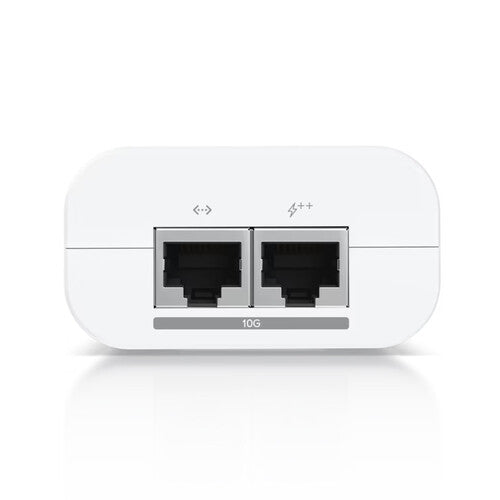

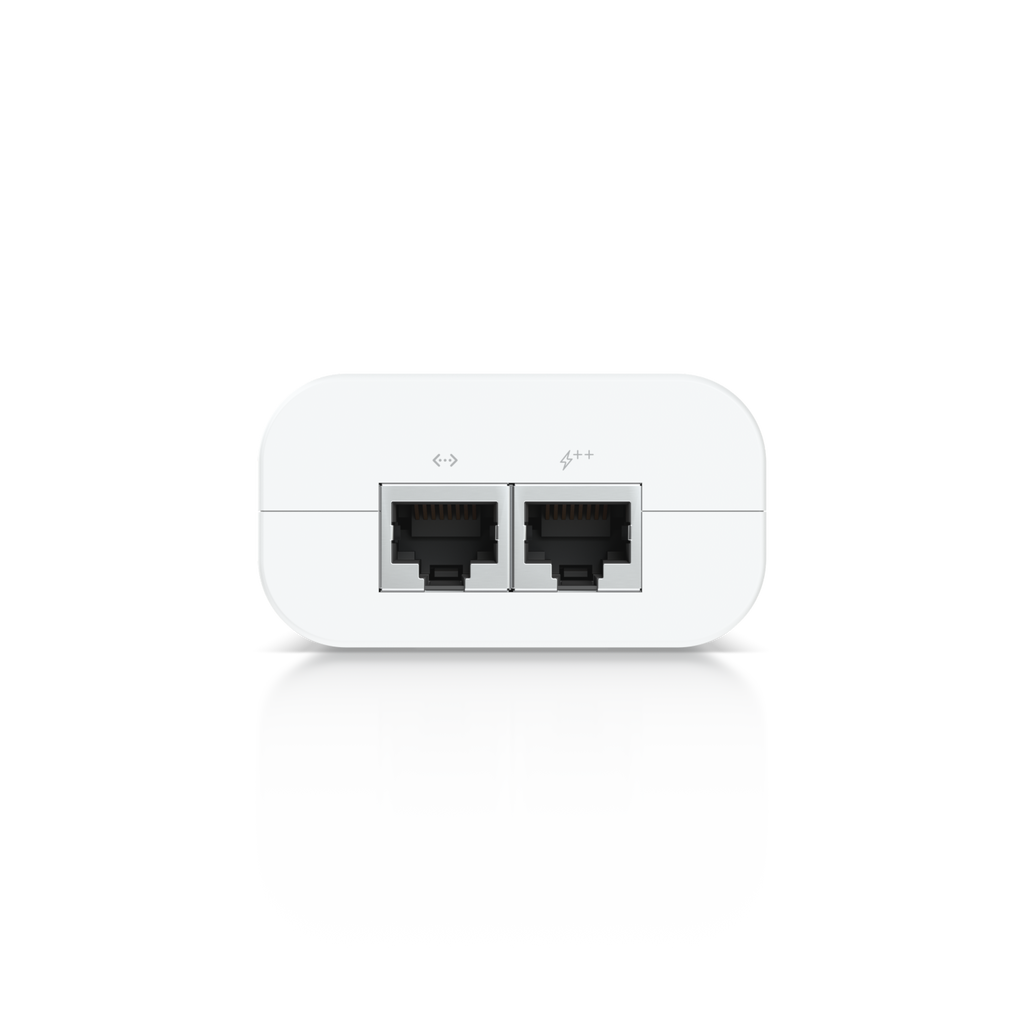

| Data Ports | RJ45 Shielded Socket (Data In / PoE Out) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC, <200A peak @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Enclosure Material | Polycarbonate |
| Operating Conditions | 0 to 40°C (32 to 104°F), 10–95% noncondensing humidity |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |

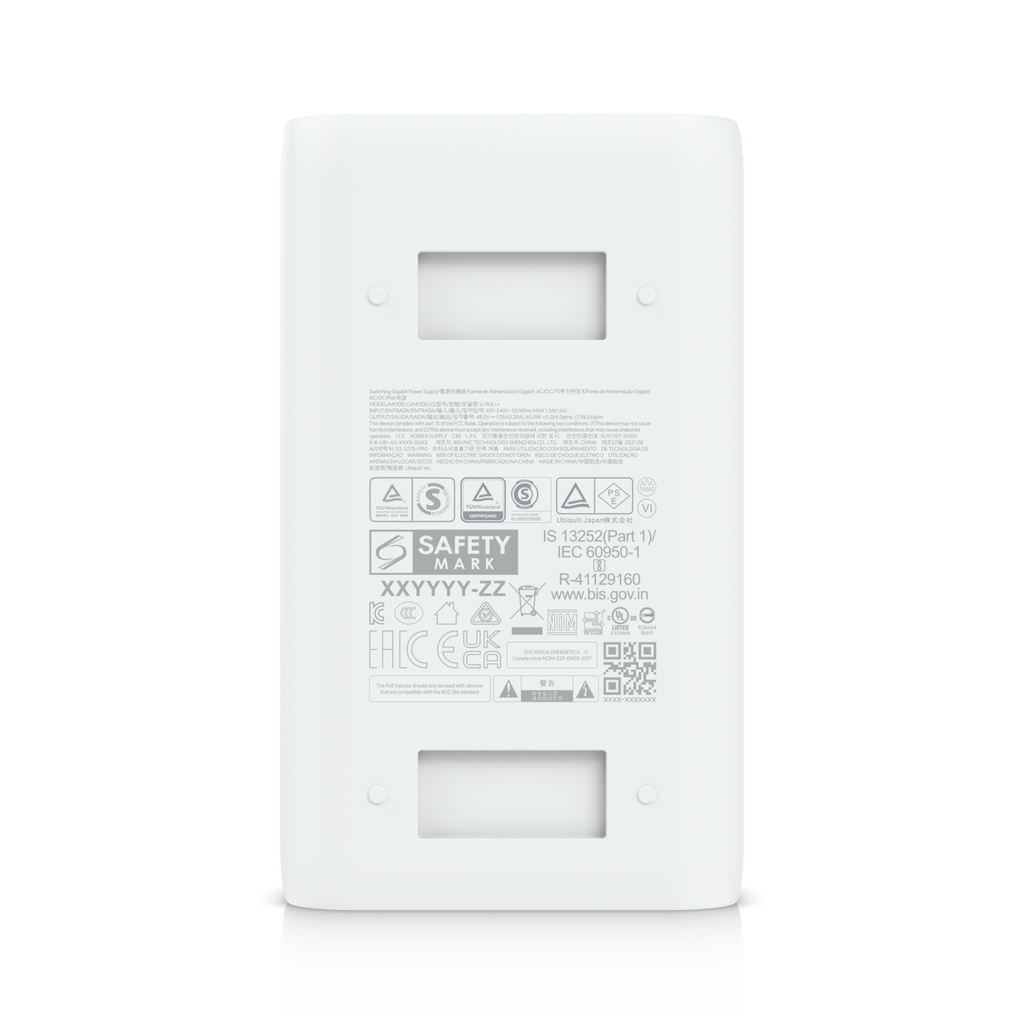

| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | Yes |
