Features
-
High-Capacity Recording – Stores up to 60 days of 4K video for 20 cameras or 60 cameras at 1080p.
-

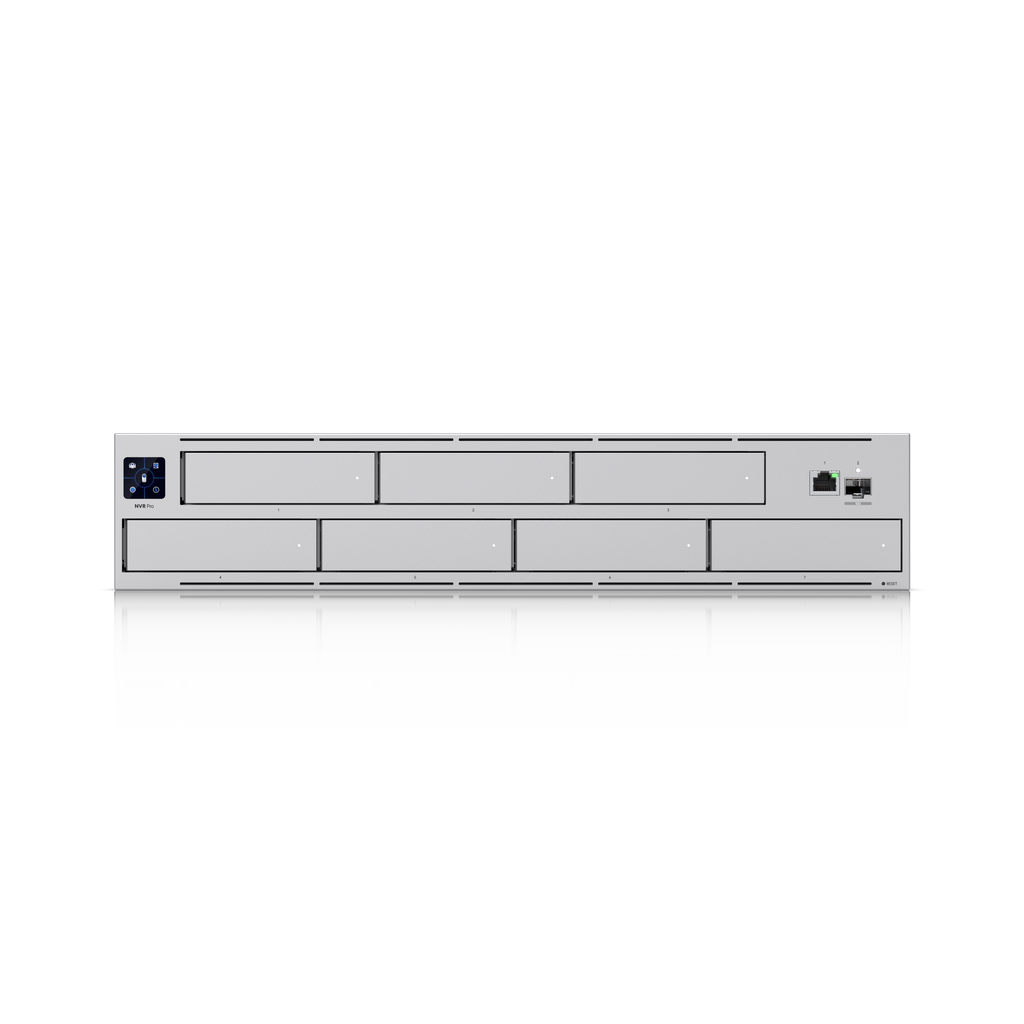

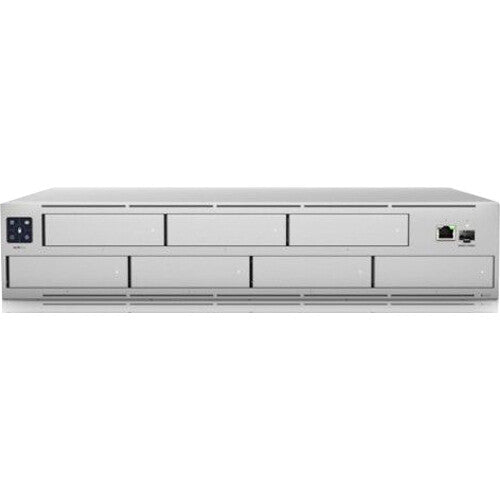

Front-Accessible Drive Bays – Seven 2.5"/3.5" bays, each supporting HDDs up to 8TB.
-
Data Protection – Automated RAID 1, 5, or 10 configurations for secure redundancy.
-
Dual Network Interfaces – Equipped with 1 × GbE RJ45 and 1 × 10G SFP+ port.
-
Touchscreen Display – 1.3" screen for quick device status and event previews.
-
Seamless Integration – UniFi Protect web and mobile apps for easy remote access.
-
Enterprise Reliability – Supports USP-RPS PSU failover for maximum uptime.
-
Rugged Build – SGCC steel enclosure with ESD/EMP protection.
-
Certified & Compliant – NDAA compliant and CE, FCC, IC certified.

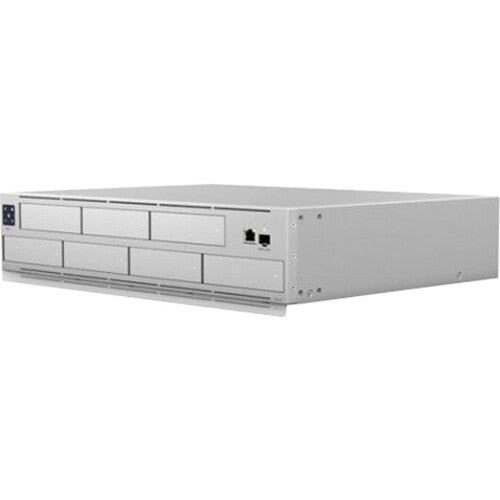

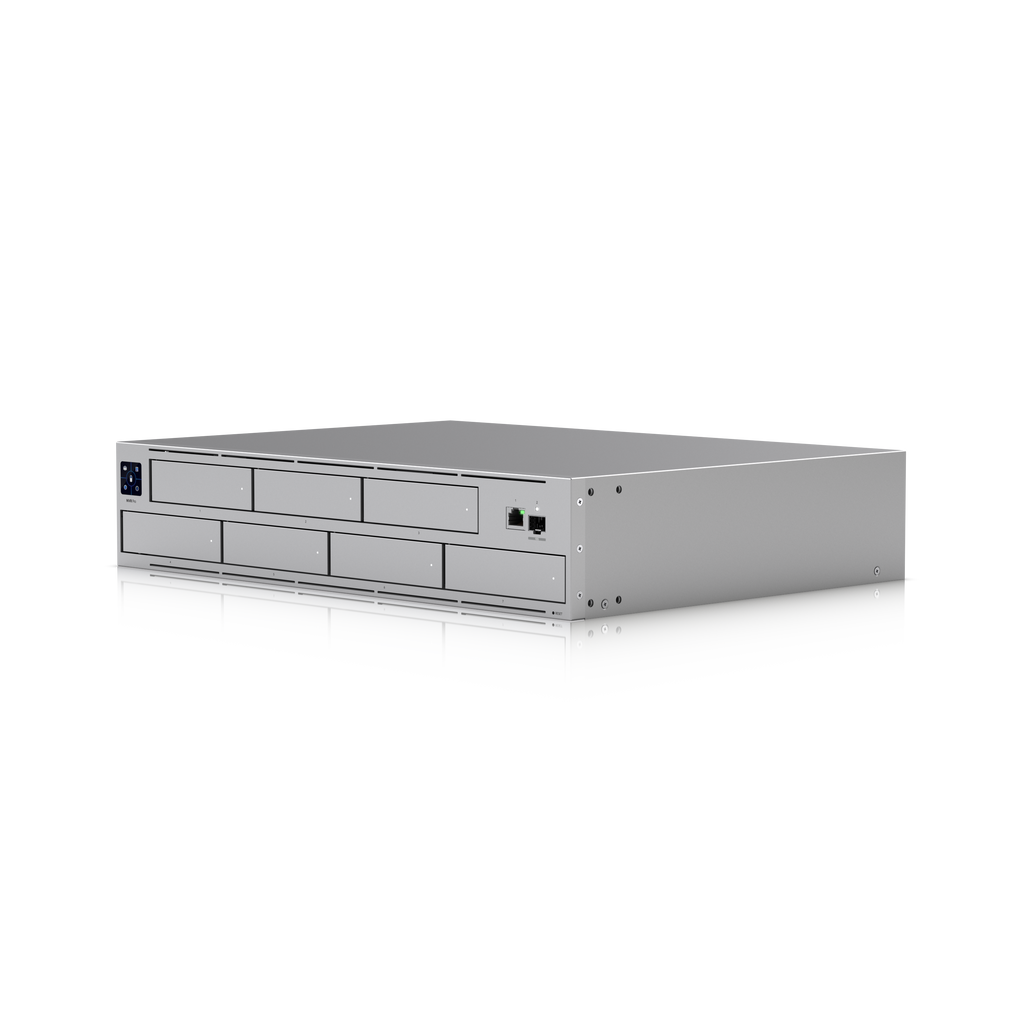

The Ubiquiti Networks UniFi Protect UNVR-Pro is a business-grade network video recorder engineered for scalable storage, advanced redundancy, and seamless UniFi Protect integration.
Featuring seven front-accessible 2.5"/3.5" drive bays, the UNVR-Pro supports up to 8TB HDDs per bay, delivering flexible RAID 1, 5, or 10 configurations to safeguard your surveillance data. It can store up to 60 days of 4K UHD recordings for 20 cameras, or up to 60 1080p cameras, making it ideal for professional installations.
With built-in dual networking interfaces, a 1.3" touchscreen for live event previews, and full UniFi Protect app support, the UNVR-Pro ensures secure, reliable, and centralized management of your camera system.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UNVR-PRO |
| UPC | 810010075314 |
| Dimensions | 442 × 325 × 87 mm (17.4 × 12.8 × 3.4") |
| Weight | 9.2 kg (20.3 lb) without brackets · 9.5 kg (20.8 lb) with brackets |
| Storage Bays | 7 × 2.5"/3.5" HDD/SSD (up to 8TB each) |
| Data Protection | RAID 1, 5, 10 |
| Networking Interfaces | 1 × GbE RJ45 · 1 × 10G SFP+ |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Display | 1.3" touchscreen |
| Power Method | Universal AC input (100–240V AC, 3A Max., 50/60 Hz) · USP-RPS DC input (11.5V DC, 13.91A) |
| Power Supply | AC/DC internal, 200W |
| Max. Power Consumption | 160W |
| Enclosure Material | SGCC steel |
| Form Factor | Rack mount (2U) |
| Operating Conditions | -5 to 40°C (23 to 104°F), 5–95% noncondensing humidity |
| Protection | ESD/EMP: ±12kV air, ±8kV contact |
| Applications | UniFi Protect, UniFi Access |
| Managed Cameras | 70 HD · 35 2K · 24 4K |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
