Features
-

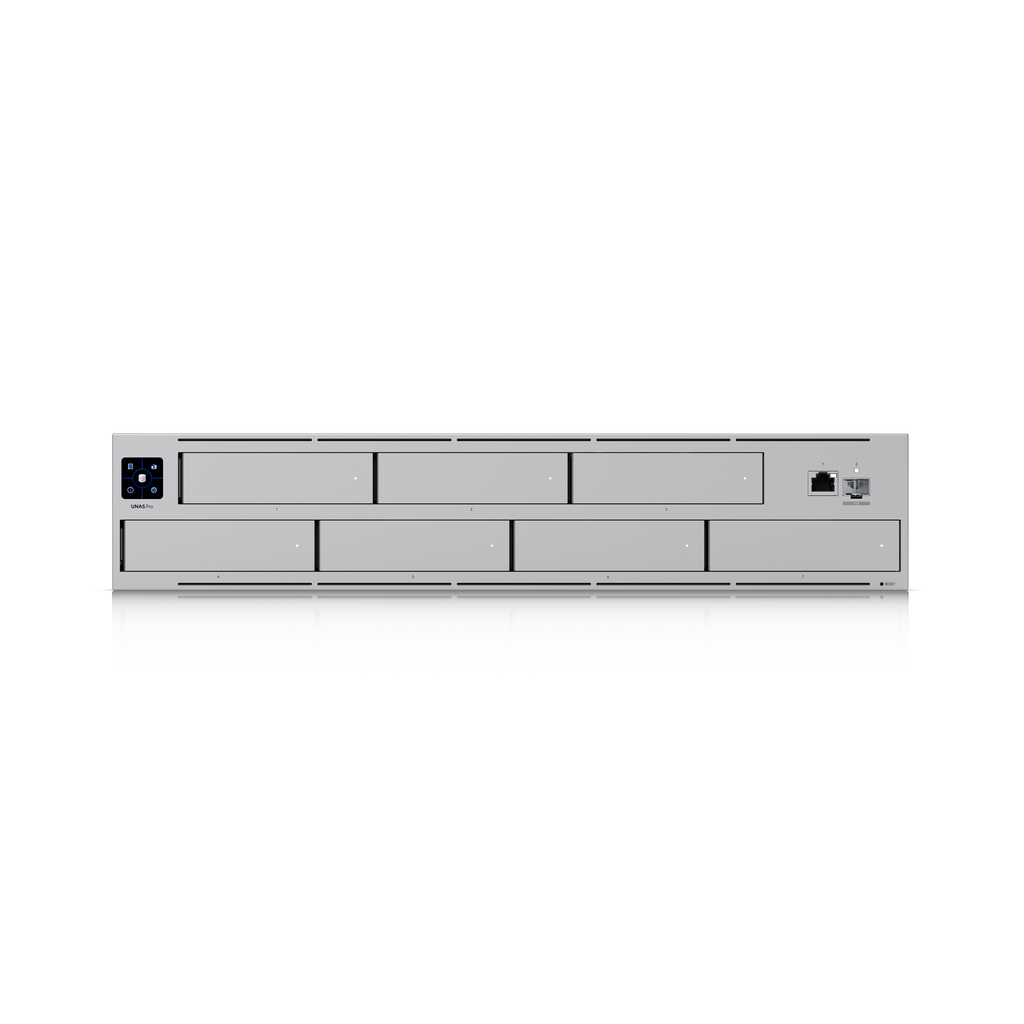

High-Capacity Storage – Seven SATA III bays support 2.5"/3.5" HDDs and SSDs.
-
Enterprise Performance – Quad-Core ARM Cortex-A57 processor at 1.7 GHz with 8GB memory.
-
Versatile Connectivity – Includes 10 GbE SFP+ and 1 GbE RJ45 ports plus Bluetooth 4.1.
-
Data Protection – RAID technology ensures secure and reliable storage redundancy.
-
User-Friendly Management – 1.3" touchscreen for easy configuration and system status monitoring.
-

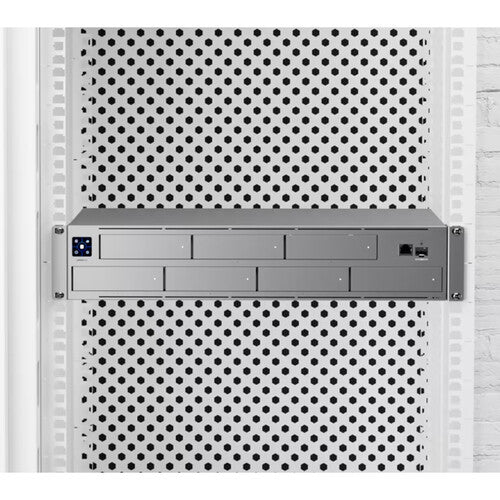

Rack-Mountable – 2U rack-mount design with SGCC steel enclosure for enterprise deployments.
-

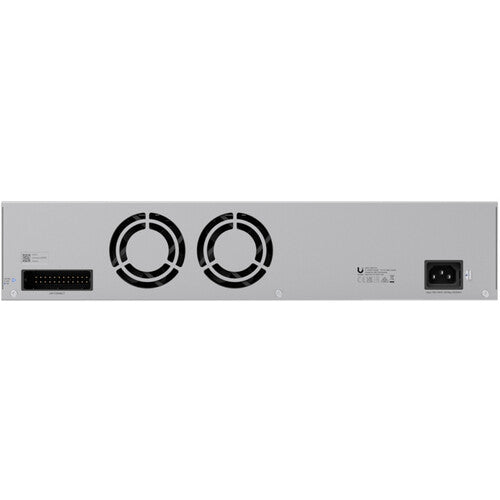

Power Redundancy – Built-in AC input with UniFi SmartPower RPS DC backup support.
-
Certified & Compliant – FCC, CE, IC certified and NDAA compliant.

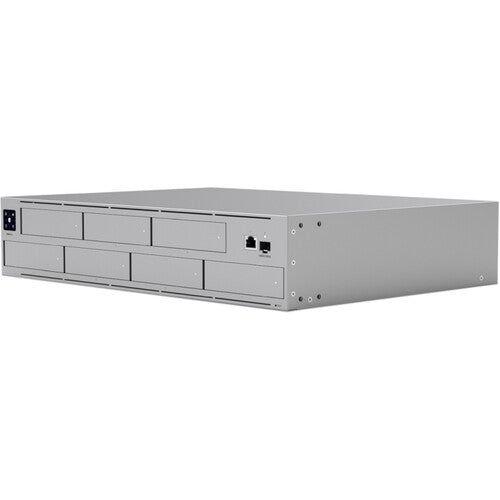

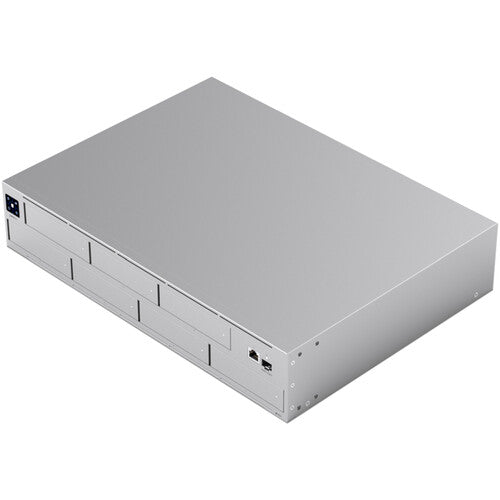

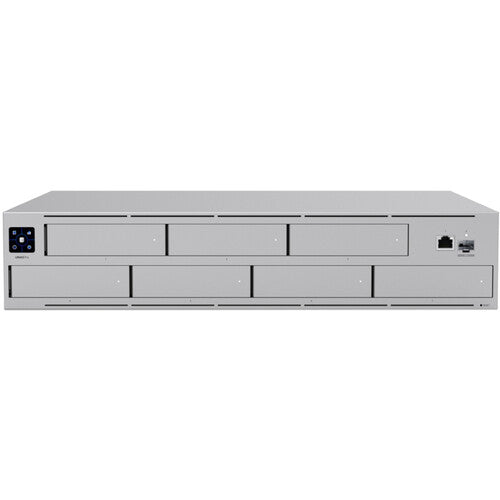

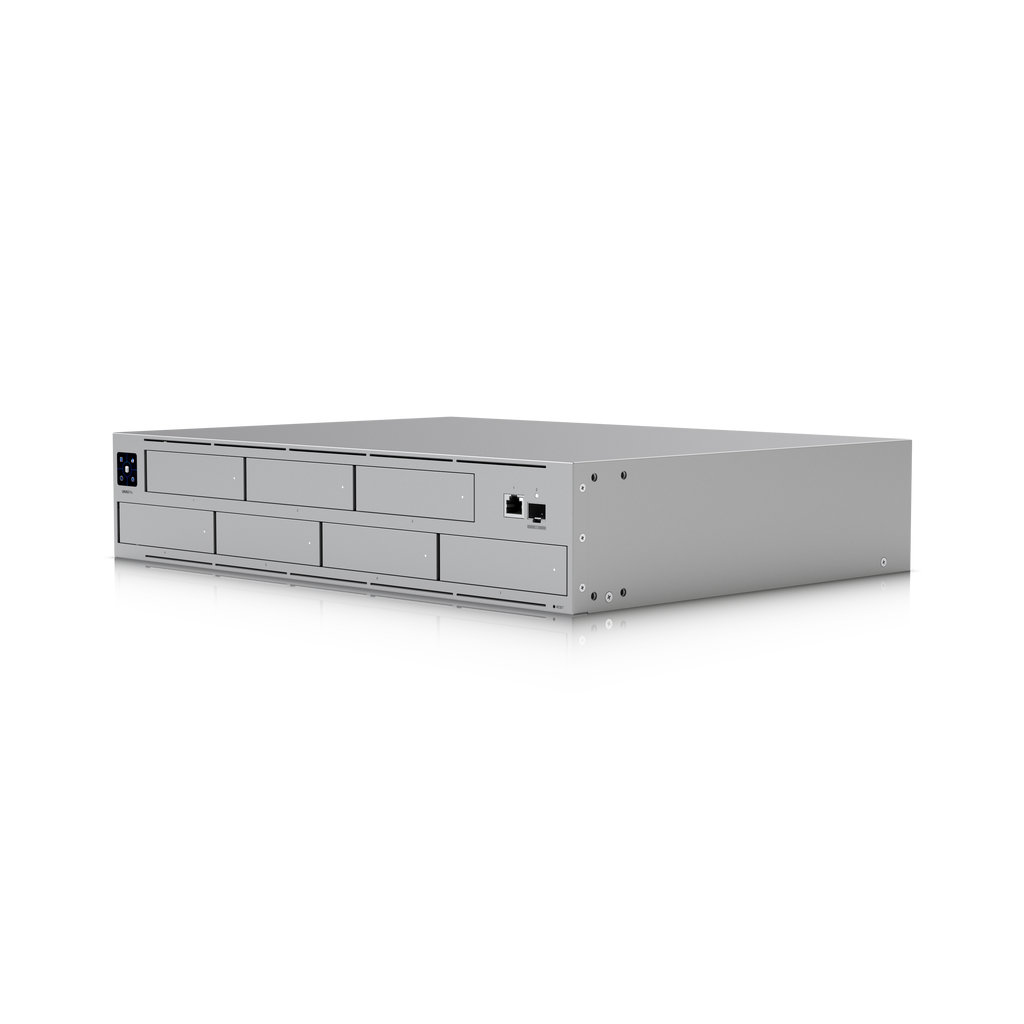

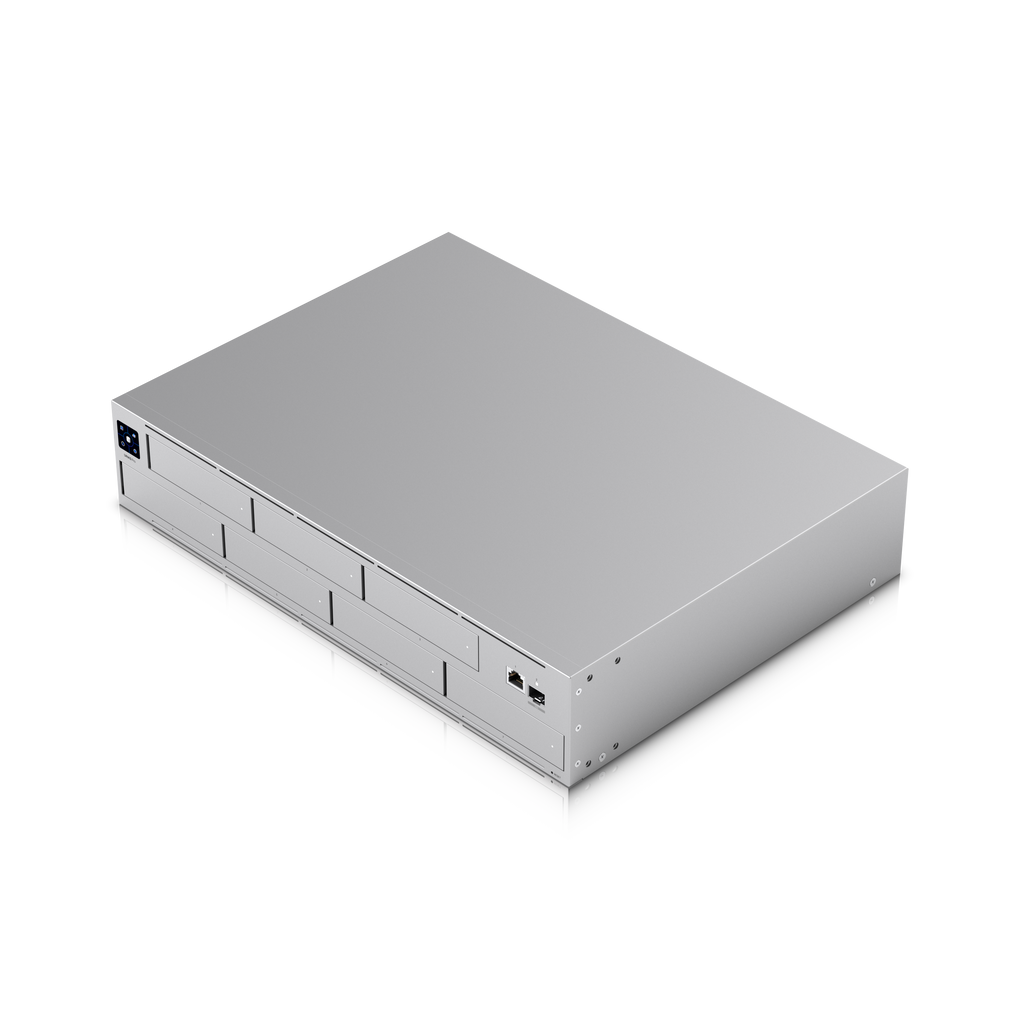

The Ubiquiti Networks UNAS Pro 7-Bay NAS Enclosure (UNAS-PRO) is a powerful, enterprise-ready storage solution designed for large-scale file storage, backup, and sharing.
With seven SATA III drive bays supporting both 3.5" HDDs and 2.5" SSDs, the UNAS Pro delivers flexibility and reliability for high-capacity deployments. It features a quad-core 1.7 GHz ARM Cortex-A57 processor, 8GB of memory, and RAID support for data protection. Connectivity is handled through a 10 GbE SFP+ port, a 1 GbE RJ45 port, and Bluetooth 4.1 for accessories. A 1.3" touchscreen provides quick access to system status and management.

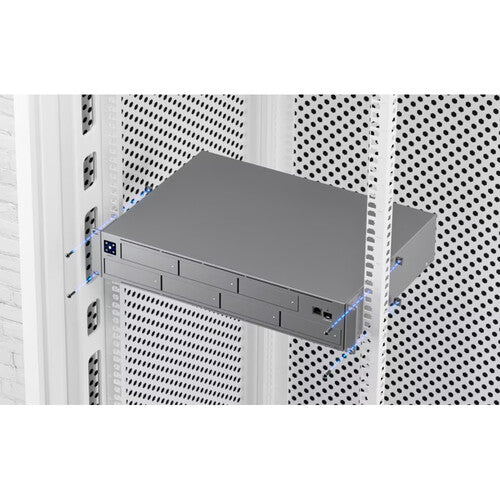

The rack-mountable 2U chassis is built from durable SGCC steel, supports UniFi power backup, and integrates seamlessly with UniFi Drive for centralized management.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | UNAS-PRO |
| UPC | 810010079220 |

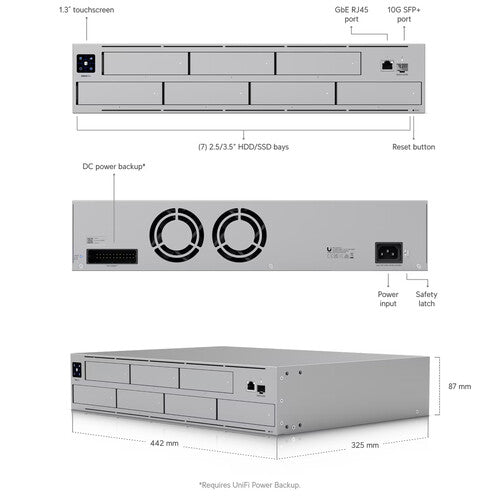

| Dimensions | 442 × 325 × 87 mm (17.4 × 12.8 × 3.4") |
| Weight | 9.2 kg (20.3 lb) without brackets; 9.5 kg (20.8 lb) with brackets |
| Storage Capacity | 7 × 2.5"/3.5" SATA III HDDs or SSDs |
| Networking Interfaces | 1 × 10G SFP+ 1 × GbE RJ45 |
| Processor | Quad-Core ARM Cortex-A57 at 1.7 GHz |
| Memory | 8 GB |
| Display | 1.3" touchscreen |
| RF Interface | Bluetooth 4.1 |
| Form Factor | Rack mount (2U) |
| Power Redundancy | Yes, with USP-RPS DC input |
| Max. Power Consumption | 160W |
| Power Budget for Drives | 135W |

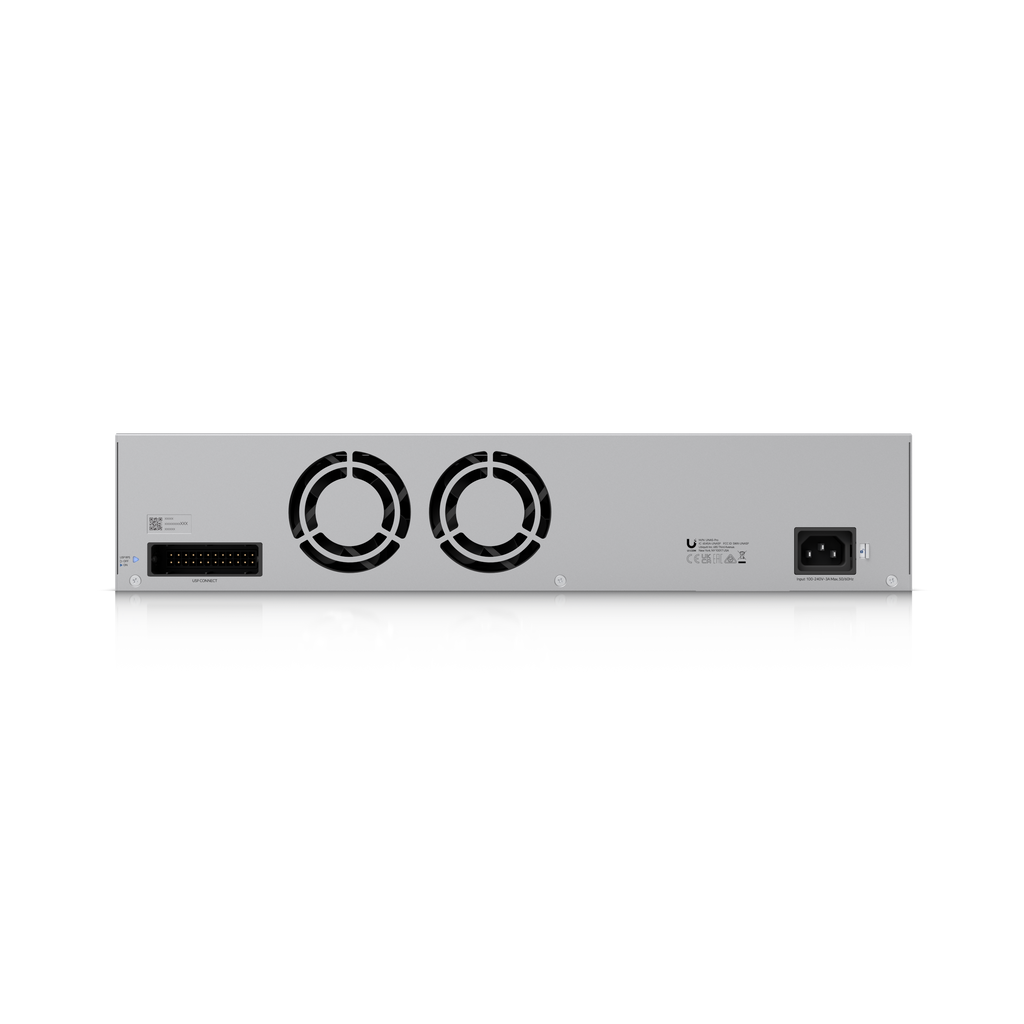

| Power Method | Universal AC input, 100–240V AC, 3A Max., 50/60 Hz USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC internal, 200W |
| Enclosure / Mount Material | SGCC steel |
| LED Indicators | Ethernet, SFP+, HDD, RPS |
| Operating Conditions | -5 to 40°C (23 to 104°F), 5–95% noncondensing humidity |
| Certifications | FCC, CE, IC |
| NDAA Compliant | Yes |
| Application Requirements | UniFi Drive v1.16.0 and later |
