Features
-
Extended Coverage – Boosts the range of the Swiss Army Knife Ultra access point.
-
Dual-Band Performance – Provides 15 dBi gain at 5 GHz and 10 dBi at 2.4 GHz.
-
Directional Pattern – 90° coverage ideal for targeted, long-range connectivity.
-
Rugged Construction – Built from UV-stabilized polycarbonate and aluminum.
-
Weatherproof – IPX6-rated enclosure withstands outdoor conditions.
-

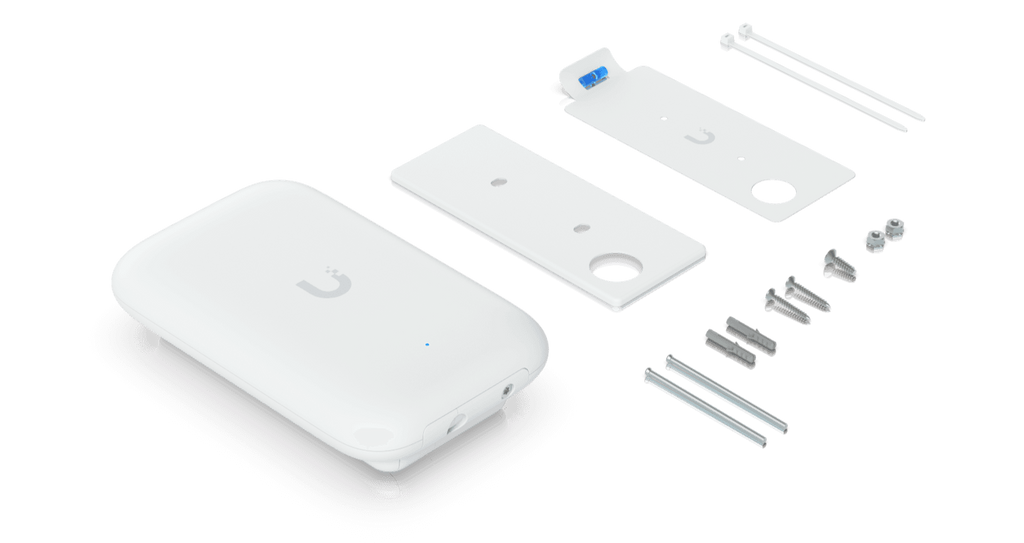

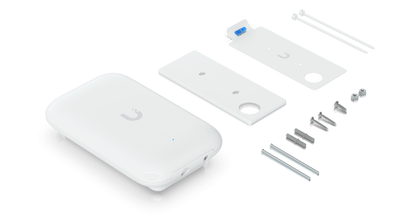

Durable Mounting – Pole mount kit included, supports 1–2" pipe diameters.
-
Wind Resistant – Survives wind loads up to 200 km/h (125 mph).
-
Compliant – NDAA compliant for secure deployments.

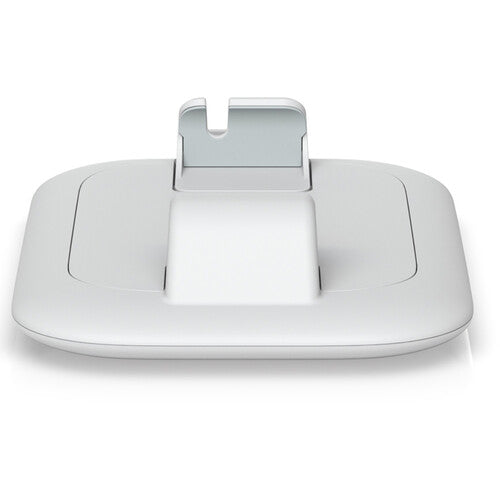

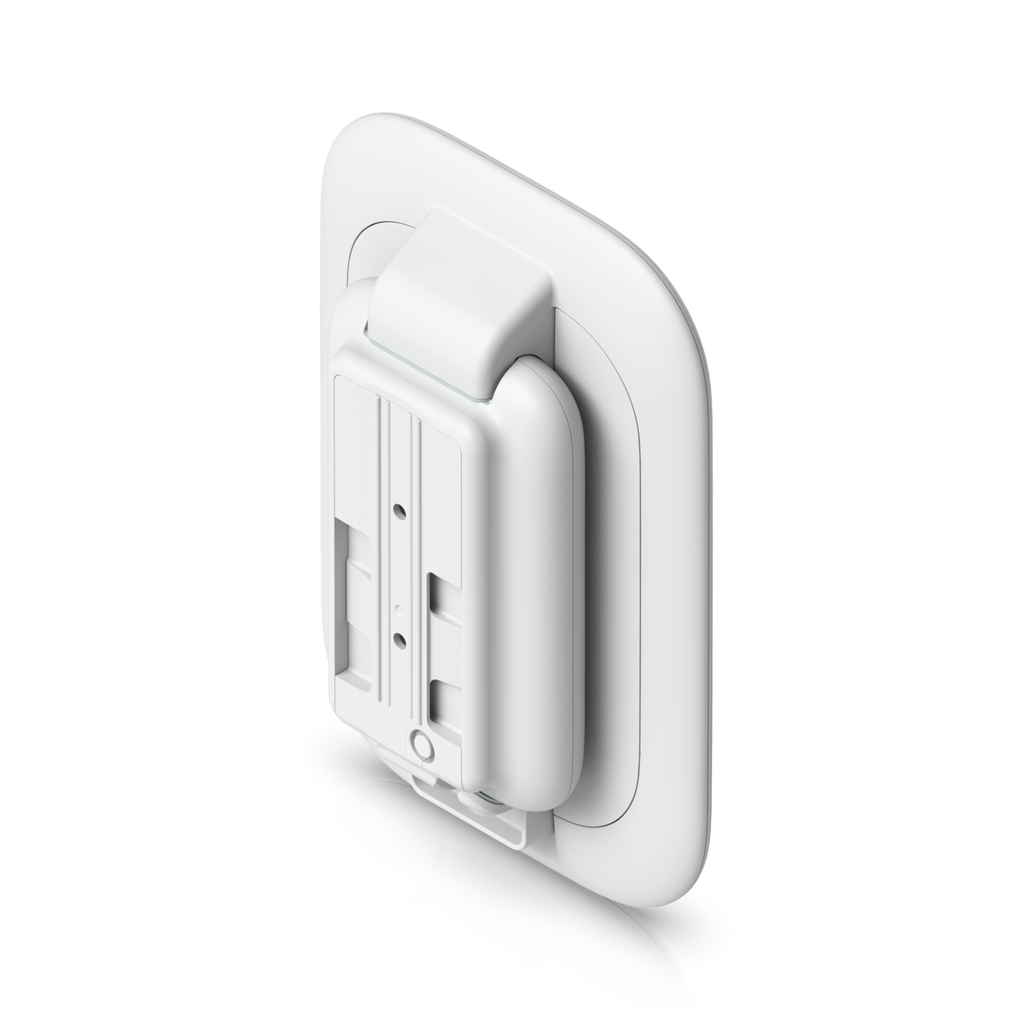

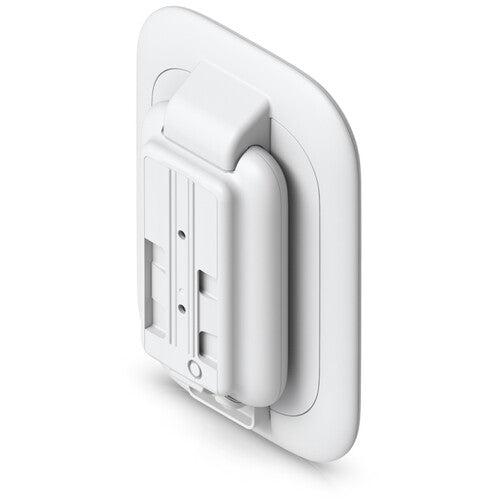

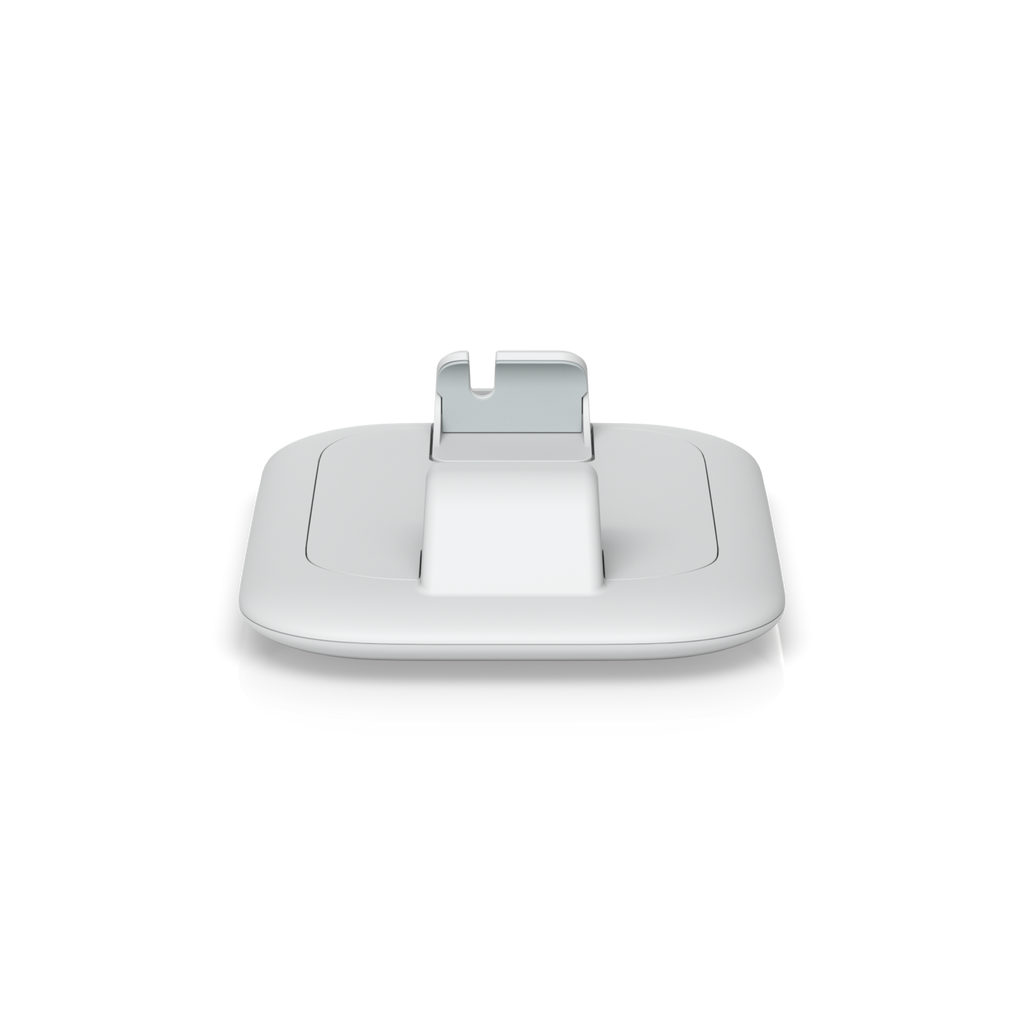

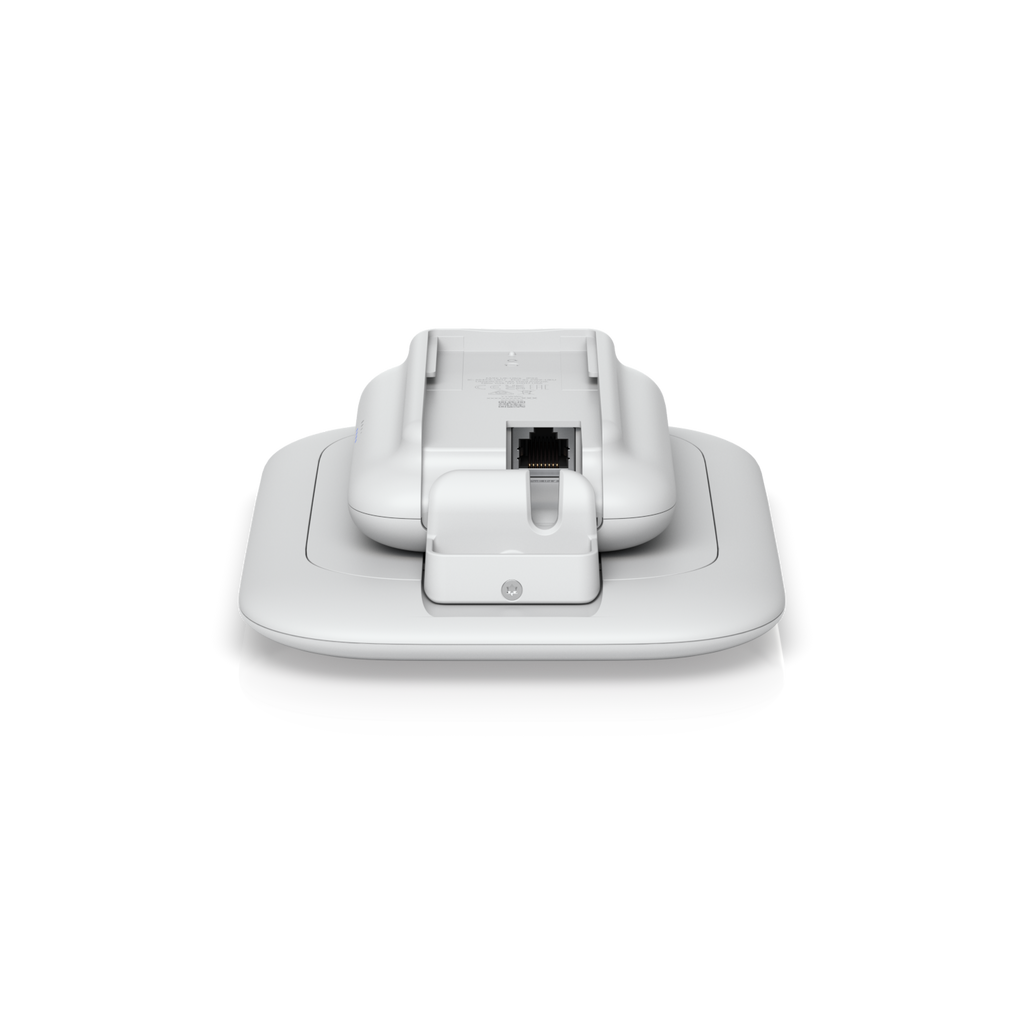

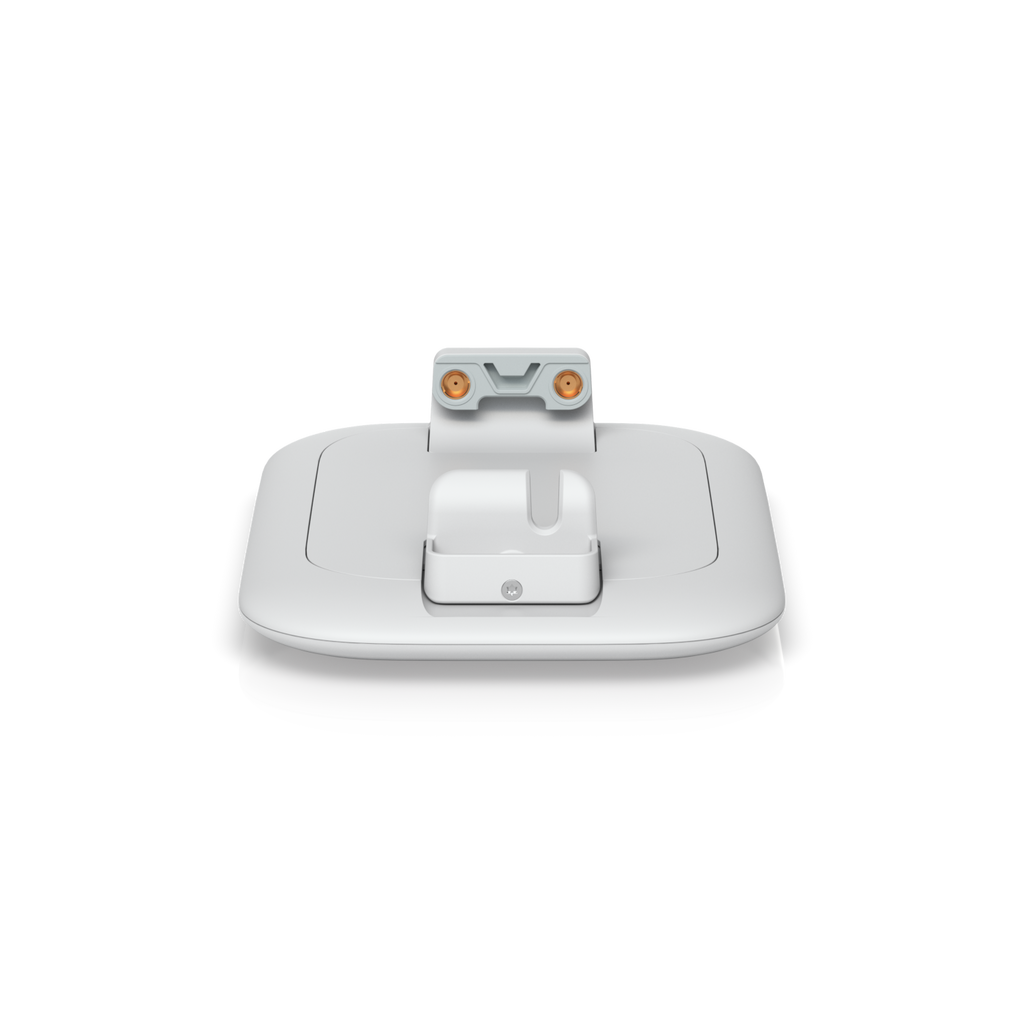

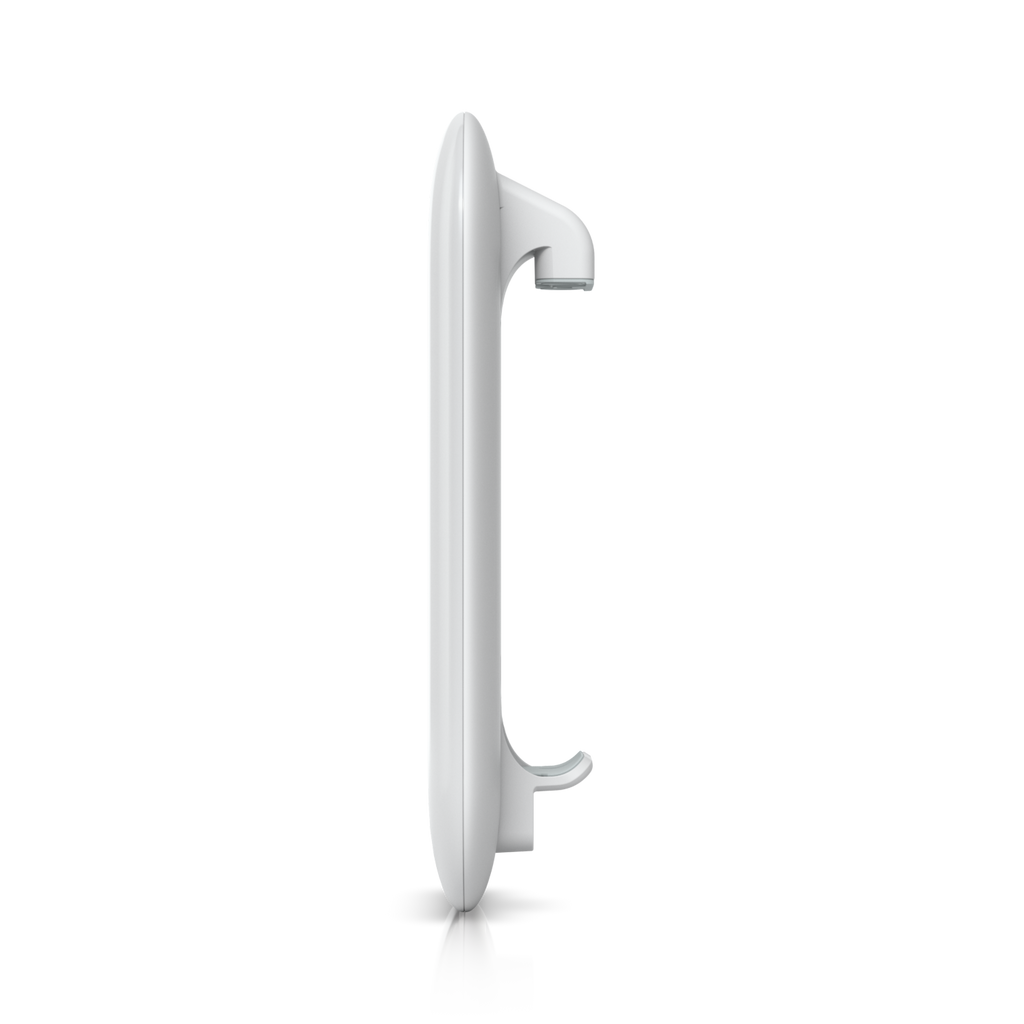

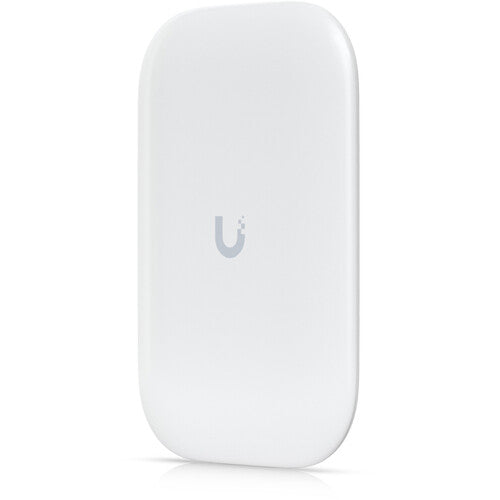

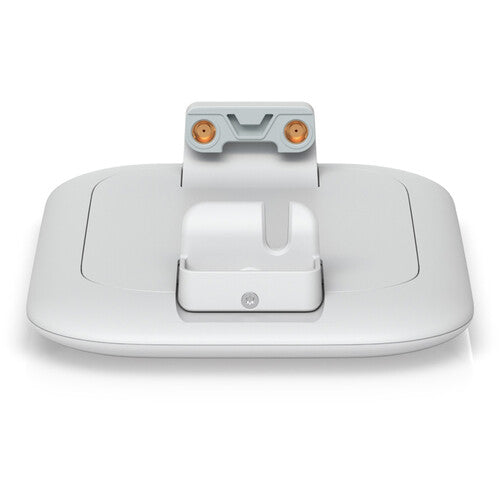

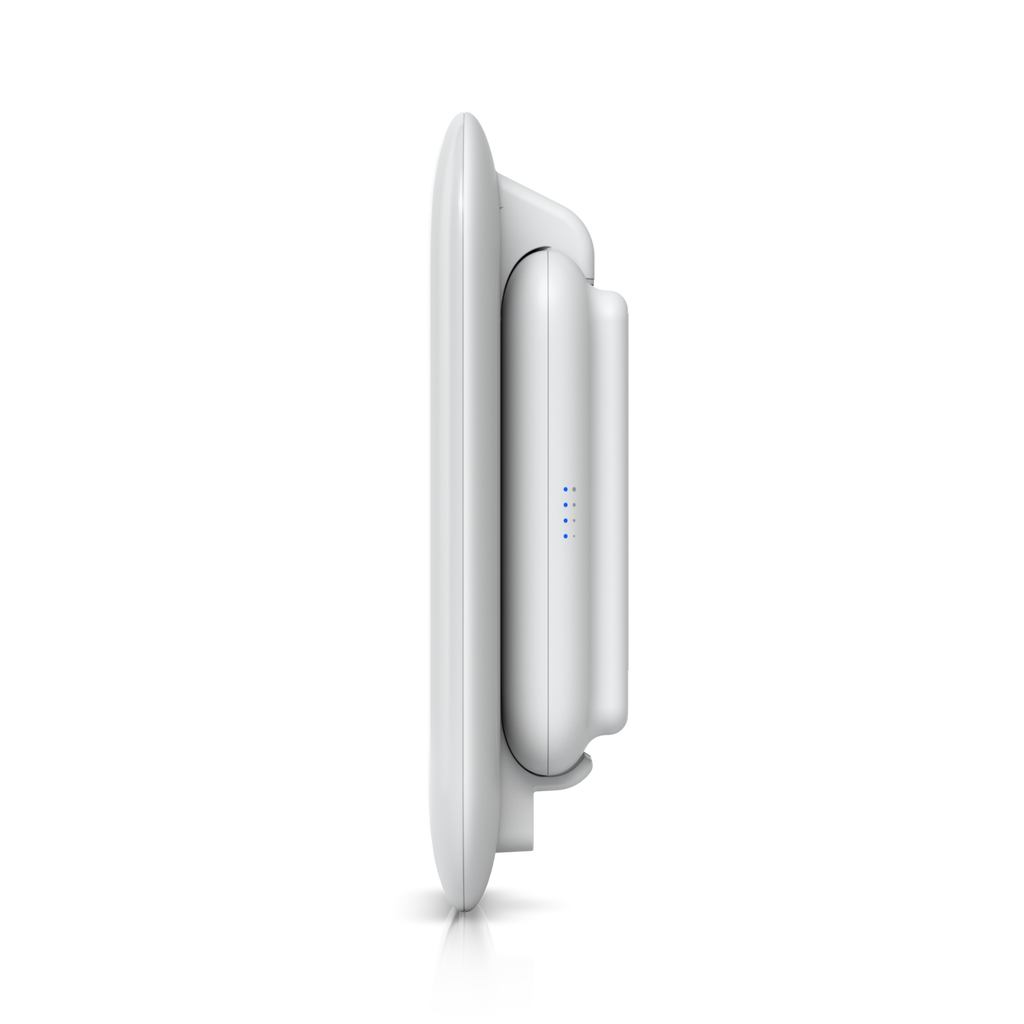

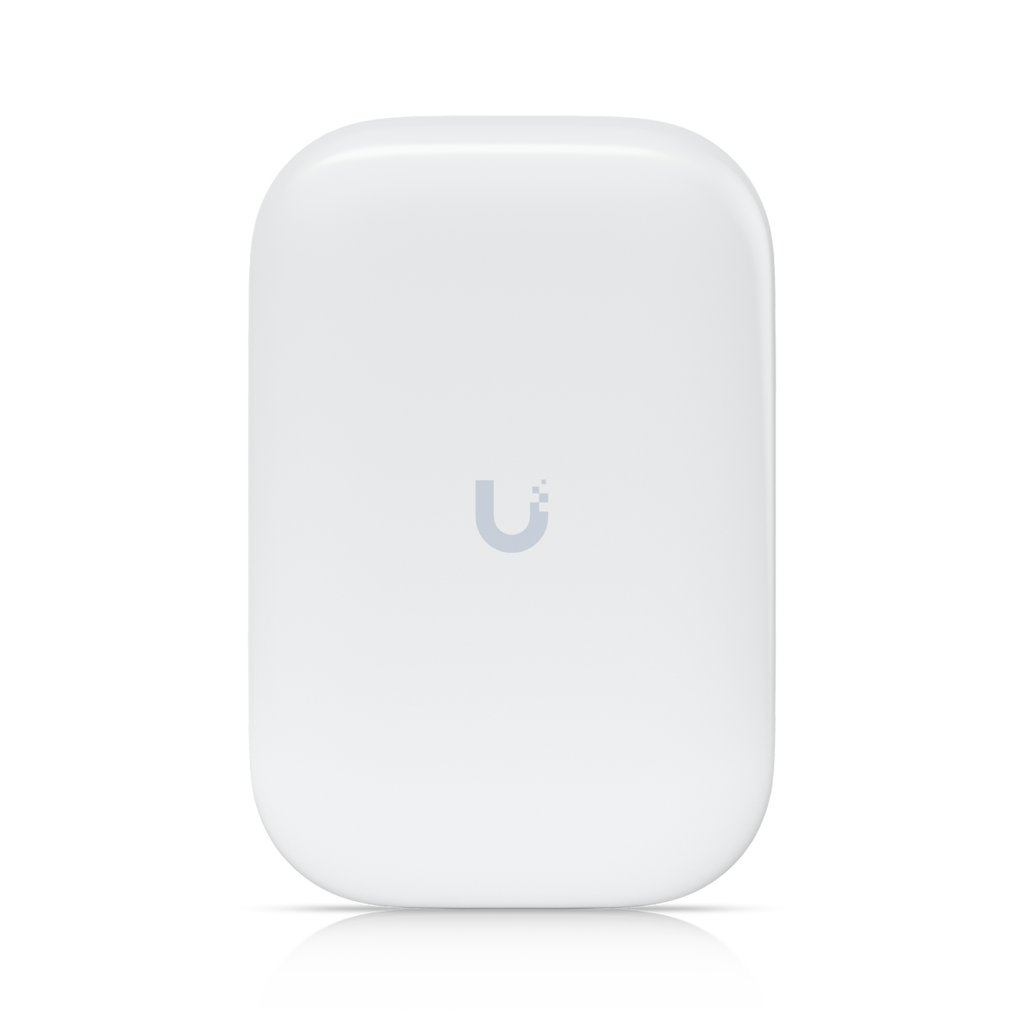

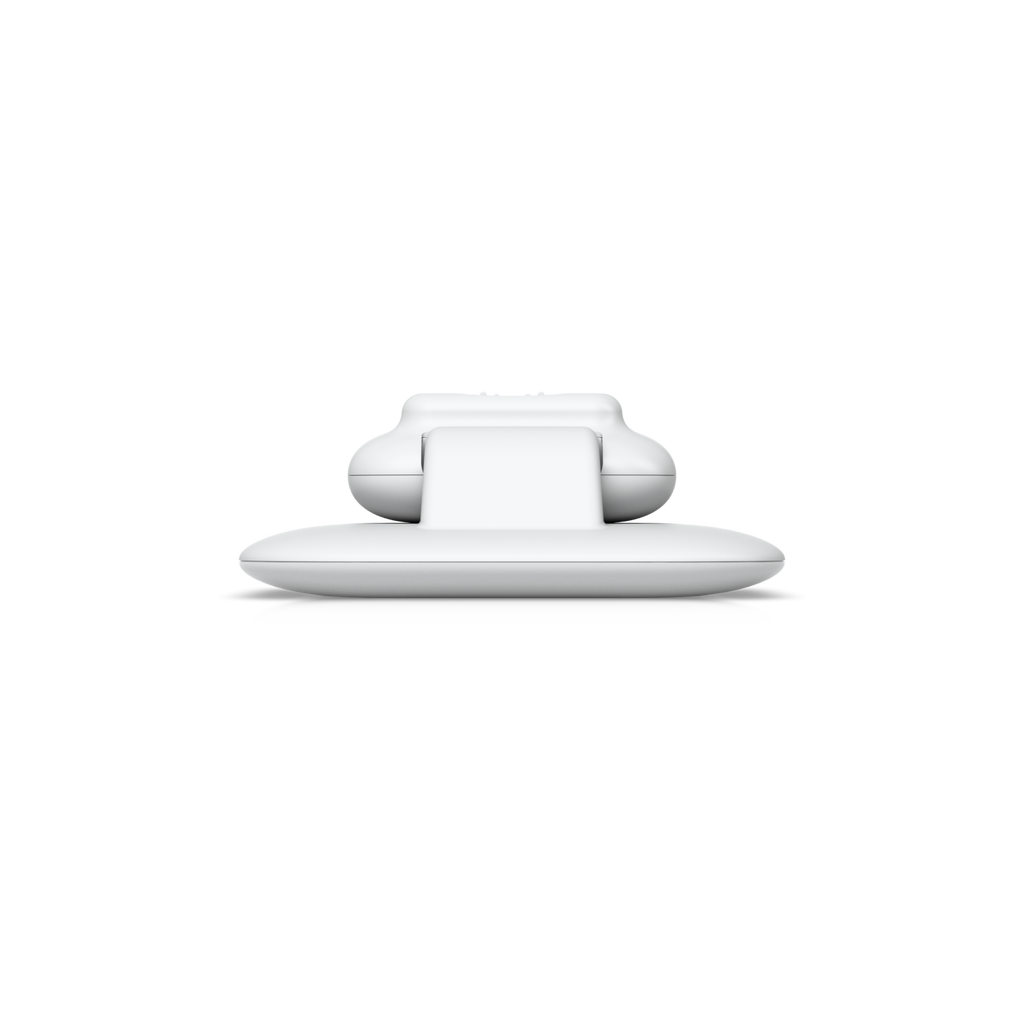

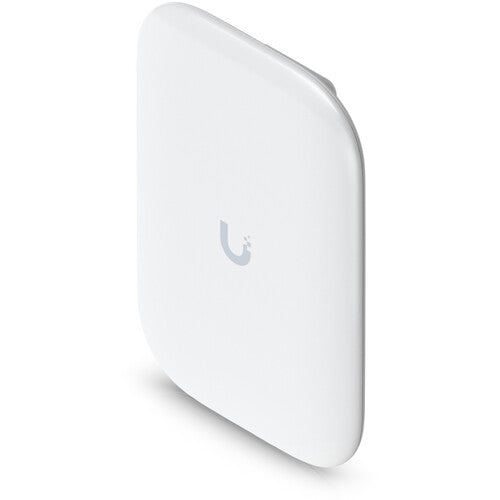

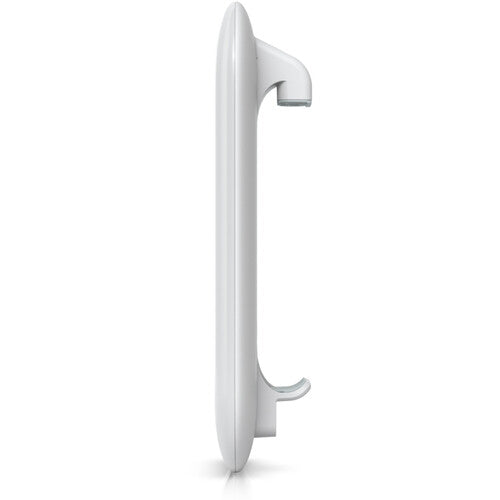

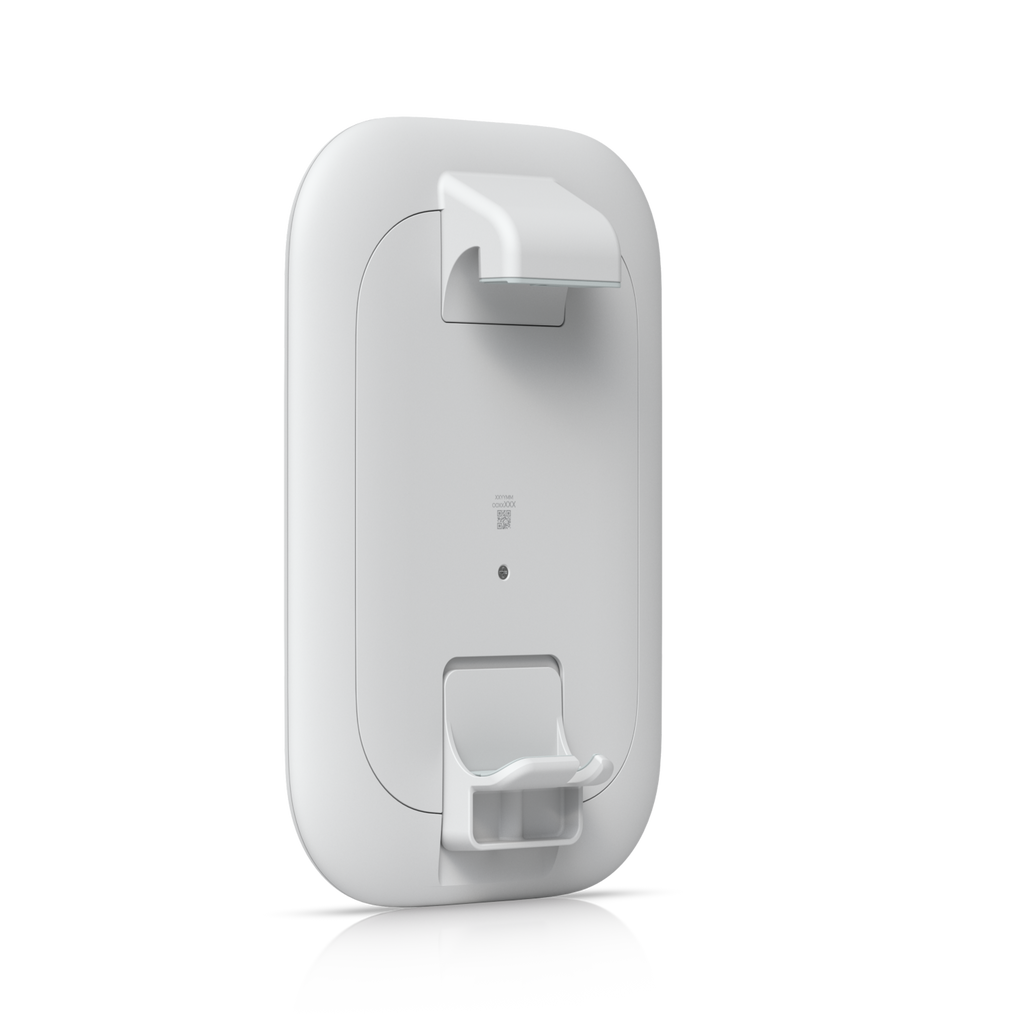

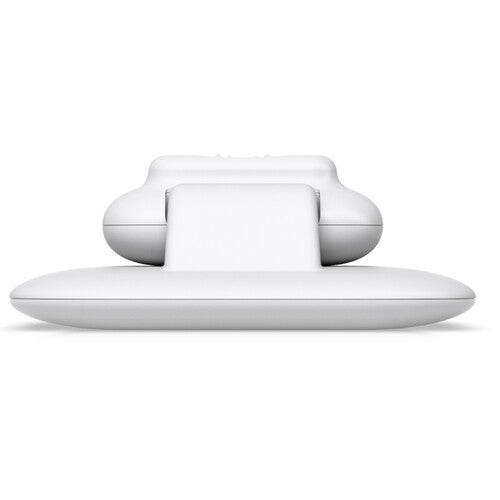

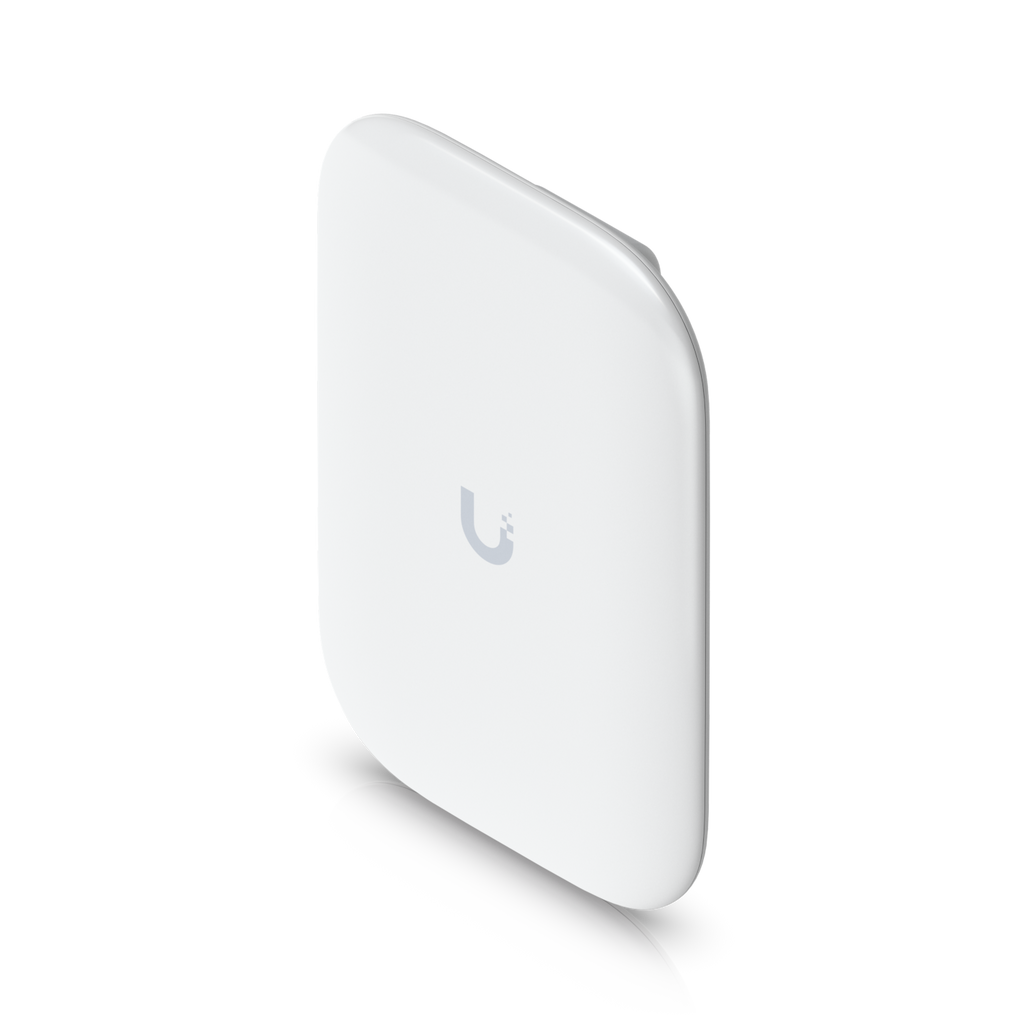

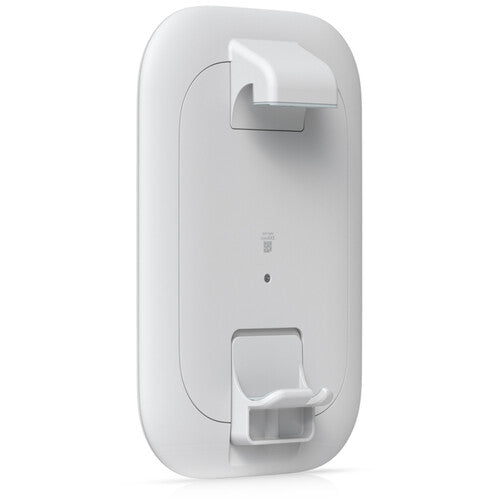

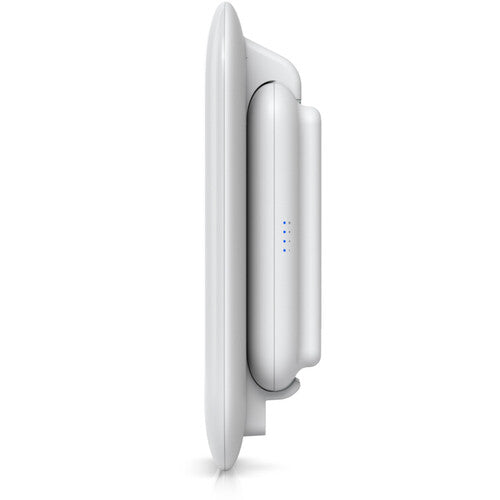

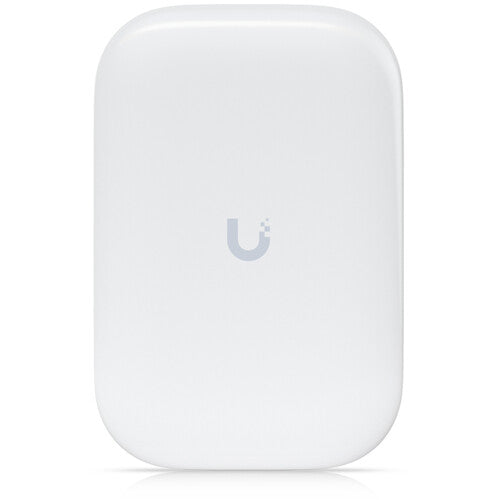

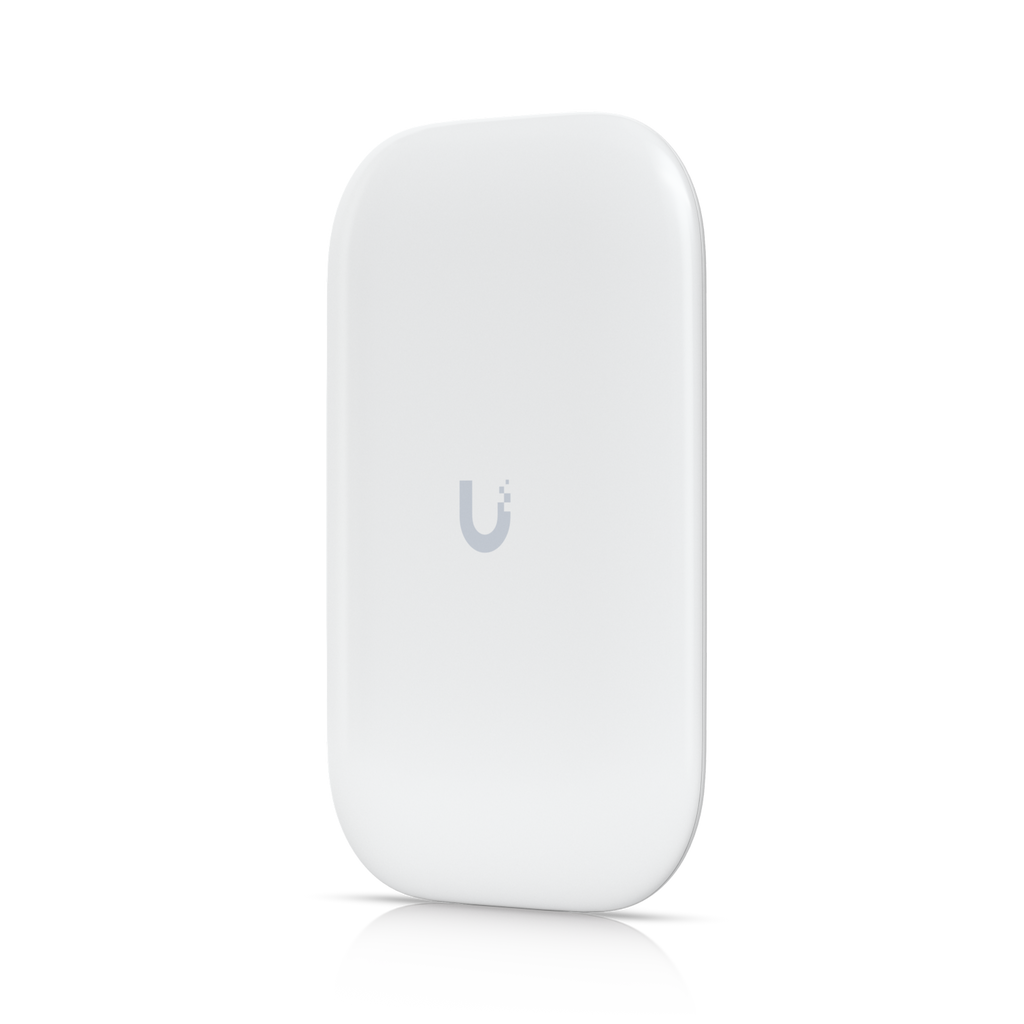

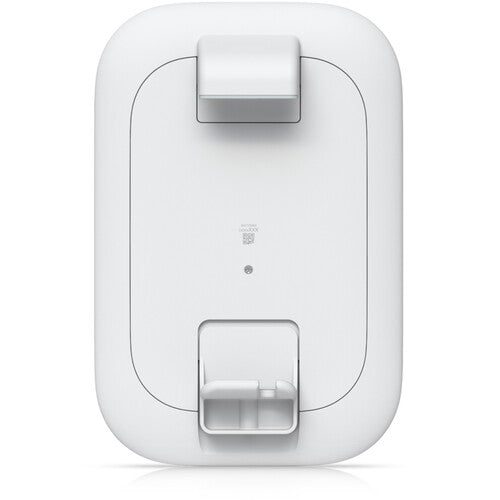

The Ubiquiti Networks Panel Antenna Ultra is designed to extend the range and coverage of the Swiss Army Knife Ultra access point.
Suitable for both indoor and outdoor use, this external antenna delivers powerful, reliable connectivity with its efficient 90° directional pattern. With IPX6 weatherproofing, UV-stabilized housing, and pole-mount support, it provides robust dual-band performance in any environment.
Ideal for focused, long-range coverage, the Panel Antenna Ultra ensures stronger, more reliable signals for enterprise and outdoor deployments.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | Panel Antenna Ultra |
| UPC | 810084694107 |
| Dimensions | 138 × 207 × 43 mm (5.4 × 8.1 × 1.7") |
| Weight | 450 g (1 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum |
| Mounting | Pole mount kit included, fits 1–2" pipe outer diameter |
| Compatible Devices | Swiss Army Knife Ultra (UK-Ultra) |
| Weatherproofing | IPX6 |
| Wind Survivability | 75 N at 200 km/h (16.7 lbf at 125 mph) |
| Antenna Gain | 5 GHz: 15 dBi 2.4 GHz: 10 dBi |
| NDAA Compliant | Yes |
