Features
-
Wi-Fi 7 Technology – Dual-band 802.11be with 2.4 and 5 GHz support
-
High-Speed Throughput – Up to 4.3 Gb/s on 5 GHz and 688 Mb/s on 2.4 GHz
-
In-Wall Design – Compact, discreet installation with included wall mount
-

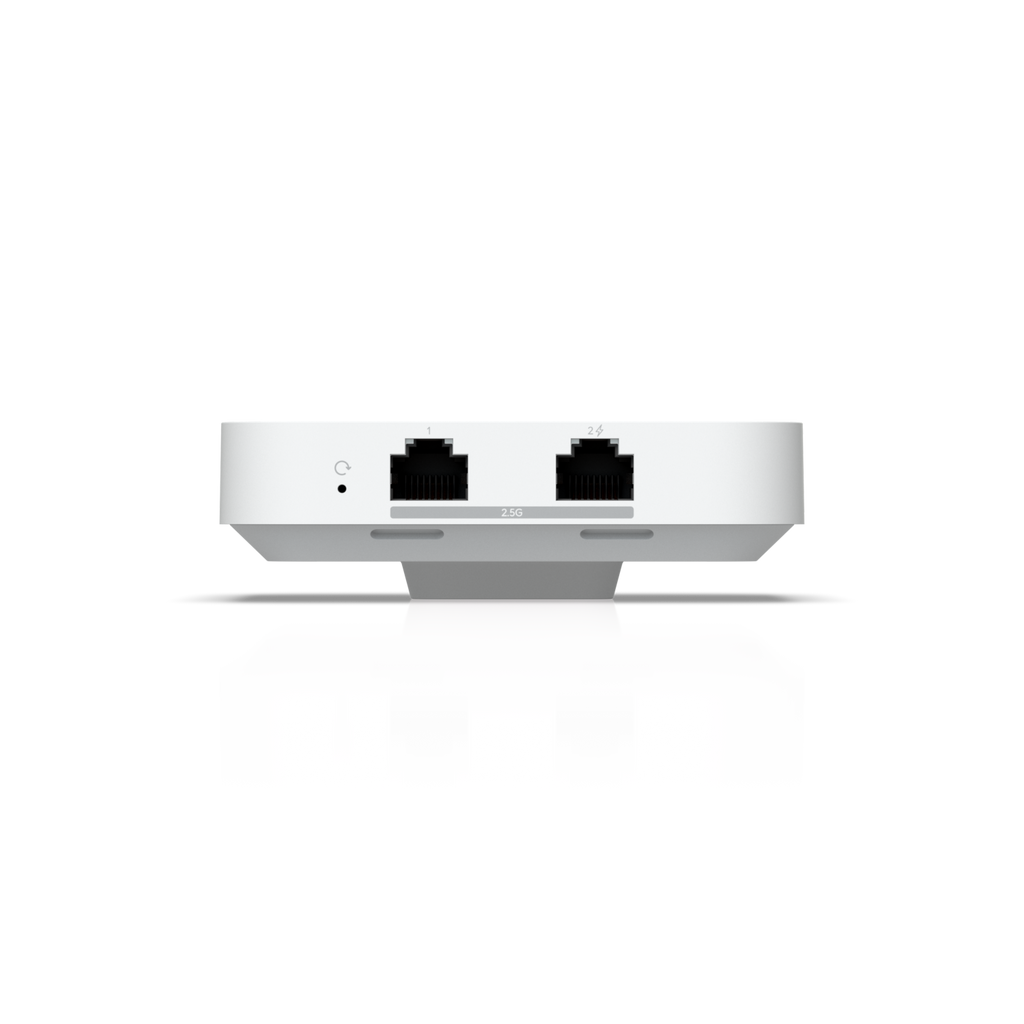

Integrated Wired Ports – 3x 2.5GbE RJ45 ports, including PoE input and output
-
Wide Coverage – Covers up to 1250 ft² with internal 8 dBi antennas
-
Scalable Performance – Four spatial streams supporting 200+ clients
-
UniFi Network Integration – Centralized setup, monitoring, and management
The Ubiquiti U7-IW-US delivers next-generation Wi-Fi 7 in a sleek wall-mounted design, combining high-speed dual-band wireless performance with integrated wired connectivity. Ideal for modern home or office setups, it supports 200+ clients, up to 5000 Mb/s throughput, and provides flexible PoE options with seamless UniFi Network management.
The Ubiquiti UniFi U7-IW-US is a sleek dual-band Wi-Fi 7 access point that delivers speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. Designed for discreet wall-mounting, it supports 200+ clients and up to 1250 ft² coverage with four spatial streams.
Featuring three 2.5GbE ports, including PoE in and PoE out, it simplifies installation while expanding wired and wireless connectivity. Ubiquiti U7-IW-US Wi-Fi 7 AP with dual-band 5 Gb/s speeds, 200+ client support, 3x 2.5GbE ports (PoE input & output), 1250 ft² coverage, and UniFi management.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | U7-IW-US |
| UPC | 810084698785 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), Dual-Band (2.4 & 5 GHz), MU-MIMO 2x2 |
| Throughput | 5 Gb/s total (5 GHz: 4.3 Gb/s, 2.4 GHz: 688 Mb/s) |
| Coverage Area | 1250 ft² |
| Max. Client Count | 200+ |
| Spatial Streams | 4 |
| Antenna Gain | 8 dBi (internal) |
| Max TX Power | 24 dBm |
| Interfaces | 3x RJ45 2.5 GbE (PoE/PoE+ input, 1x standard port, 1x PoE output) |
| Power Method | PoE / PoE+, 42.5–57 VDC |
| Max Power Consumption | Not specified |
| Operating Conditions | -22 to 104°F / -30 to 40°C at 5–95% humidity |

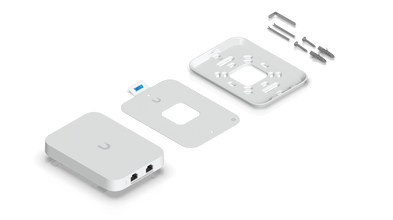

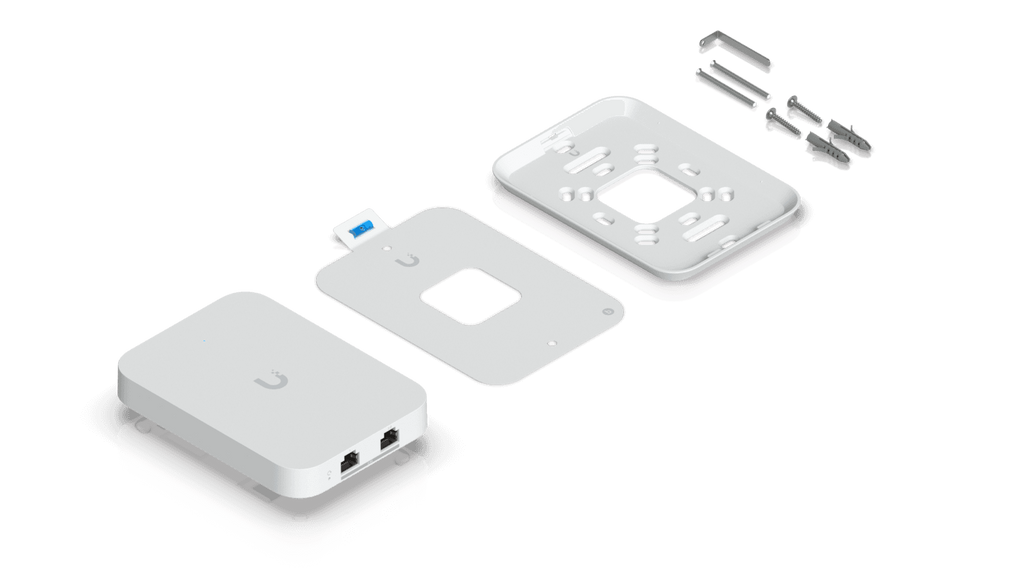

| Mounting Options | Wall (metal mount & hardware included) |
| Dimensions | 5.4 × 3.9 × 1.2" / 137 × 98.7 × 30.2 mm |
| Certifications | CE, FCC, IC |
