Features
-
Wi-Fi 6 Technology – Dual-band 802.11ax with MU-MIMO for faster, more efficient wireless
-
High-Speed Throughput – Up to 5.3 Gb/s (4800 Mb/s on 5 GHz, 573 Mb/s on 2.4 GHz)
-

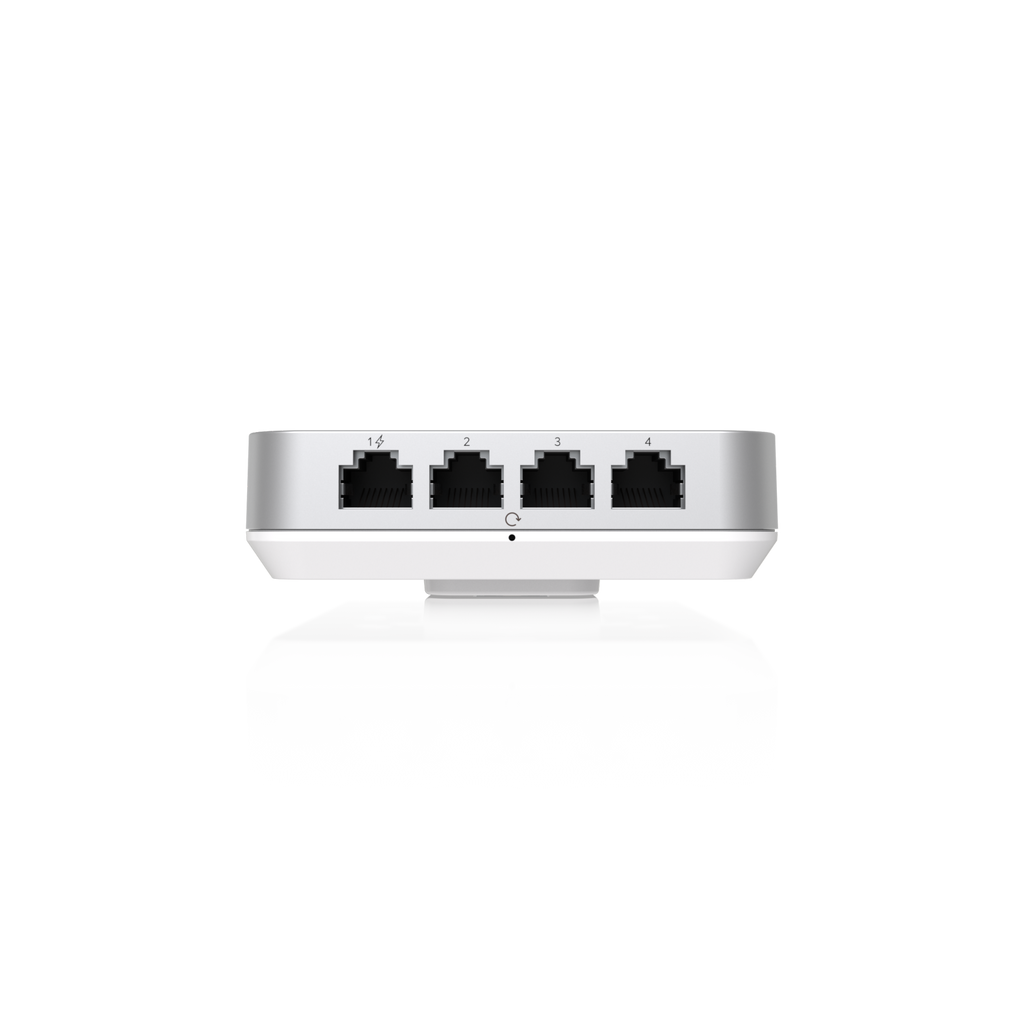

Integrated Gigabit Switch – 4x RJ45 ports, including 1 PoE output for powering devices
-
Scalable Capacity – Supports over 300 concurrent clients and up to 8 SSIDs
-
In-Wall Design – Low-profile mounting for seamless integration into any environment
-
UniFi Network Integration – Centralized setup, monitoring, and remote firmware updates

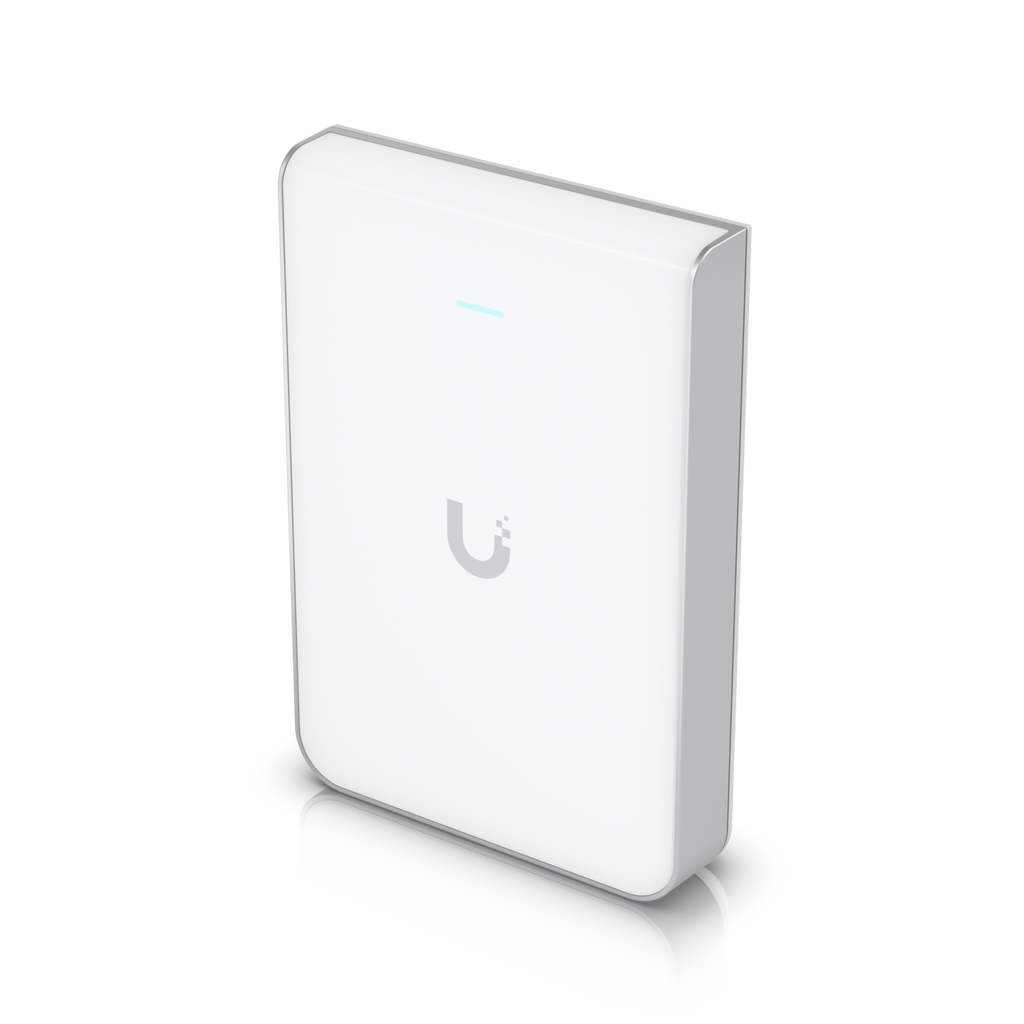

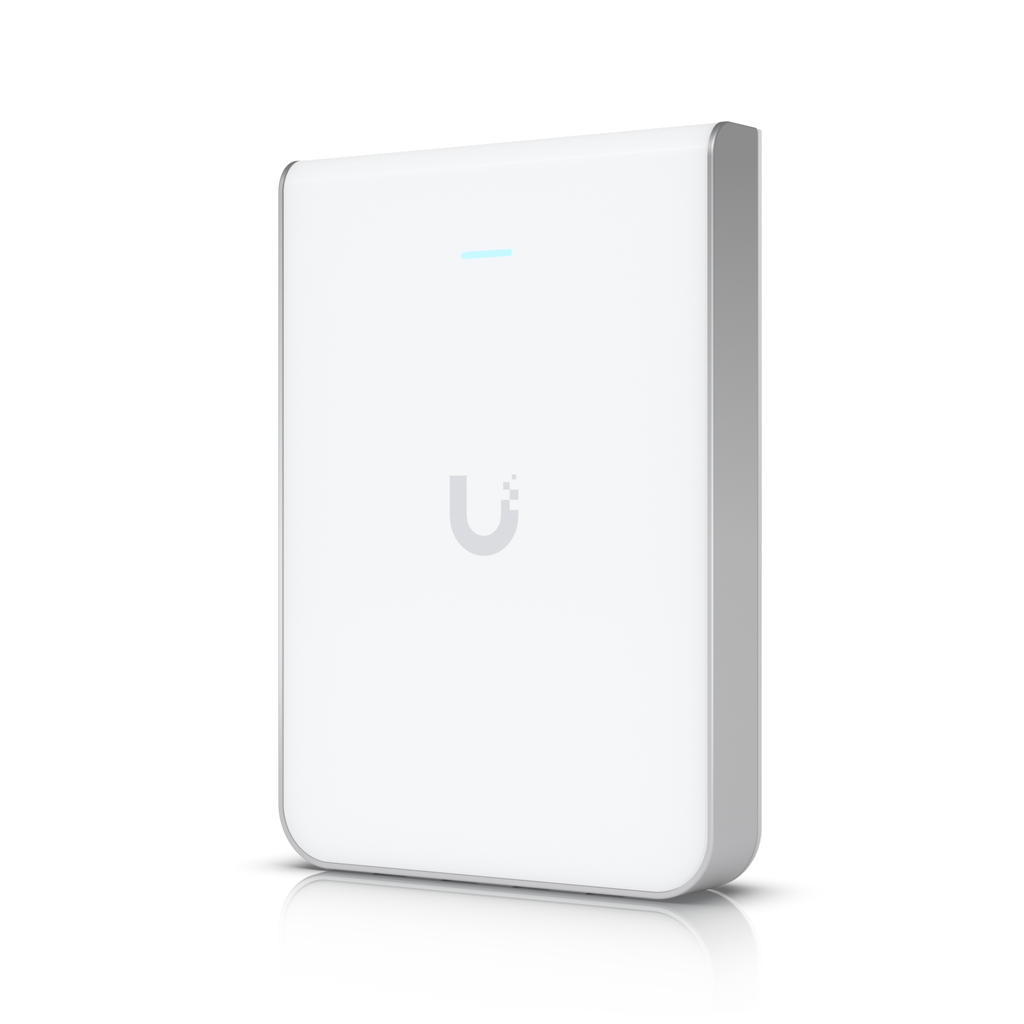

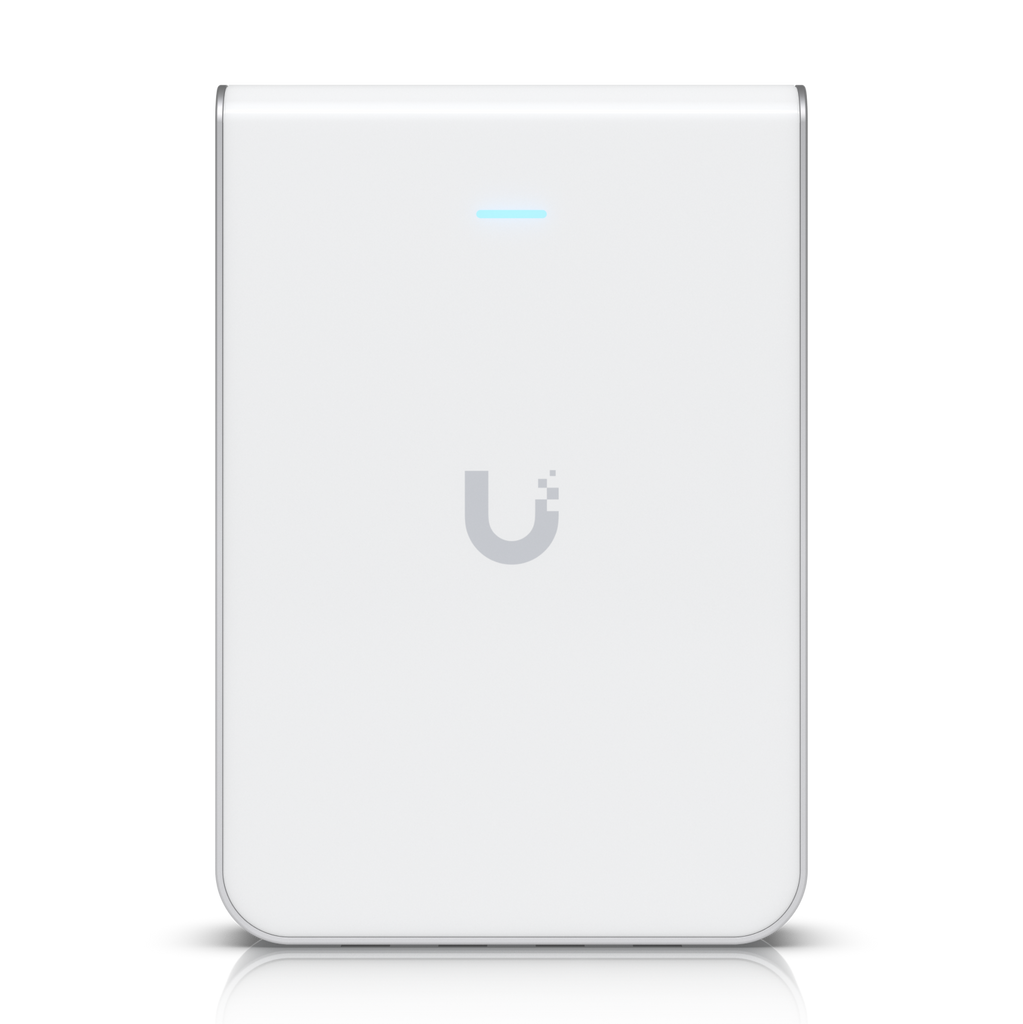

The Ubiquiti UniFi U6-IW (U6 In-Wall) combines powerful Wi-Fi 6 performance with integrated wired connectivity, delivering up to 5.3 Gb/s throughput and support for 300+ clients. Designed for discreet in-wall mounting, it also functions as a mini switch with four Gigabit Ethernet ports, including PoE support, making it a versatile choice for modern businesses and offices.
The Ubiquiti UniFi U6-IW (U6 In-Wall) delivers next-gen Wi-Fi 6 speeds up to 5.3 Gbps with discreet in-wall installation. Featuring four Gigabit Ethernet ports, including one PoE output, it simplifies connectivity for VoIP phones, APs, and wired devices.
Ubiquiti U6-IW (U6 In-Wall) Wi-Fi 6 AP with 5.3 Gb/s speeds, 4 Gigabit LAN ports with PoE output, 300+ client support, and UniFi Network integration. Designed for high-density environments, it supports 300+ clients with advanced UniFi Network Application management.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | U6-IW |
| UPC | 810010073488 |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), Dual-Band (2.4 & 5 GHz), MU-MIMO 4x4 |
| Throughput | 5373 Mb/s total (5 GHz: 4800 Mb/s, 2.4 GHz: 573 Mb/s) |
| Coverage Area | Not specified (supports 300+ clients) |
| Max. Client Count | 300+ |
| Antennas | Internal, 5–5.9 dBi gain |
| Max TX Power | 22–26 dBm |

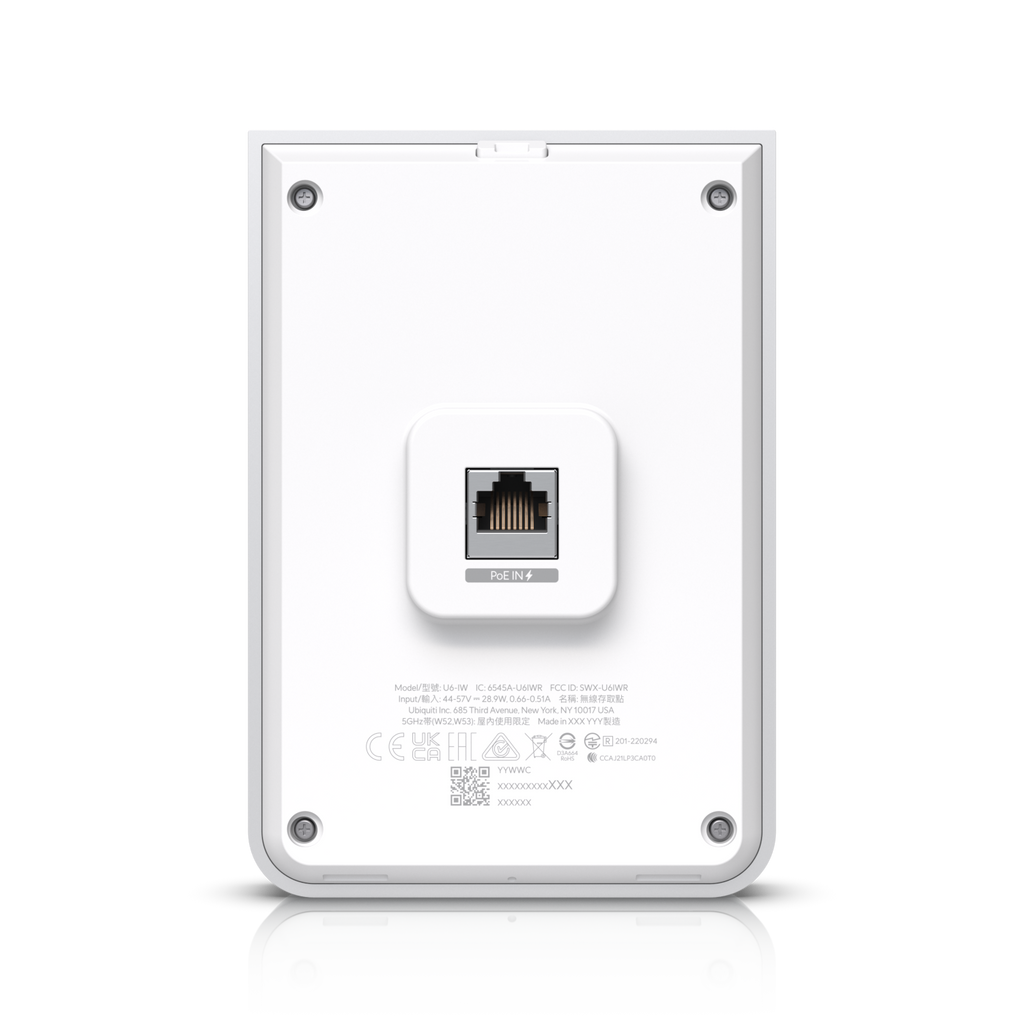

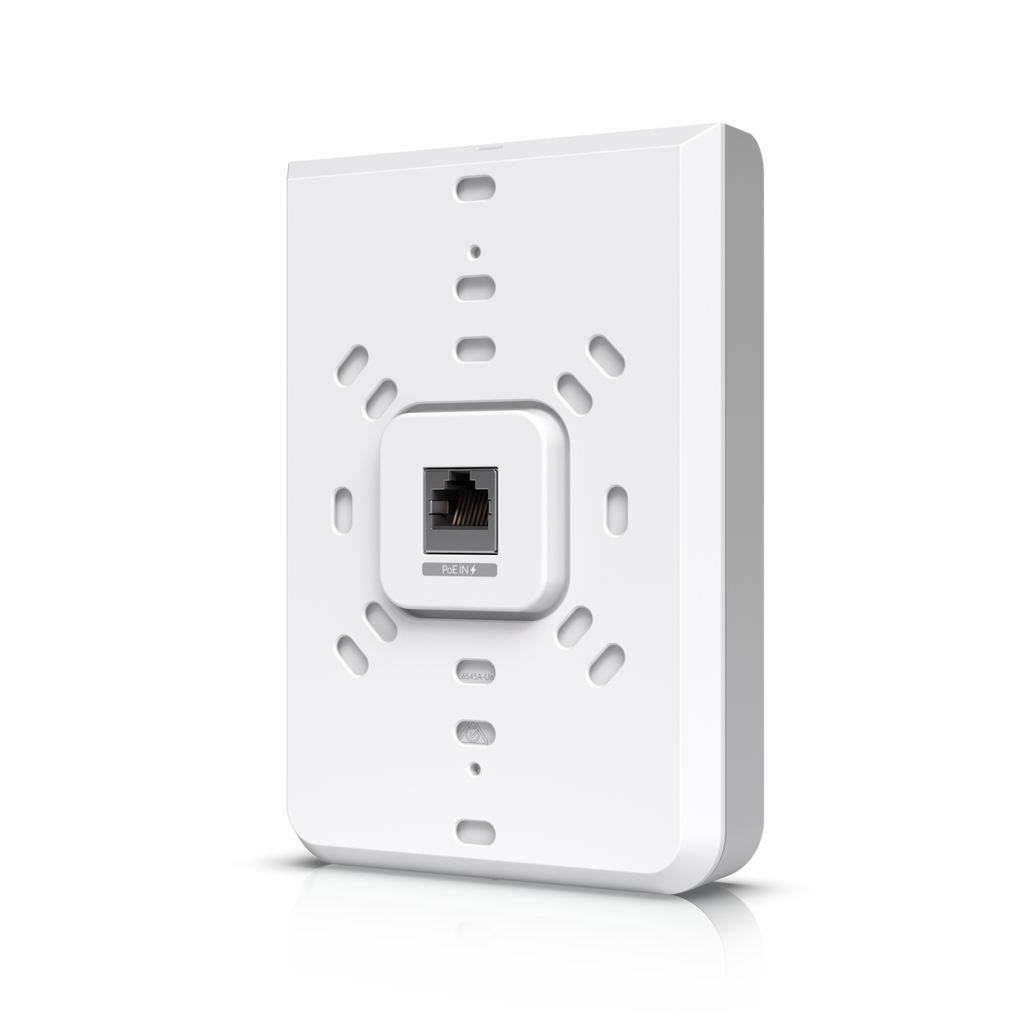

| Interfaces | 1x RJ45 Gigabit Ethernet PoE uplink 4x RJ45 Gigabit Ethernet LAN ports (1x PoE output) |
| Power Method | PoE |
| Power Consumption | 11 W |
| Wireless Security | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Supported SSIDs | Up to 8 |
| Operating Conditions | 51 to 122°F / 11 to 50°C |

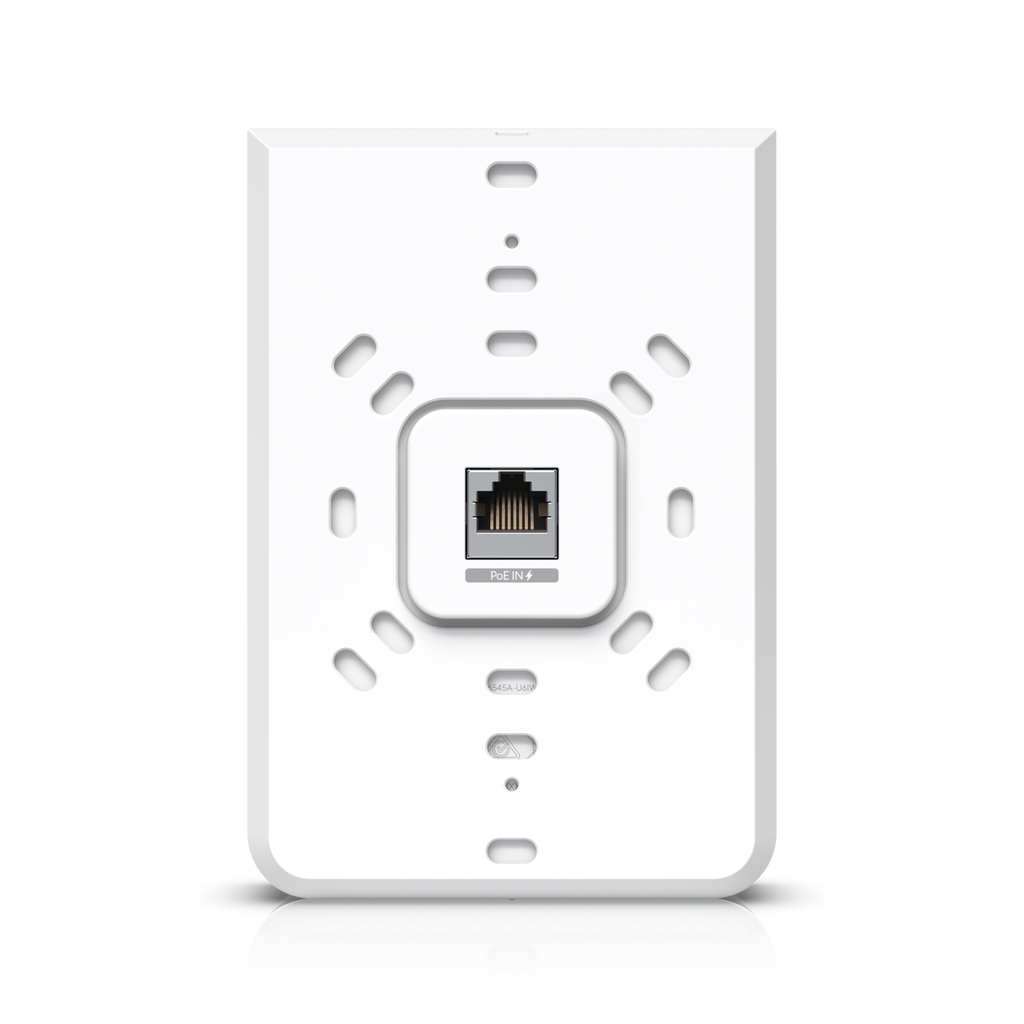

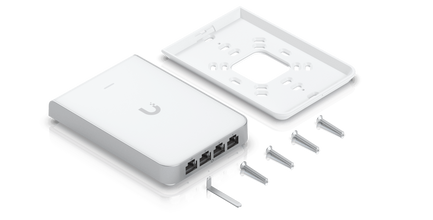

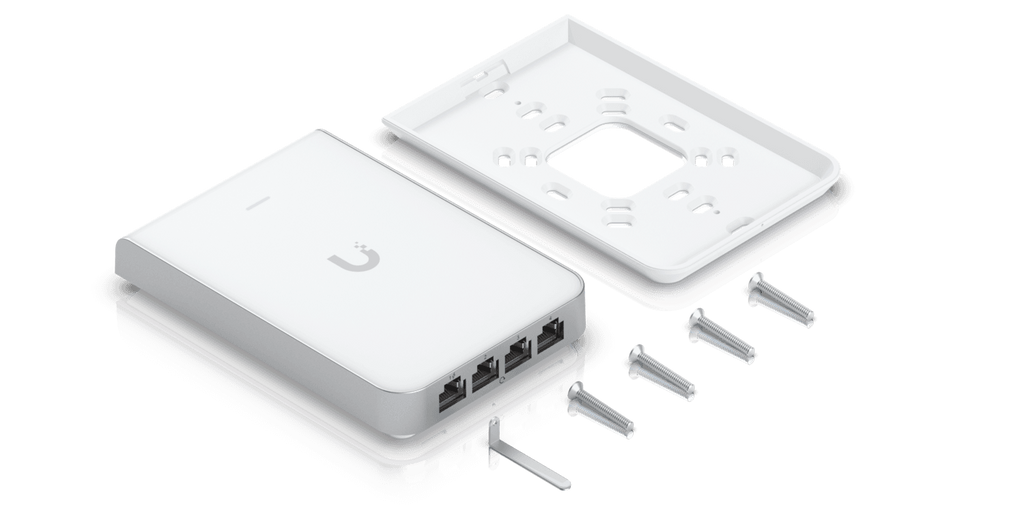

| Mounting Options | Wall (mount kit included) |

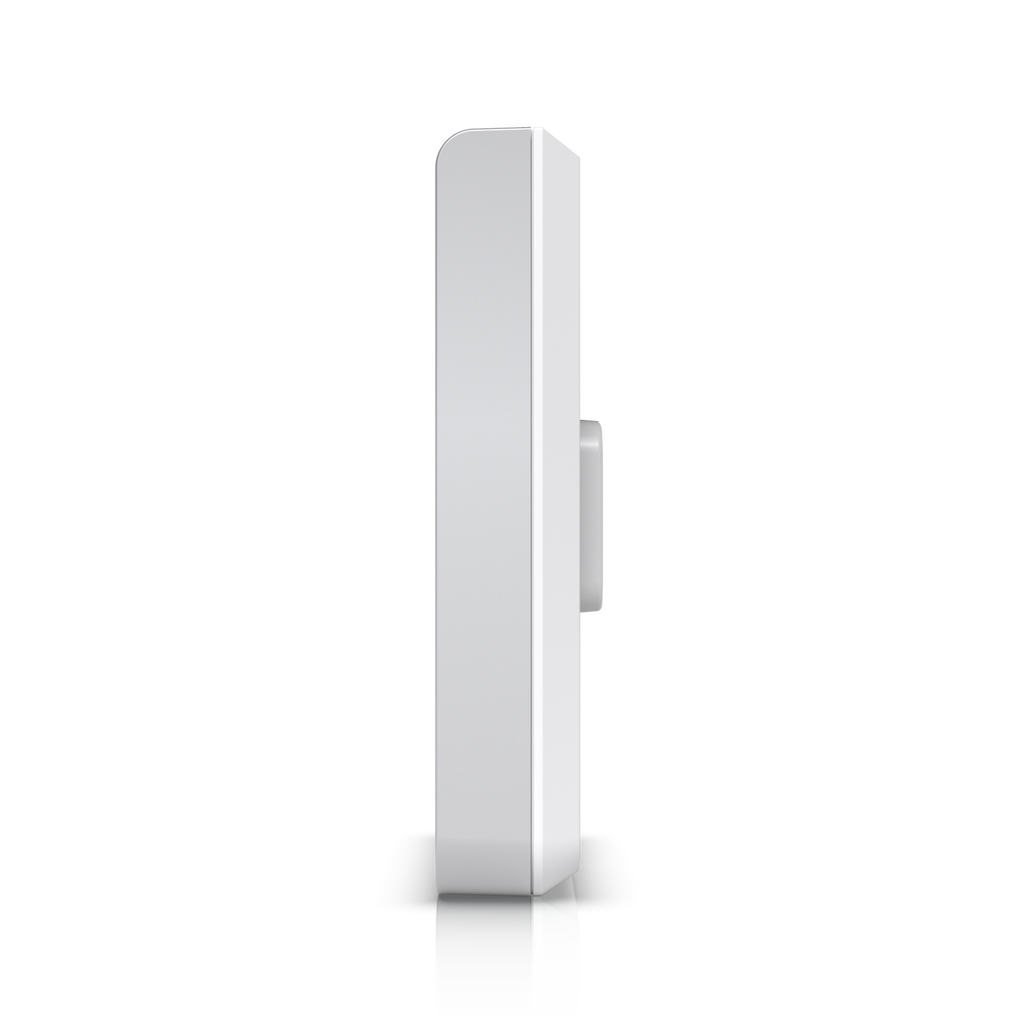

| Dimensions | 5.5 × 3.8 × 1.3" / 139.66 × 96 × 31.9 mm |
| Weight | 1 lb / 460 g |
| Certifications | FCC, IC, CE |
